1980 Blue Water Ingrid 38

1980 Blue Water Ingrid 38   Specifications

Year.......................................................... 1980

Refit..................................Complete 2003/2012

Builder............................................... Bluewater

Designer................................................... Atkin

LOA.............................................................. 43

LOD.............................................................. 38

LWL.............................................................. 32

Beam....................................................... 11.33

Draft................................................................ 6

Displacement......................................... 26,000

Ballast....................................................... 8000

Hull                                           Solid Fibreglass

Deck...................................... Balsa cored deck

Steering..................................................... Tiller

Keel..................................................... Full keel

Rudder.............................................. keel hung

Fuel................................................ ~80 Gallons

Water........................................... ~120 Gallons

Hot Water..................................... 10.5 Gallons

Holding Tank.................................. ~30 Gallons

CONSTRUCTION

• Solid overbuilt hand laid fiberglass hull
• Insulated with ¾” rigid foam glassed in lockers and then glassed over
• Deck is Balsa cored with ¾ rigid foam on inside

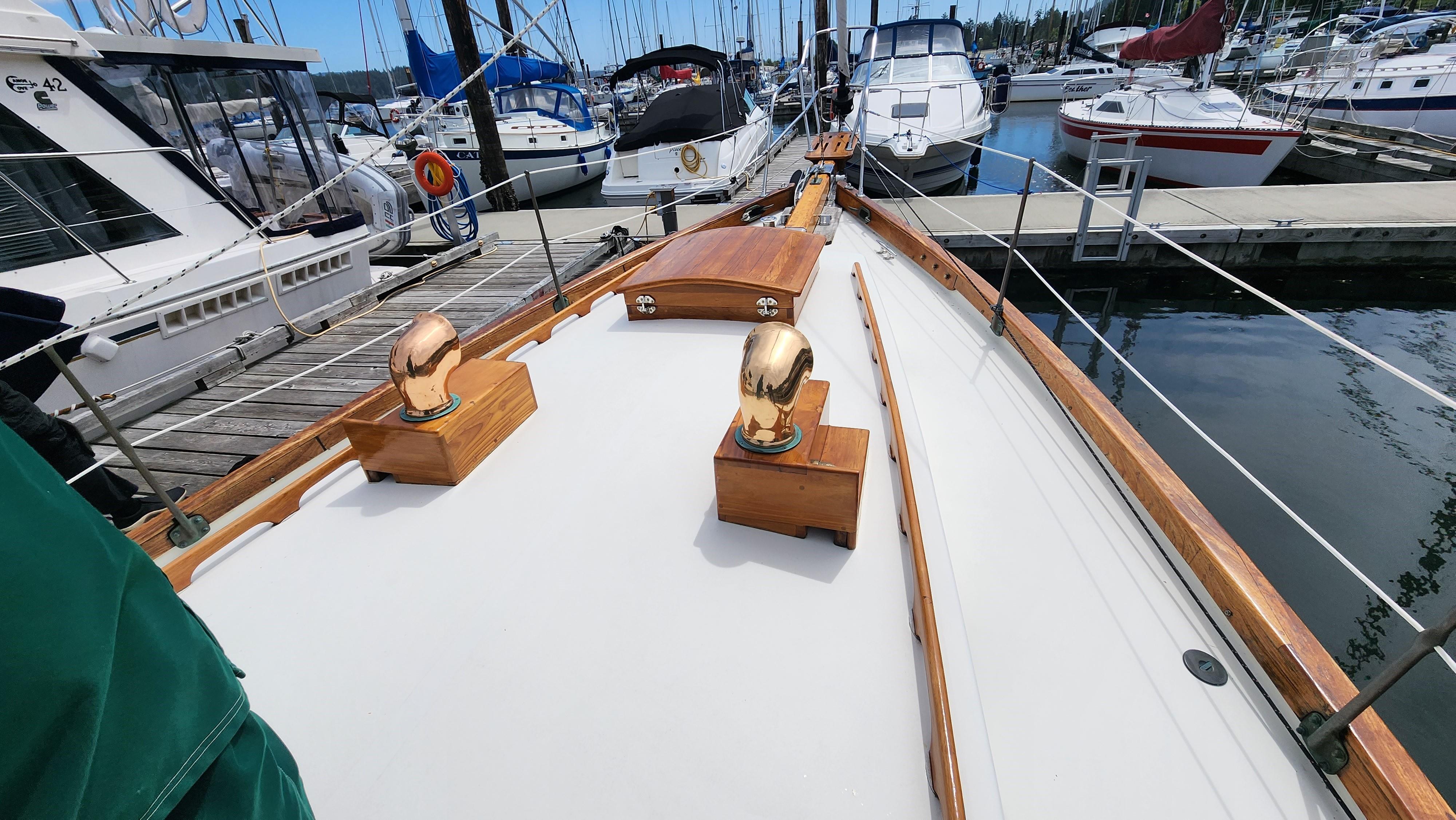

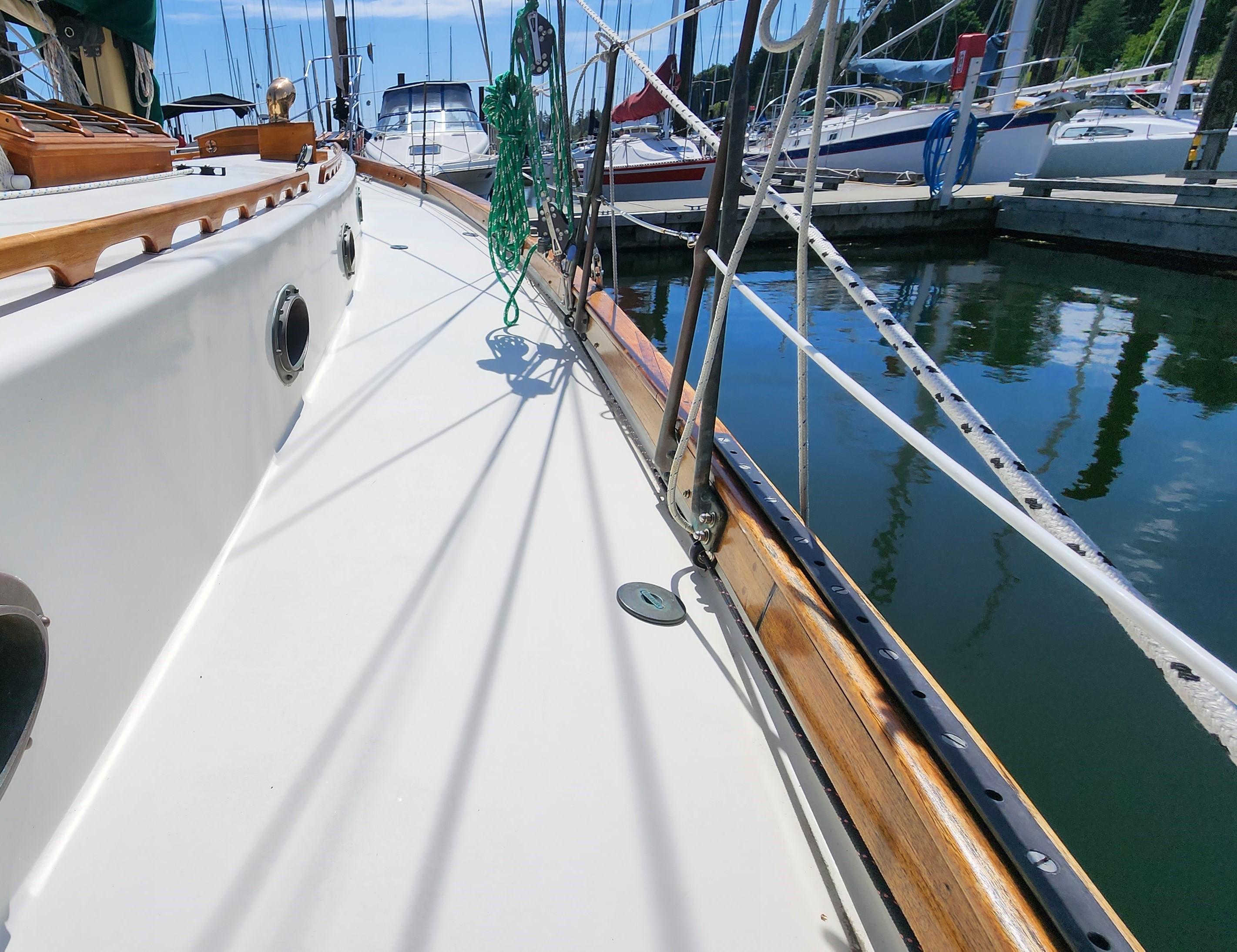

• Teak cap rail and bulwarks
• Oak and fir laminated deck beams under cabin top
• Purple heart knees
• Glassed in 1” plywood bulkheads
• Flooring is solid tongue and groove teak that is farmed in Central America with ½” plywood backing sealed with marine-grade paint
• Hull is accessible in the event of issues through hinged floor storage lockers
• Internal ballast
• Extended trunk cabin forward and aft differs from standard Ingrid
• Baltic Birch paneling in cabin trunk
• Teak cabinet doors with Arbutus louvers
• Bronze opening ports in cabin trunk

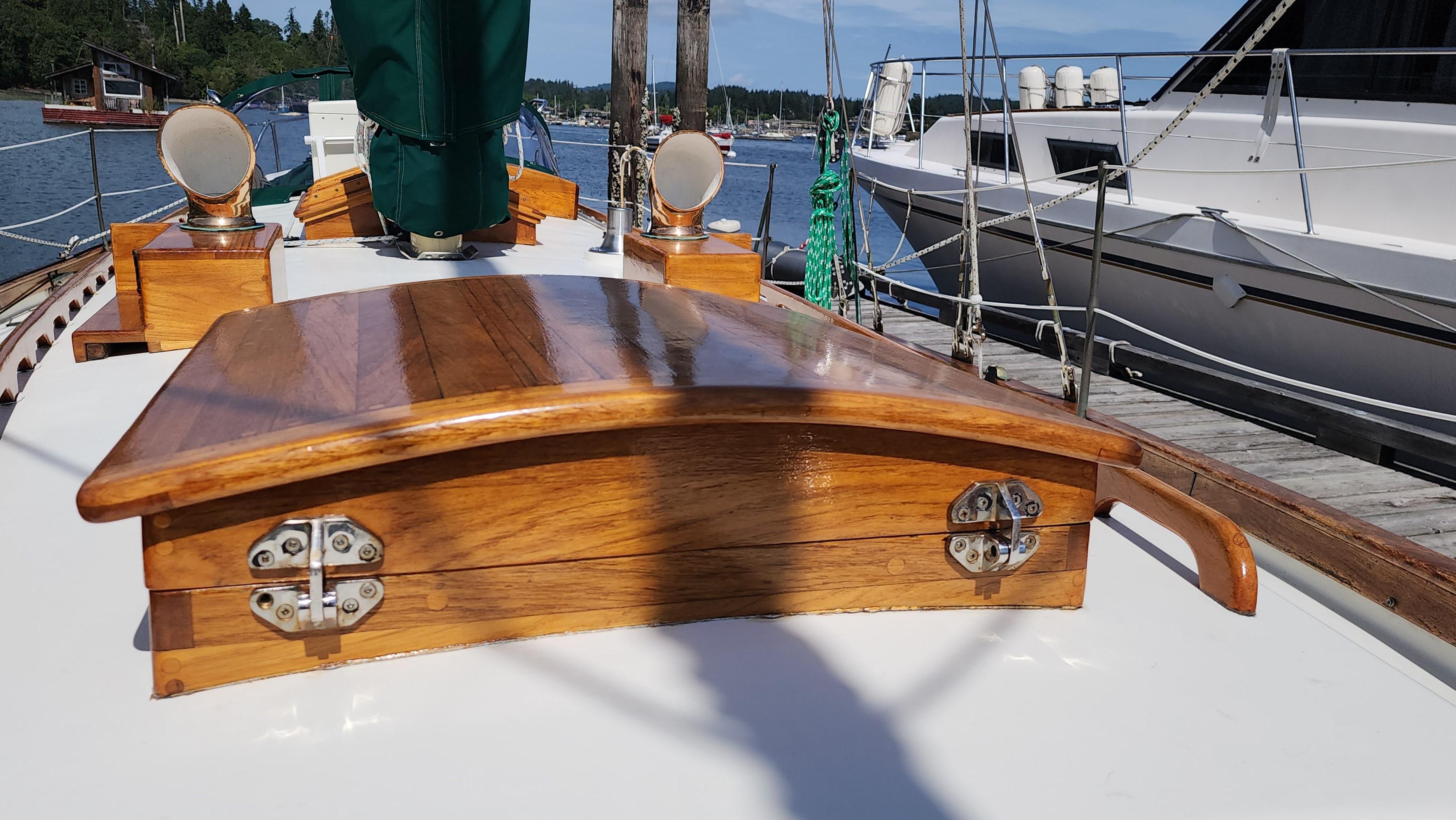

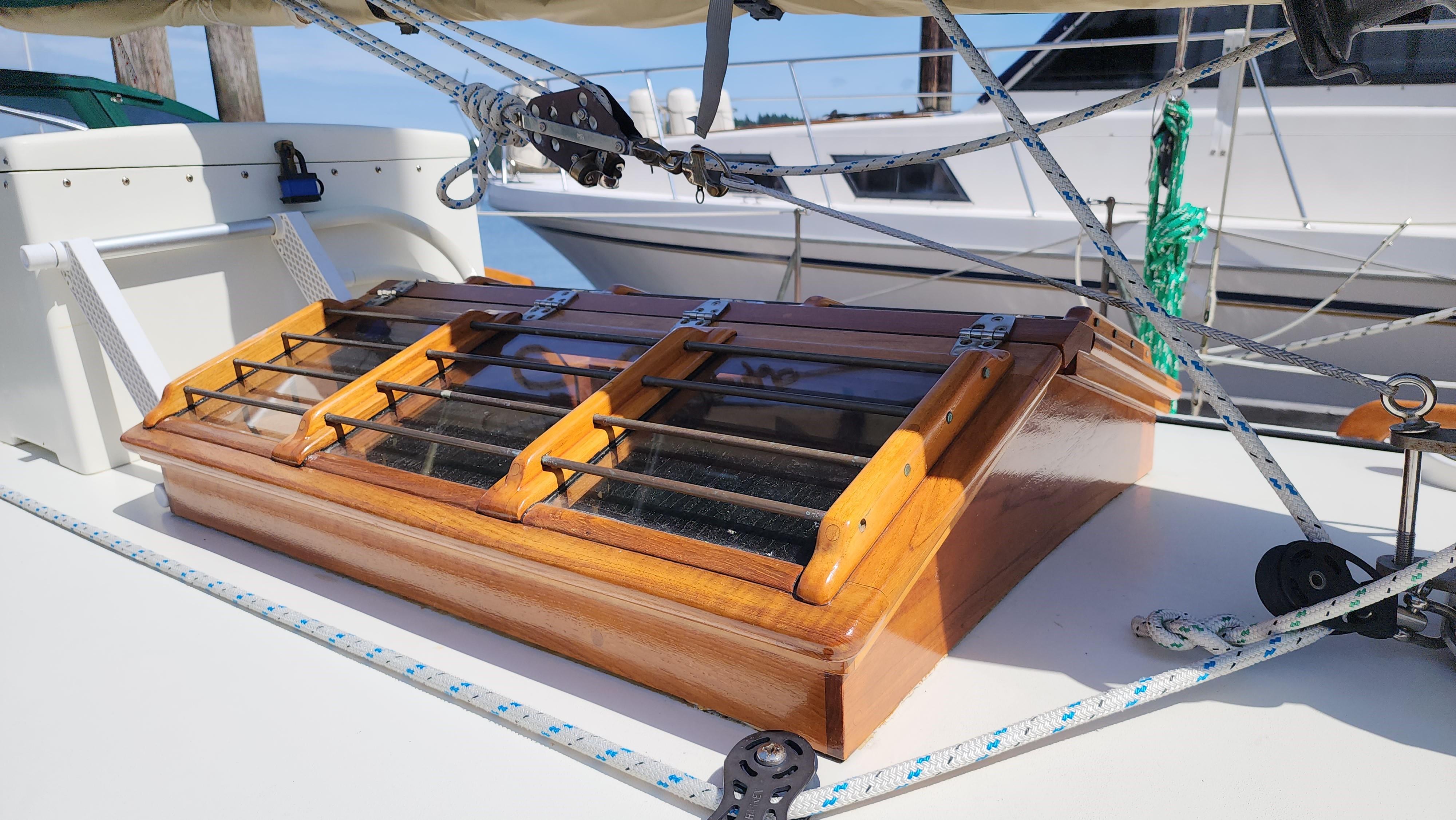

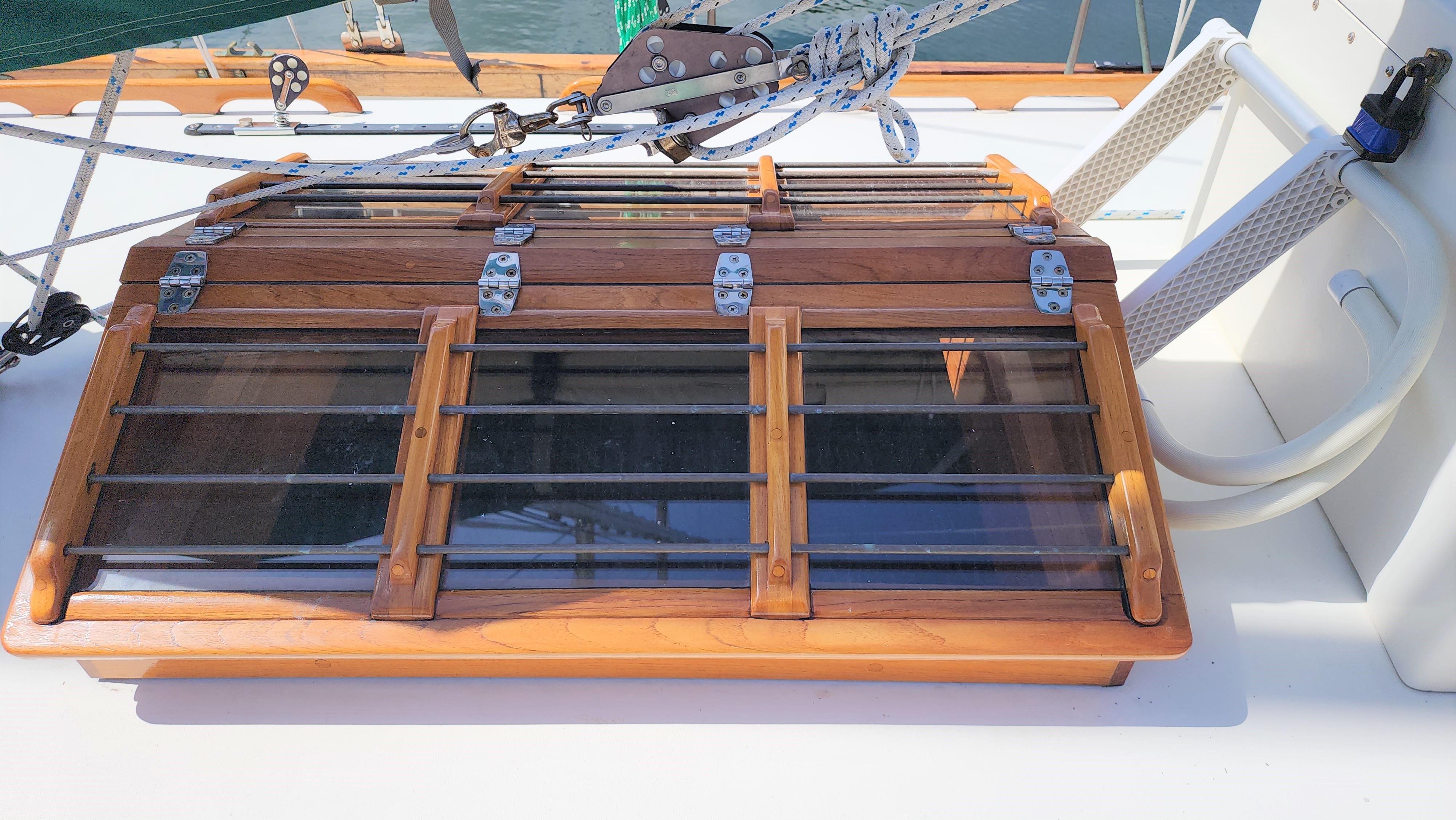

• Teak butterfly hatch over salon
• All deck fittings bedded with either 3M 4200 or 5200
• Marine grade Aluminum backing plates where needed

INTERIOR

• This Ingrid 38 with the extended forward cabin provides more headroom over the V berth and galley.
• V berth forward with lockers to port aft of V berth and across from enclosed head. Storage under V berth

• Salon is midships with galley in aft starboard quarter across from electrical and nav station
• Aft port quarter can be a single berth but is currently a storage area

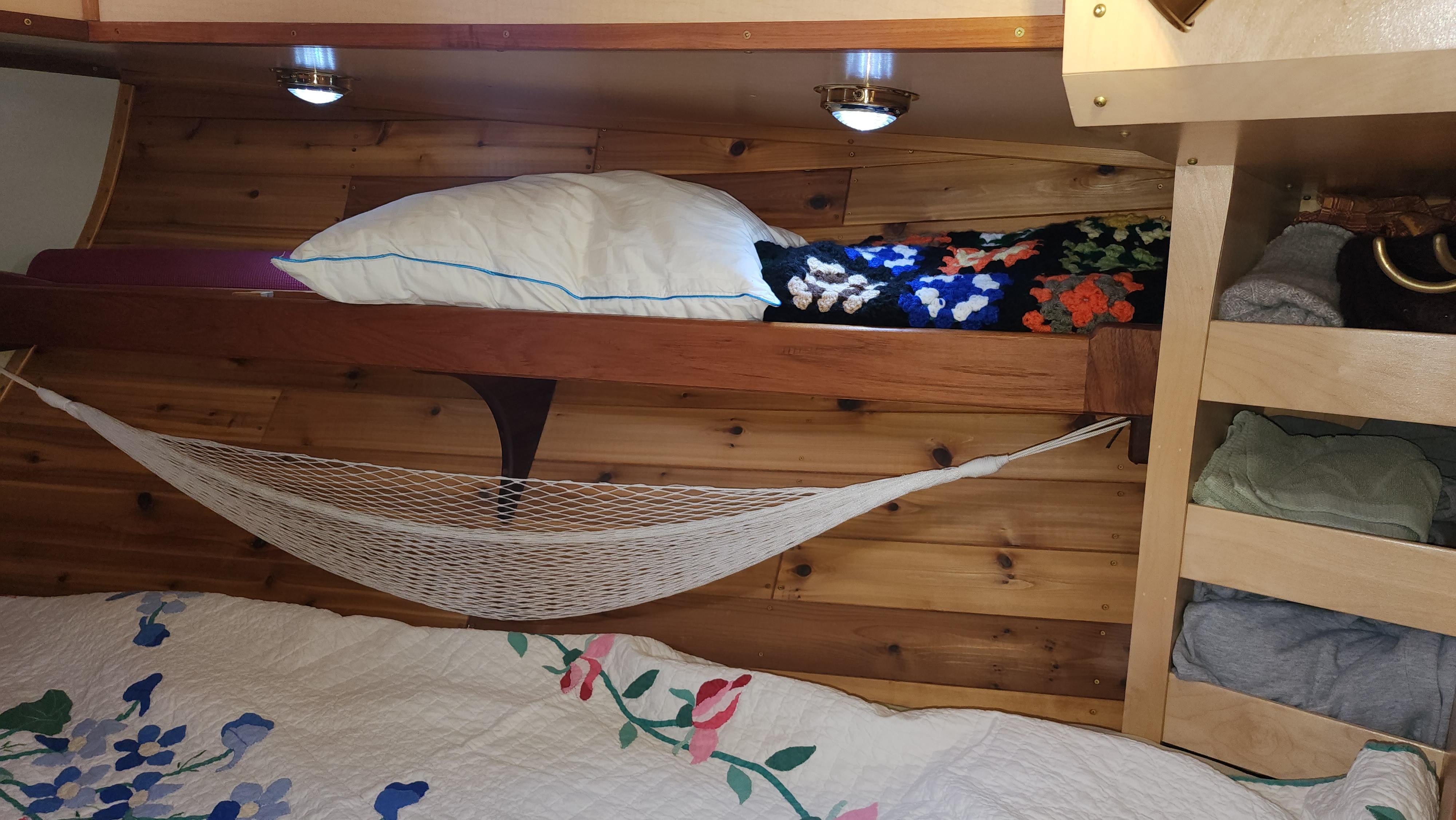

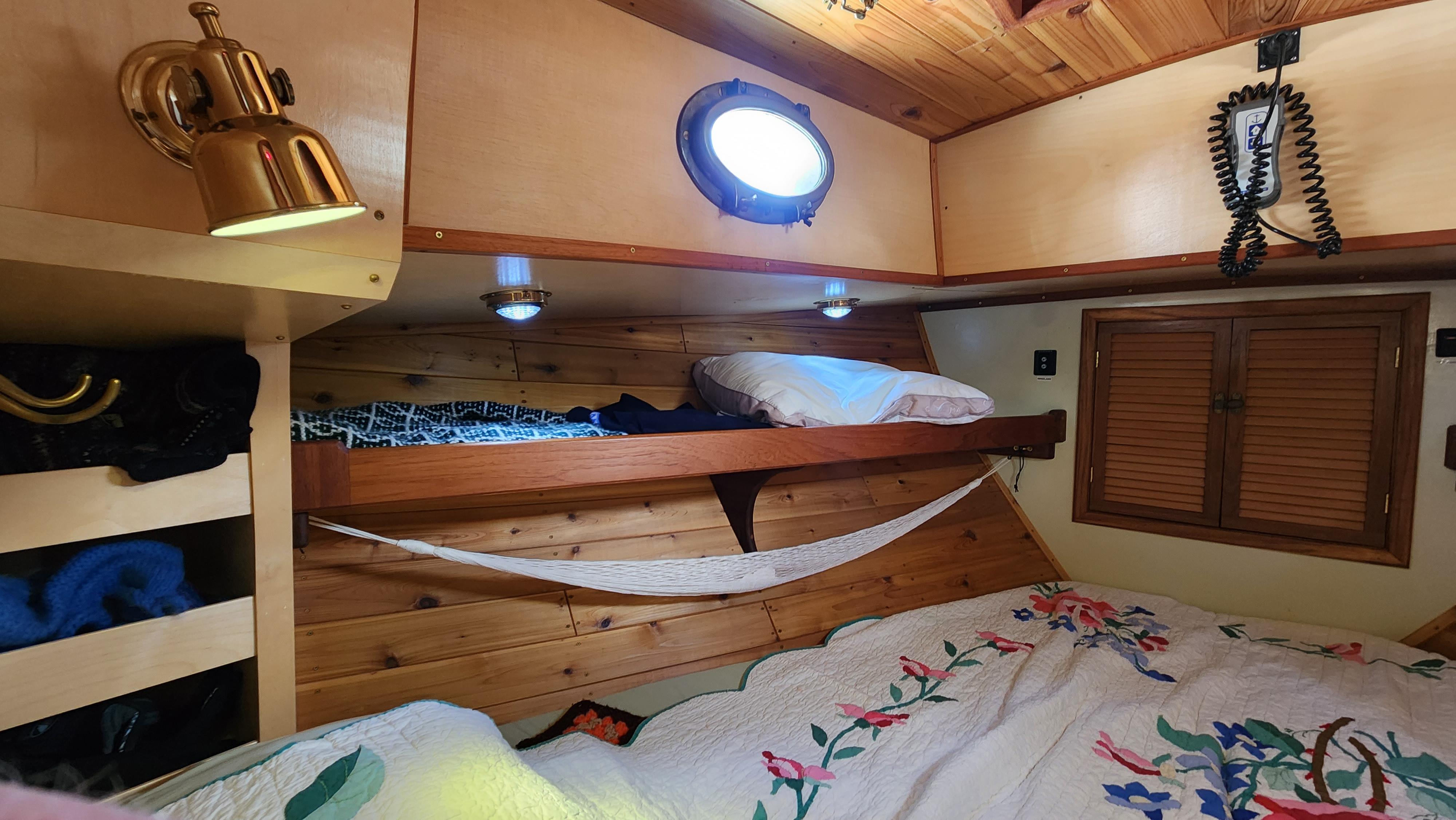

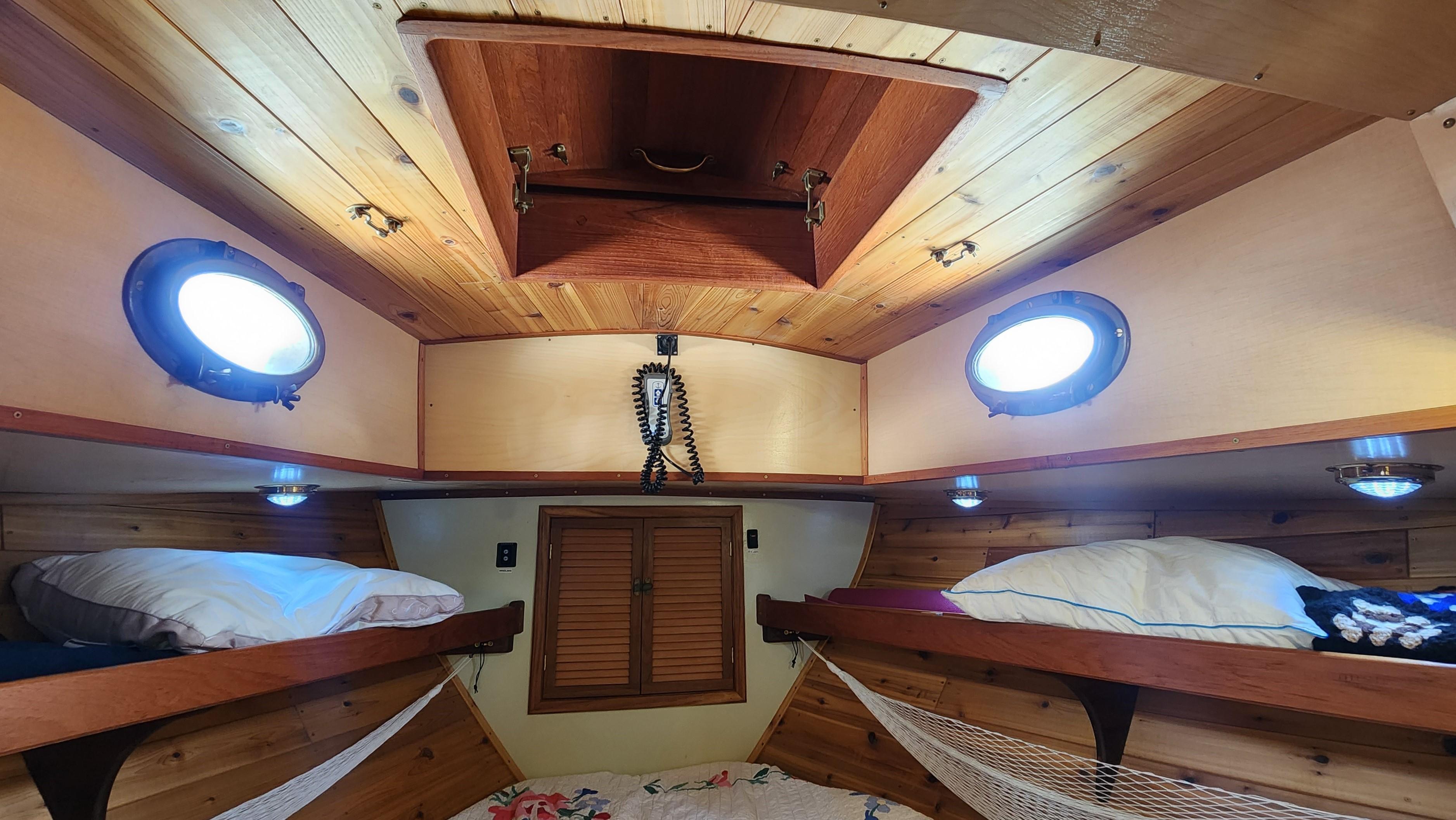

   V berth

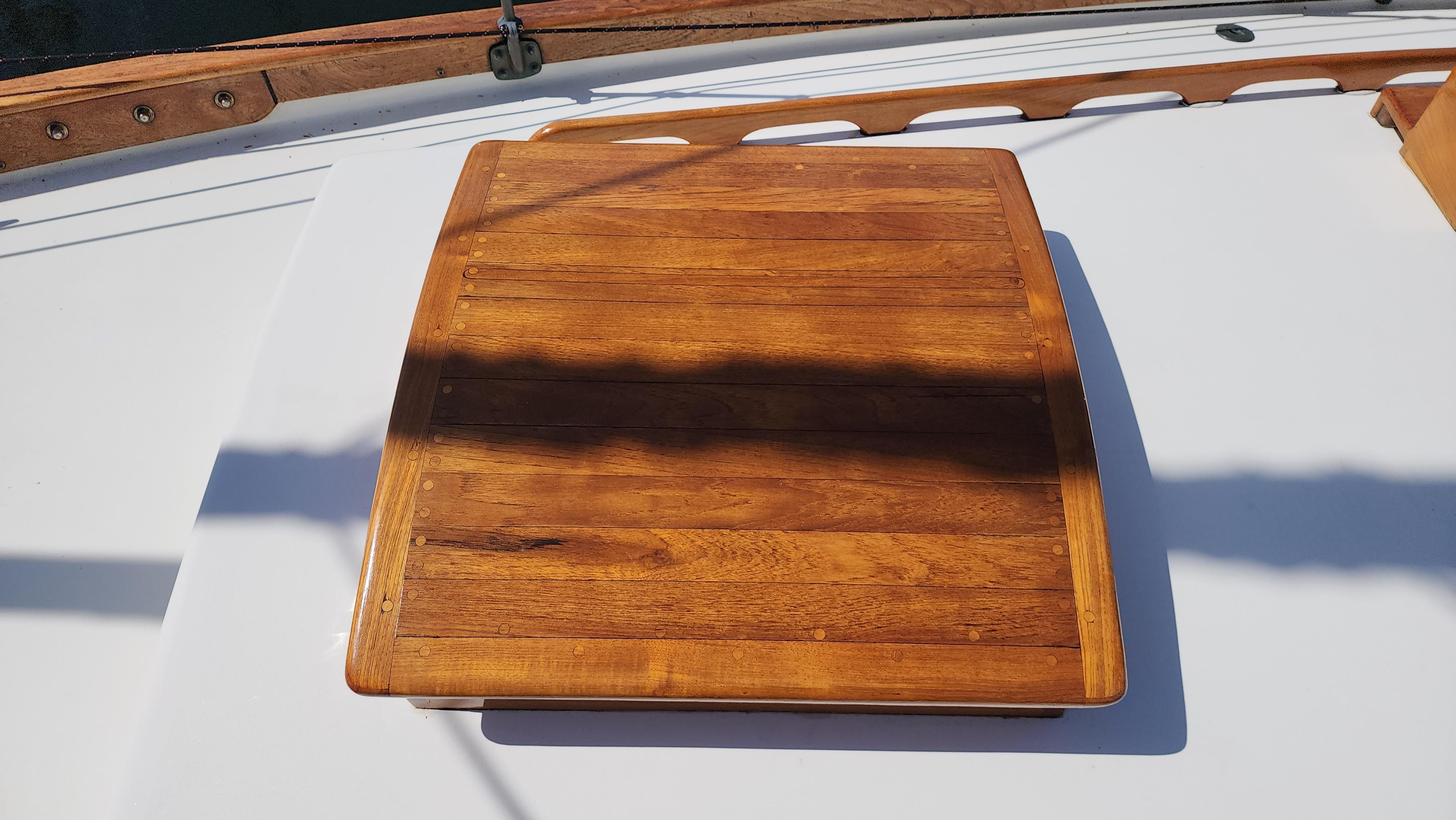

• Good sized berth with overhead teak hatch
• Cabin overhead is tongue and groove red cedar with ¾’ rigid insulation behind
• Covered 110v outlet
• Shelving outboard port and starboard above berth
• Storage bins port and starboard above berth aft
• Ample LED lighting
• Opening port on both sides of cabin trunk
• Access to anchor locker

Head and across from head

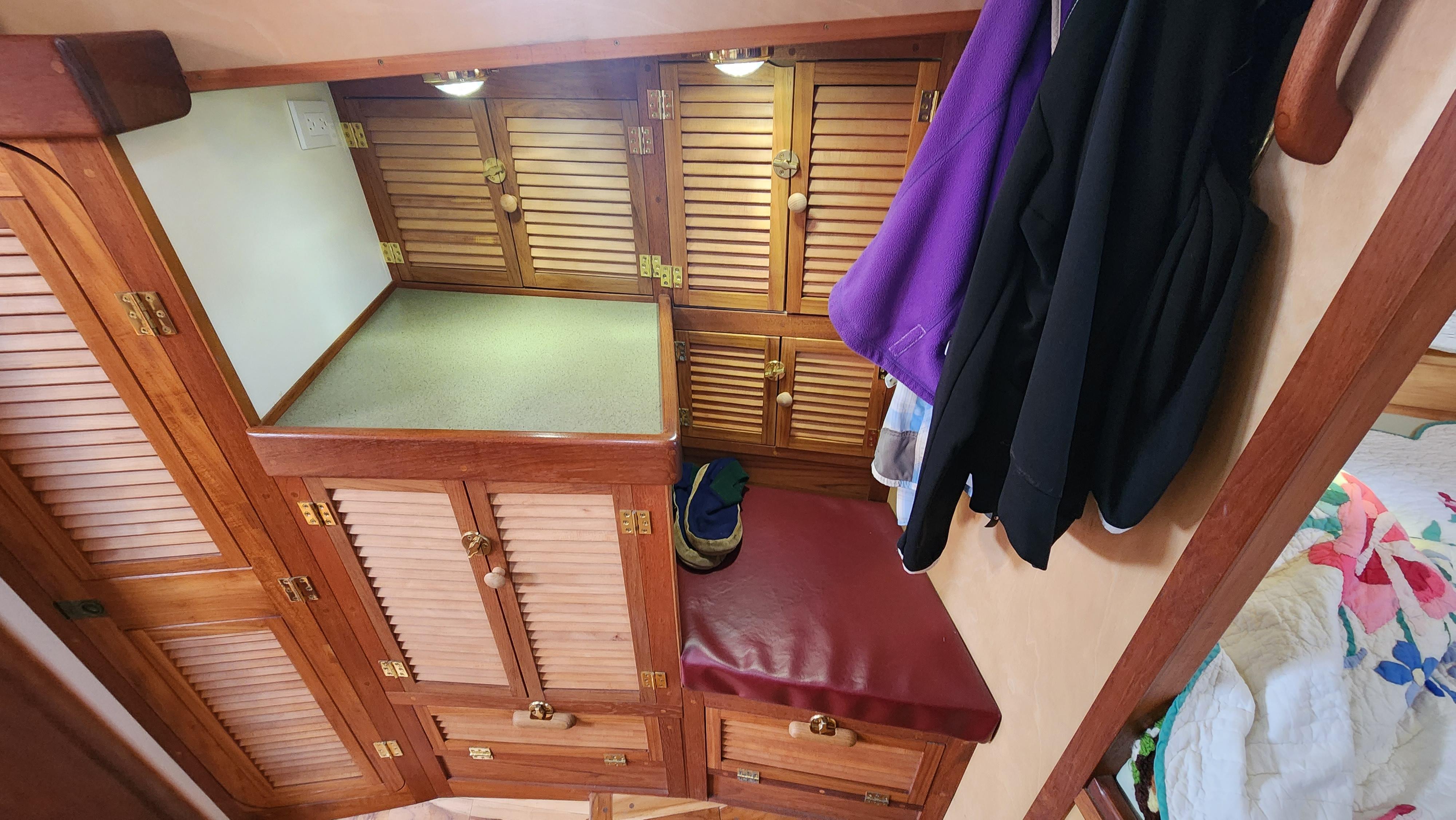

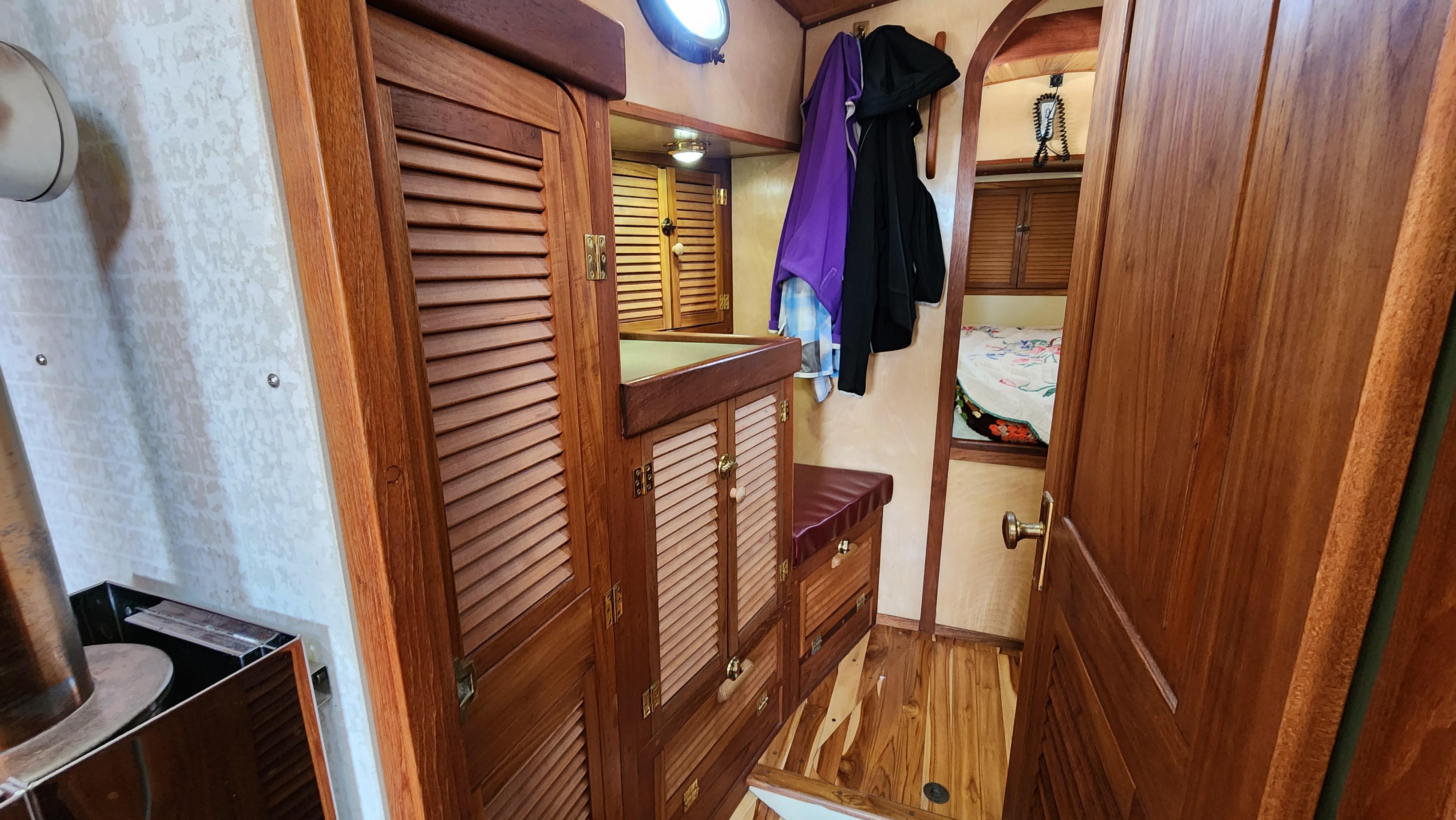

• 7 cabinets to port just aft of V berth across from head
• Upholstered seat just aft of V berth with cabinets outboard and counter just aft of seat
• Ample LED lighting here as well
• Opening port

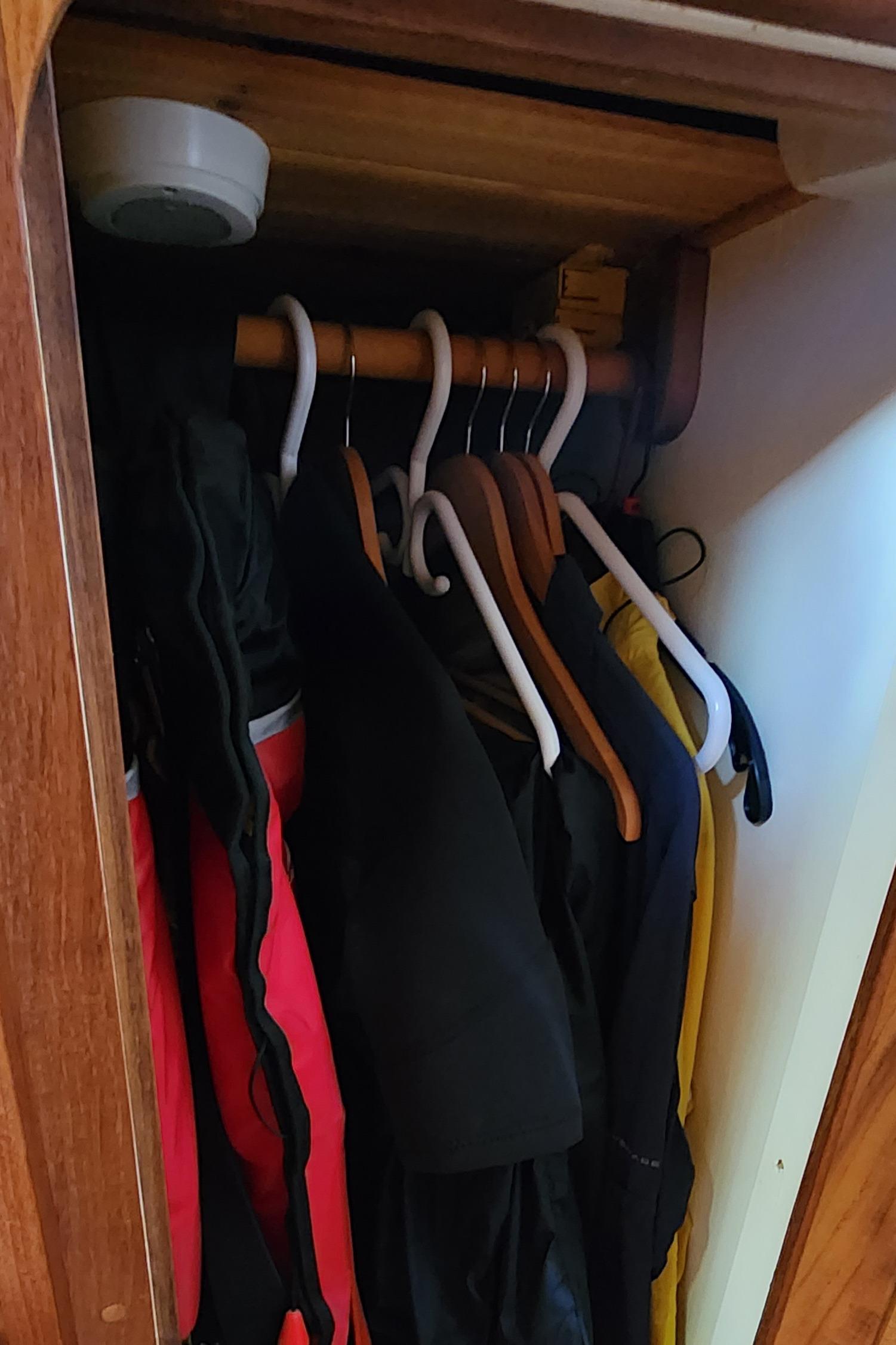

• Hanging locker aft of counter

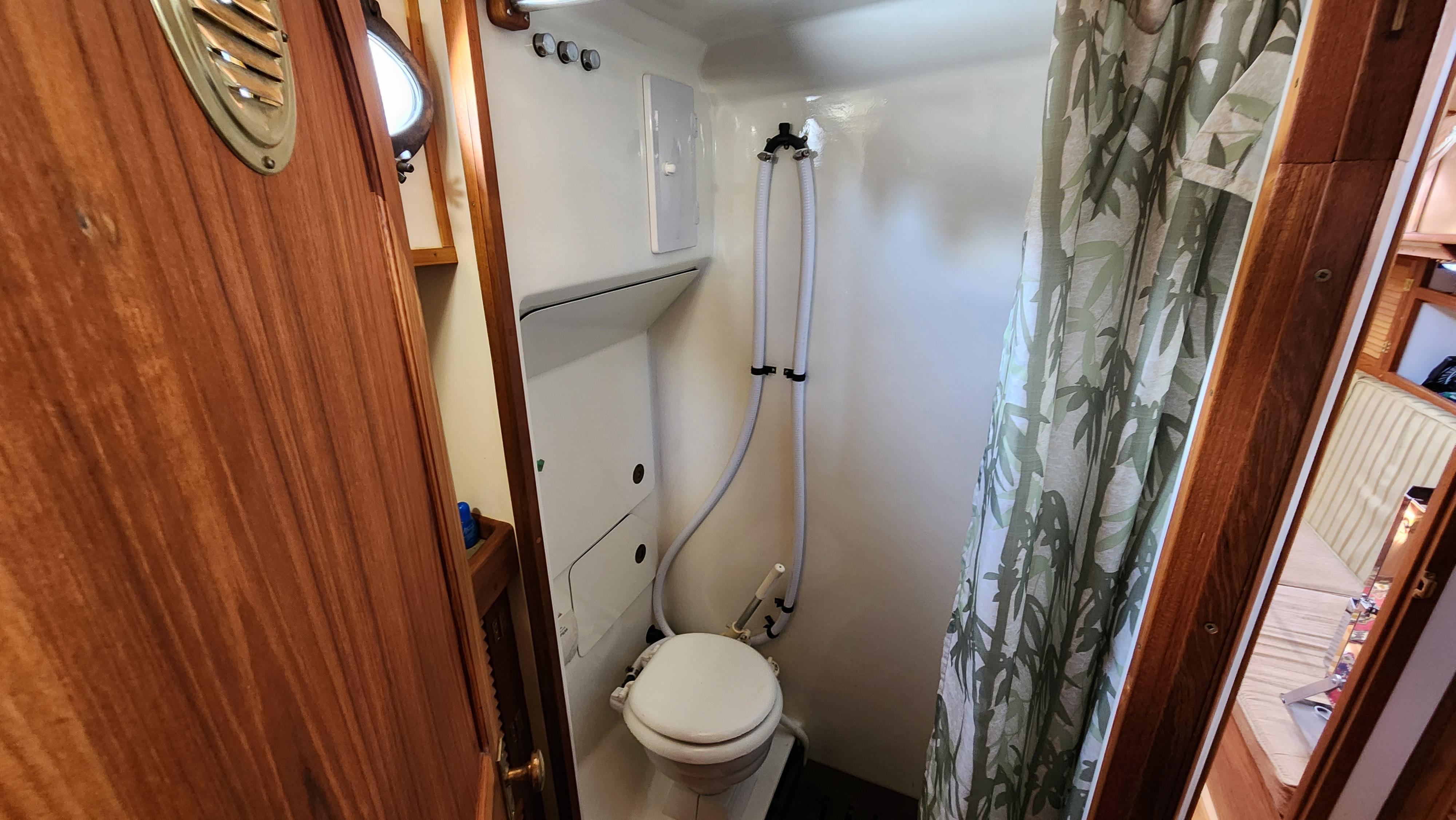

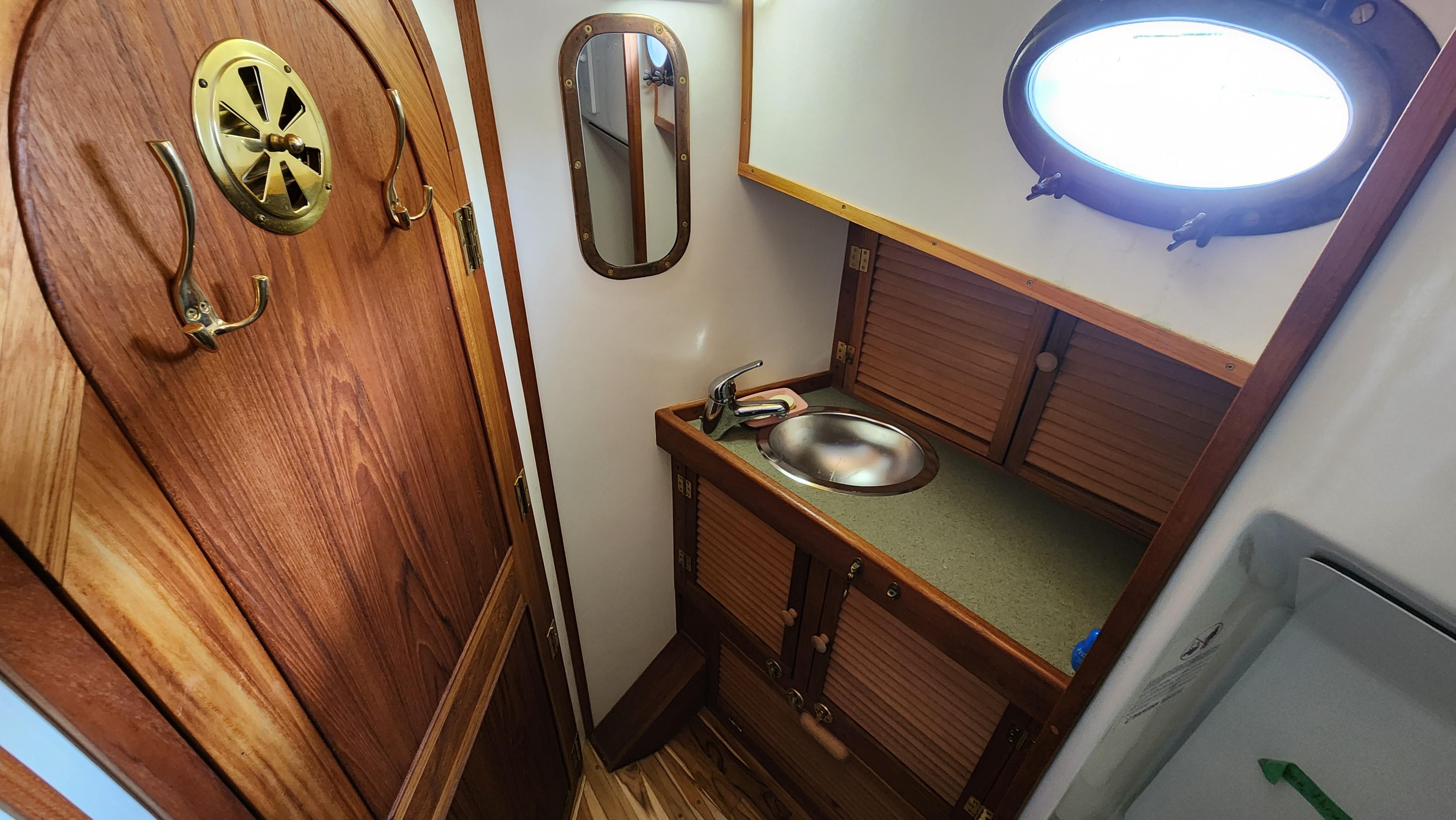

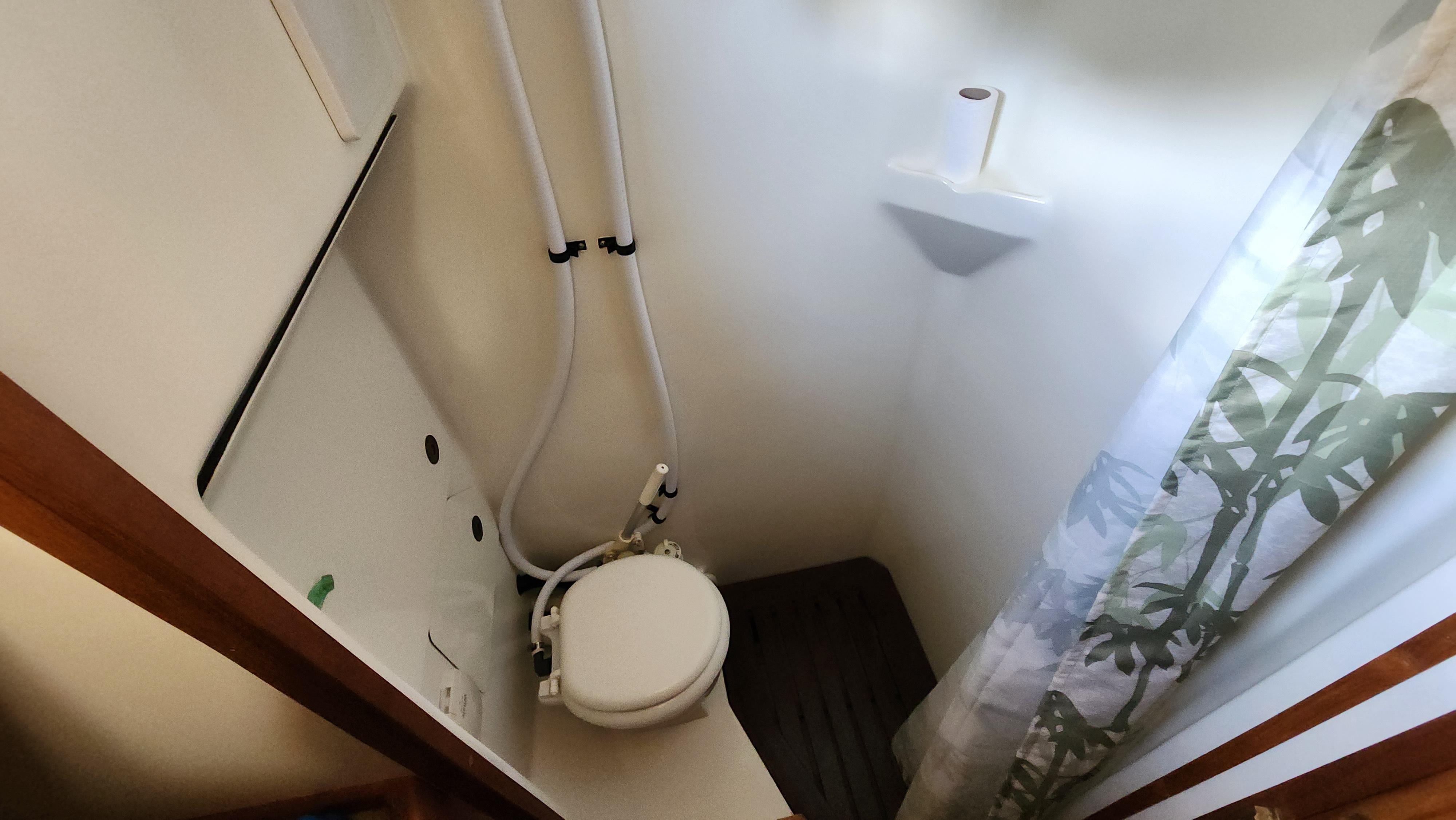

• Head to starboard with vanity sink
• Shower stall finished in fiberglass with built in shower wand
• Opening port over vanity
• Outboard of vanity is storage along with a carbon air filter for holding tank vent line
• 3 cabinets under vanity

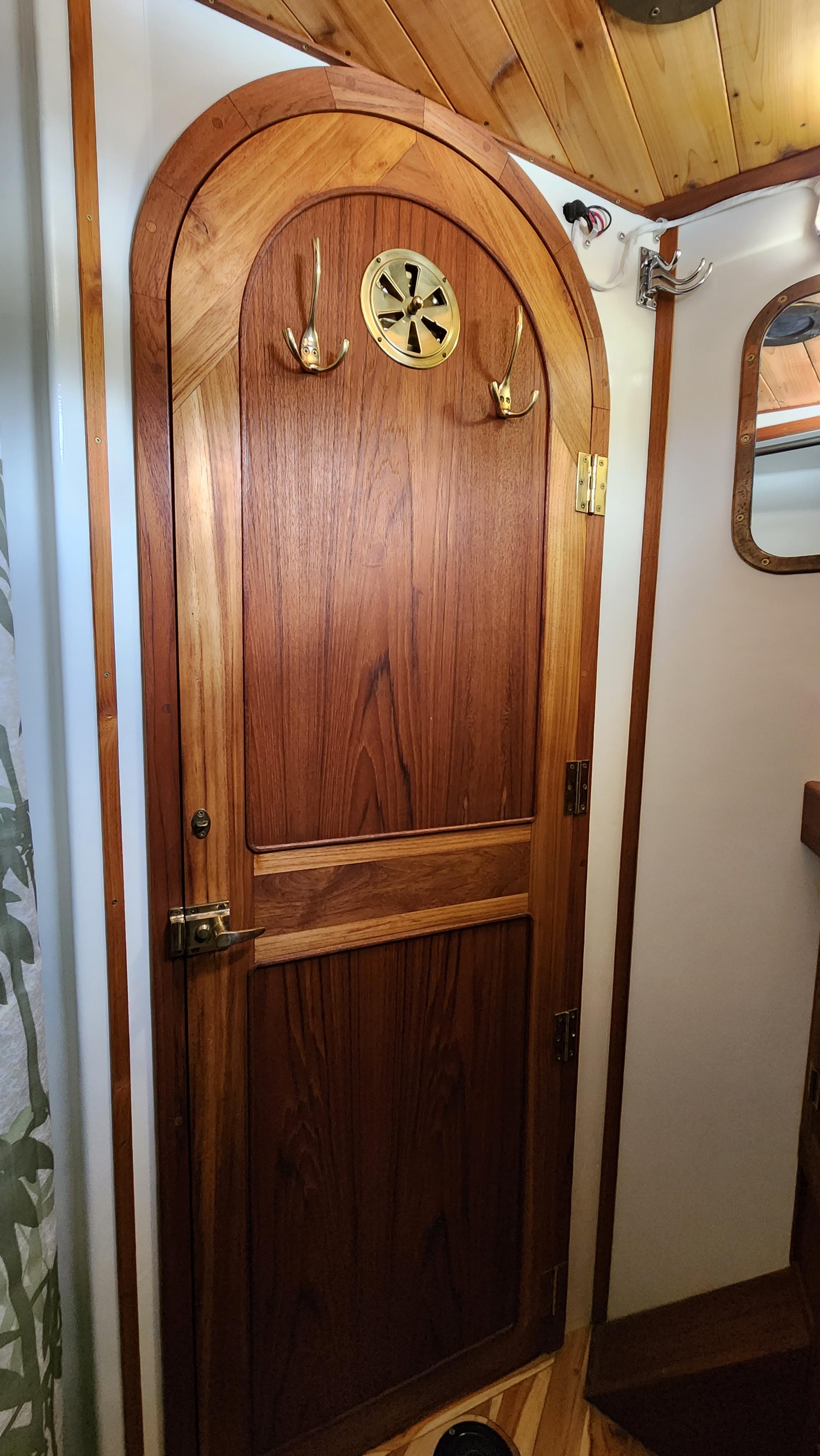

• Door from this compartment into salon through main bulkhead

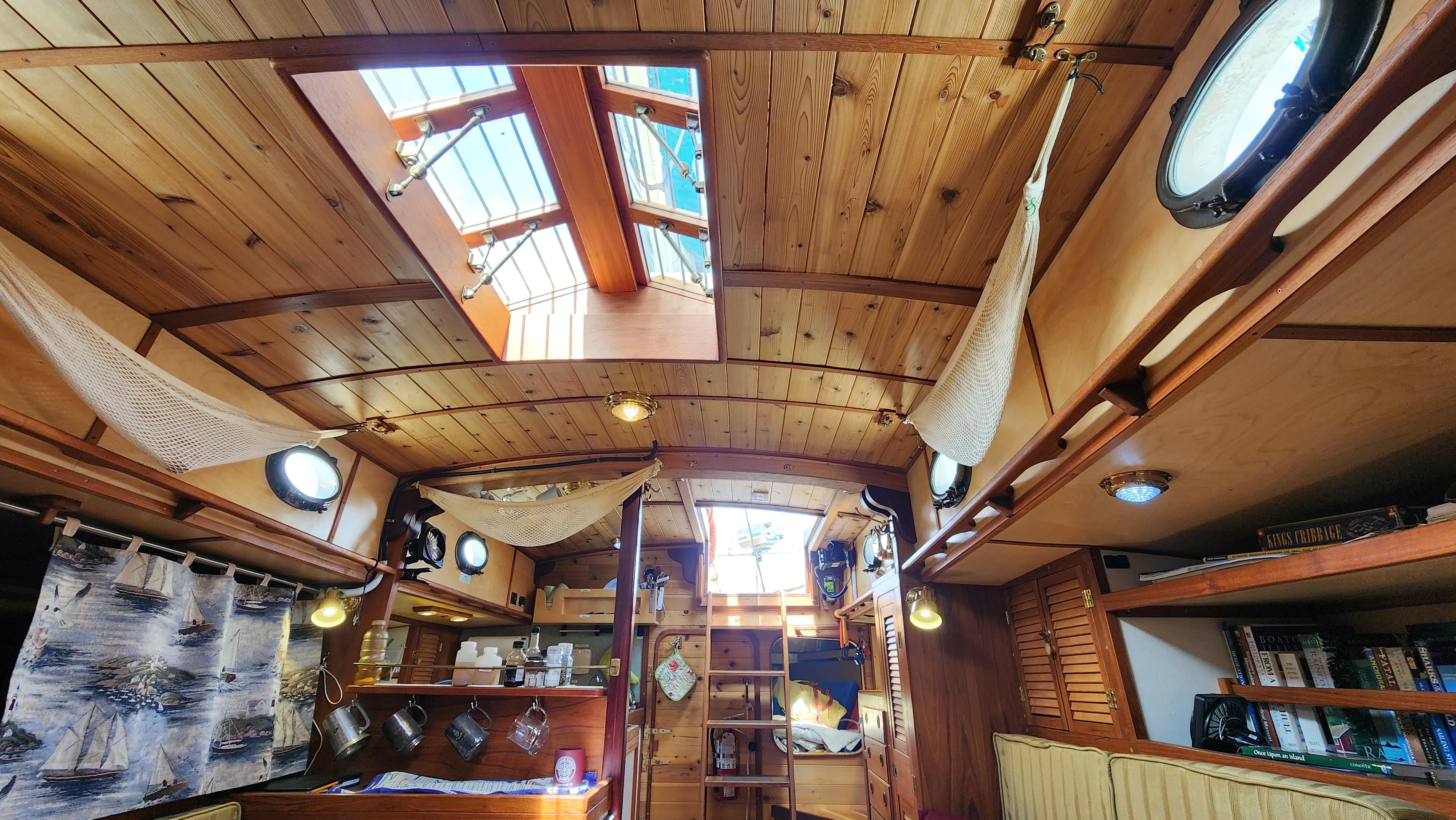

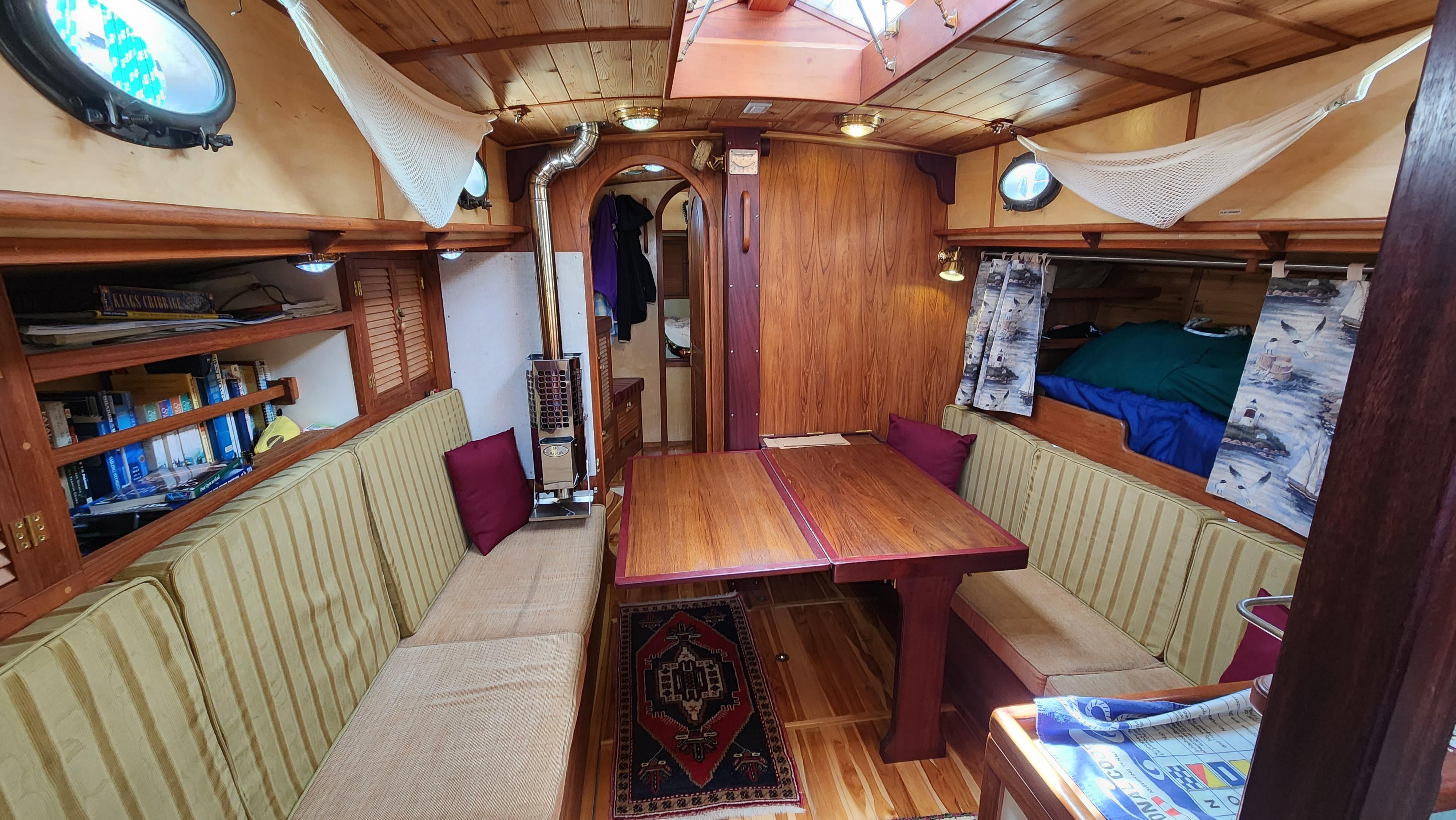

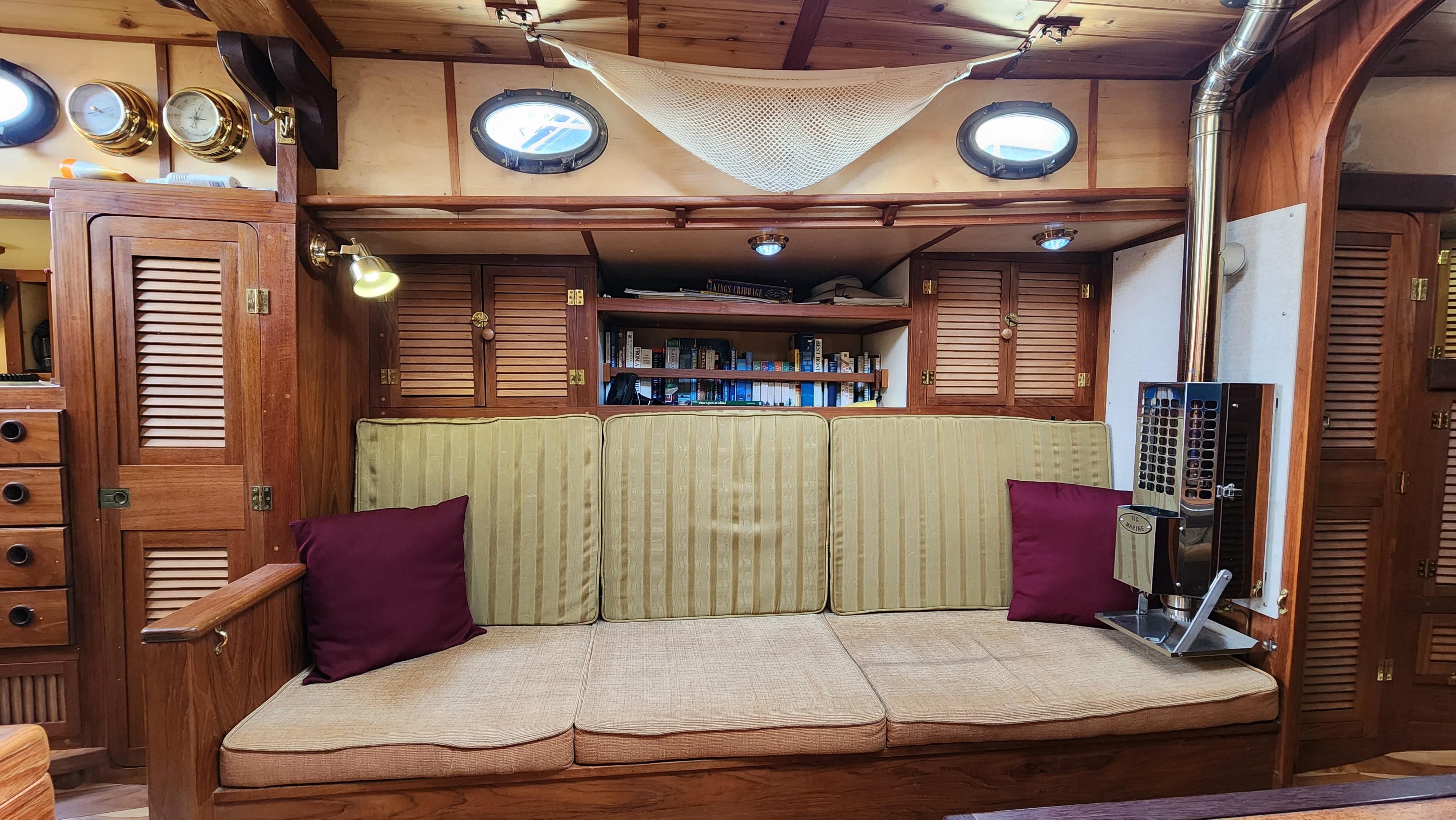

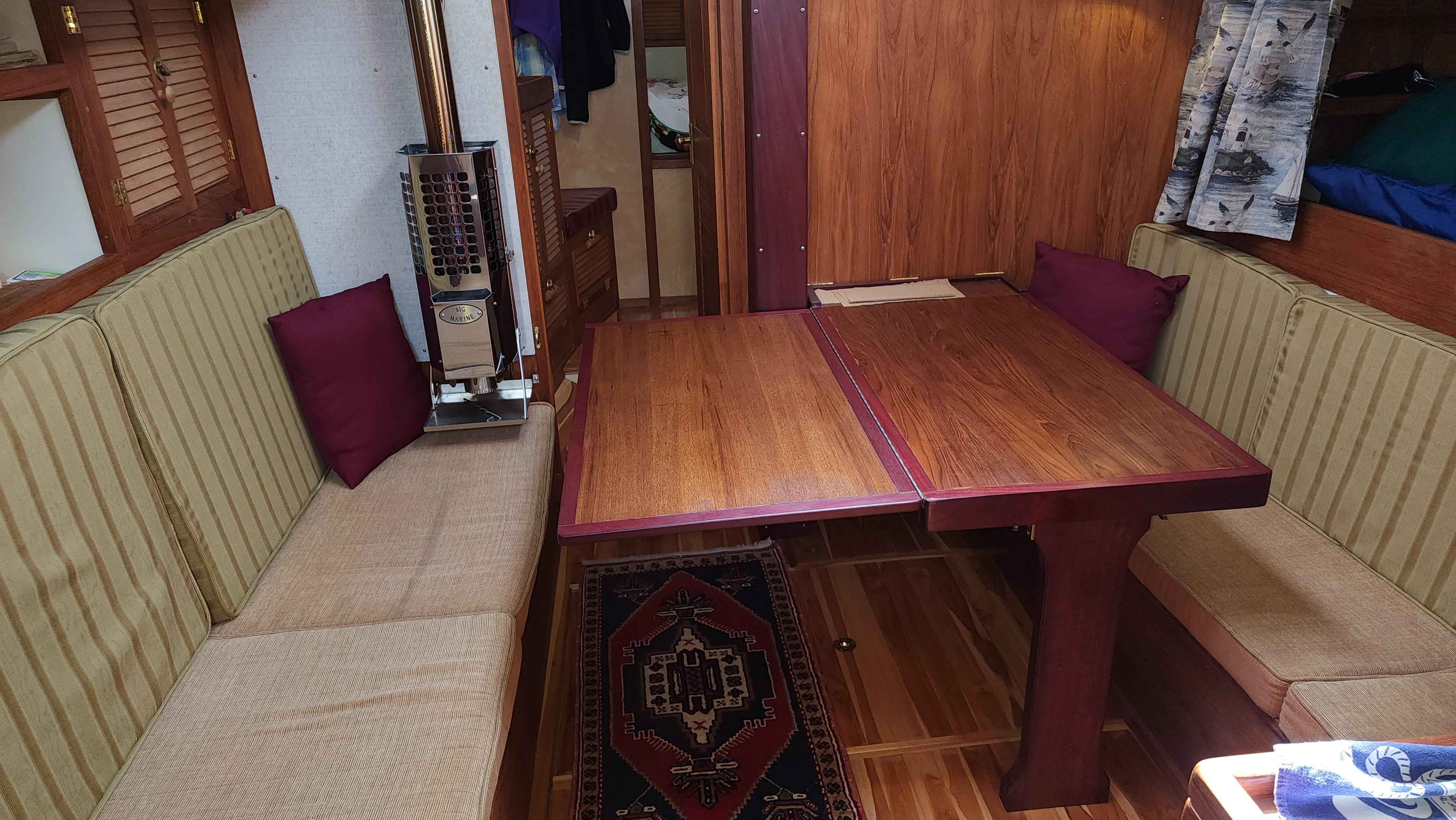

Salon

• Nice and open main salon especially when table is stored against main bulkhead
• Pilot berth to starboard outboard of settee
• Port and starboard settees with storage under each
• Storage under starboard pilot berth
• Storage outboard of port settee backrest
• Cabinets and open storage above and out board of port settee
• Aft end of starboard settee has pull out drawer with counter on top and cupboard under drawer which contains two 6-volt house batteries
• Drop table from main bulkhead midship with large leaf to make full width dining table
• Table is teak with Purpleheart trim
• Table has 2 leaves so you can dine 6

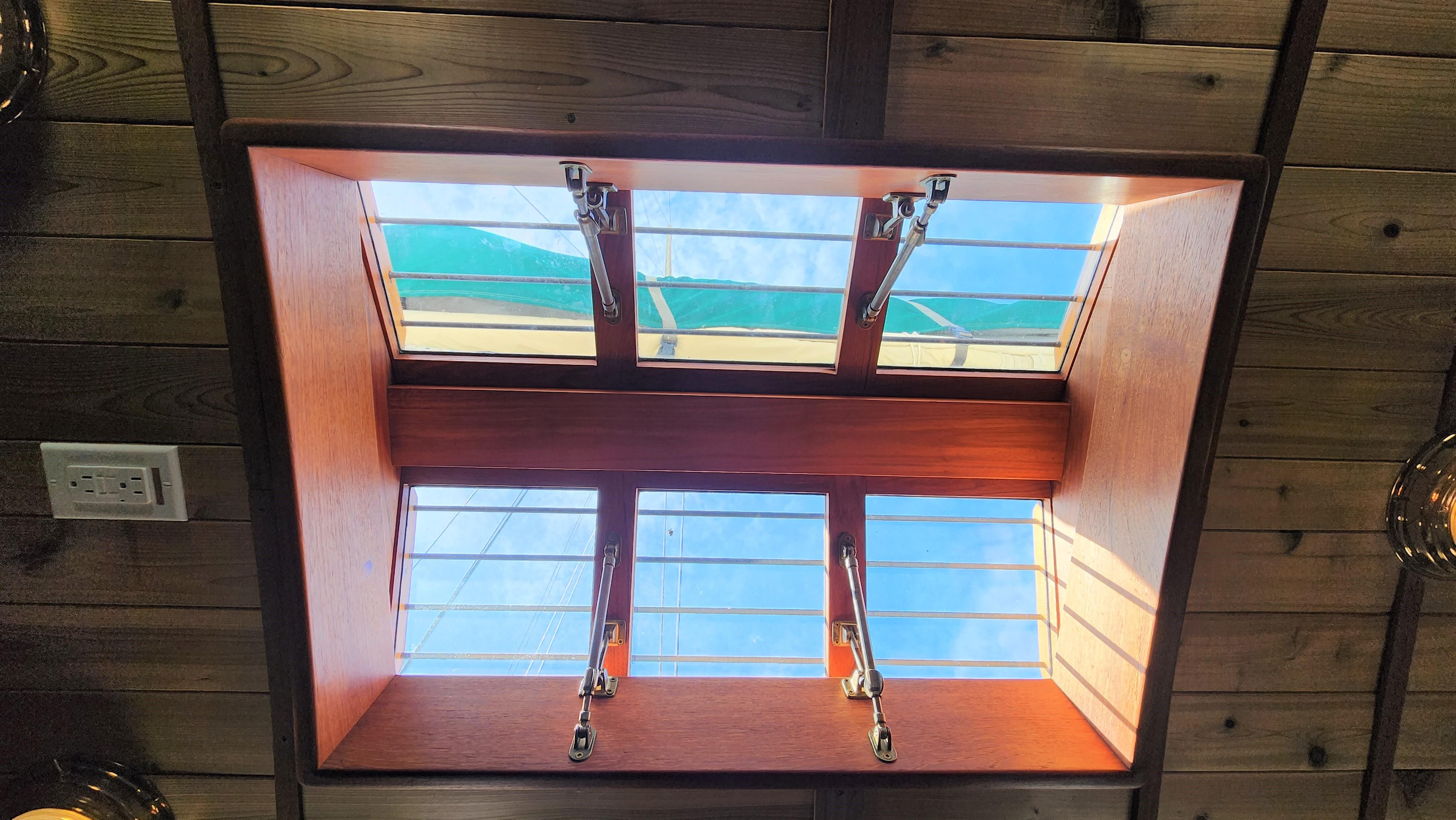

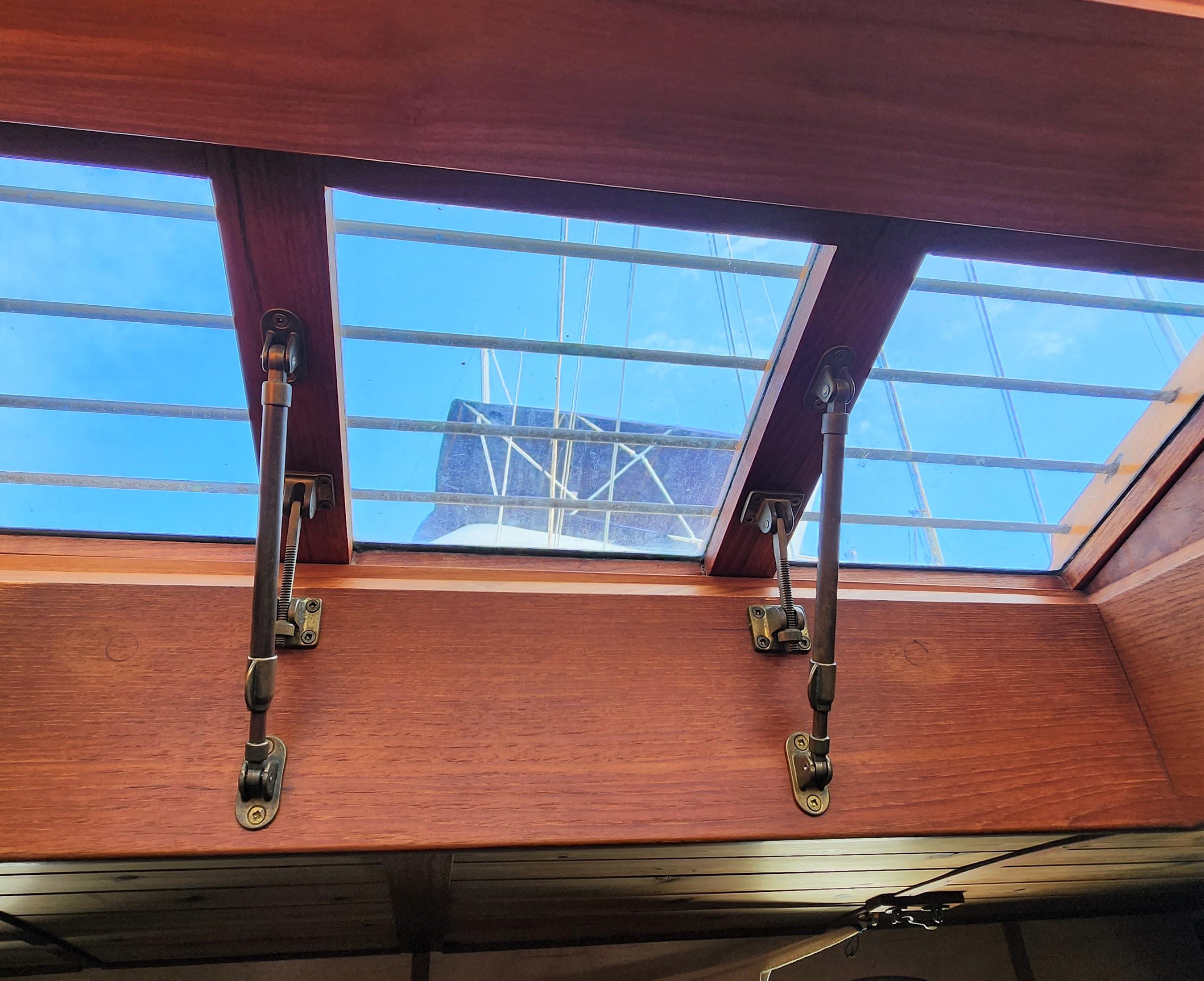

• Overhead teak opening butterfly hatch with bronze fittings
• Solid teak handrails port and starboard that don’t flex
• Starboard side pilot berth has thick wall stainless steel tube for curtain and is strong enough to lever oneself in and out of pilot berth while at sea
• 2 opening ports port and starboard
• 110v GFI outlet in overhead
• Sig heater is forward on port settee with fire proof backing on bulkhead
• Day tank for heater is outboard and above settee with electric pump for fuel from main fuel tank

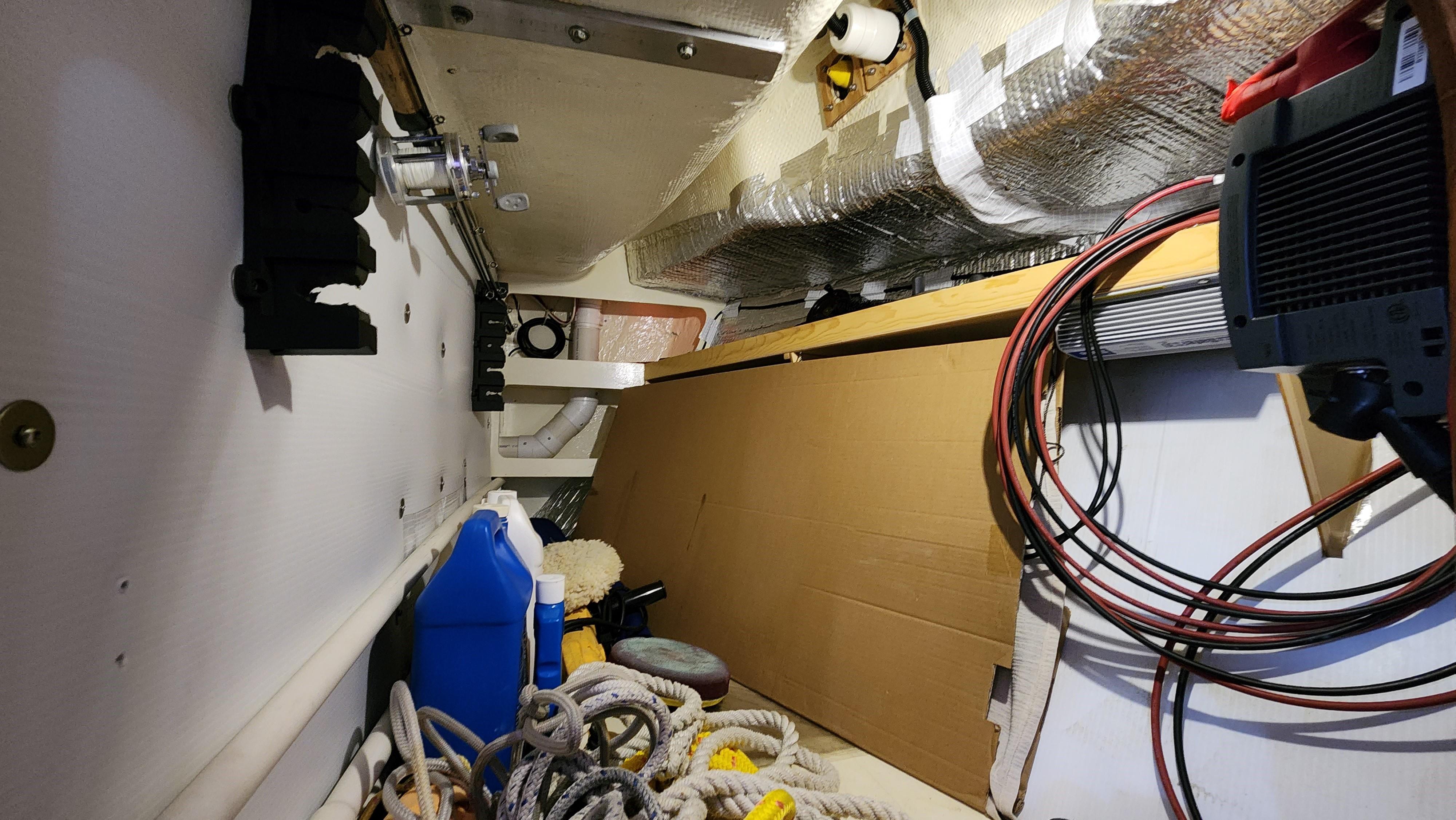

Aft Port Quarter

• Sound-proofed from engine room and contains the inverter/charger and galvanic isolator
• This is a storage area that could make a single berth
• Hangers for 5 fishing rods
• Excellent storage space
• Built in storage compartments and shelf on hull side
• Storage lockers under, one of which contains two 6-volt house batteries

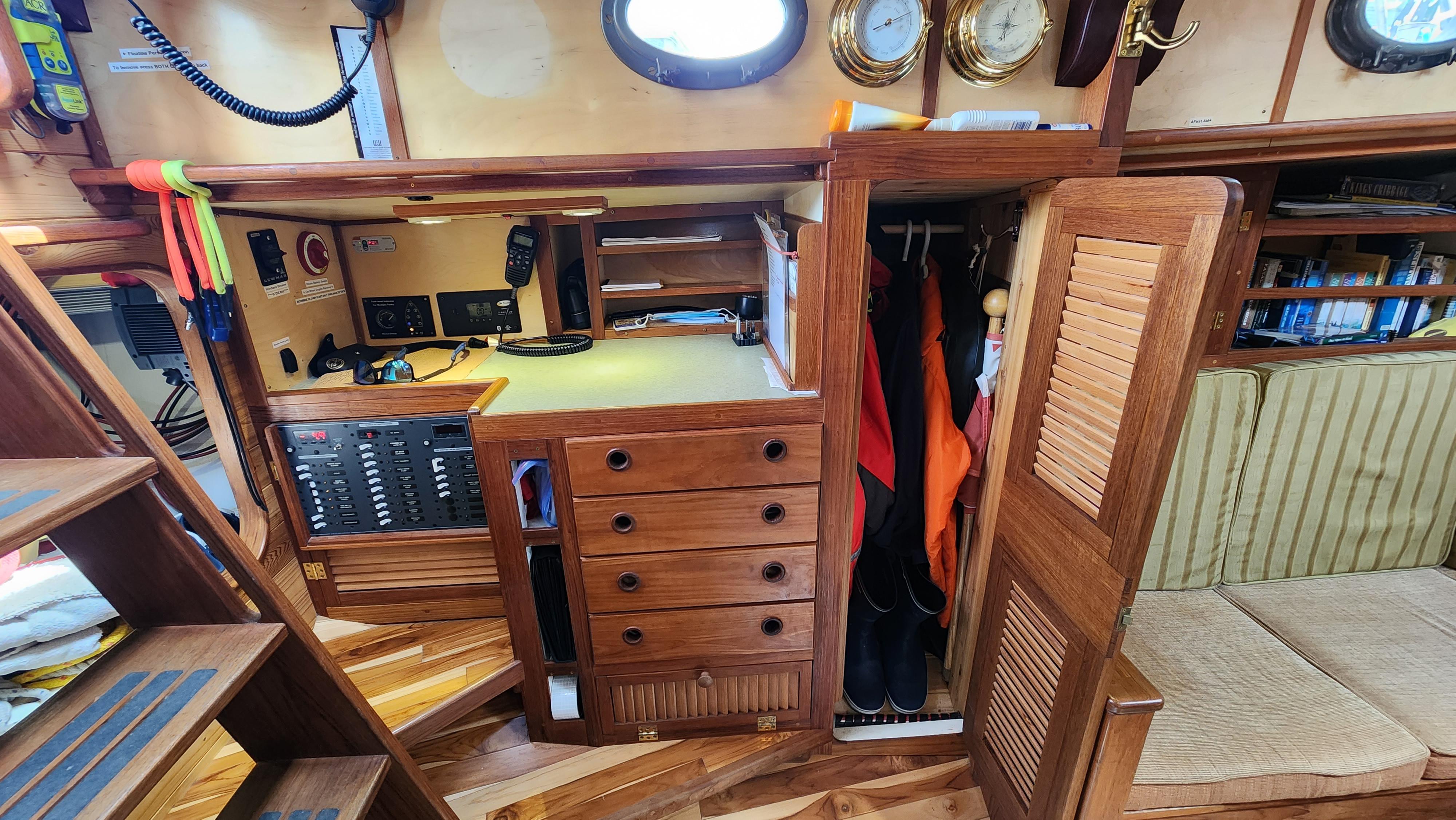

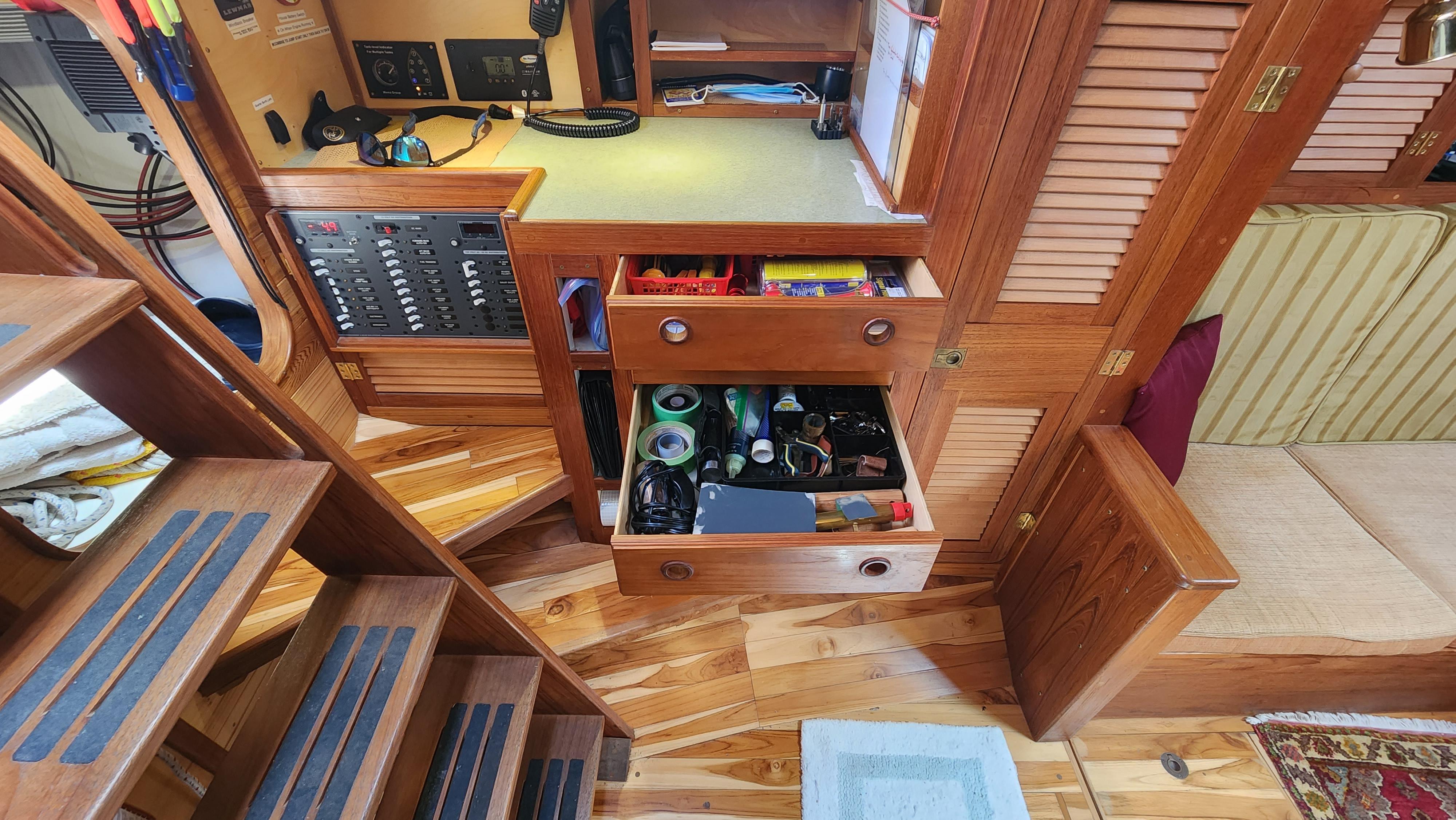

Nav station

• Just ahead of quarter berth storage area
• 110v and 12v Blue Sea panel below counter
• Clear splash panel can cover Blue Sea panel to protect from water or prevent accidental tripping of breakers on panel
• 4 teak drawers under counter plus 2 cupboards
• Hanging locker forward of drawers
• VHF and command mike

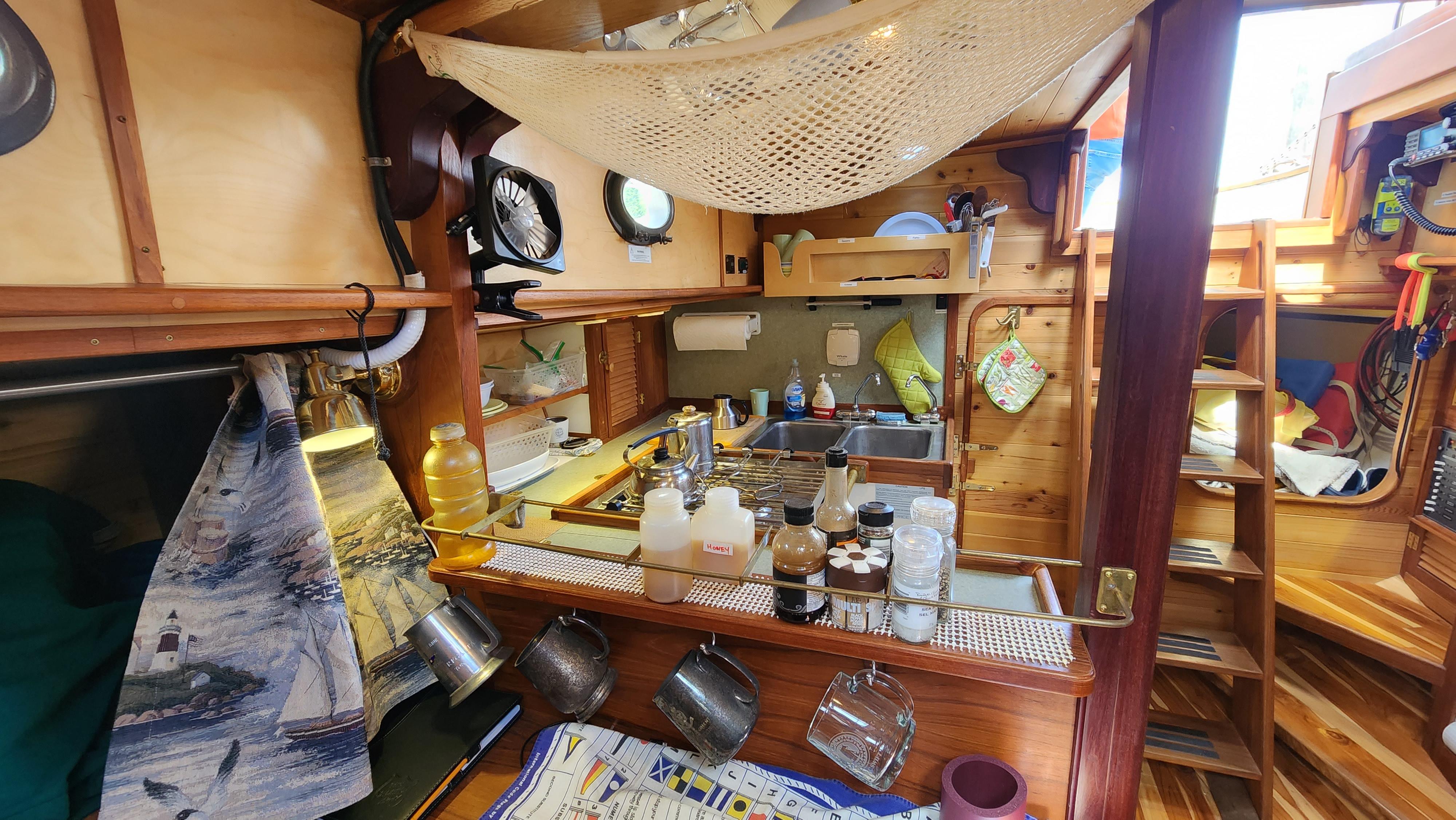

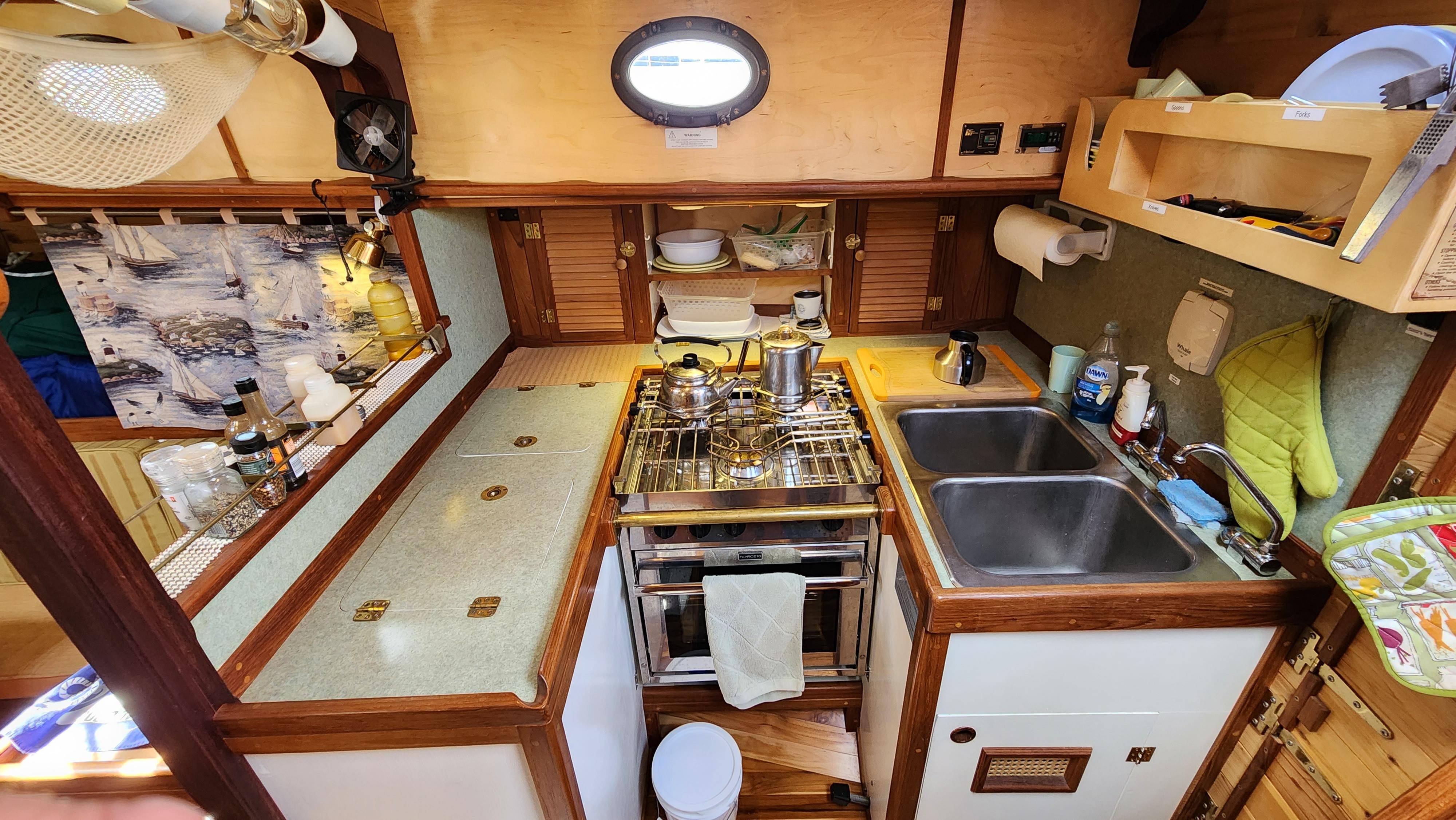

Galley

• Galley is in the starboard aft corner of the salon with nice counter space
• Outboard storage with hinged teak & arbutus doors
• Under counter large dry locker
• Aft end of galley has dish storage area along with cutlery bins
• Lots of LED lights
• Under counter aft is cupboard
• 2 deep stainless steel sinks facing forward with cupboard and dish storage overhead

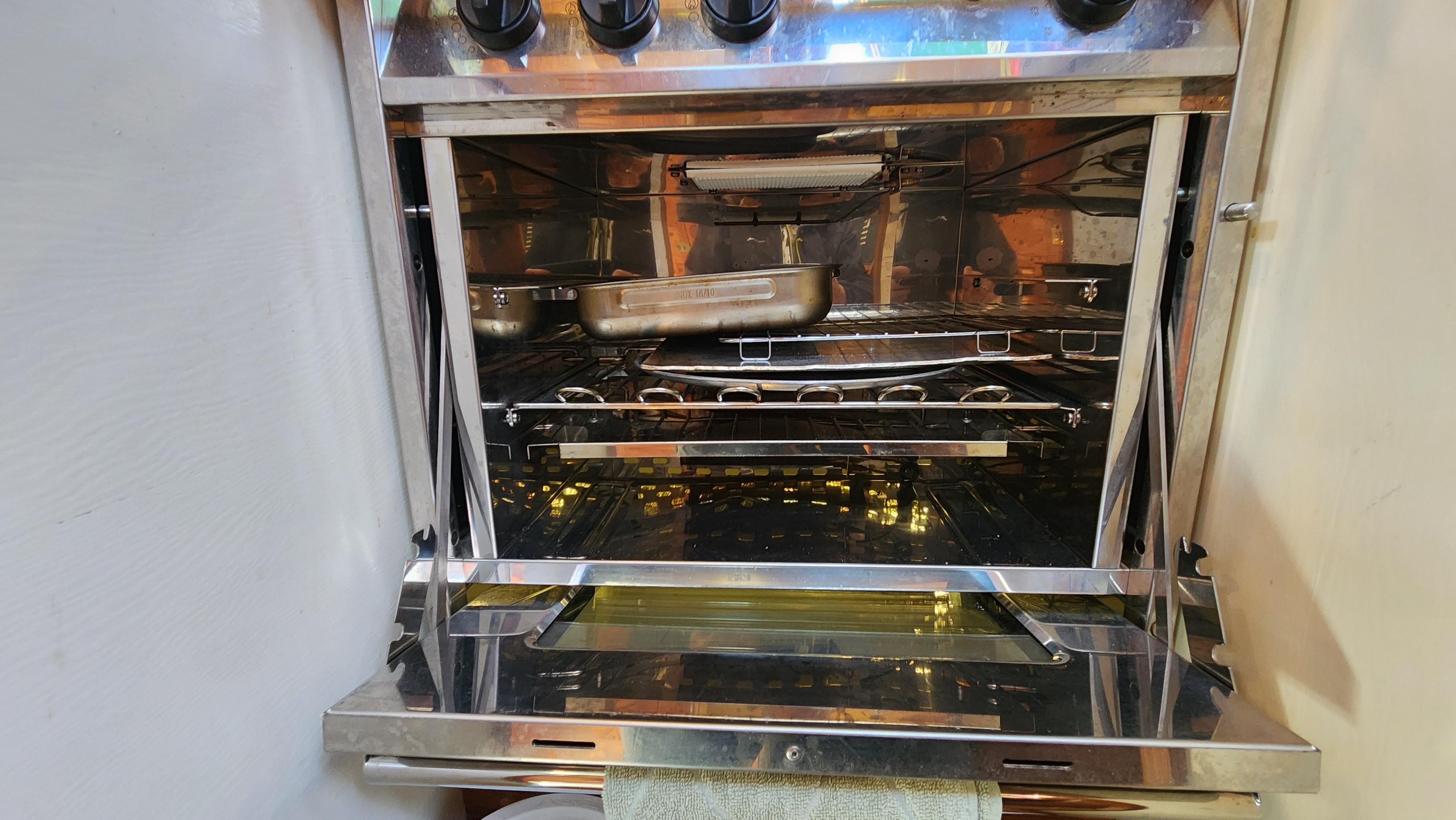

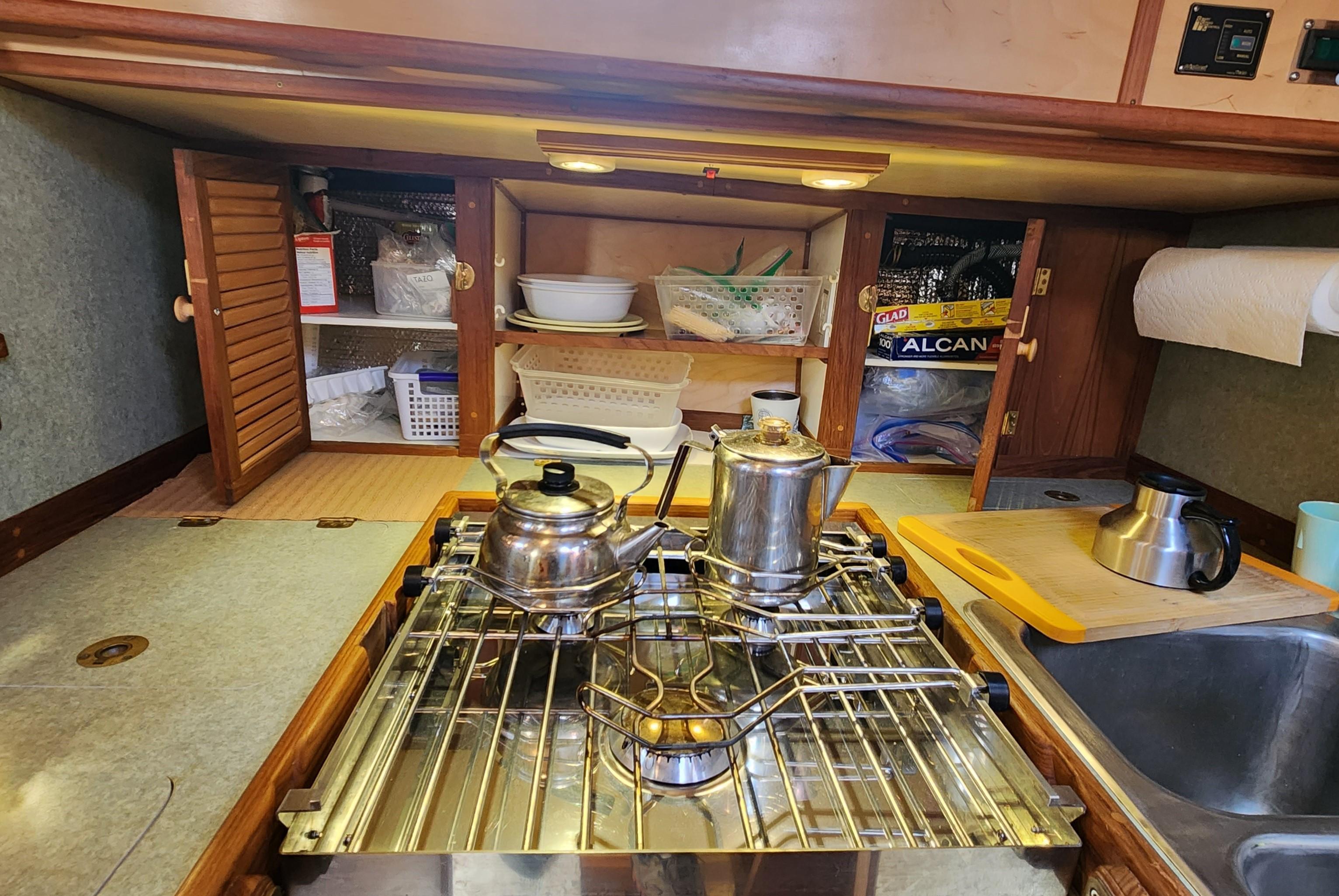

• Gimballed Force 10 propane 3 burner stove and oven

• Opening port outboard along with fan for venting

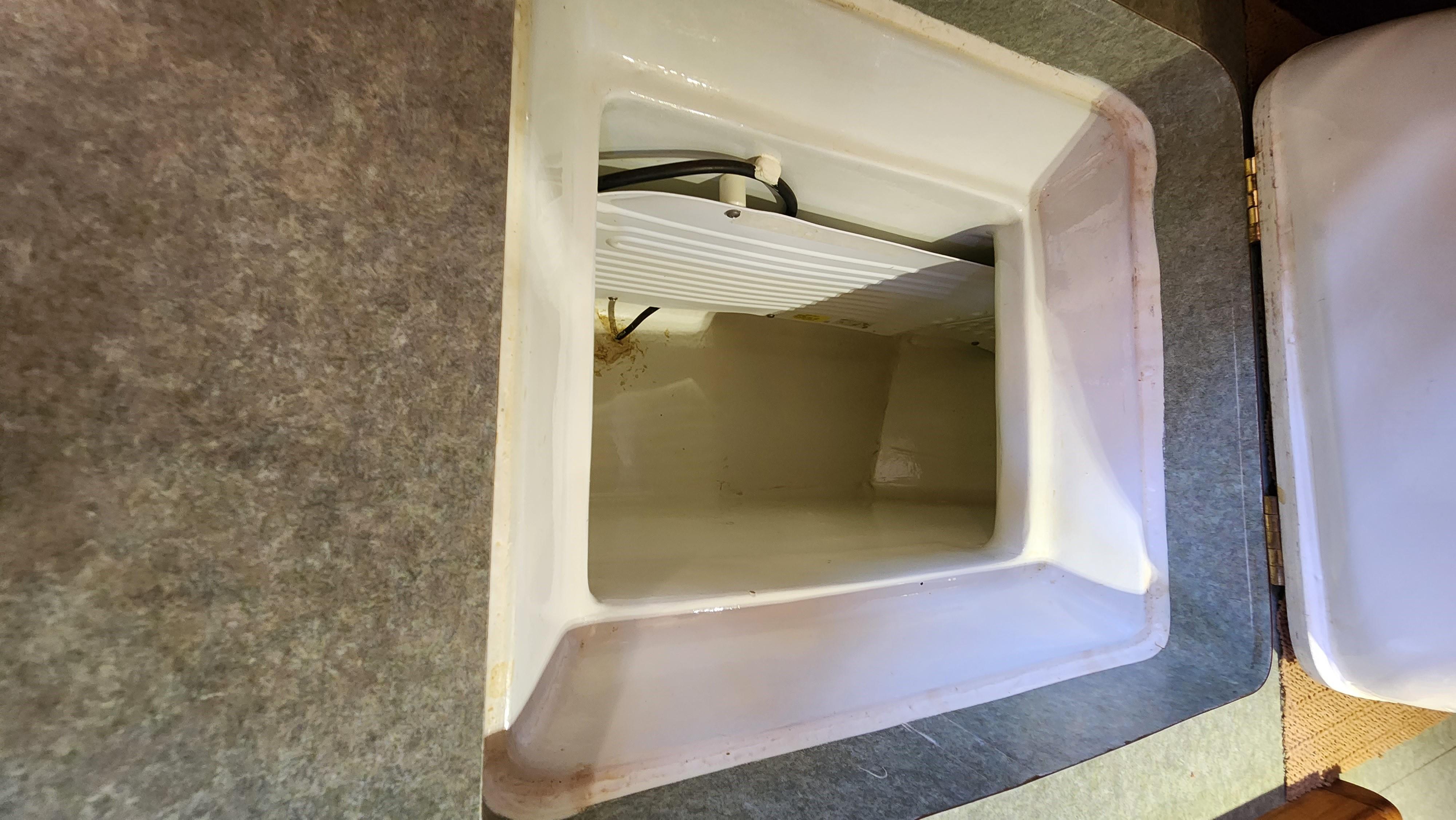

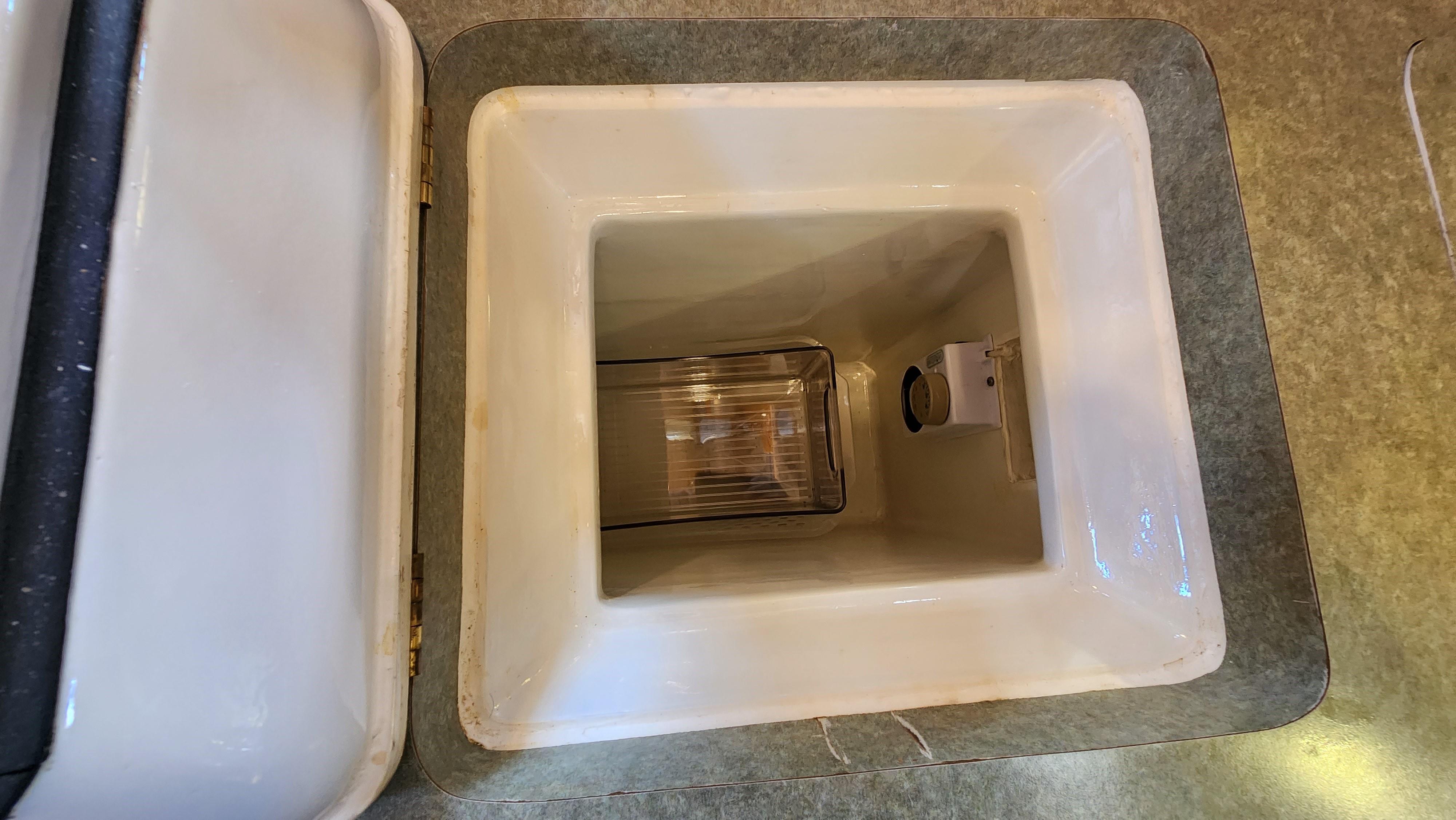

• Top loading fridge and freezer boxes with controlled baffle
• Fridge and freezer boxes have 4” thick rigid insulation

Entry way to salon from cockpit

• Via two teak drop-boards or a single bullet-proof tinted Lexan drop-board to allow natural light

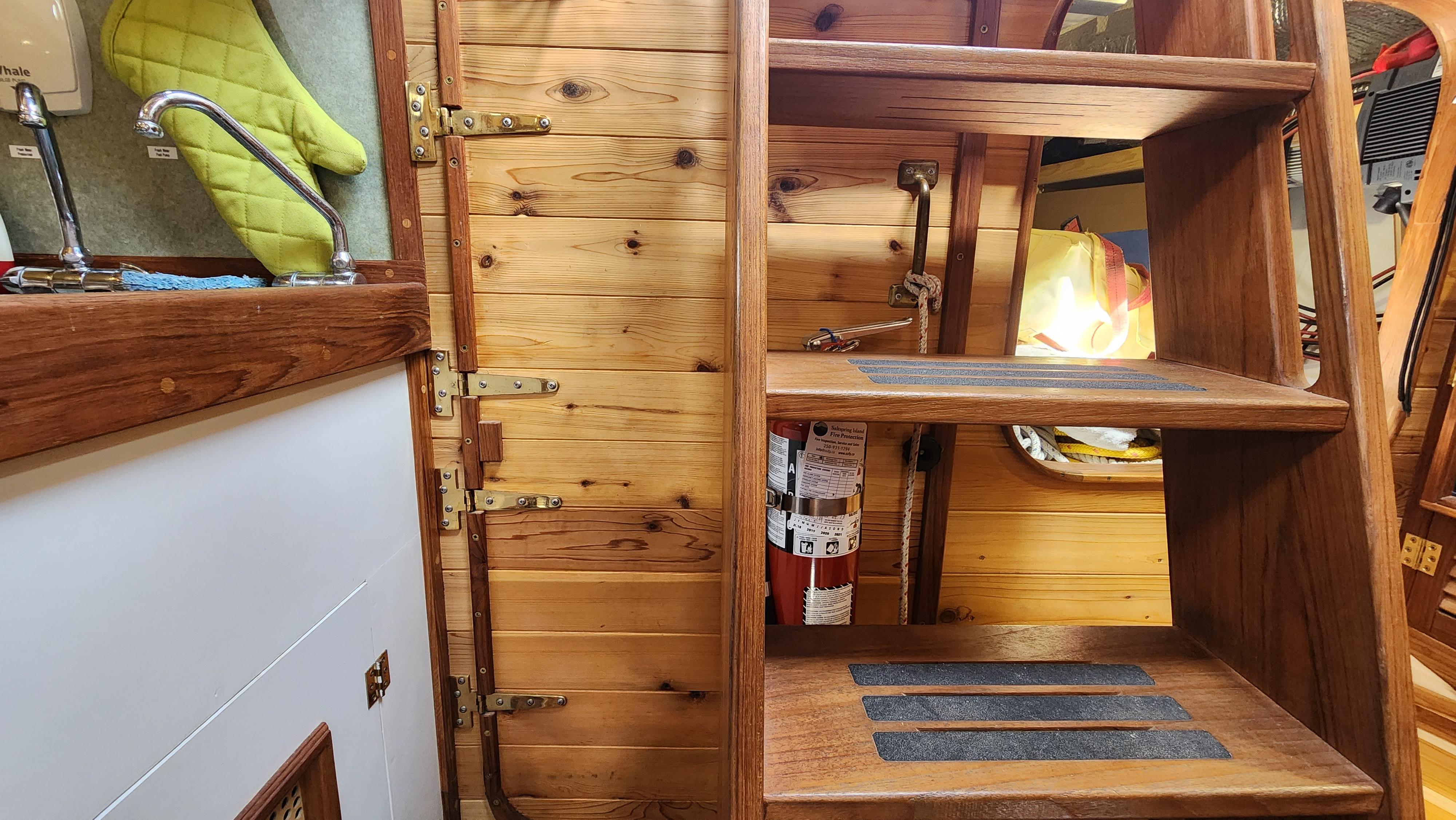

• Removable companionway ladder that swings up for access to engine room door.
• Non kid tape on steps and built in hand holds

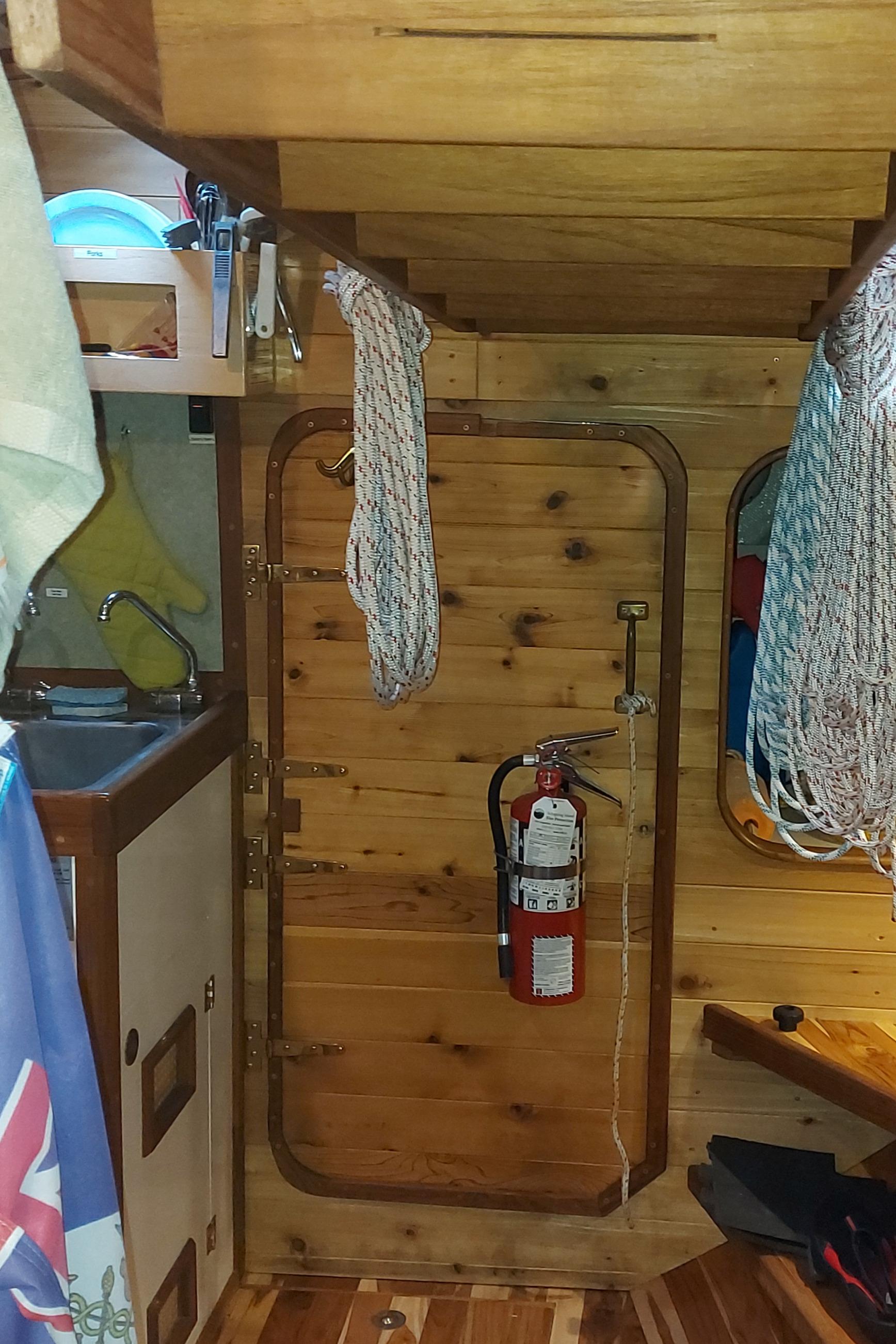

• Behind steps is insulated door to engine space

MECHANICAL & ENGINE SPACE

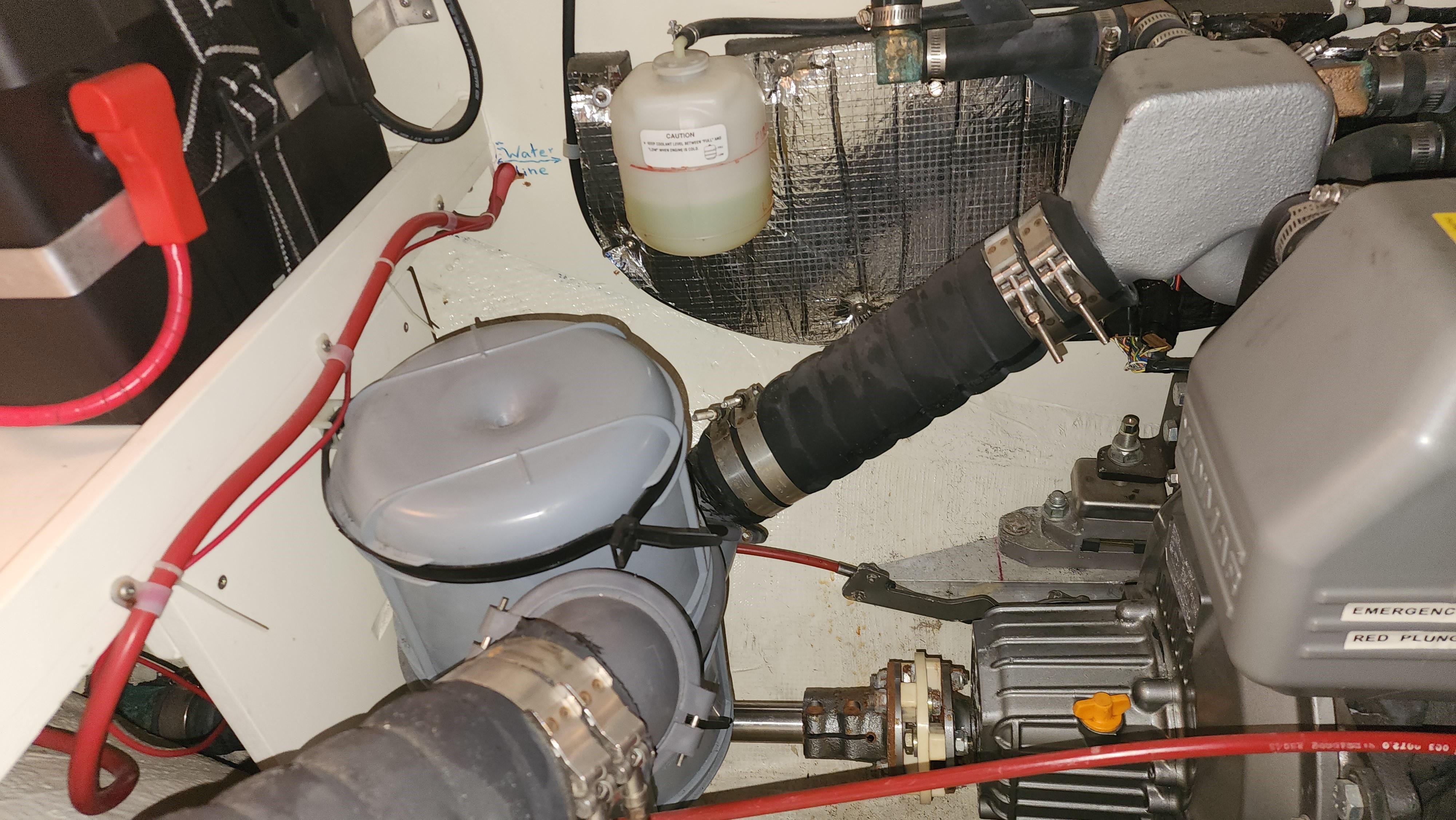

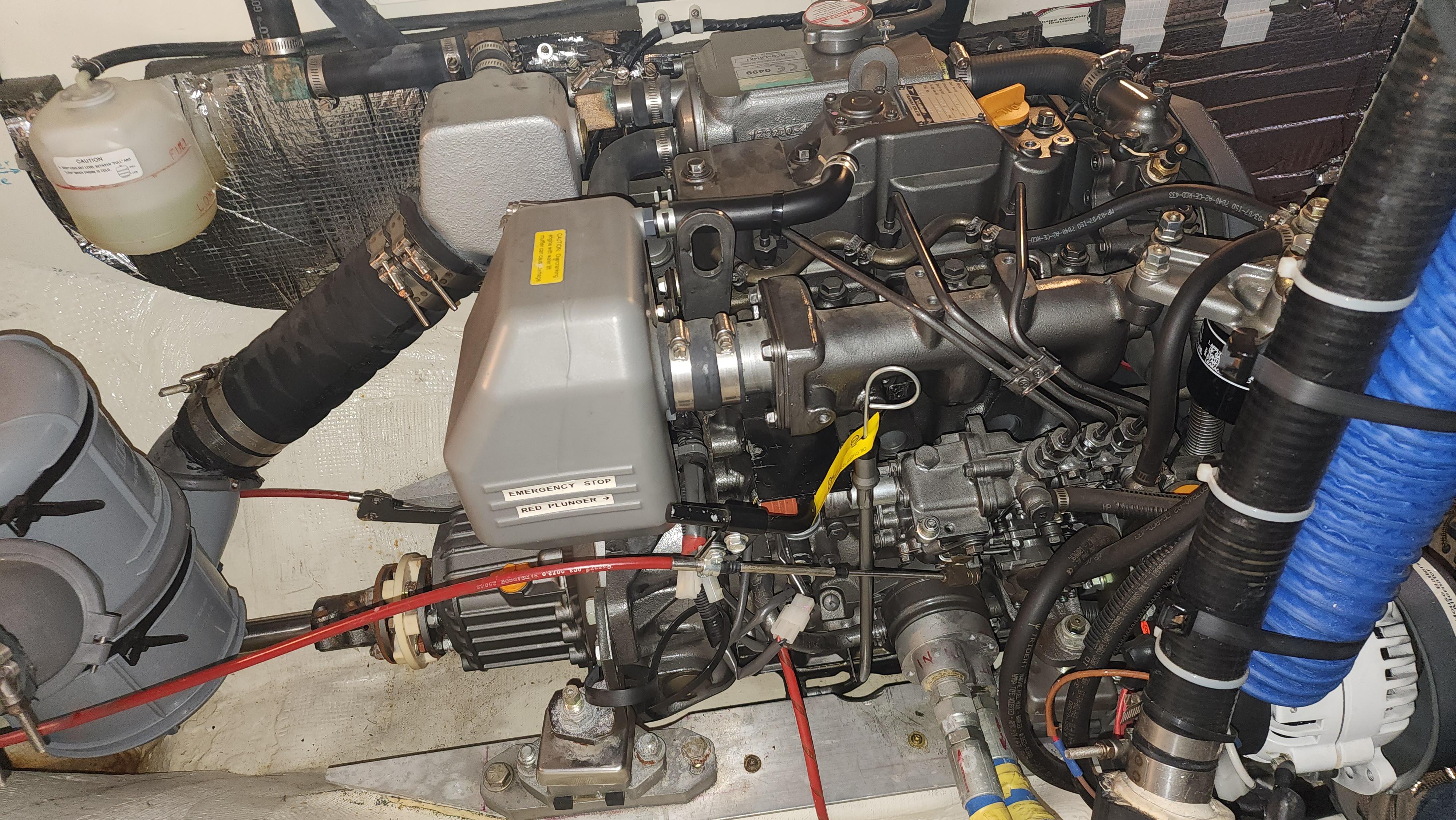

• Engine: Like new looking Yanmar 3JH4GE 40HP FWC (2009) with 609 hours
• Kansaki KM35P marine gear with 2.33:1 ratio
• Panel in cockpit with voltage, temperature, oil pressure
• 1 ¼ custom-built stainless steel shaft
• Supplemental Balmar 120 Amp regulator for house bank
• Flex coupler attached to split coupler for ease of removing shaft when needed
• 18X12 3 blade bronze propeller
• Morse shifter
• Remote oil filter for easier oil changes

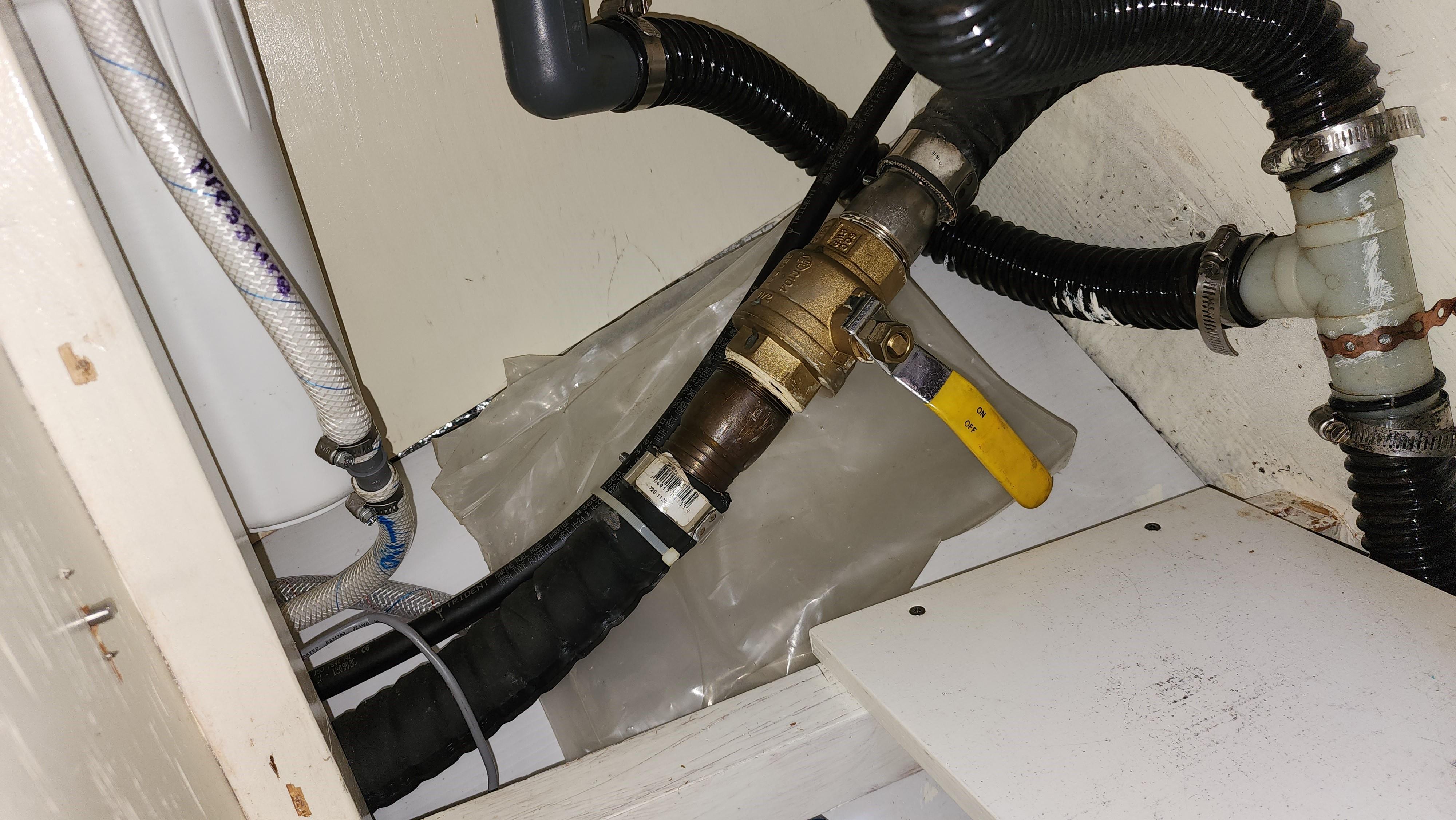

• Labeled Hoses and thru hulls are labeled
• Storage bins are labeled for what’s in them
• Gravity fed fuel day tank
• Automatic Halon, FireBoy fire suppression

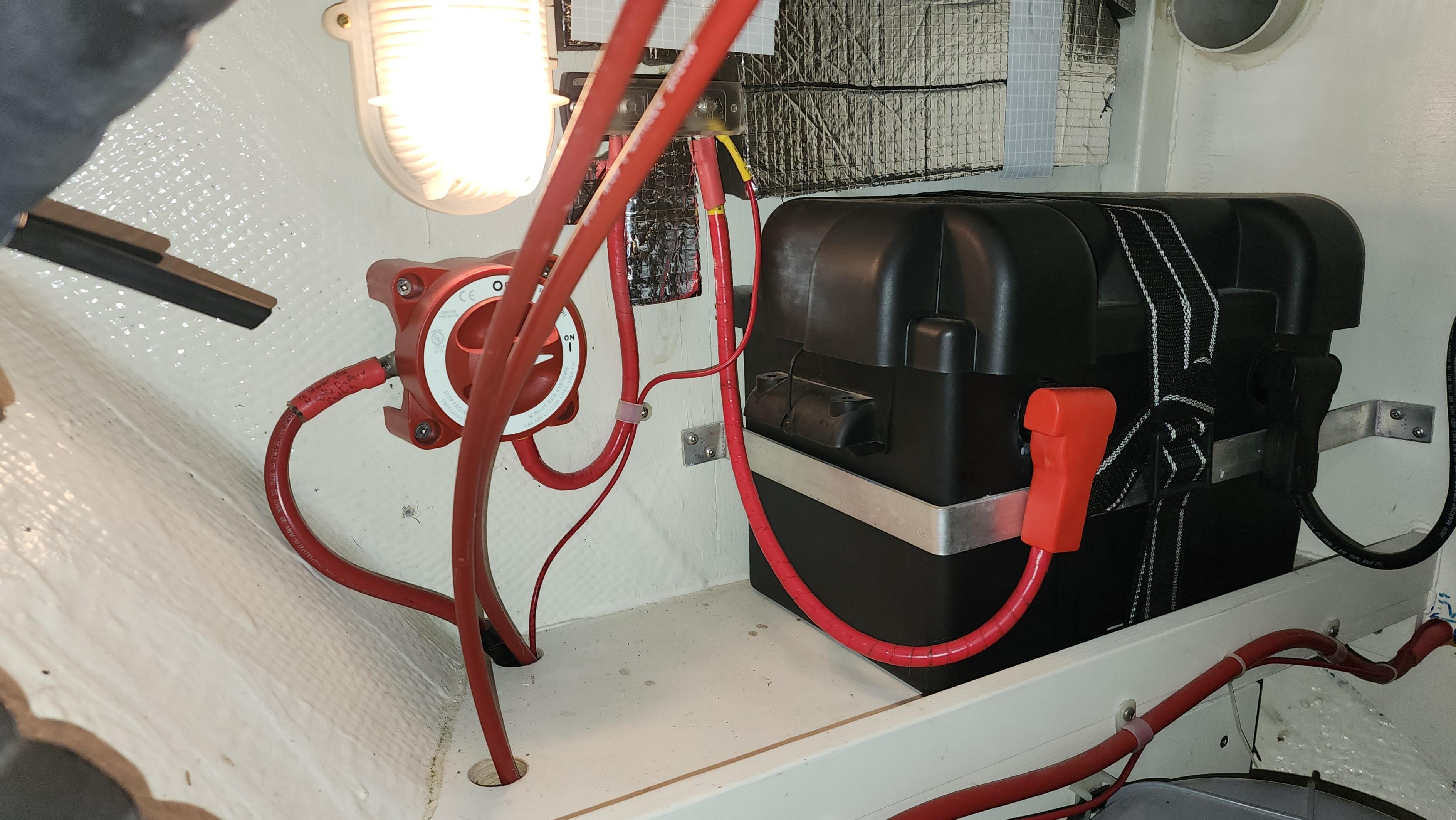

• Starting battery in battery box with Blue Sea on off switch
• Inline Blue Sea fuse from battery to switch
• Engine room is accessed by well hinged insulated door behind companionway steps
• Sound shielding around cockpit area
• Deck prism in cockpit side adds a lot of natural light
• Seat to starboard of engine allows one to work on engine with ease and also allows access to starting battery, shaft coupler and all parts of the engine
• Two large covered 12v lights for added brightness
• Engine room is bright white marine paint and is extremely clean
• Wrench storage handy to engine

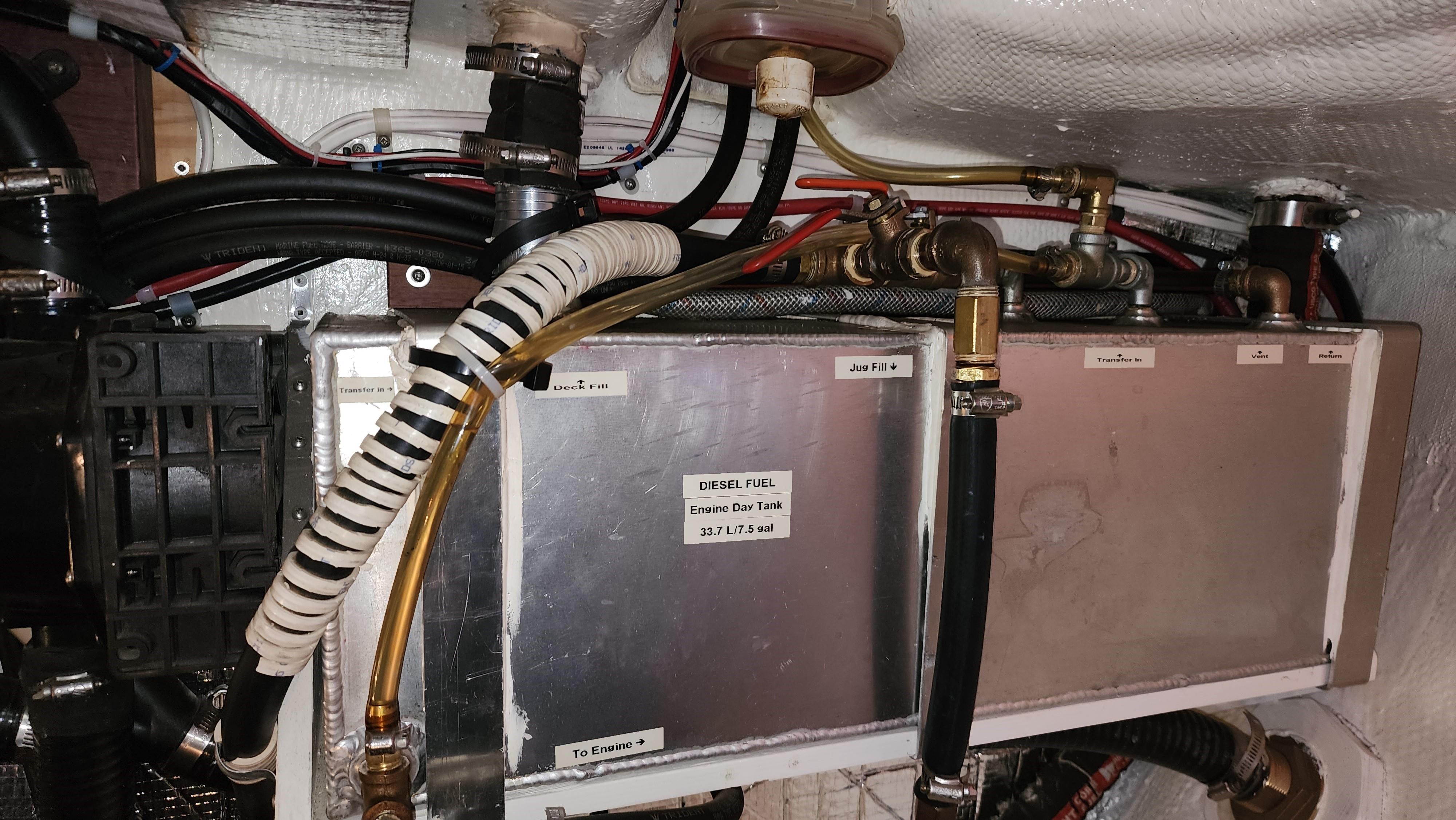

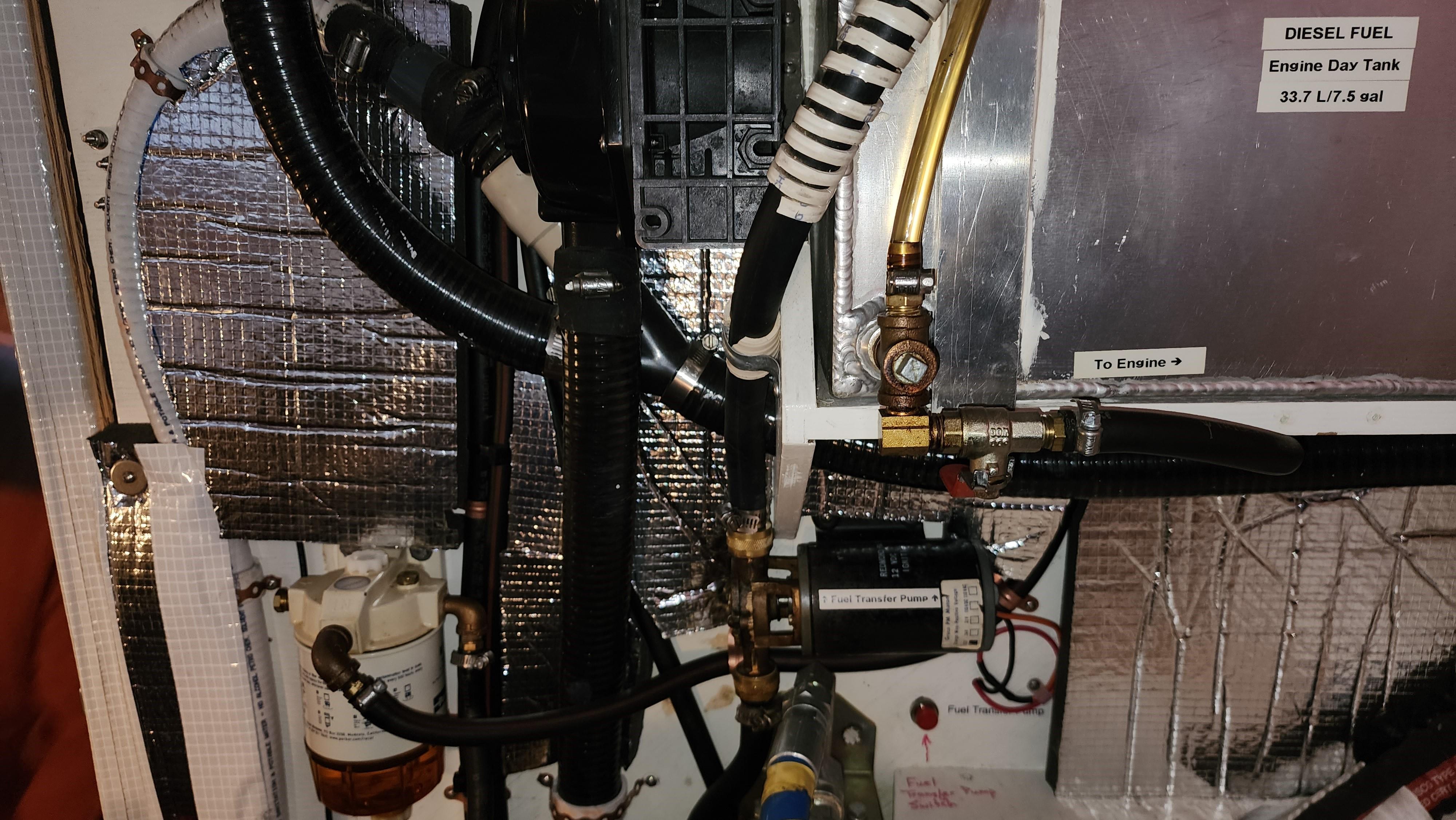

• 37 L stainless steel day tank with transfer pump, fuel line manifold for the two fuel tanks, and site hose and labeled
• 50-gallon fuel tank under galley/nav area
• 38-gallon fuel tank under engine room
• Shut off valves so fuel can’t be stolen
• Fuel tank vent water trap
• Two Racor/Parker water separator and filters

ELECTRICAL + PLUMBING

• House bank four 6v deep cycle
• One 12v starting battery

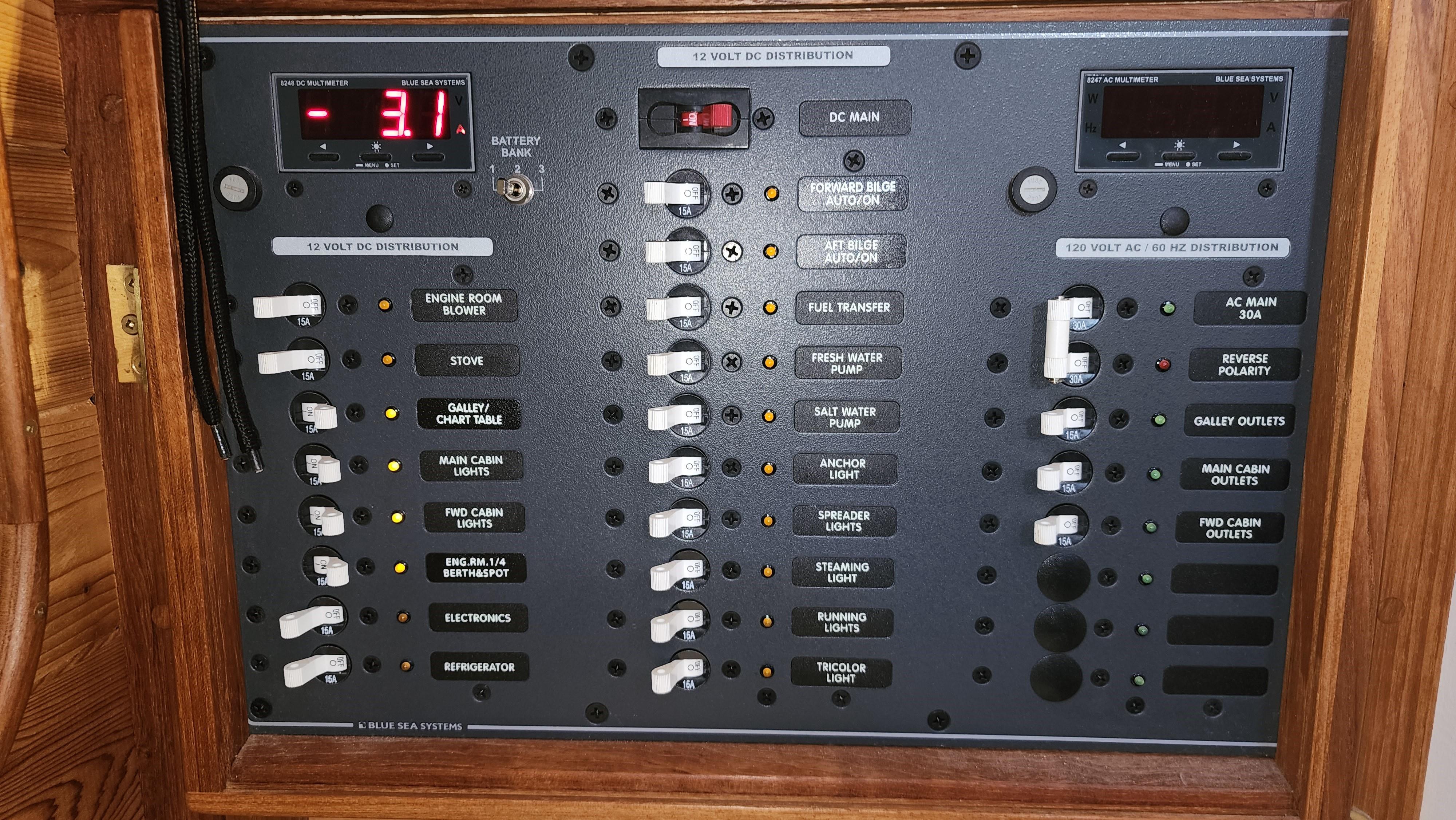

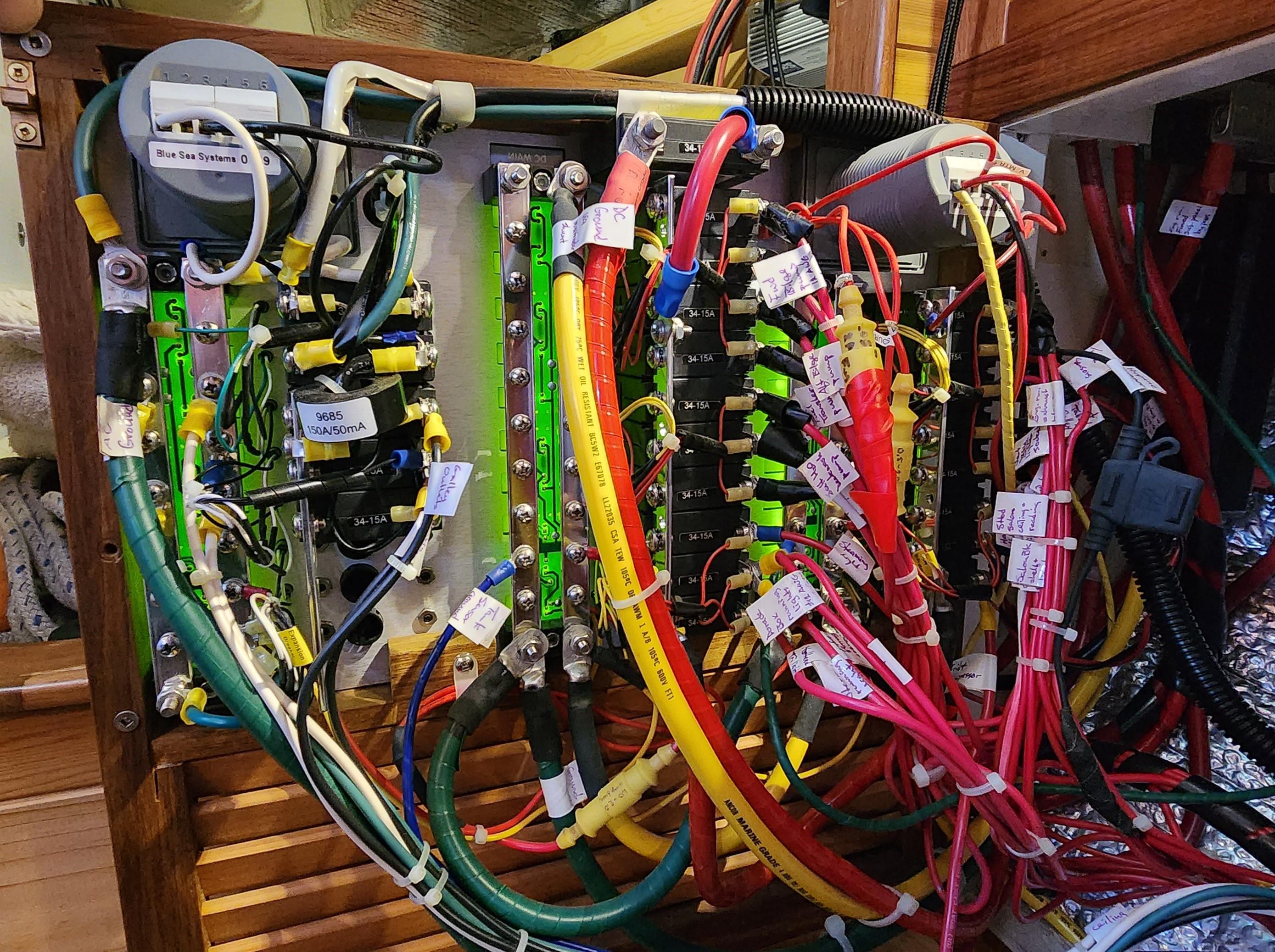

• Blue Sea 12v/120v electrical panel

• Blue Sea 110v electrical panel
• Labeled wiring
• Xantrex 1800 inverter/charger
• Remote on/off panel for Xantrex at chart station
• Balmar 120 amp high output alternator
• All new tinned 12v wiring 2010-2012 (won’t corrode)
• All new tinned 110v wiring 2010-2012
• 12V Frigaboat custom refrigeration with keel cooler
• Remote temperature display for Frigaboat
• Remote controller for Frigaboat
• LED lighting throughout boat
• 50’ marinco power cable
• Go Power flexible panel GP-Flex 10 (110 Watt)

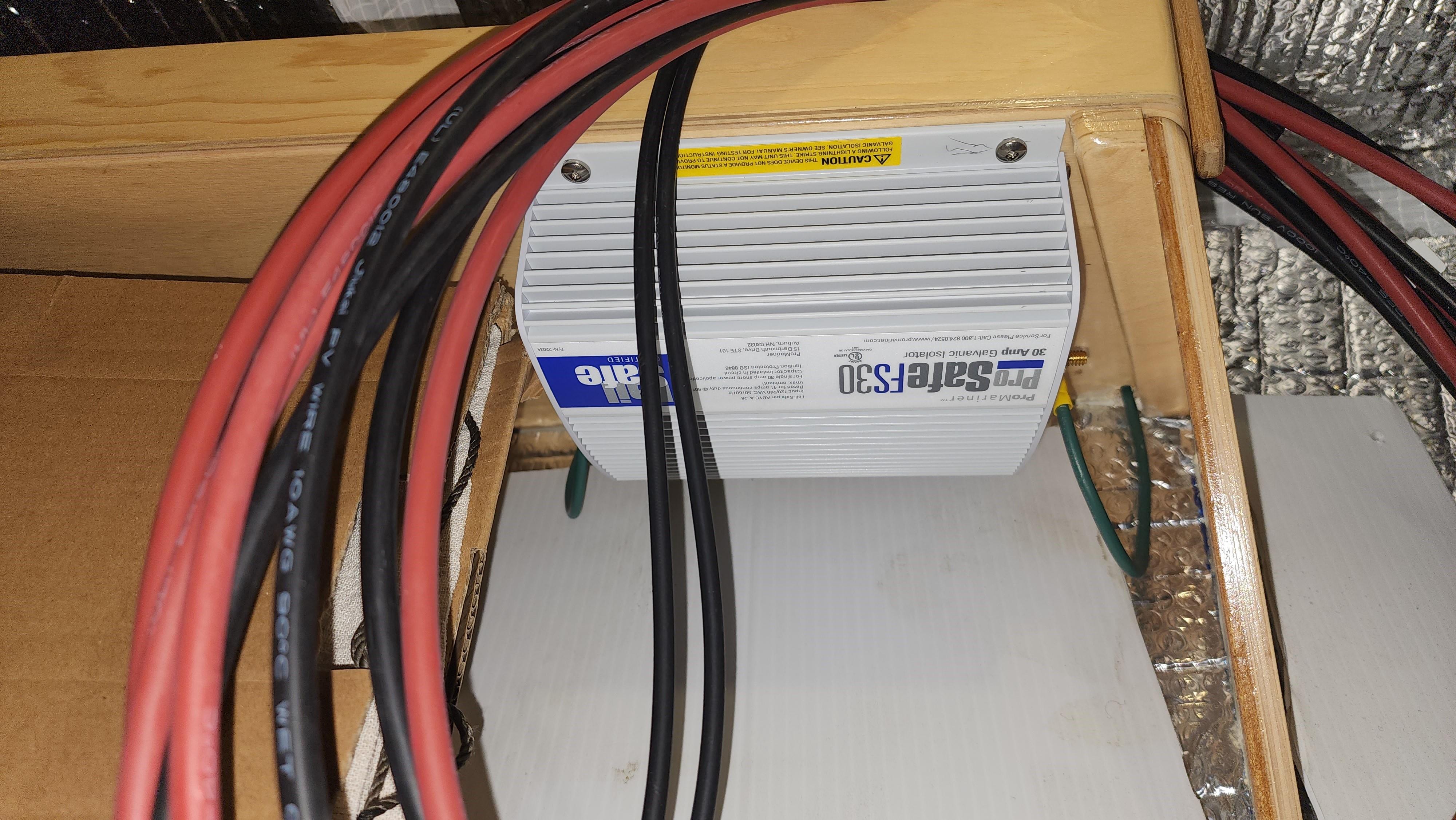

• Pro Mariner ProSafe FS30 Galvanic isolator
• Manual Whale bilge pump in head and at galley
• Galley manual bilge pump can be switched to pump either sink water or bilge area
• Rule 12V 1750 gph bilge pump in aft bilge
• Rule 12V 1750 ghp bilge pump in forward bilge
• In-line carbon filter for fresh water (via the electric water pump at the sink)
• All plumbing hoses labeled
• Pressure cold water in head and at galley
• Foot pump in head for fresh water
• 50 gallons water in stainless steel tank
• 40 gallons of water in fiberglass tank
• 30 Gallons of water in another fiberglass tank

INSTRUMENTS

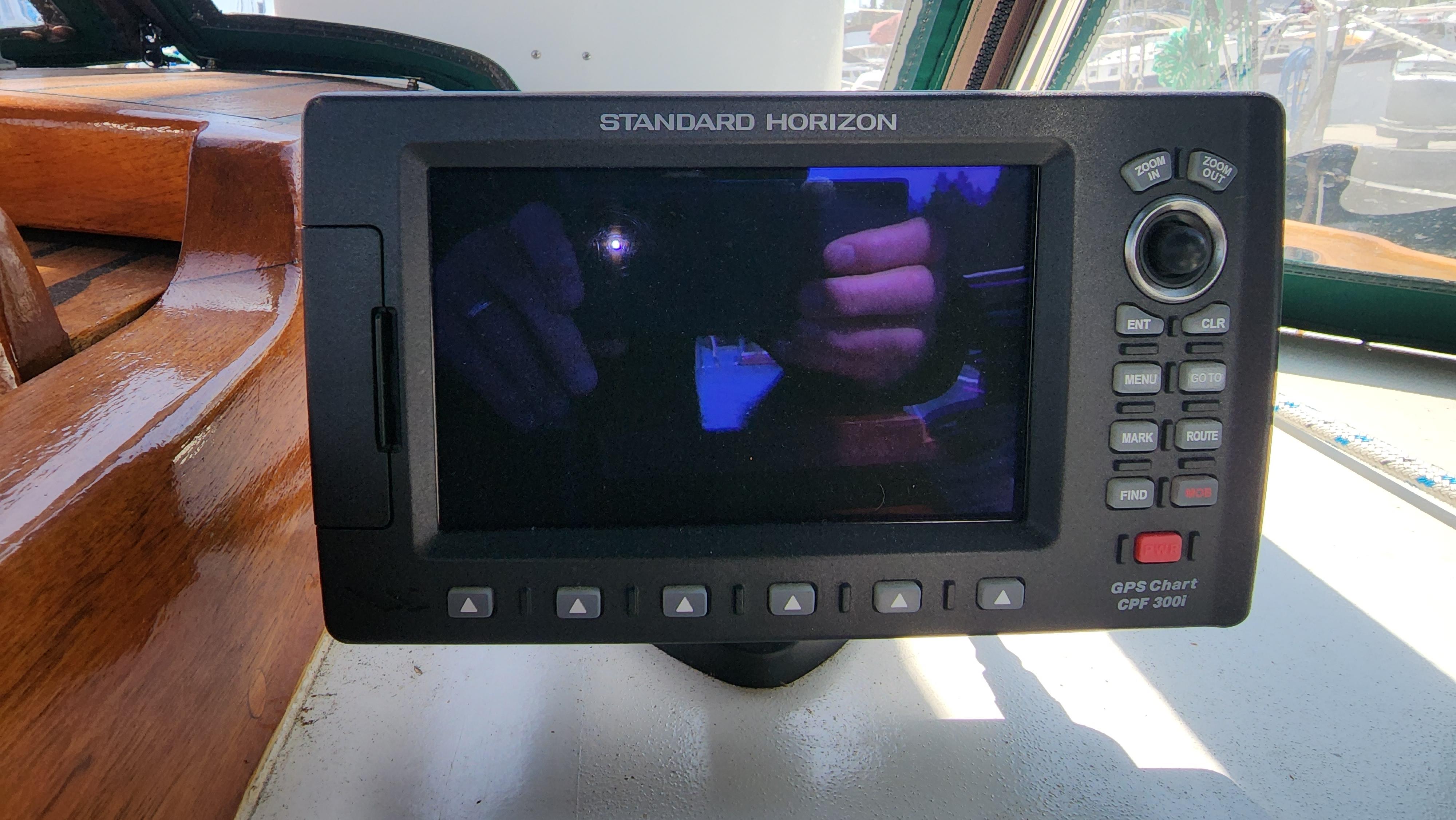

• Standard Horizon CPF 300i GPS Chart plotter
• Standard Horizon depth sounder module for 300i Chart plotter
• Standard Horizon GX2100 Matrix AIS VHF

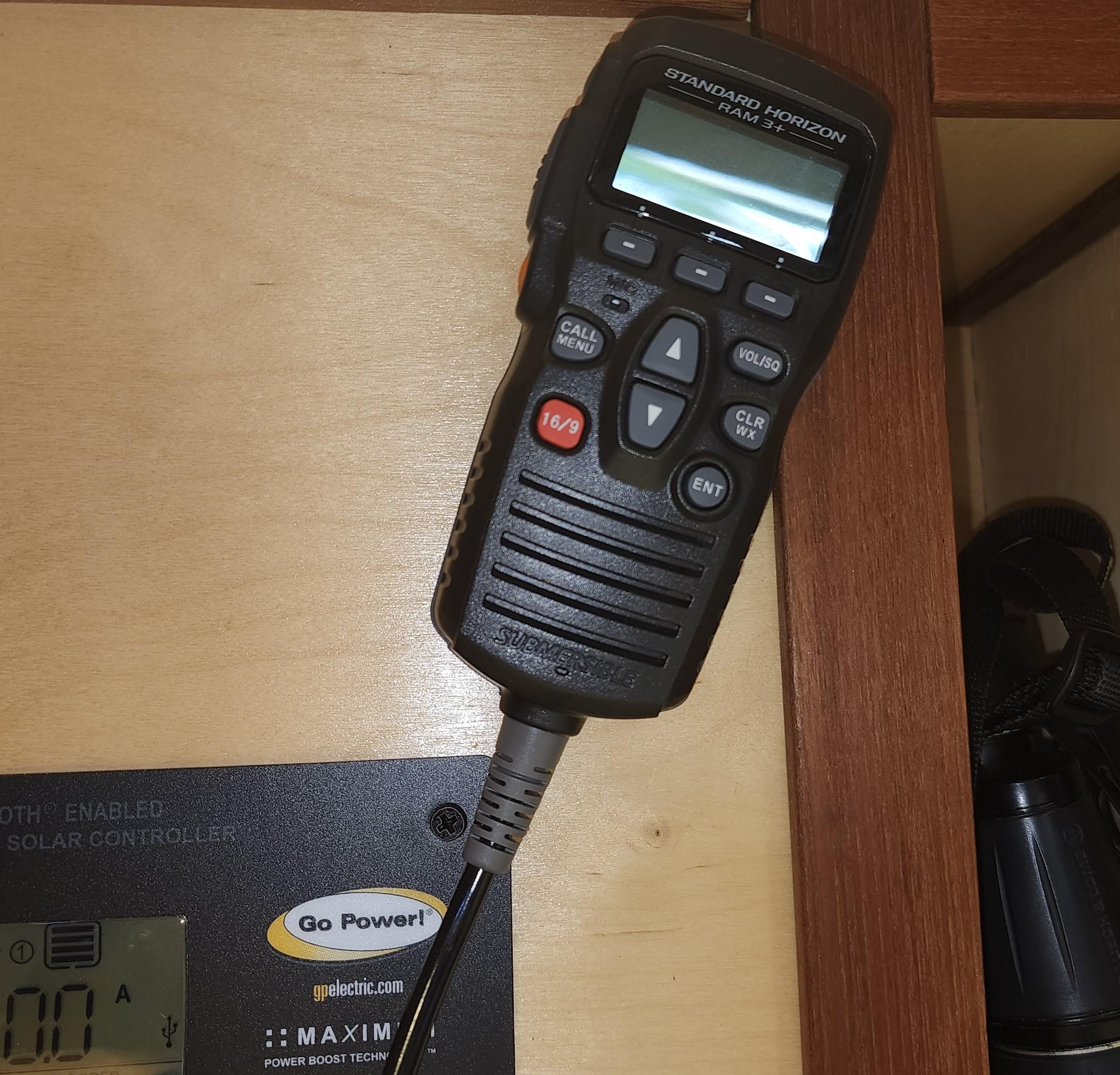

• Standard Horizon Ram 3+ Command Mike
• Aqua meter compass in cockpit

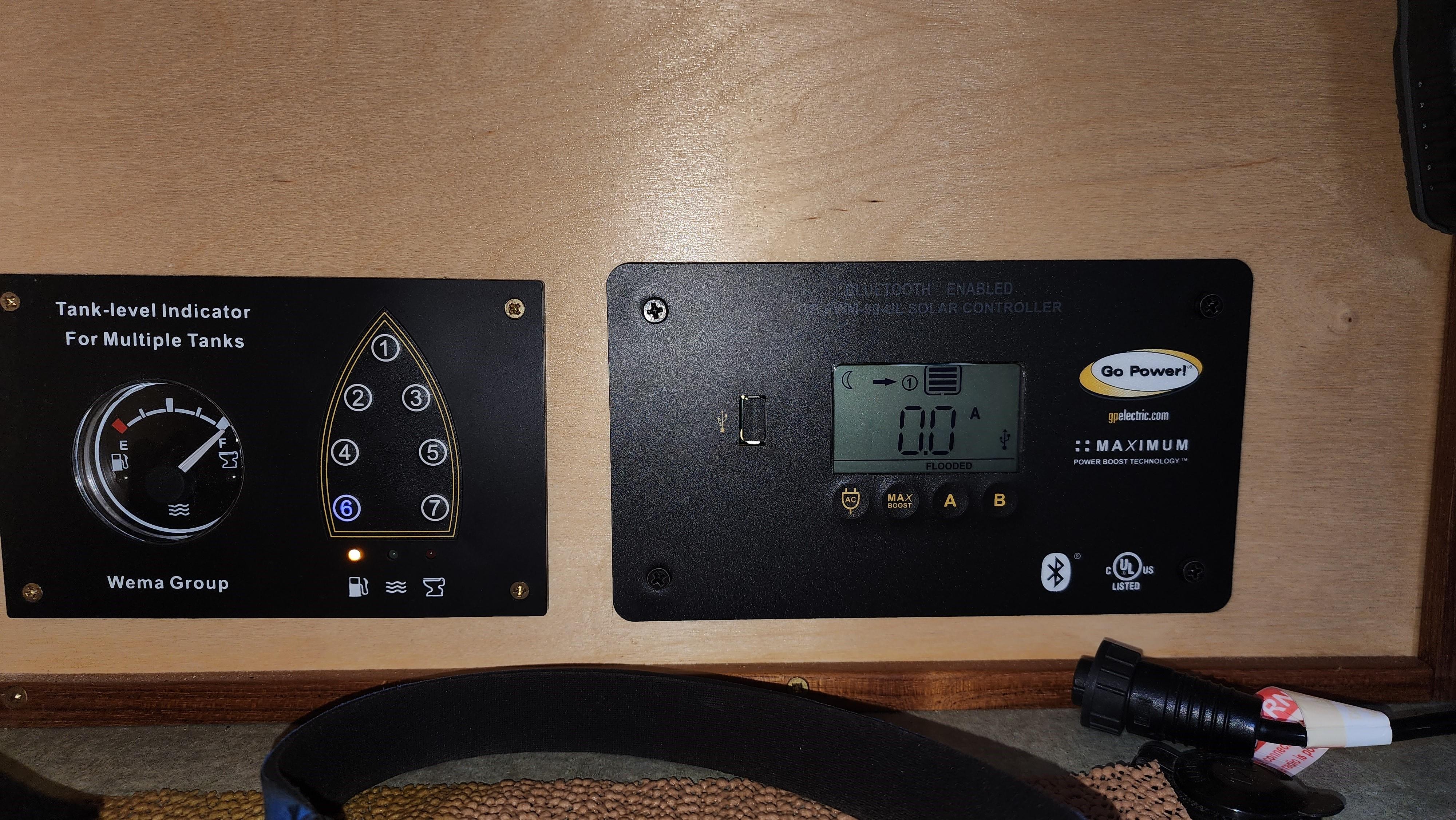

• Wema Group Tank level indicator
• Go Power Bluetooth enabled solar panel monitor

SAILS & CANVAS

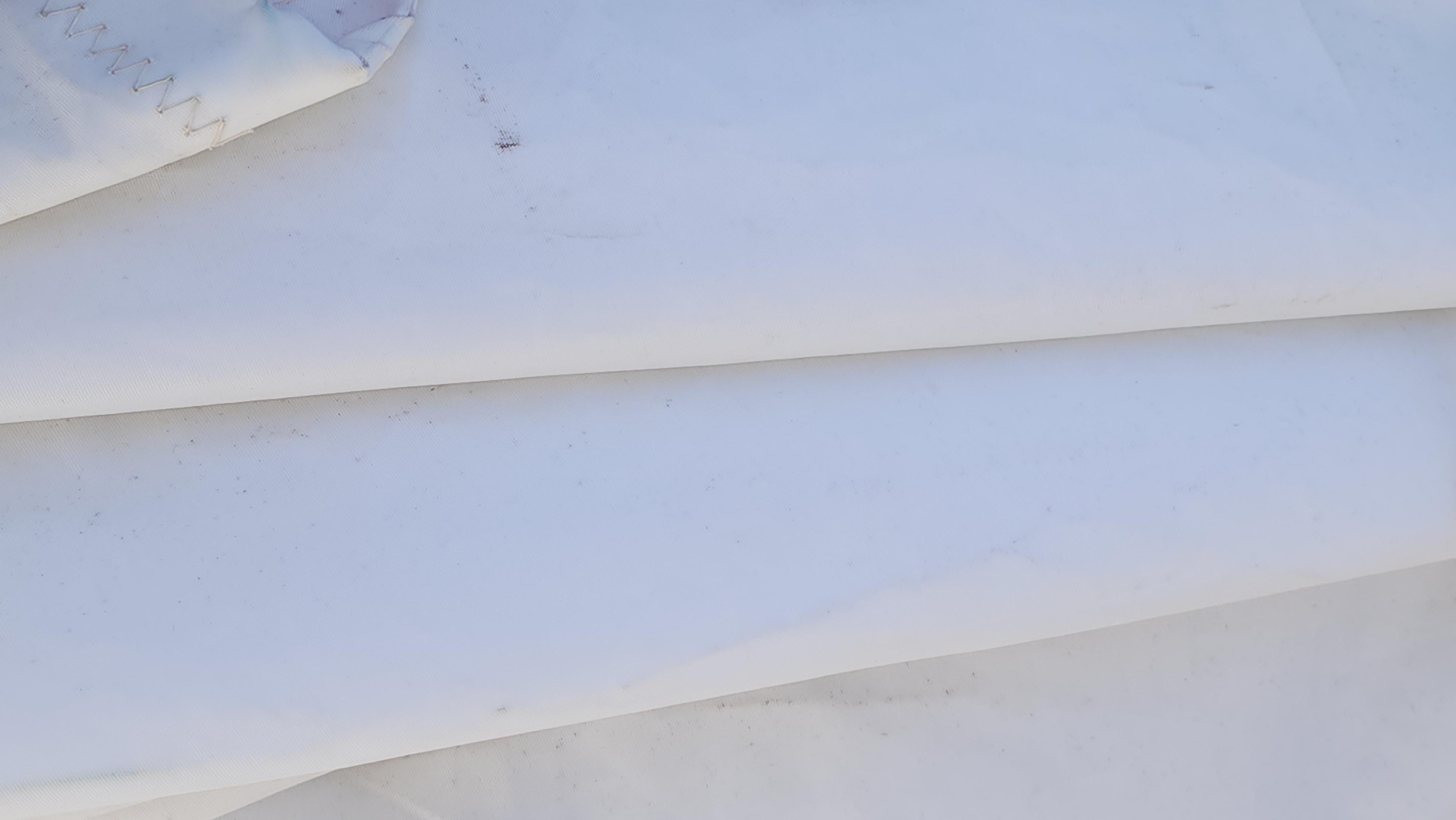

• Main sail in excellent condition
• Genoa headsail in excellent condition
• Staysail in excellent condition

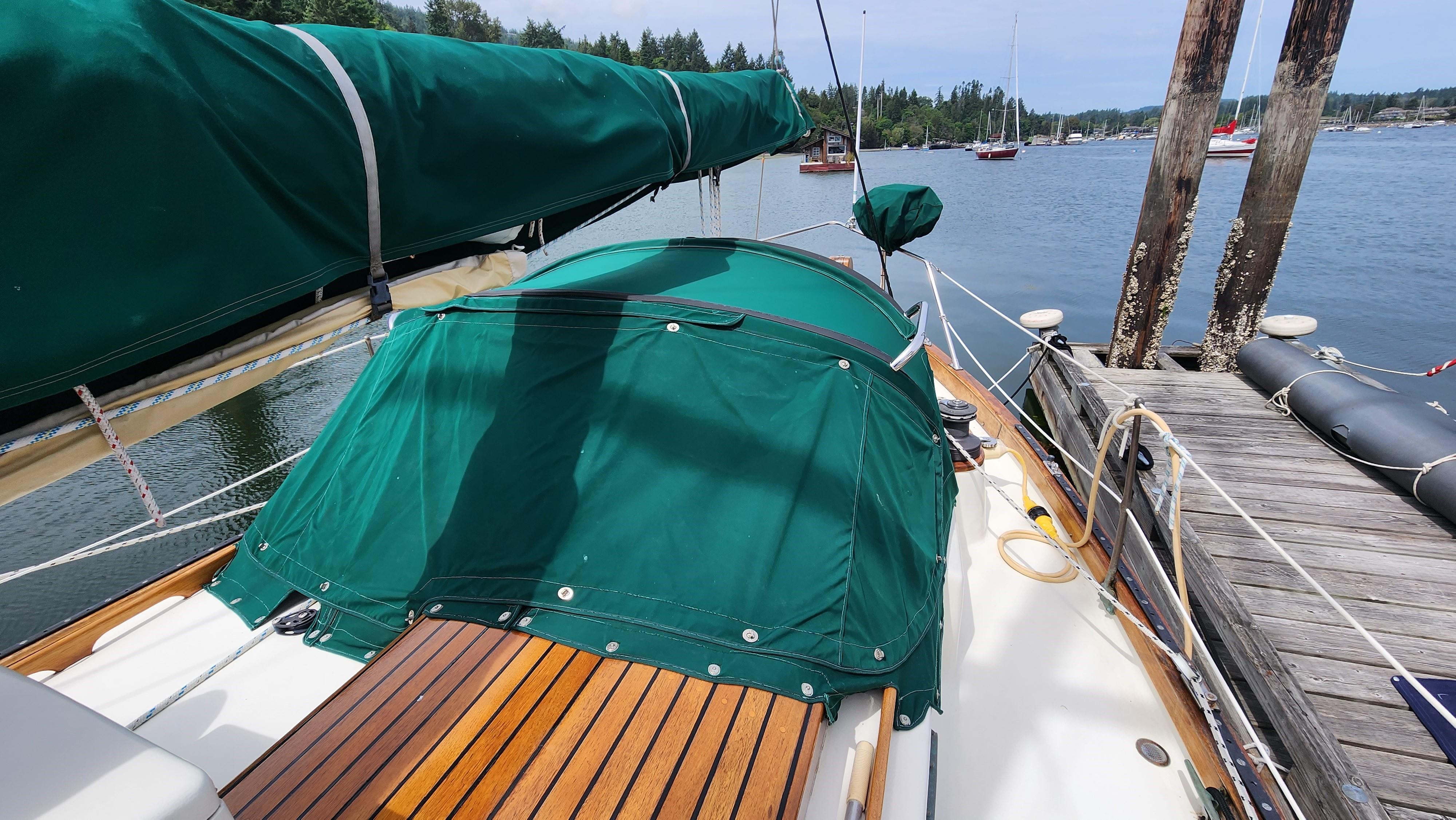

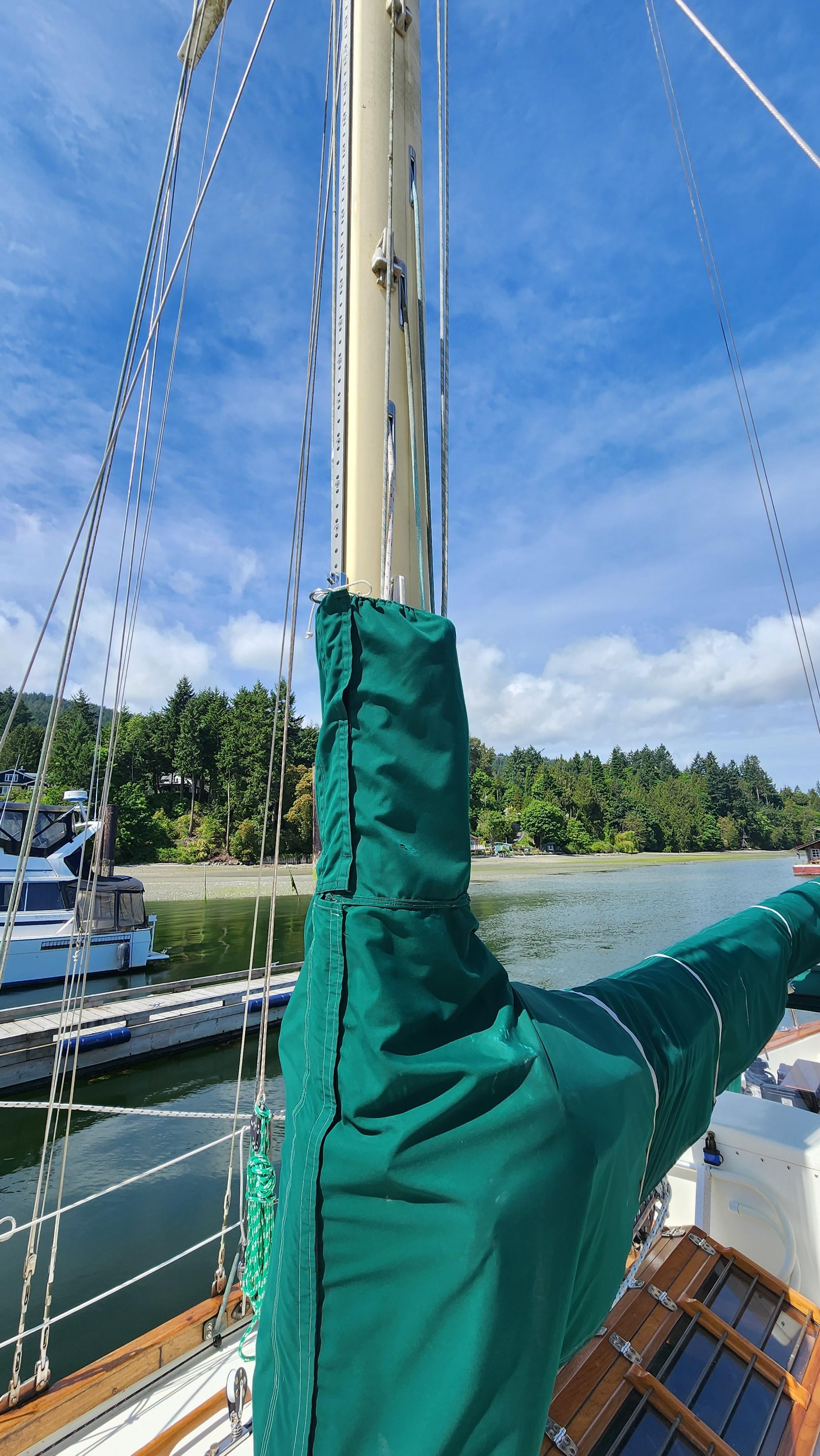

• Mainsail and stays’l covers

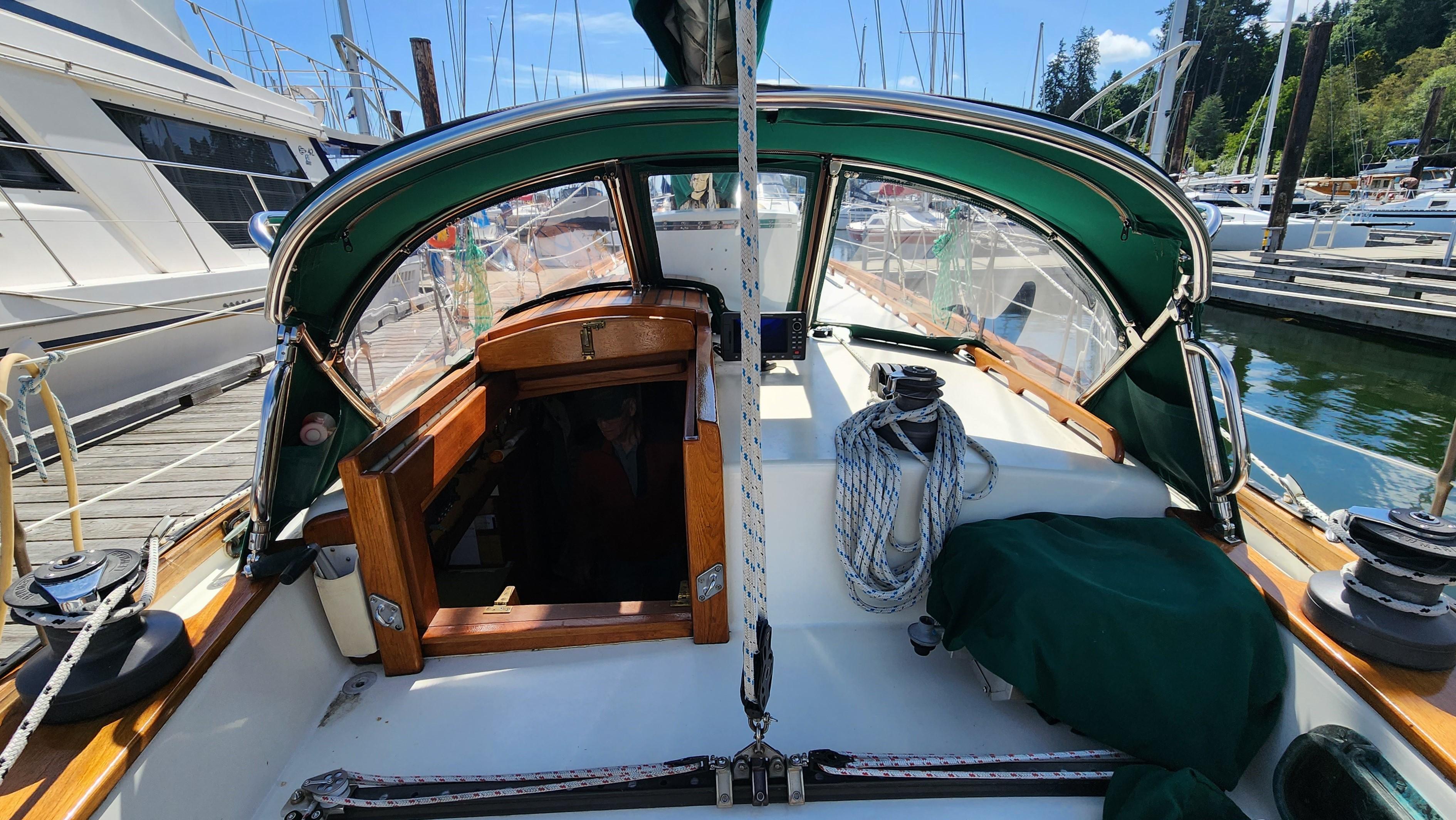

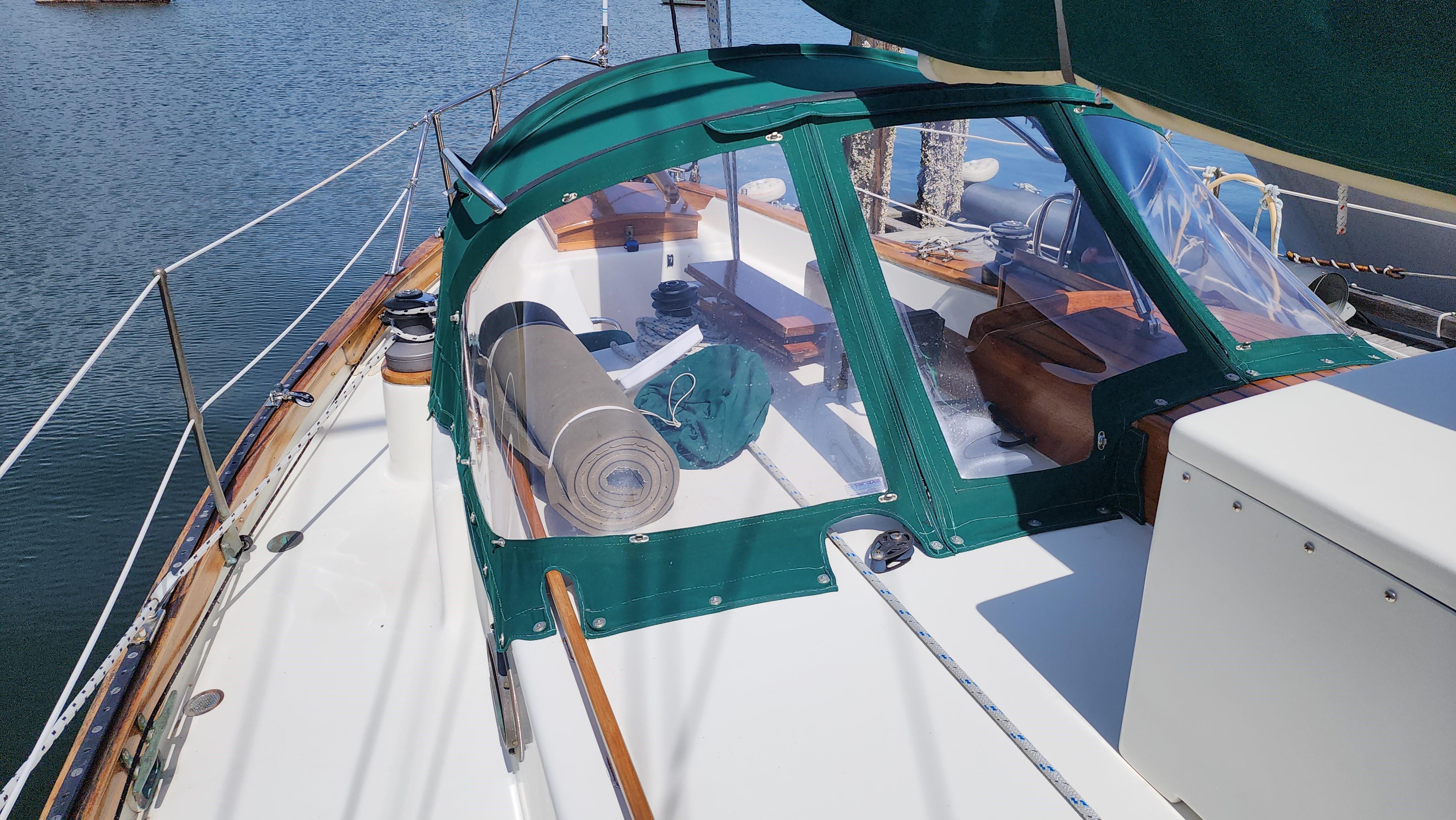

• Heavy-walled stainless steel framed dodger with side and aft handles
• Newer windows in dodger (2020)
• Sunbrella dodger resewn 2020
• Sunbrella cover for windows in dodger
• Sunbrella cap rail and bulwark covers
• Sunbrella covers for teak hatches

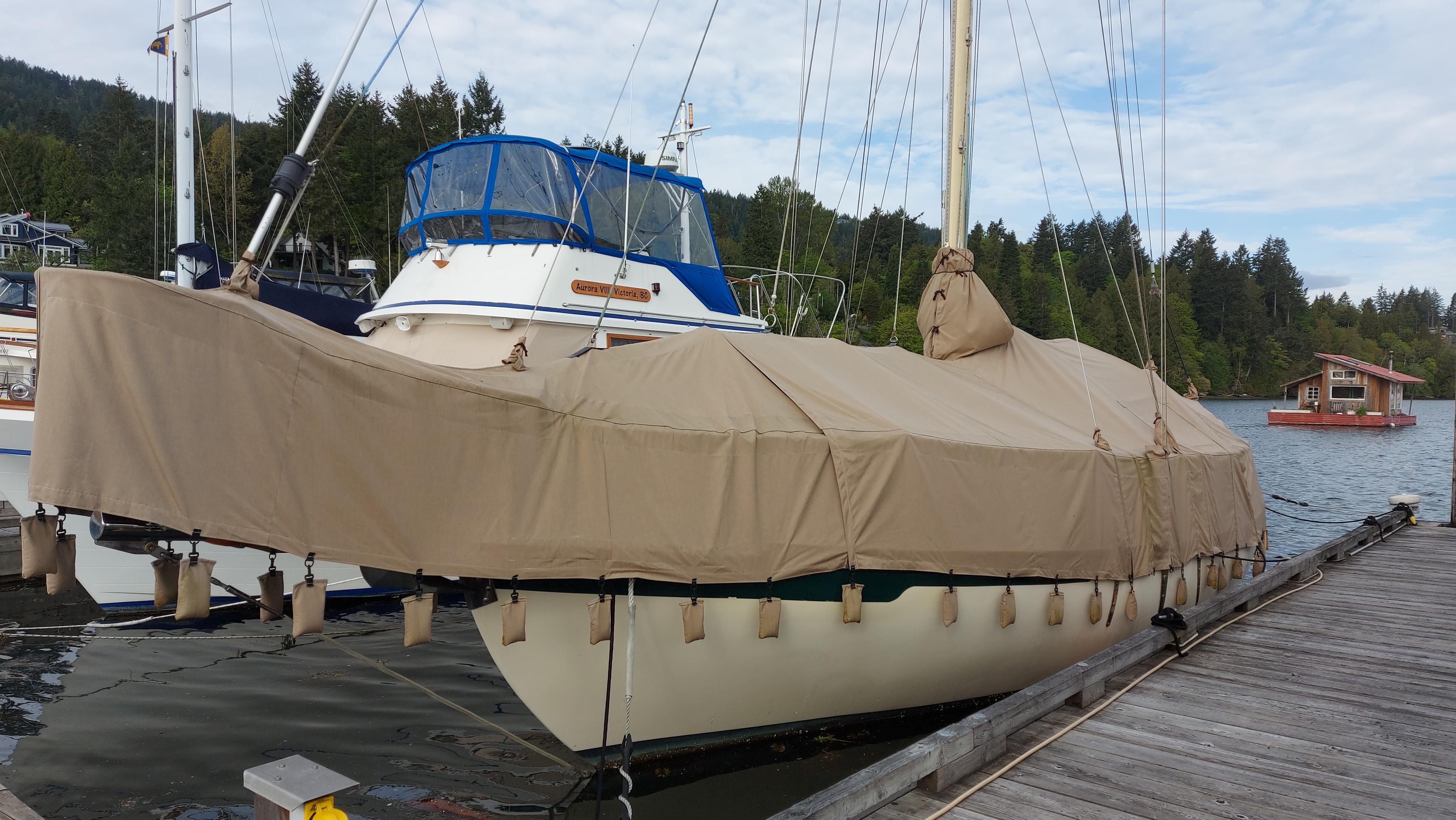

• Full winter Sunbrella cover new 2018

RIGGING

• Aluminum double spreader masthead cutter rig new 2012
• Mast steps
• Aluminum boom 2012
• Lazy Jacks

• Block and tackle boom vang
• Standing rigging inspected before mast installed
• Intermediates new 2012
• Running rigging new 2012

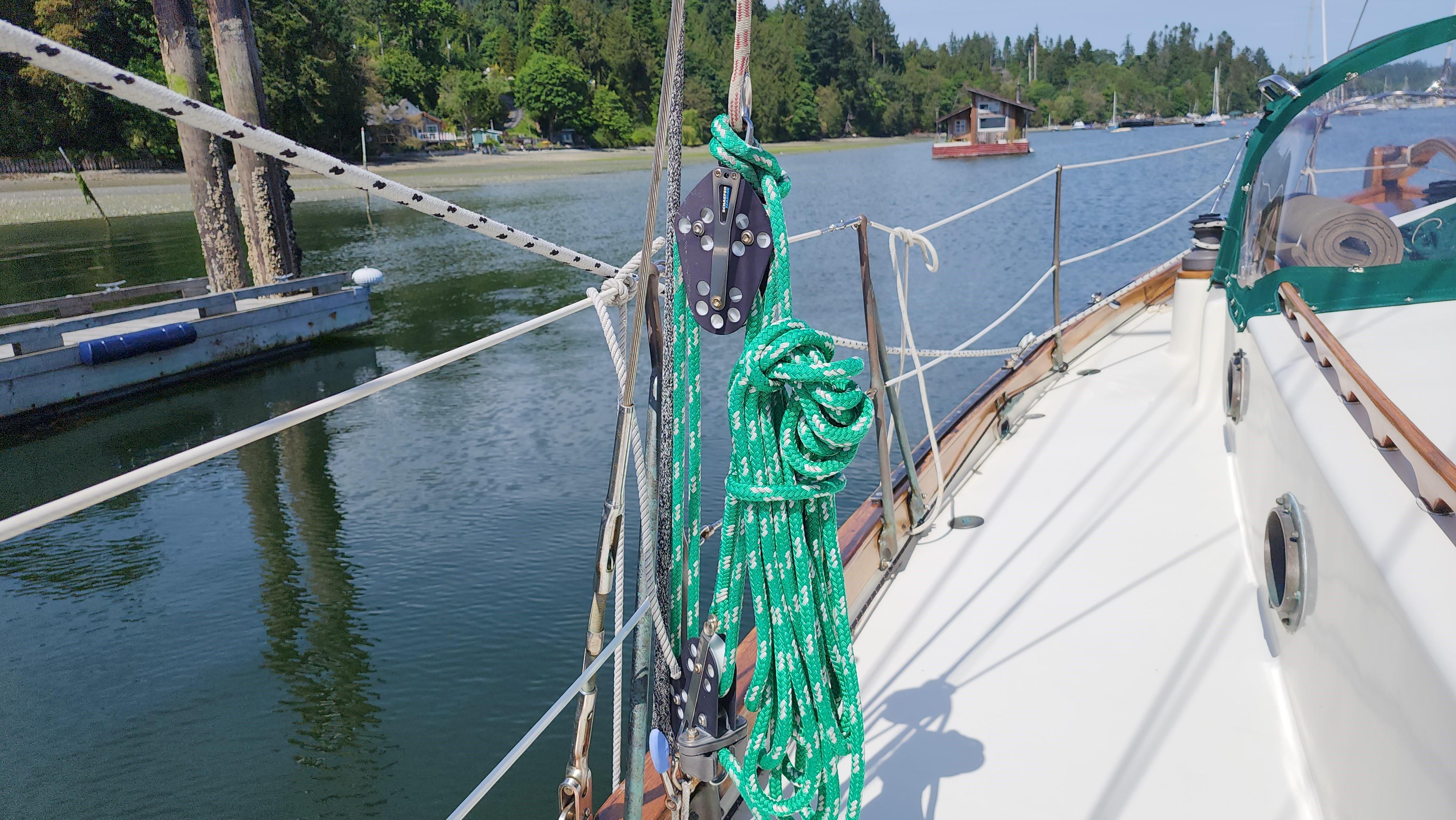

• Running checkstays with adjustable block and tackle new 2012

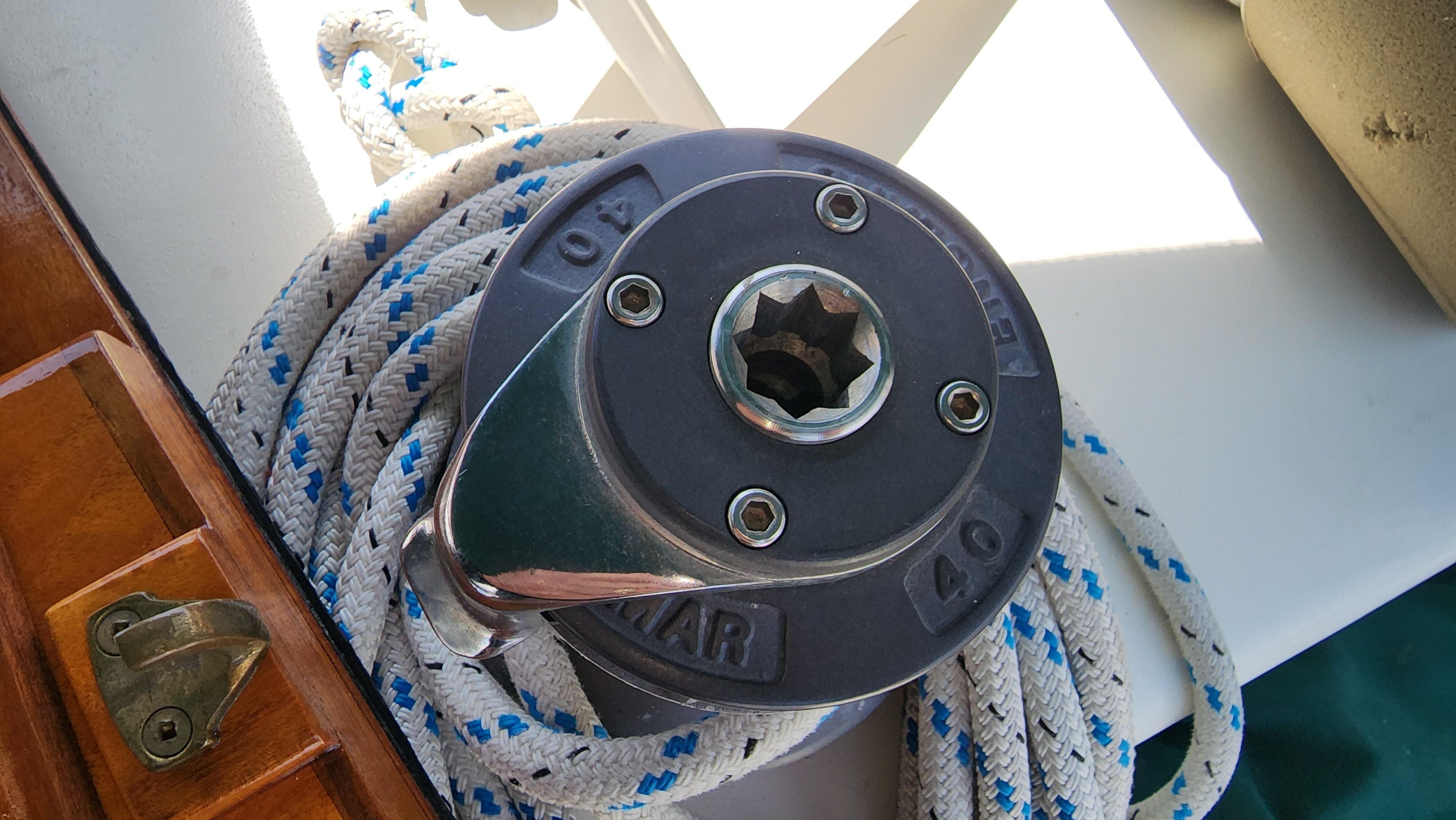

• Traveler in cockpit with mainsheet block and tackle that goes to a Lewmar ST40 2 speed winch on starboard cabin top

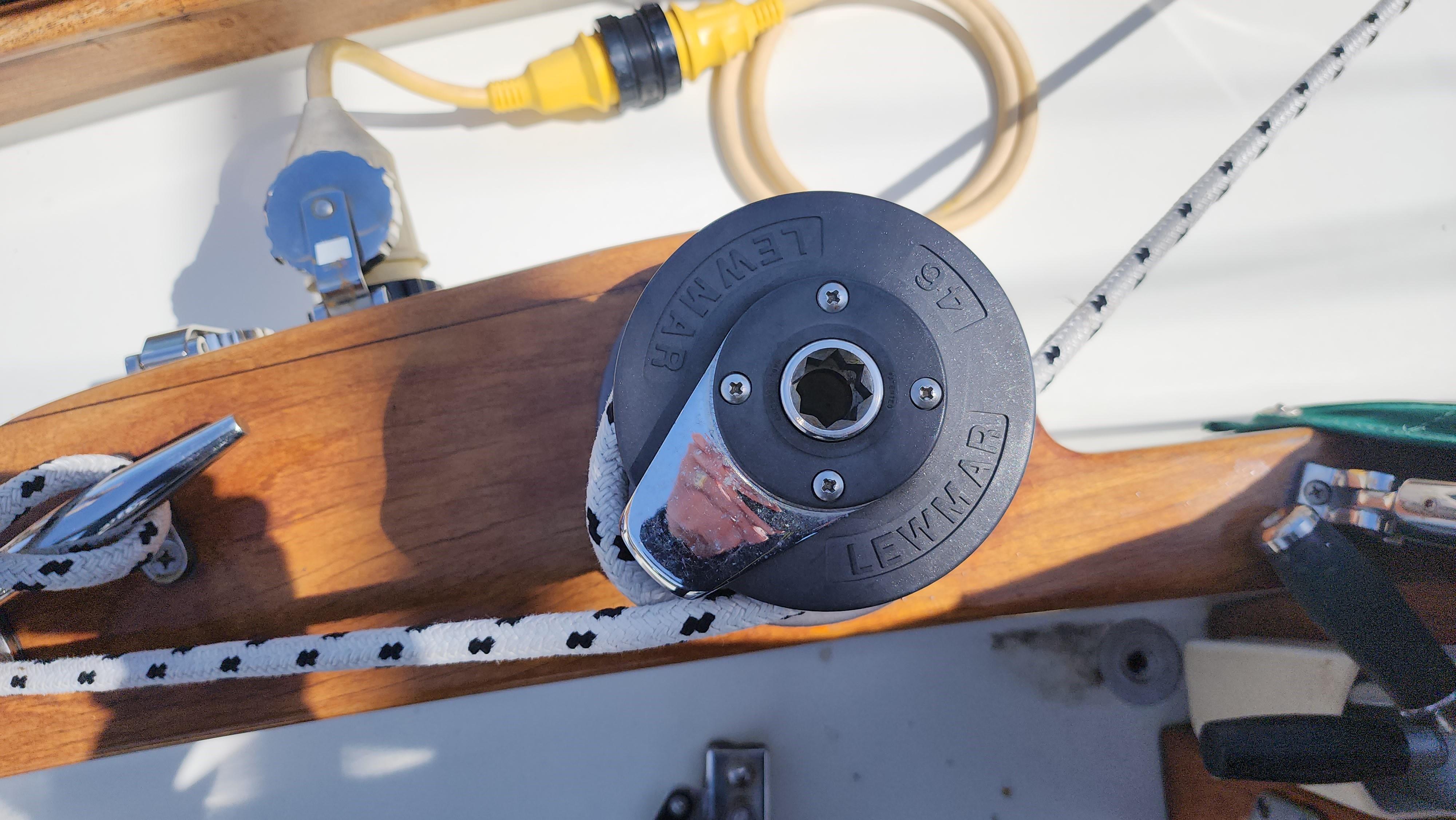

• 2 Lewmar ST46 headsail winches on coamings
• Two Lewmar 30 winches on the mast
• One Lewmar 16 vang winch

DECK EQUIPMENT

• Primary Anchor: 33kg Delta
• Rode: 200 feet 5/16” chain
• 150 feet ¾” 3-strand nylon rope
• Heavy-walled ¾” stainless steel pulpit and pushpit
• Purple heart coaming around cockpit

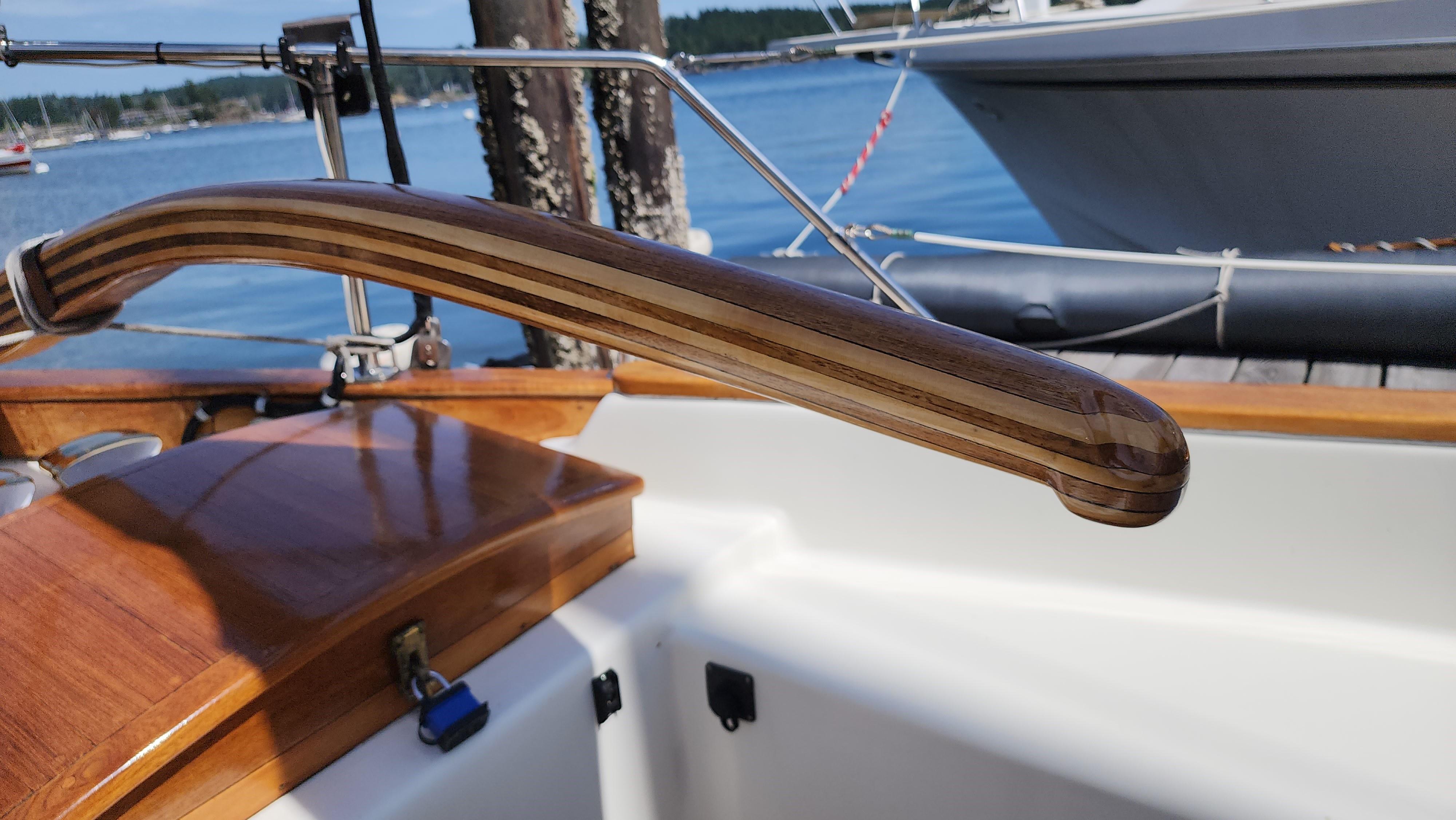

• Laminated Teak and Fir tiller
• Deck drains port and starboard with screens

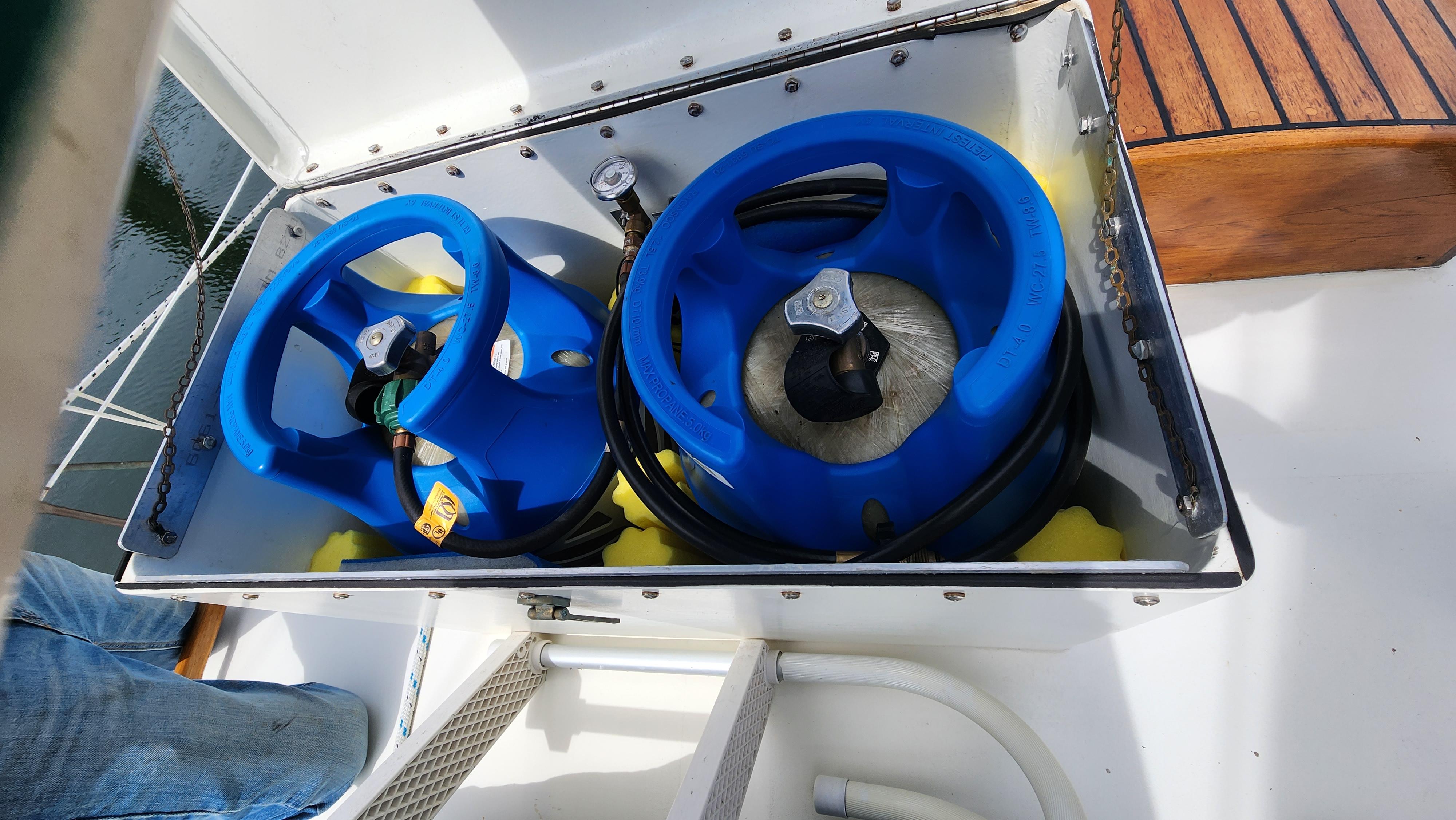

• Fiberglass propane tank locker with solenoid and pressure gauge

ADDITIONAL EQUIPMENT

• Two 12.5L Ragasco Fiberglass propane tanks
• Trident Propane panel with two detectors
• Sigmar gravity fed diesel cabin heating

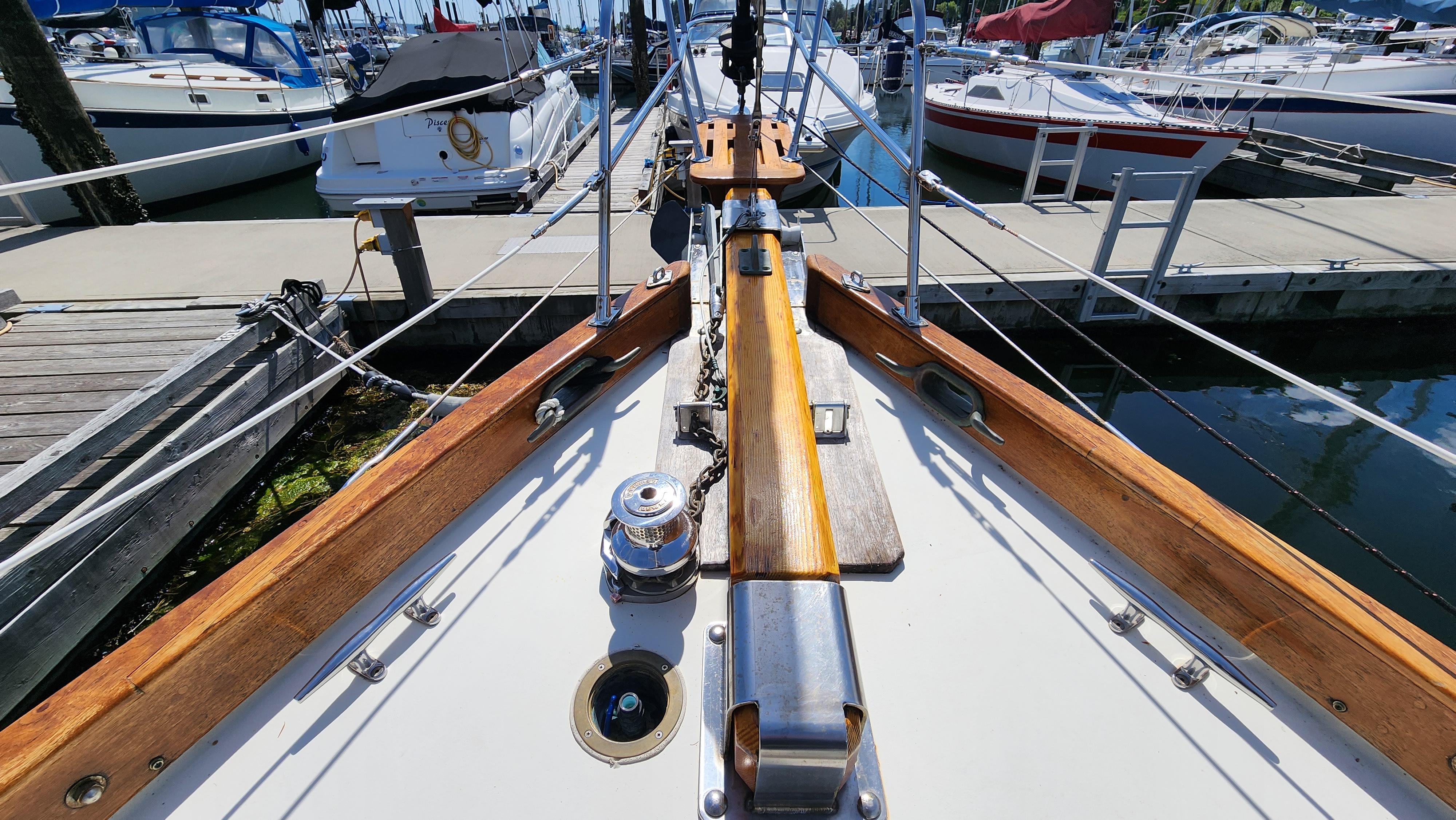

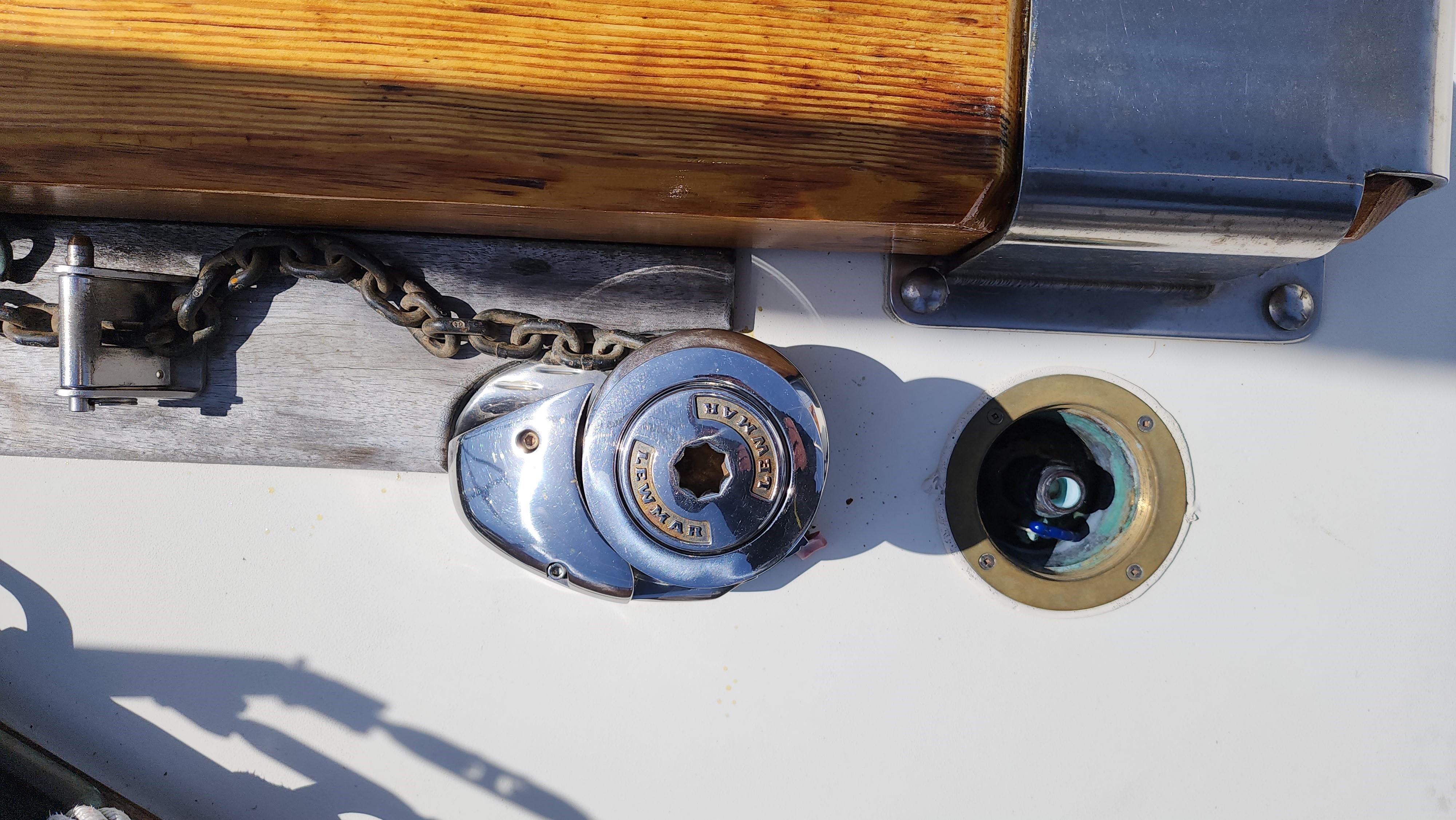

• Lewmar V series electric windlass
• Remote up and down controls for windlass
• 30lb Delta anchor
• 200’ 3/8th galvanized chain and 150’ ¾” nylon 3 strand rode

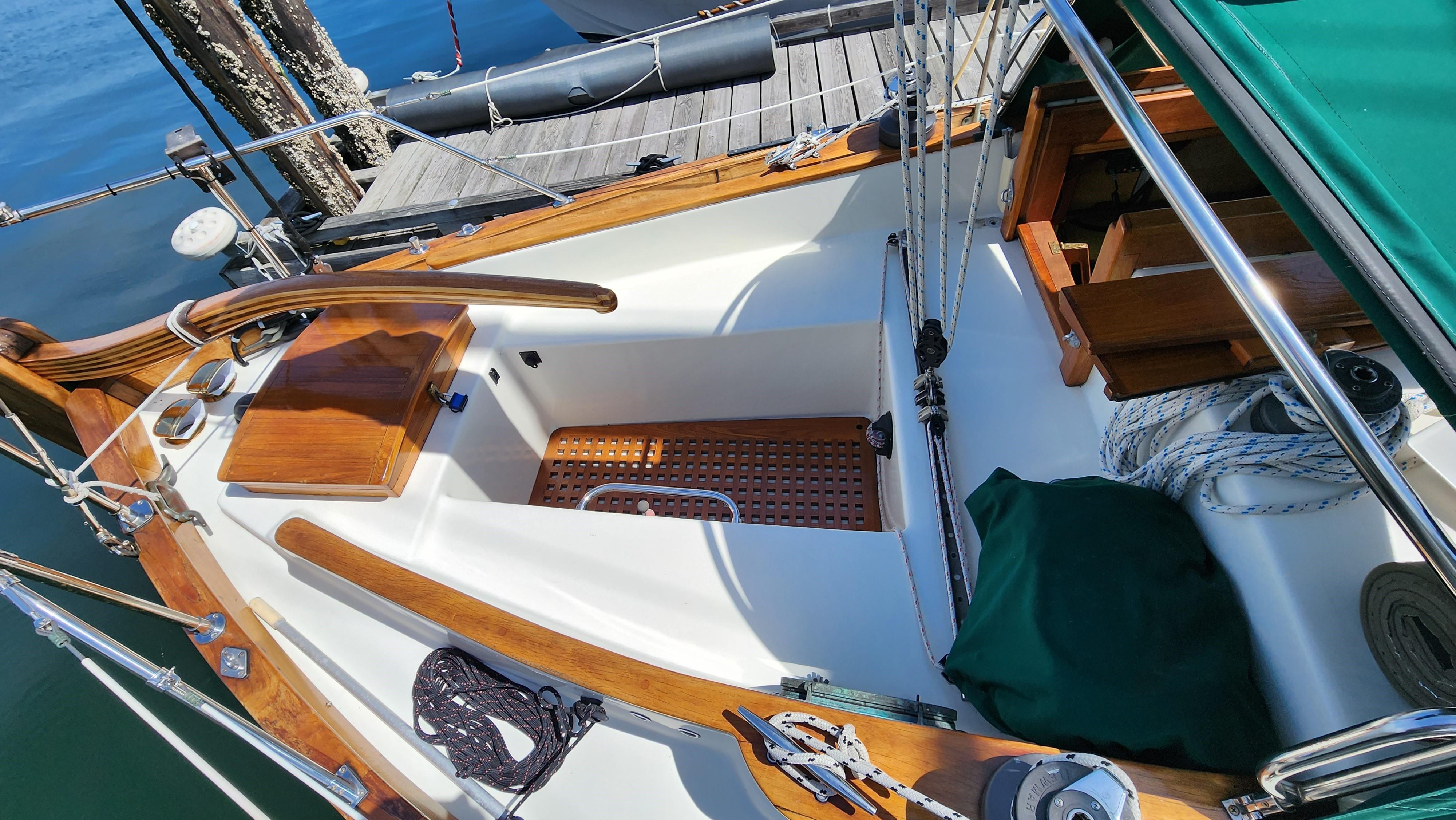

• Solid teak grate in cockpit floor
• 8’ Fiberglass dinghy with oars
• 2 coats Pettit Horizons Black over red so you know when to repaint
