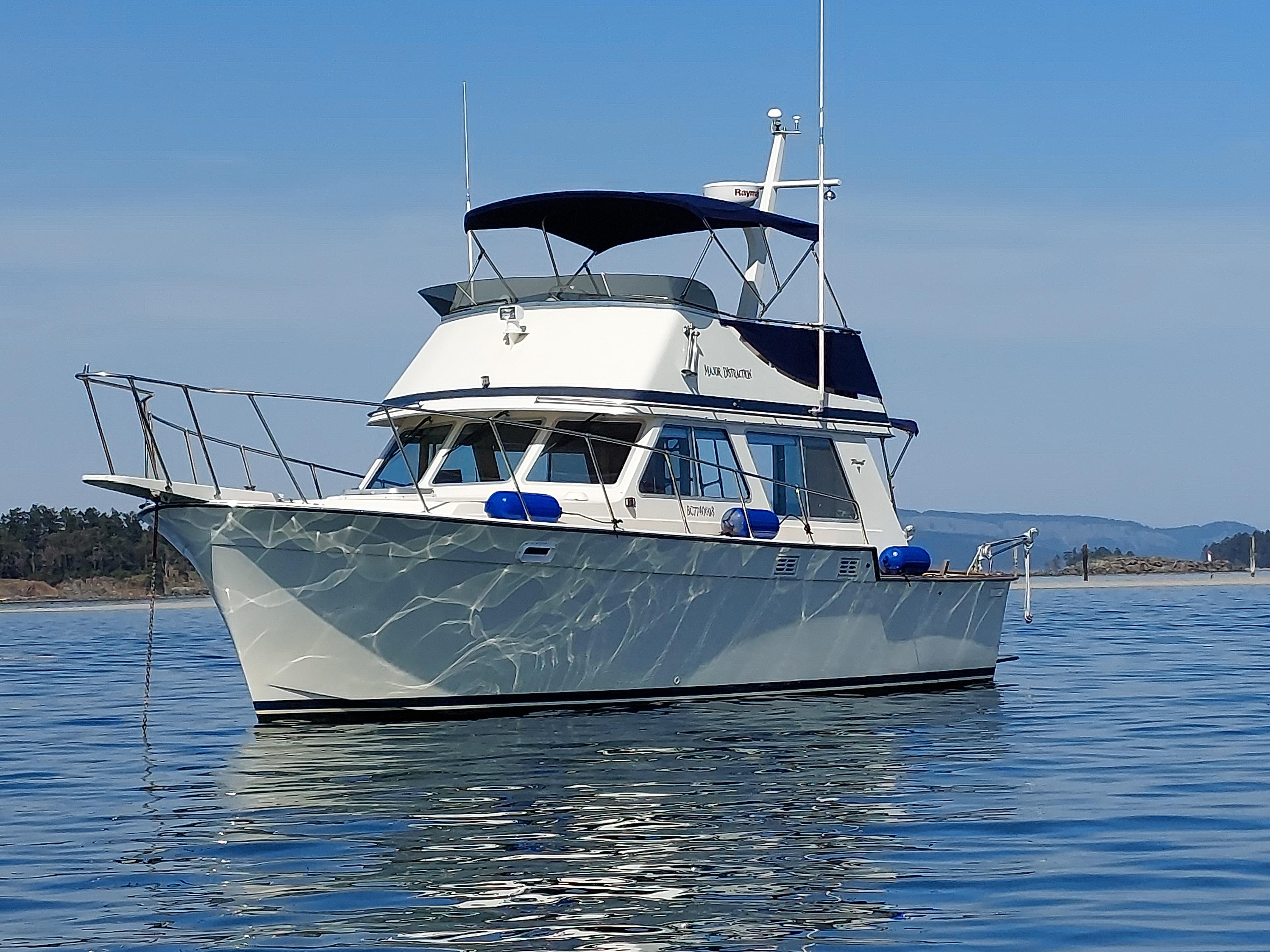

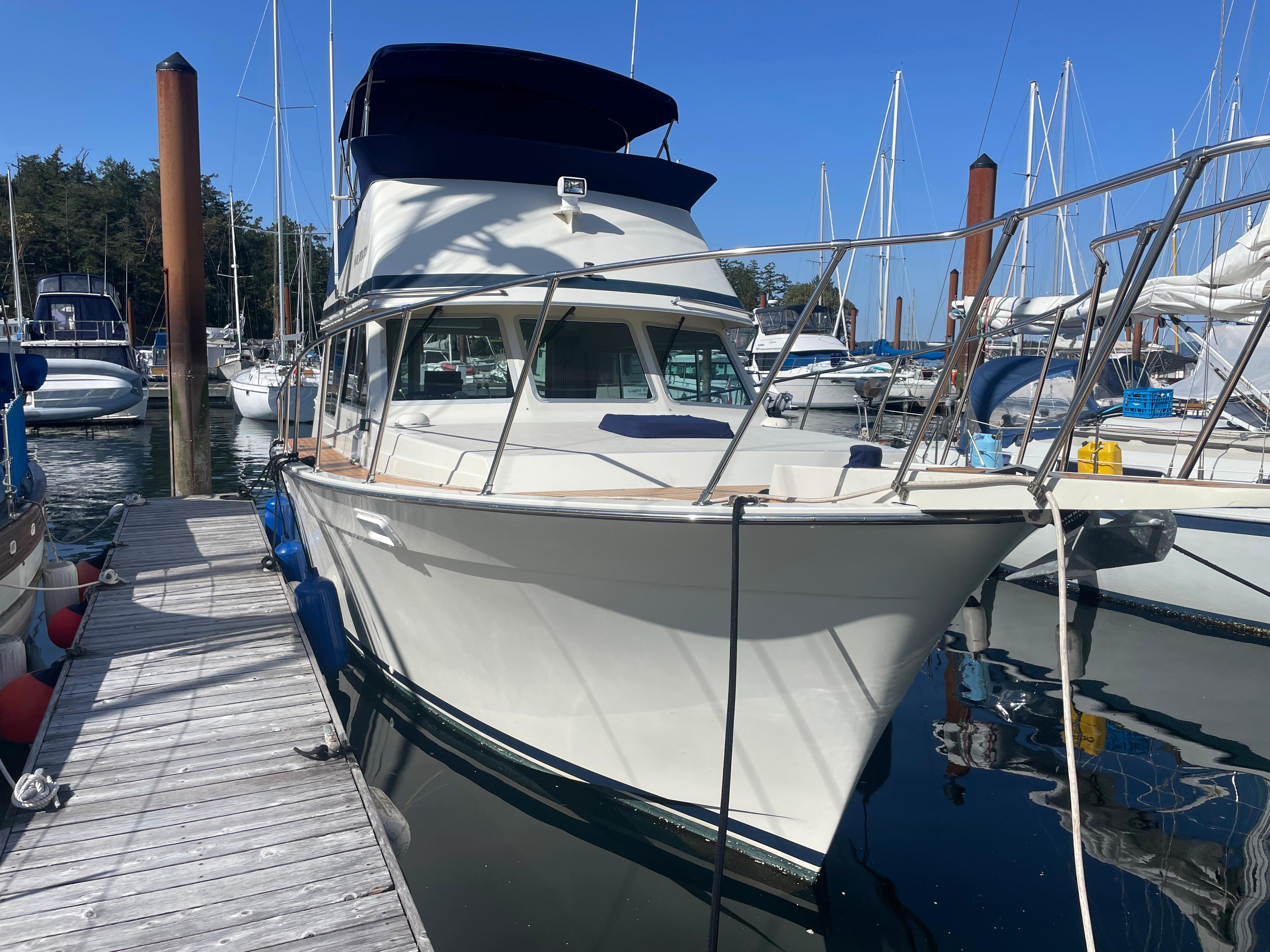

1980 Tollycraft Sedan

1980 Tollycraft Sedan   Specifications

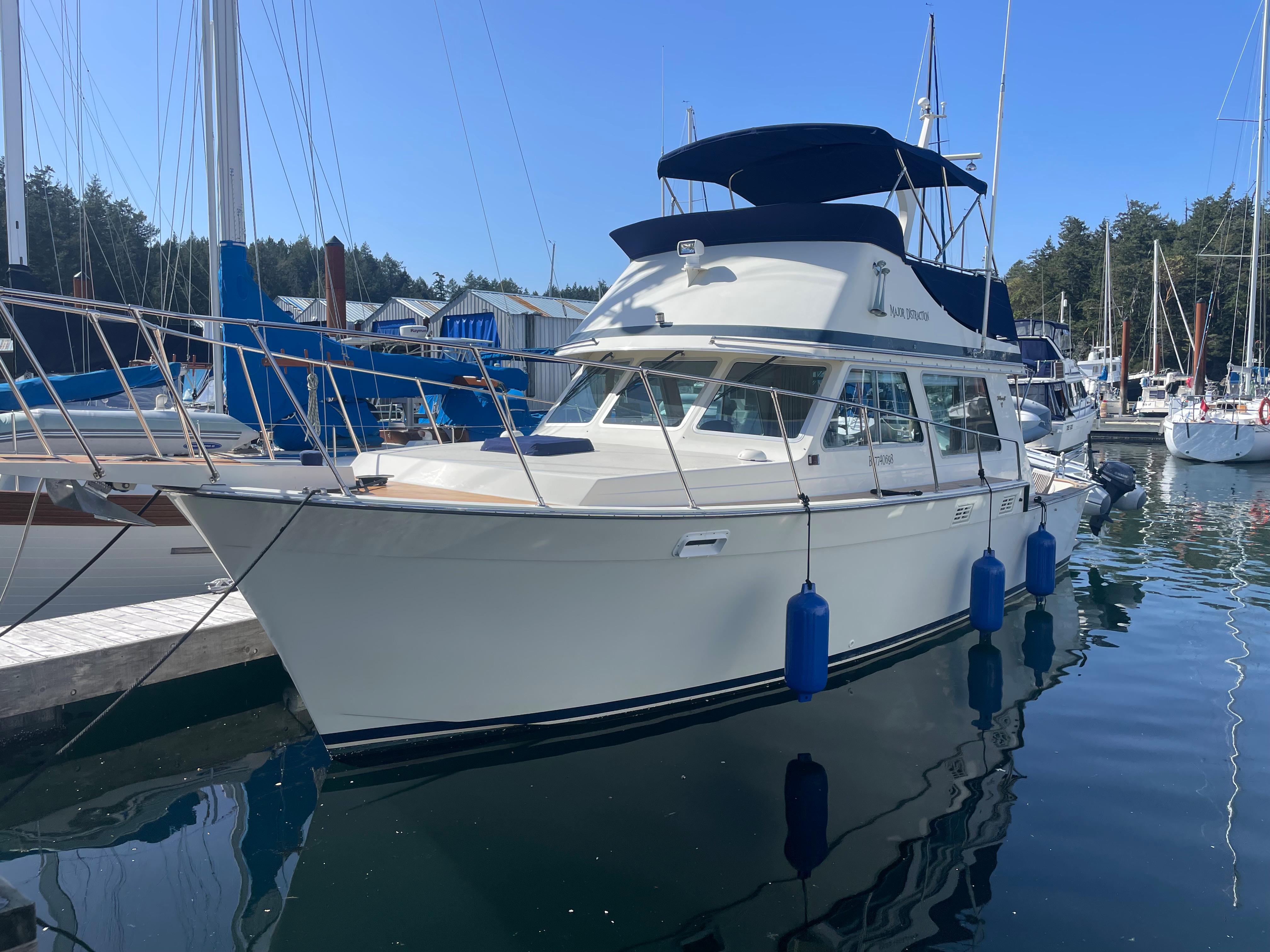

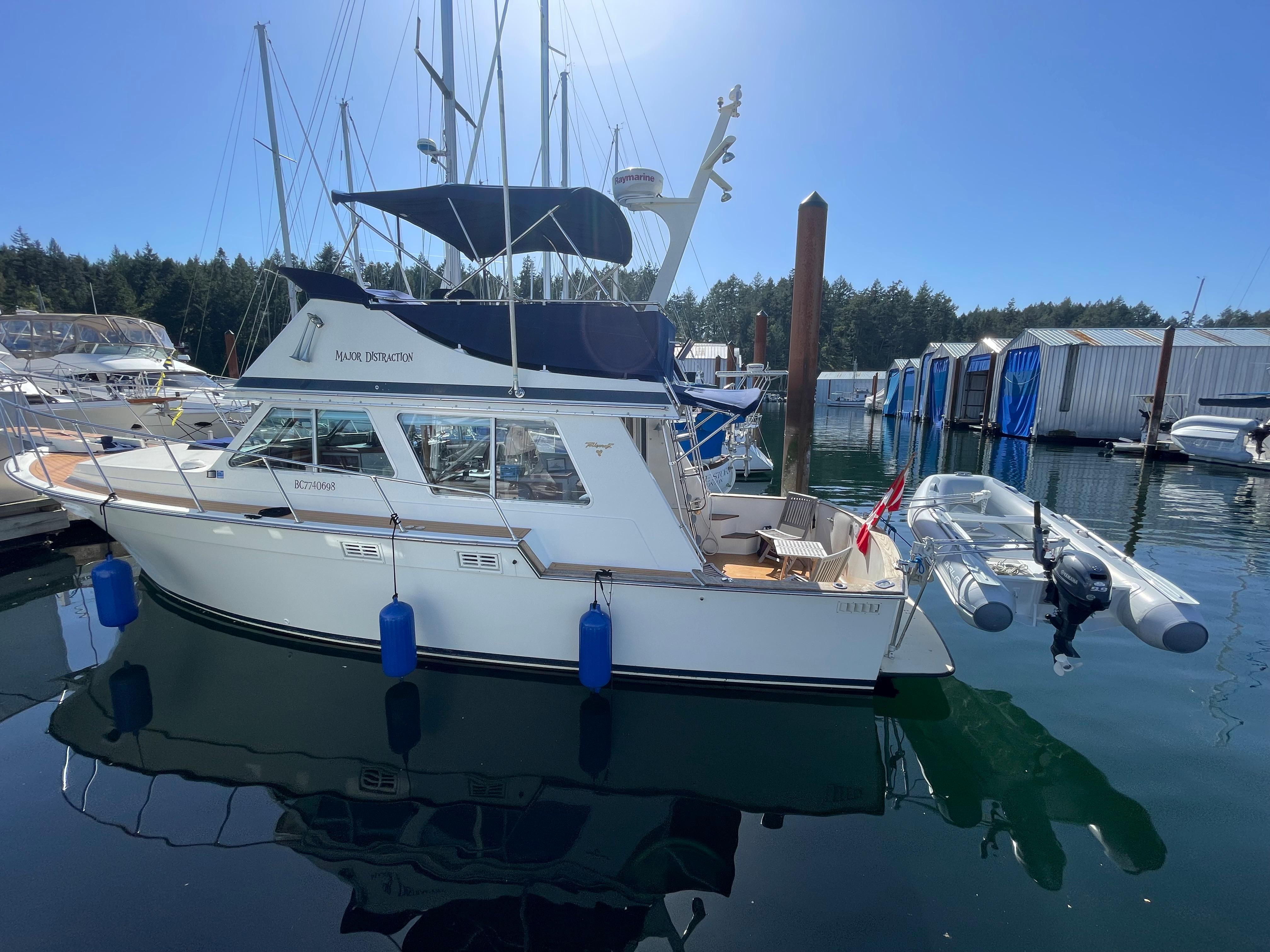

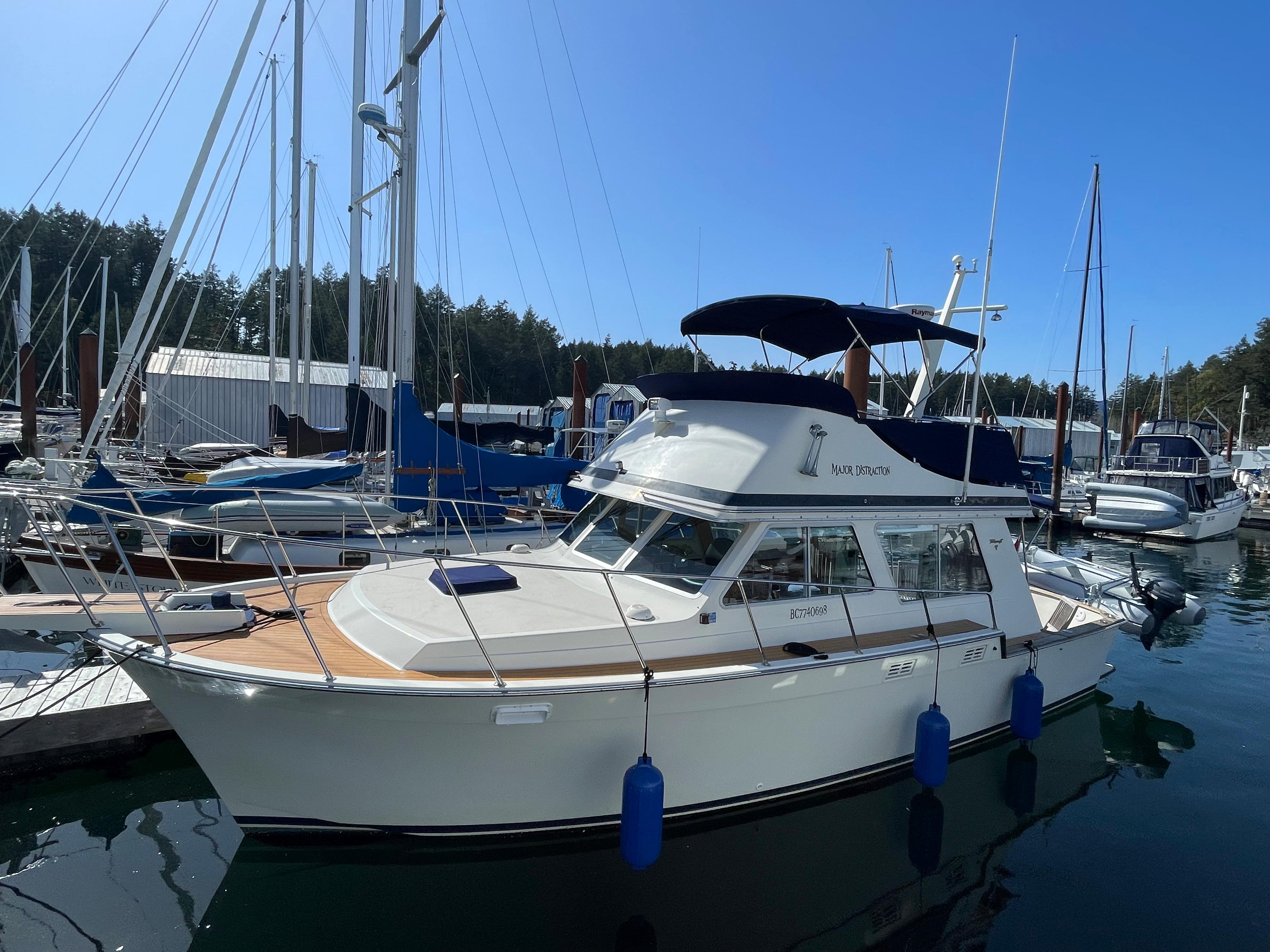

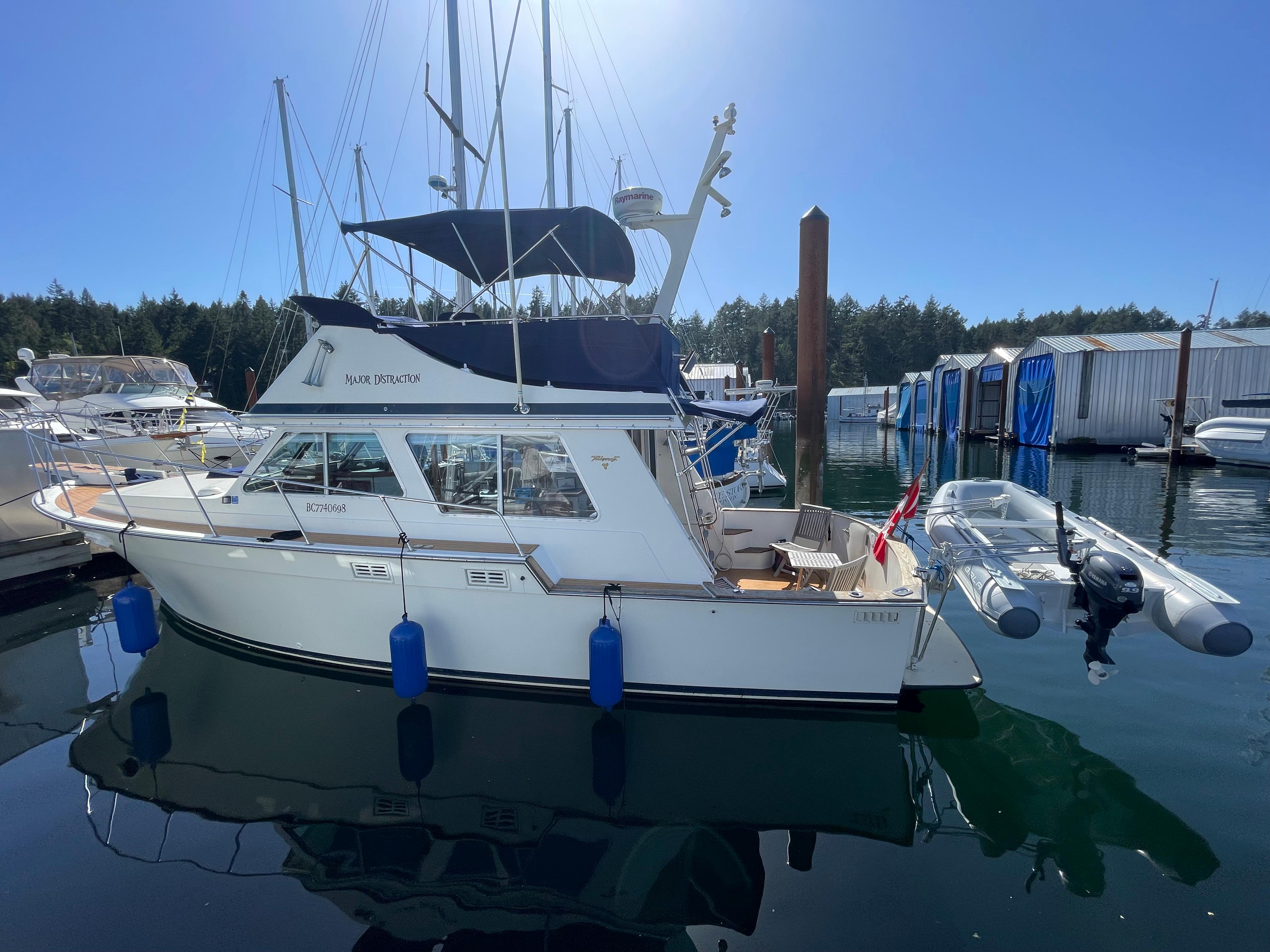

Tollycraft Sedan 34

Name.................................................. Major Distraction

Year...................................................................... 1980

Builder.......................... Tollycraft Tachts Corp Kelso WA

Designer.......................................................... Ed Monk

LOA........................................................................ 34ft

Beam.................................................................... 16’6”

Draft (motors up).................................................... 2’10”

Displacement.................................................. 17,000lbs

Clearance (waterline to radar top) ......................... 13’11”

Hull Type....................................................... Modified V

Deck and Hull................................................ Fiberglass

Steering..................................... Twin Hydraulic stations

Cruising Speed @ 2150rpm................................. 12mph

Max Speed @ 2950rpm....................................... 18mph

Fuel.................................................................... 200gal

Water................................................................. 100gal

Hot Water............................................................. 11gal

Holding Tank......................................................... 30gal

Heat........................................ Webasto Hydronic Diesel

 CONSTRUCTION

•  Constructed of Fiber-reinforced plastic, V configuration
•  Bulkheads are constructed of cored FRP
•  Stringers and transverse members constructed of FRP
•  Decks are cored FRP

INTERIOR

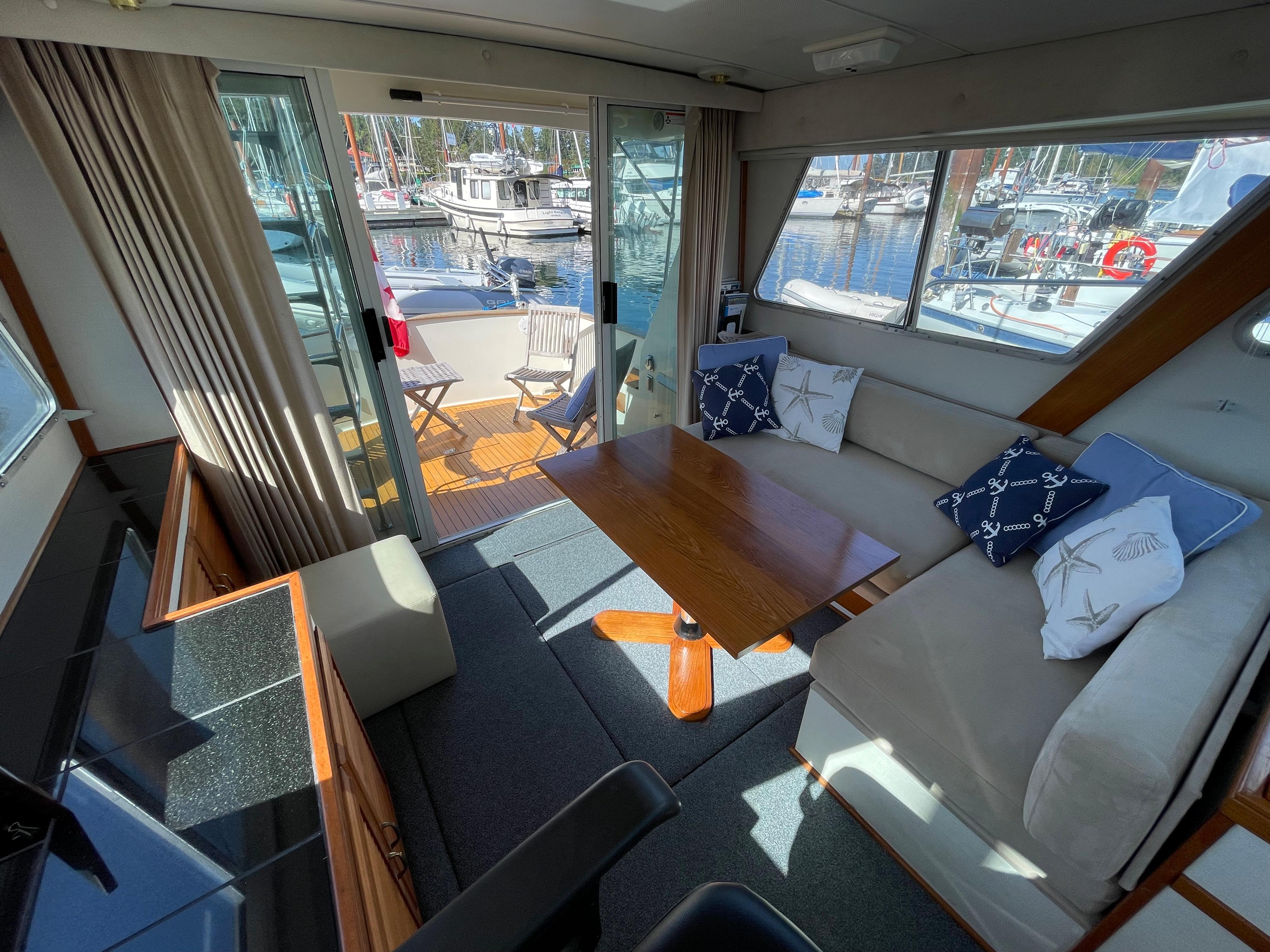

•  Bright and exceptionally clean
•  New blinds in the salon

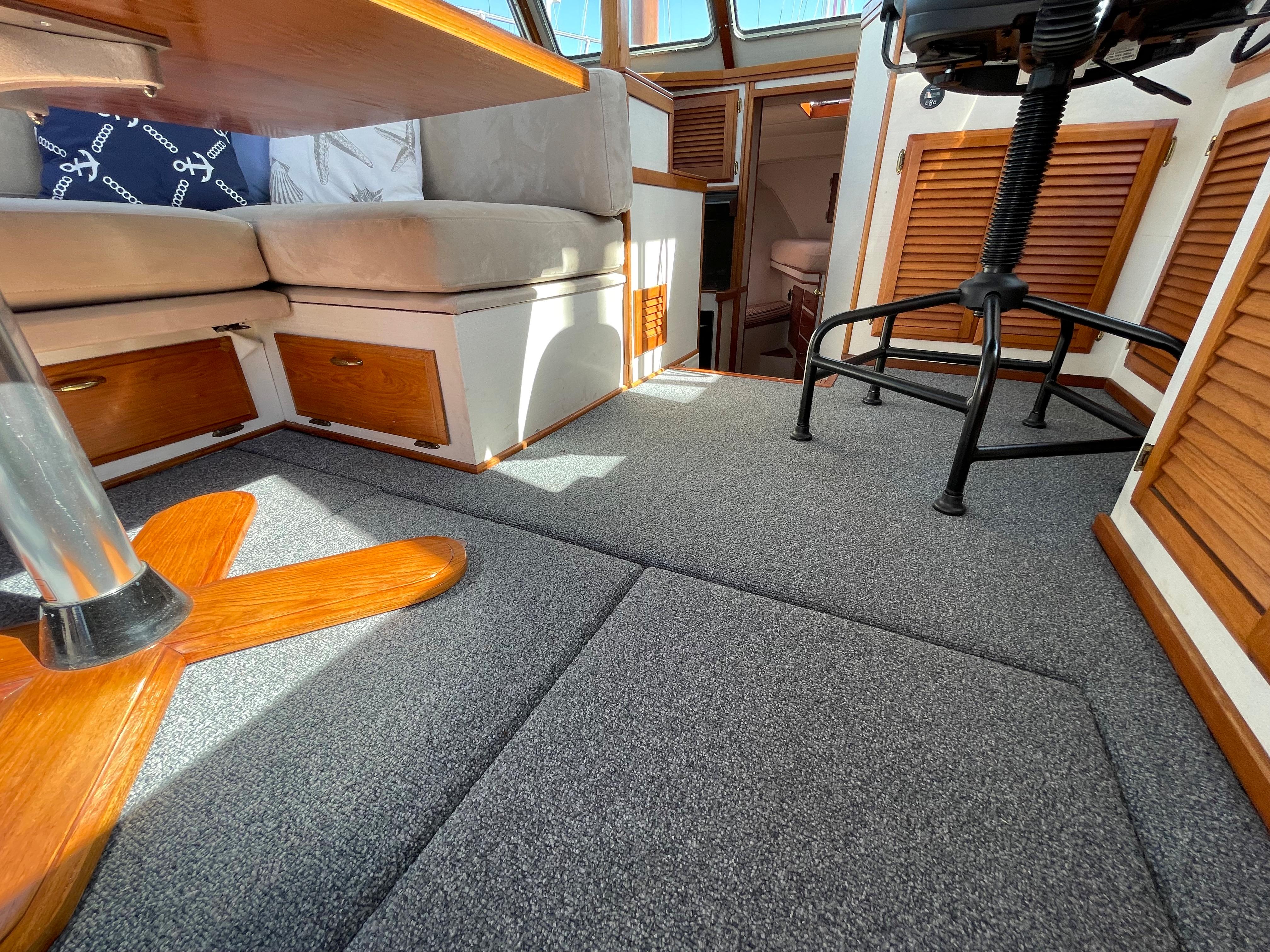

•  New carpeting
•  New galley steps built going down to galley

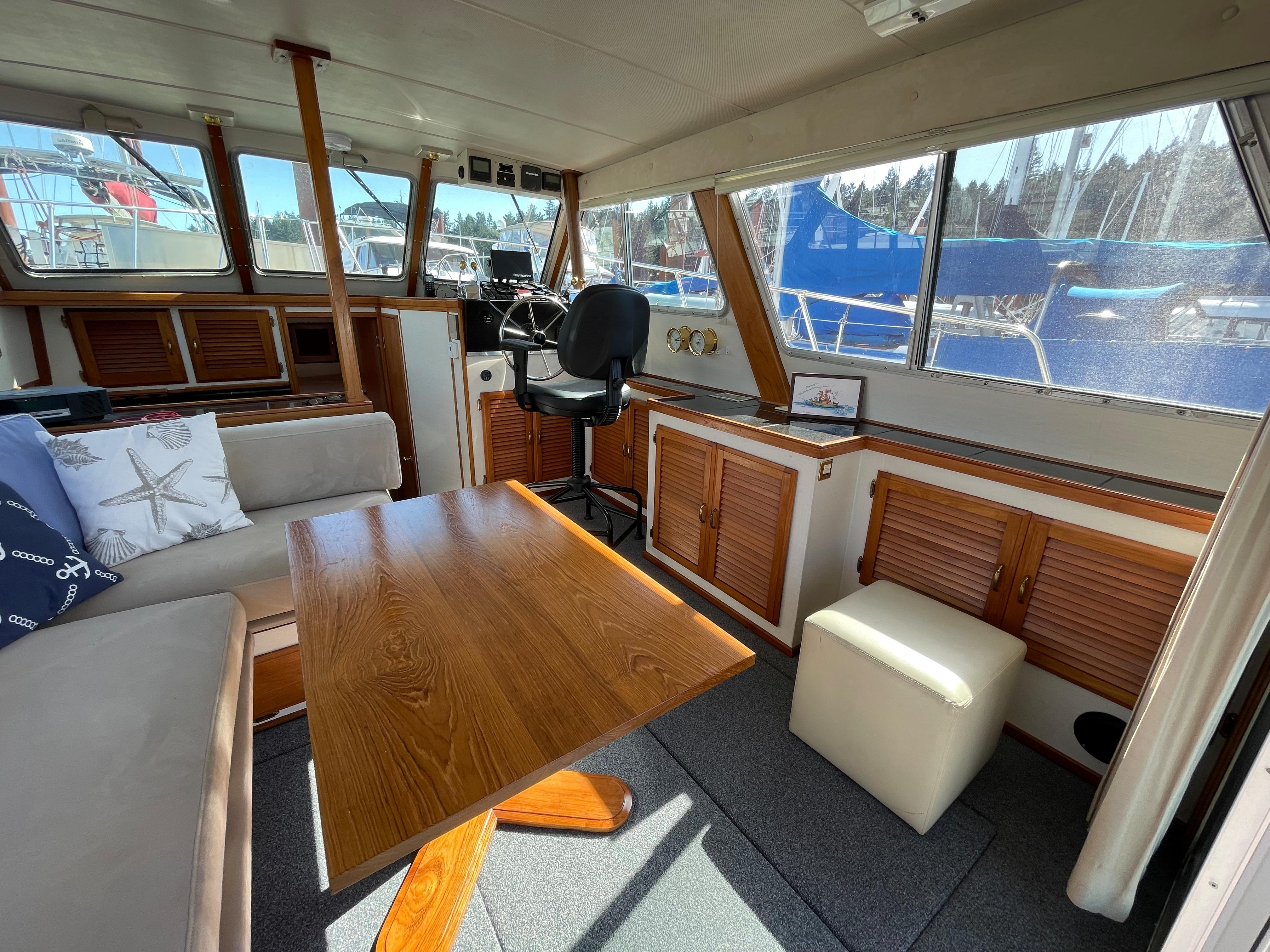

•  New teak table with adjustable pedestal
•  New helm chair
•  Newer upholstery

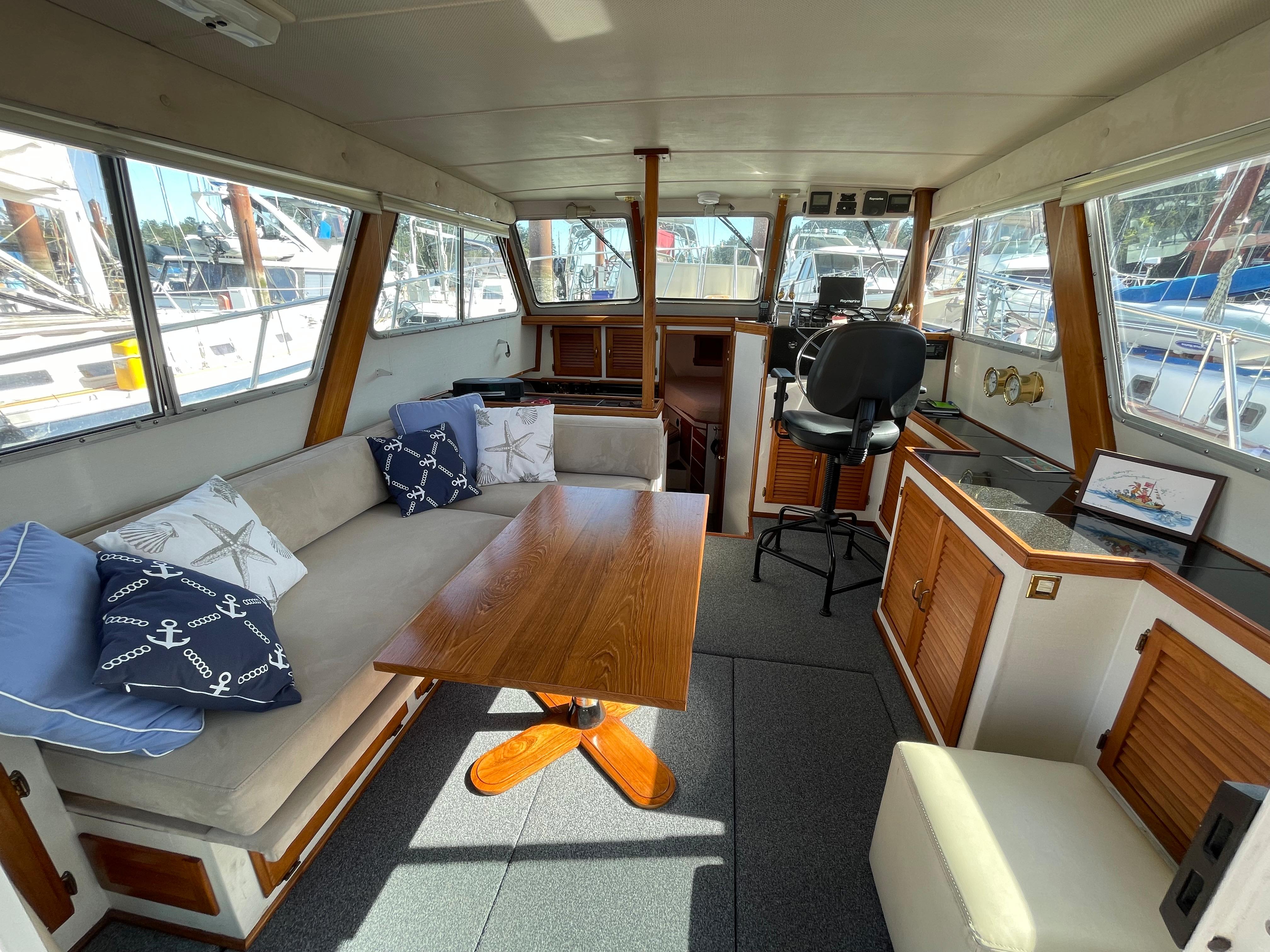

•  L-shaped convertible settee to port, two ottoman seats

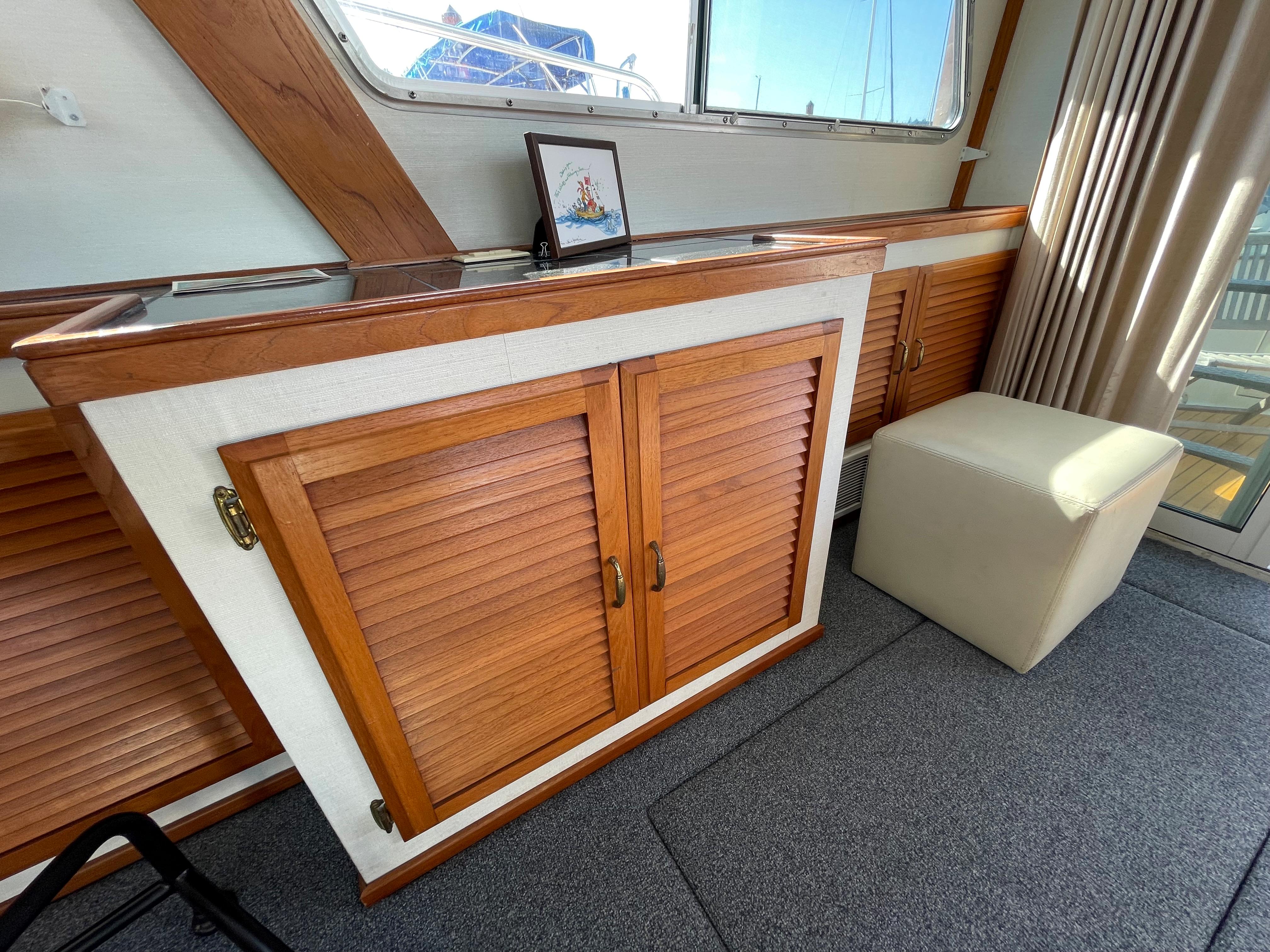

•  Storage, counters  and entertainment center to stb

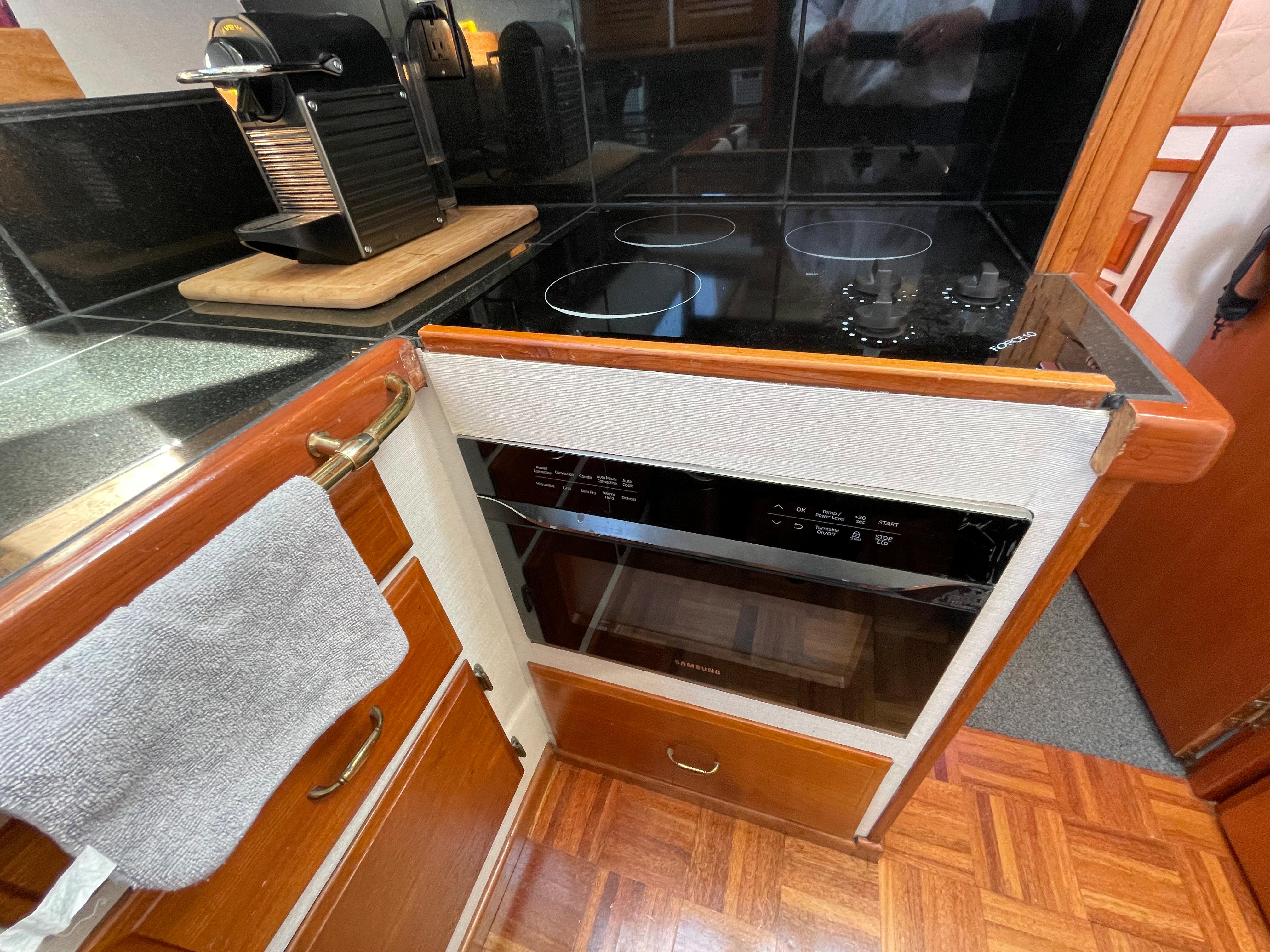

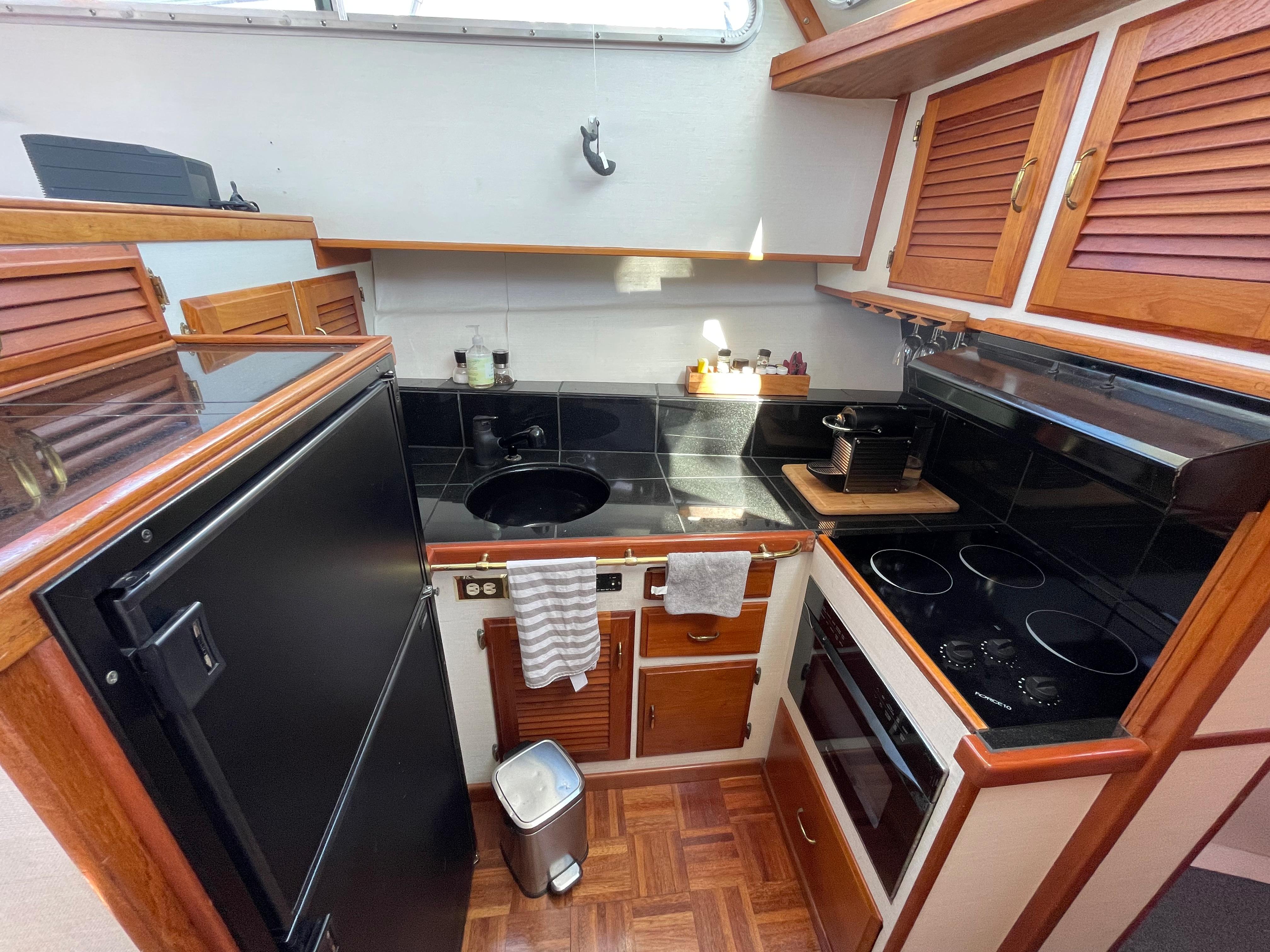

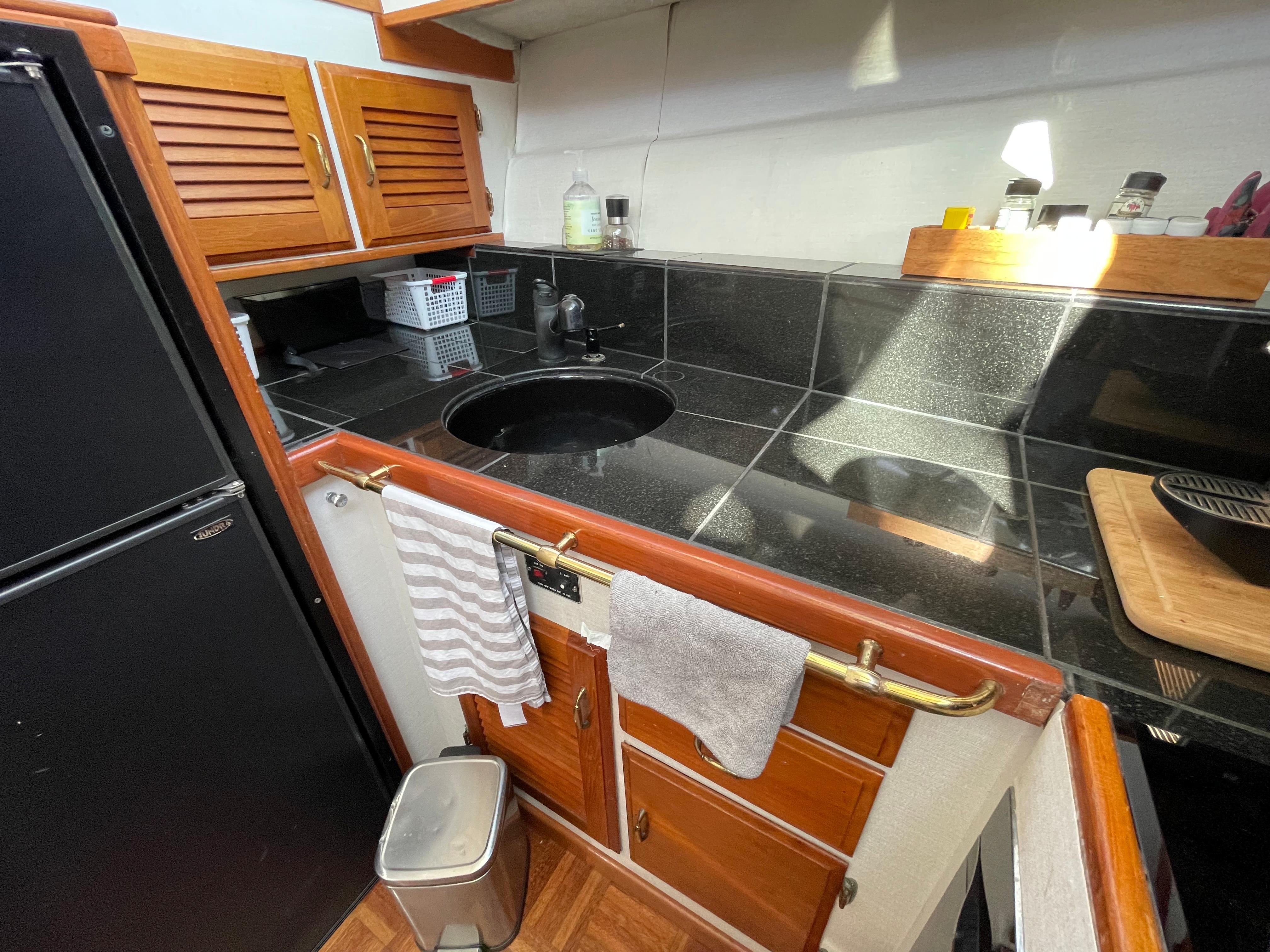

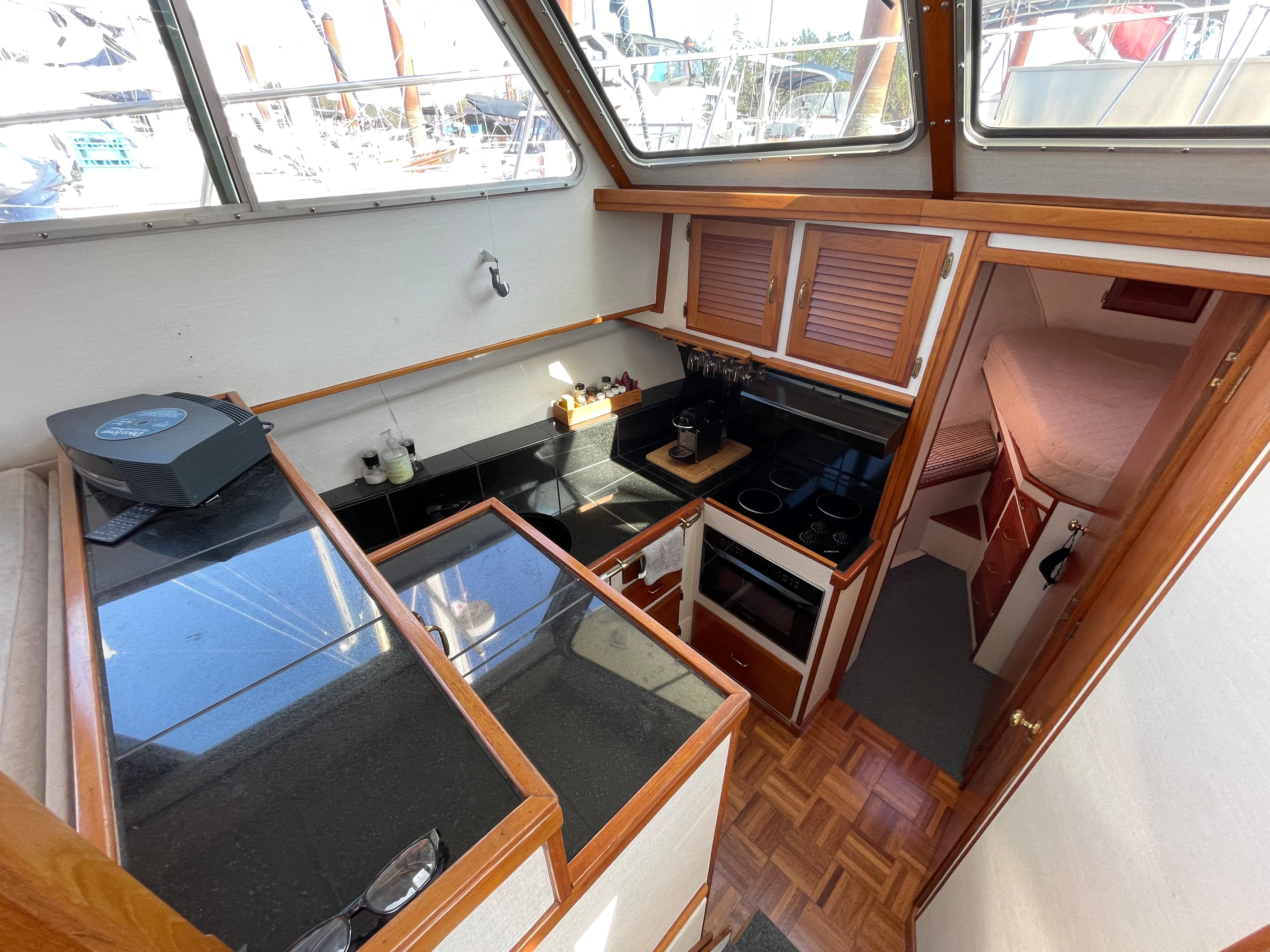

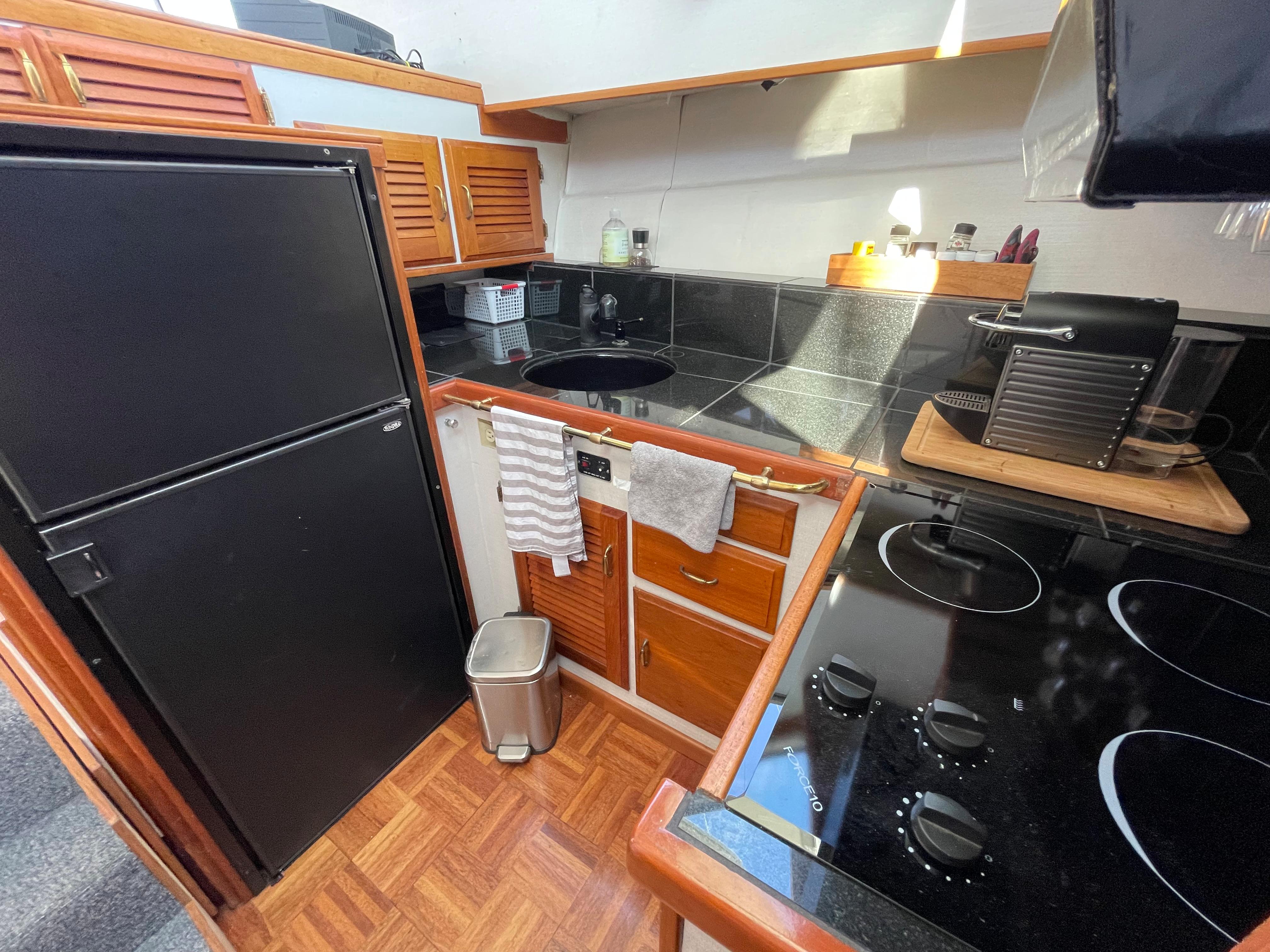

•  Galley: Down two stairs (new) to port

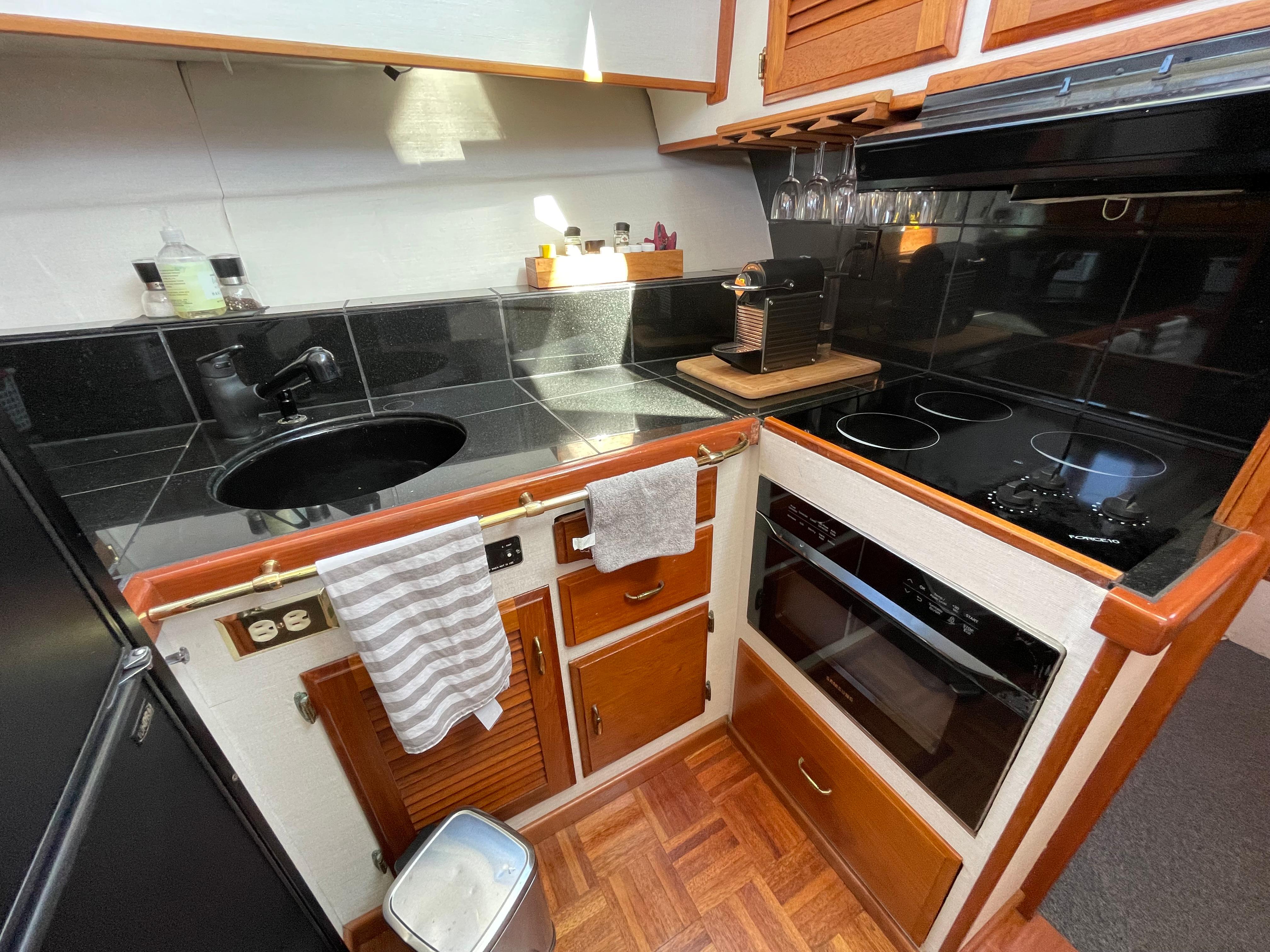

•  Completely refitted with all new appliances and counters
•  Force 10 Induction cooktop and extractor fan
•  Tundra full-size stand-up fridge and freezer
•  Samsung Microwave
•  Round sink built into new tile counter tops

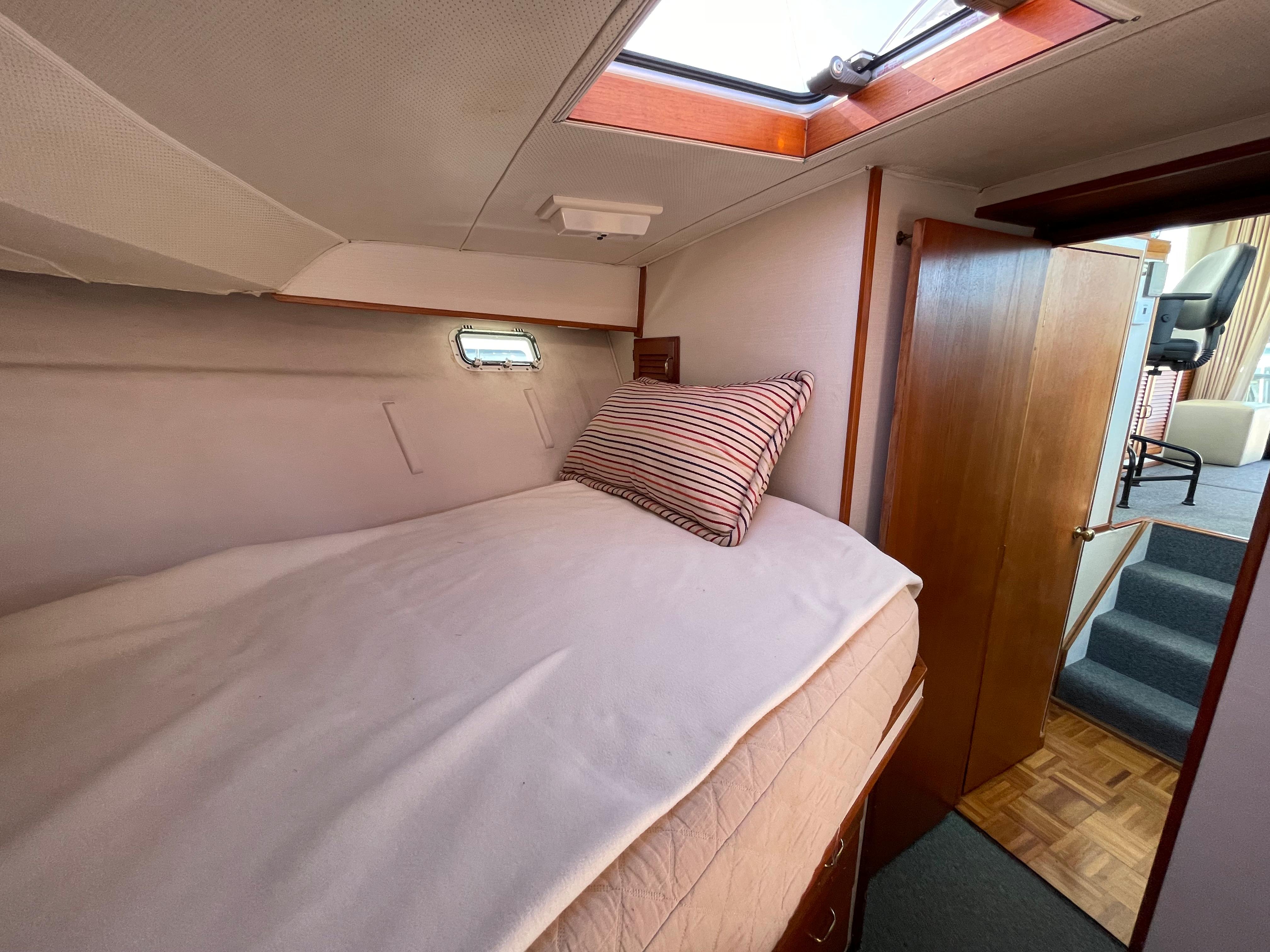

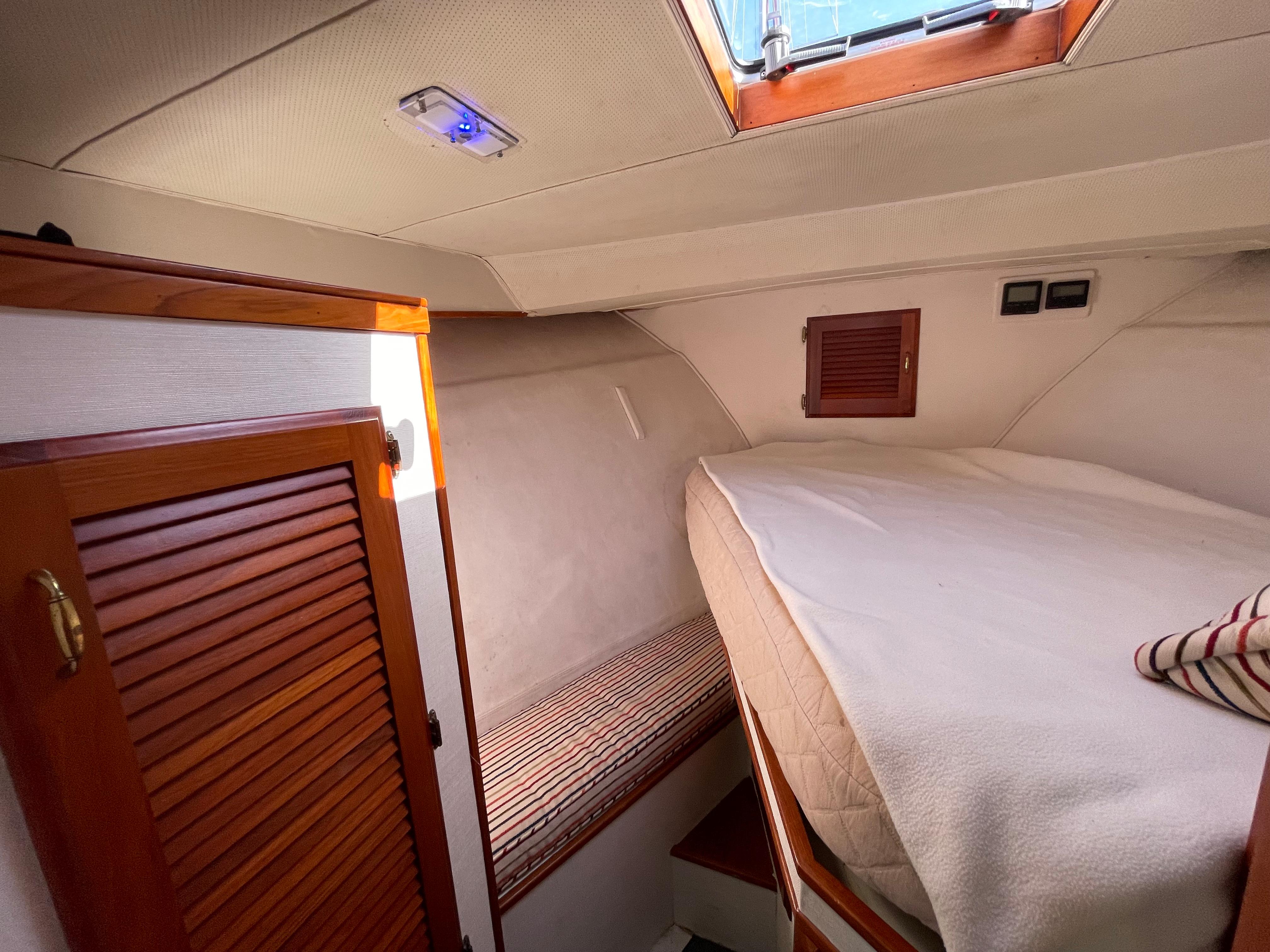

•  Forward cabin:
•  Double berth offset to stb
•  Hanging locker
•  Bench seat
•  Storge below the bed
•  New LED lighting
•  Overhead hatch (new 2022)

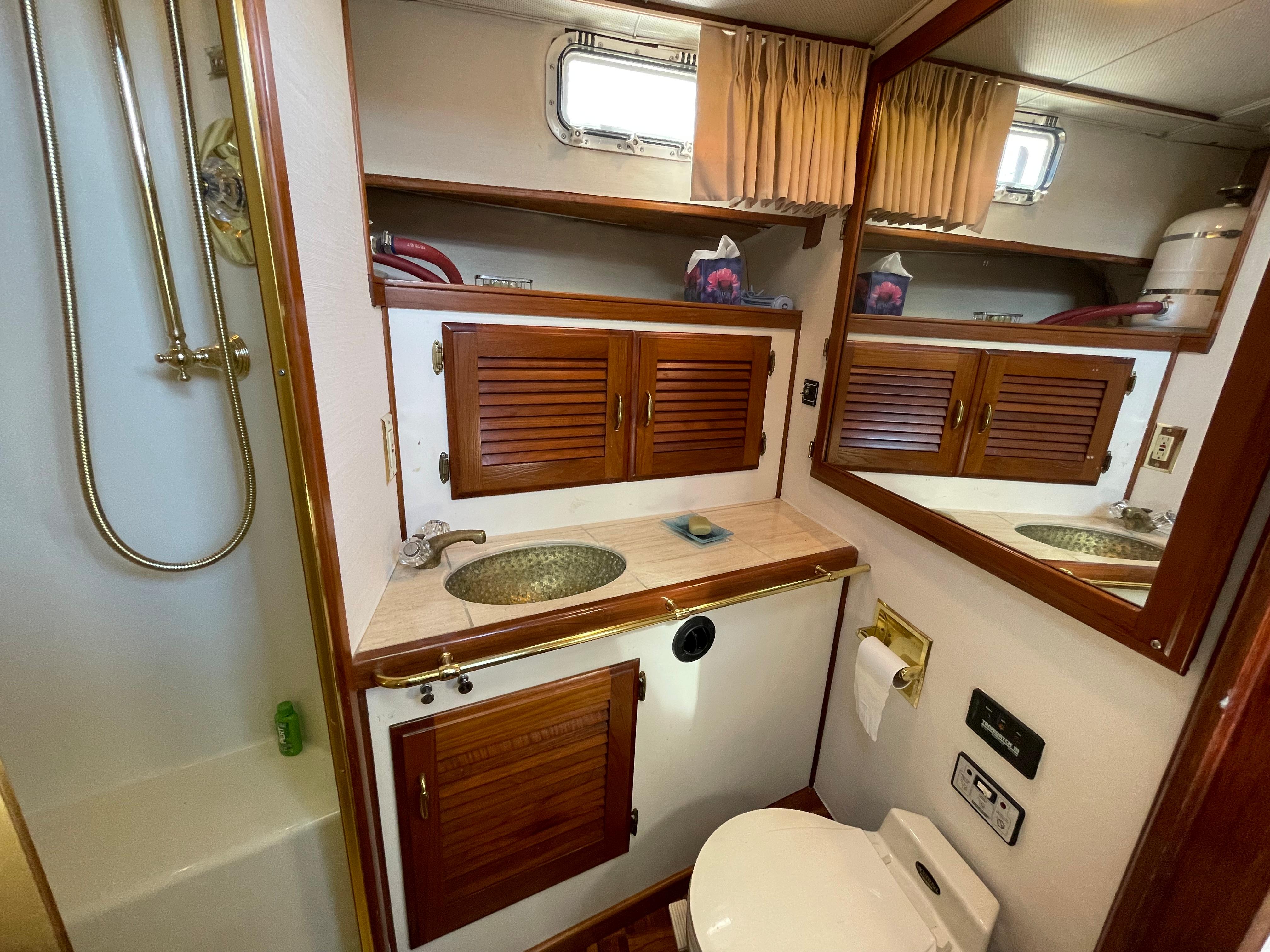

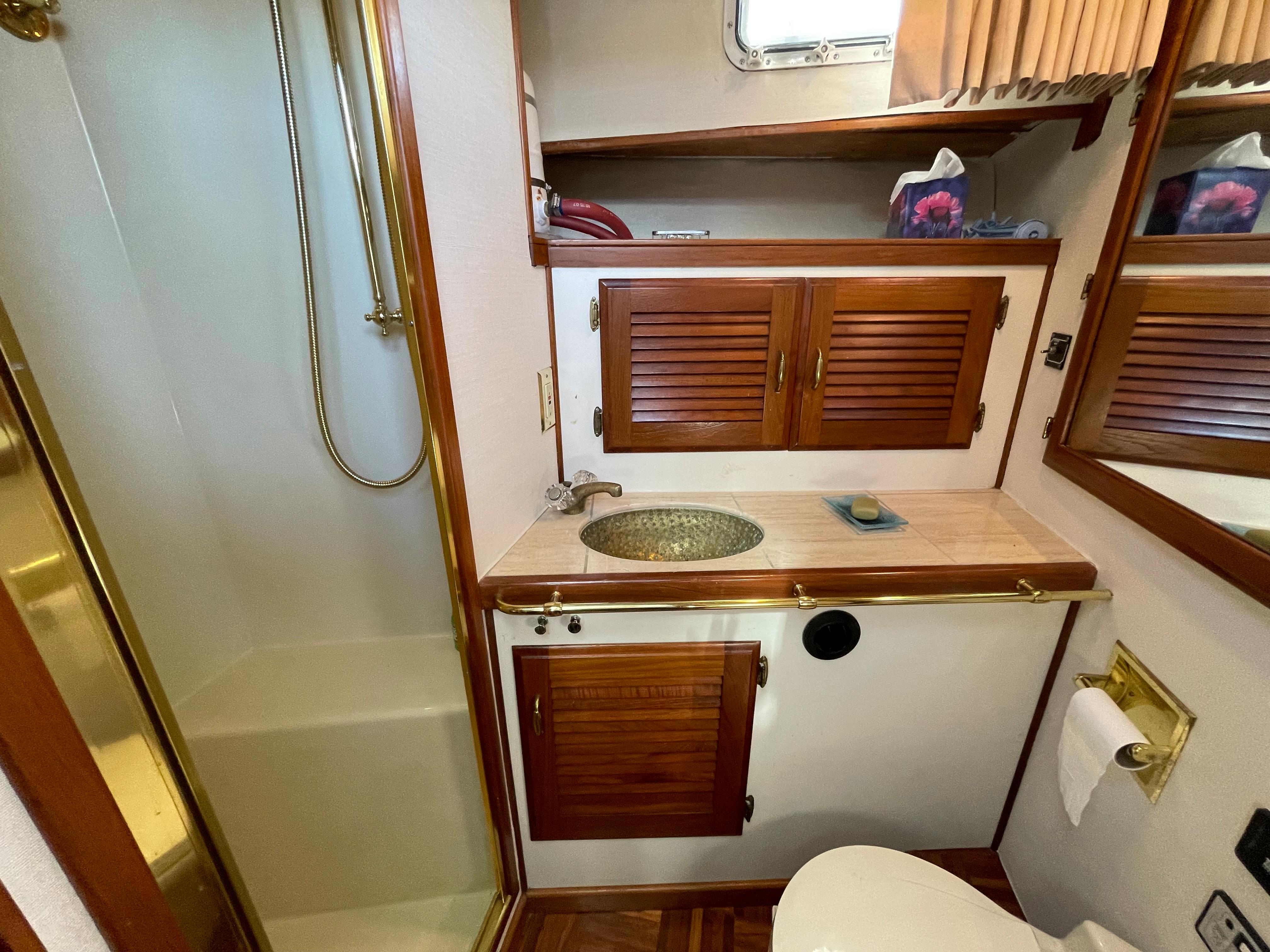

•  Head: Beautifully appointed, clean and bright
•  Separate shower stall with glass door
•  Vacu-flush toilet, new pump (2022)
•  New pump for the holding tank
•  Vanity and sink, storage and mirrors
•  Opening ports

 MECHANICAL

•  Twin Cummins 4BT3.9, 250Hp (re-powered in 2001)
•  Hours: Port – 1060,  Stb - 1024

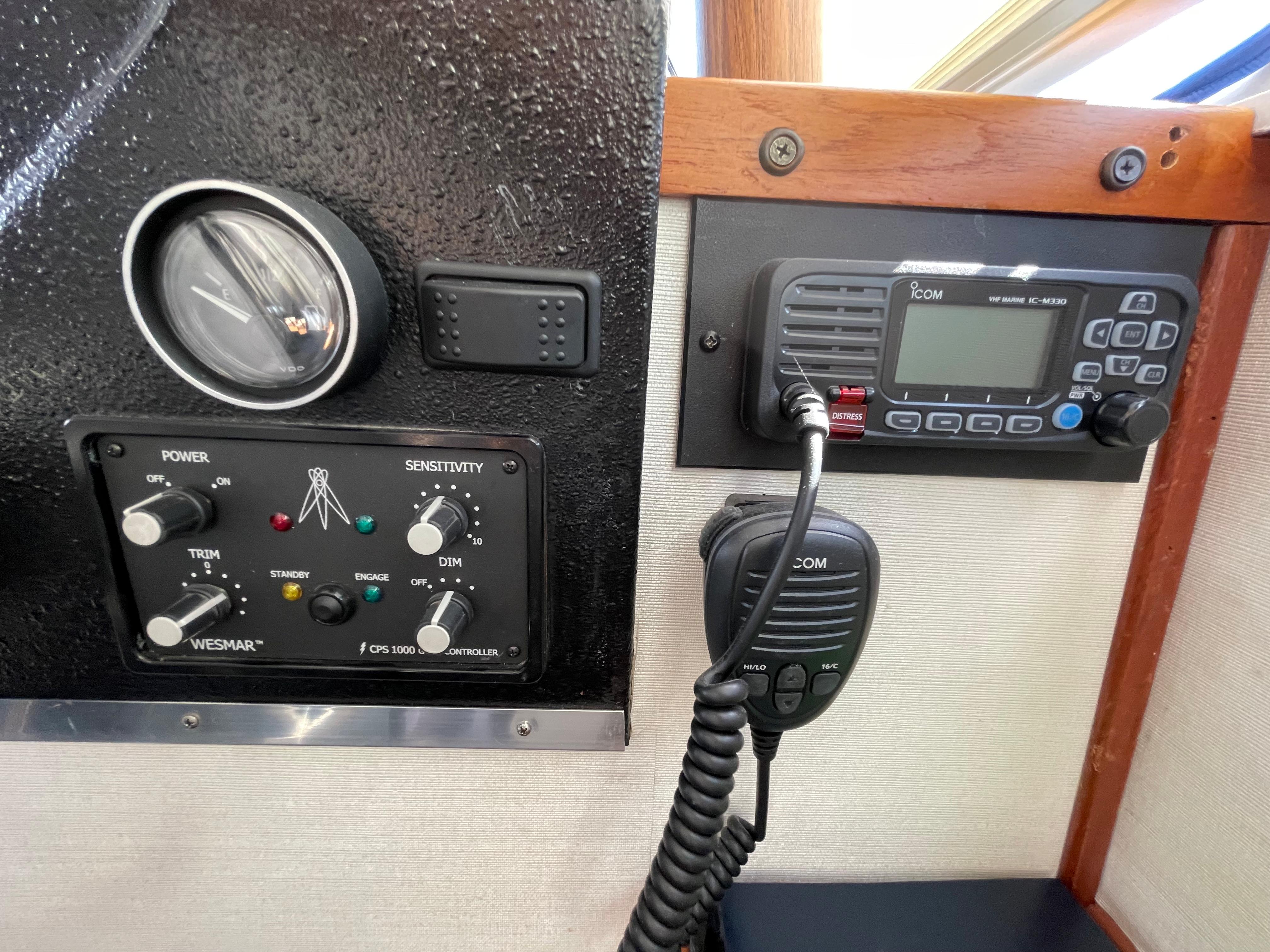

•  Stabilizers: Wesmar RS 2.5 Hydraulic Fin
•  Bow Thruster: Vetus 7”
•  Trim Tabs: Bennett
•  Propellers: 3 blade bronze 18 x 18.5
•  Tides Marine dripless shaft seals (2021)
•  Transmissions: Twin discs
•  Fuel tanks have been replaced (2001)
•  Racor filters

 INSTRUMENTS

•  All new electronics in 2018

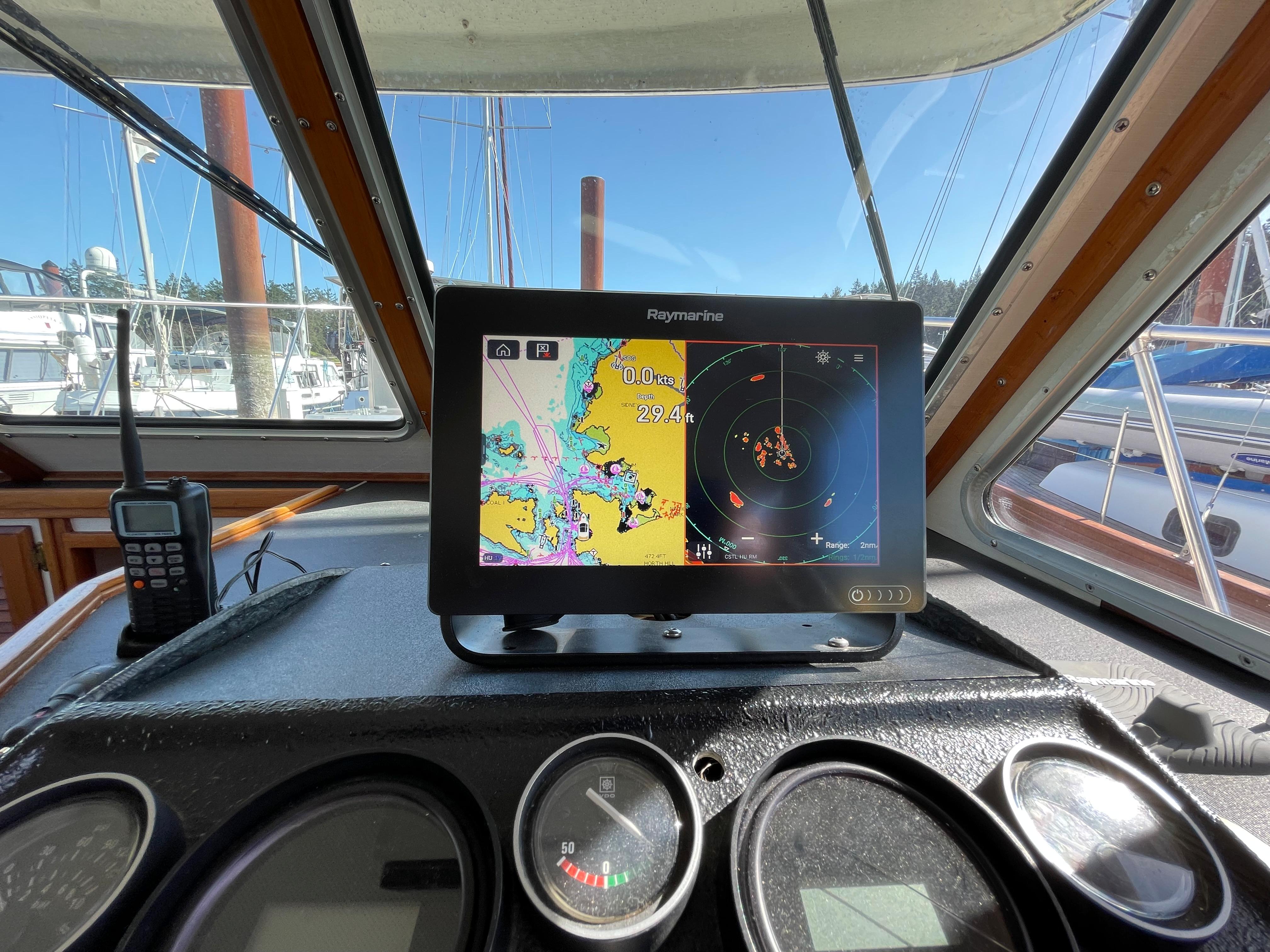

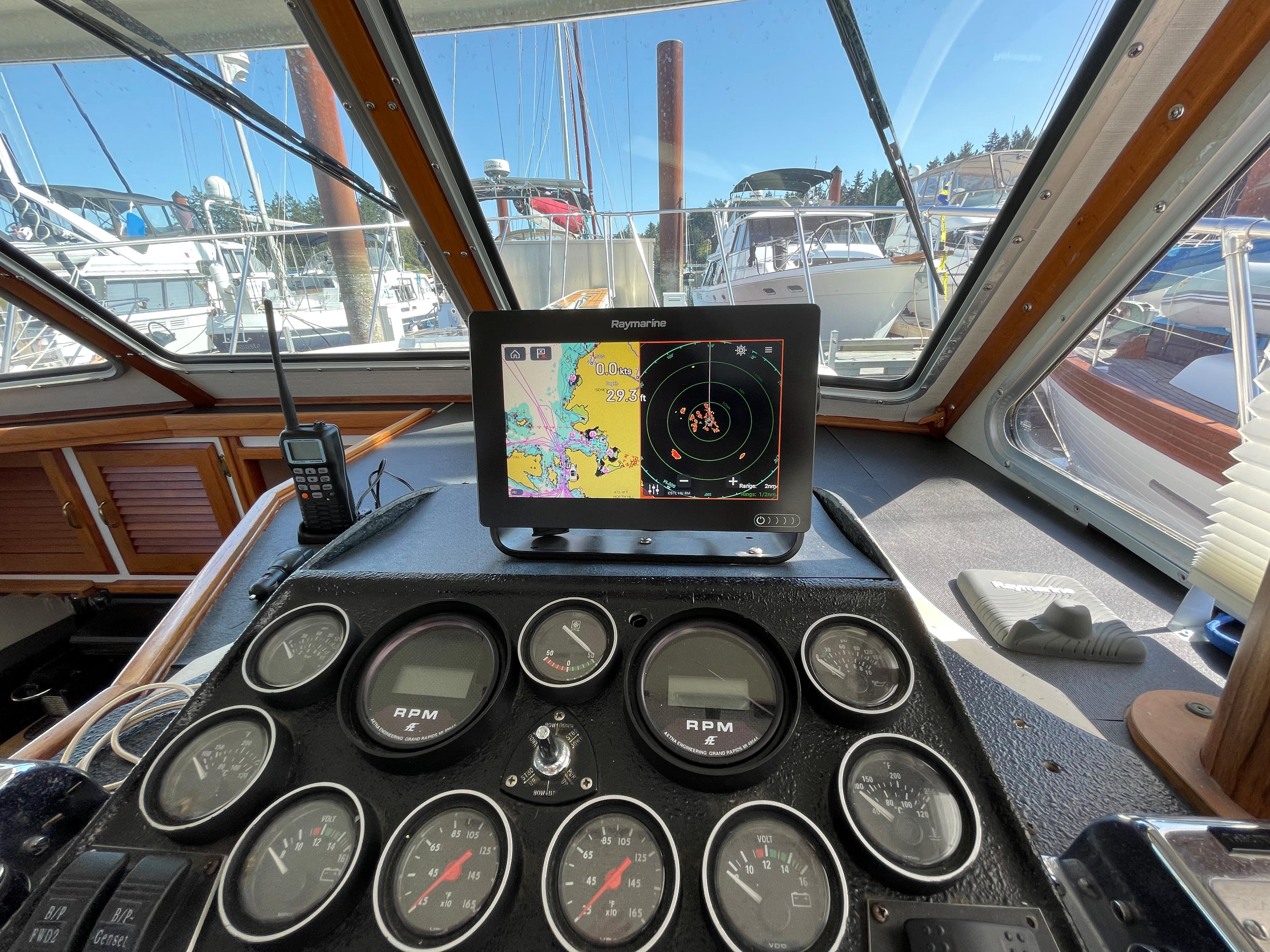

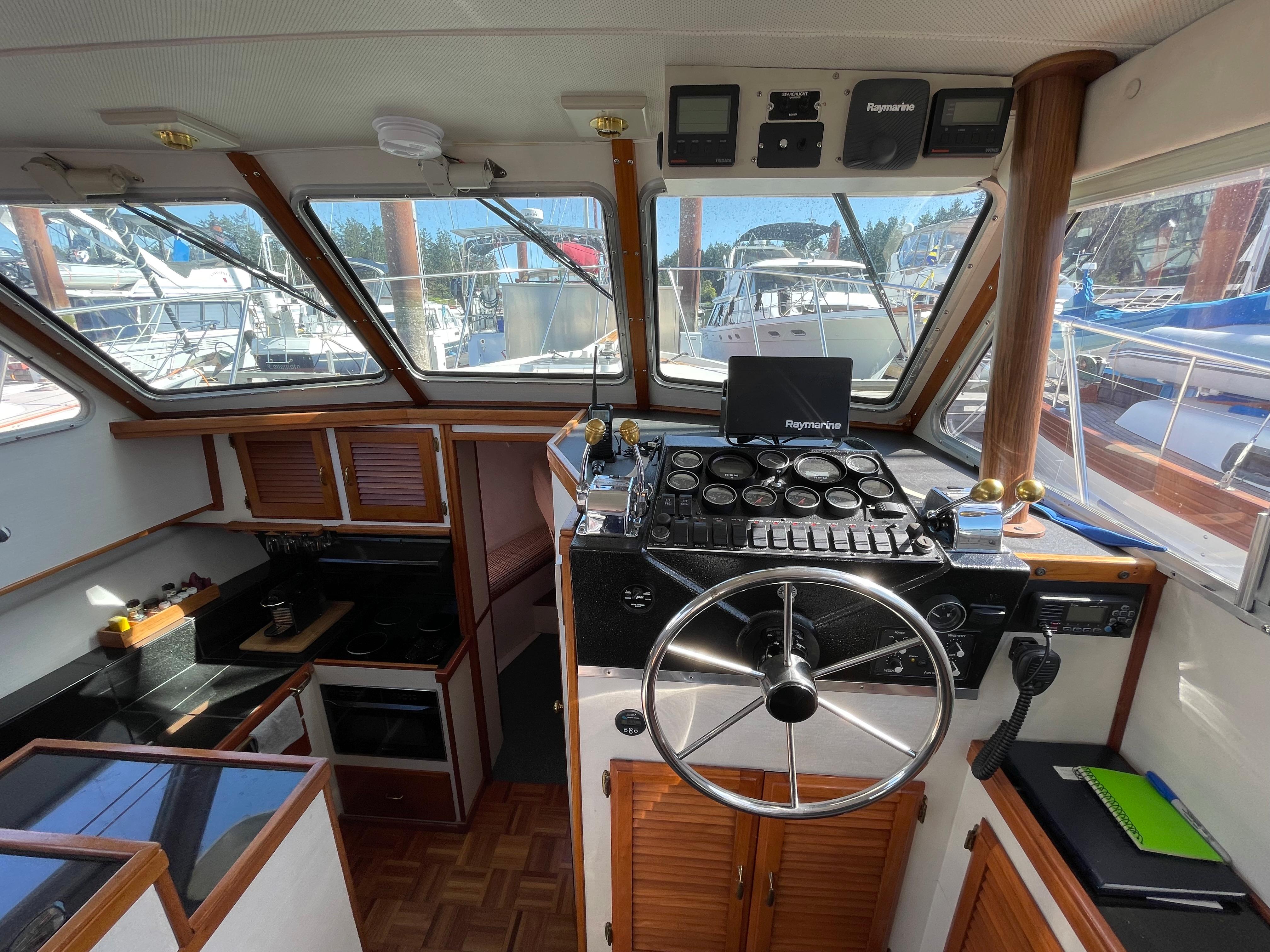

•  Chartplotter Lower helm: Raymarine Axiom (2018)
•  Chartplotter Flybridge: Raymarine Axiom (2018)

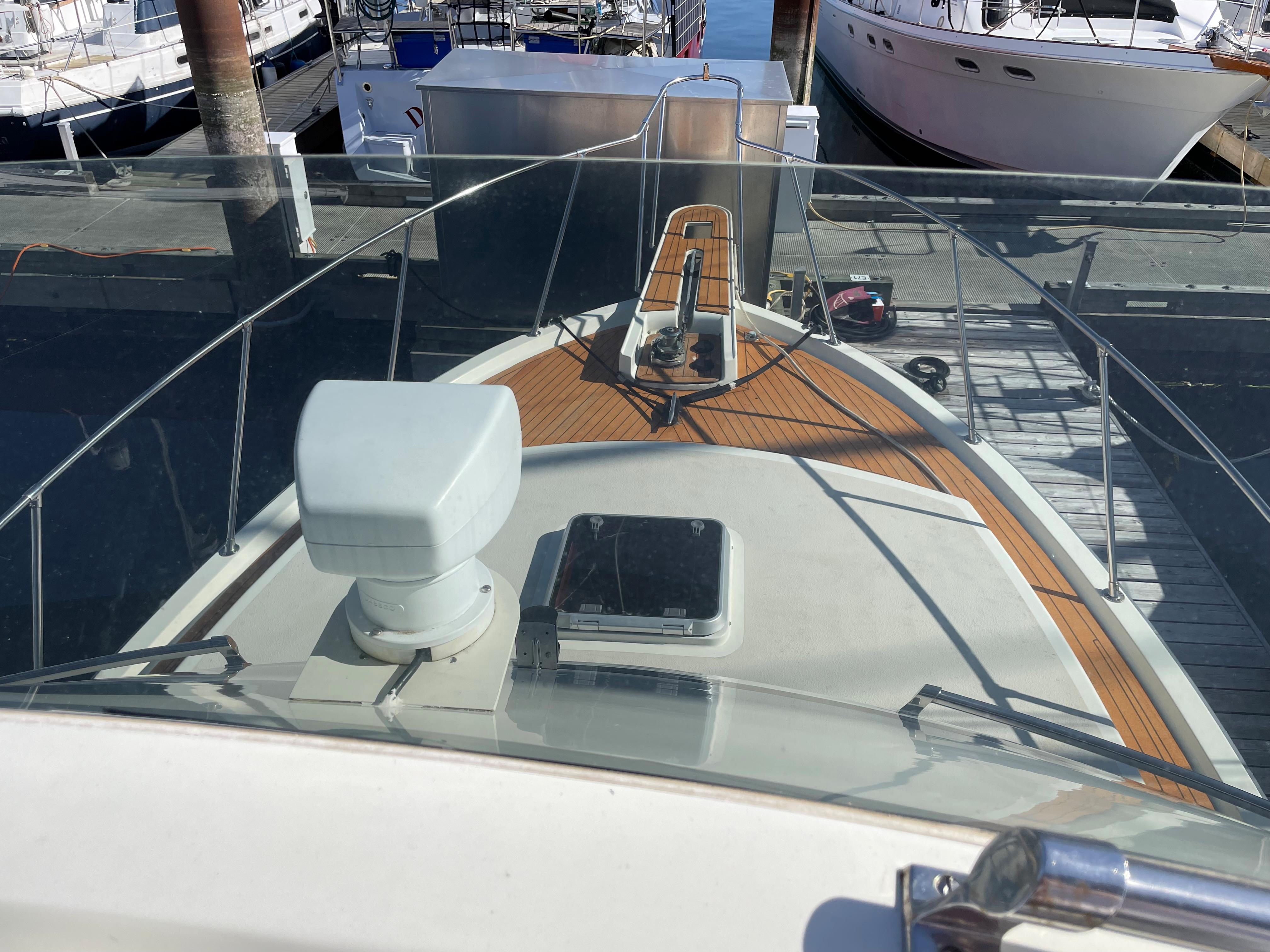

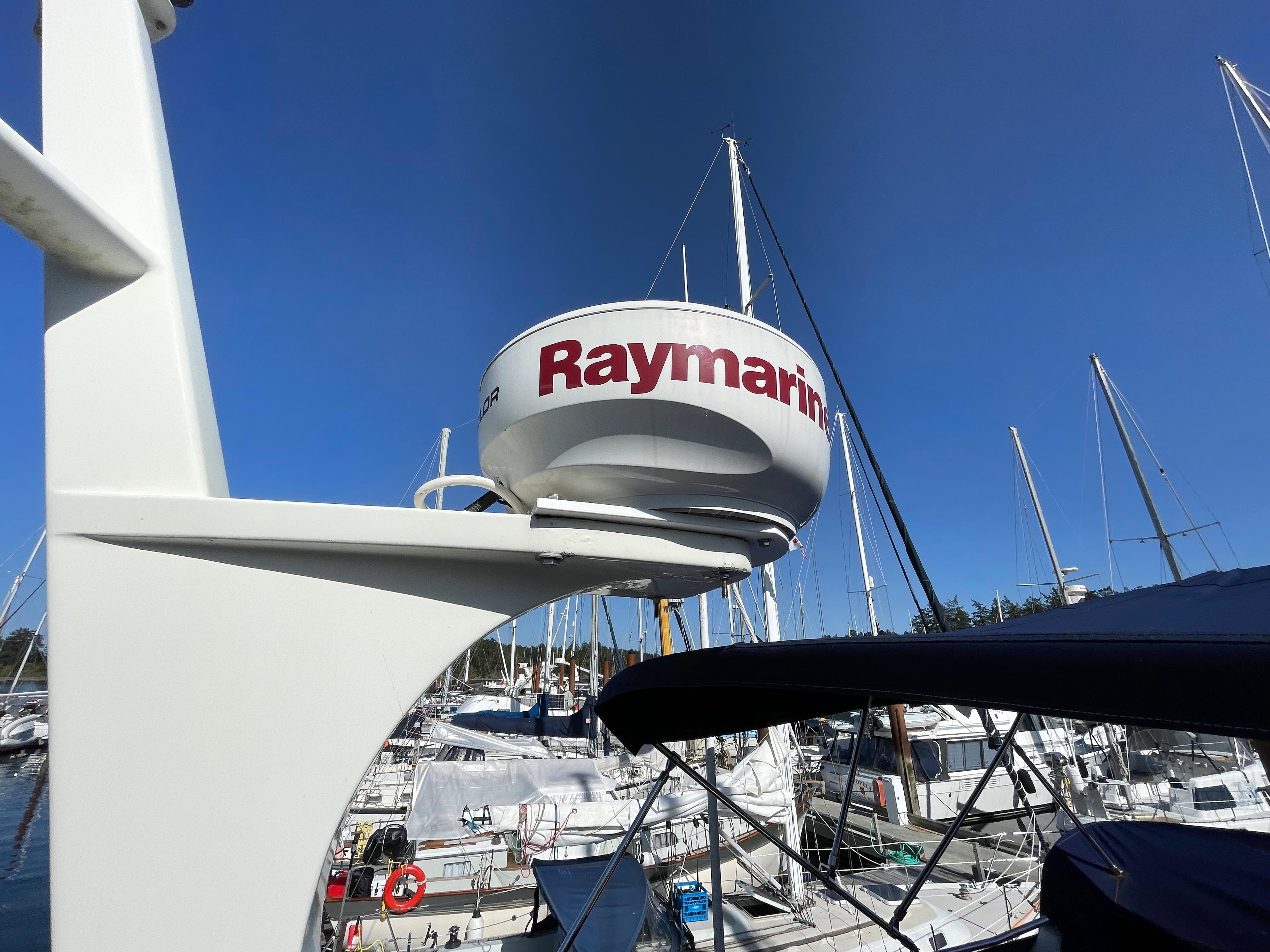

•  Radar: Raymarine Raydome (New 2022)
•  Autopilot: Raymarine EV-400 with P70R
•  Autohelm Tridata depth, speed, trip log
•  Tridata repeater on the flybridge
•  VHF lower helm: Icom M330 (New 2021)

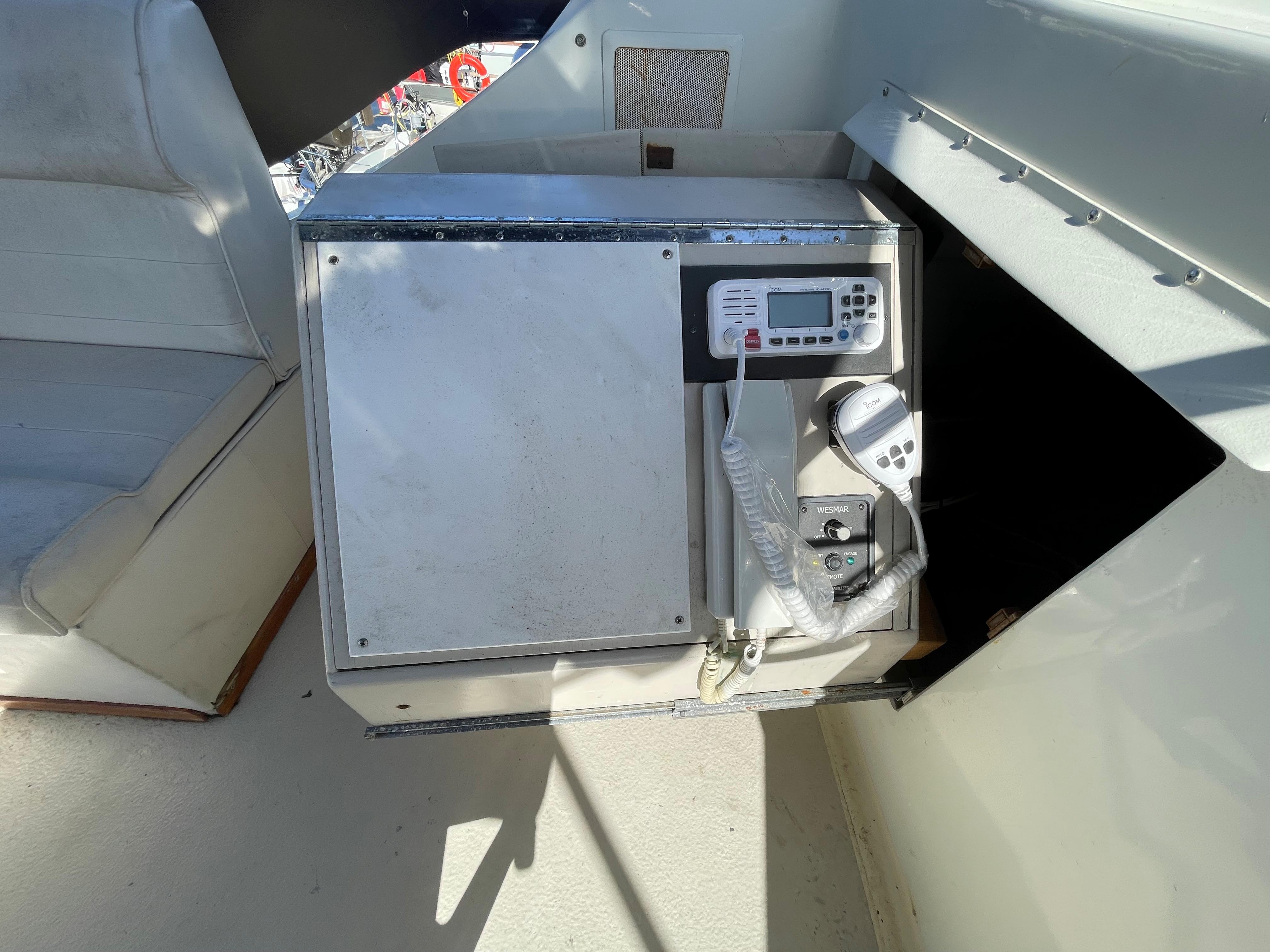

•  VHFupper helm: Icom M330 (new 2021)
•  Compass lower helm: Ritchie Powerdamp

  ELECTRICAL

•  Shorepower: 30amp

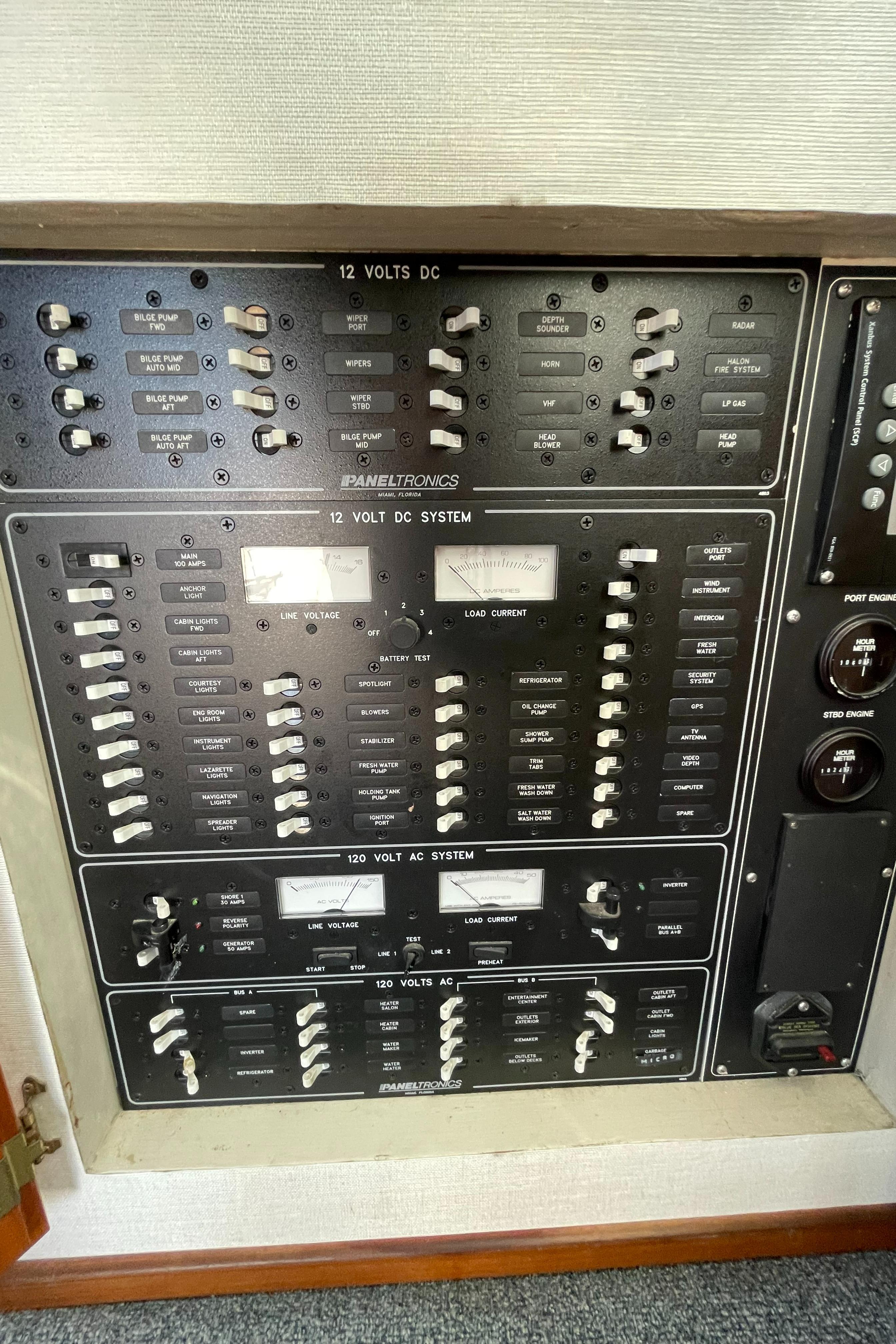

•  110VAC/12VDC Distribution panel with breakers (newer)
•  Start Batteries: 2 x 12V Interstate lead acid
•  House Batteries: Dry Cell, 6 x 6V, AGM (New 2021)
•  Battery Monitor: New 2022)
•  Balmar alternators charging system inspected/adjusted
•  Inverter: Xantrex Freedom 2.5Kw (2018)
•  New battery switch, battery wiring, switch for invertor
•  New LED lighting (galley, fwd berth, head) 2022

 PLUMBING

•  New Fuel tanks installed 2001
•  New Fresh water S/S tank installed 2001
•  Jabsco water pump
•  Hot water tank: Seaward 11gal
•  Most domestic water hoses replaced (2022)
•  Seagull water filter system added to galley sink (2022)
•  Vacuflush pump replaced (2022)
•  Holding tank: Plastic 30gal, vacu-flush head
•  New shower drain pump, Whale gulper with switch
•  Bilge pump: Rule 1500
•  New Webasto furnace, controls and thermostat, (2022)
•  High water alarm
•  Fireboy automatic extinguisher

  DECK EQUIPMENT

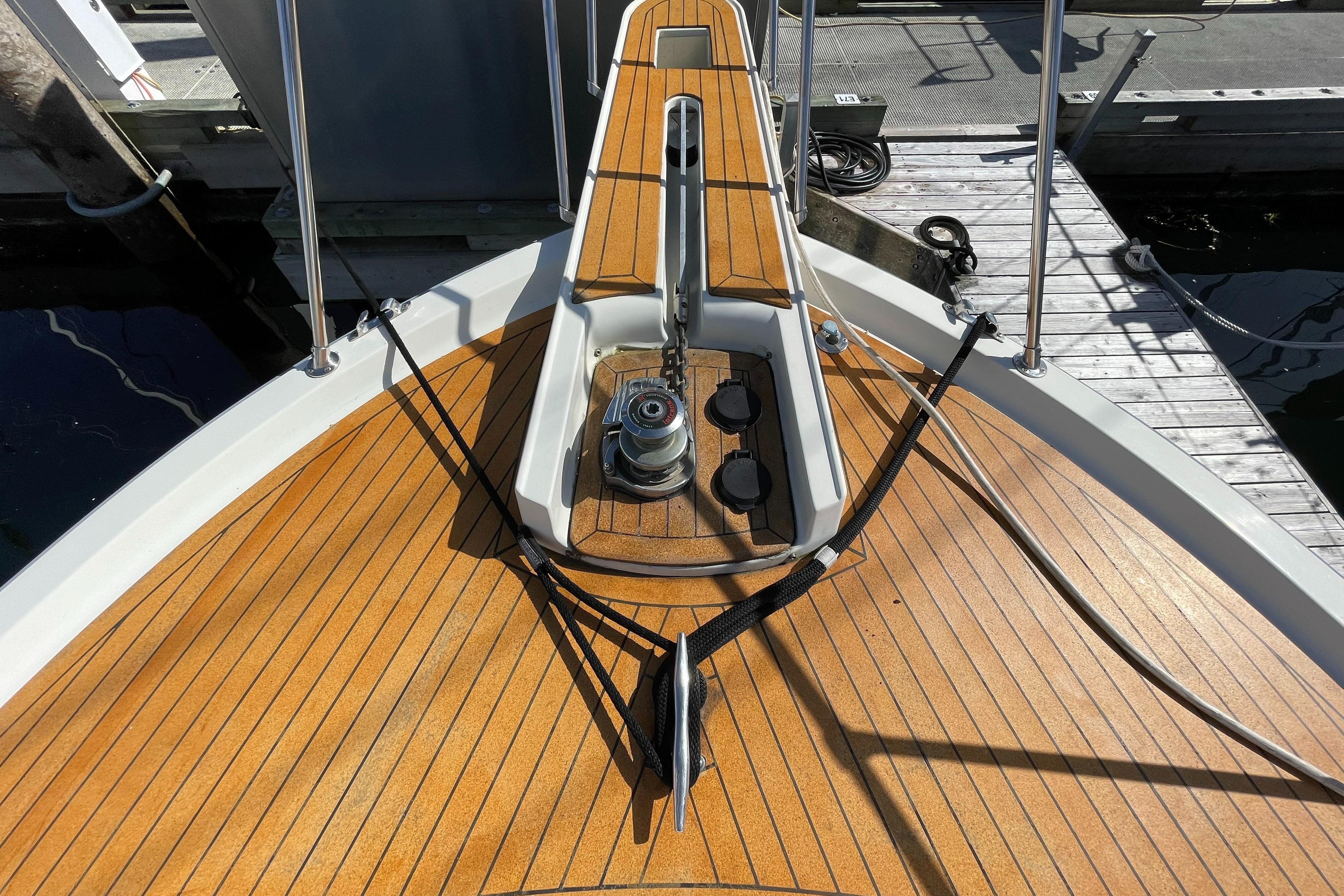

•  Windlass: Lofrans Electric, new foot switches 2023
•  Anchor: Lewmar Delta style, 200’ 5/16” chain
•  New 5 ply 200’ rode
•  Rebuilt anchor roller

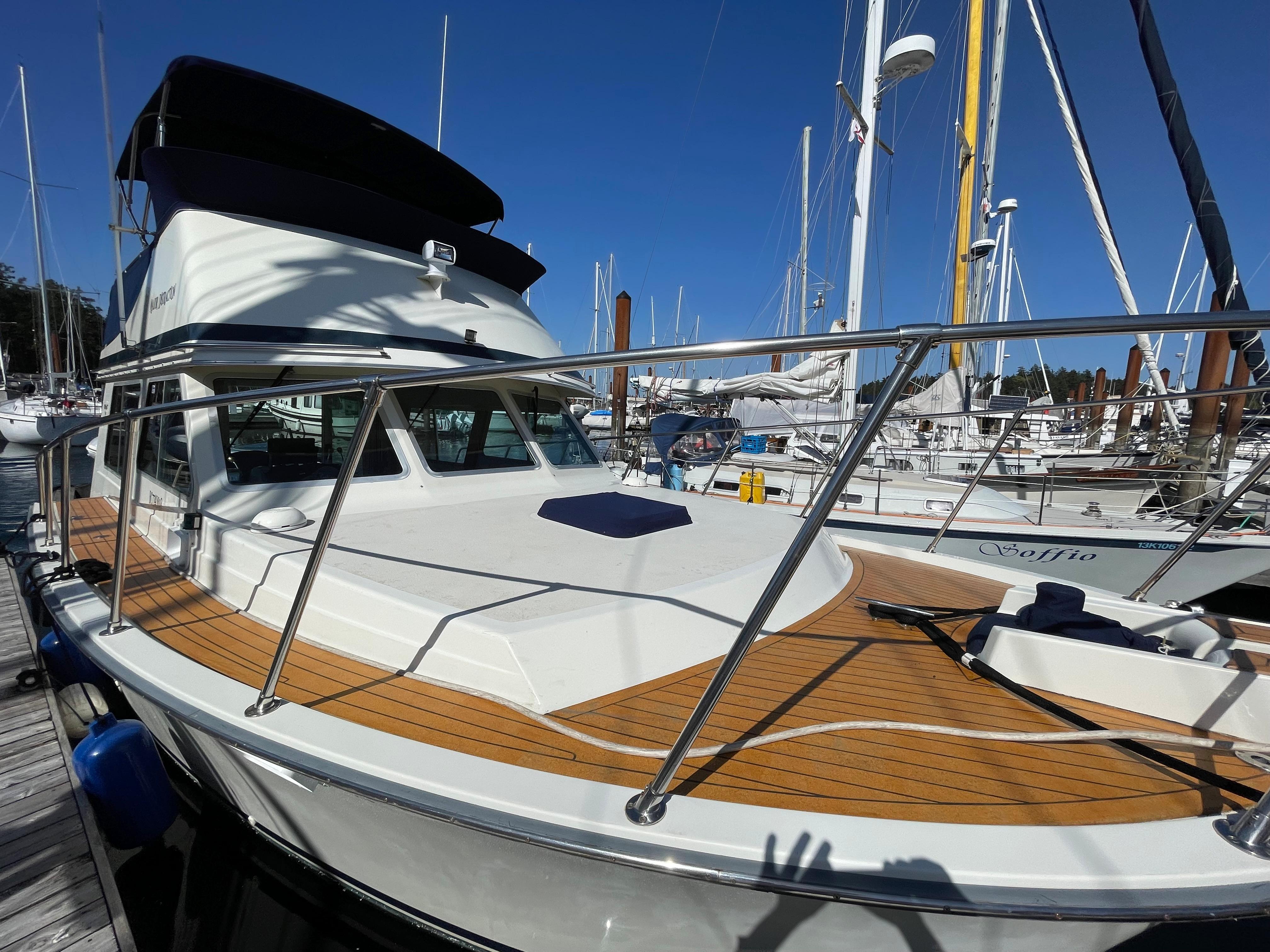

•  Marine 2000 Cork Decking in Cockpit and decks
•  New portlights in the forward berth
•  Cockpit hatches rebuilt

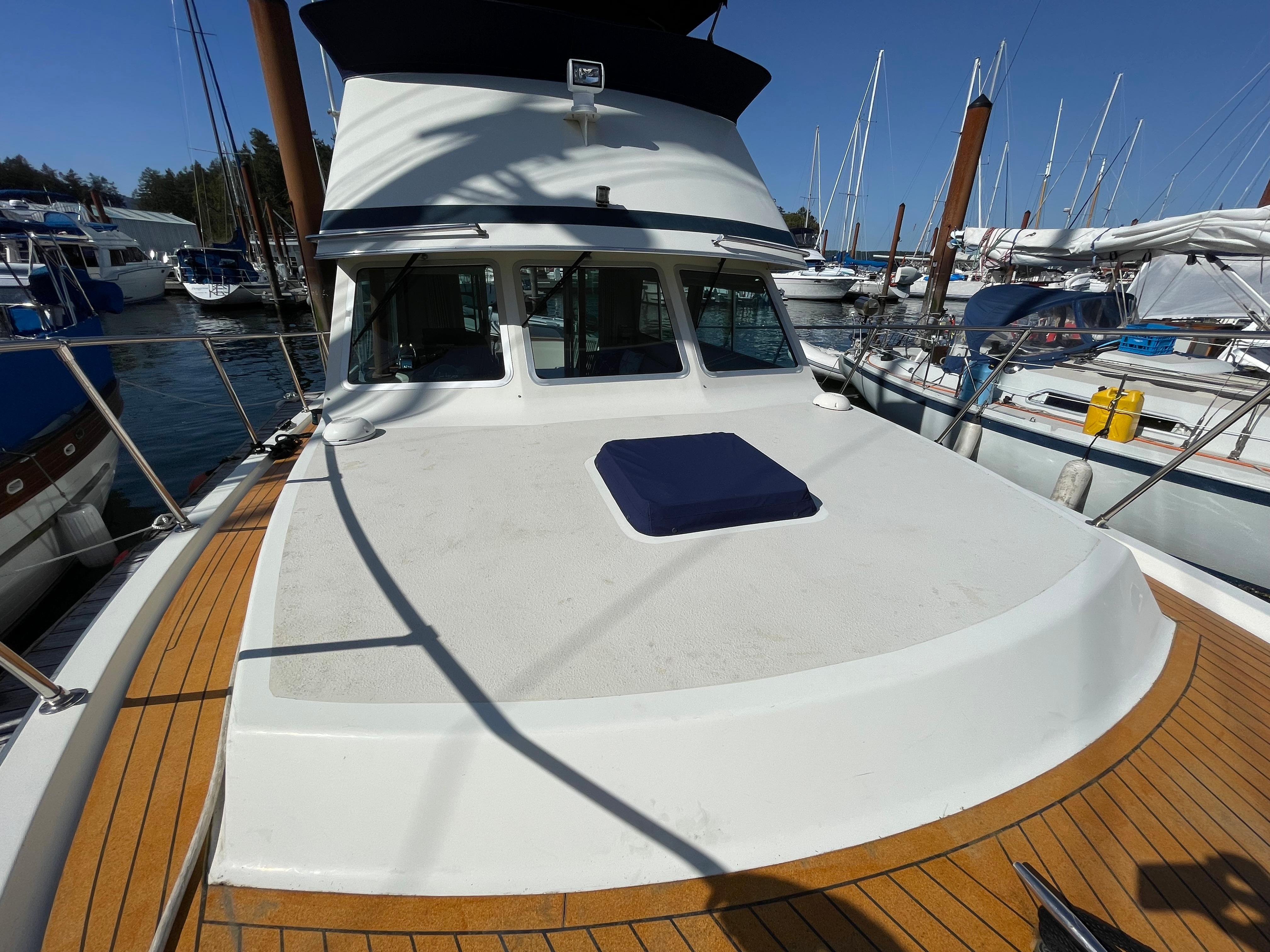

•  New forward hatch
•  New wiper arms and blades
•  New center wiper motor
•  New dual control spotlight

 COCKPIT AND FLYBRIDGE

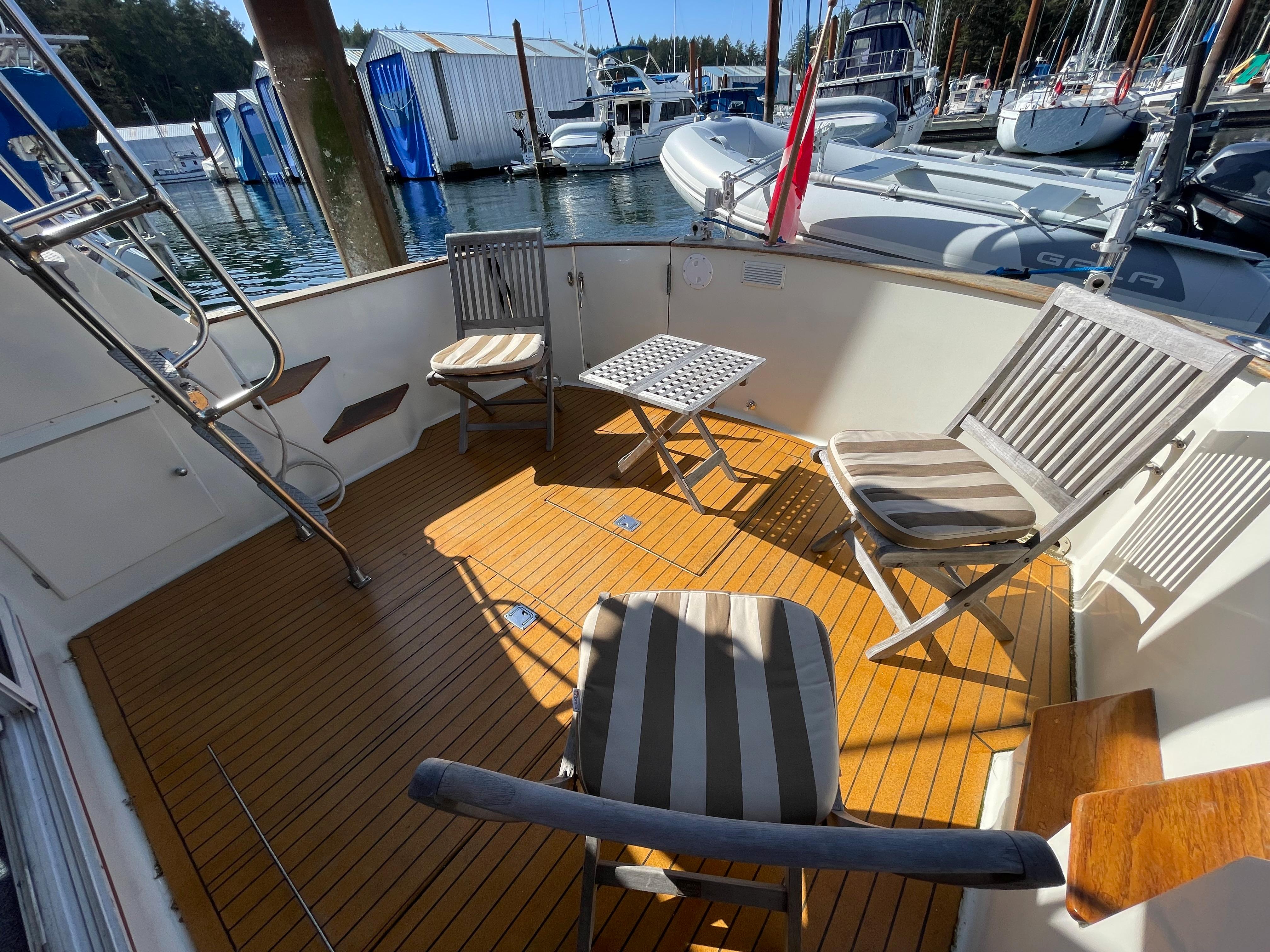

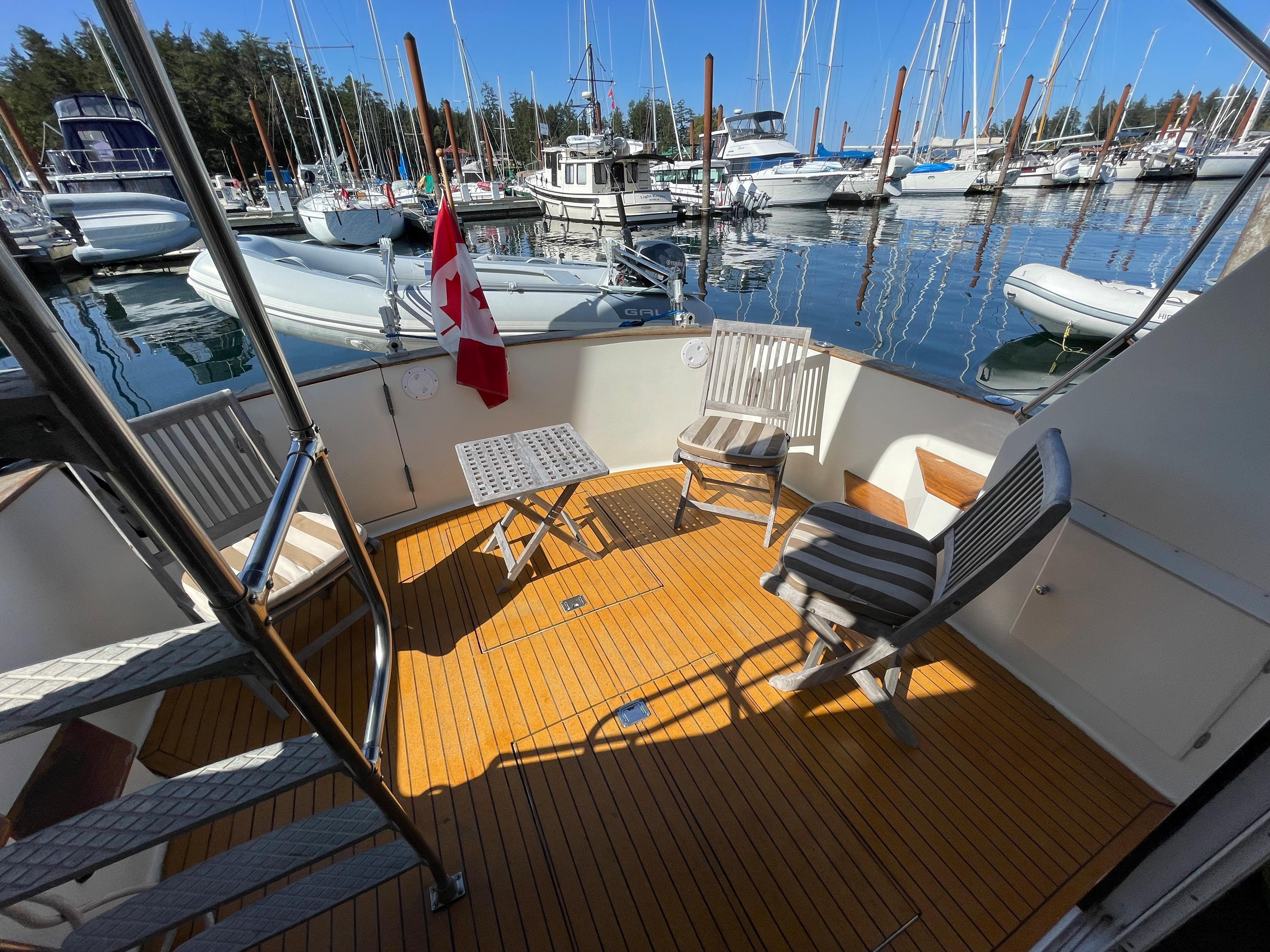

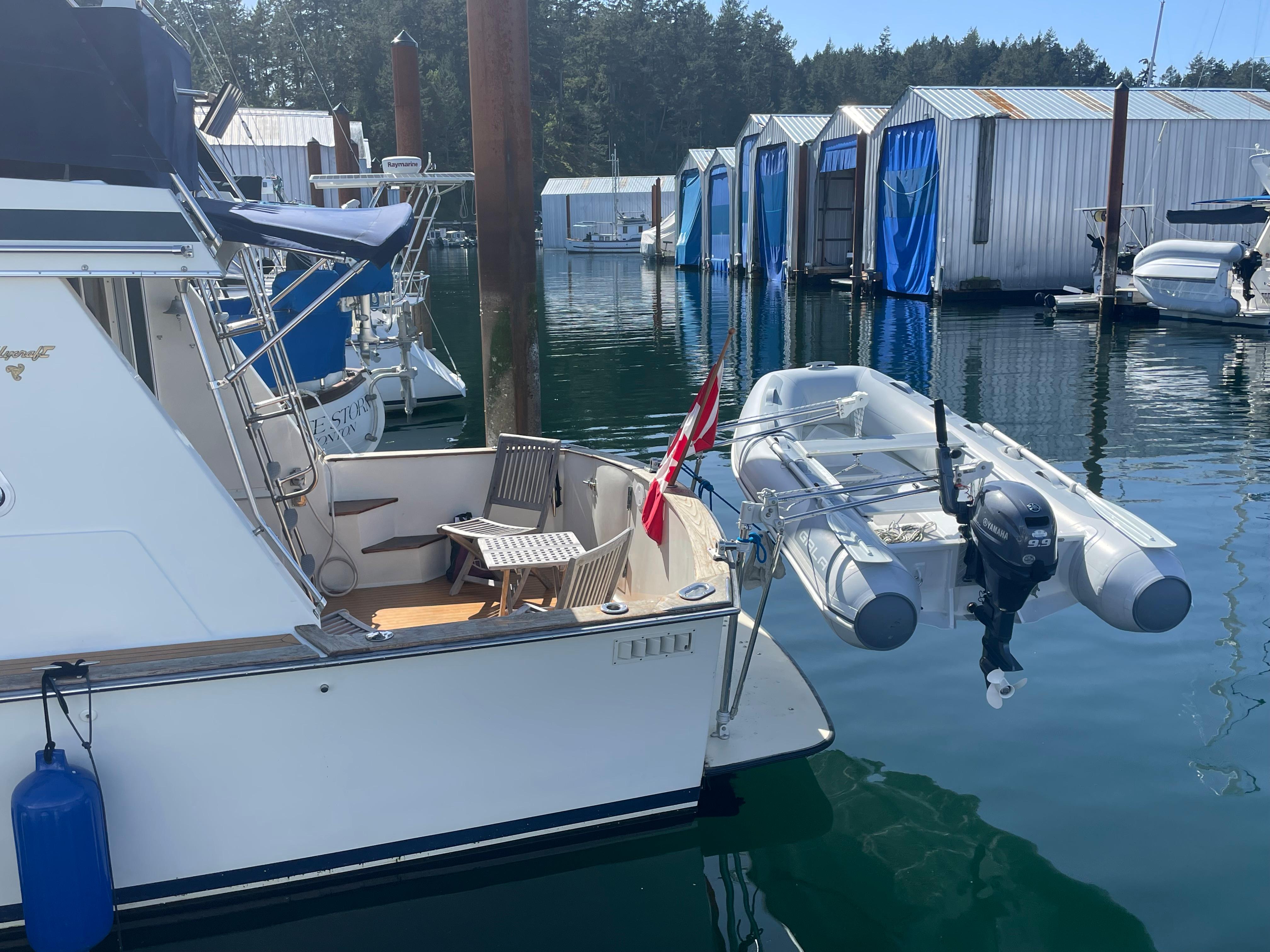

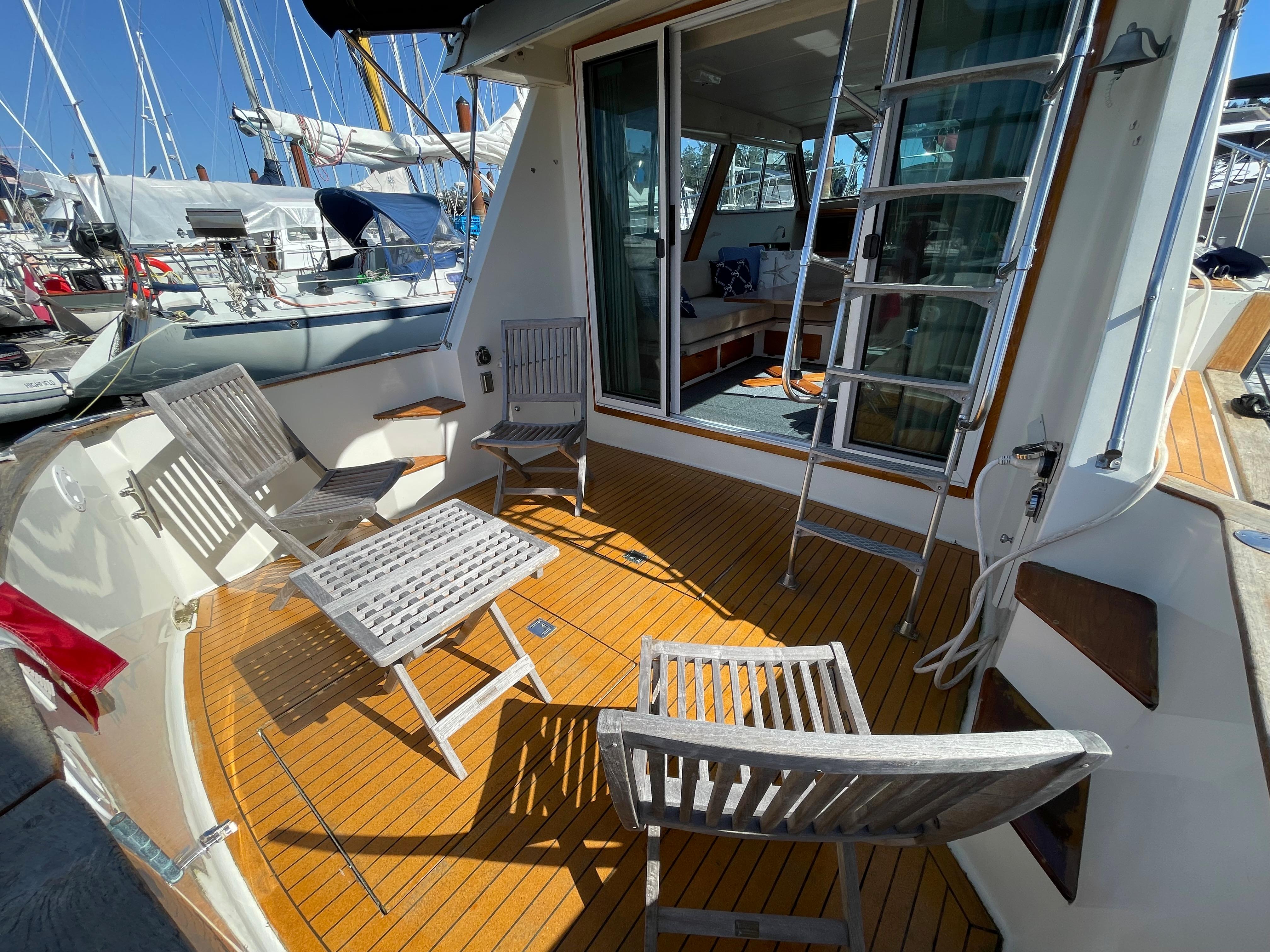

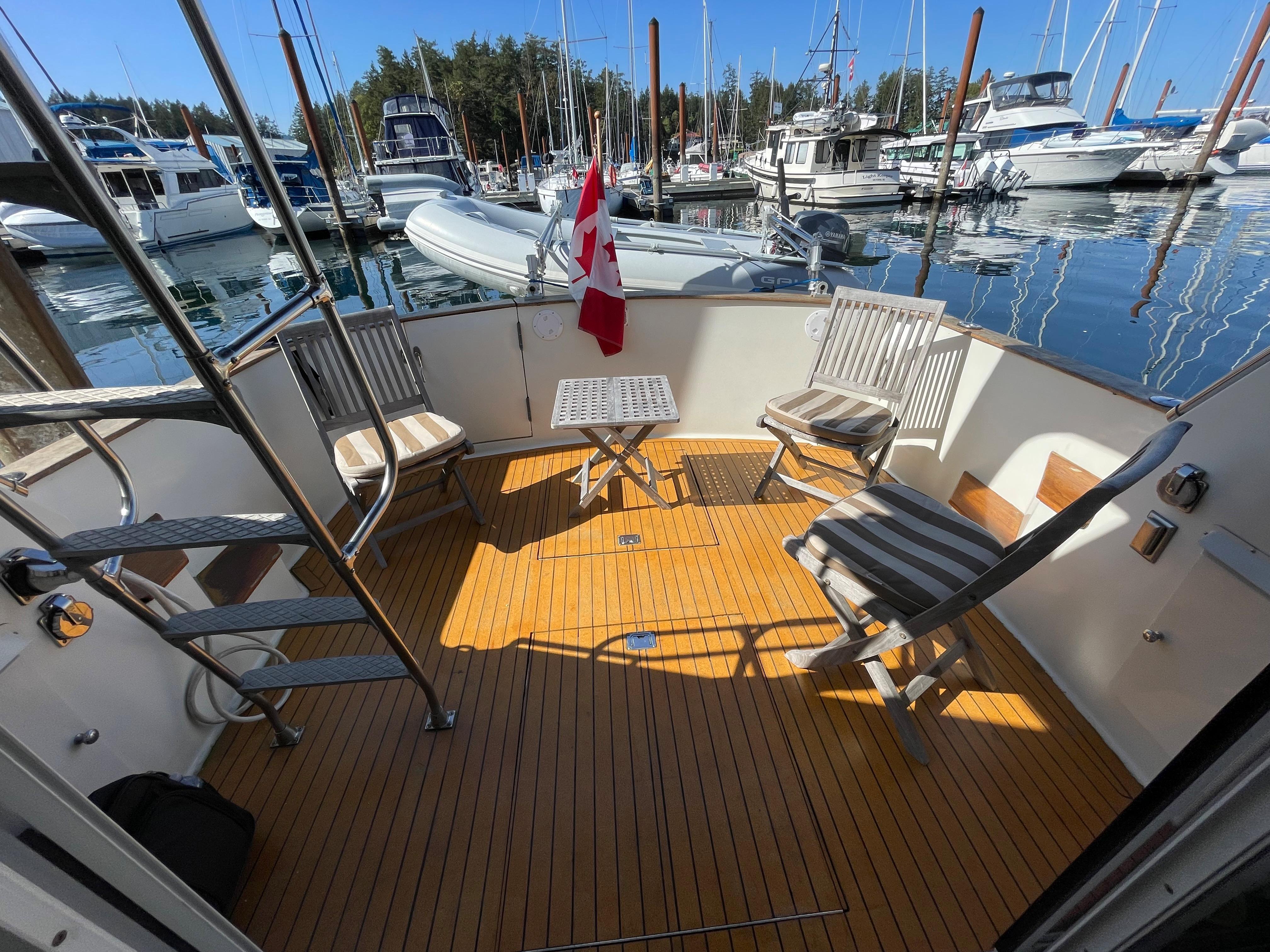

•  Large cockpit with a transom door to the swim platform
•  Marine 2000 Cork decking on Cockpit, side decks and foredeck
•  Two steps up to side decks
•  Safe passage to fordecks, wide side decks & hand holds
•  Ladder to the flybridge
•  Lazarettes to storage, and steerage gear

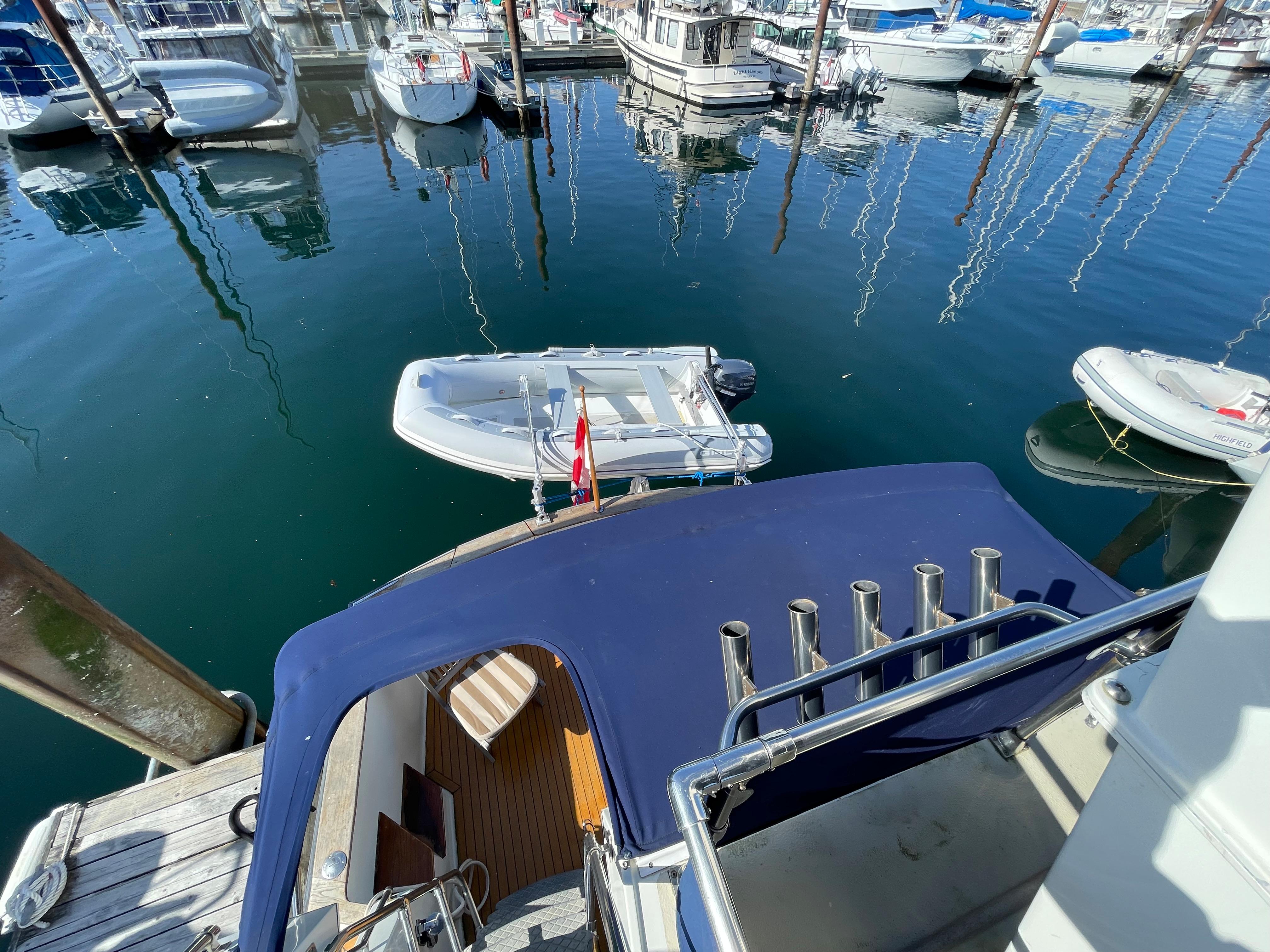

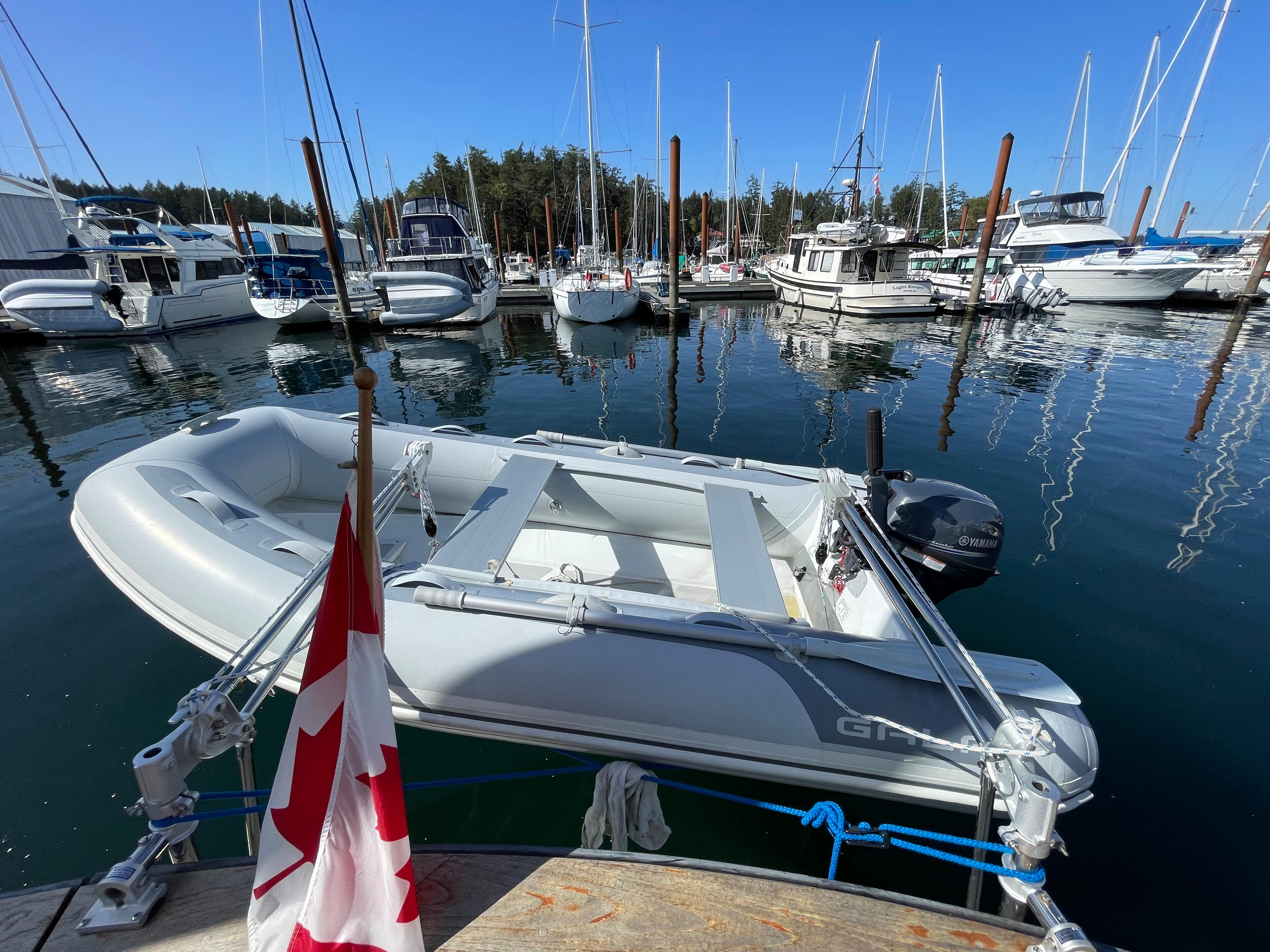

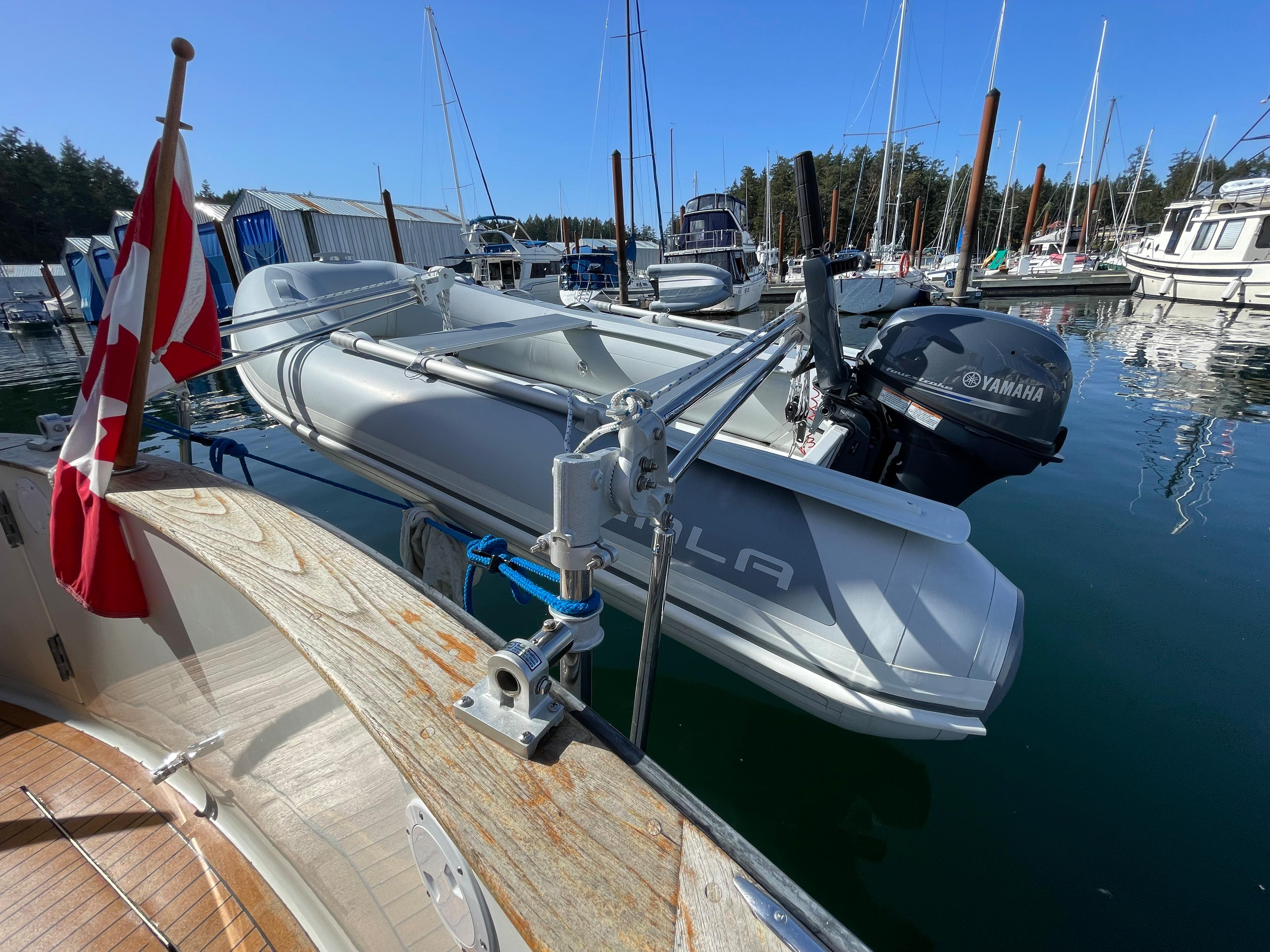

•  Dinghy: Gala 9’ Rib, New 2021

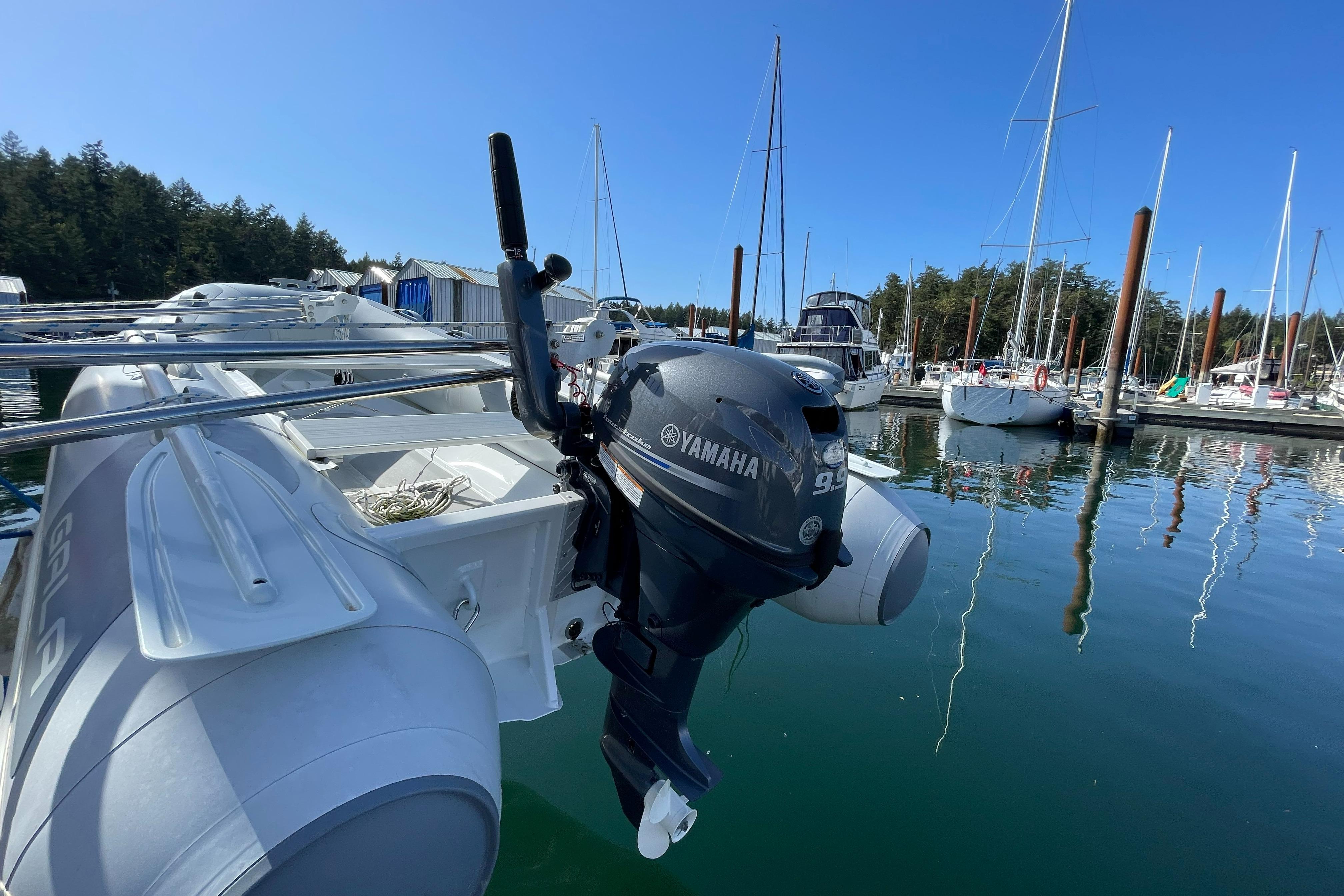

•  Outboard: Yamaha 9.9hp, New 2021
•  Davits: Atkins and Hoyle, New 2021

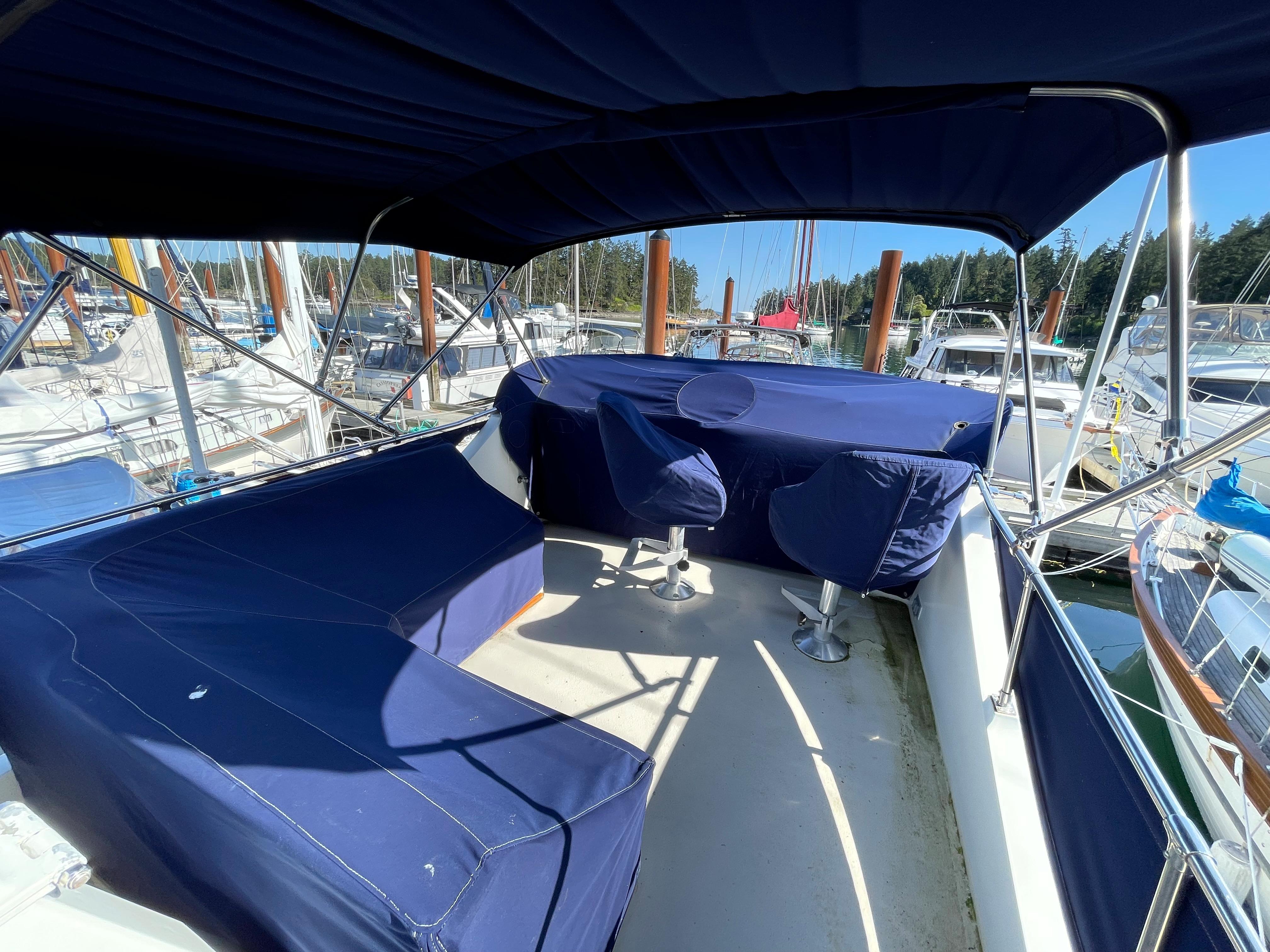

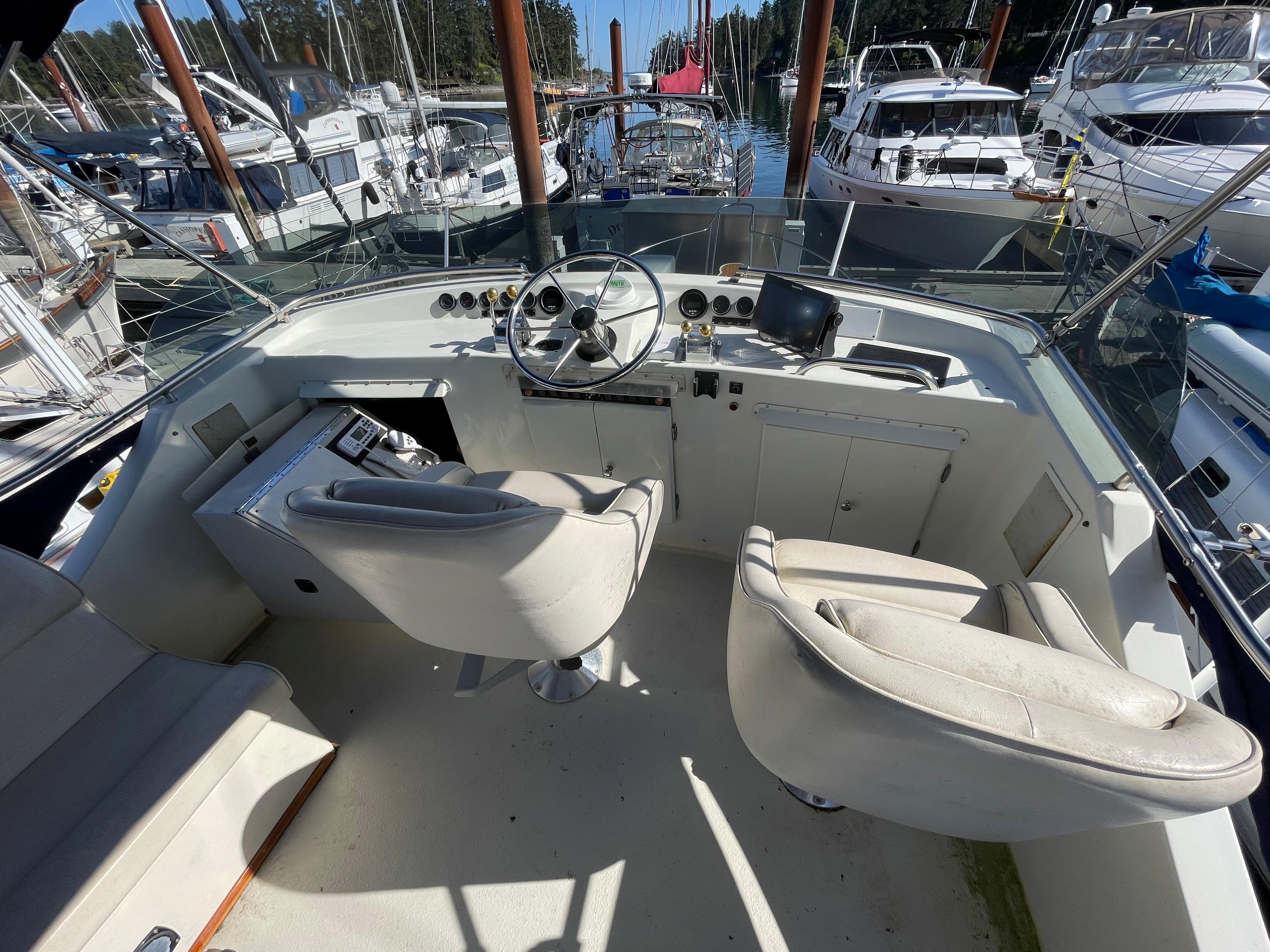

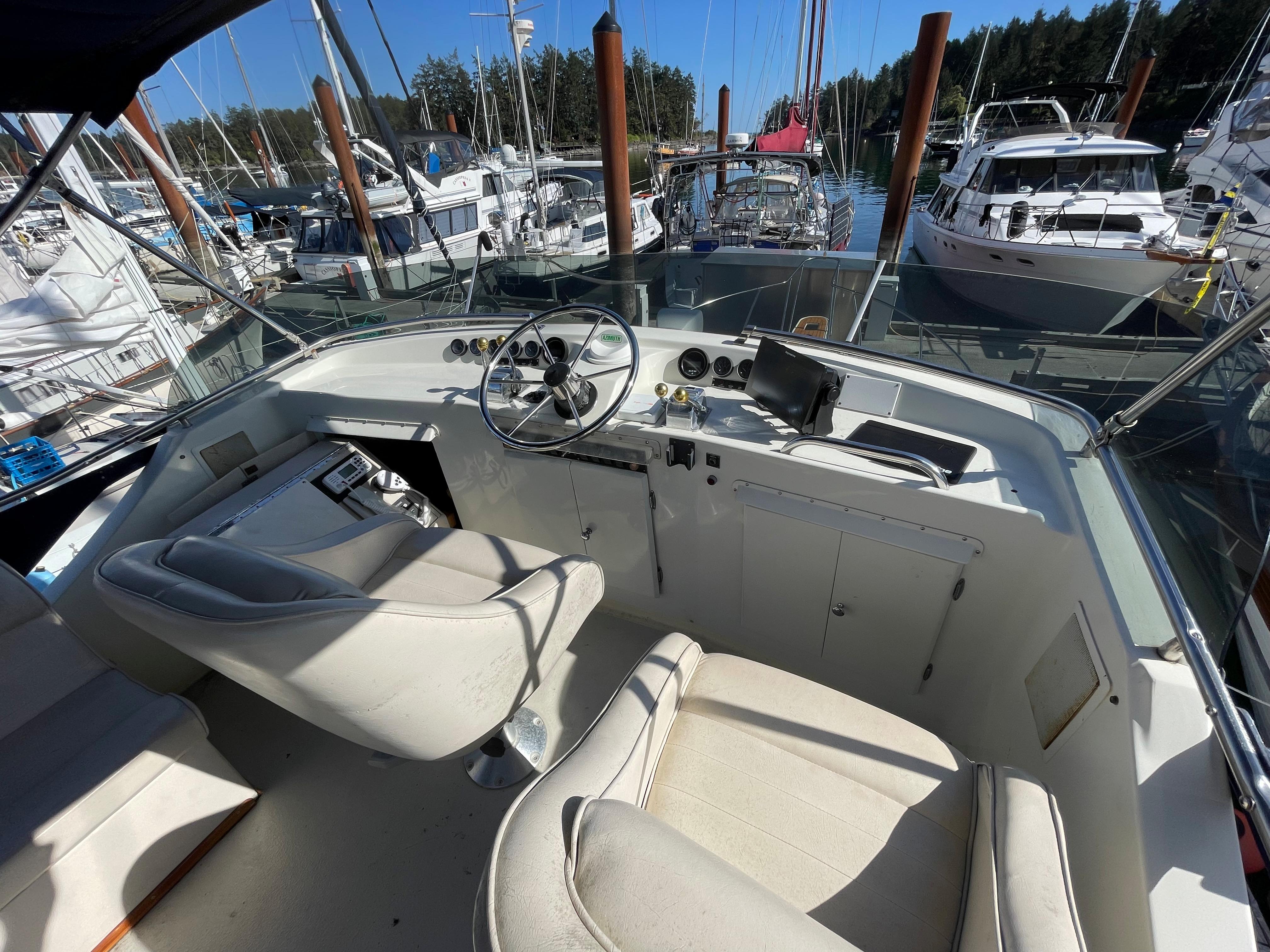

•  Flybridge seating consists of an L-shaped settee to port, two single swivel seats for helmsman and crew
•  Storage under settee
•  Bimini over the flybridge

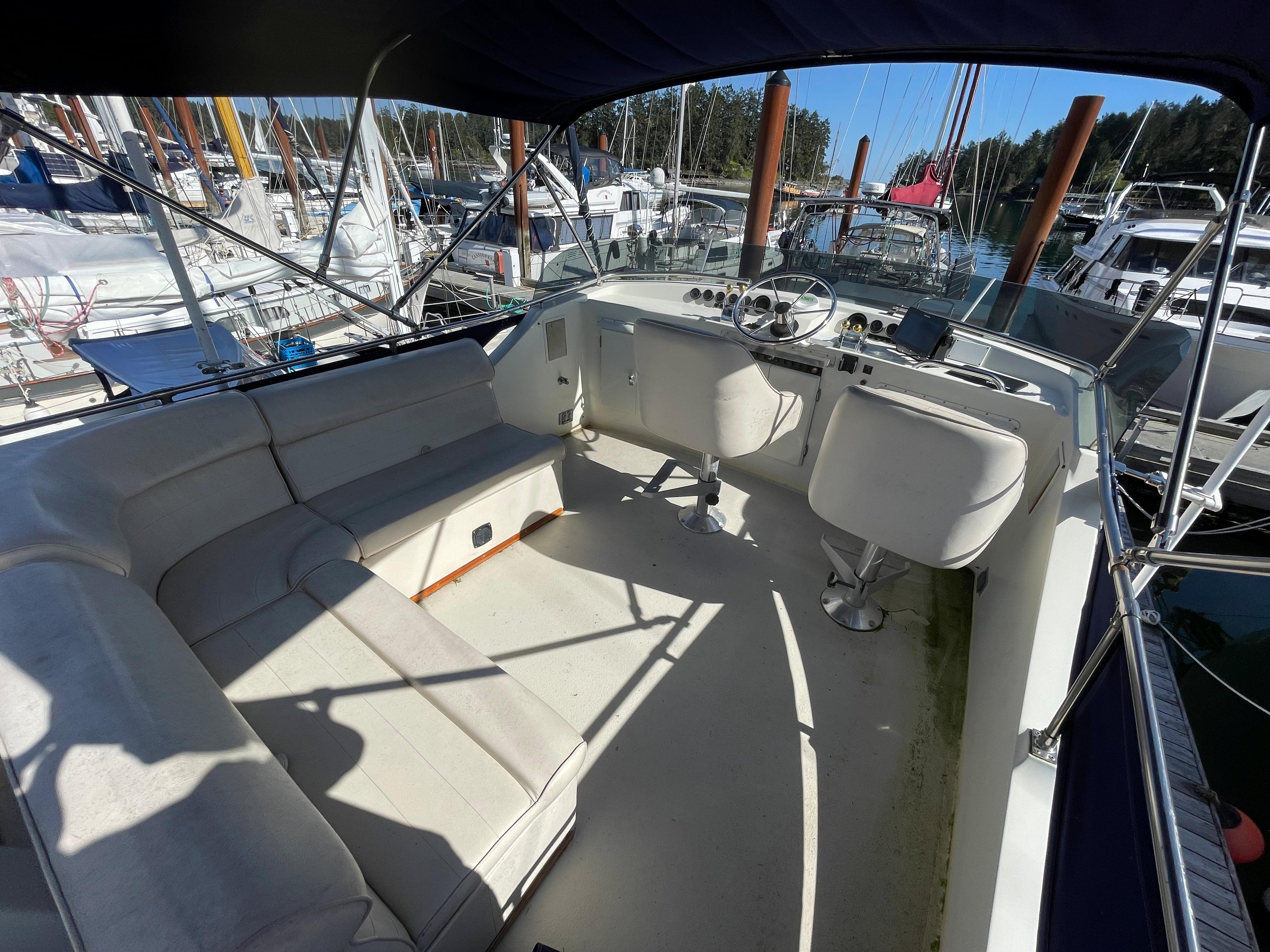

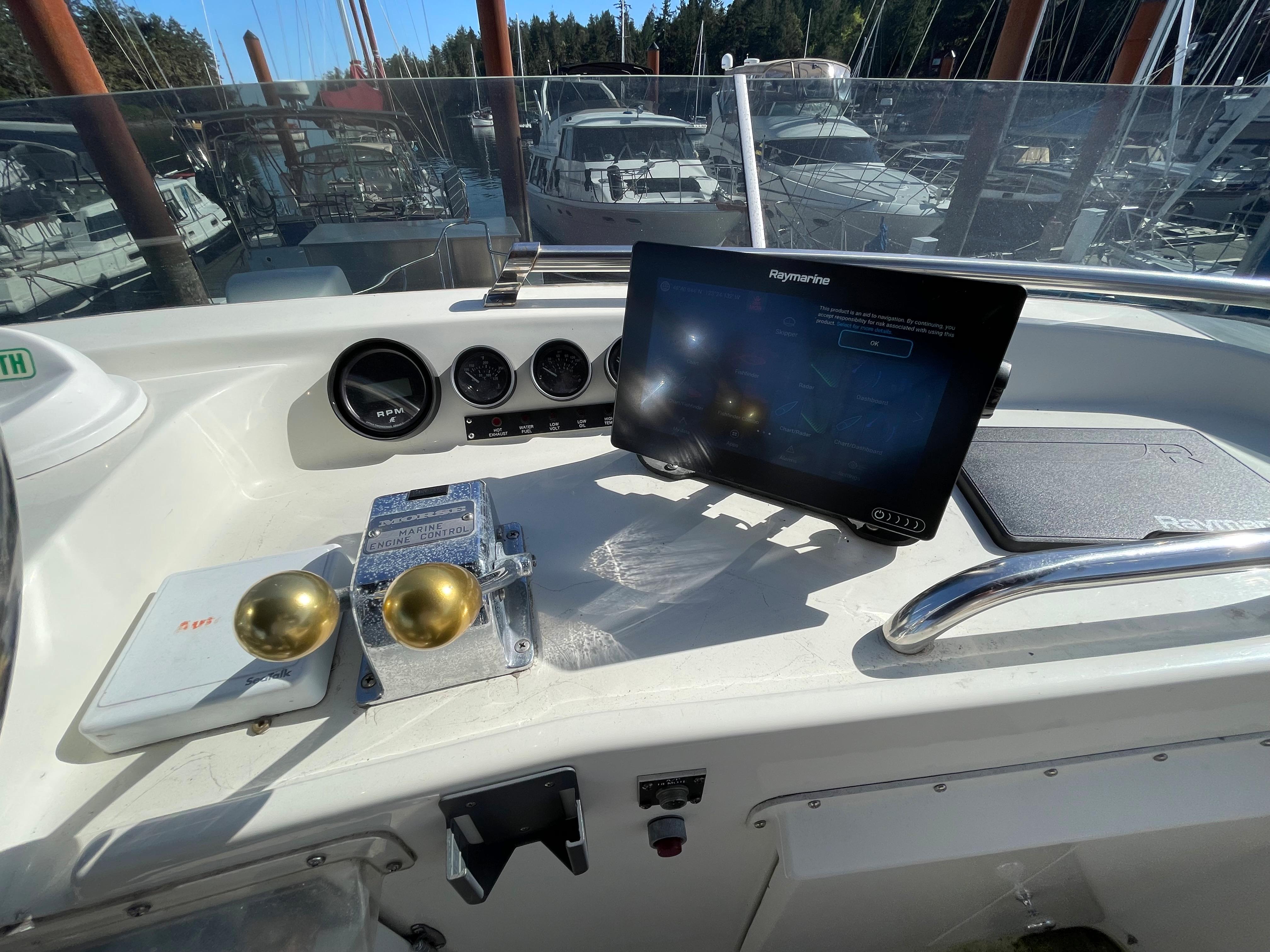

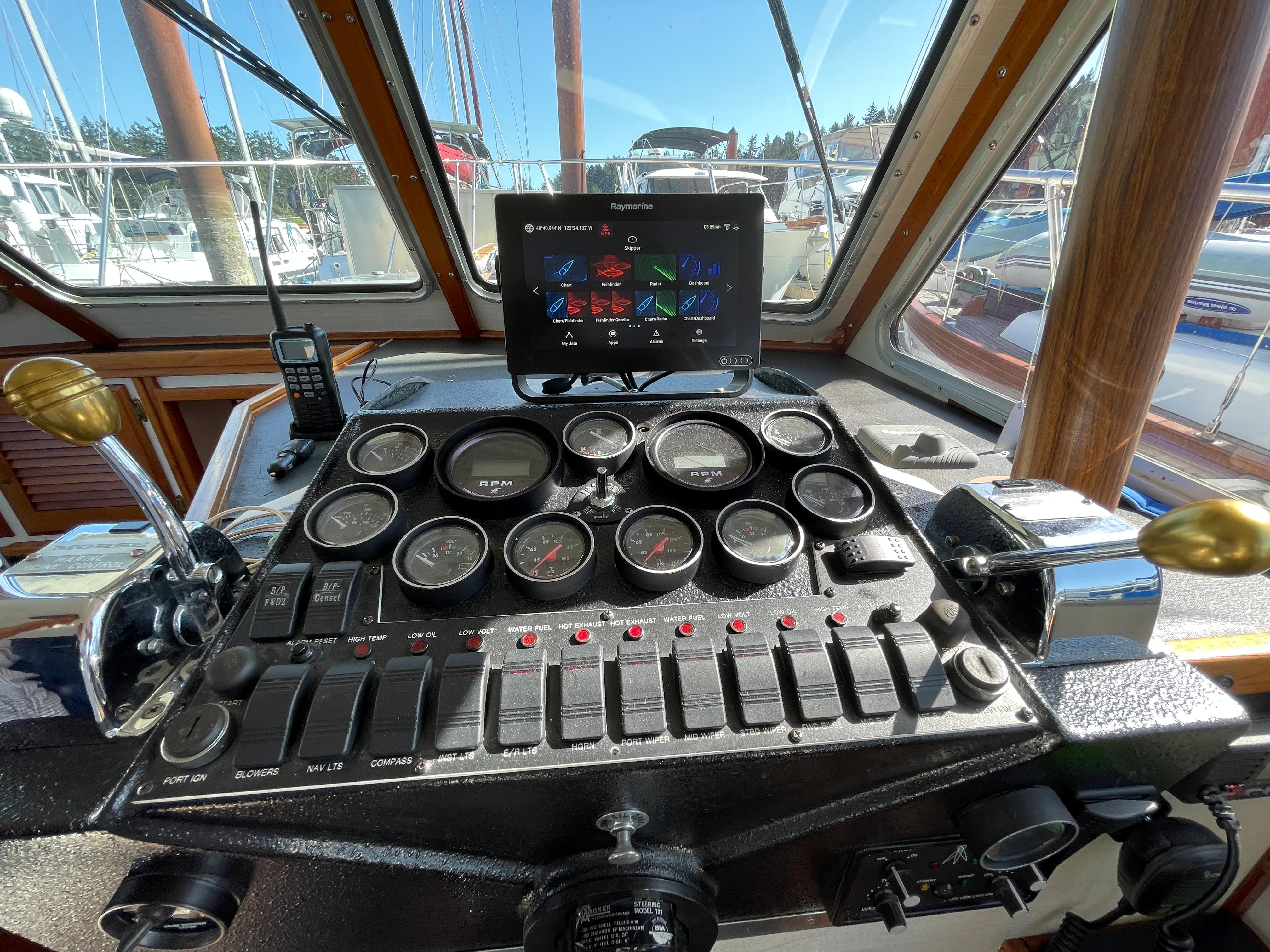

•  Helm control on the flybridge include analogue gauges, duel throttle and gear shifts, Raymarine Chart plotter, Icom VHF, stabilizer controls
•  Windshield is in excellent condition
•  DC Distribution panel in addition to main panel

 MAINTENANCE

•  Last haul-out: Mar 2022
•  Last anti-fouling: Mar 2022
•  Last zinc(s) change: Mar 2023
•  Last engine oil change: Nov 2022
