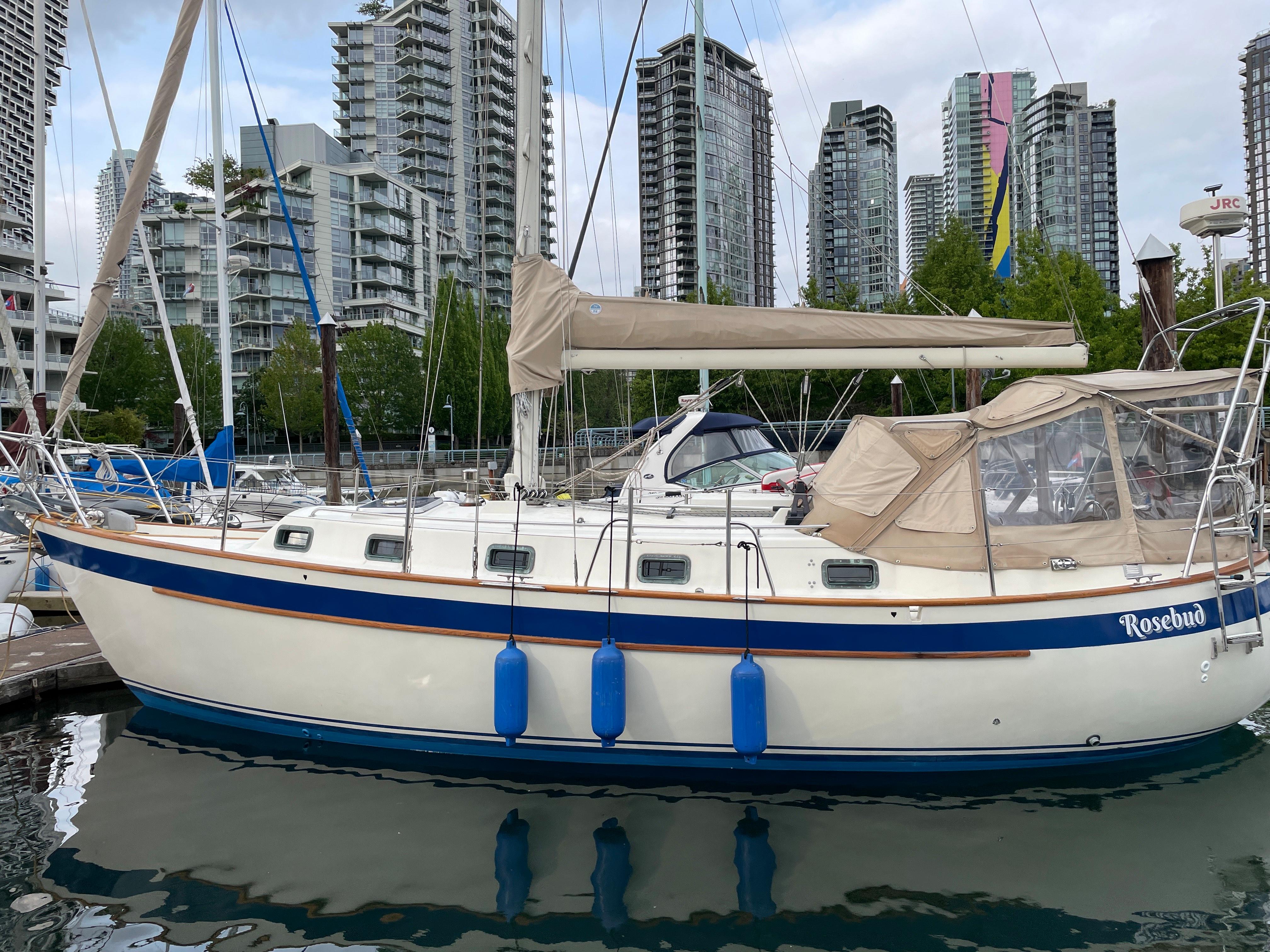

1988 Marquis Coast 34

1988 Marquis Coast 34   Specifications

Coast 34

Year.......................................................... 1988

Name................................................ Rosebud I

Builder...................................... Marquis Marine

Designer............................................. Shannon

LOA......................................................... 34.33

LOD.............................................................. 38

LWL......................................................... 28.67

Beam....................................................... 11.48

Draft............................................................. 5’6

Displacement......................................... 18,500

Ballast...................................................... 6,400

Sail Area .................................................... 625

Hull                                Foam cored Fiberglass

Deck..................................... Foam cored deck

Steering.................................................. Wheel

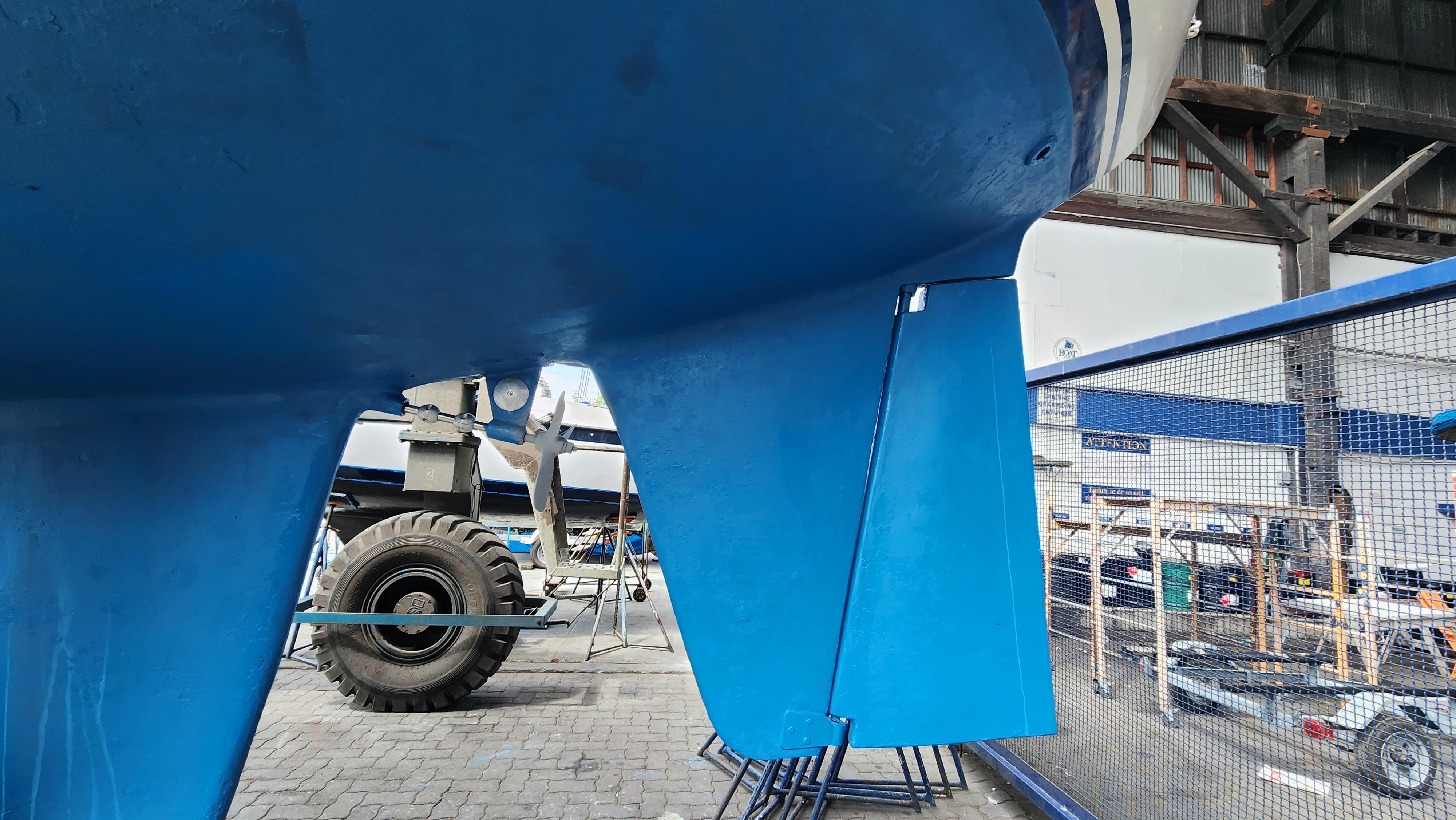

Keel....................................... Extended fin keel

Rudder............................................. Skeg hung

Fuel.................................................. 54 Gallons

Water............................................. 120 Gallons

Hot Water.......................... Paloma on demand

Holding Tank.................................... 35 Gallons

CONSTRUCTION

• Solid overbuilt hand laid fibreglass hull with foam core
• Extended fin keel with internal ballast
• Skeg hung rudder for tracking
• Stainless steel rudder stock
• Deck is foam cored
• Teak cap rail
• Trunk cabin with 5 opening bronze ports on starboard and port sides and 1 aft in quarterberth

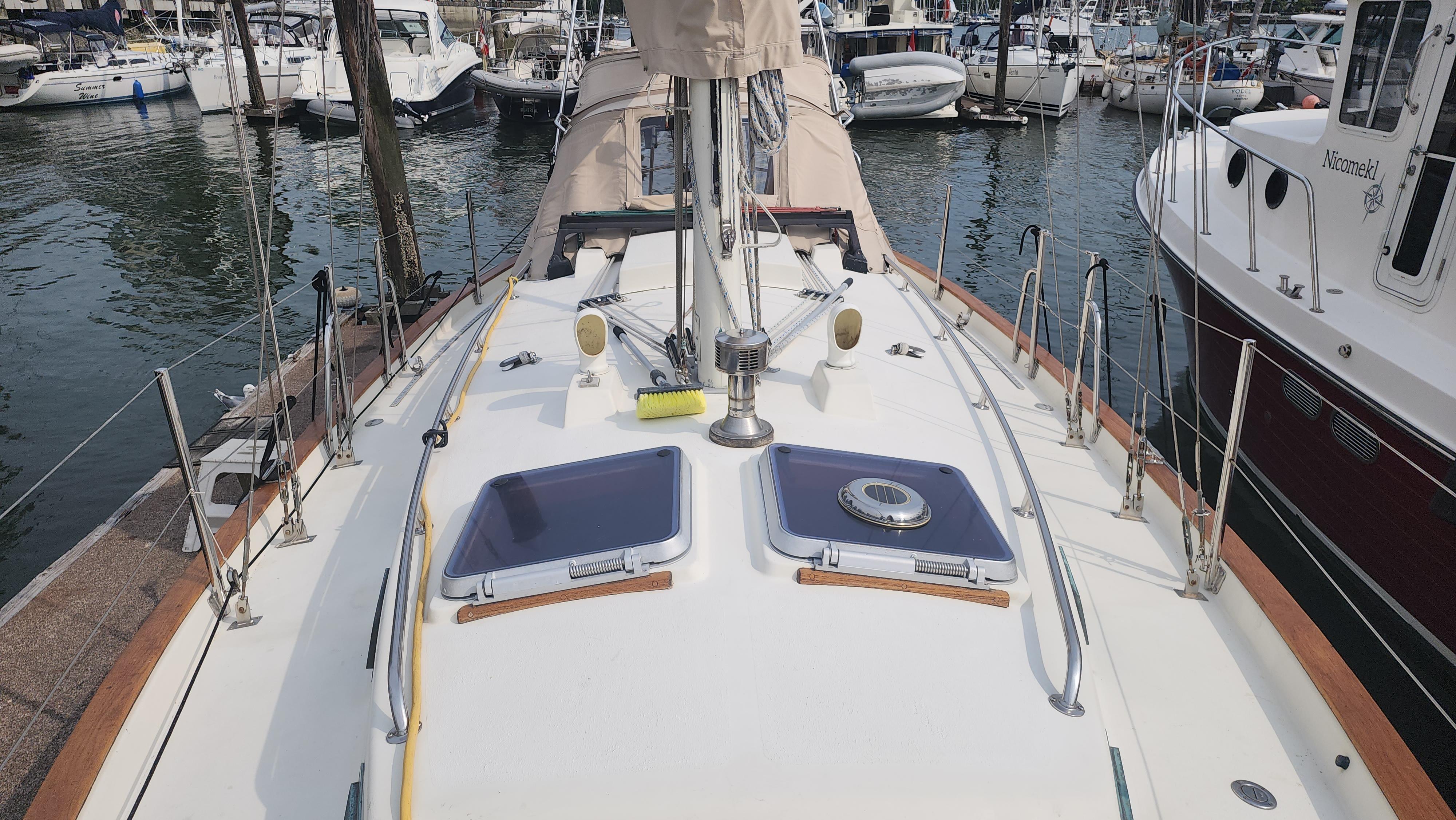

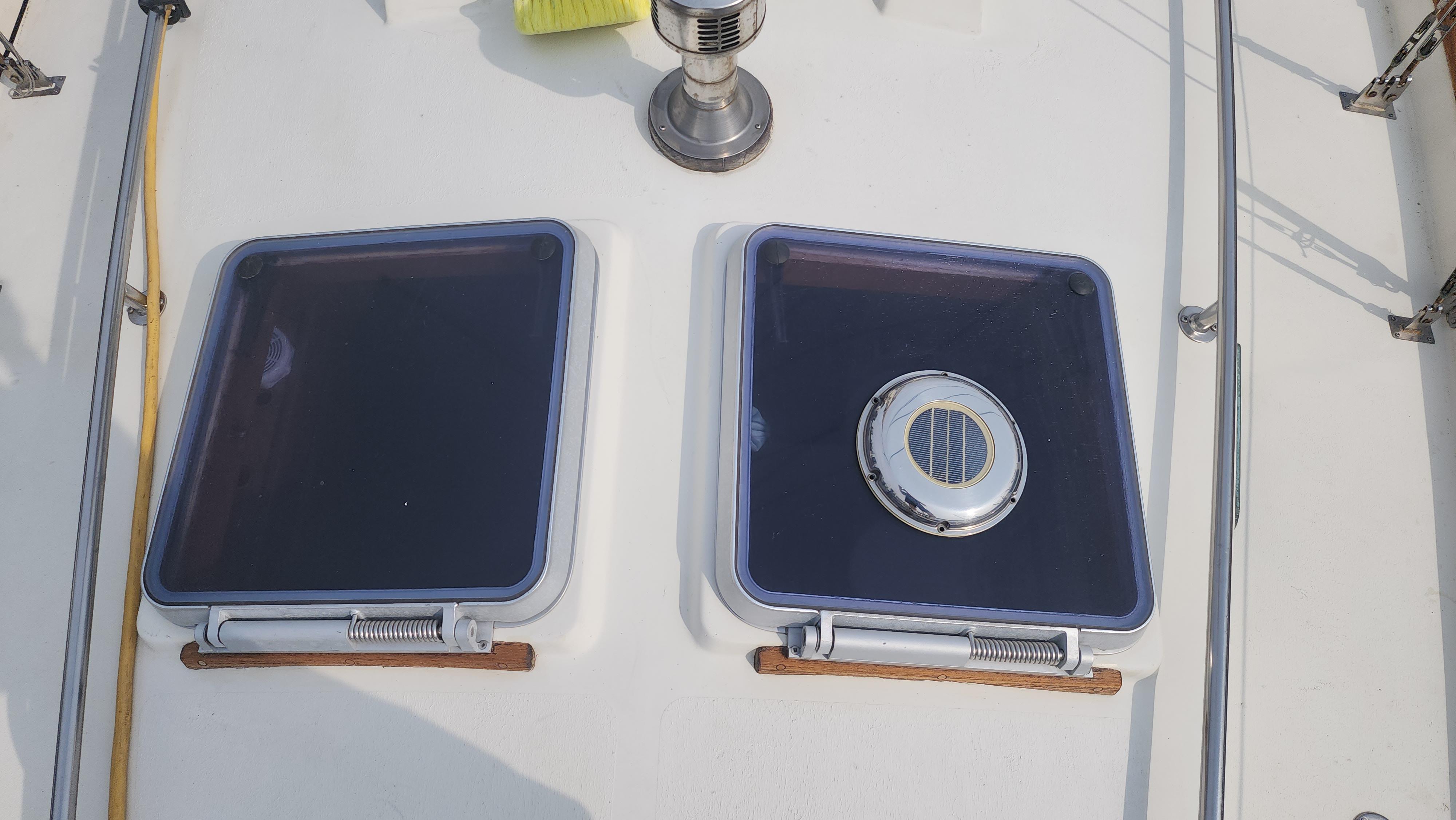

• 2 large opening Bomar hatches ahead of mast on cabin top
• Stainless steel handrails port and starboard on cabin top
• 4 built in dorades on cabin top
• Glassed in bulkhead
• Teak and Holly flooring
• Internal ballast
• Bronze thru hulls

INTERIOR

• This Coast 34.
• Stateroom forward with offset Pullman to port
• 2 opening ports in cabin
• Head is aft to port of the forward stateroom
• Salon is mid ships with galley in aft starboard quarter across from electrical and nav station
• Aft port quarter is a twin berth

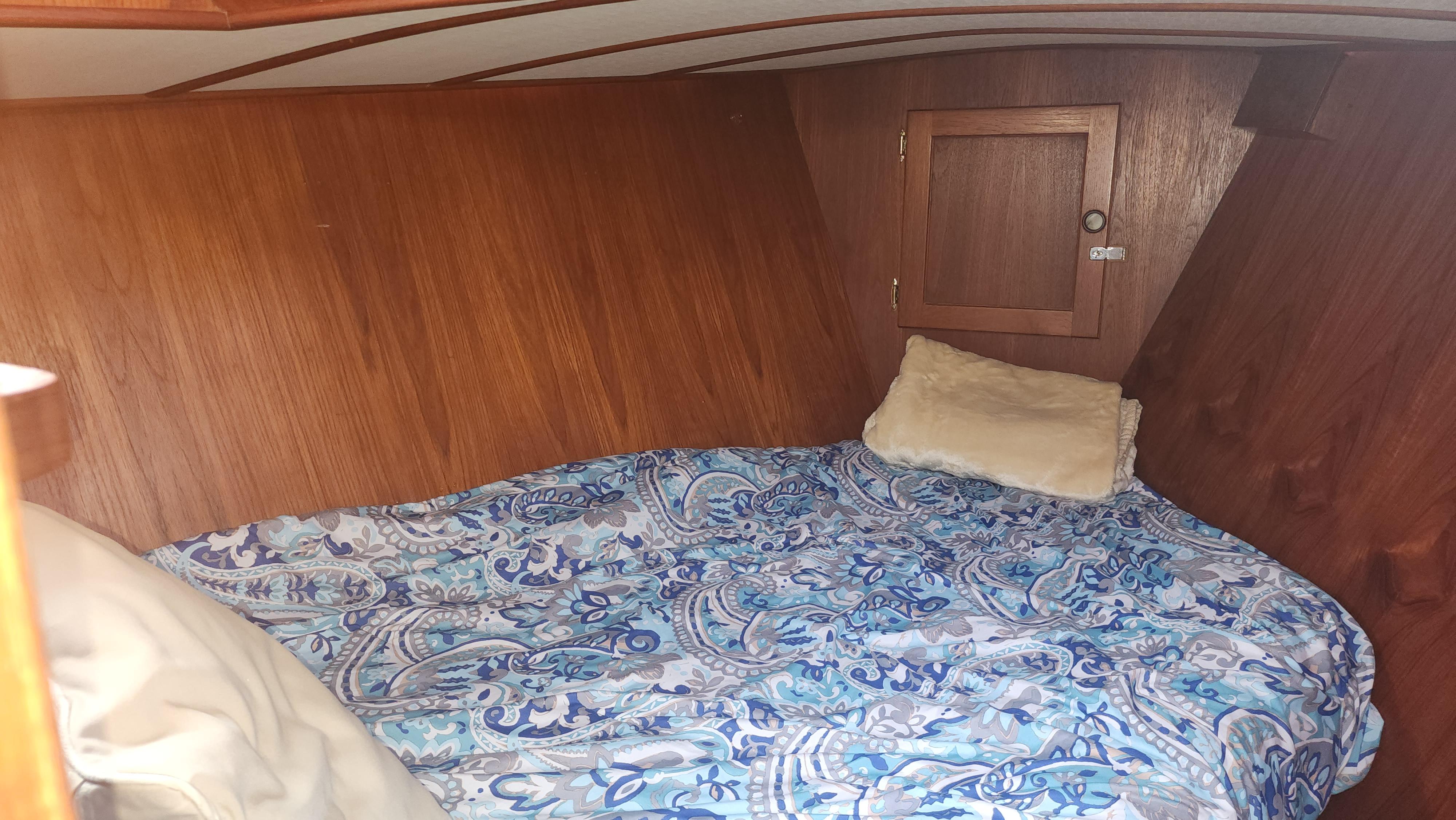

V berth

• Offset Pullman to port with opening ports port and starboard
• Starboard side hanging locker
• Shelf over berth
• Opening port on both sides of cabin trunk
• Access to anchor locker
• Under V berth is holding tank
• Wash down pump
• Ahead of holding tank is an area for spare anchor and chain

Across from head

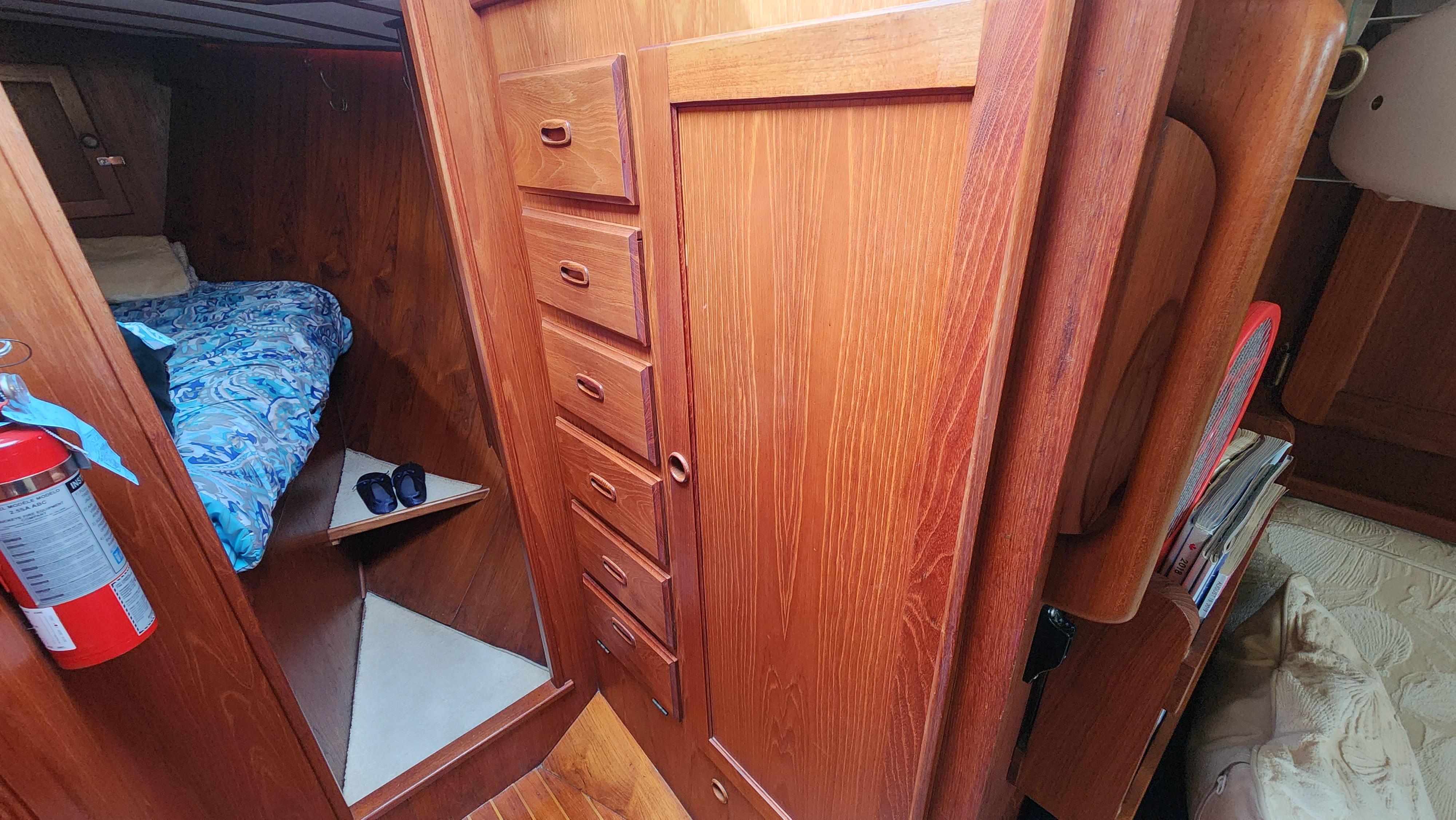

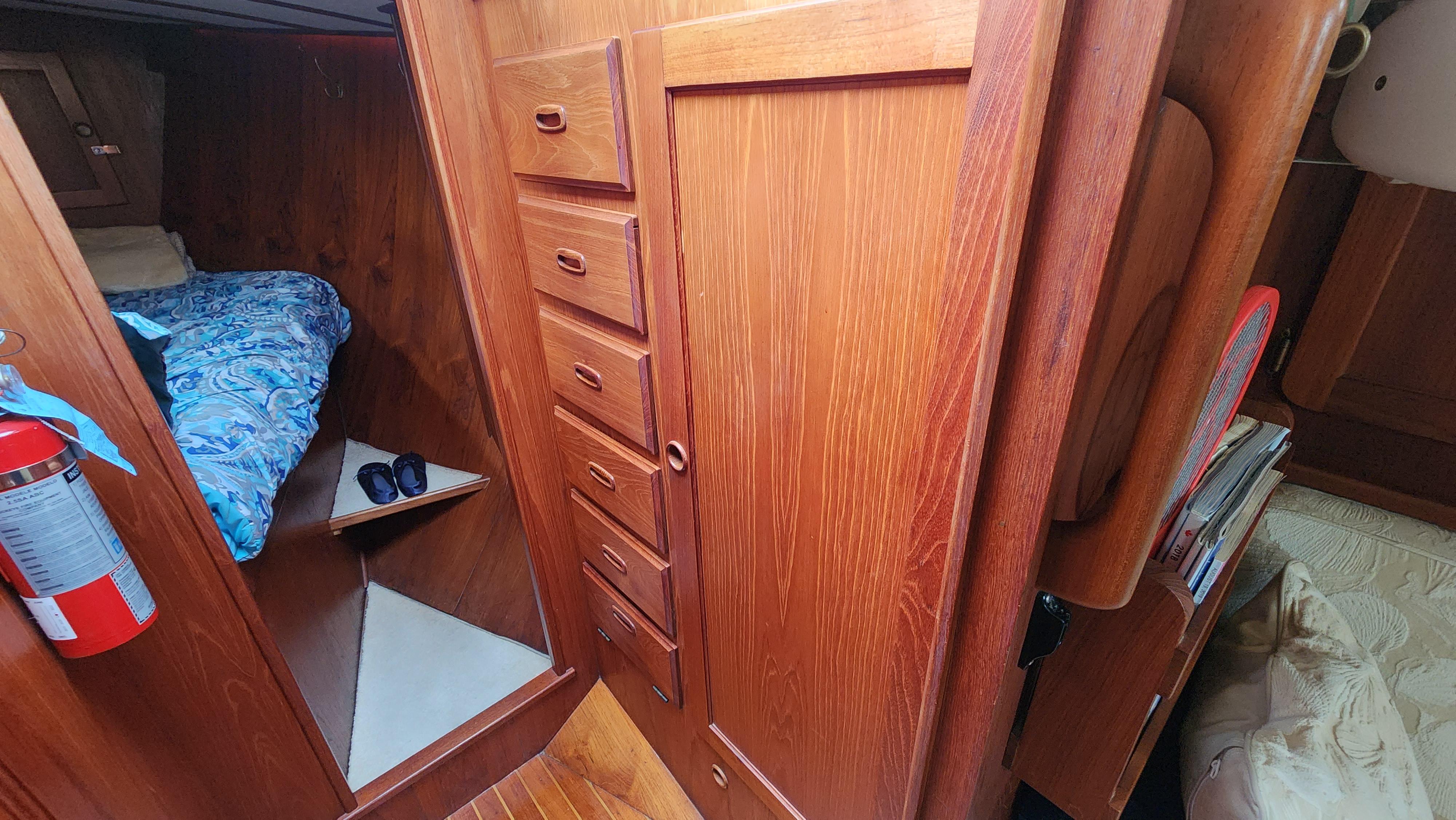

• 5 drawers just aft of V berth across from head
• Hanging locker just aft of drawers
• Opening port

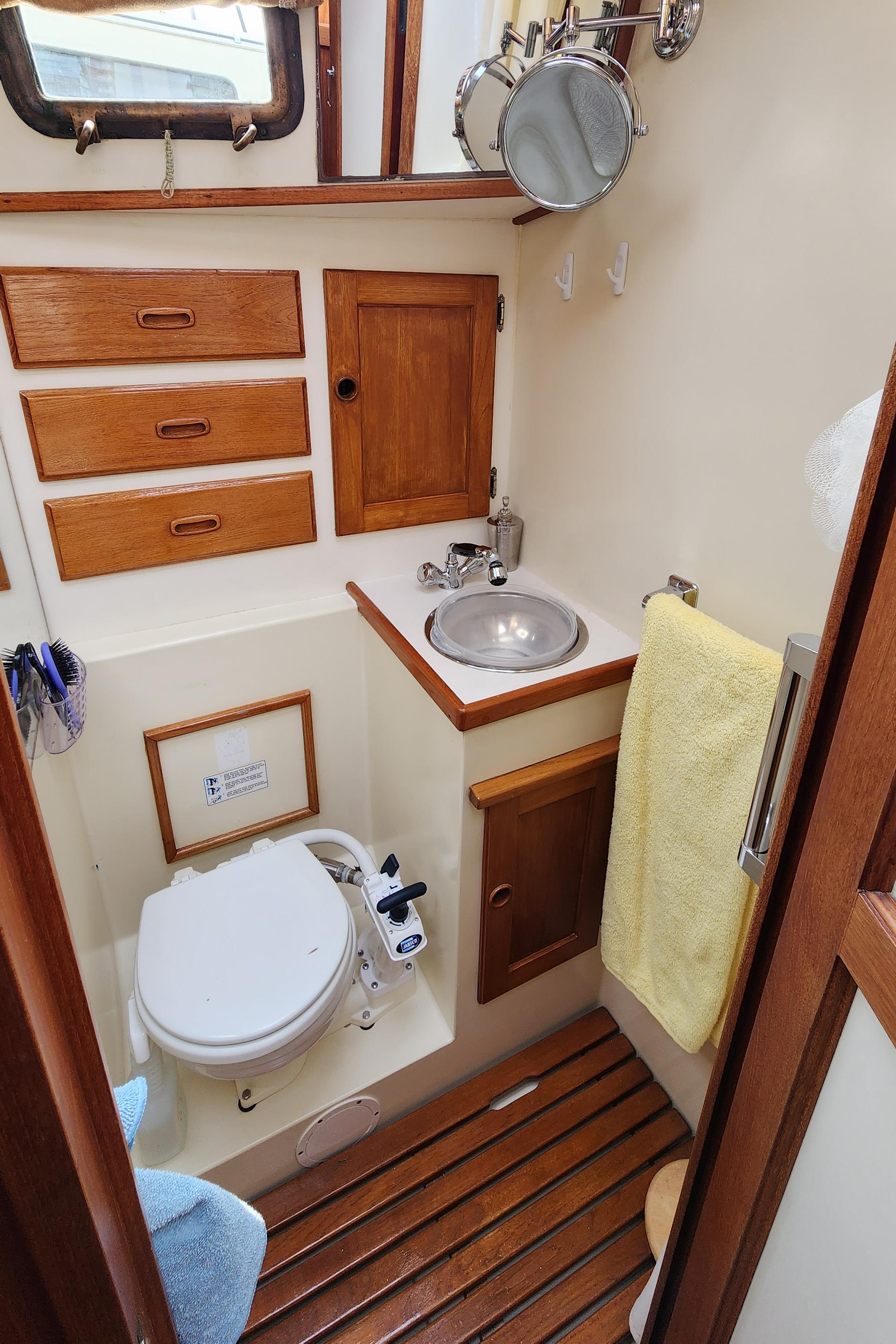

Head

• Head to port with vanity sink
• Manual marine toilet
• Opening port over vanity
• Outboard of vanity is storage
• 3 drawers under vanity
• Door from this compartment into salon through main bulkhead

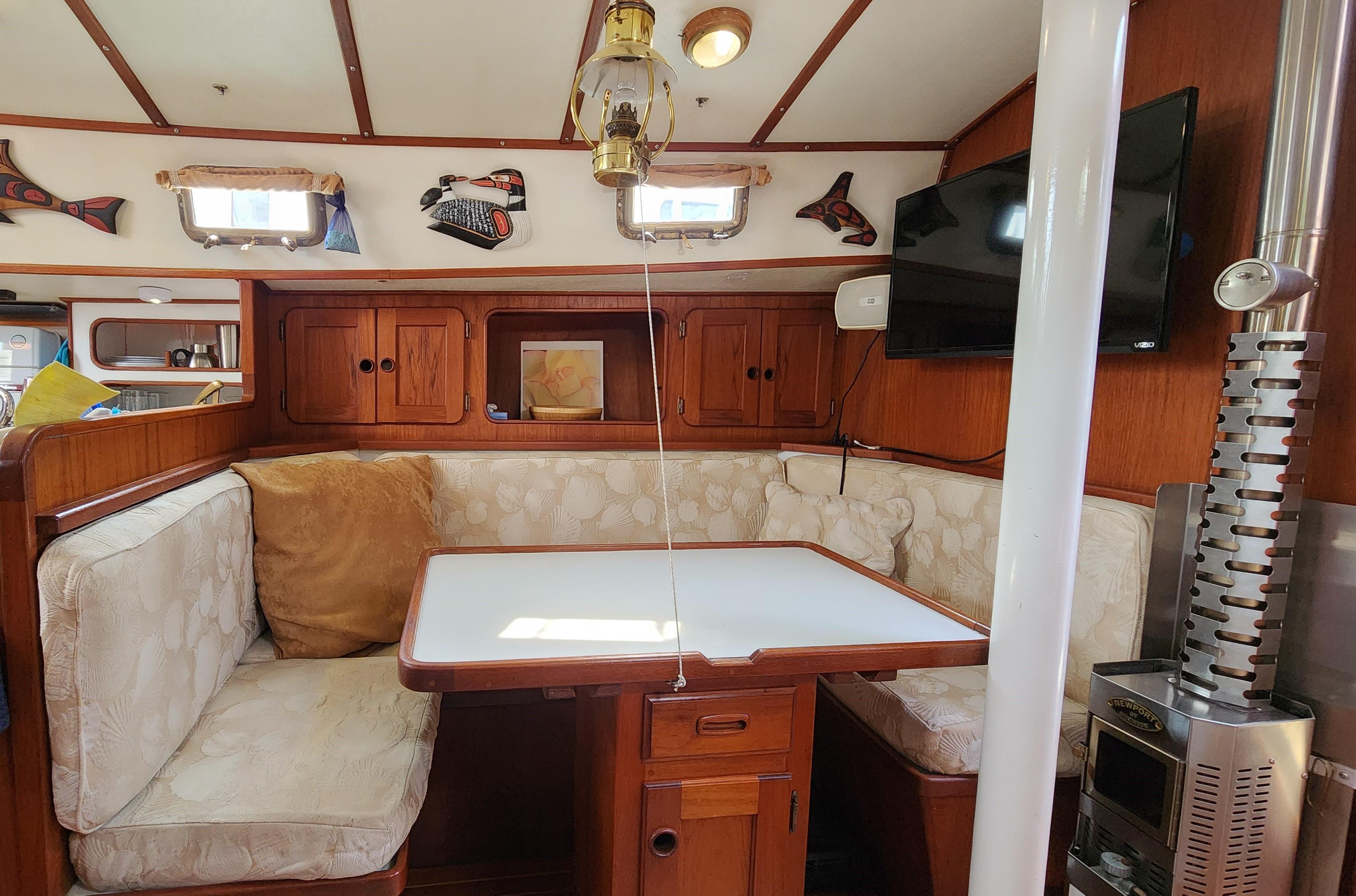

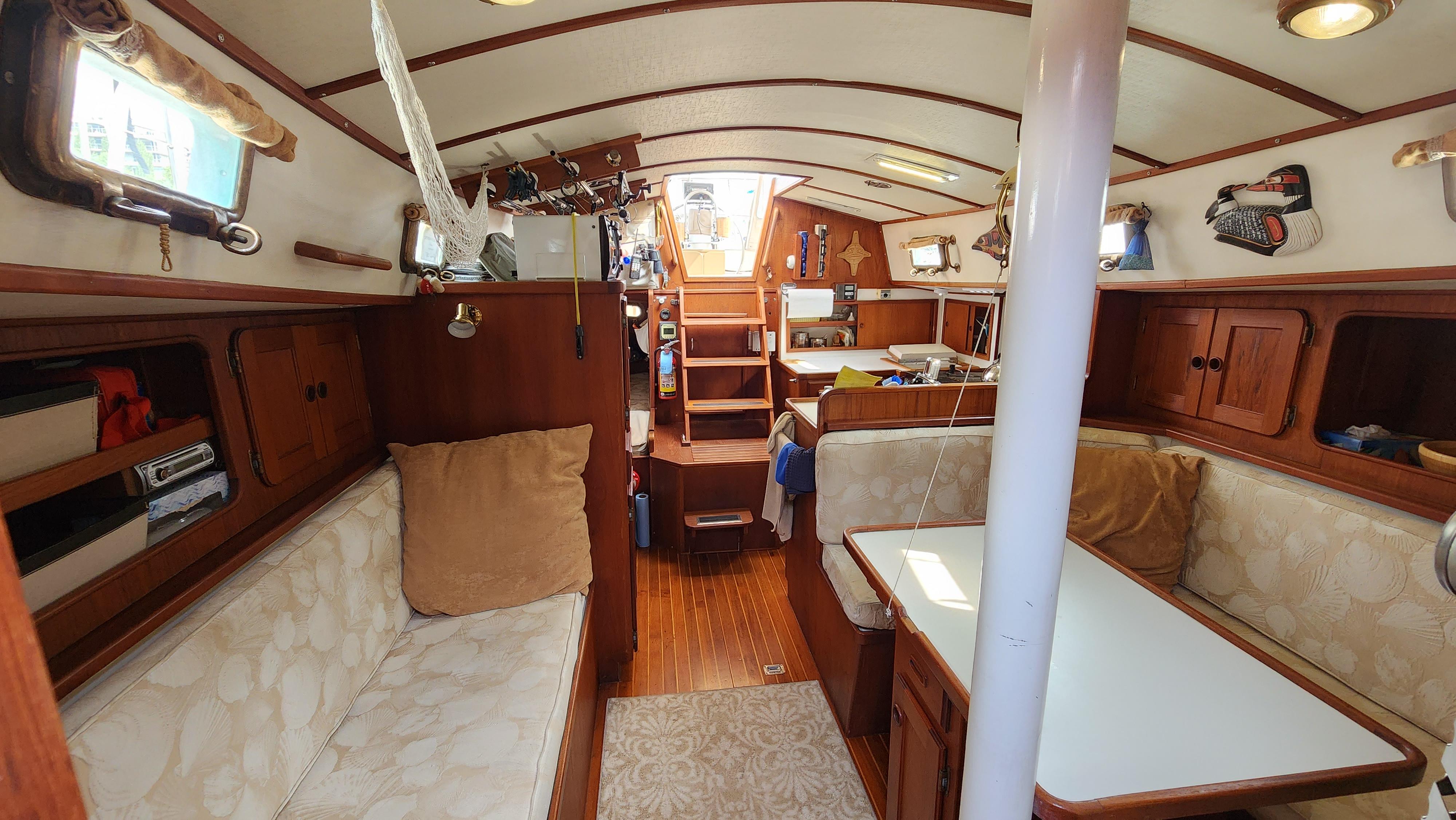

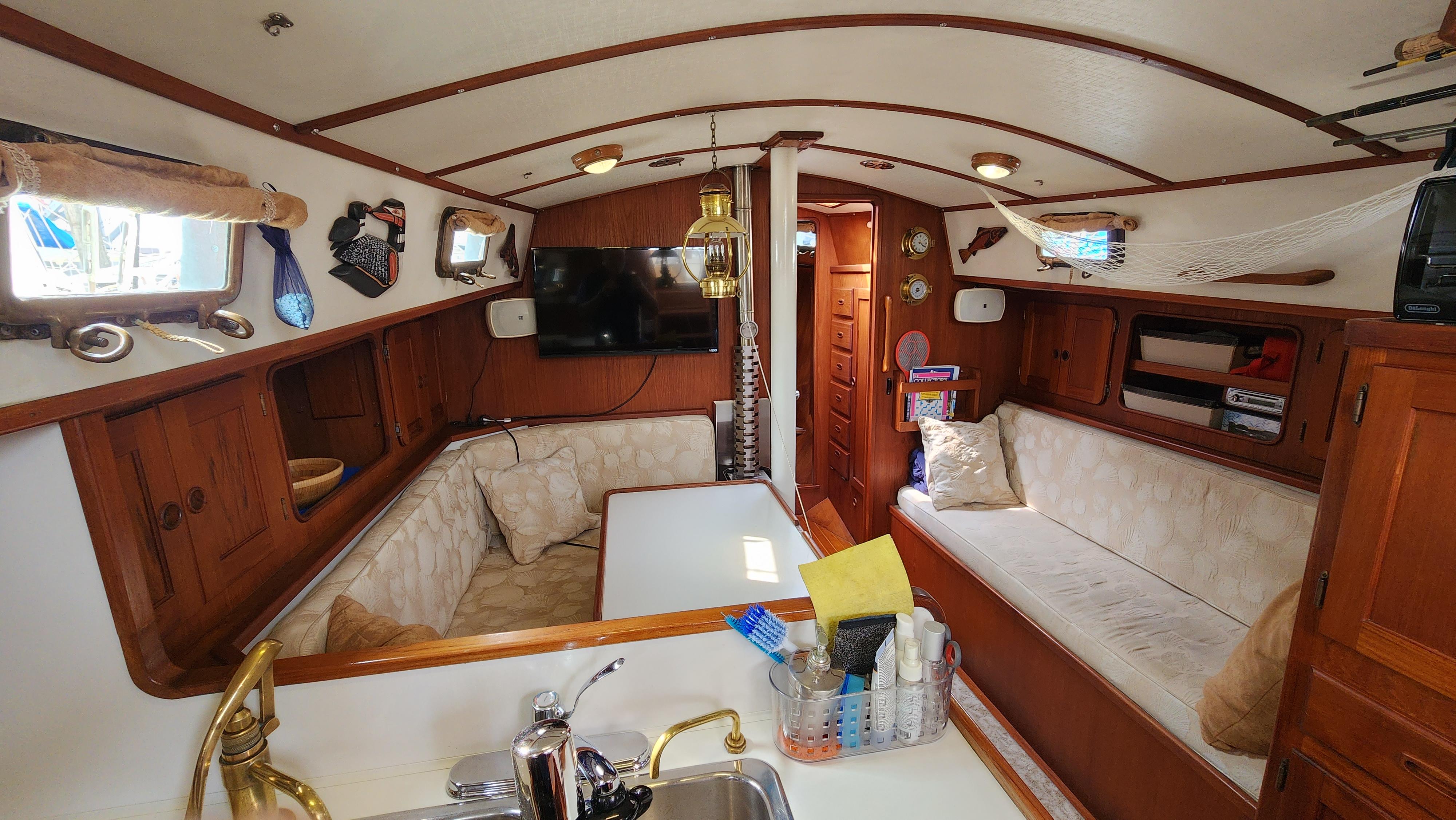

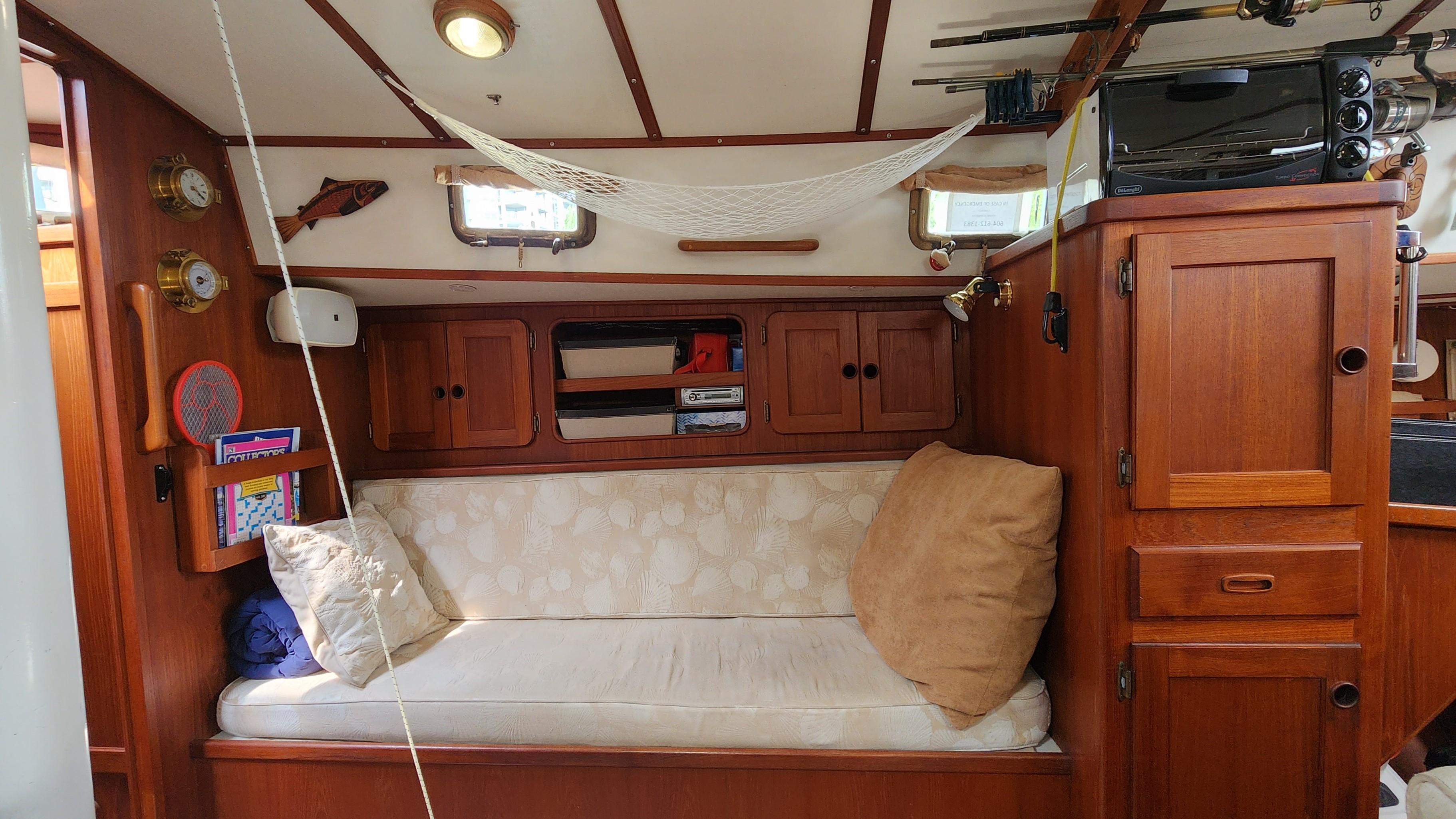

Salon

• Nice and open main salon with U shaped dinette to port ahead of galley
• Overhead has white panels with teak trim and cabin sides to make salon brighter
• Main bulkhead is teak
• Vizio TV on bulkhead
• Starboard settee
• Storage outboard of port settee backrest
• Cabinets and open storage above and out board of port settee
• Salon table has white surface for more brightness
• Drawer and cabinet in table leg
• Large leaf to make full width dining table
• 2 opening ports port and starboard
• 110v GFI outlet and 12V oulet by main bulkhead
• Dickinson Newport diesel heater is forward on port U settee with fire proof backing on bulkhead

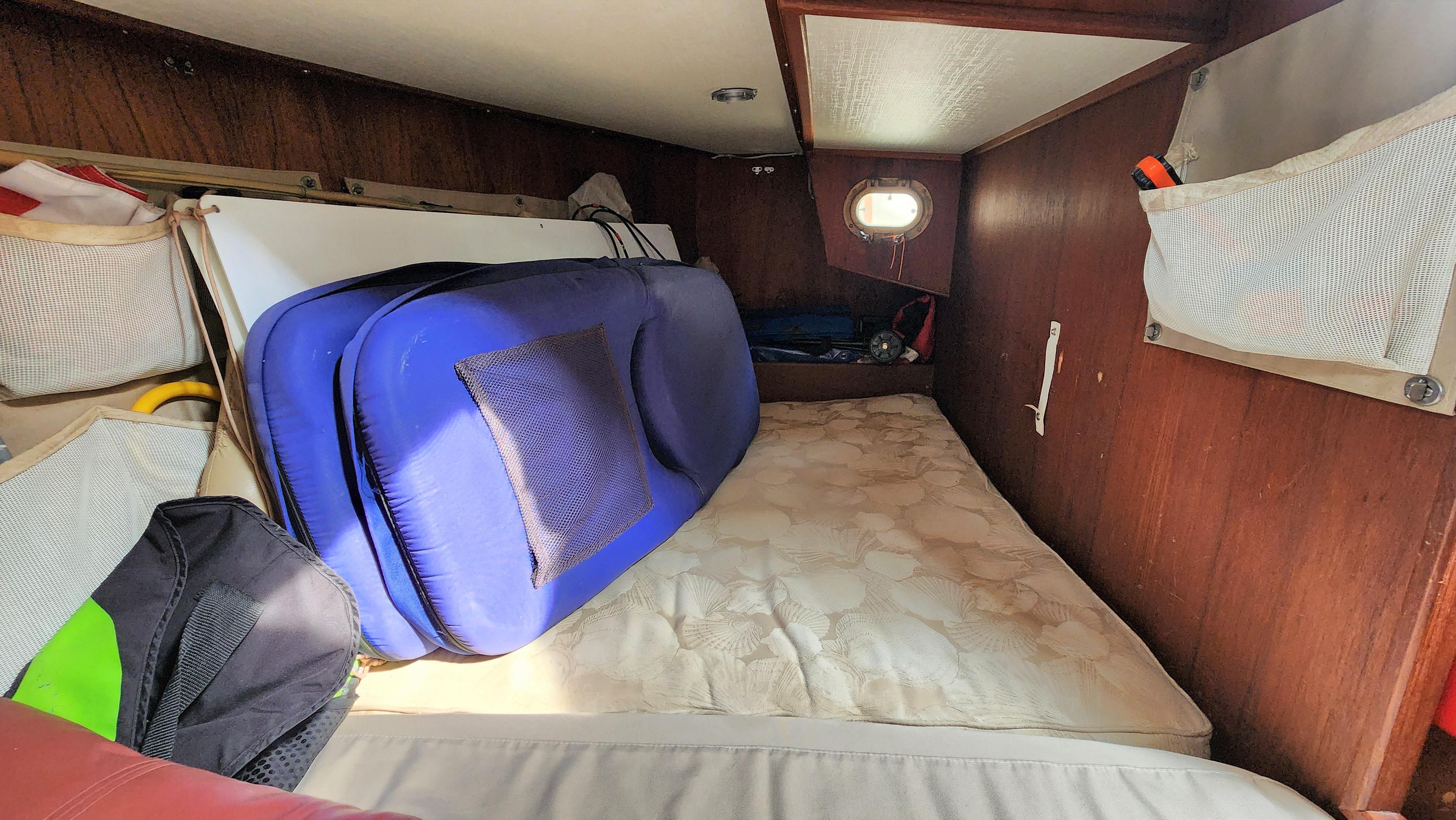

Aft Port Quarter

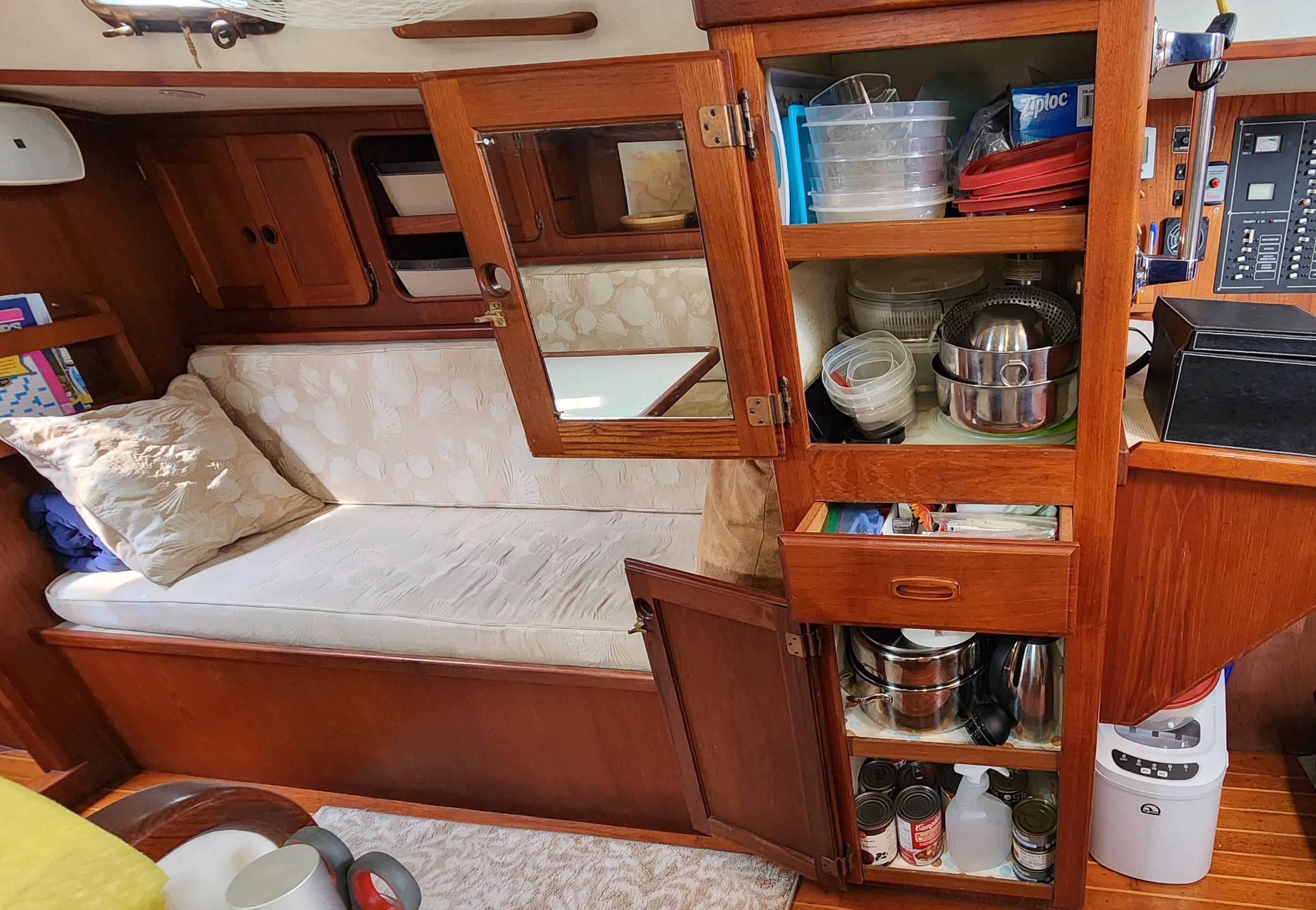

• Large quarter berth that can fit 2
• Under berth are batteries and aft is more storage
• Built in storage with drawer and 2 lockers forward of nav station on starboard side
• Under nav station is more storage

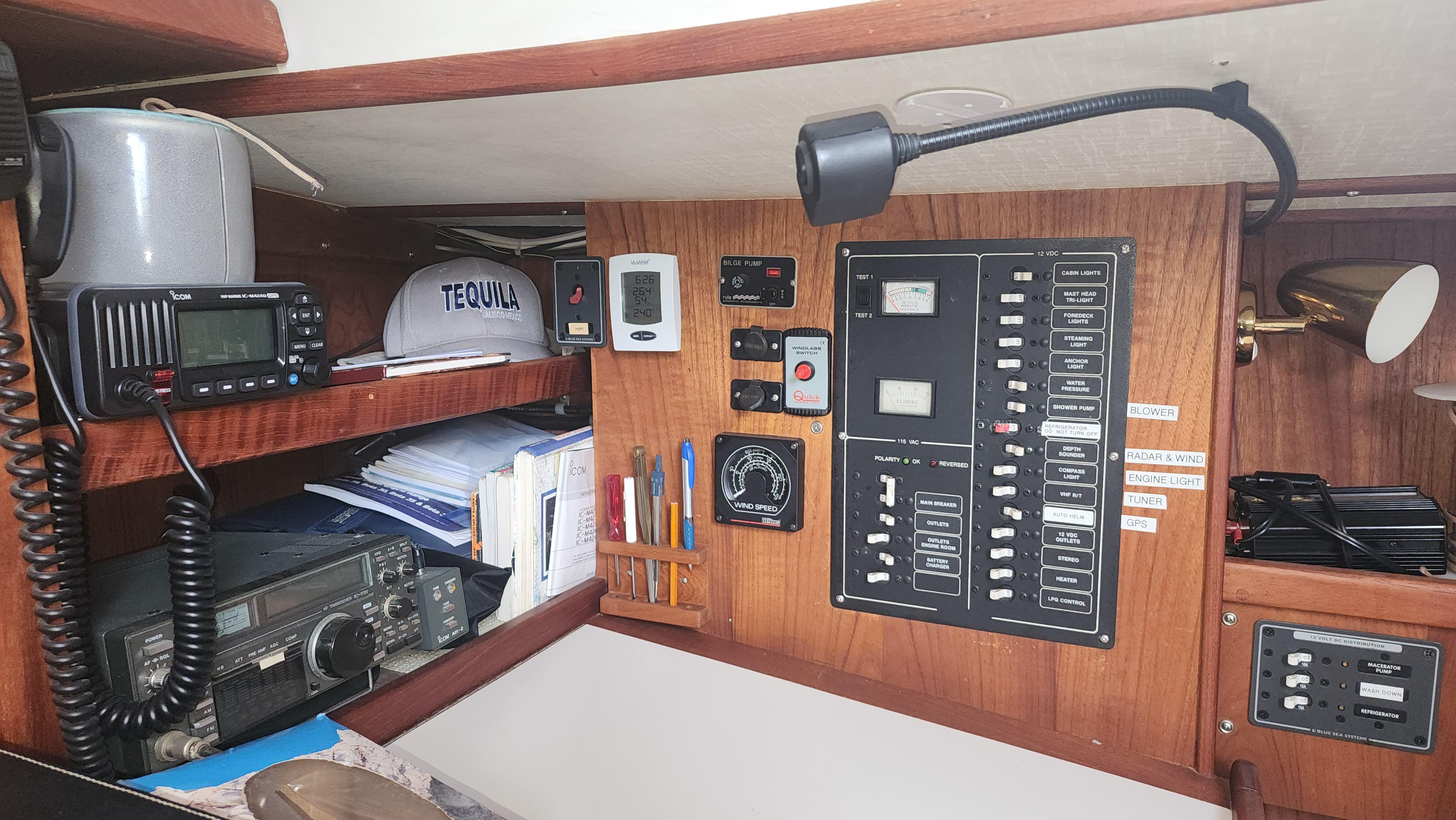

Nav station

• Just ahead of quarter berth on starboard side
• 110v and 12v panel below counter
• 4 teak drawers under counter
• Hanging locker forward of drawers
• Clock and Barometer
• VHF and command mike
• 2 other opening cupboards

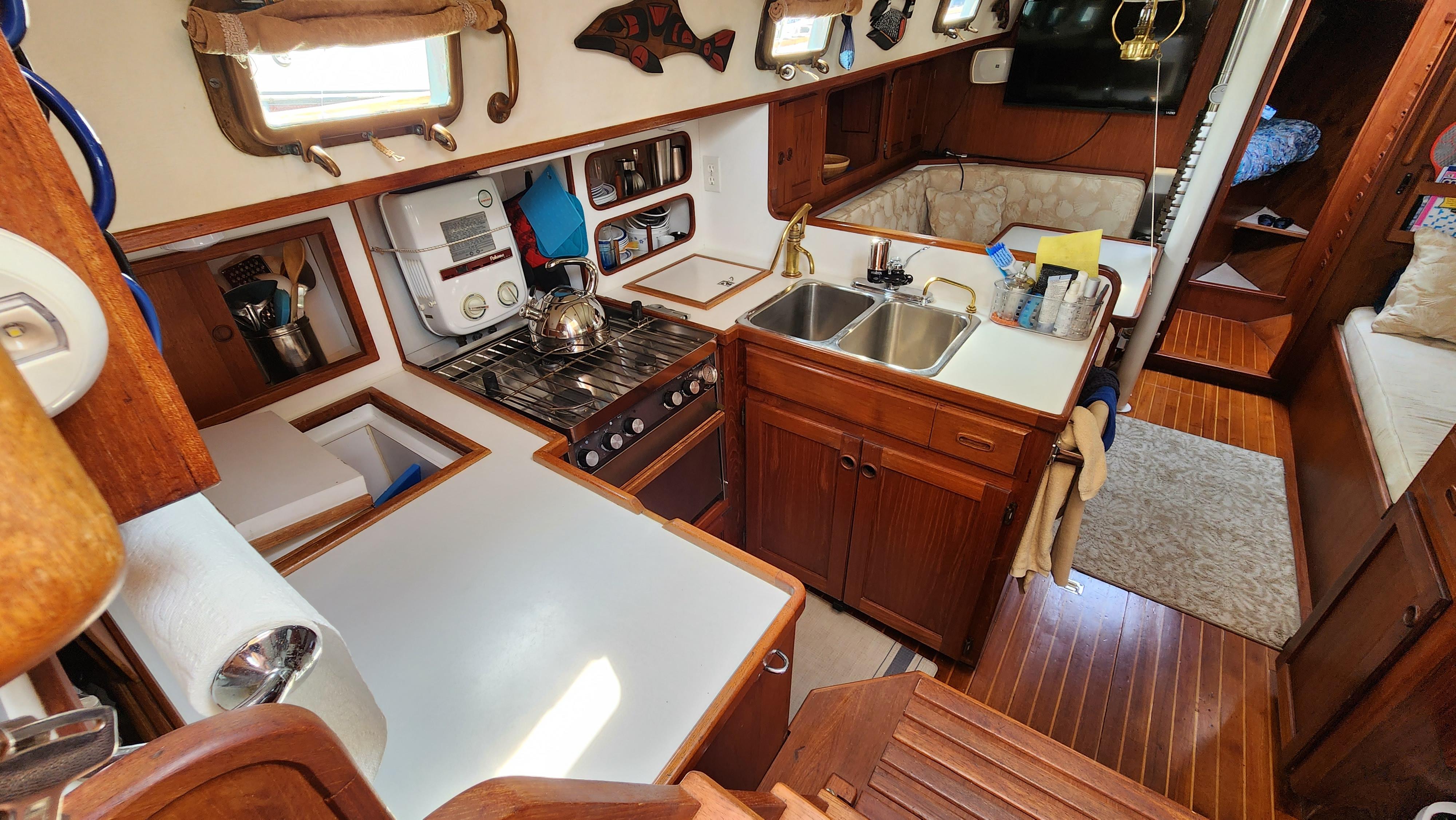

Galley

• Galley is in the port aft corner of the salon with nice counter space
• Outboard storage with sliding teak doors

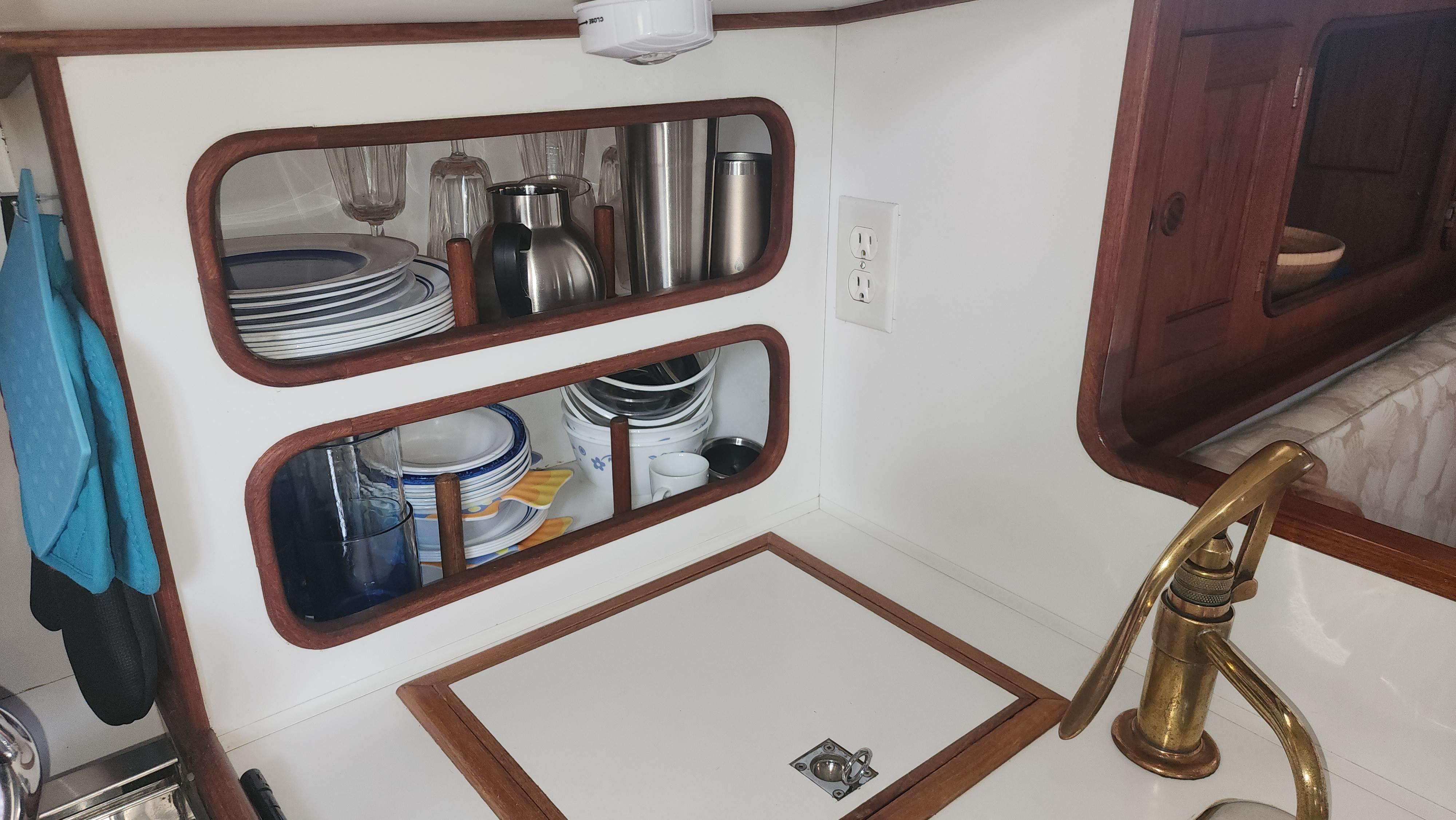

• Forward outboard end of galley has dish storage area a
• Paloma on demand propane hot water heater outboard of stove
• LED lights
• Ice box is in aft outboard corner with Nova Kool controller on bulkhead
• Electro Systems propane solenoid controller on bulkhead

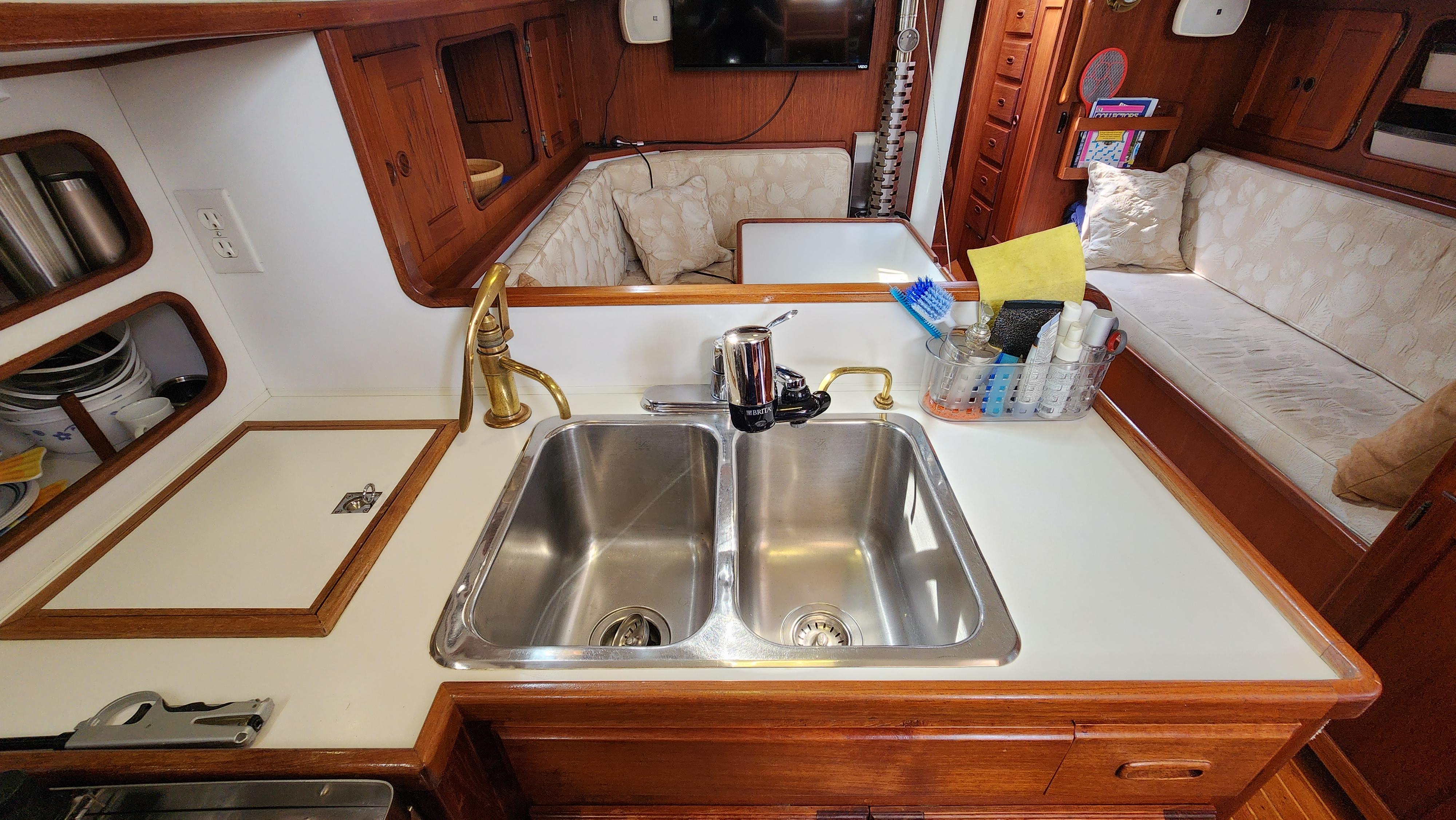

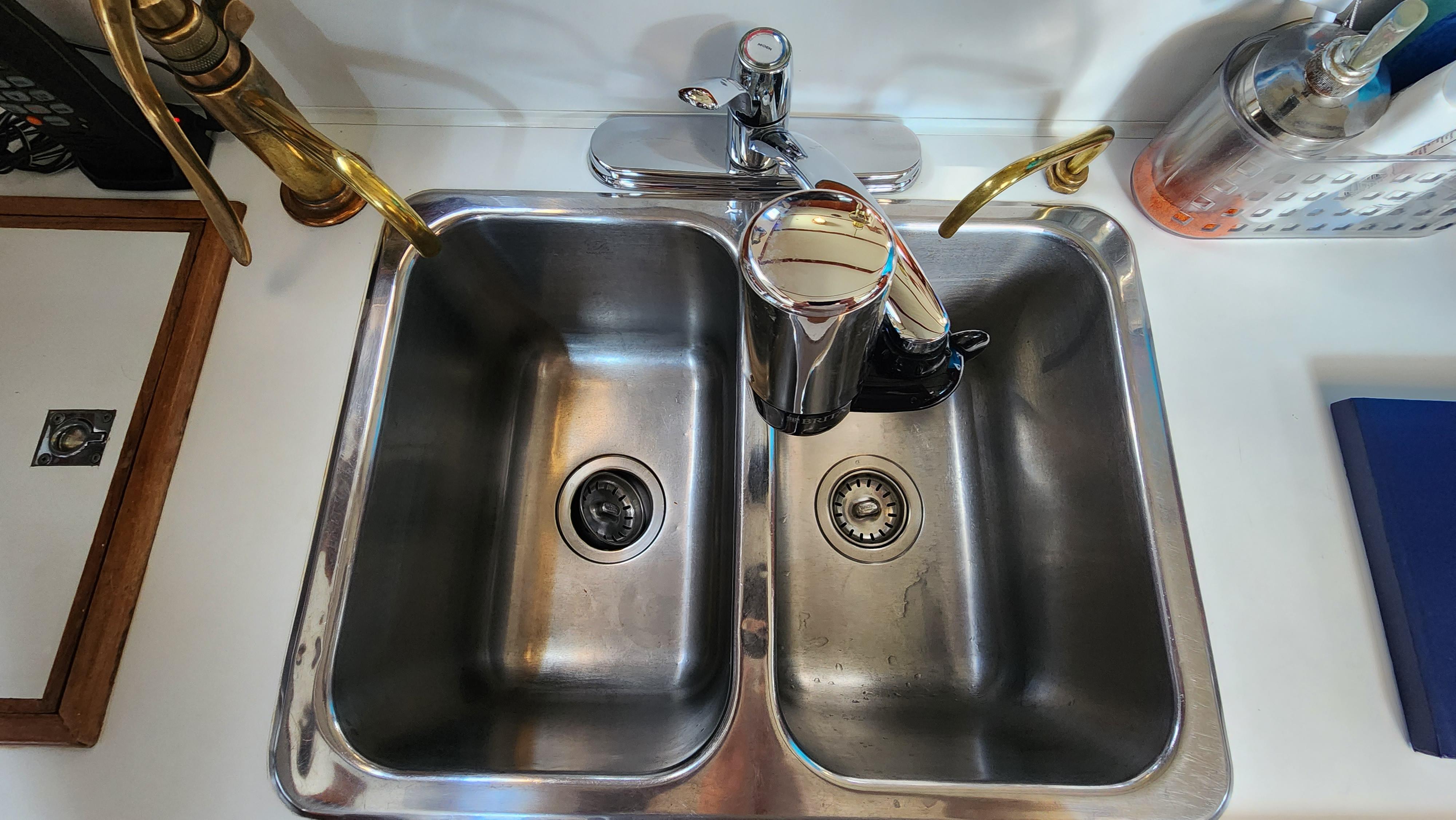

• 2 deep stainless steel sinks facing forward
• Foot pump for salt water and bronze faucet
• Hand pump for fresh water and bronze faucet

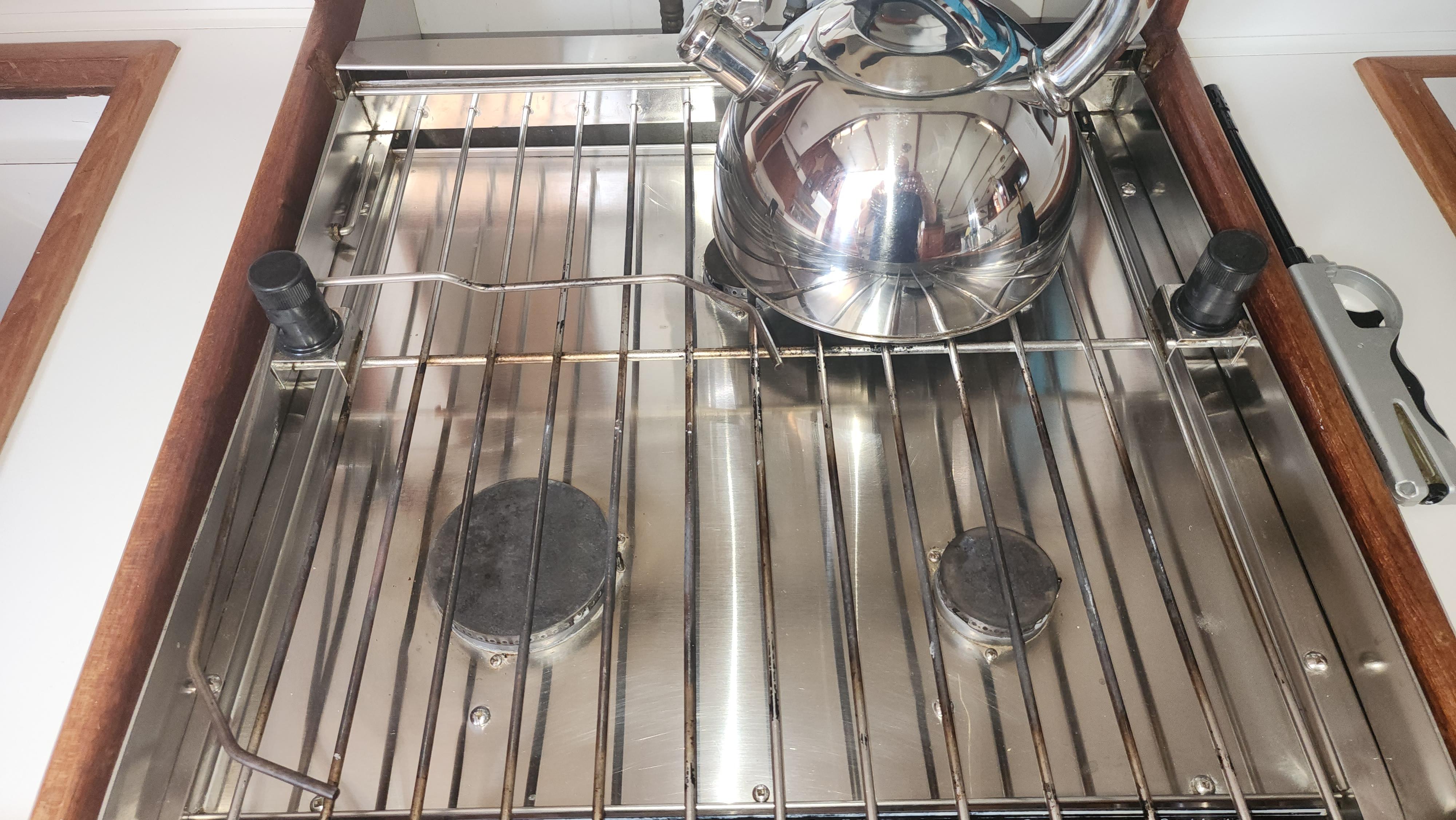

• Stainless steel gimballed Force 10 propane 3 burner stove and oven with broiler option
• Opening port outboard
• Top loading fridge with freezer box
• Ice box have thick insulation

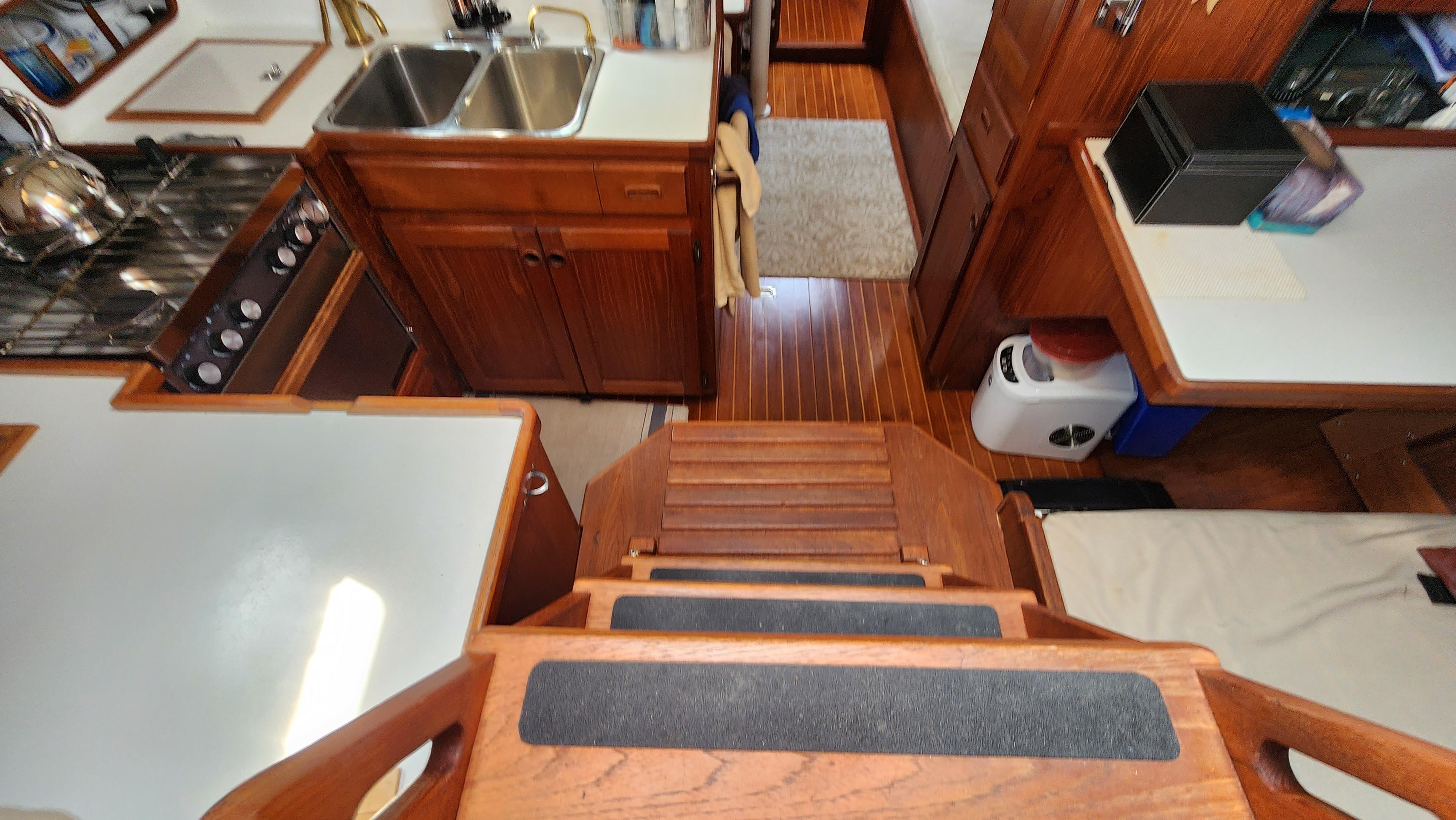

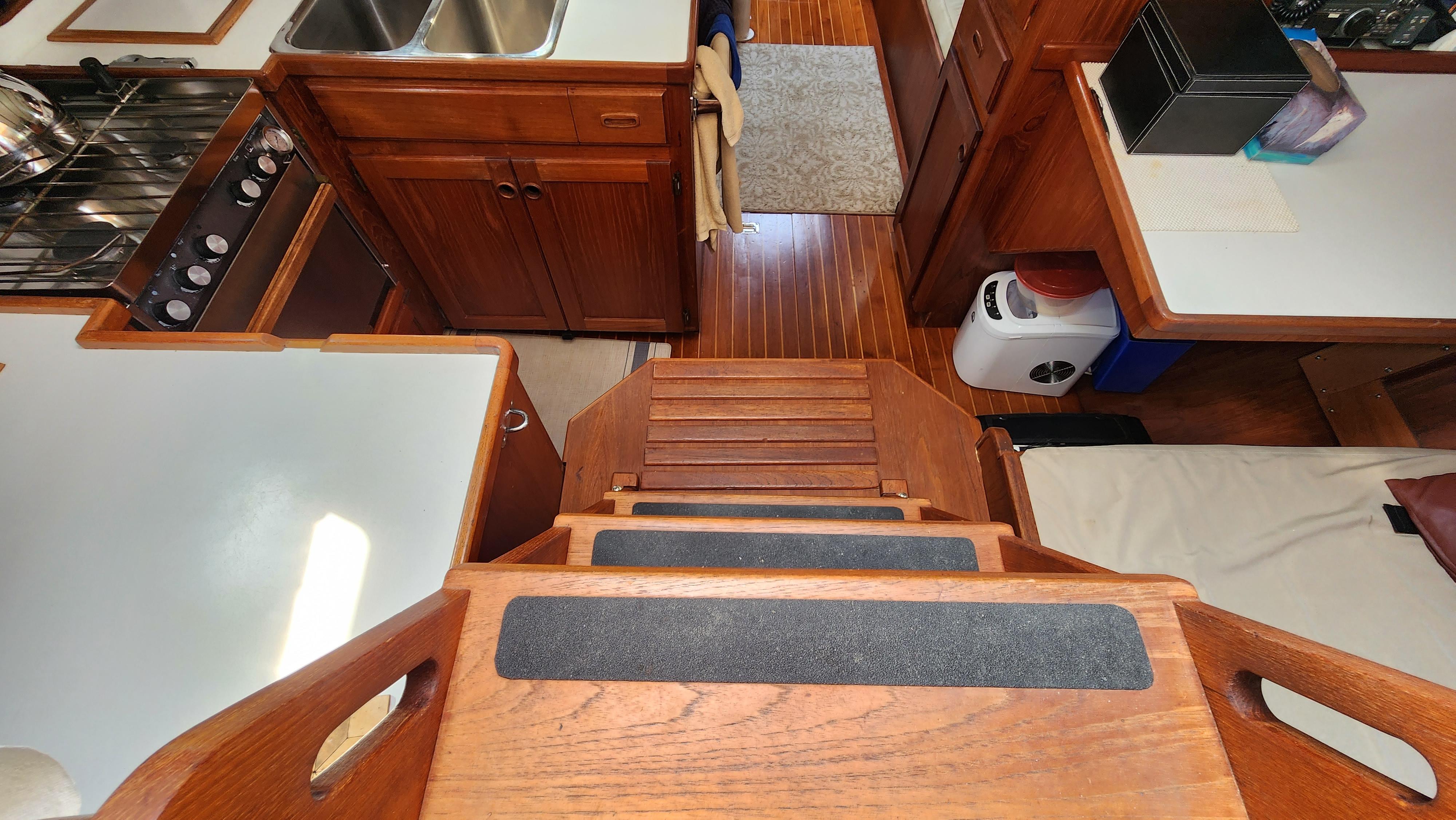

Entry way to salon from cockpit

• Removable companionway ladder that lifts off for access to engine area
• Insulated engine cover

MECHANICAL & ENGINE SPACE

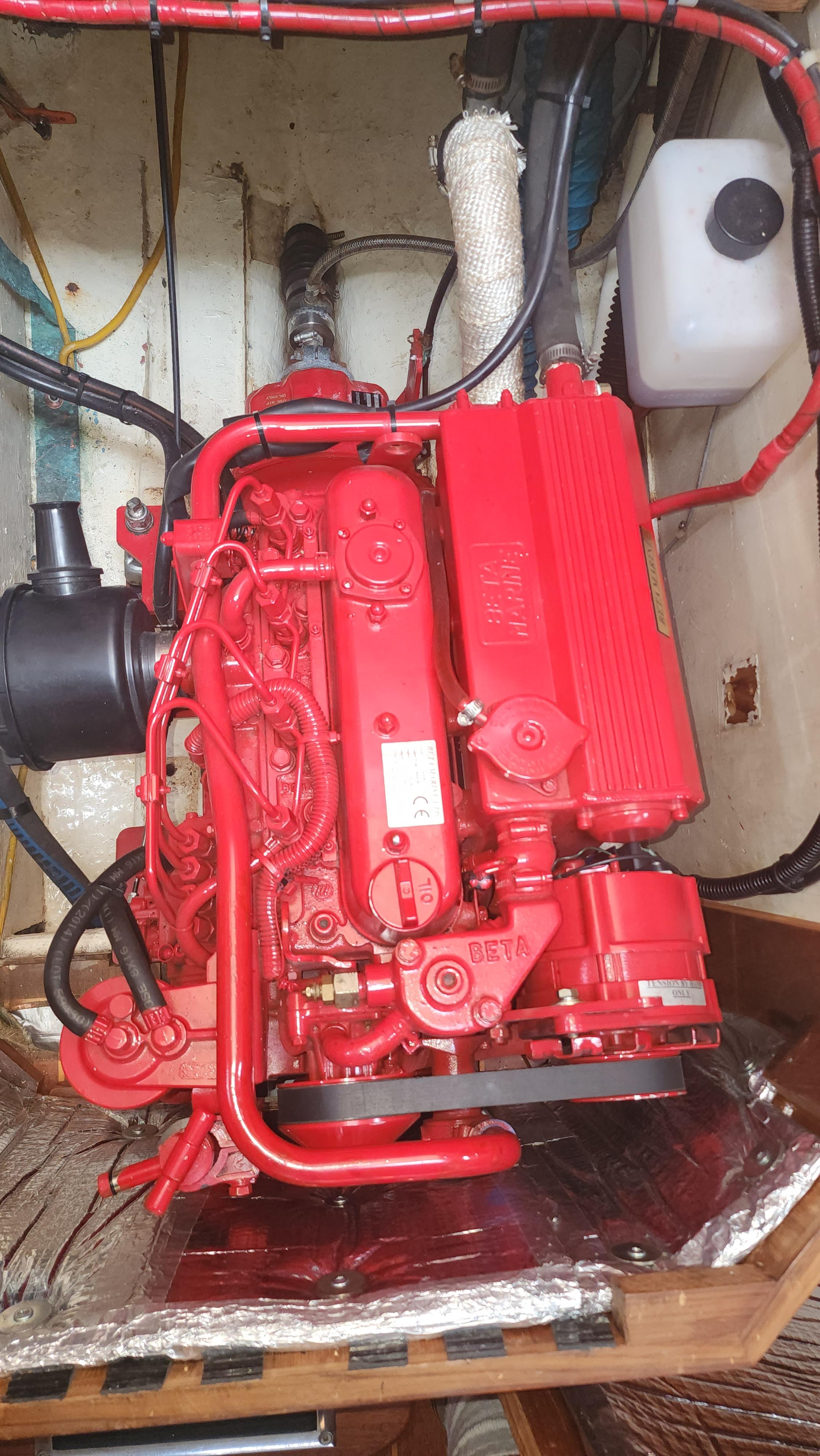

• Engine: Like new Beta 38 38HP FWC (2016) with 700+- hrs
• Twin Disc TM60P marine gear with 2.00:1 ratio
• Engine is winterized every year with glycol/water blend after flushing with Salt Away in salt water size of cooling system
• Panel with voltage, temperature
• 1” Stainless steel shaft
• PSS shaft seal
• 110 Amp alternator for house bank

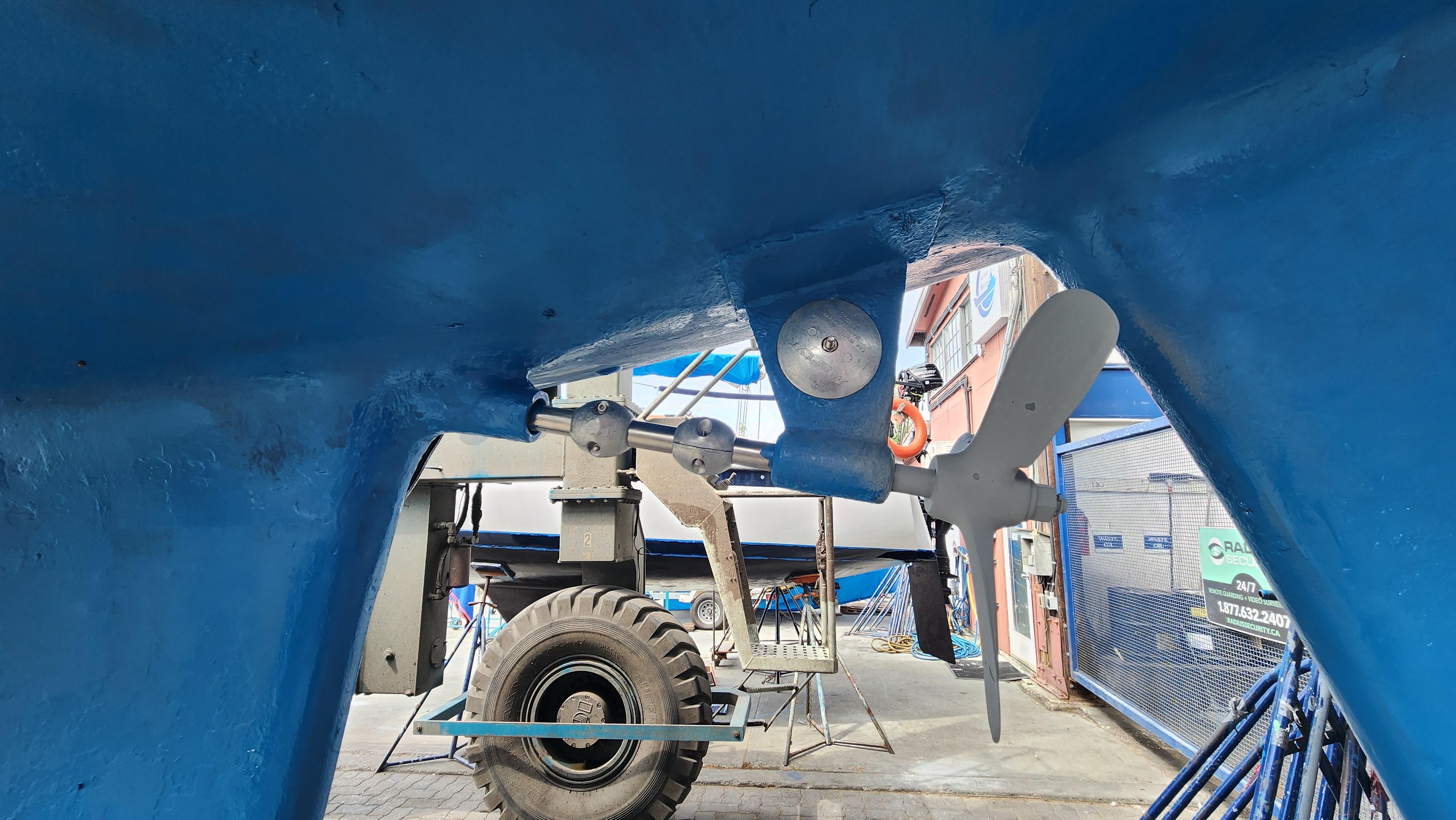

• 16 x 9RH 3 blade Campbell bronze propeller
• Remote thru hull control for opening and closing engine intake
• Morse shifter
• Remote oil filter for easier oil changes
• Fuel tank has sight gauge built in with pet cocks behind engine
• 12v engine room light
• Engine room is bright white gelcoat and is extremely clean
• Racor/Parker water separator and filter


ELECTRICAL + PLUMBING

• House bank 4 6v AGM deep cycle 2019
• 1 12v starting battery 2019
• 12v/ 110v electrical panel
• Extra Blue Seas 12v electrical panel
• Perko battery selector switch for house bank
• Perko battery selector switch for engine battery
• Xantrex True Charge 40+ charger
• Samlex 800 watt inverter
• 12V custom refrigeration
• LED lighting throughout boat
• Auto and manual override for bilge pump
• 2 50’ marinco power cables
• Link 10 battery monitor
• MeTer MT5 solar controller
• MPPT Solar charge controller
• 2 100 wattSolar panel with 100’ of cable
• 1 ½” Manual Whale bilge pump in head

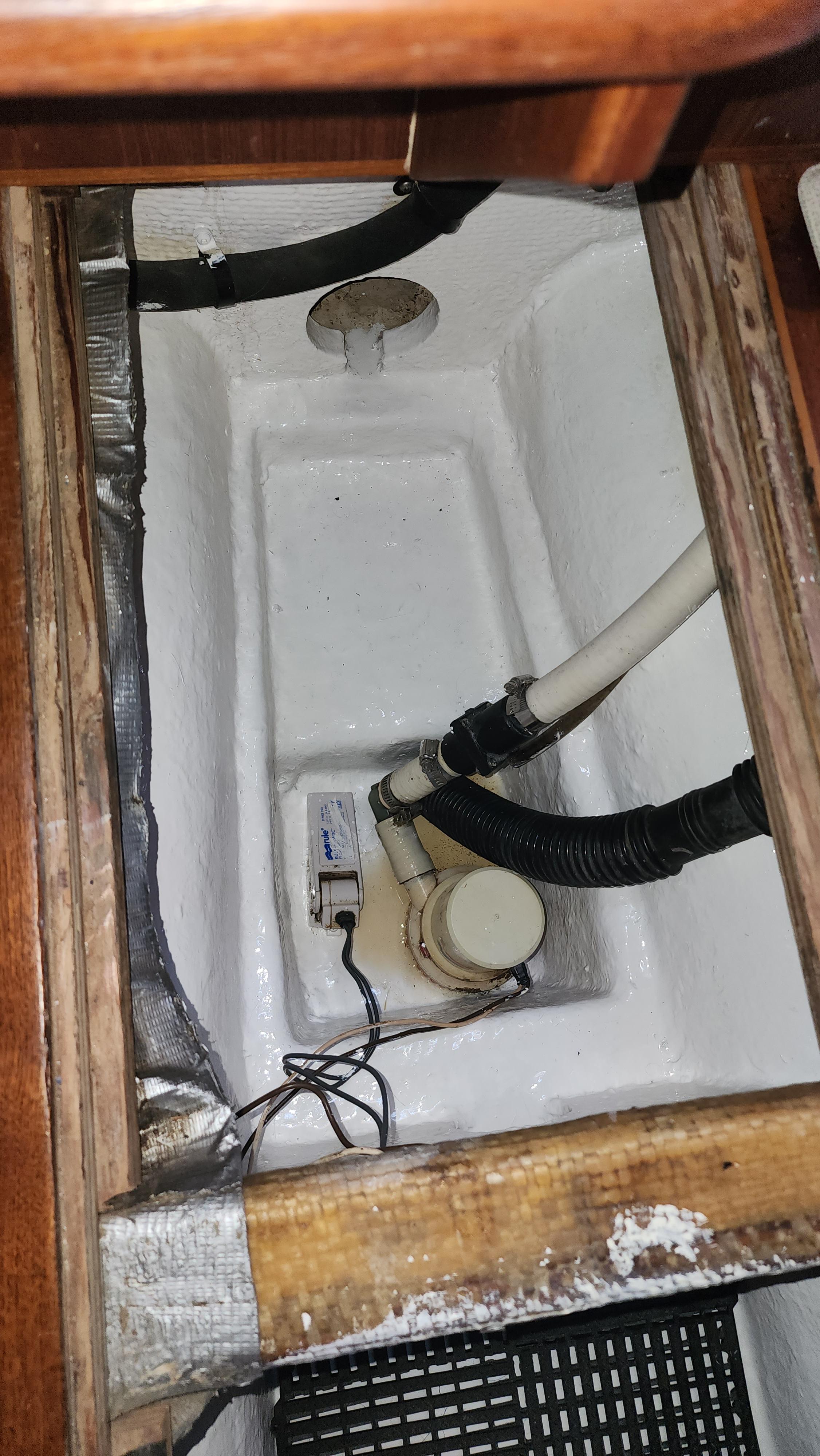

• Rule 12V bilge pump in engine room
• Rule 12V bilge pump in bilge
• Rule 360 12v Sump bilge pump
• Sealand 1 ½” macerator pump
• Hot and cold water in head and at galley
• Fresh water hand pump at galley
• Salt water foot pump at galley
• Foot pump in head for salt water
• 2 60 gallon stainless steel water tanks
• 35 Gallon plastic holding tank

INSTRUMENTS

• Lowrance Hook 7 GPS Chart plotter
• Stowe depth sounder
• Depth sounder module for Chart plotter
• JRC 1500 radar
• 12 mile JRC radome
• 5” compass in cockpit
• ICOM IC-M422 VHF
• ICOM IC-735 SSB
• ICOM AH-2 Tuner
• Autohelm ST4000 wheel autopilot
• Windex


SAILS & CANVAS

• Main sail
• 135% Genoa in excellent condition by Quantum
• Staysail with hanks
• Stack Pak style Mainsail cover
• Quantum cruising spinnaker with sock

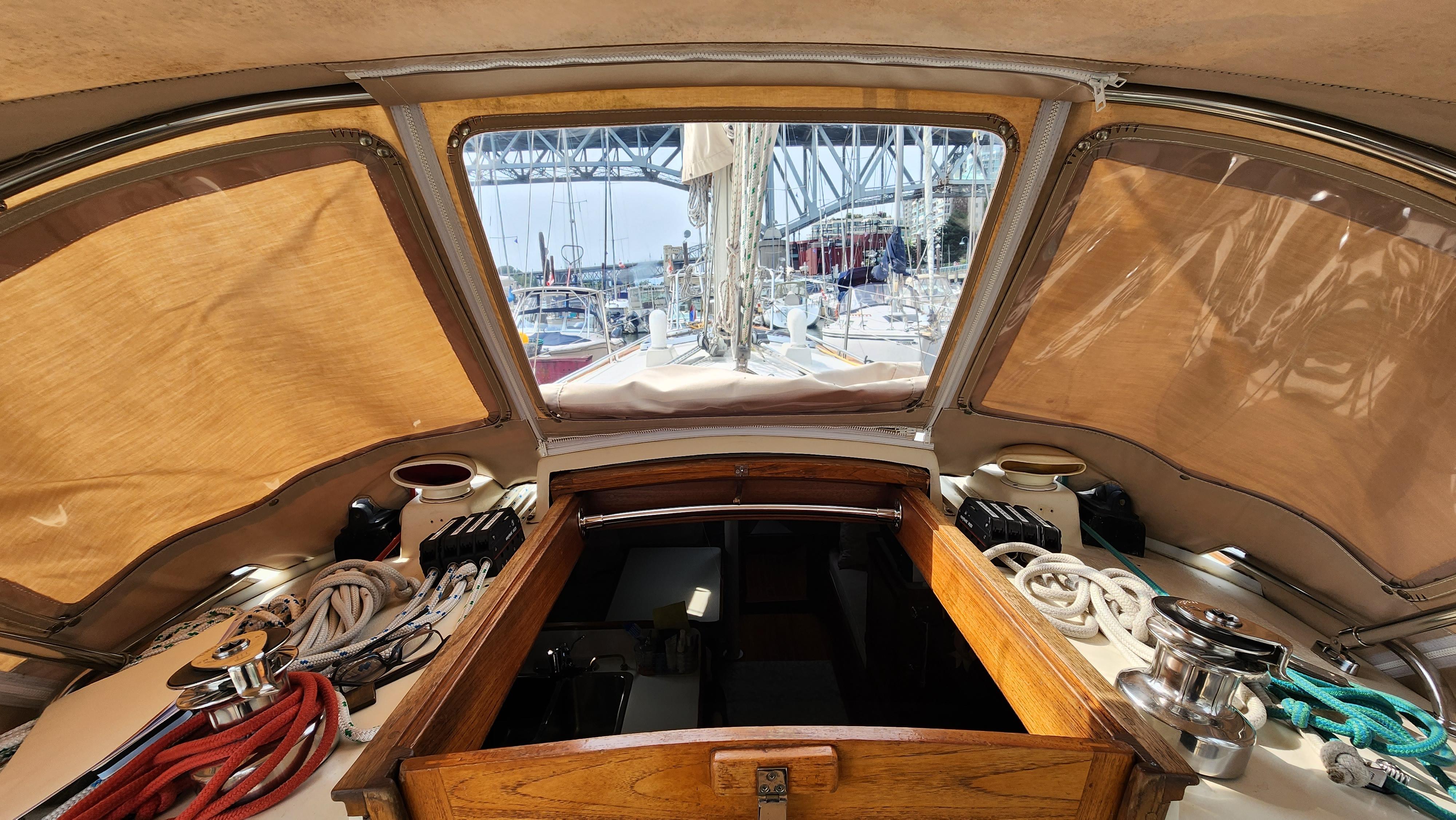

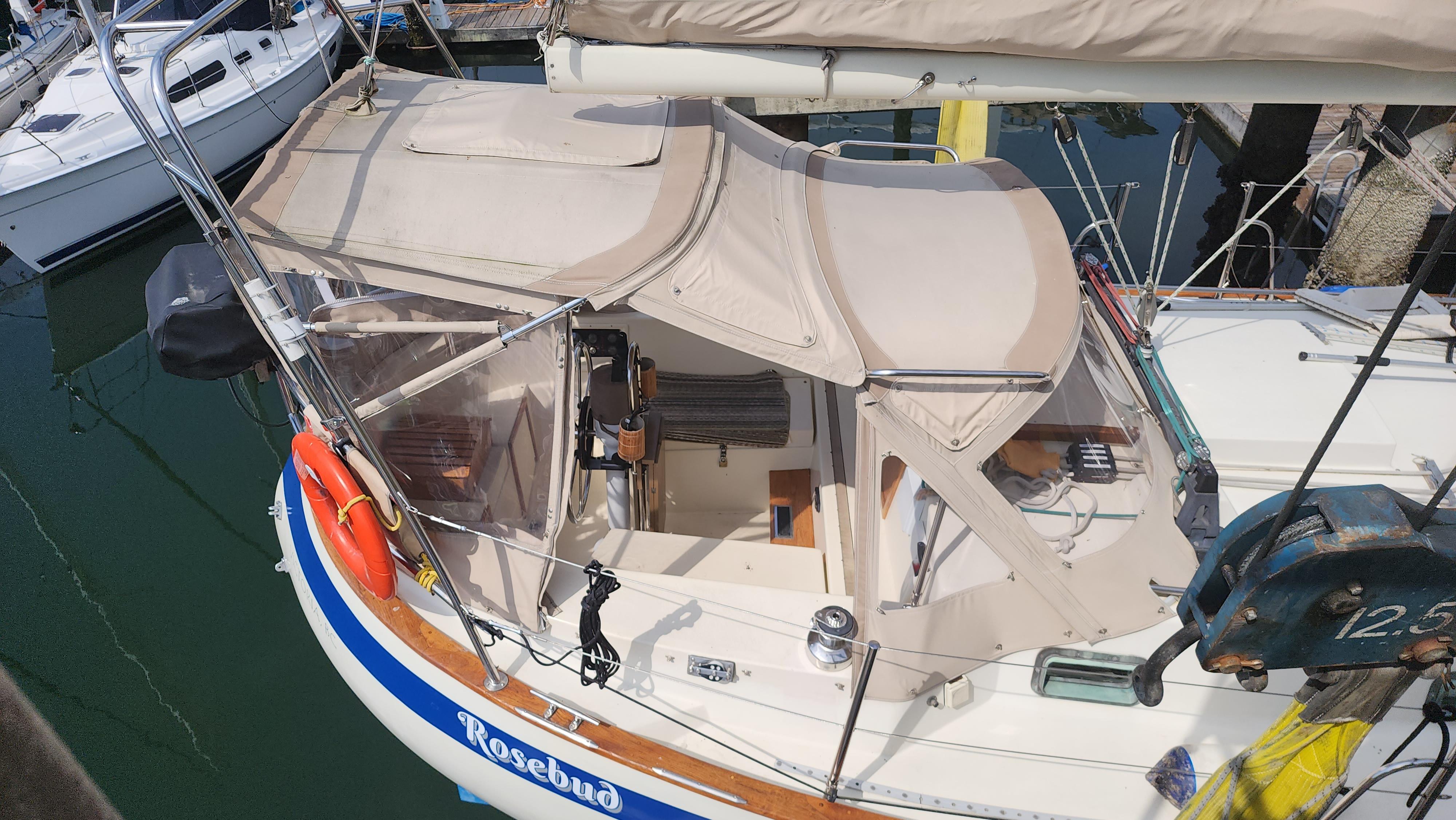

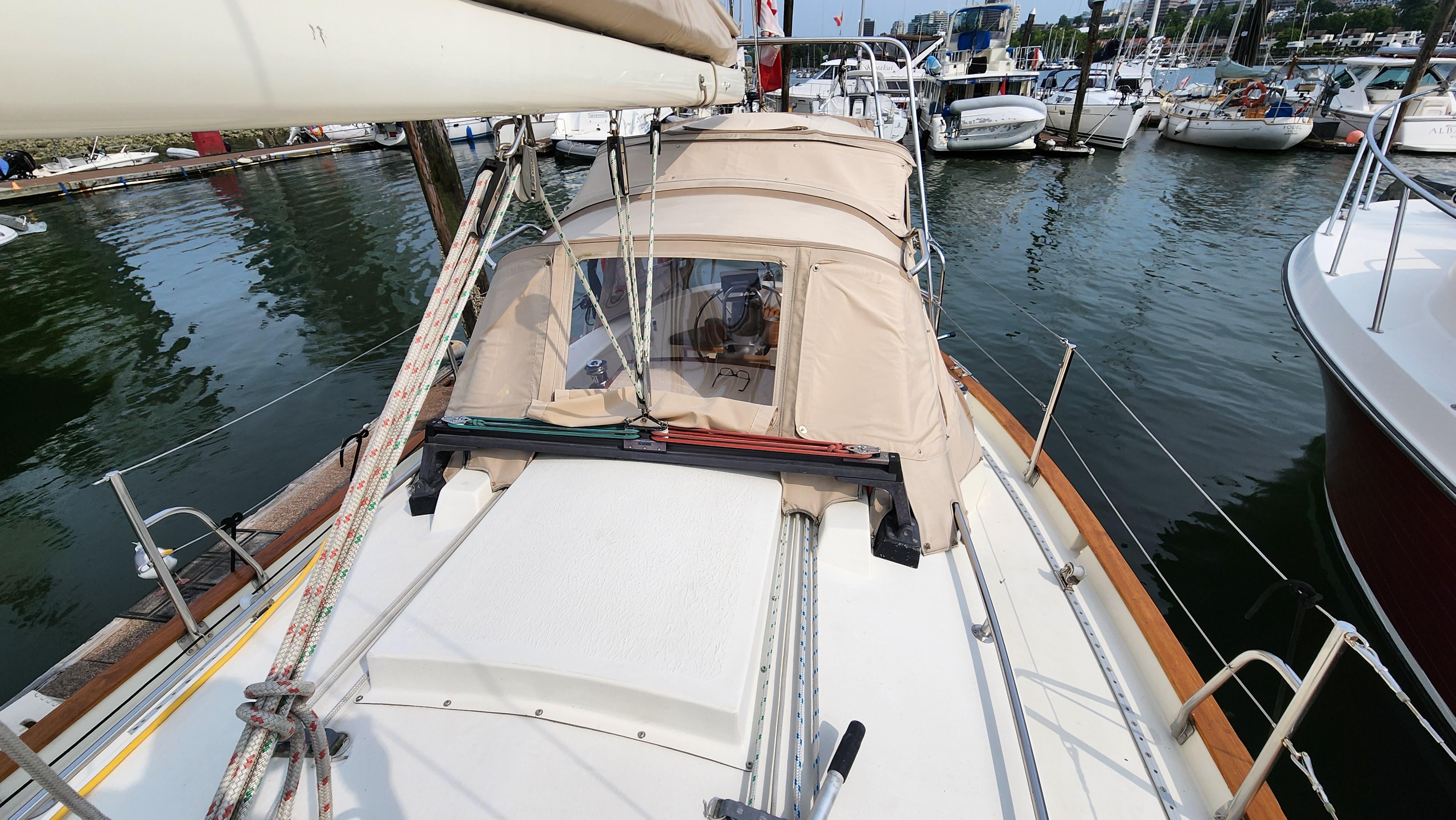

• Stainless steel framed dodger with side and aft handles

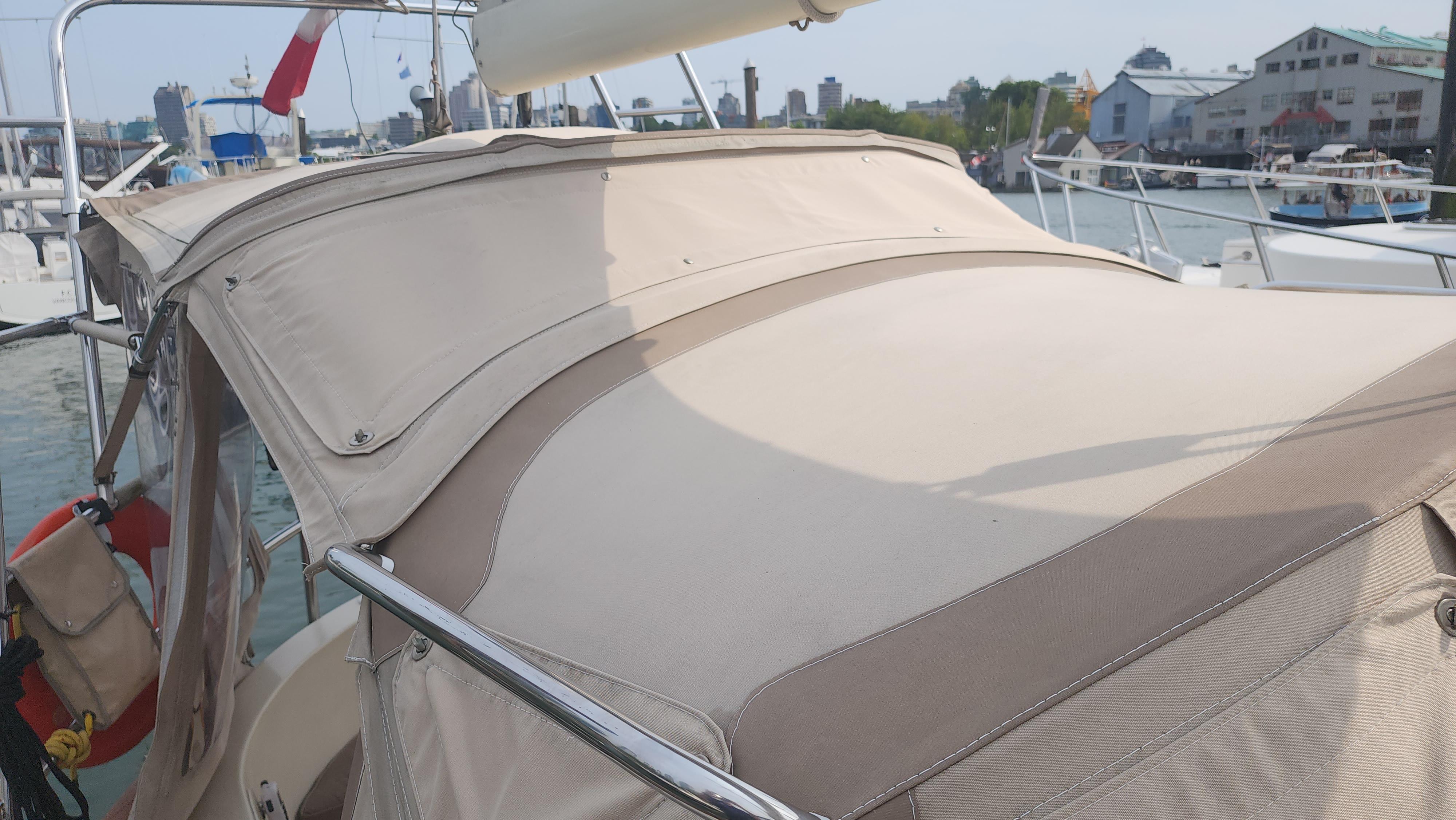

• Dodger with Marlon 60 gauge windows, Bimini, connector and full enclosure 2019
• Cover for windows in dodger
• Full winter cover

 RIGGING

• Pacific Spars aluminum double spreader masthead cutter rig
• Deck stepped with compression post below deck
• 1 X 19 standing rigging
• Mast steps
• Aluminum boom
• Block and tackle boom vang

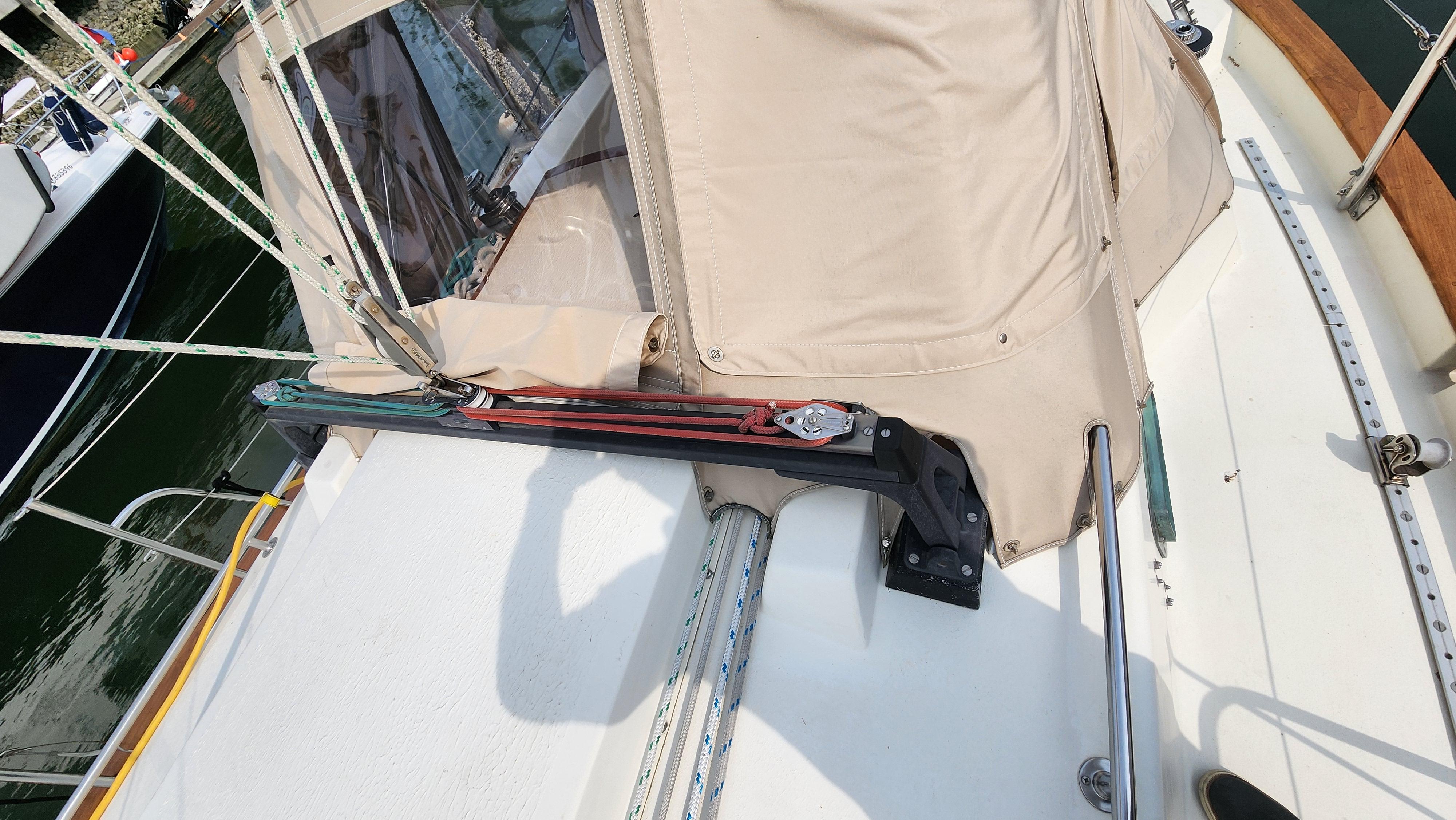

• Traveler on coach roof with mainsheet block and tackle
• Harken headsail furling system

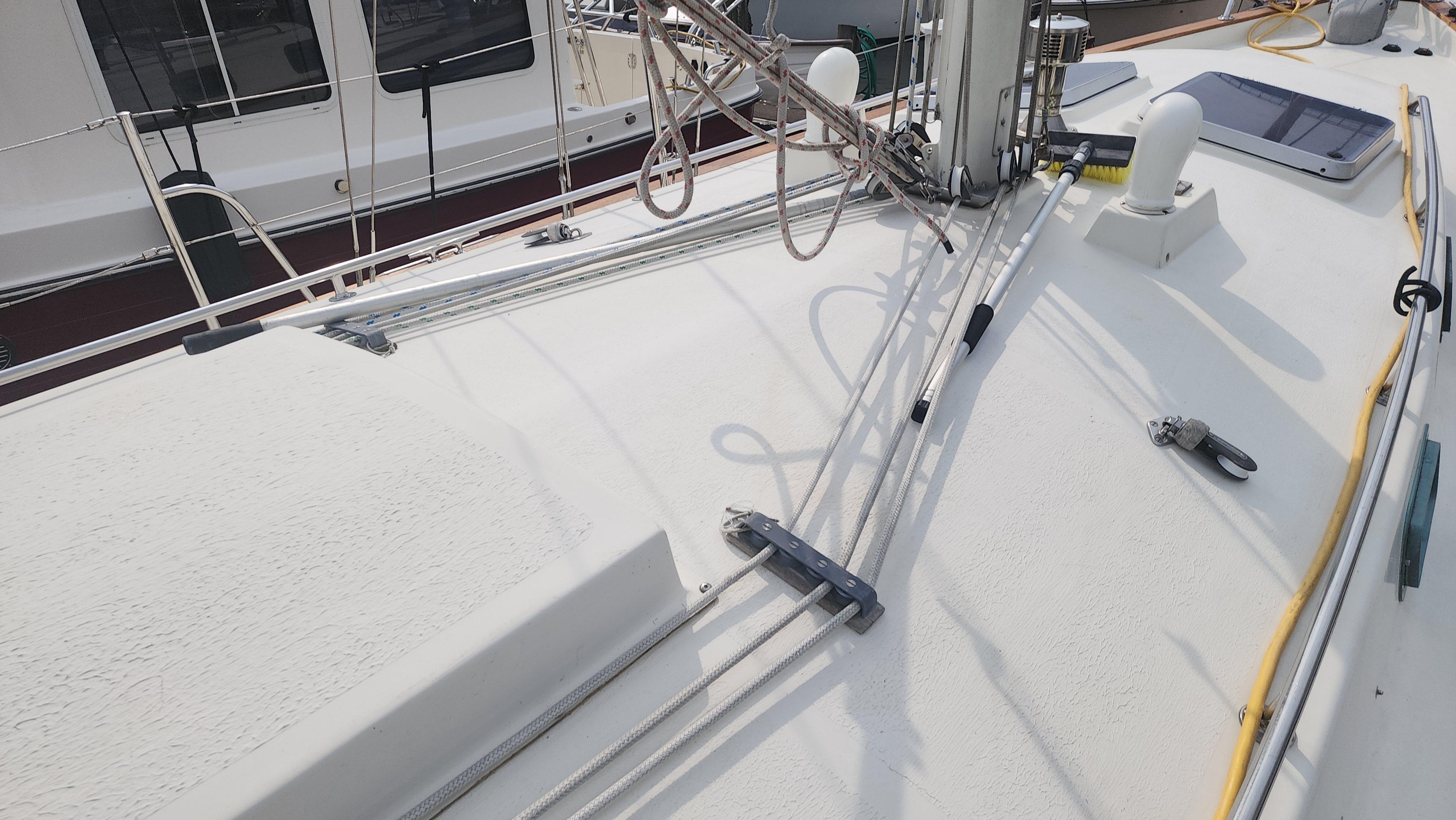

DECK EQUIPMENT

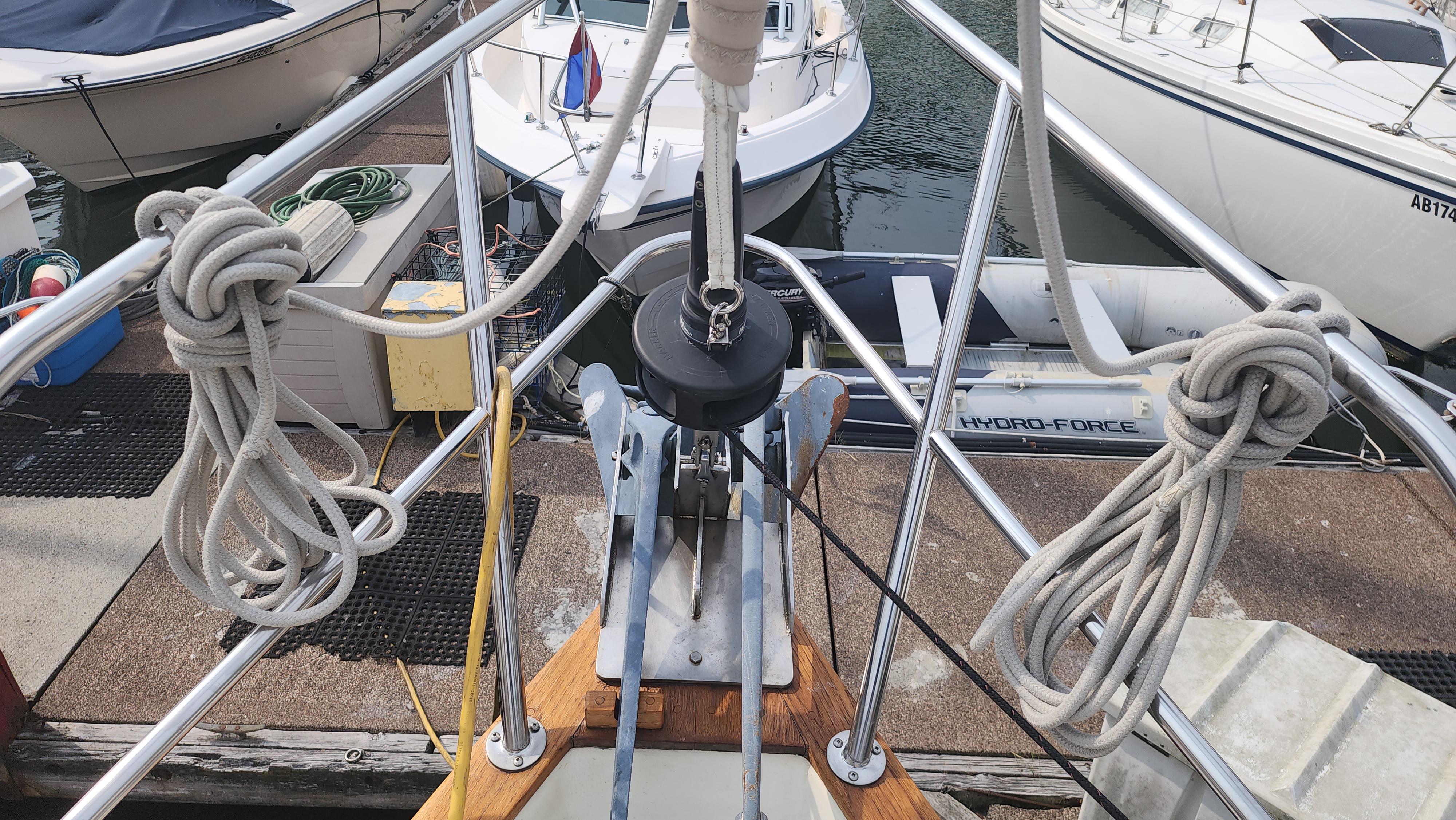

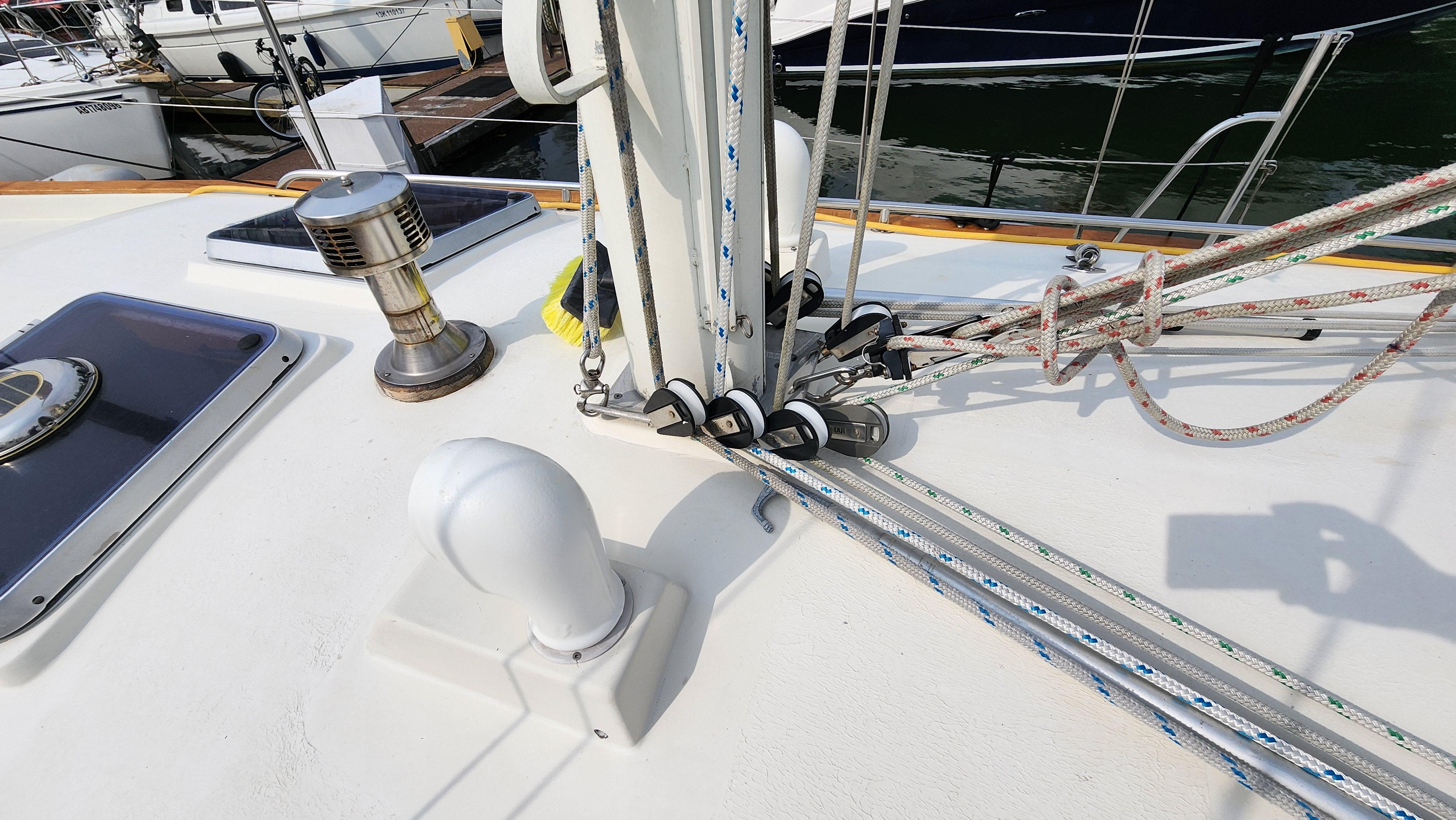

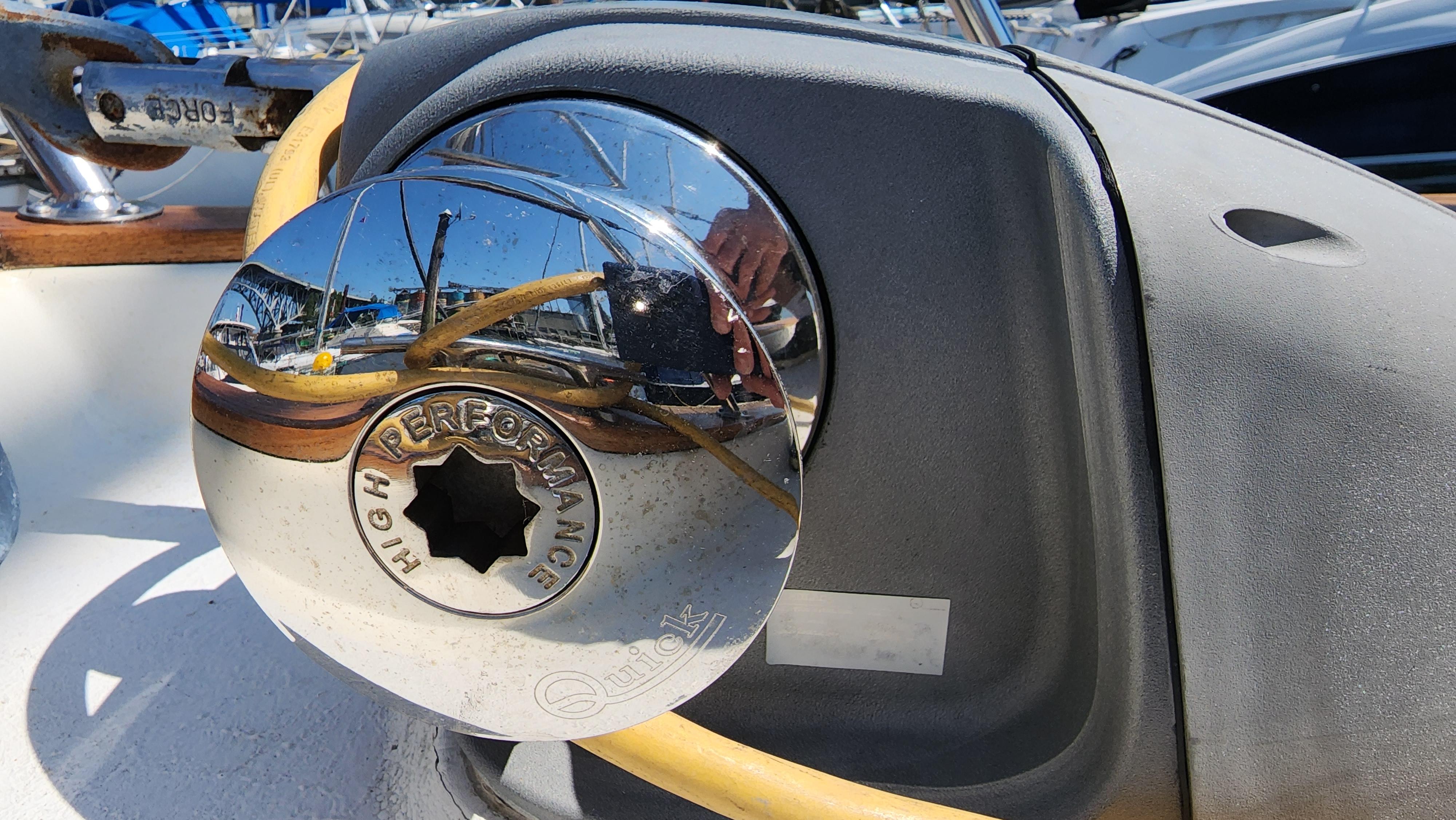

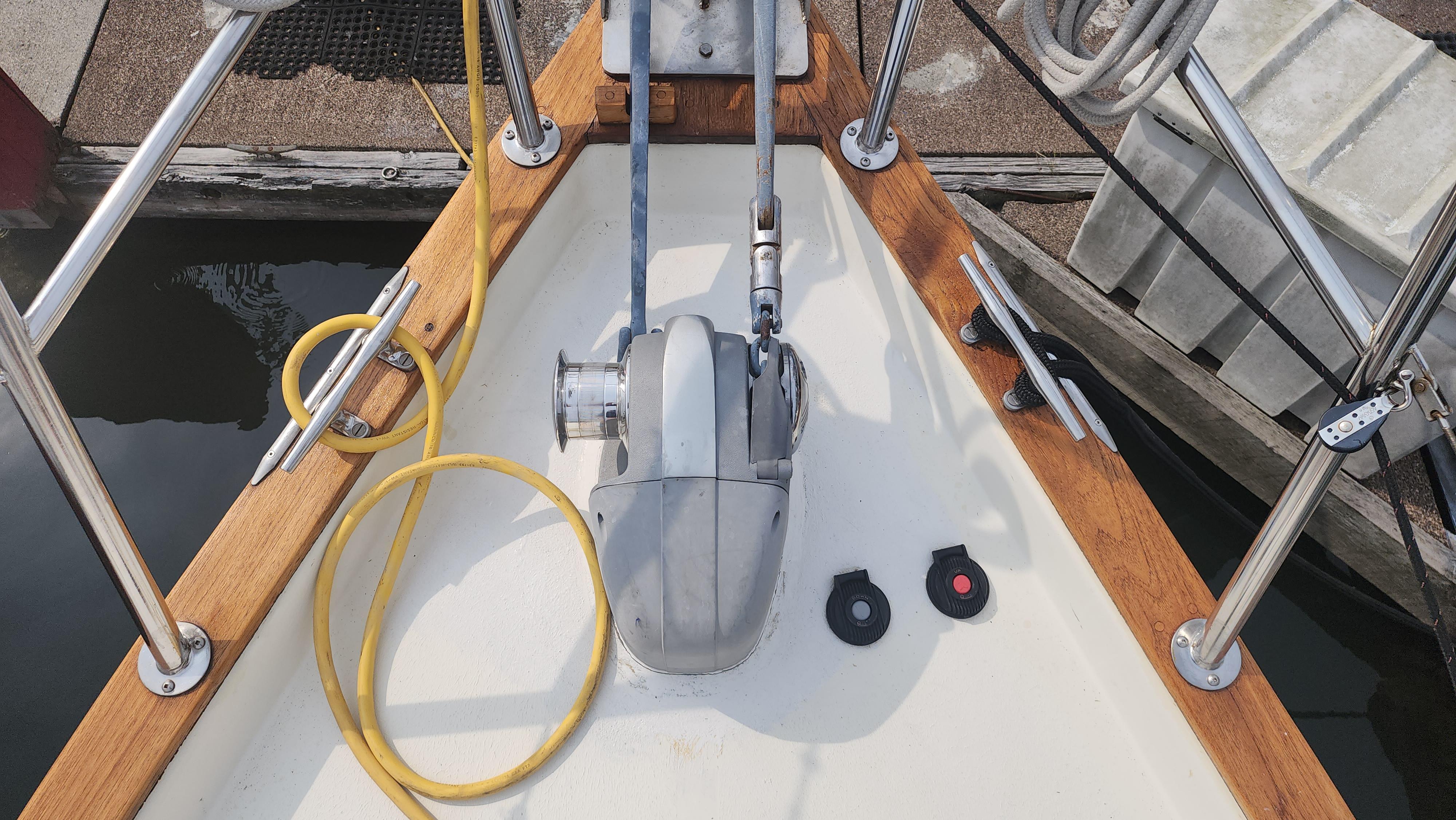

• Quick 12v electric windlass with up and down foot switches
• Primary Anchor: 50lb CQR anchor
• Rode: 150’ 5/16th chain with 300’ of rode
• 35lb CQR anchor
• Double bow roller
• Spare Fortress Danforth anchor
• 15’ chain for Fortress and 300’ of rode
• port and starboard life line gates
• Stainless steel pulpit and pushpit
• Stainless steel arch on stern

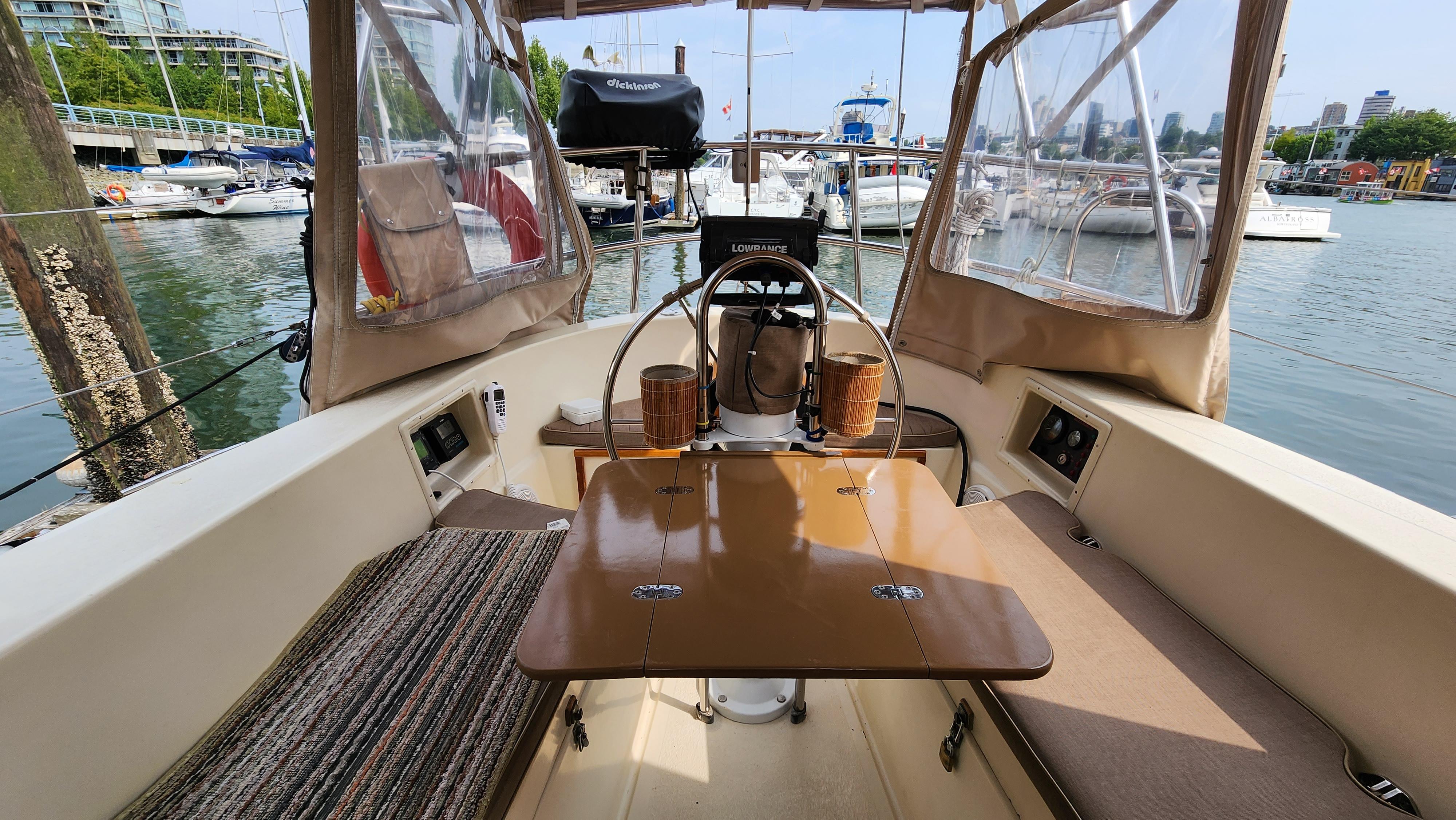

Cockpit

• Pedestal with steering wheel
• Chart plotter on pedestal

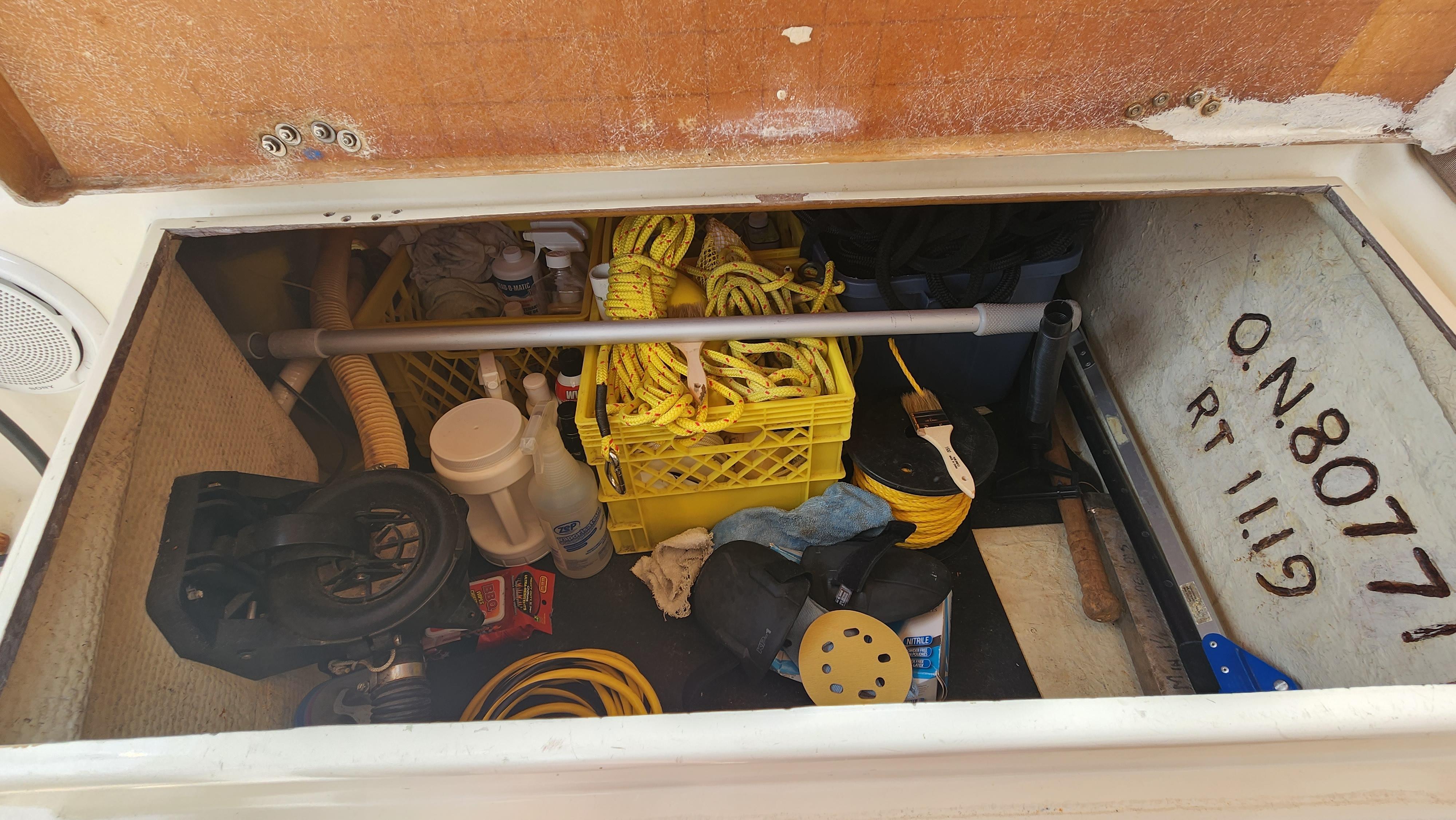

• Port side locker is deep
• Starboard seat locker is shallow

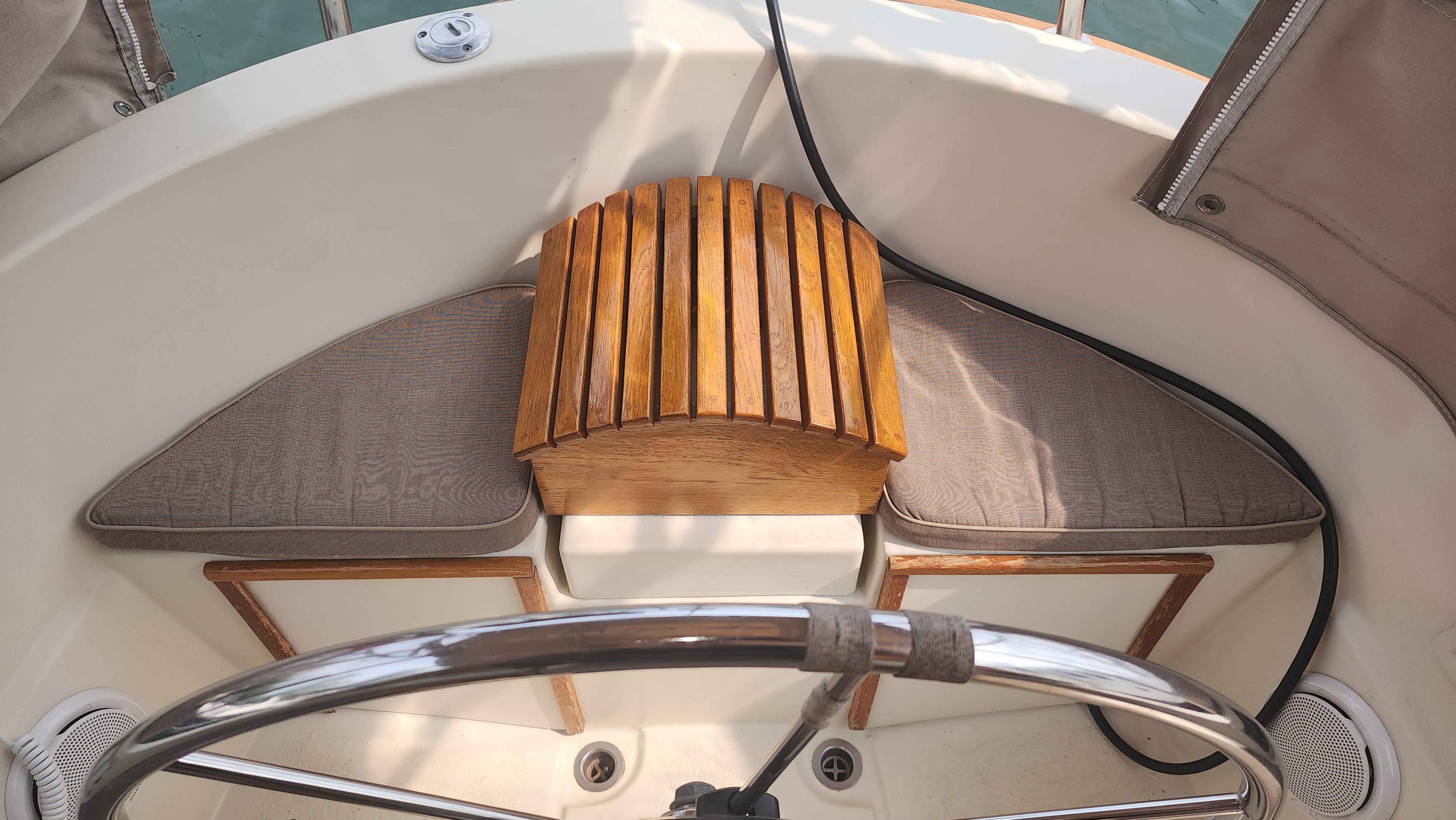

• Aft of helm there is a raised teak seat
• Under seat is hatch to access steering quadrant
• Either side of helm seat are hatches to access propane tank on port side and storage on starboard side
• Cockpit cushions

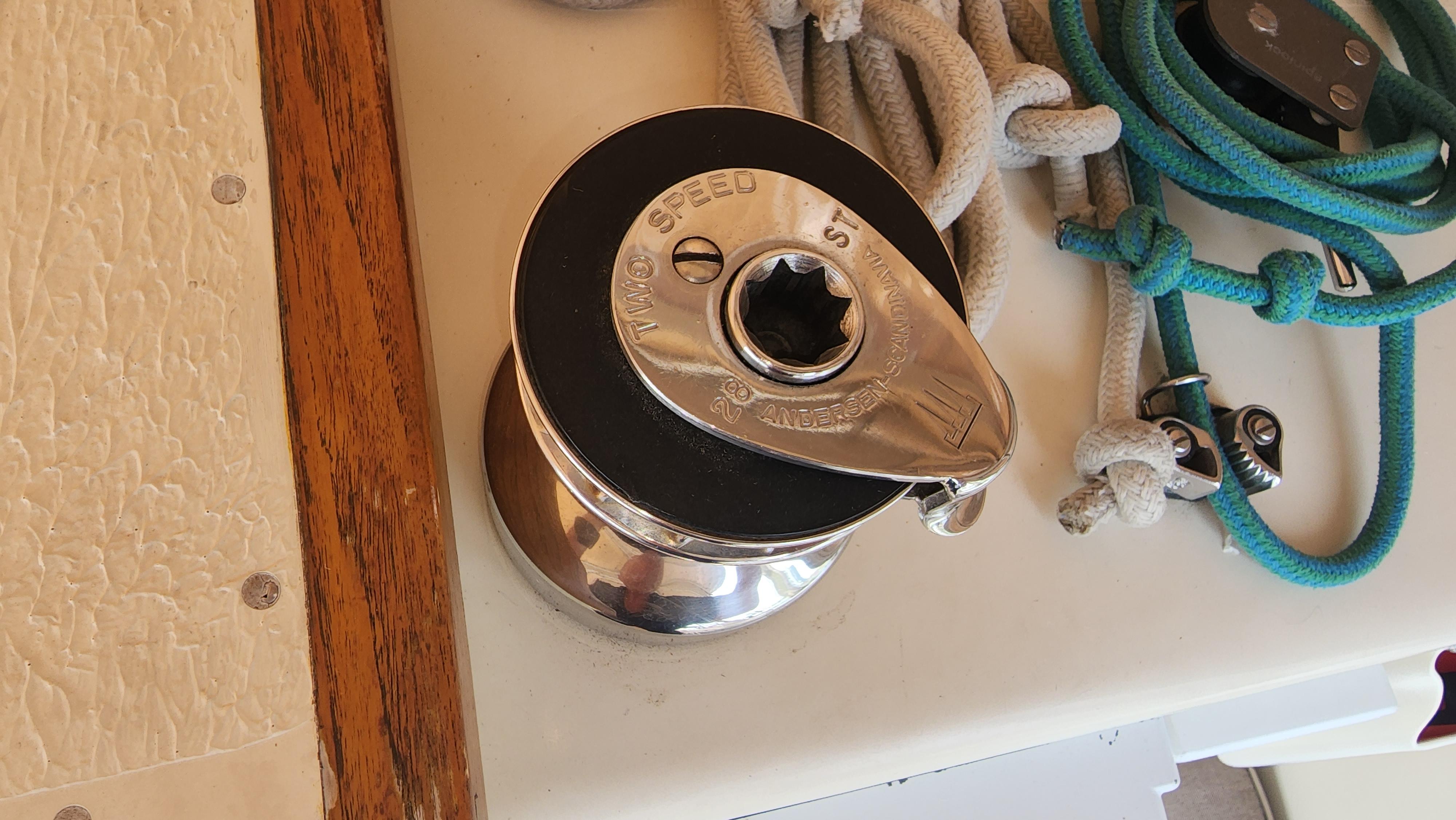

• Anderson ST46 genoa sheet winches on port and

          starboard coamings

• Cabin top either side of companionway has clutch stops for halyards
• Turning blocks port and starboard for staysail sheet to winch
• Anderson ST28 winch port and starboard for staysail and halyards
• ICOM command mic to right of helm along with depth sounder
• Aft side of trunk cabin on starboard side has auto pilot controller and radar
• Manual bilge pump to port of helm

ADDITIONAL EQUIPMENT

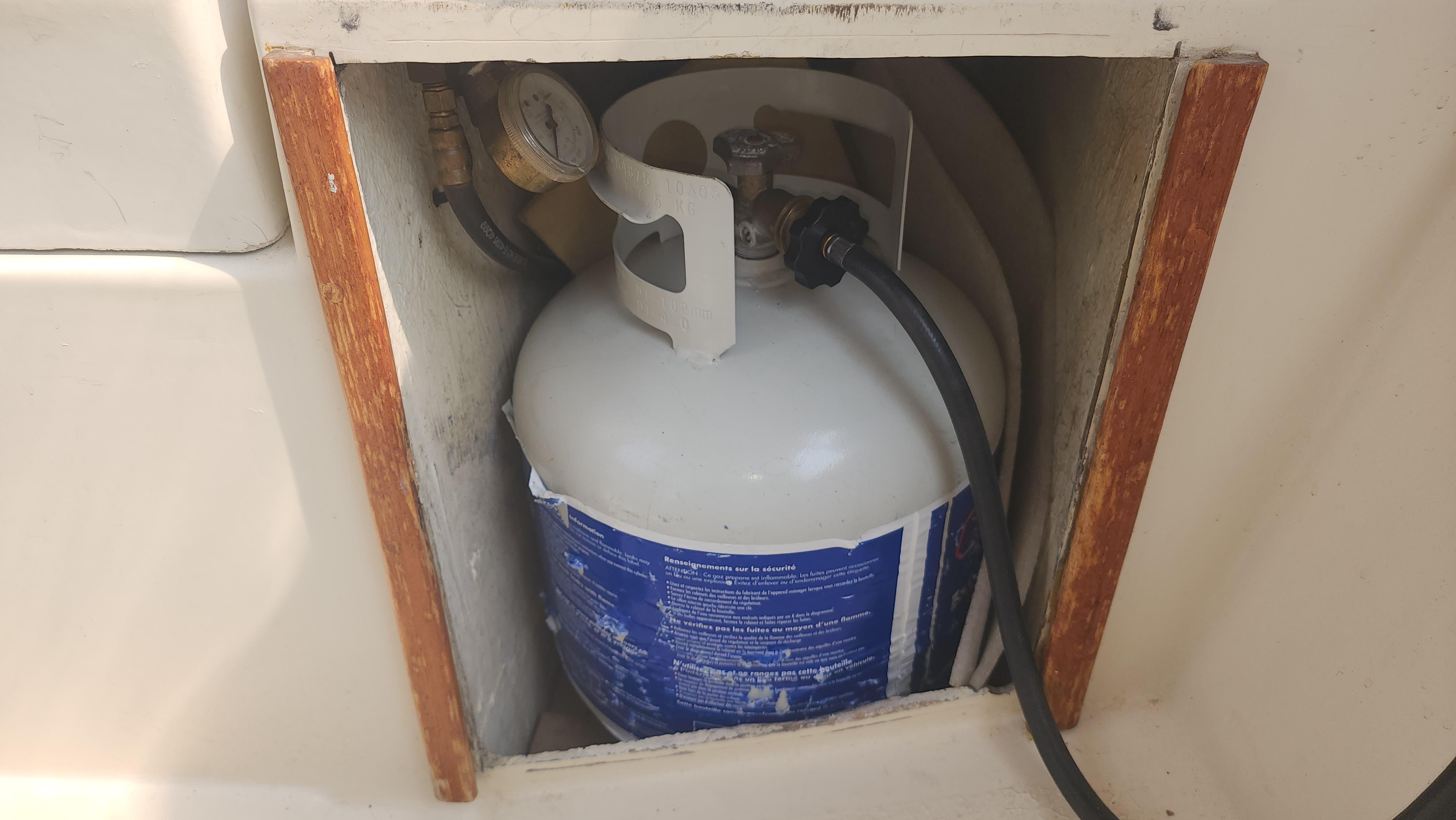

• Propane tank with pressure gauge
• Trident Propane panel with detector
• Dickenson BBQ on rail mount
• Stern mounted self-steering   in storage and needs windvane)
• CCG approved safety gear
• Bottom paint June 2023
• Zincs June 2023
