1991 Bayliner 4387

1991 Bayliner 4387   Specifications

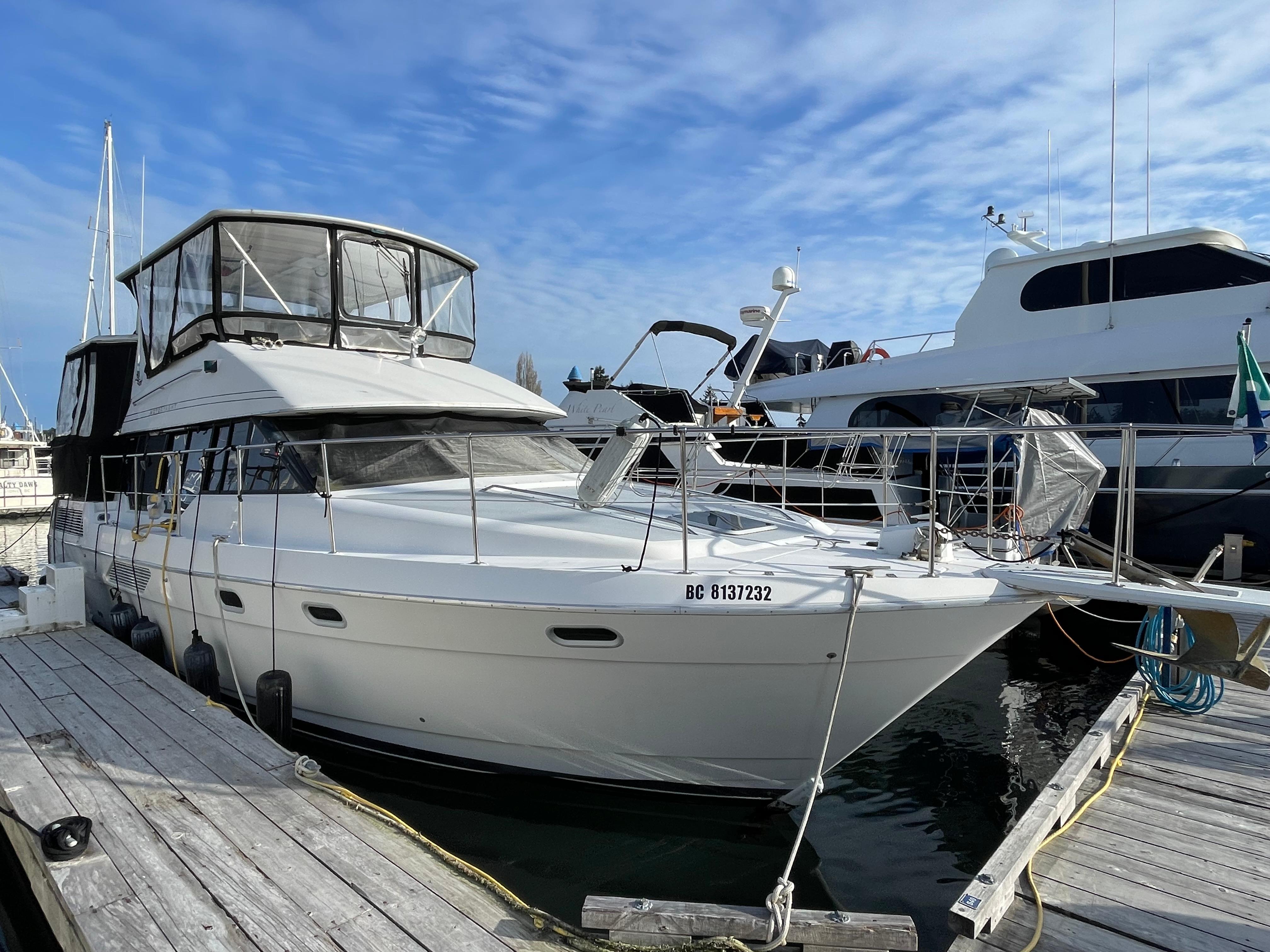

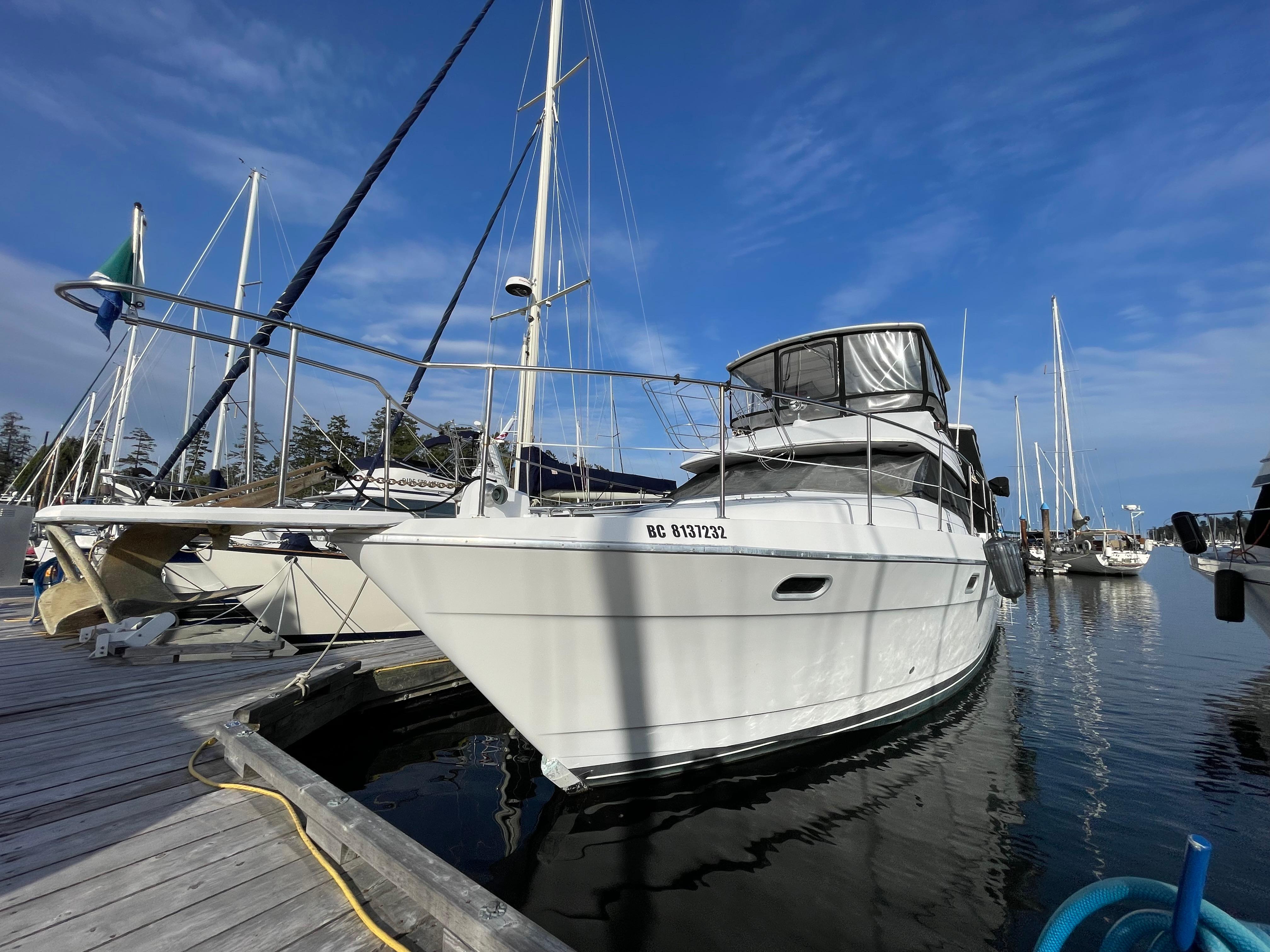

Bayliner 4387 Aft Cabin

Name............................................................... Clanawa

Year...................................................................... 1991

Builder................................................. Brunswick Group

LOA......................................................................... 43’

Beam.................................................................... 14’3”

Draft ....................................................................... 3’6”

Displacement.................................................. 19,500lbs

Hull ...............................................................Fiberglass

Deck............................................................. Fiberglass

Steering...................................... Twin stations hydraulic

Fuel............................................................... 2 x 150gal

Water................................................................. 100gal

Hot Water............................................................. 11gal

Holding Tank......................................................... 60gal

Heat............................................ Diesel Espar forced air

CONSTRUCTION

• Hull material: FRP and gel coated
• Hull and deck joint: shoe box style
• Frames and stringers: 4 primary stringers, plywood frames encased in FRP
• Decking: plywood cored FRP
• Modified V with prop pockets

 INTERIOR

• Clean, bright, and very spacious
• Beige carpeting, white cabinetry with wood trim
• Heat: Diesel Espar forced air

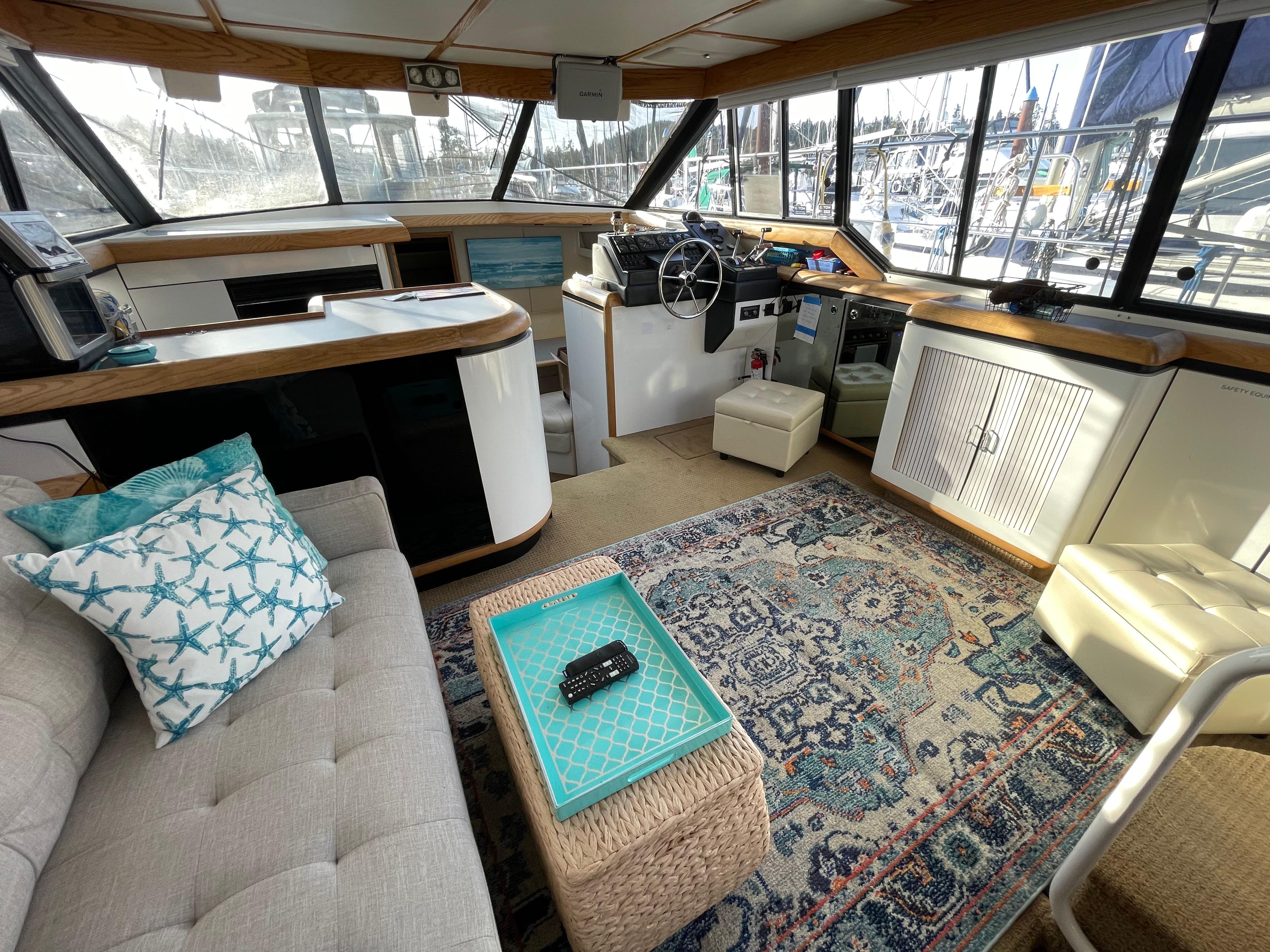

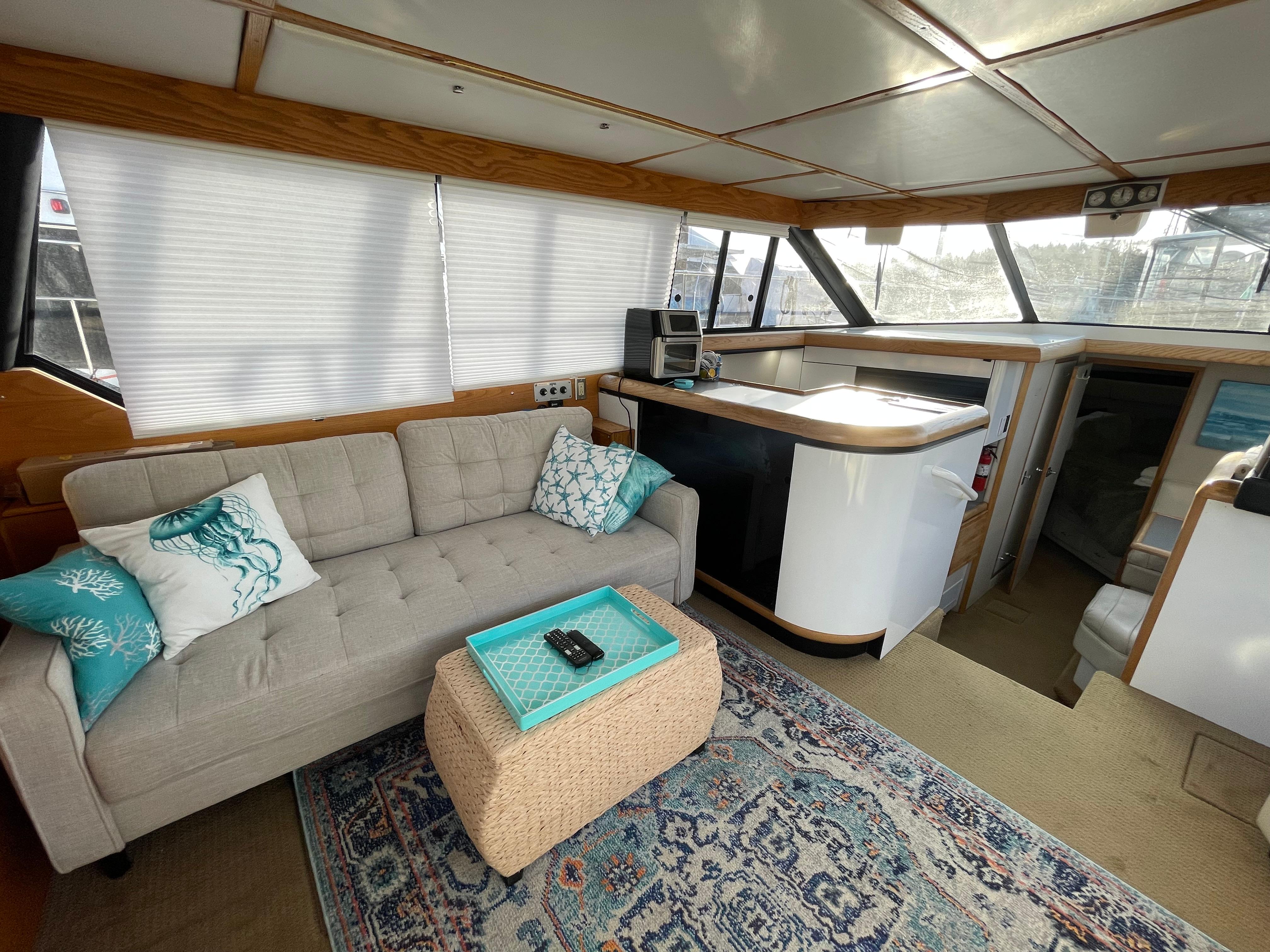

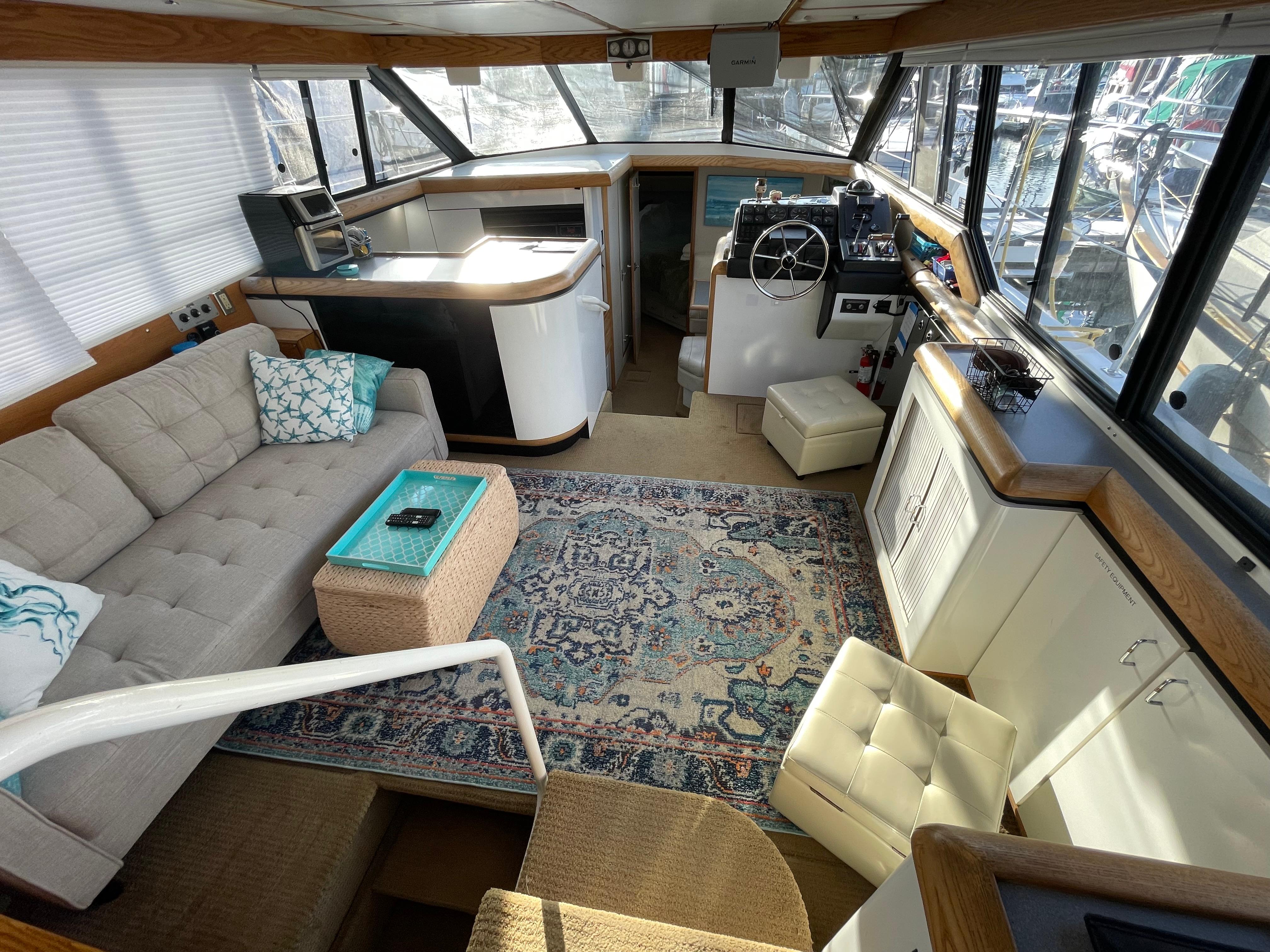

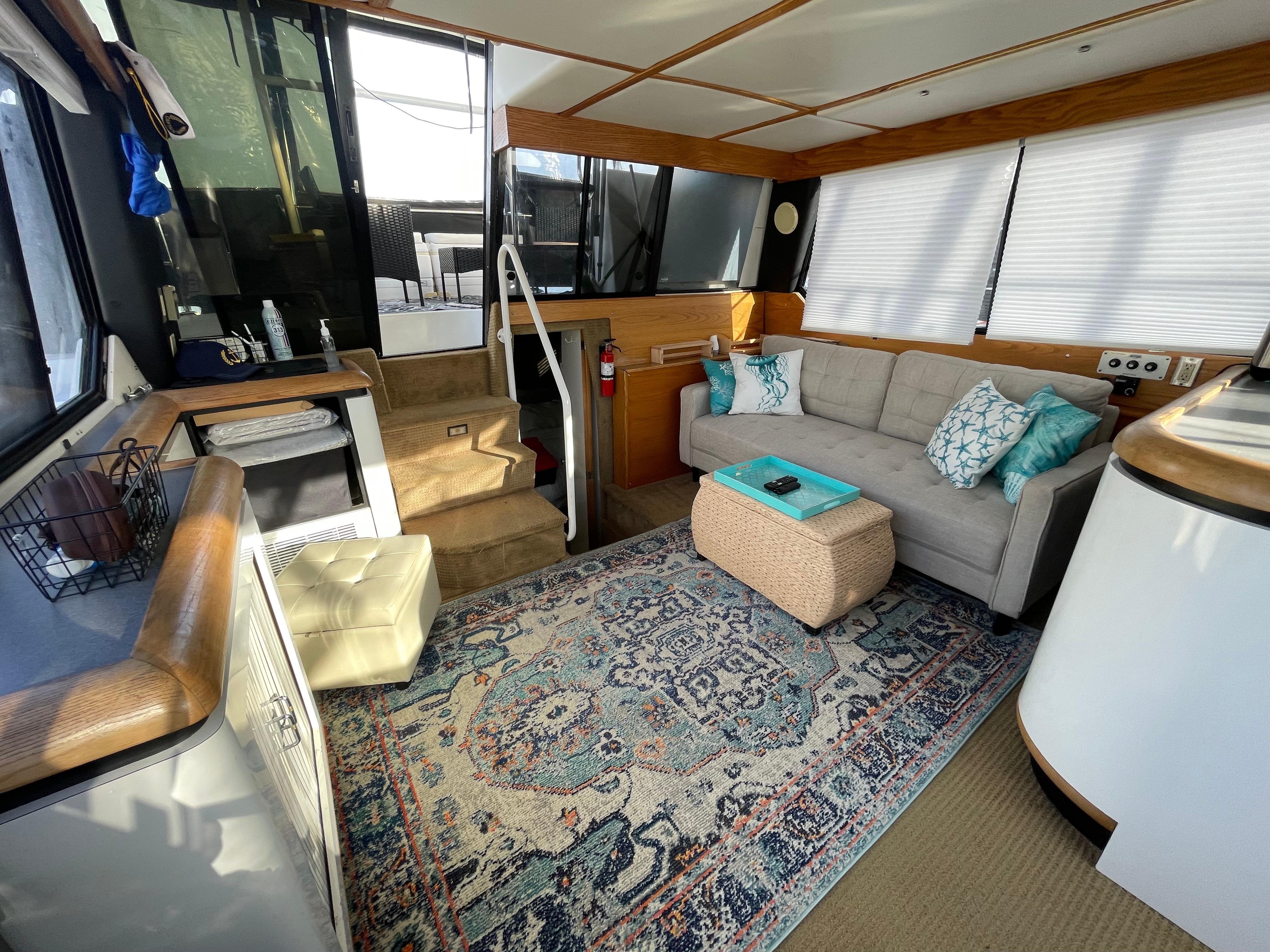

• Salon: Enter the salon from the raised aft deck,
• New 2023 sleeper couch to port, cabinetry to starboard
• Large opening side windows with blinds

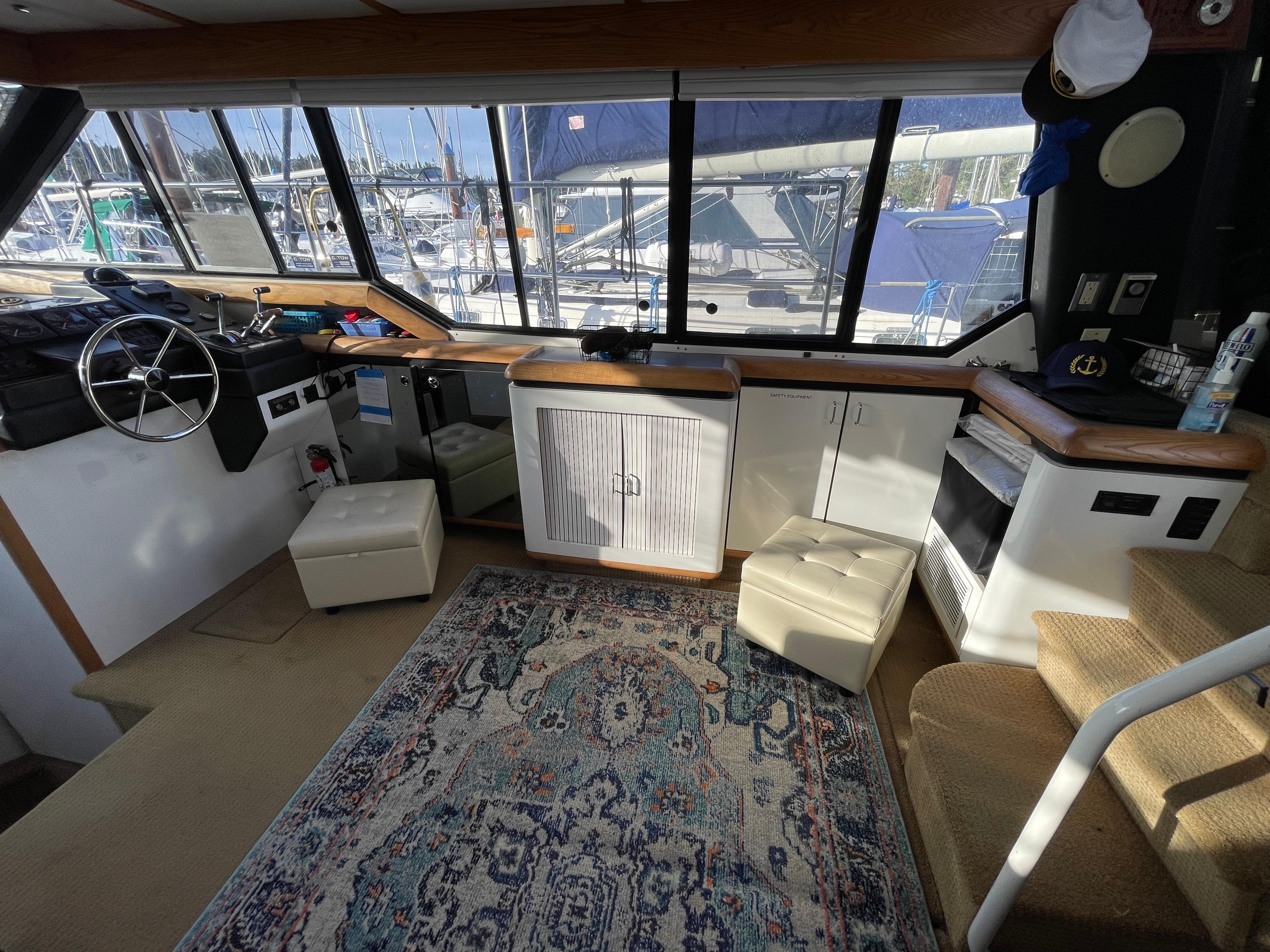

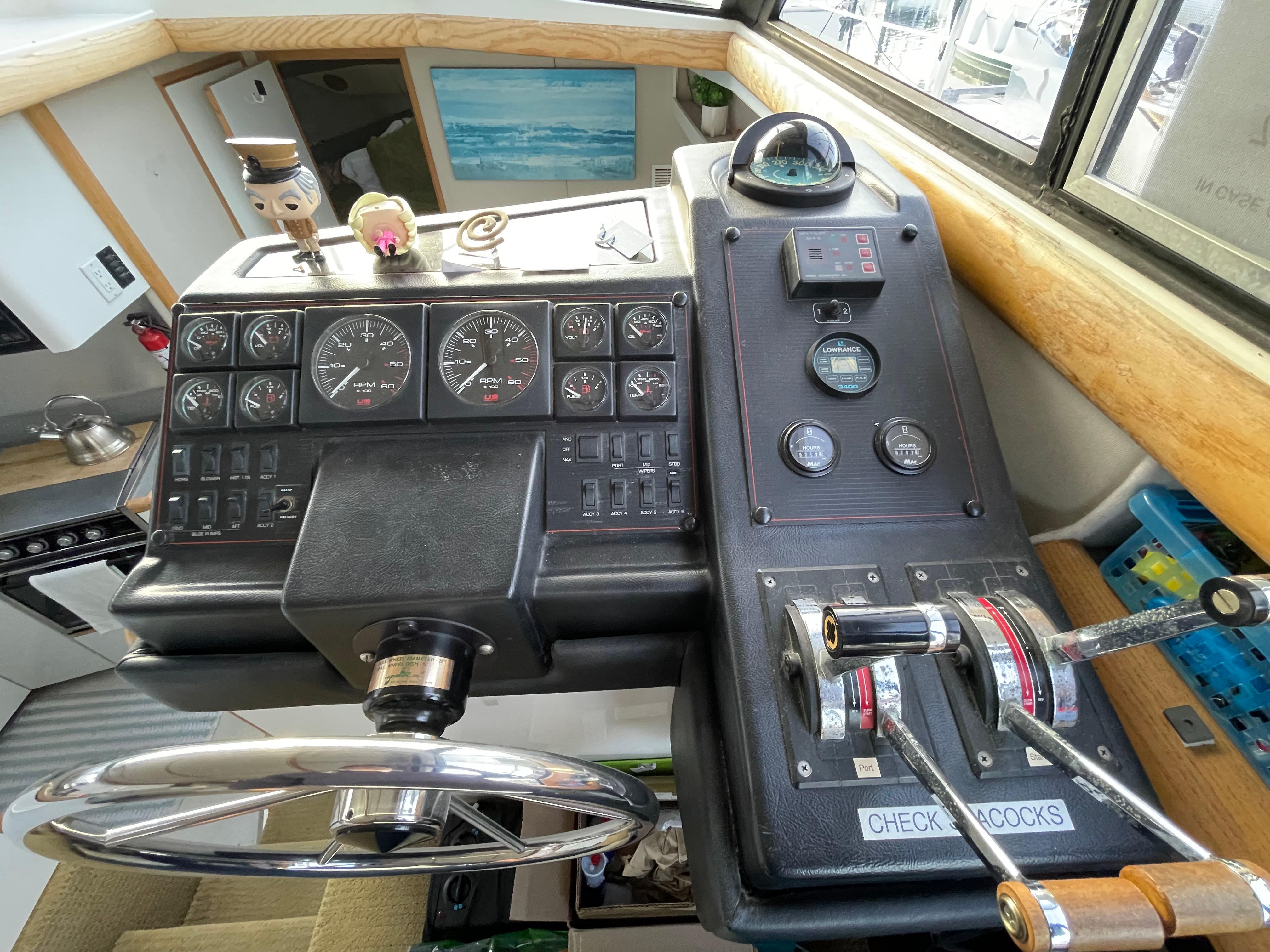

• Lower helm station with full electronics and controls

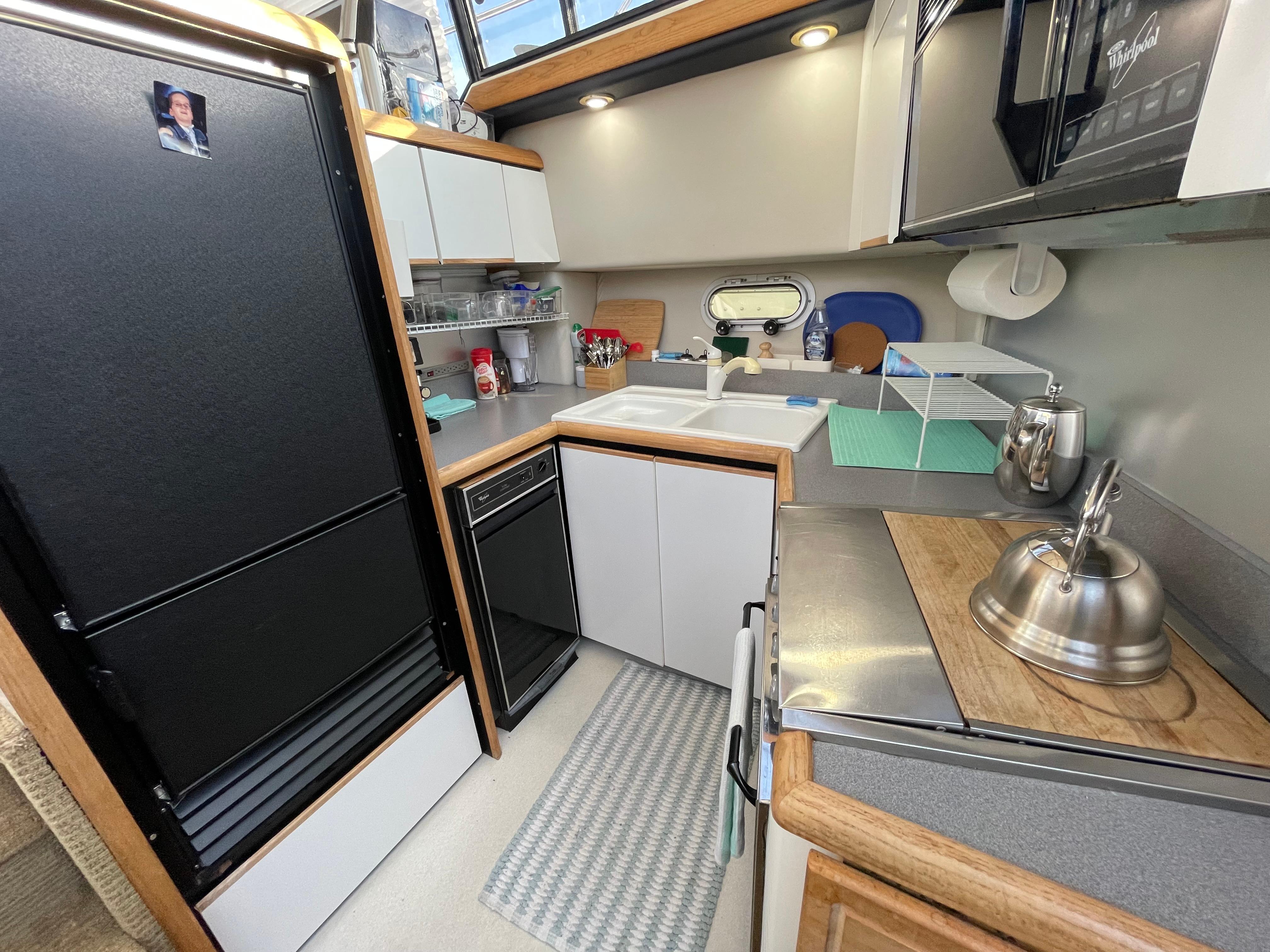

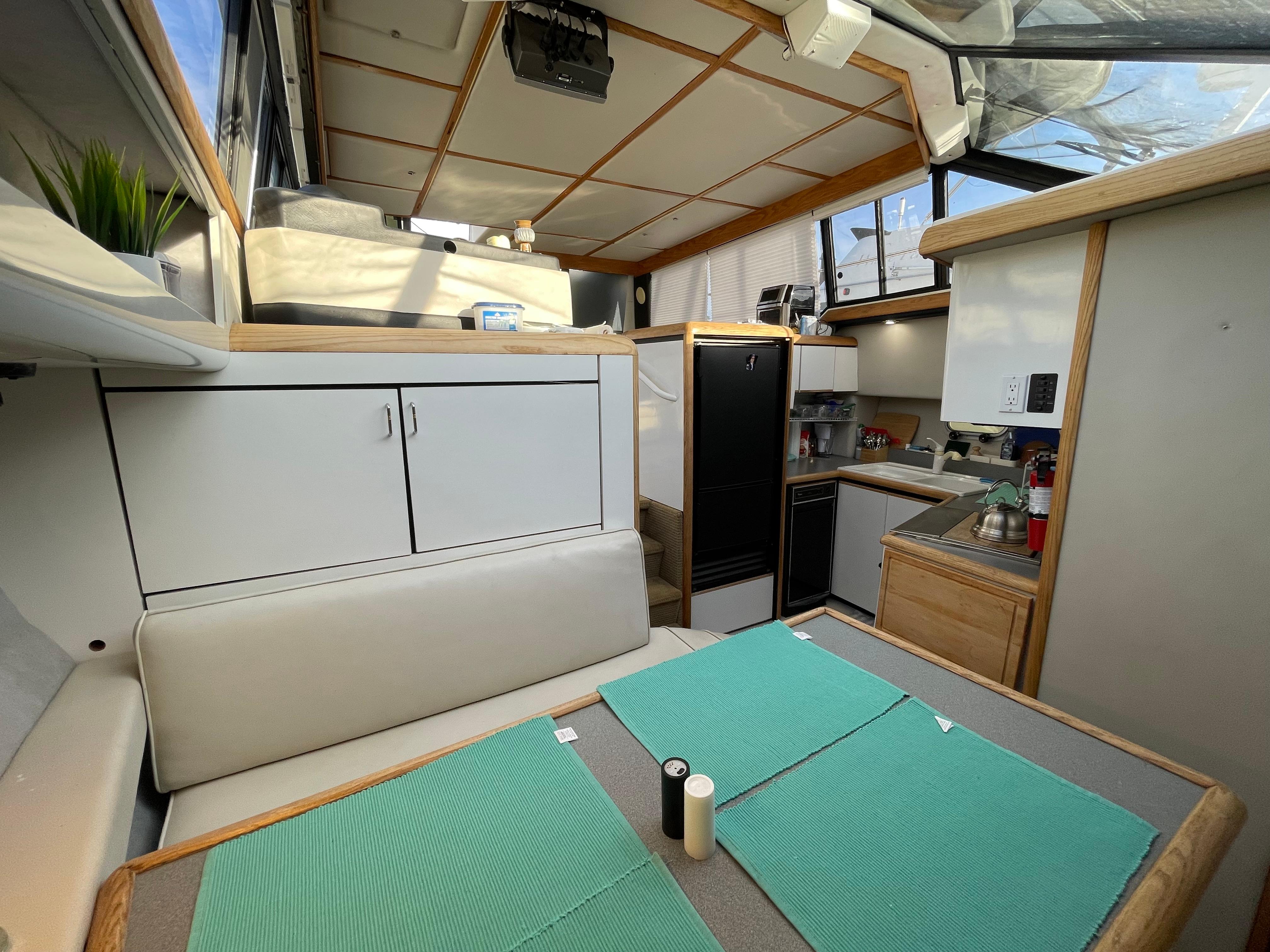

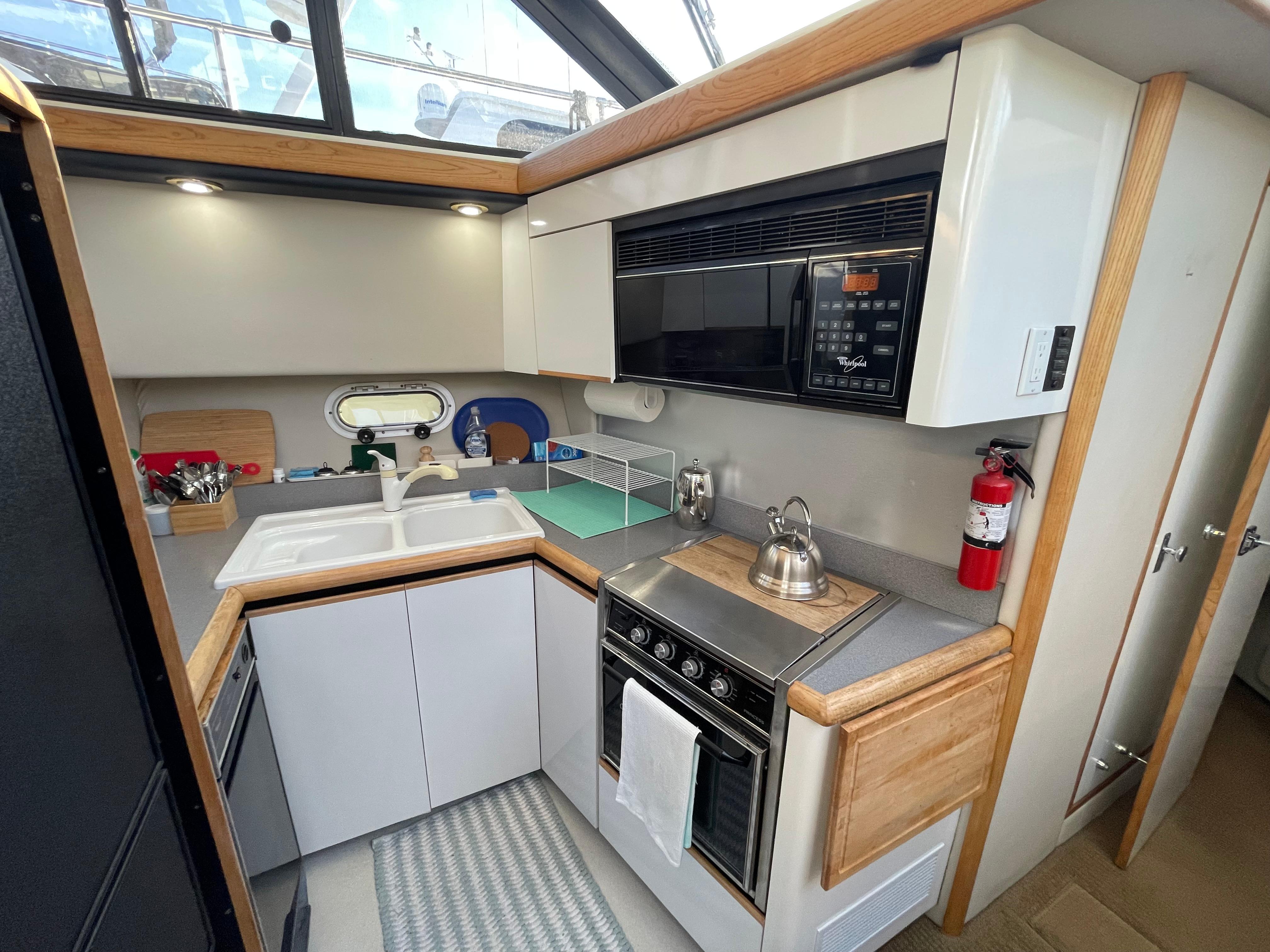

• Galley: U-shaped to port, down a few stairs from salon
• Refrigeration: Full size stand up Nova Kool, separate fridge door above of freezer door

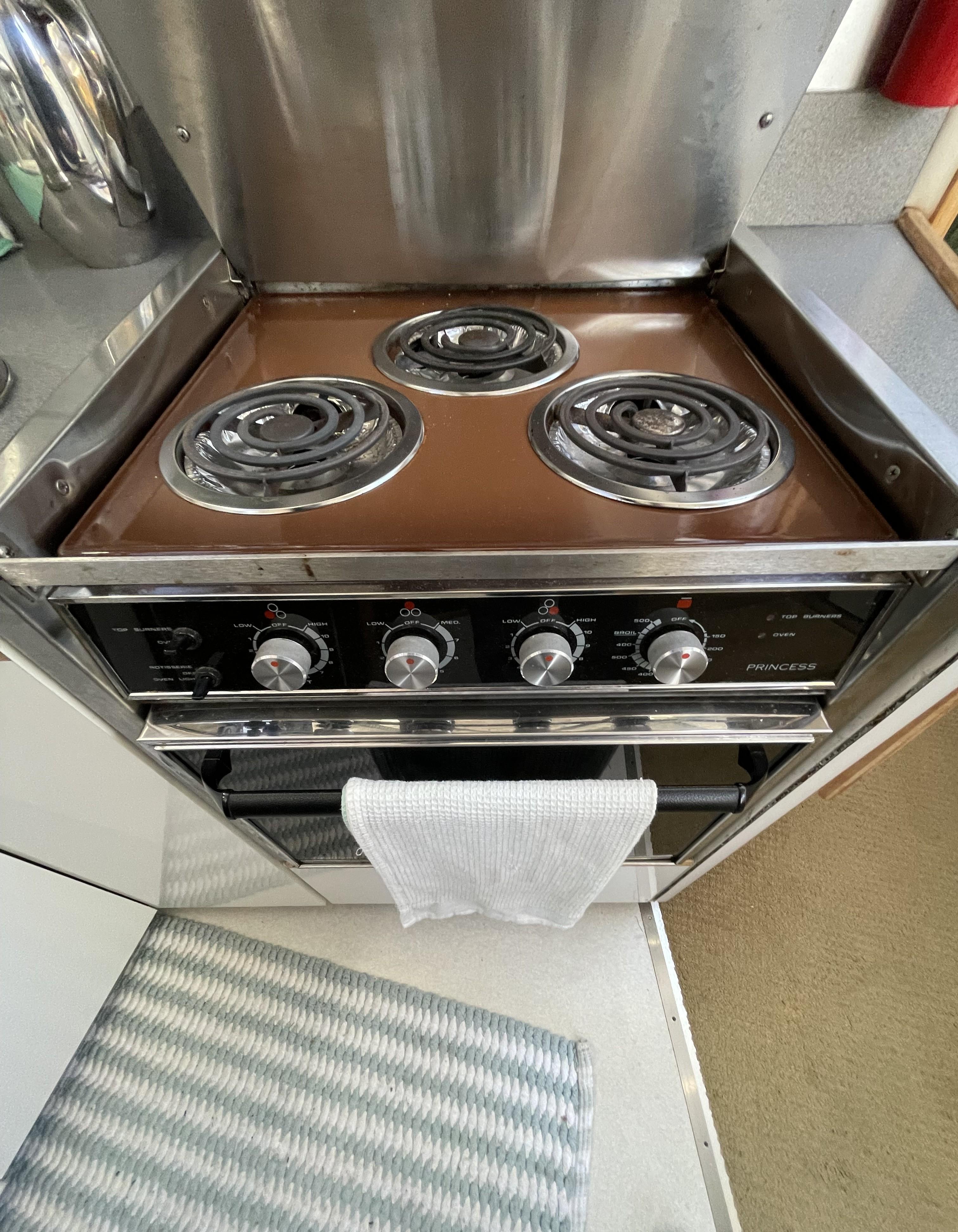

• Stove: Princess 120V 3 burner with oven

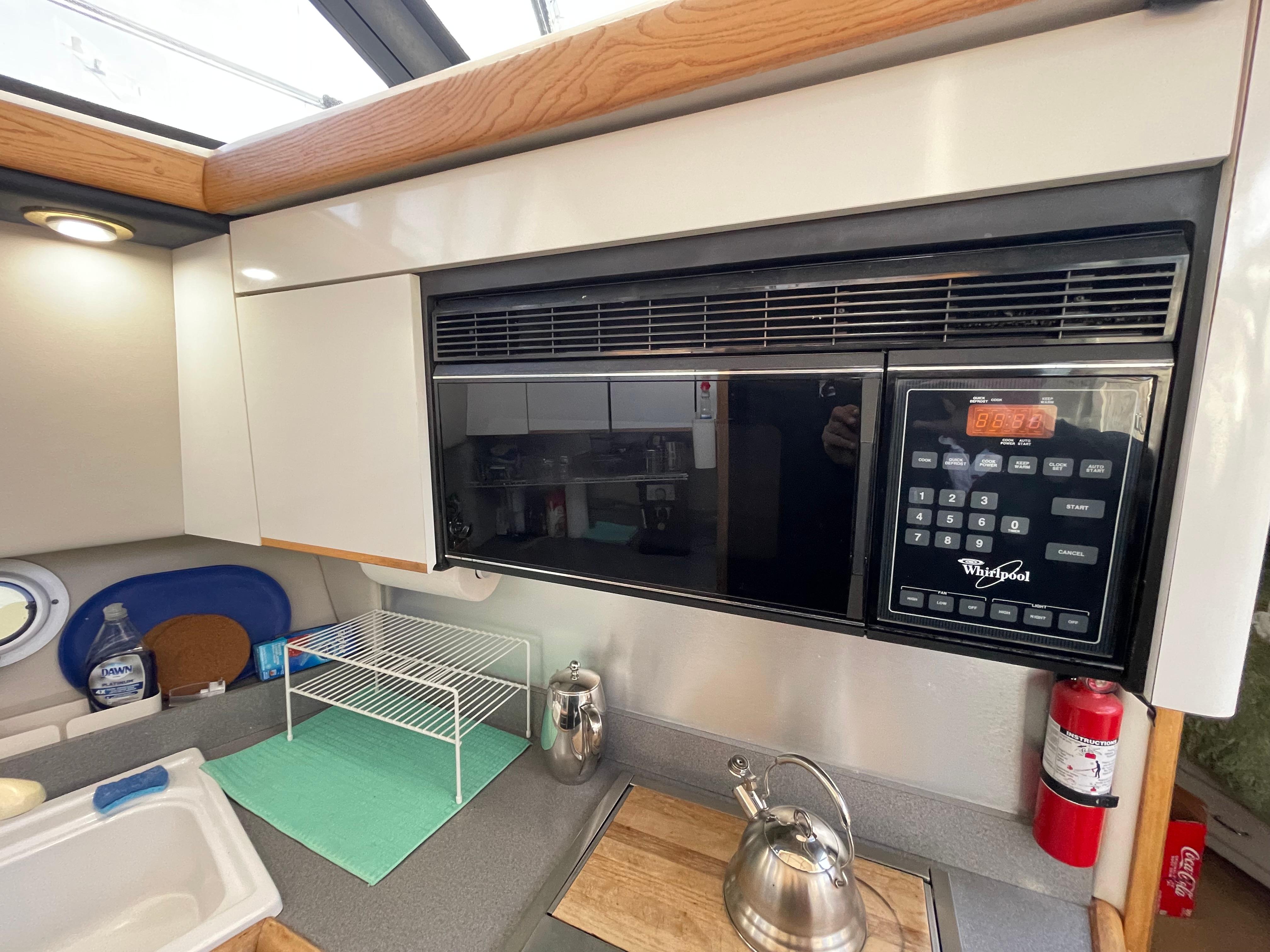

• Microwave: Whirlpool
• Twin sinks: white ceramic, hot/cold mixer faucet

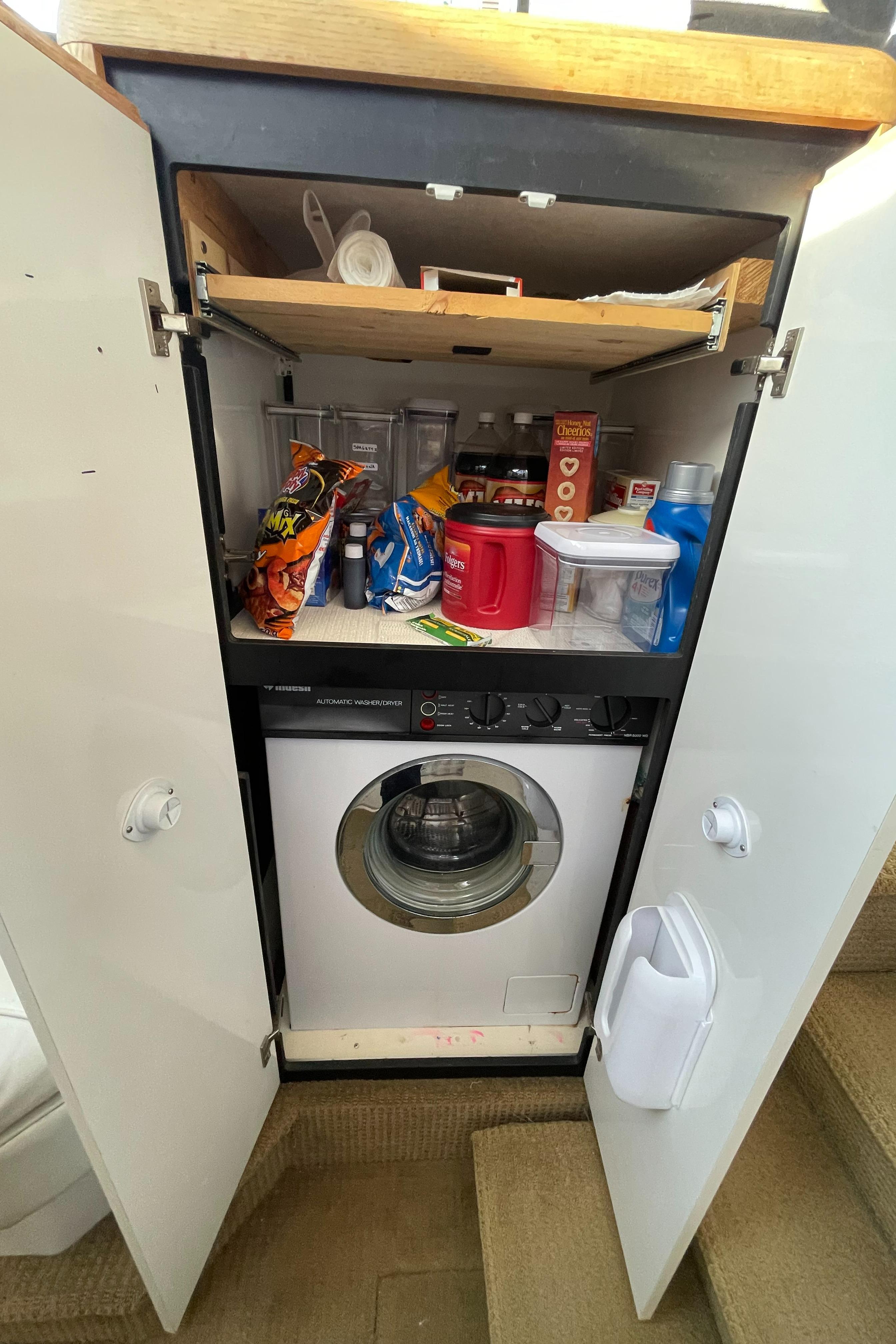

• Storage cabinets above and below counters plus a full size double door panty

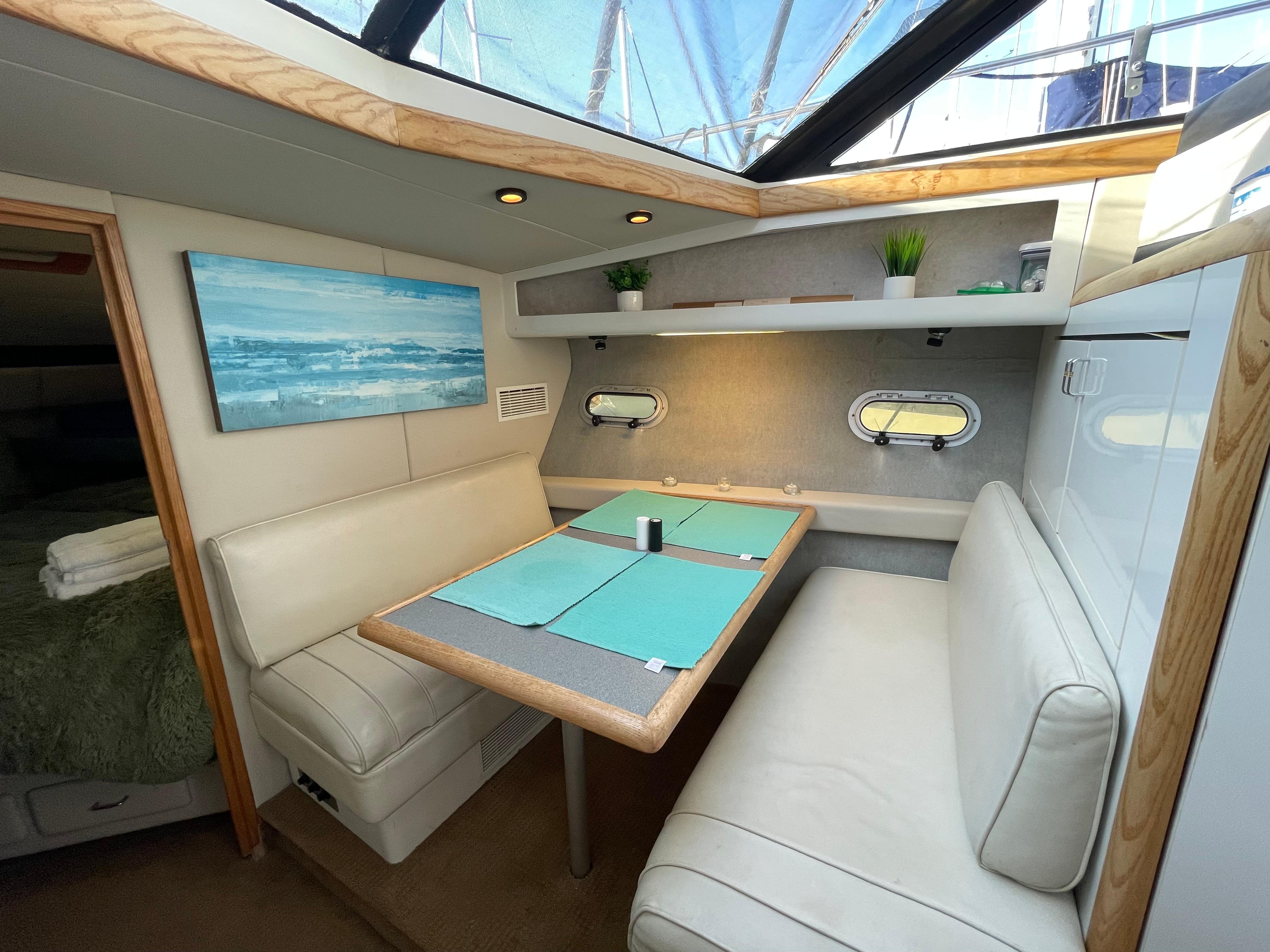

• Dinette: opposite the galley is a dinette with two bench seats, exceptionally bright in both galley and dinette because of the sloping windshield above.

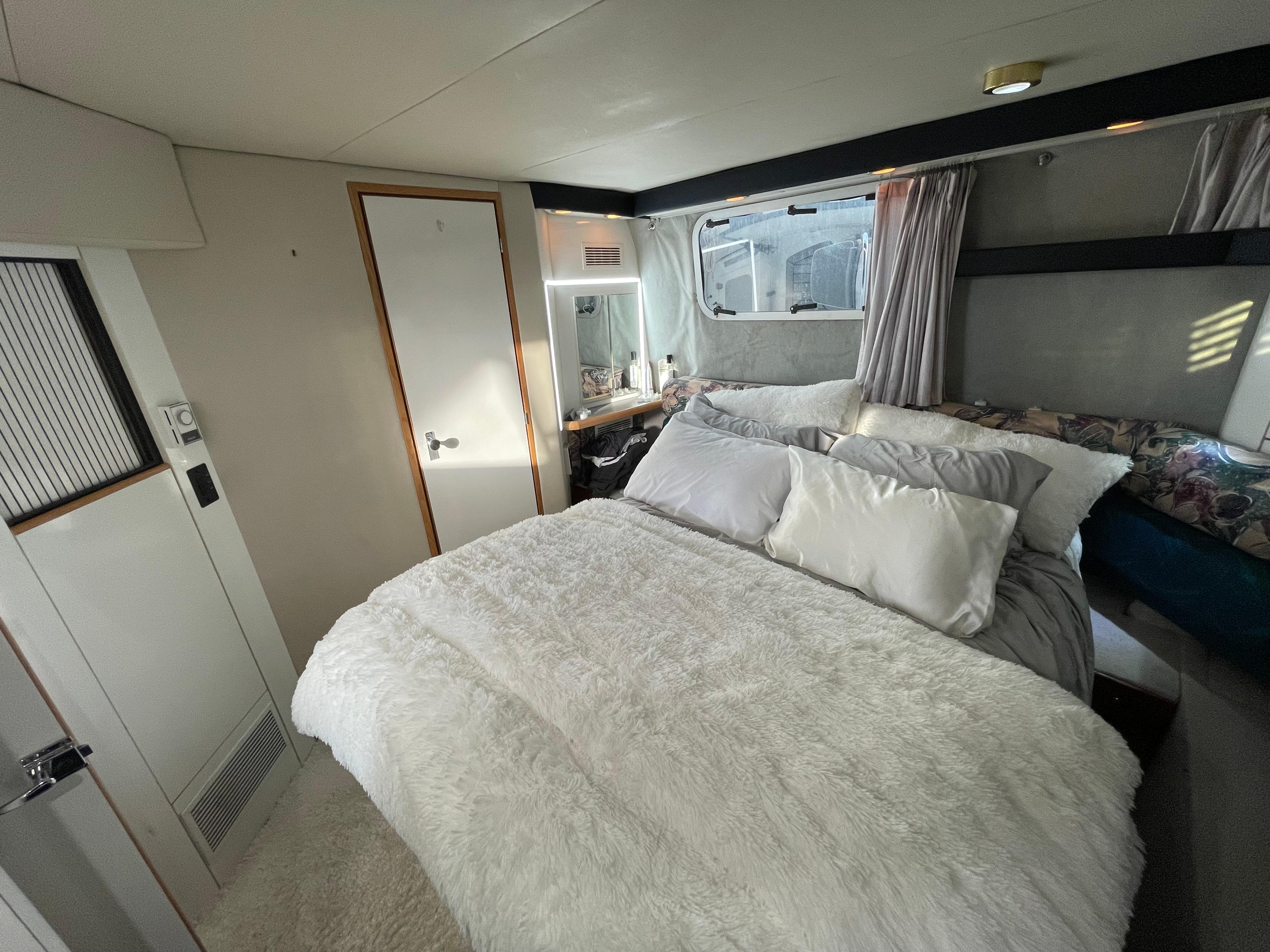

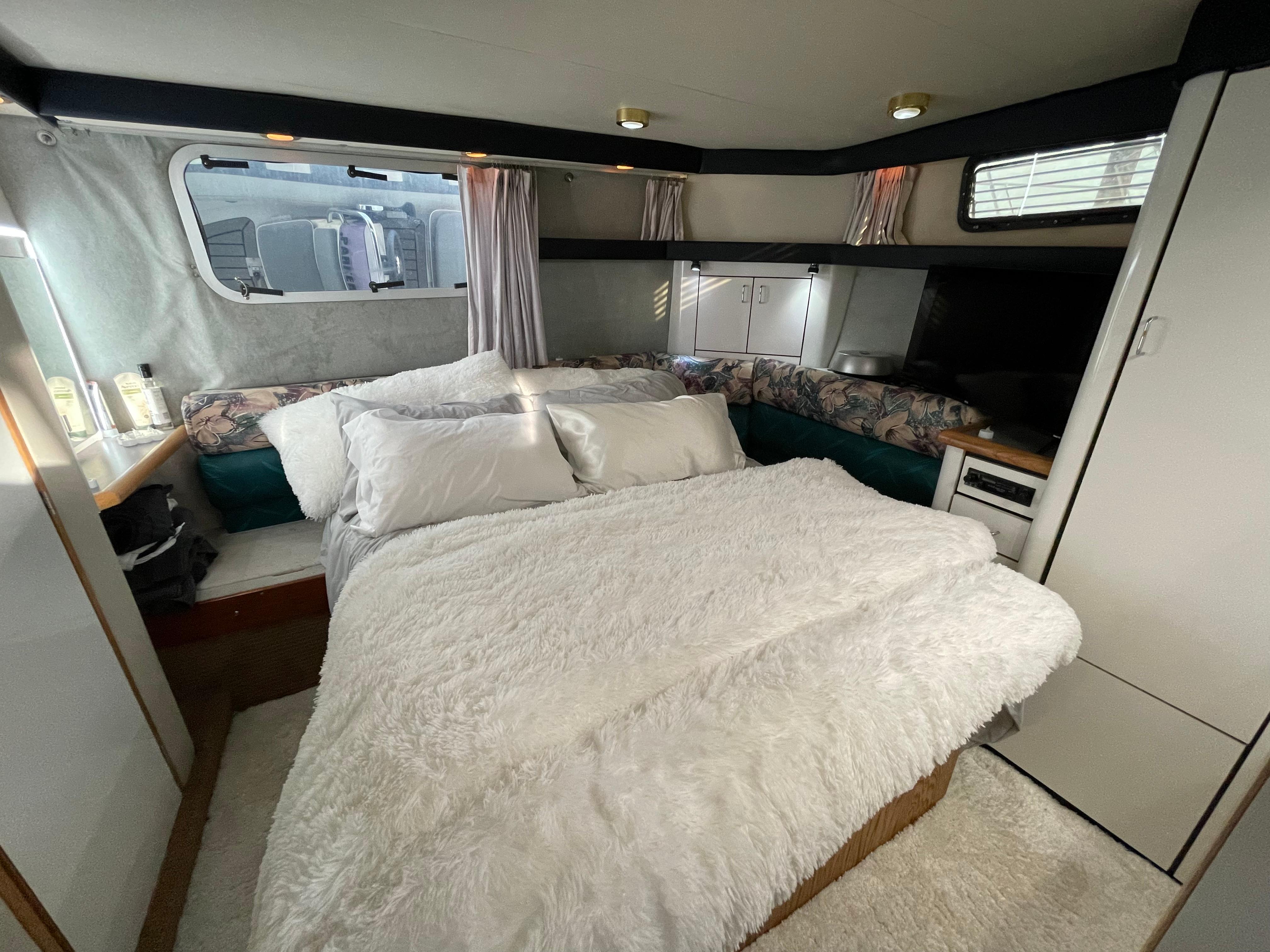

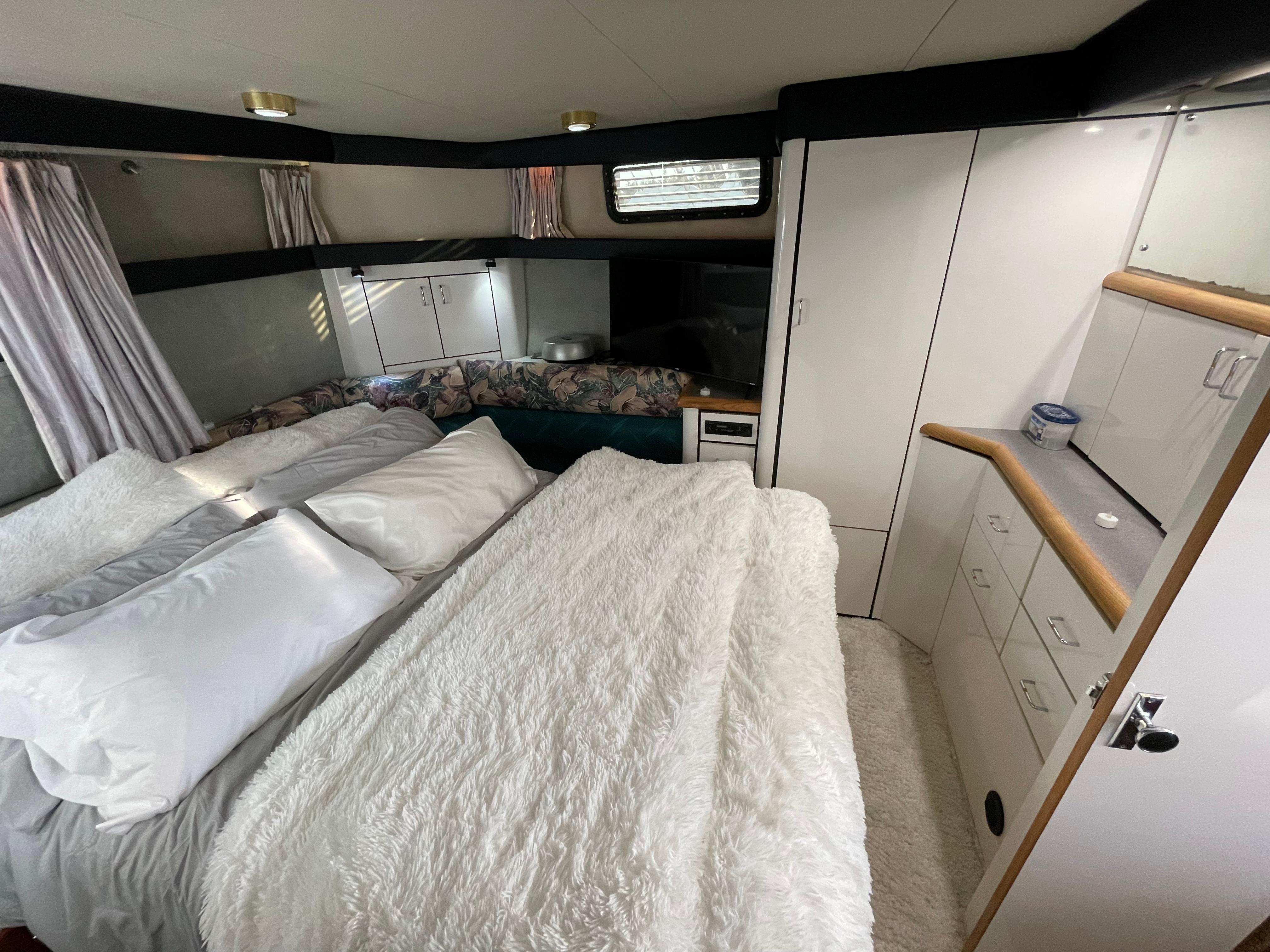

• Owners cabin: Aft of the salon down two stairs, enter a full beam owners cabin, queen walk around bed, hanging lockers, chest of drawers, large opening port light in the stern at the head of the bed, side opening ports

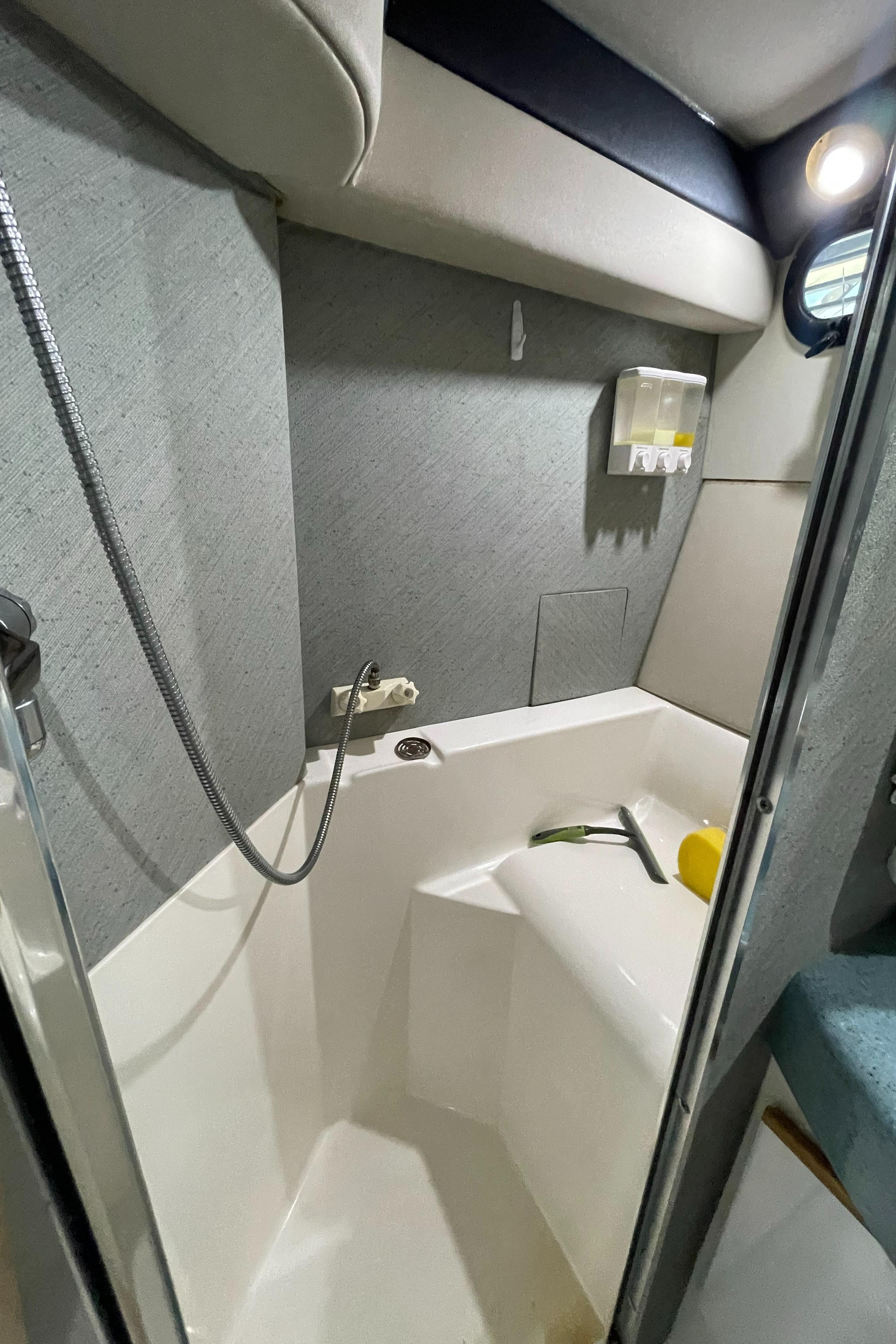

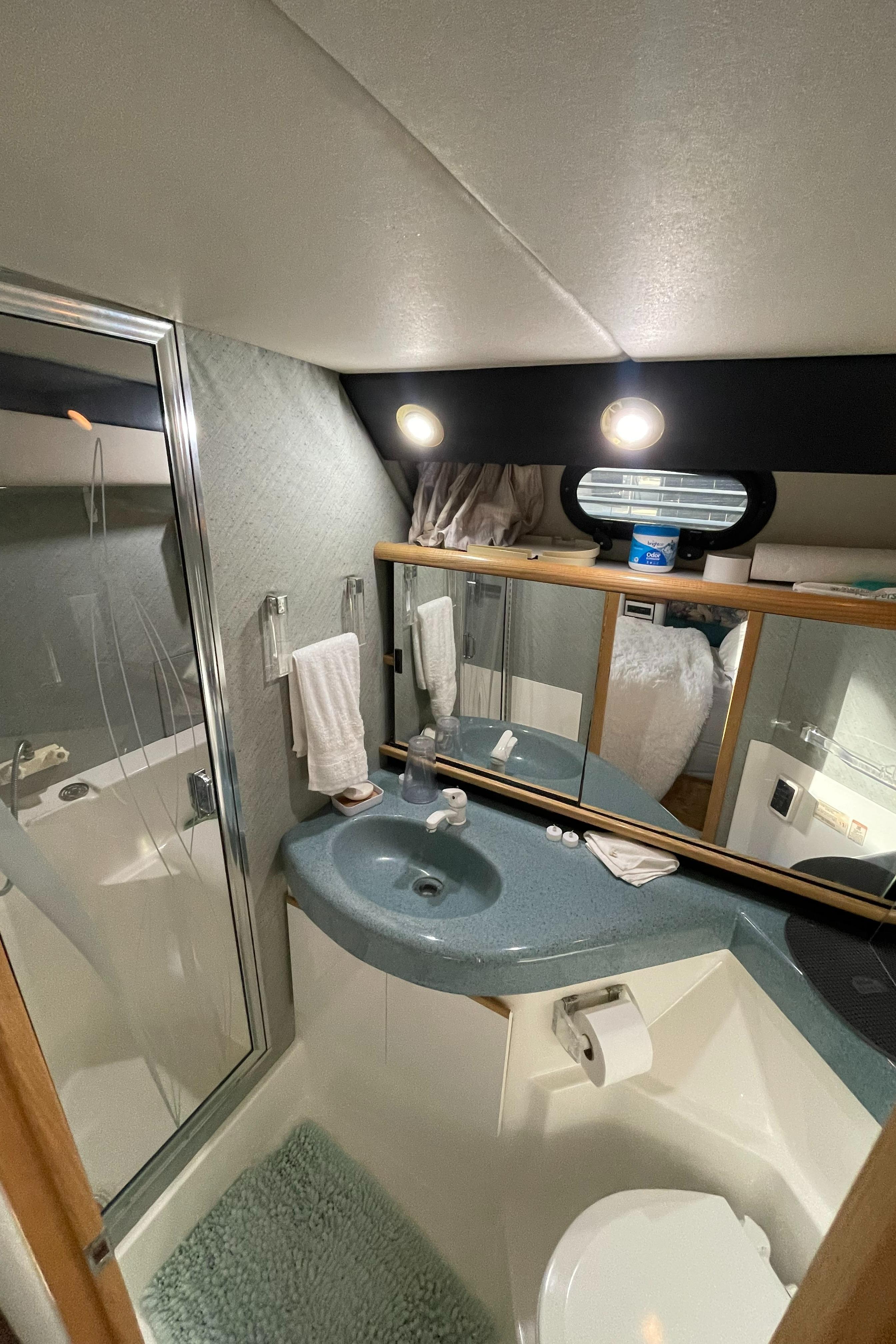

• En-suite head: large compartment with a separate shower stall, large curved vanity with sink, storage and mirrors, toilet is an electric flush

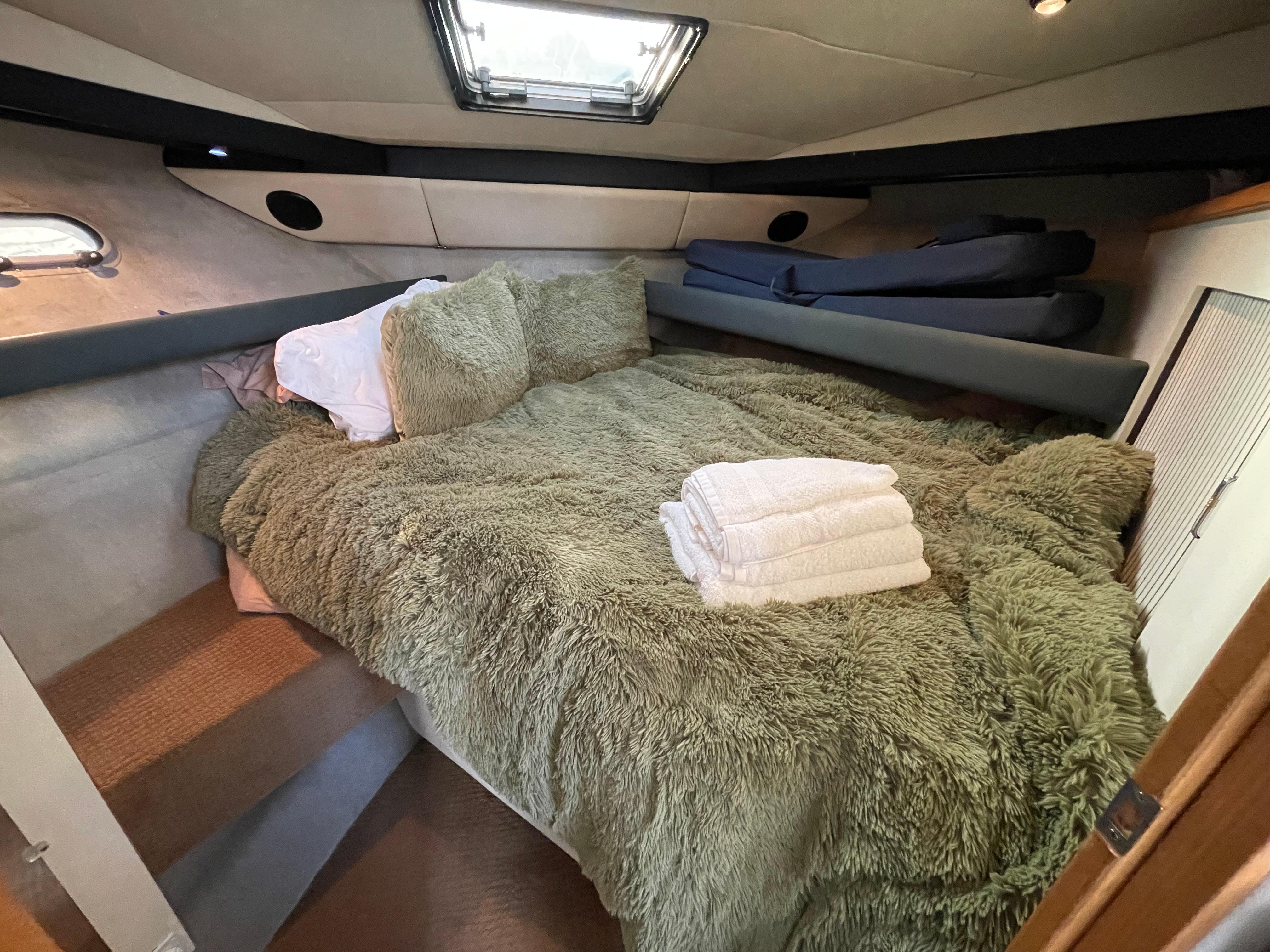

• Guest Cabin: forward features a queen size bed offset to starboard, opening side ports, overhead opening hatch, shelving, hanging locker, drawers under the bed

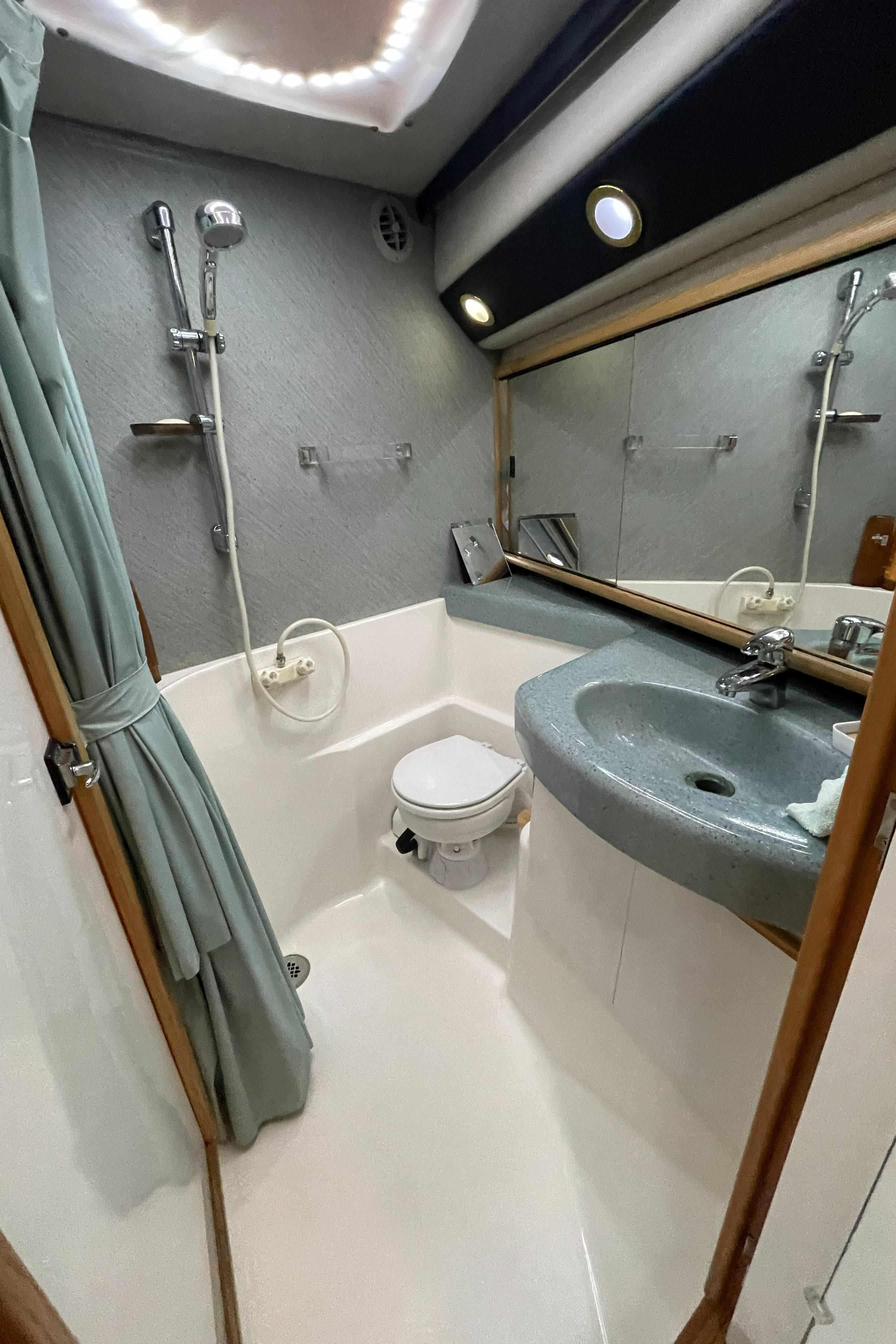

• Guest head: Integrated shower compartment, toilet, vanity with sink, storage, mirrors

 MECHANICAL

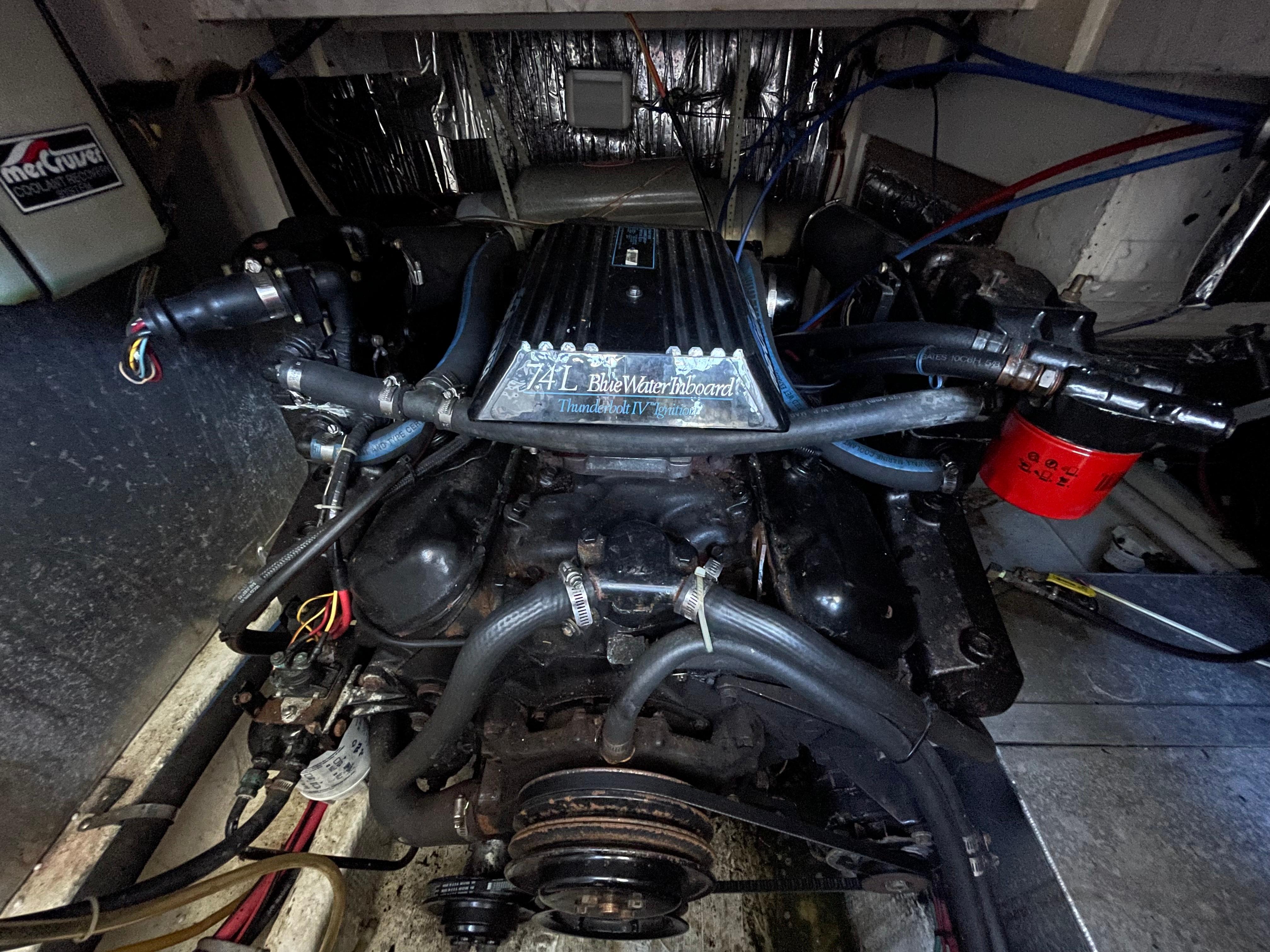

• 2 x Mercruiser 7.4L, 330hp,

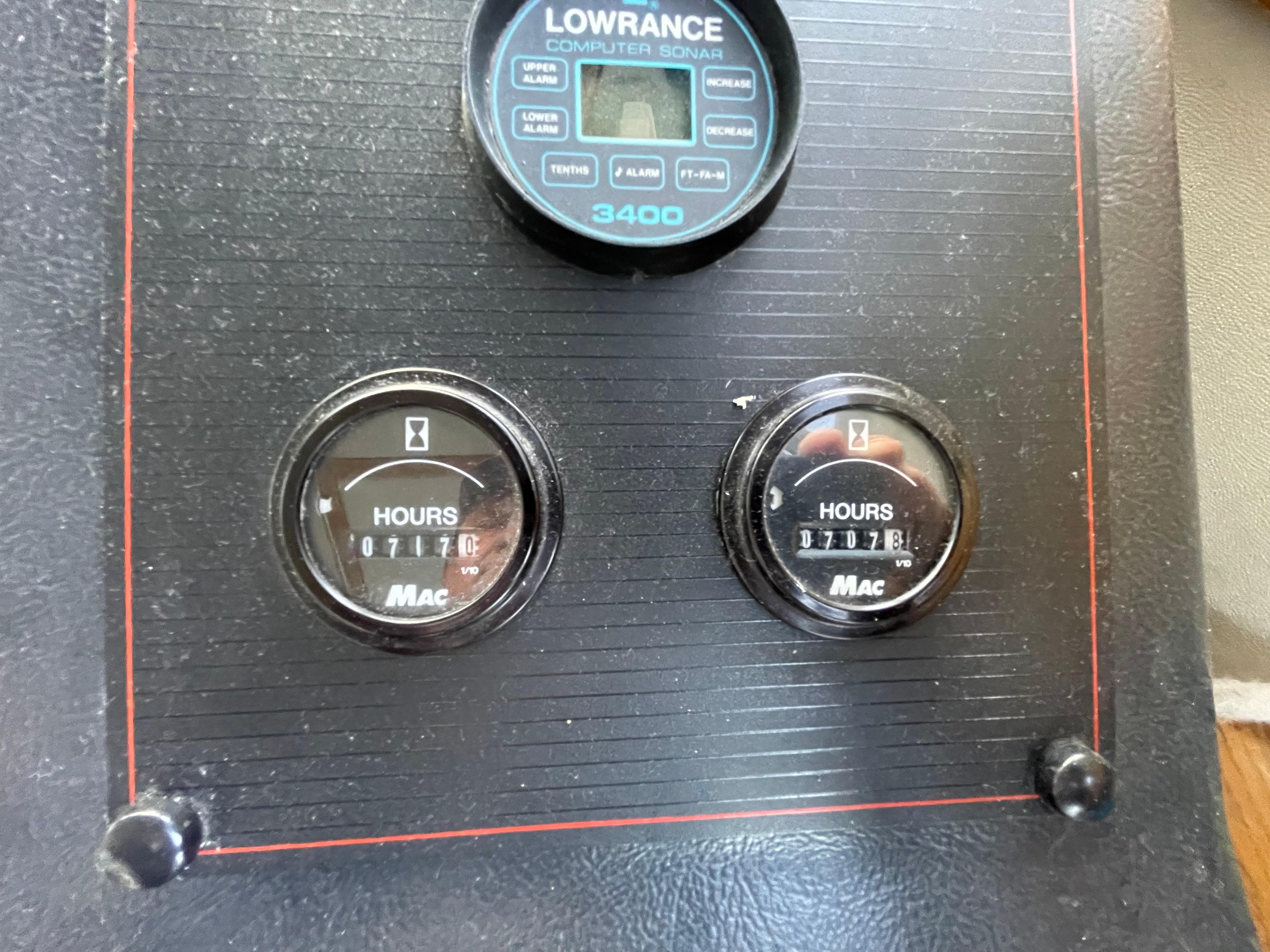

• Hours: 717
• Direct drives, shafts 1 ½” S/S
• Bow and Stern Thrusters: Side Shift, 12V
• Trim tabs: Bennett
• Propellers: 4 Blade 22” x 22” Bronze
• Throttle cables serviced (2023)

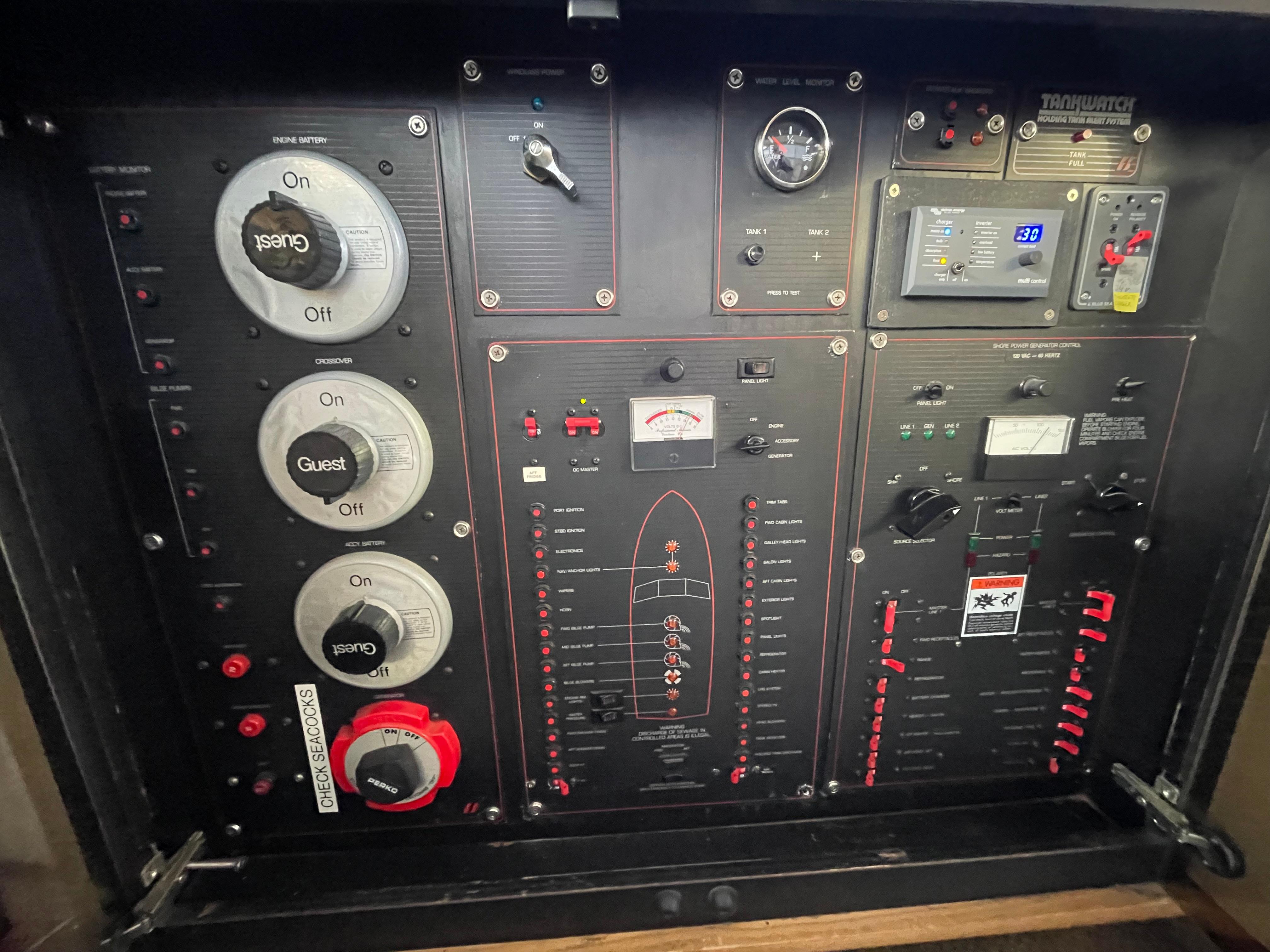

ELECTRICAL

• 12V DC and 120V AC systems
• 2 x 30amp shorepower connections
• House Batteries: 2 x Lifeline 8D AGM 12V
• Start Batteries: 2 x Group 31 (1 new 2024)
• Generator Battery: 1 x Group 24
• 1 x Ritar RA 12-200 sealed Lead acid

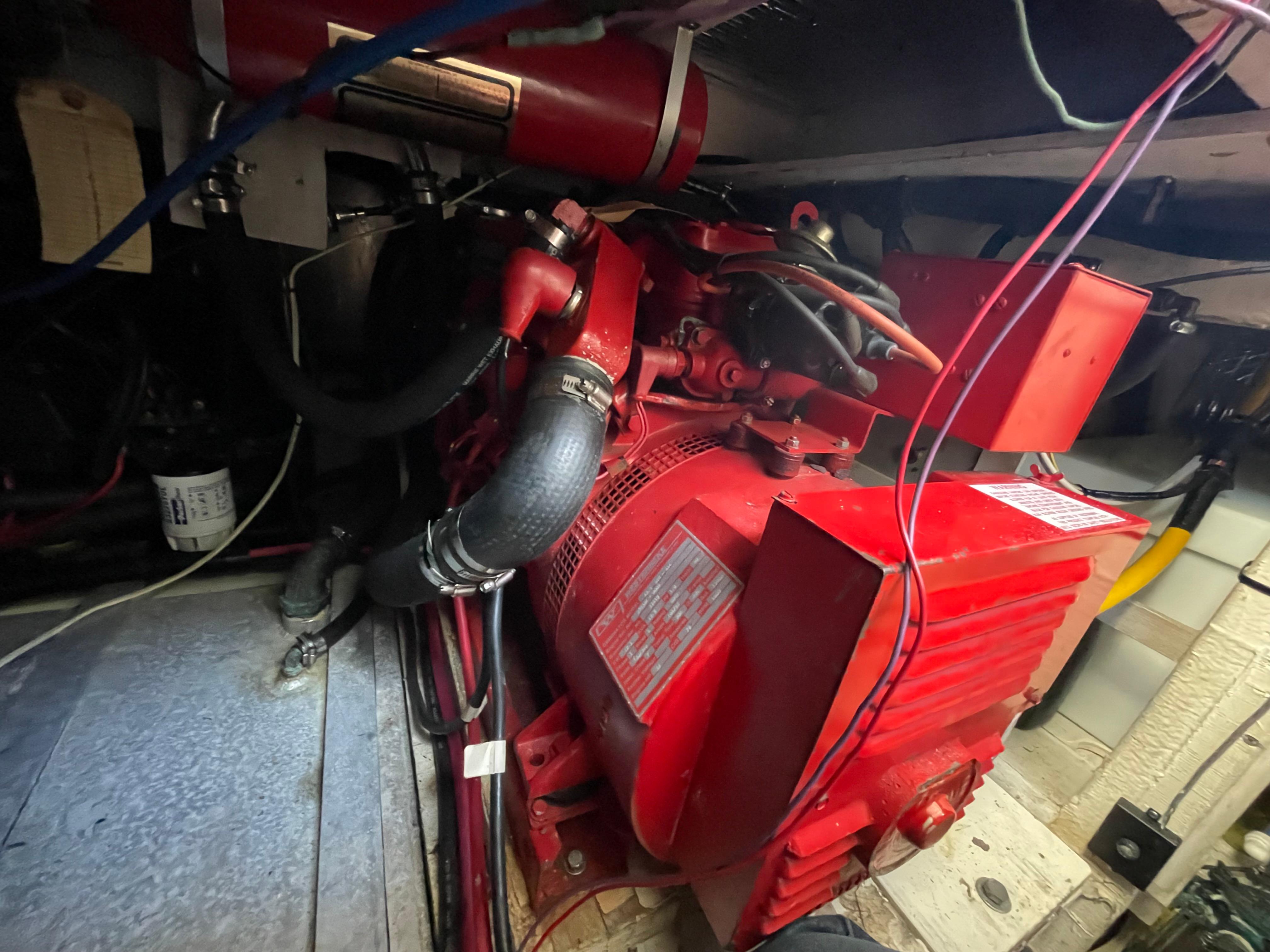

• Generator: Westerbeke 12.5 BTG614, Gasoline 1200hrs
• Battery Charger: Blue Seas SI-ACR, 120amp, 12/24VDC
• Bow thruster Battery Charger: ProMariner Protournament Elite 24A-3Bk (2024)
• 2 x New Thruster batteries (2024)

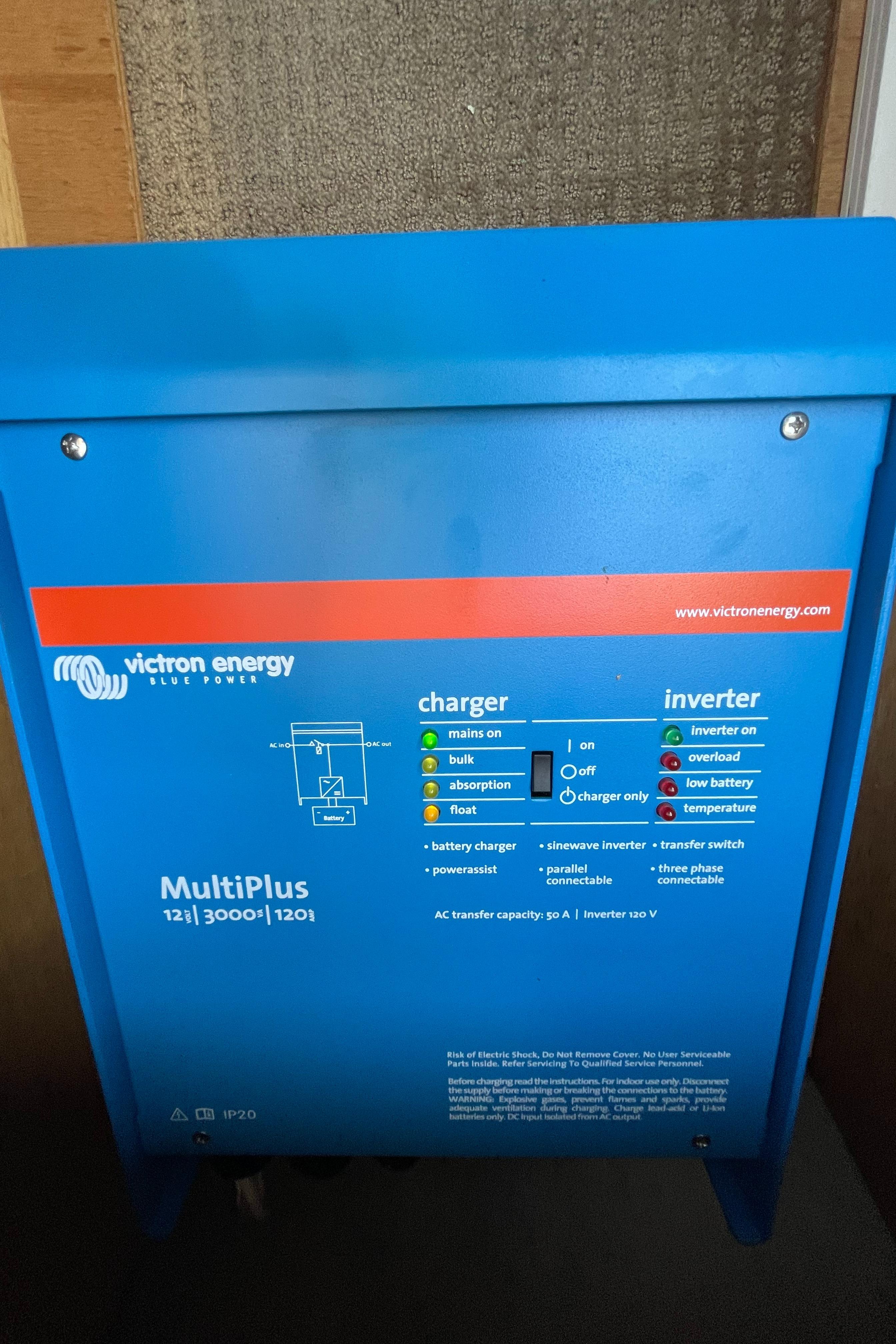

• Inverter: Victron 3000w
• Interior lighting upgraded to LED

PLUMBING

• Water Tanks: Plastic, 100gal
• Water pressure system: 12V demand pump, surge tank
• Hot water tank: Kuuma 11gal, 120V
• Toilets: 2 x Jabsco electric, Y-valve to discharge directly overboard or to holding tank, deck discharge
• New Holding tank, all new sanitary hoses, and re-routing of hoses to be more efficient  (2023)
• Tank gauges
• Bilge pumps: Rule 2000gph, 2 x Rule 500gph, 2 x Attwood 1100gph
• Shower sump pump on both fwd and aft showers
• Through hulls: Bronze ball valves
• Separate diesel tank for Espar forced air heating

 INSTRUMENTS

• Lower helm:
• Chartplotter: Garmin 4010MFD, AIS
• Radar: Garmin HD overlay on Chartplotter
• Depth: Lowrence digital depth
• VHF: Standard Horizon Eclipse
• Upper helm:
• Chartplotter: Garmin 5212 MFD, AIS
• Radar: Garmin HD overlay on Chartplotter
• VHF: Standard Horizon Matrix

 FLYBRIDGE AND DECK EQUIPMENT

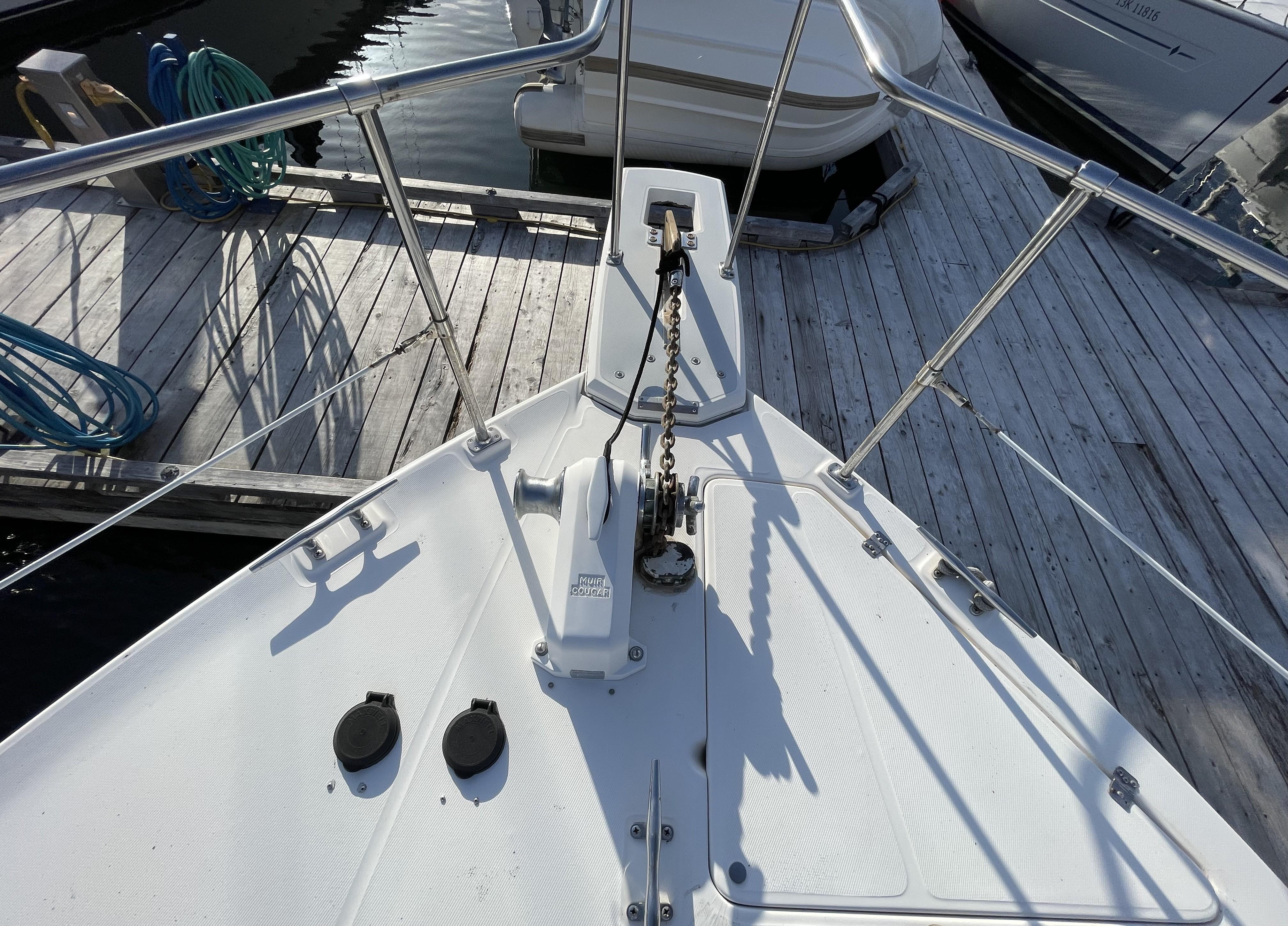

• Windlass: Muir Cougar 12V, up/down foot switches

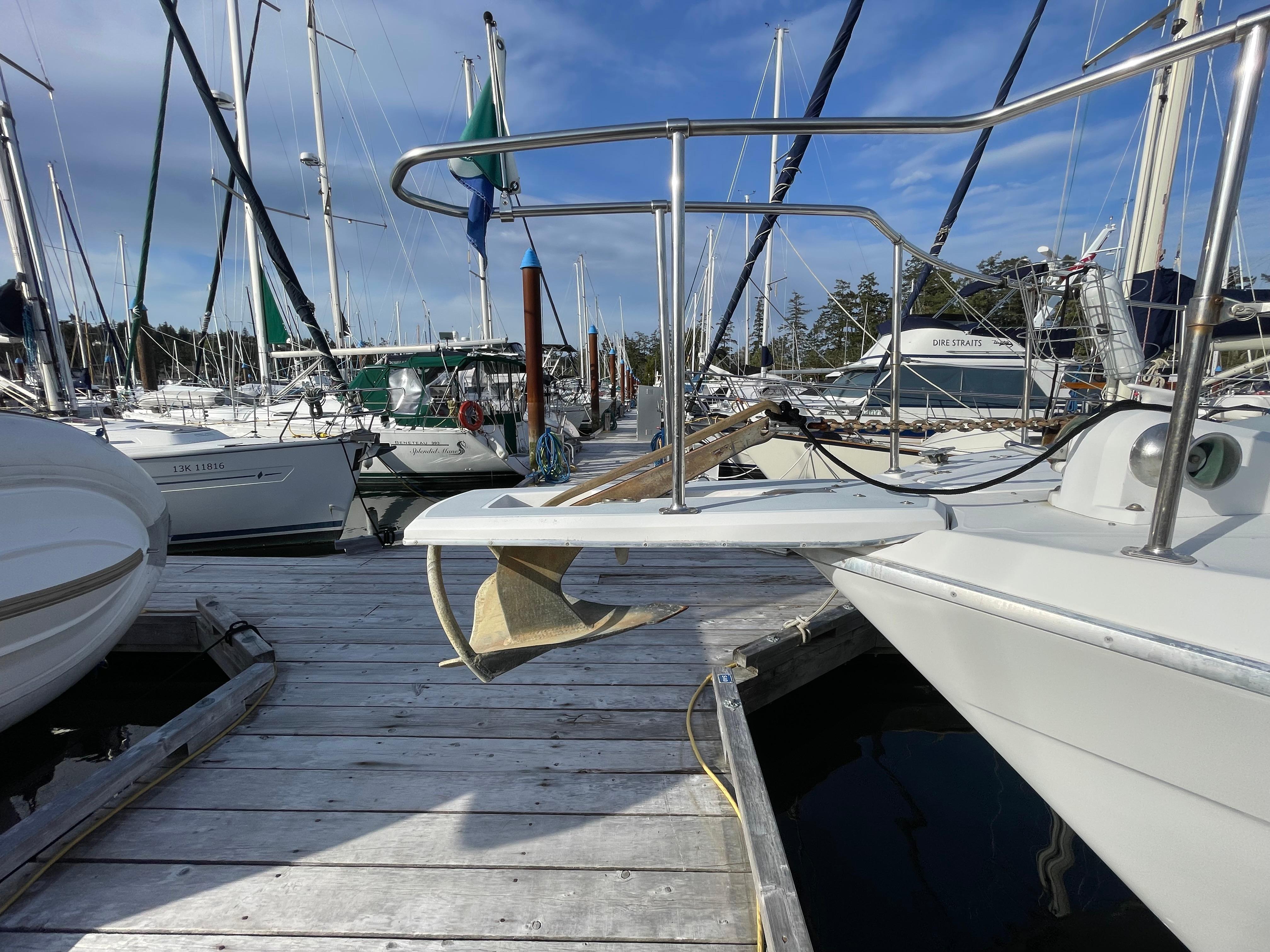

• Anchor: Manson 60lbs, 150’ 5/16th chain, 100’ ¾” rode
• Fender holders on the bow railing

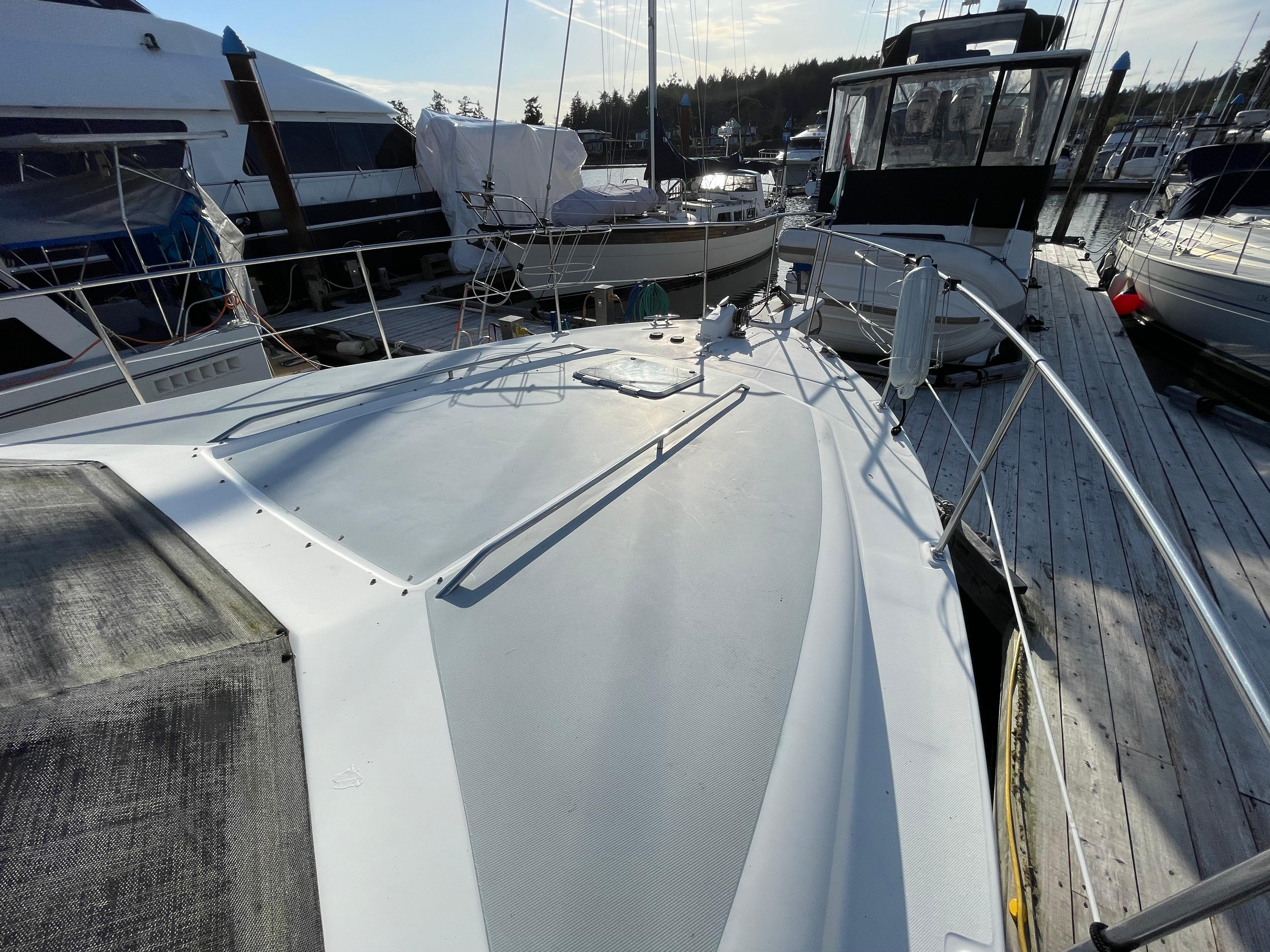

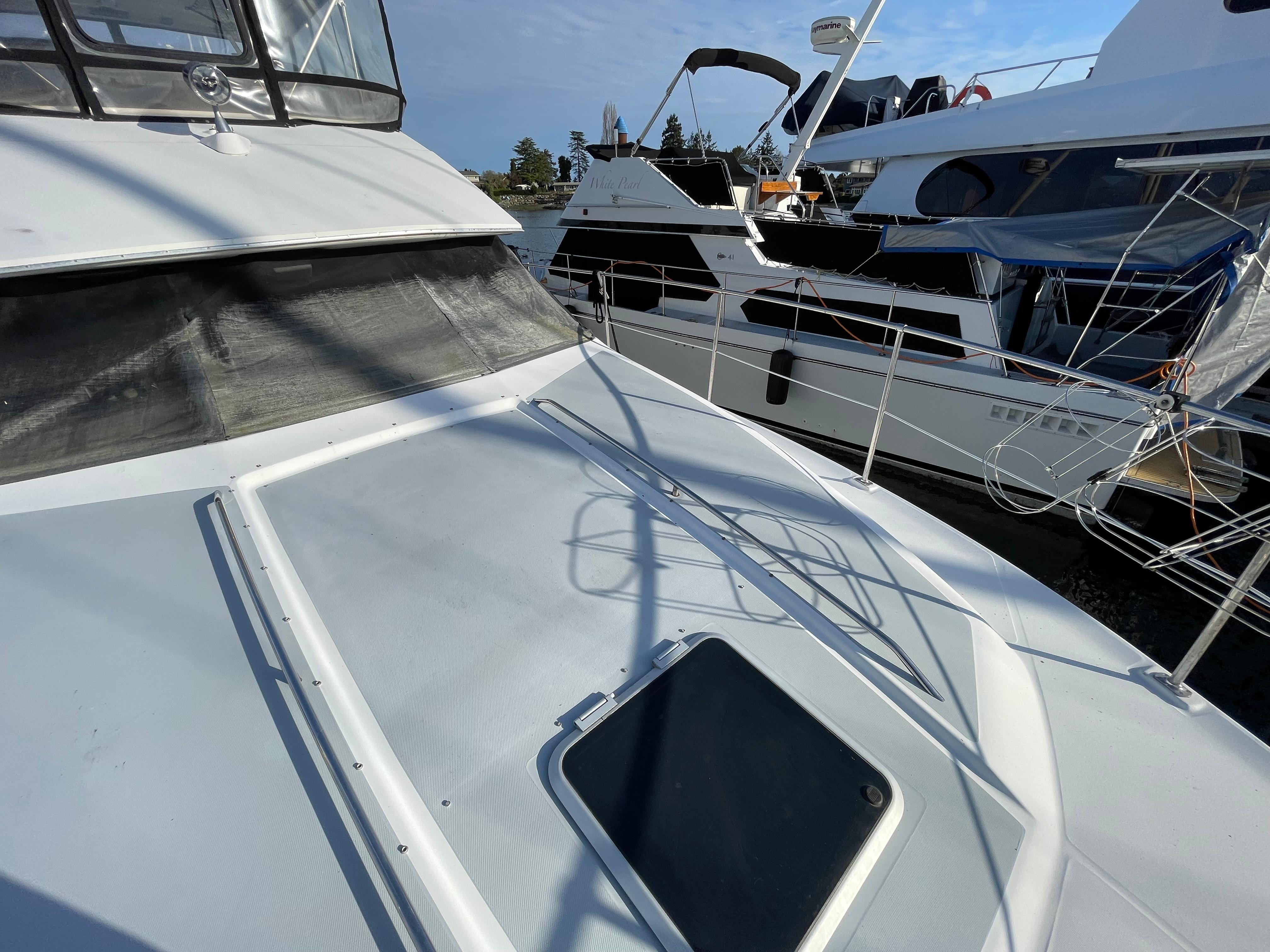

• Fresh and salt-water wash downs on the foredeck

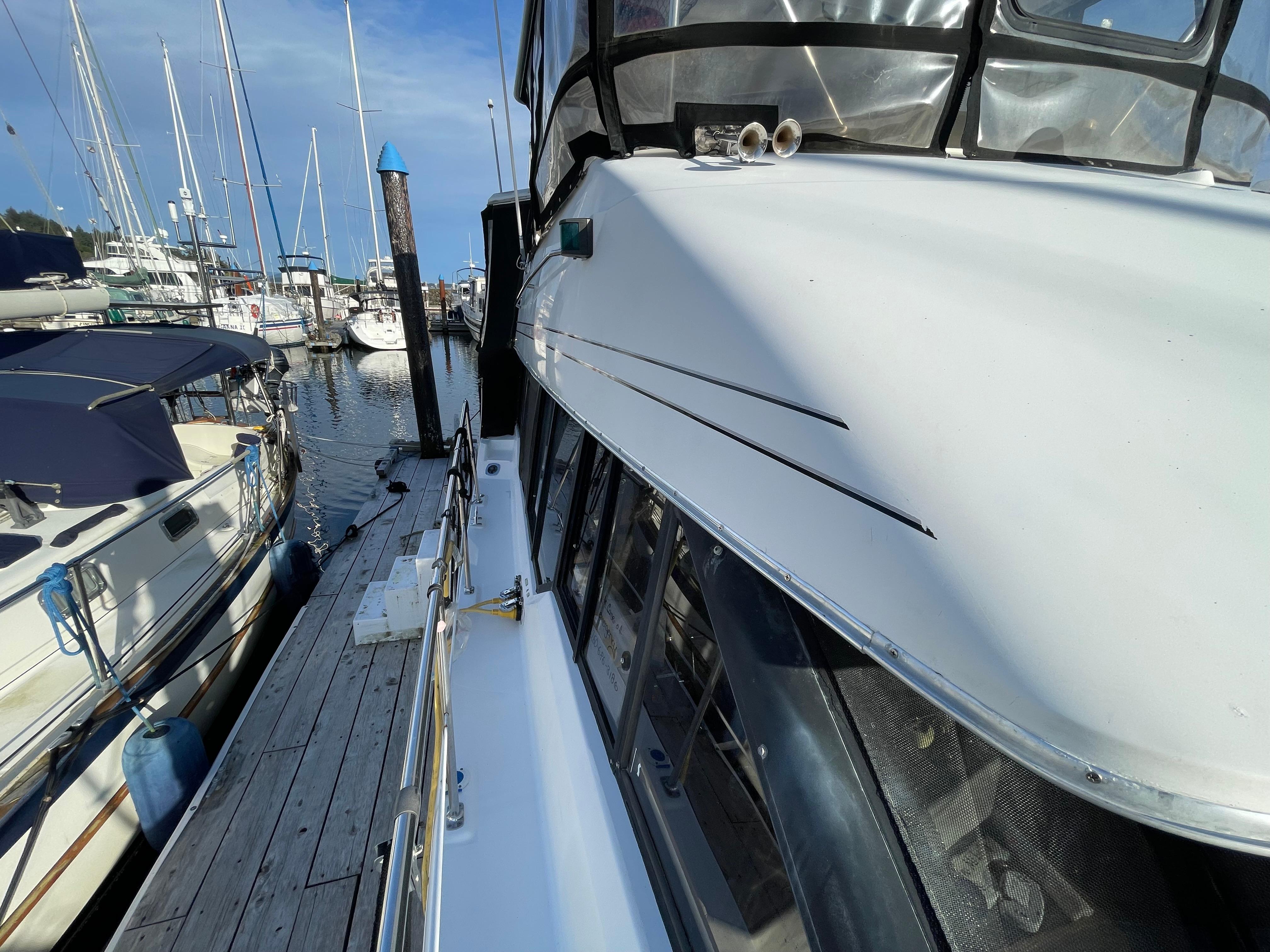

• Safe walk around side decks with hand railing
• Access the aft deck via side decks or swim platform

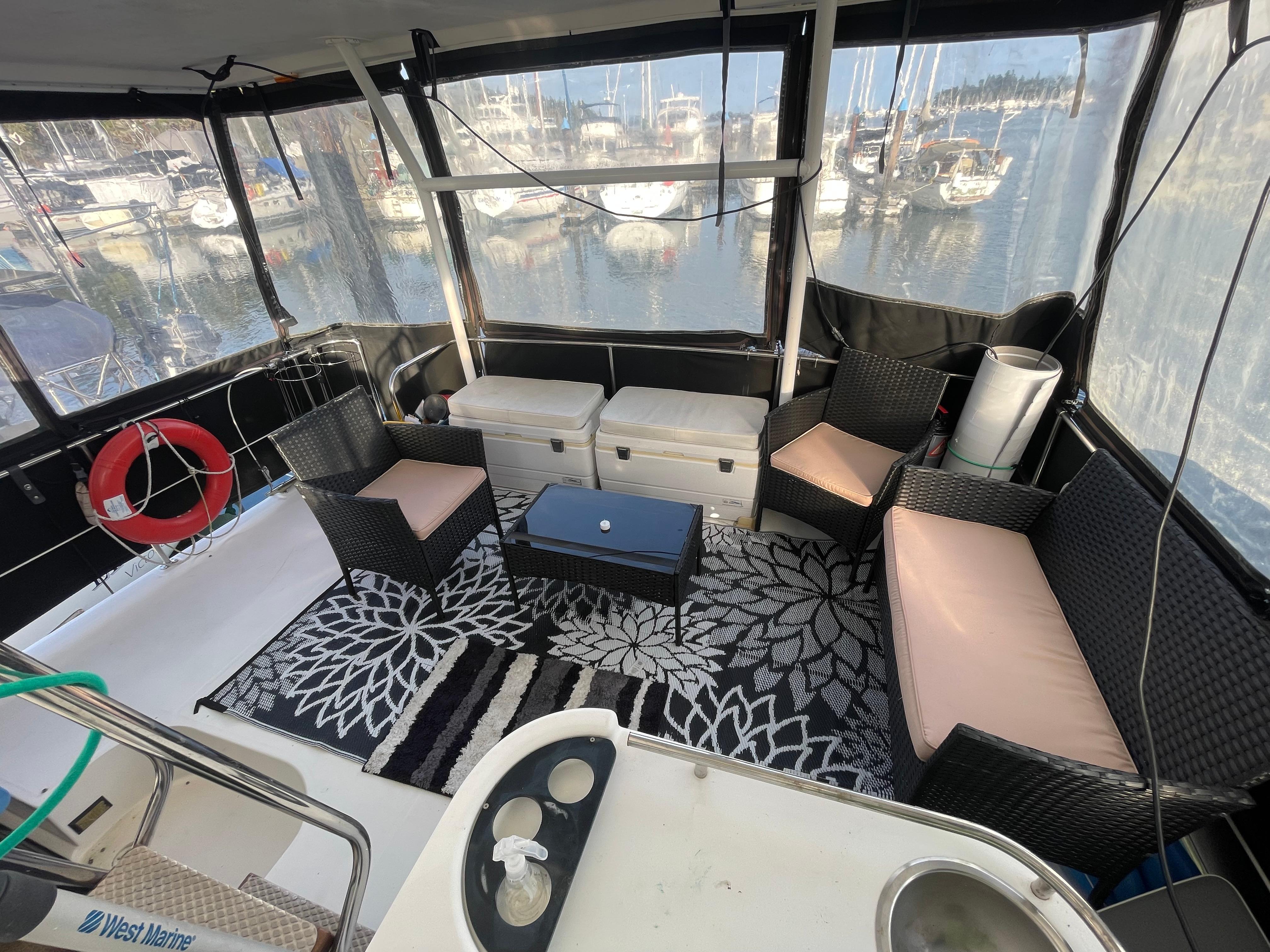

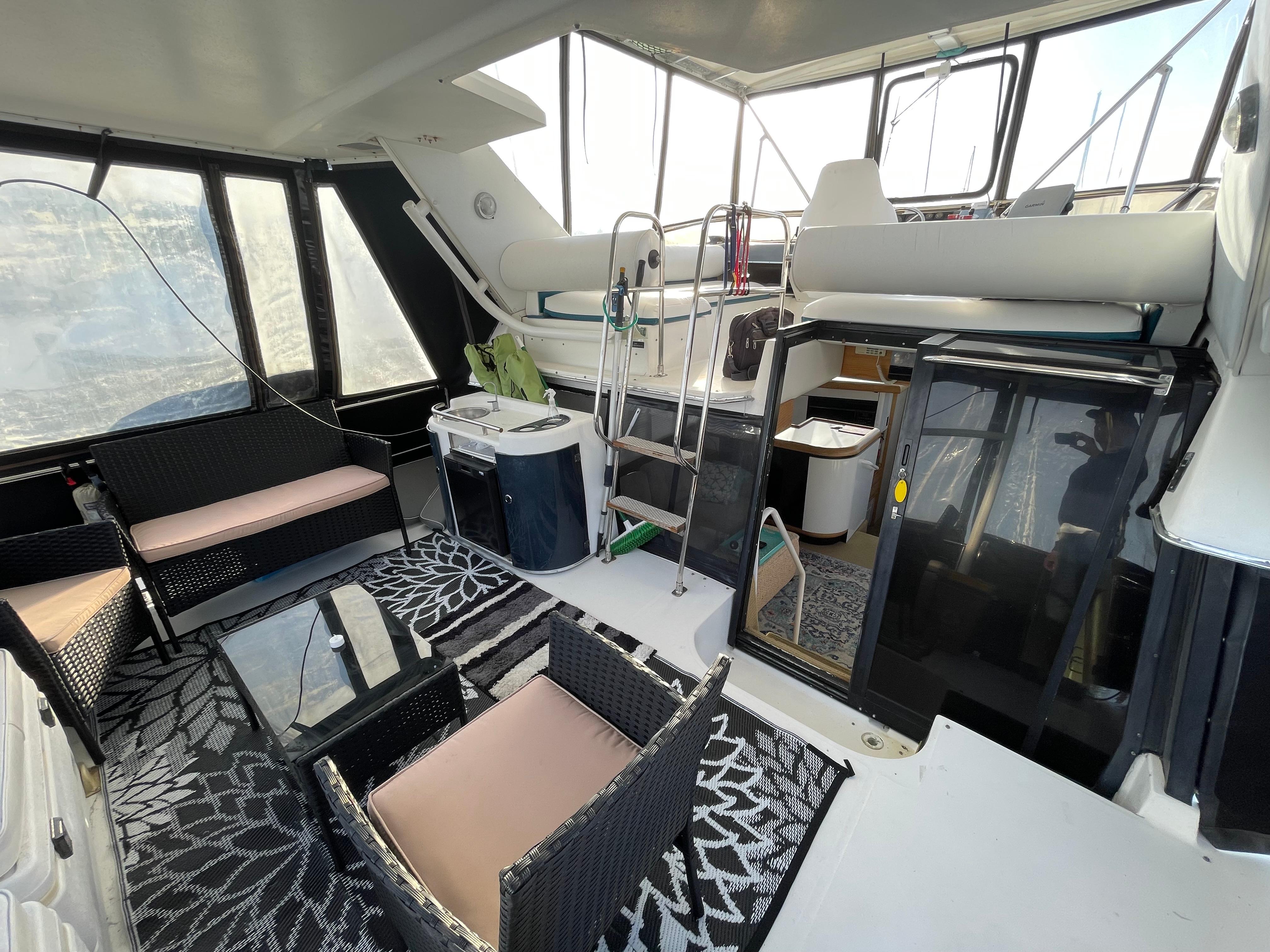

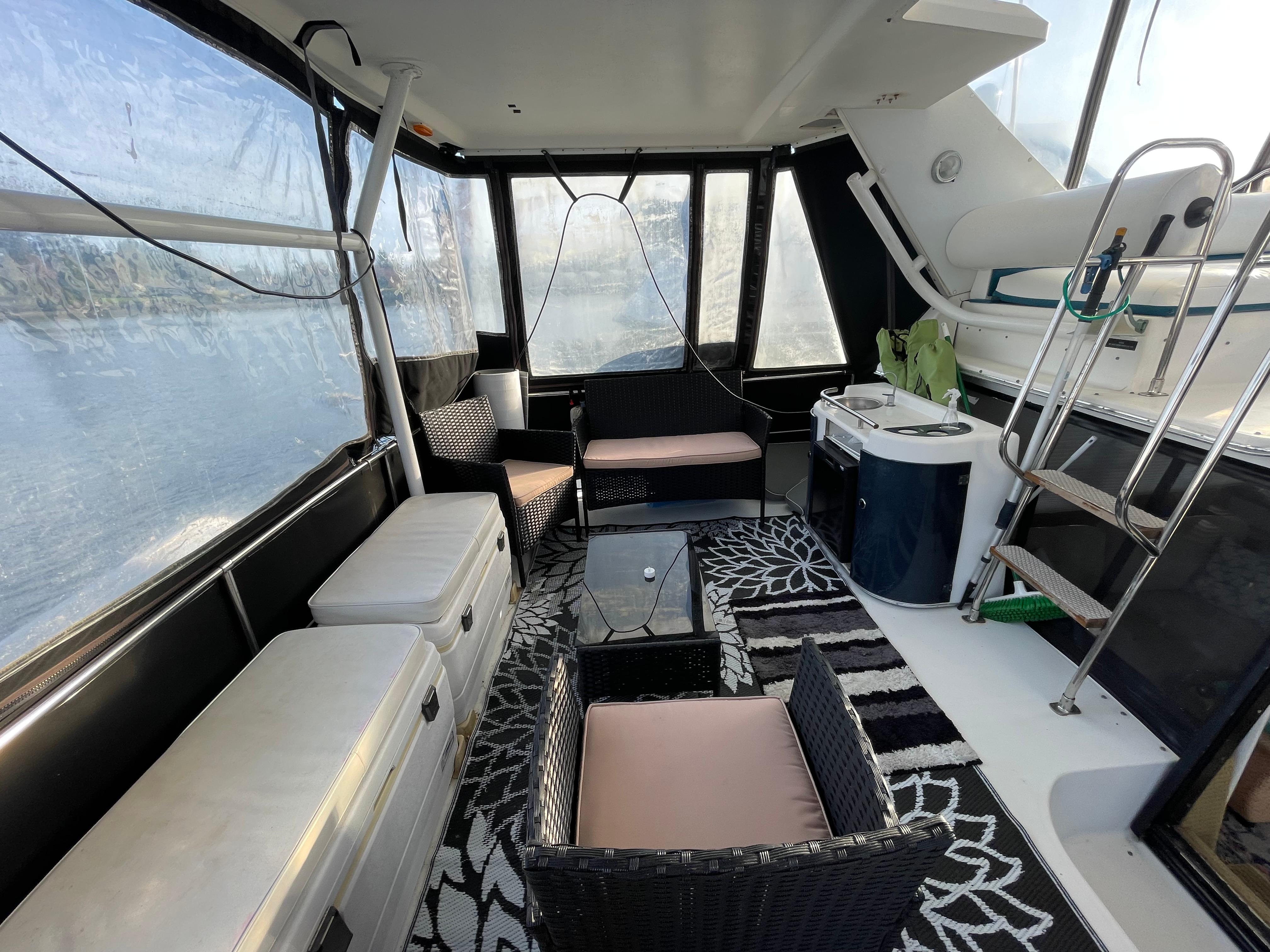

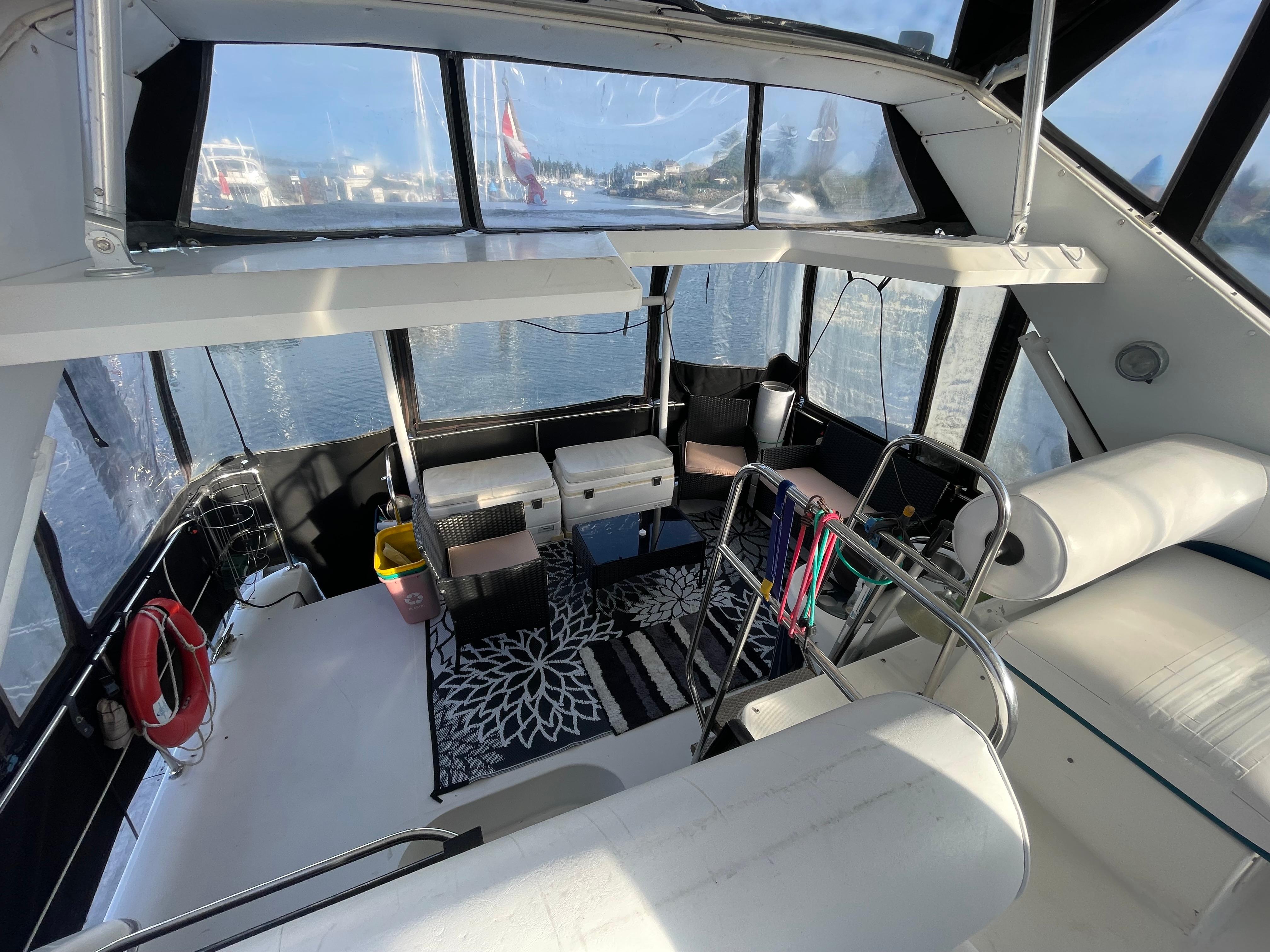

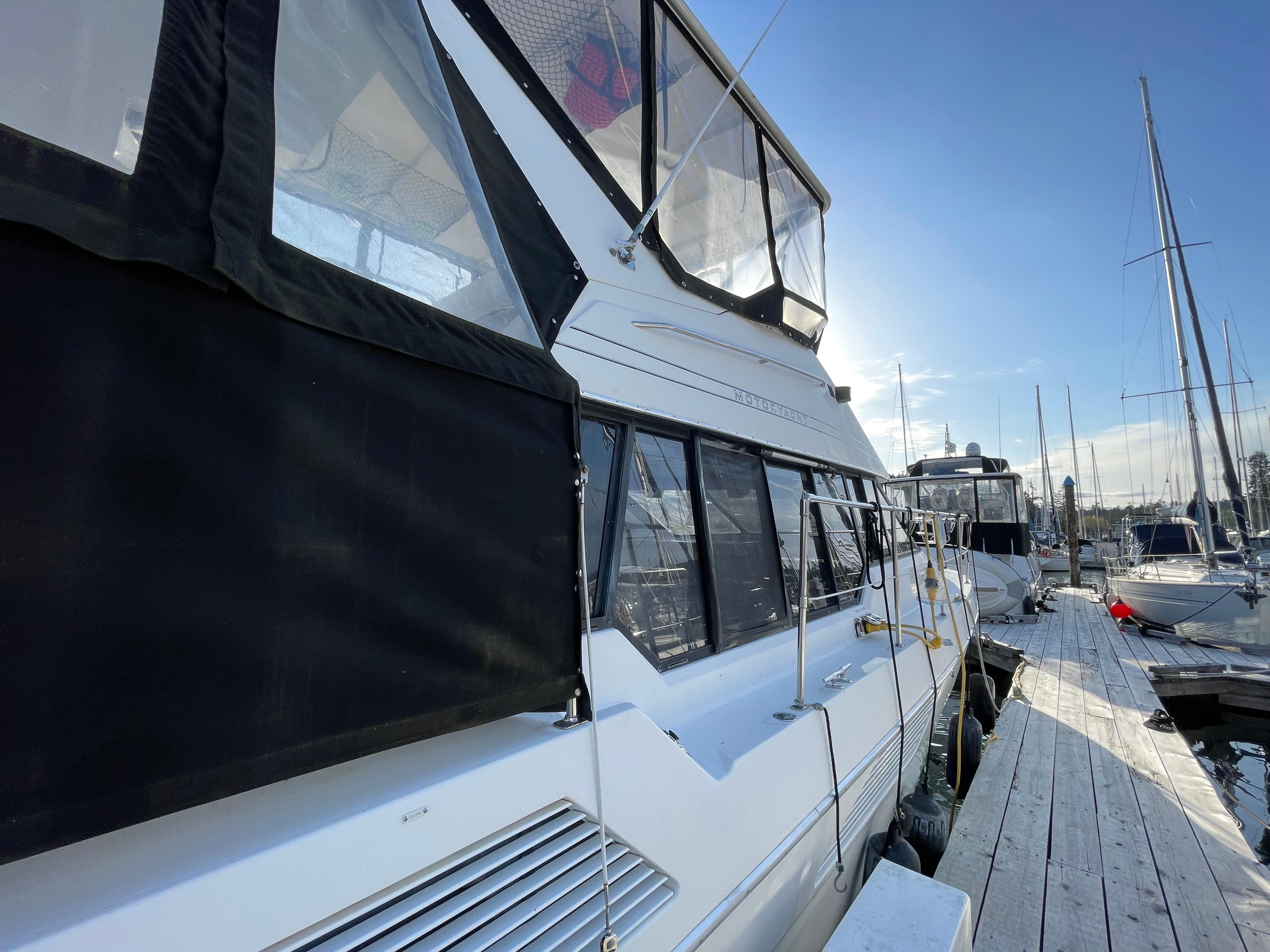

• Both aft deck and flybridge enclosed with FRP hard tops and canvas role up window enclosure.
• Windshield wiper on center pane of windshield
• 2 x large cooler boxes with cushion seating
• Wet bar includes sink and bar cooler
• Molded FRP stairs to swim platform
• Access the flybridge from raised aft deck S/S stairs

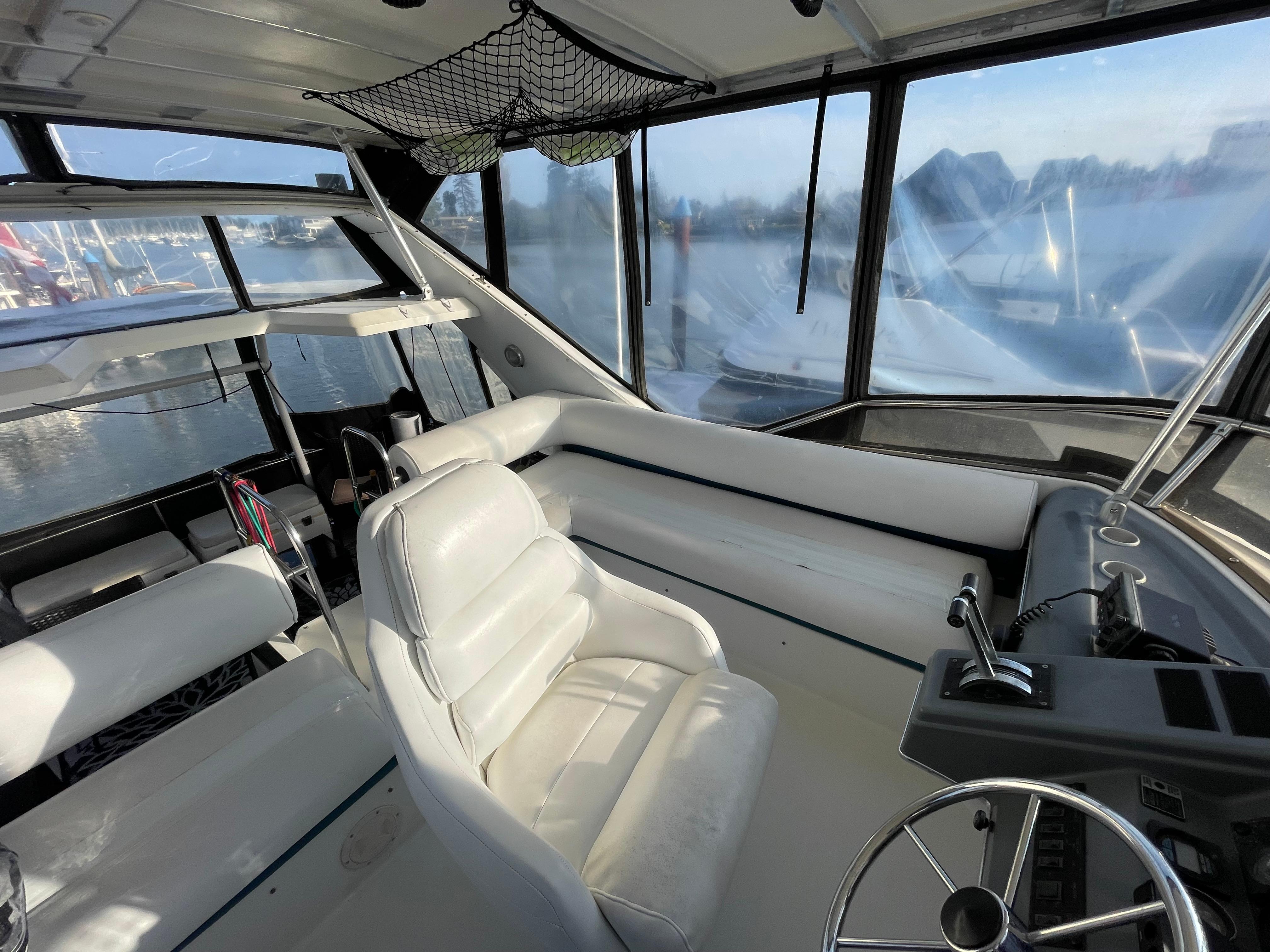

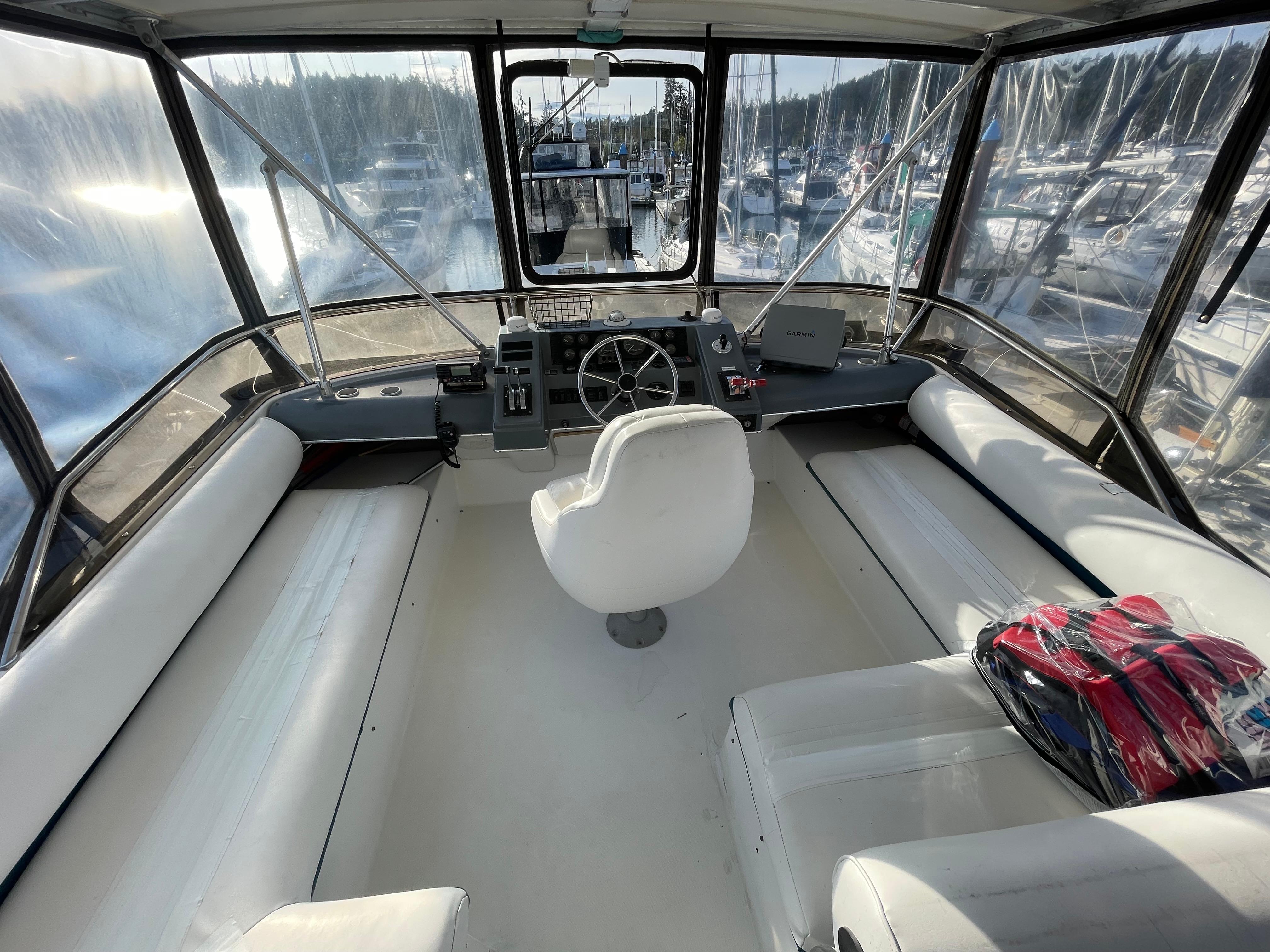

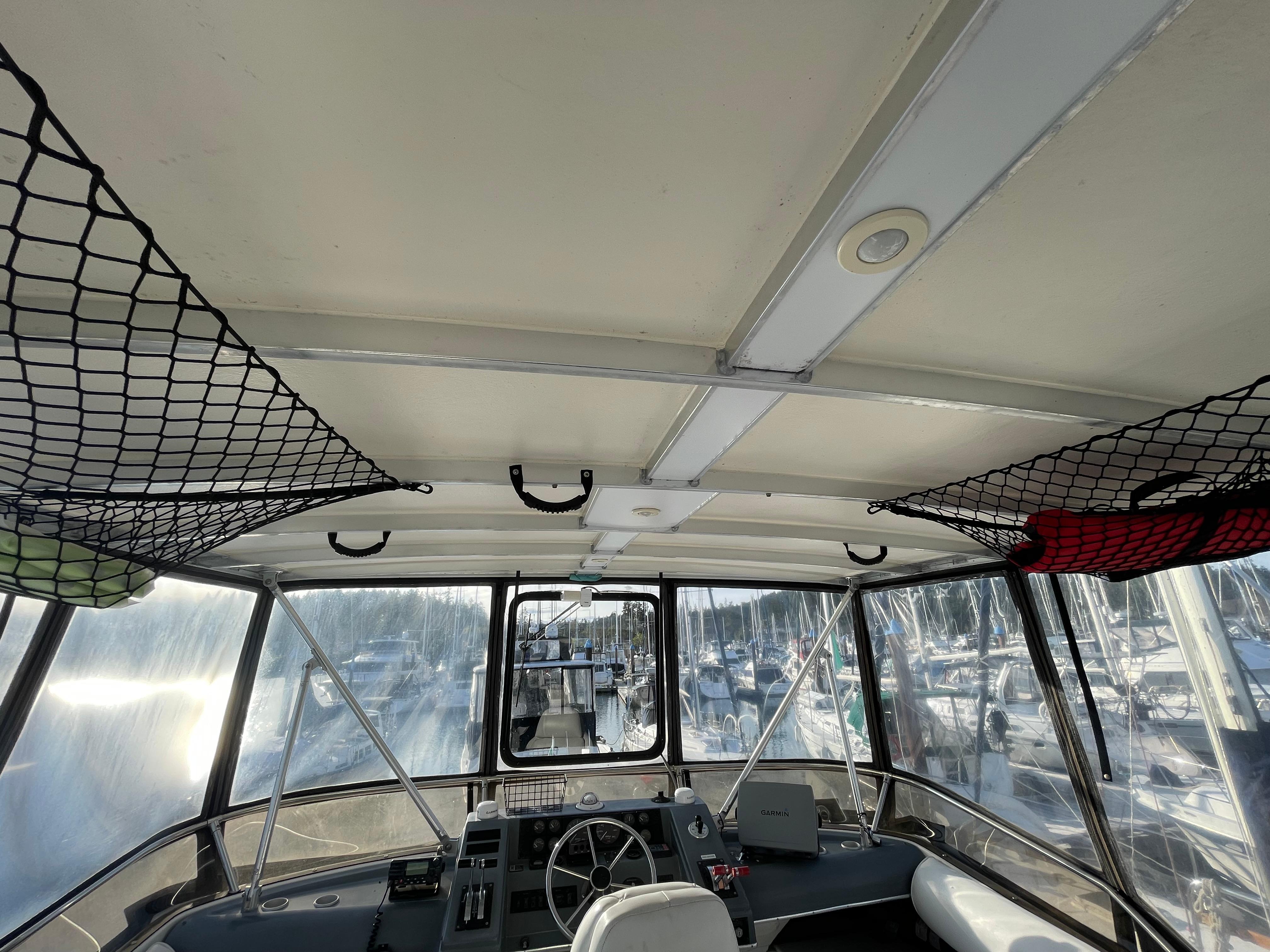

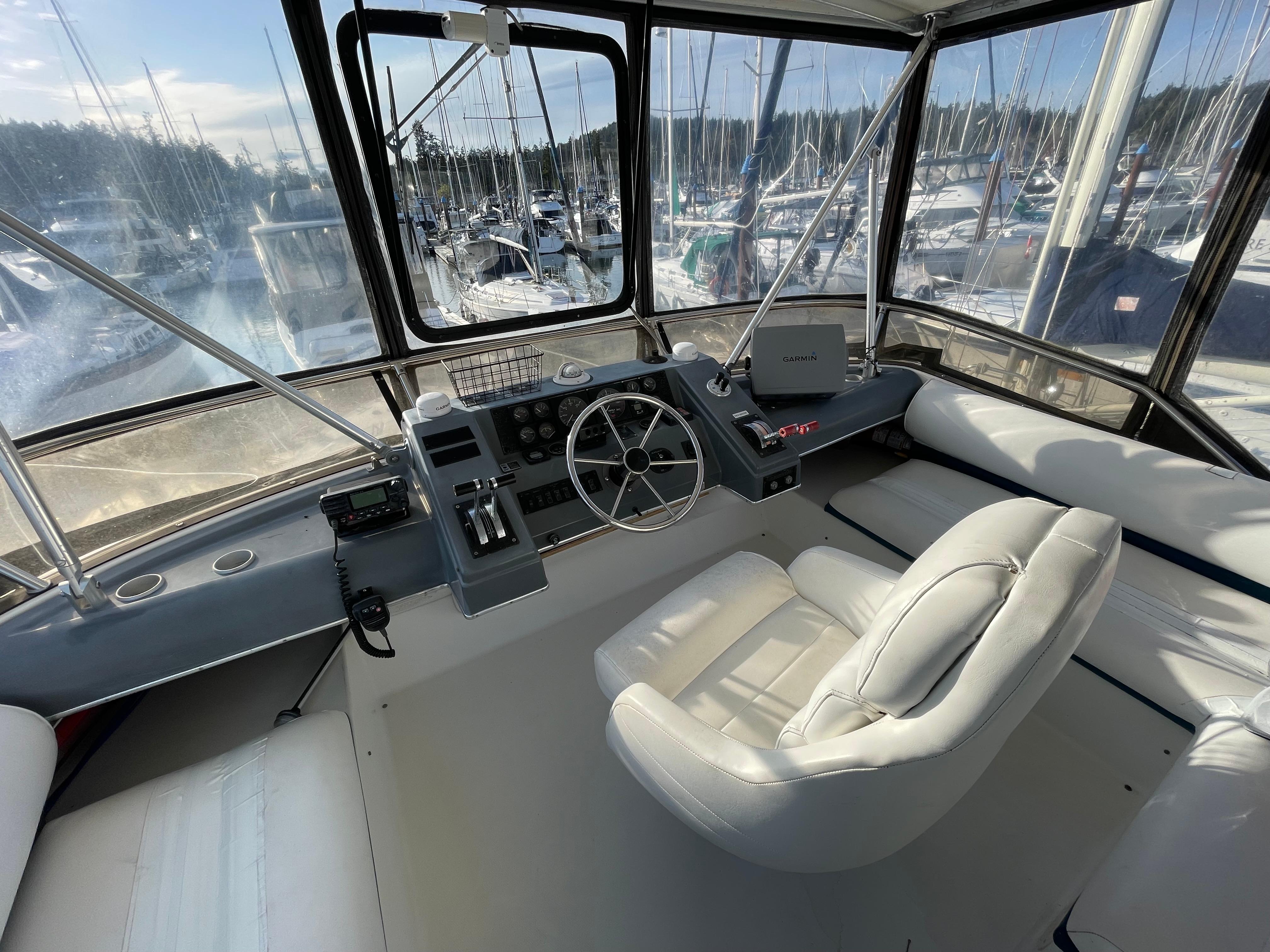

• Flybridge seating includes an L-shaped seat and long bench seat
• Single swivel helm seat

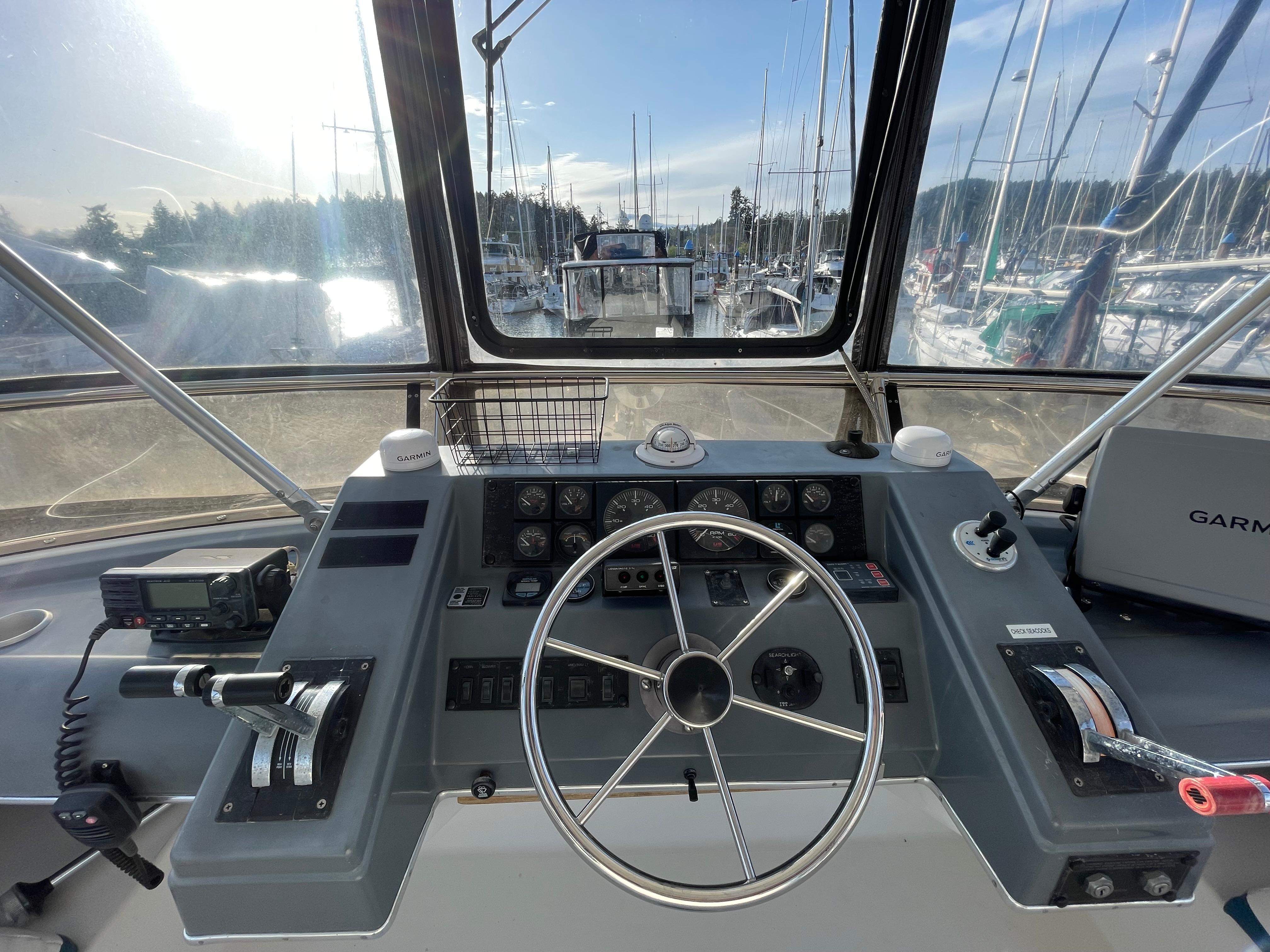

• Flybridge helm includes analogue engine gauges, thruster controls, trim tabs, spotlight and windlass control, chartplotter, VHF

 ADDITIONAL EQUIPMENT

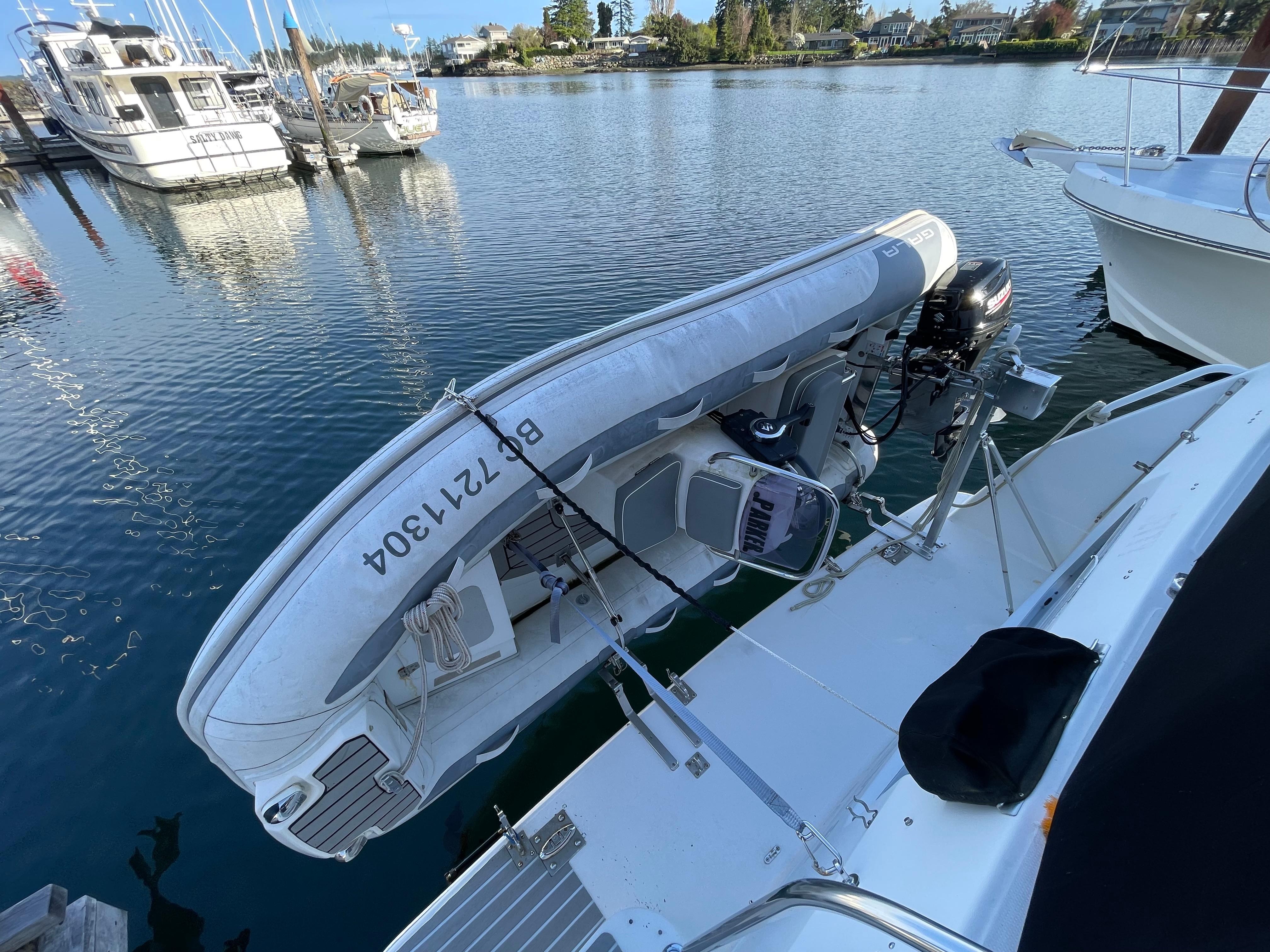

• Dinghy: Gala aluminum 10’ 7” (2021)

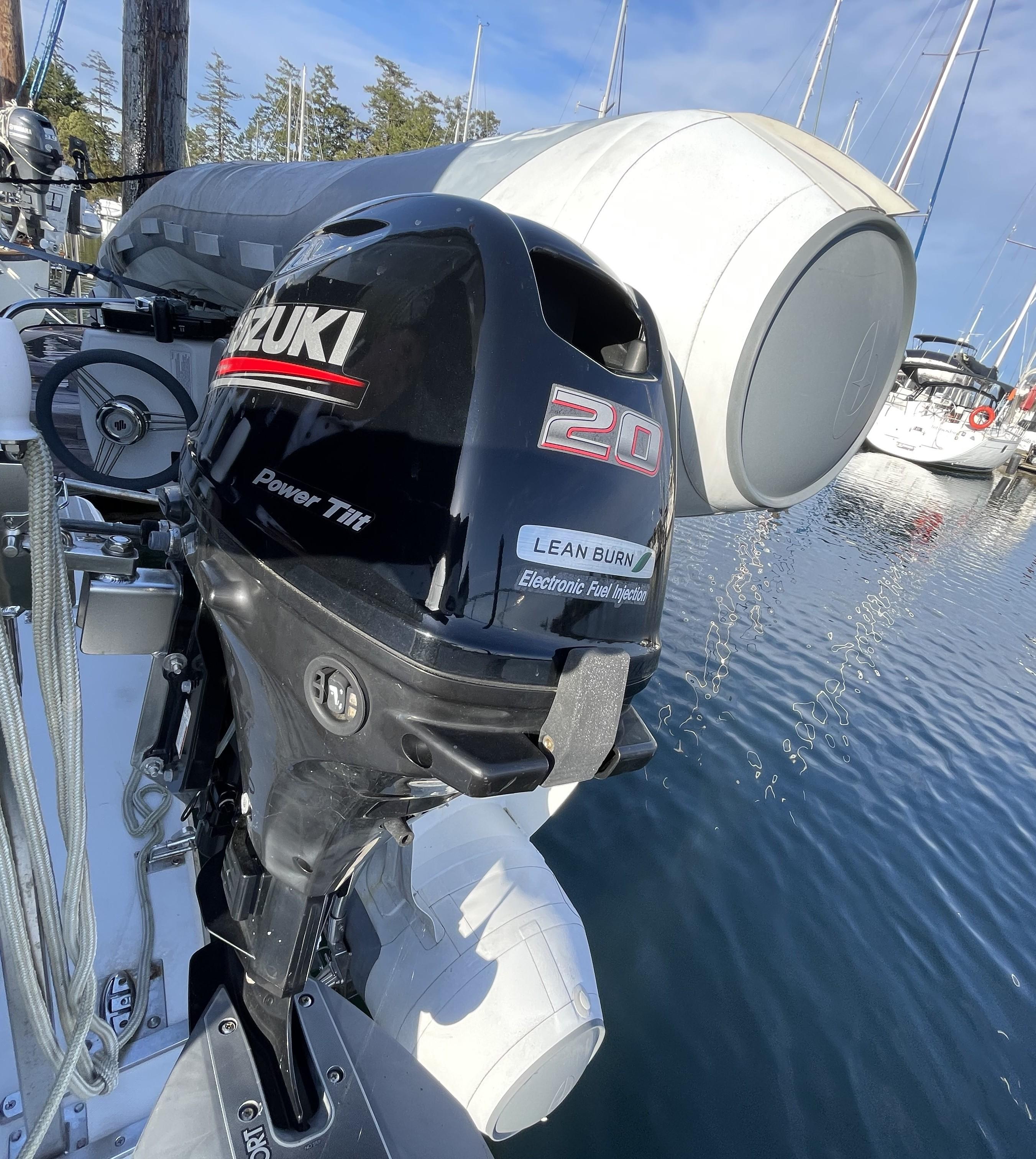

• Outboard: Suzuki 4 stroke (2021)
• Sea Wise manual davit system (2021)
• Magma BBQ
• Stern line mounted on the aft deck

 MAINTENANCE

• Last haul-out: Nov 2024
• Last anti-fouling: Nov 2024
• Last zinc(s) change: Nov 2024
• Last engine oil change: Jan 2023
