1991 Bayliner 4387 Aft cabin

1991 Bayliner 4387 Aft cabin   Specifications

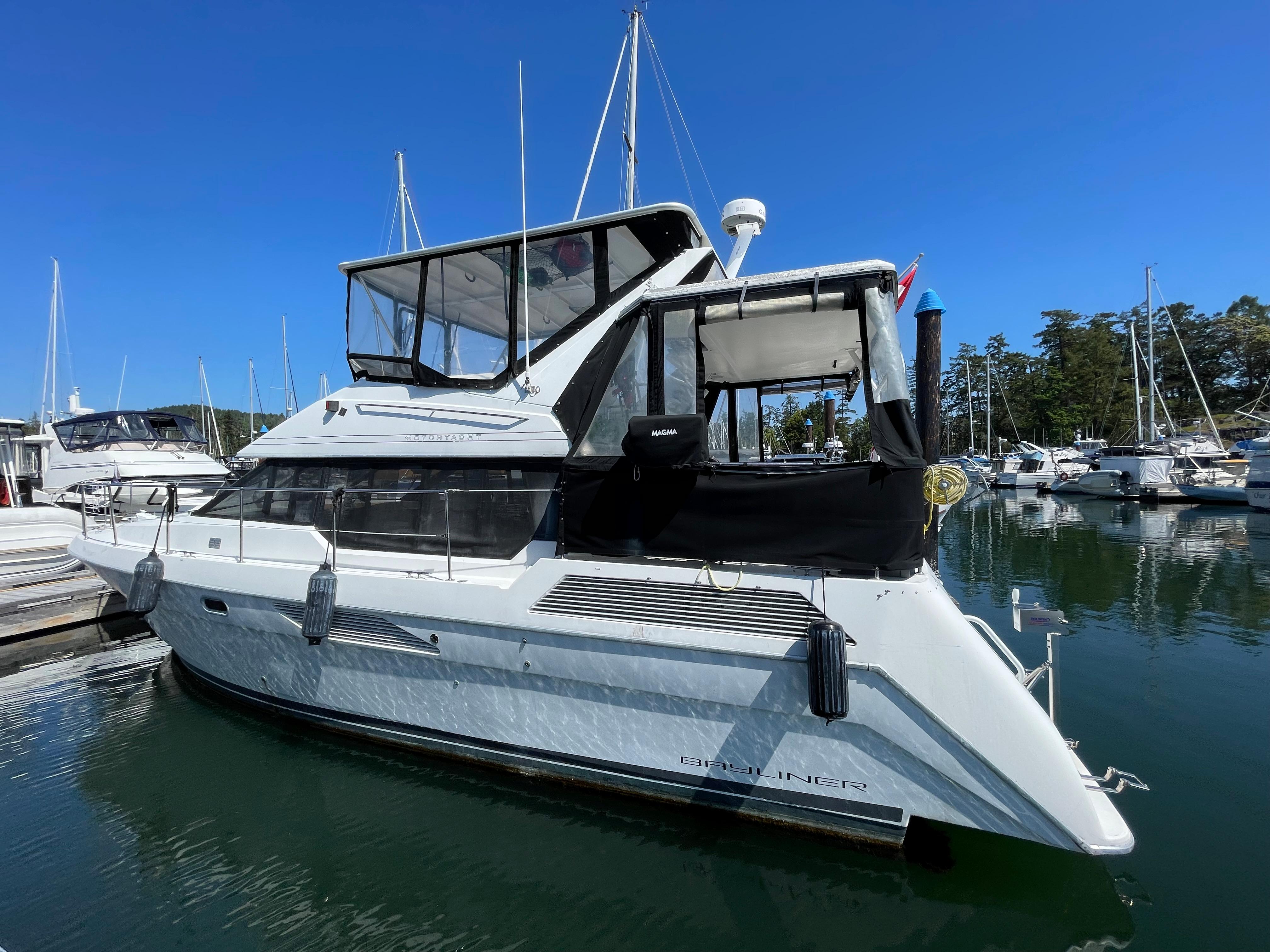

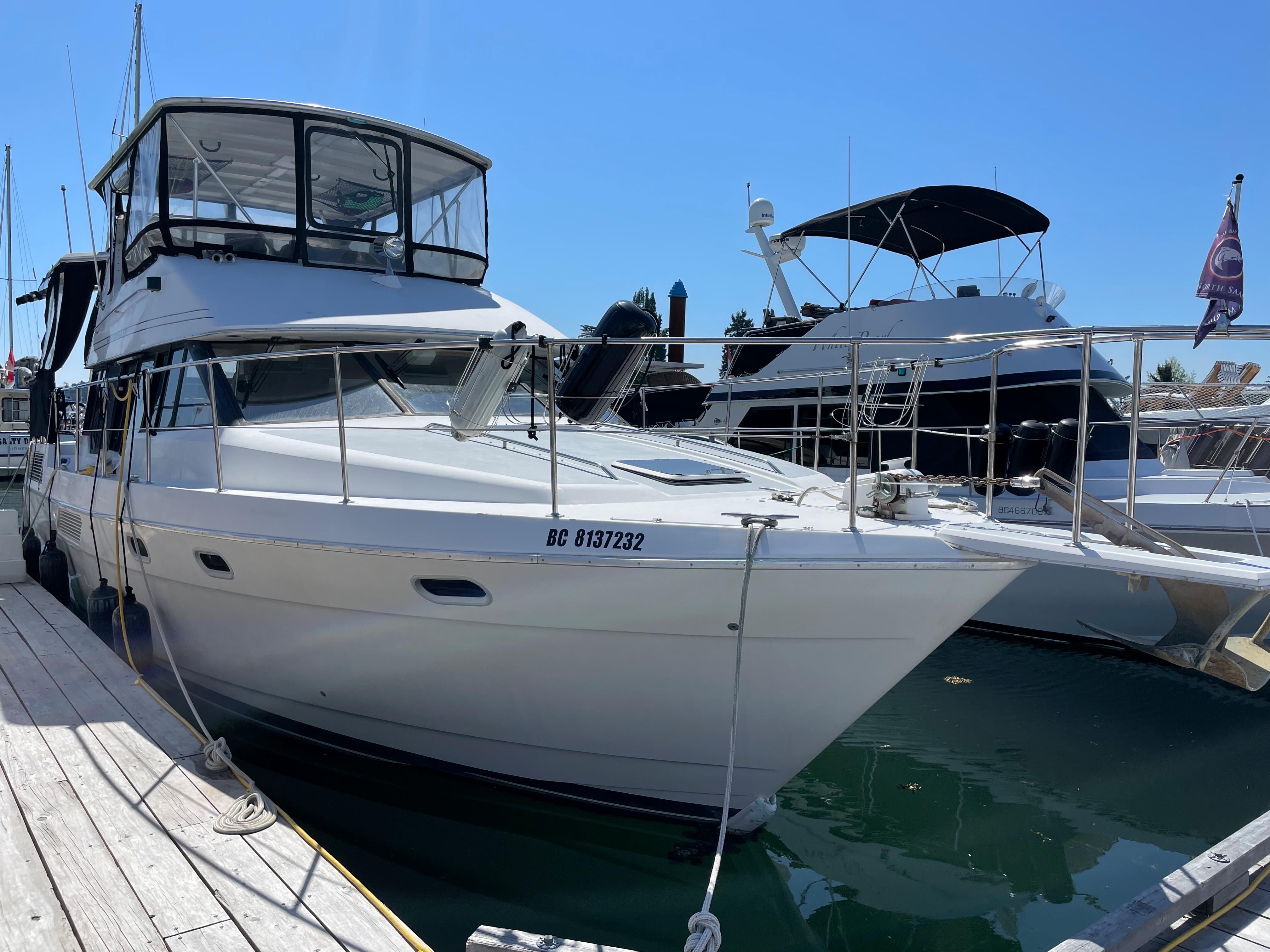

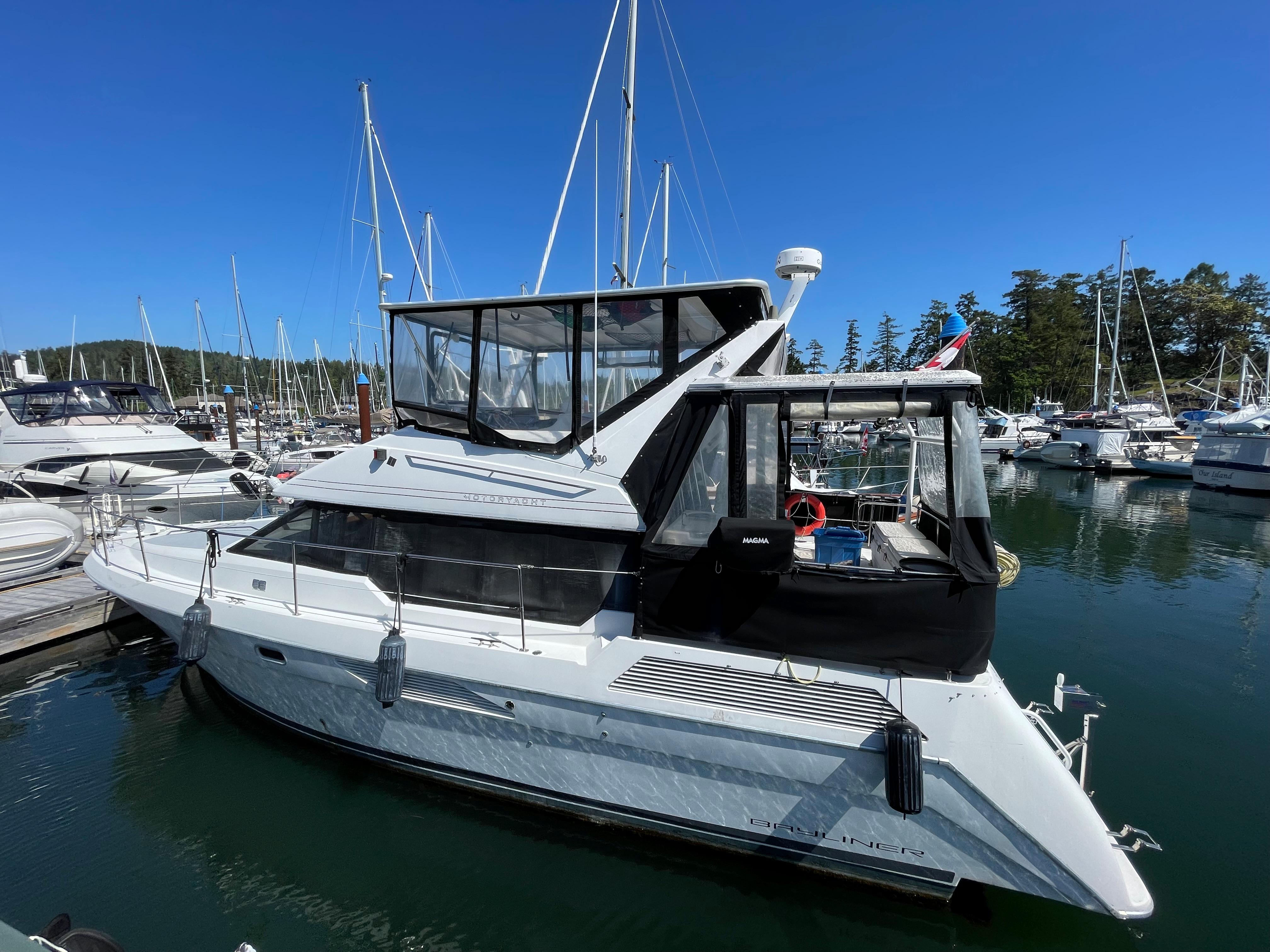

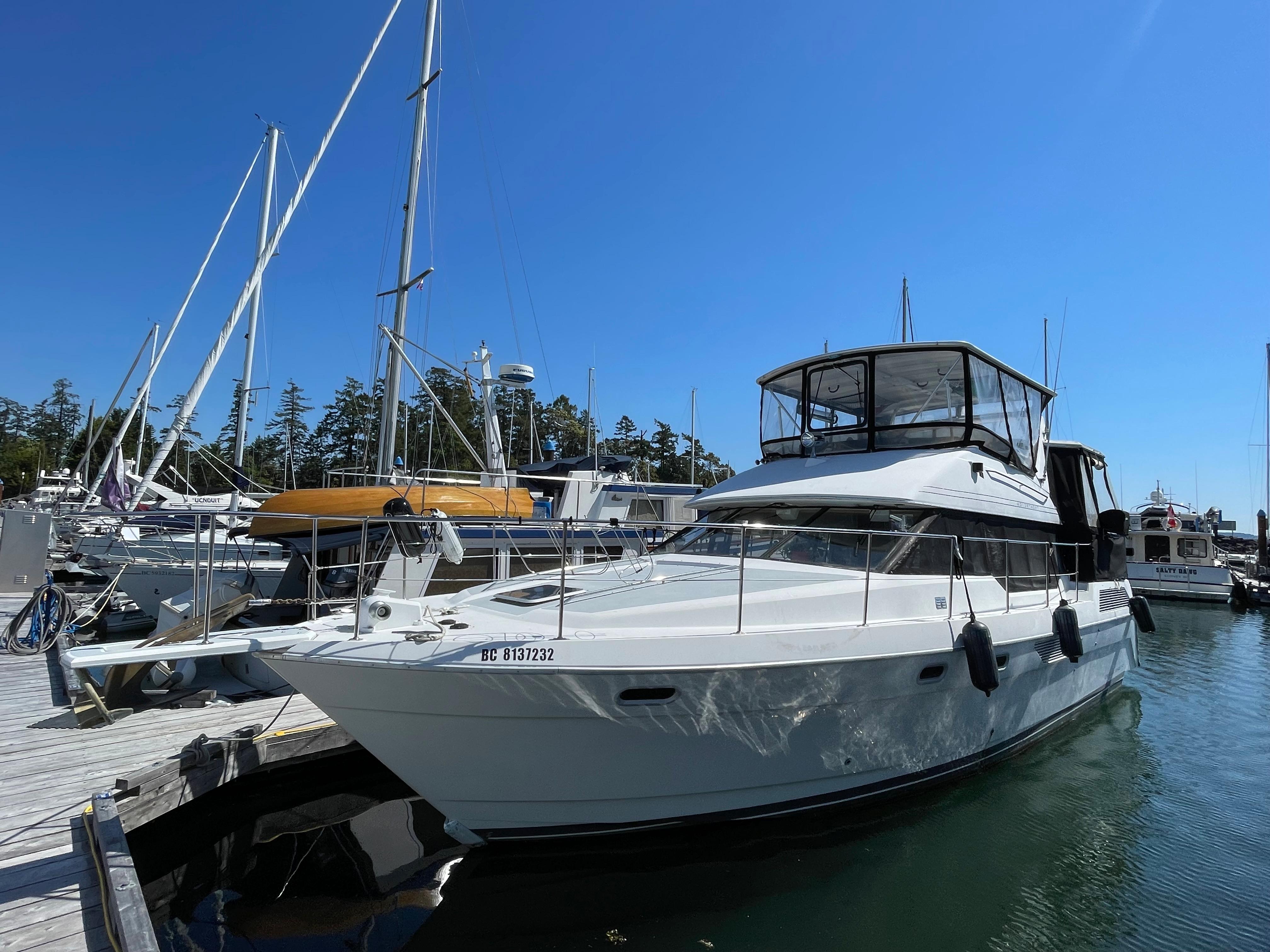

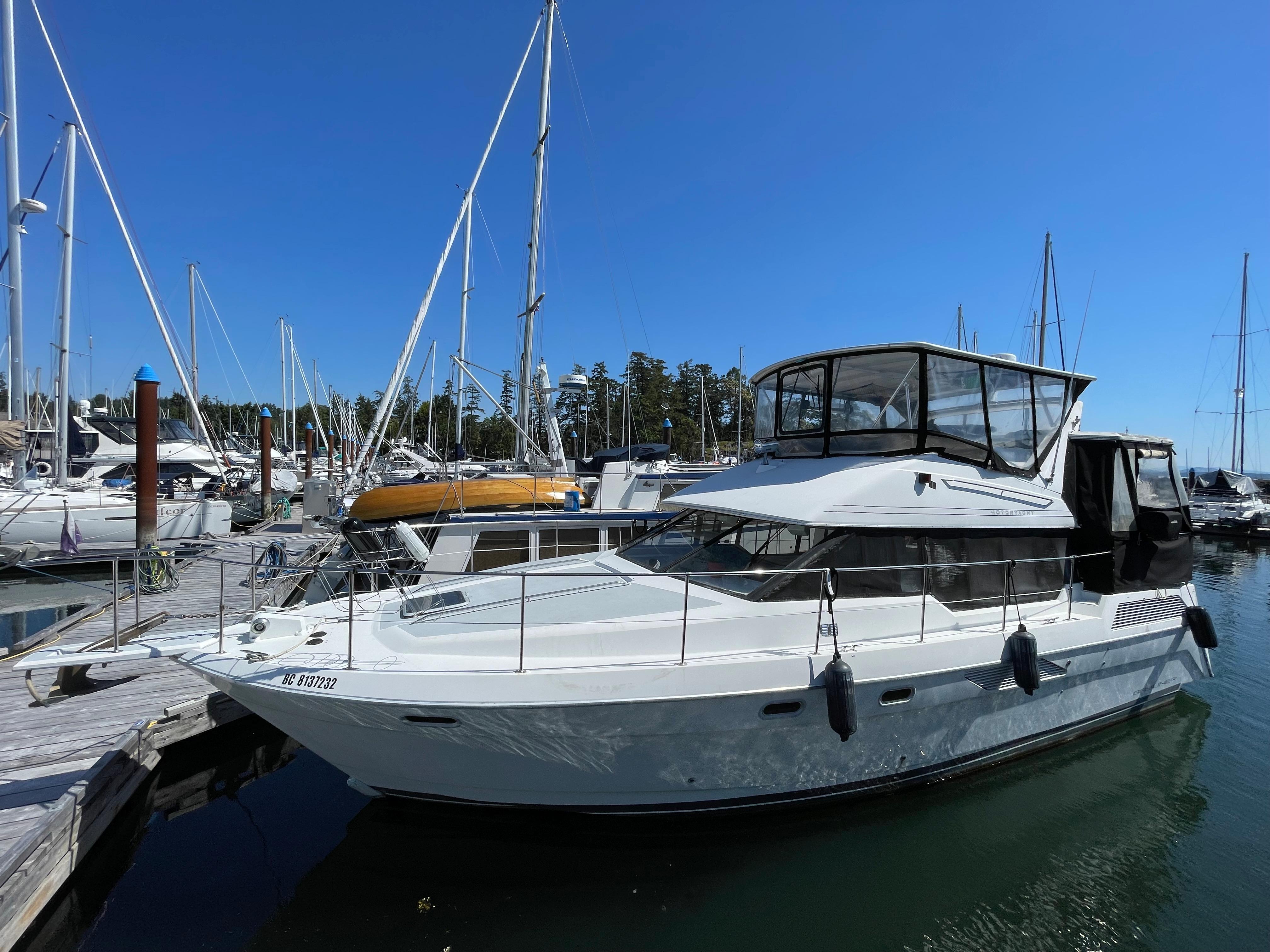

Bayliner 4387 Aft Cabin

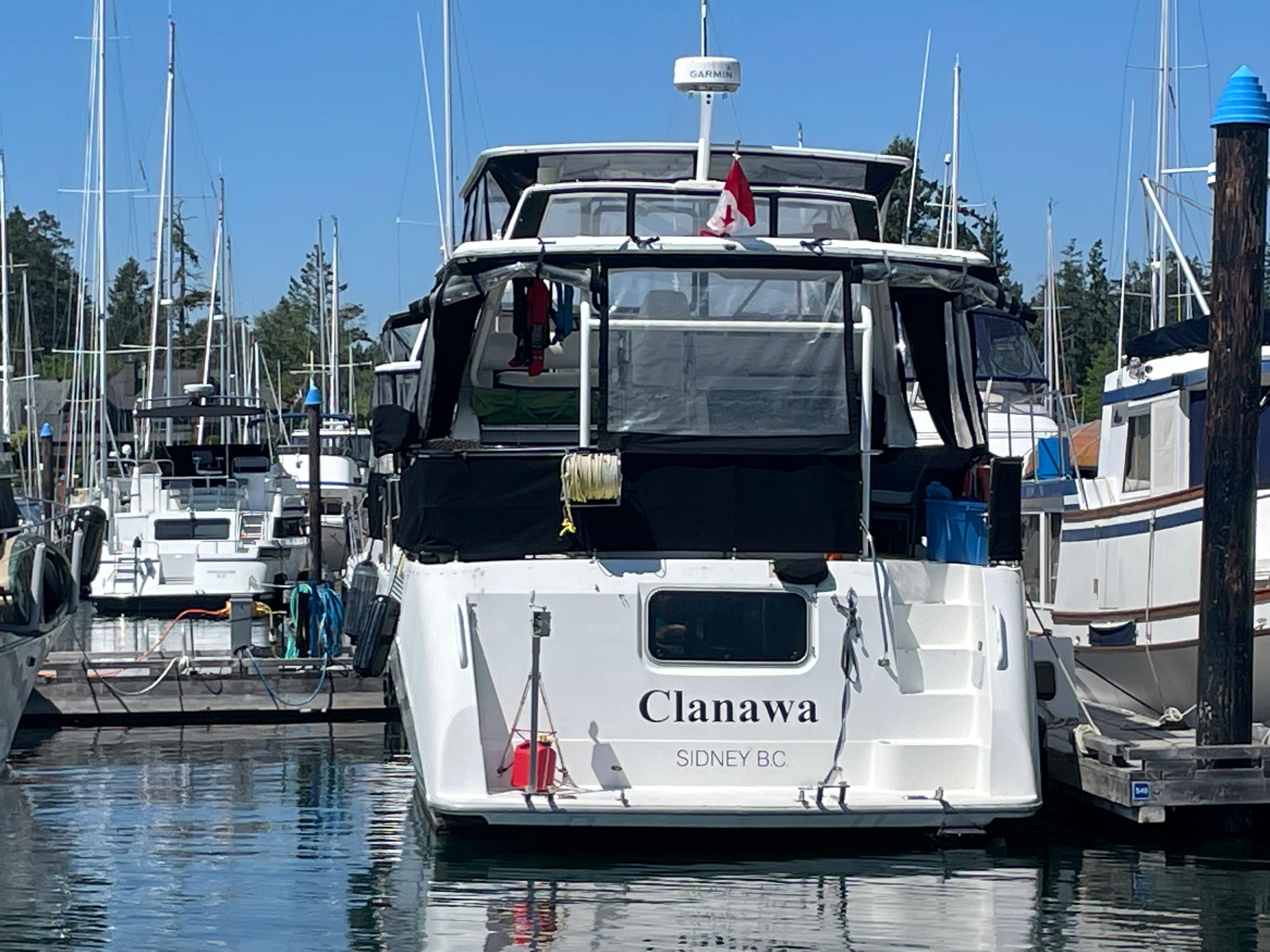

Name............................................................. Clanawa

Year...................................................................... 1991

Builder............................................... Brunswick Group

LOA......................................................................... 43’

Beam.................................................................... 14’3”

Draft ....................................................................... 3’6”

Displacement................................................ 19,500lbs

Hull  ..............................................................Fiberglass

Deck............................................................. Fiberglass

Steering..................................... Twin stations hydraulic

Fuel............................................................... 2 x 150gal

Water................................................................. 100gal

Hot Water............................................................. 11gal

Holding Tank......................................................... 60gal

Heat.......................................... Espar Diesel forced air

CONSTRUCTION

•  Hull material is FRP and gel coated
•  Hull and deck joint: shoe box style
•  Frames and stringers: 4 primary stringers, plywood frames encased in FRP
•  Decking: plywood cored FRP
•  Modified V with prop pockets

INTERIOR

•  Clean, bright, and very spacious
•  Beige carpeting, white cabinetry with wood trim
•  Heat: Diesel Espar forced air

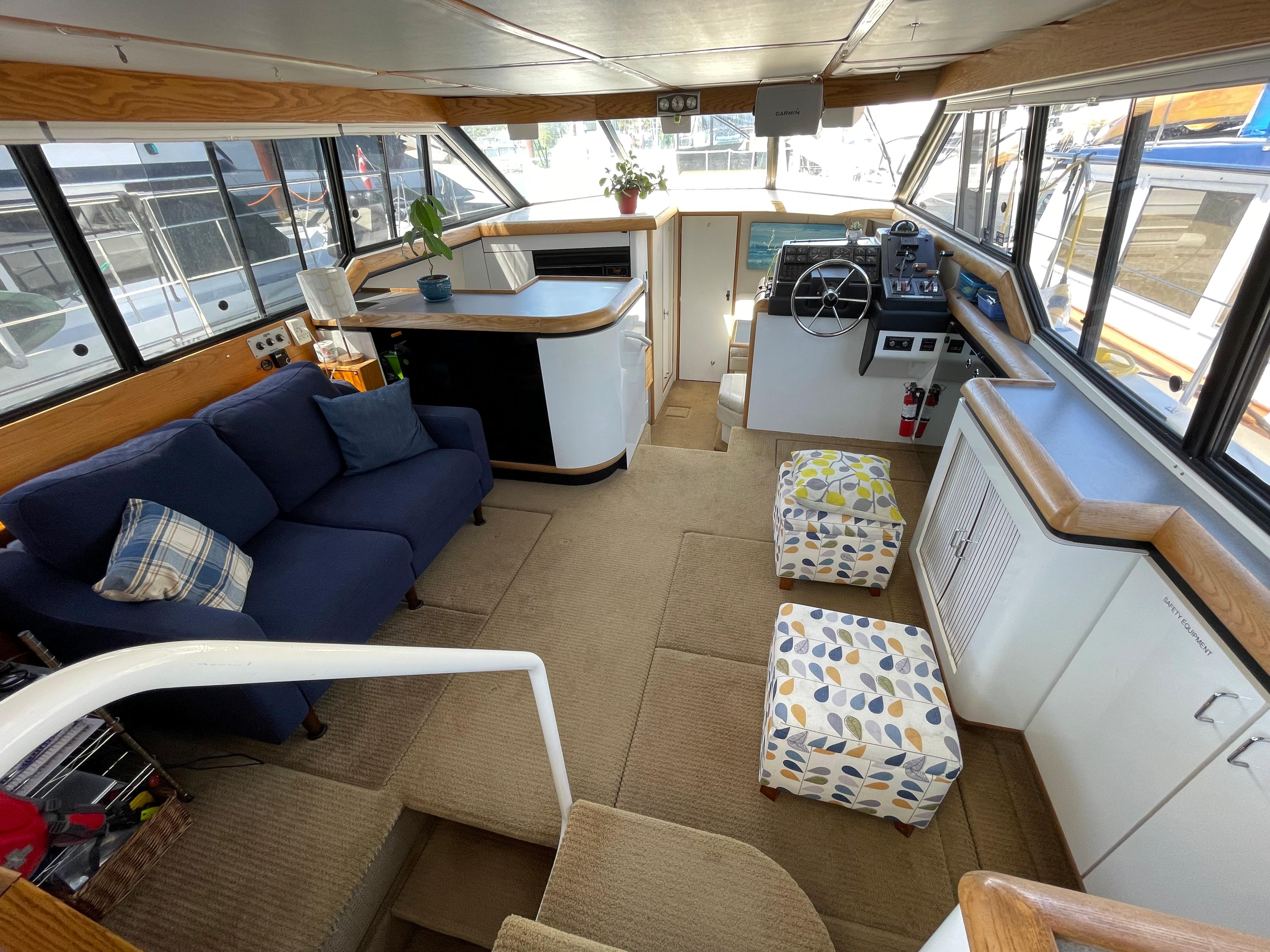

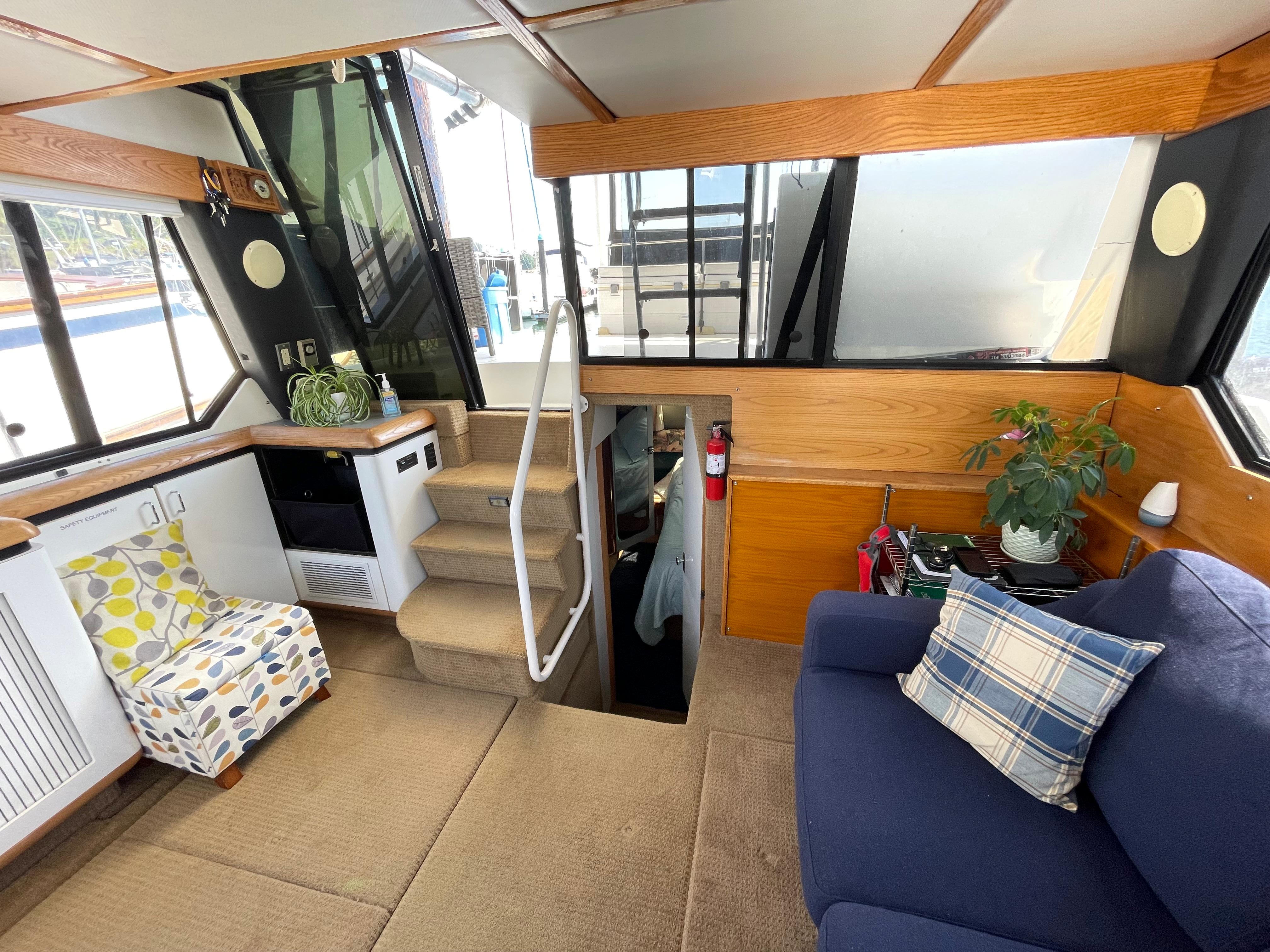

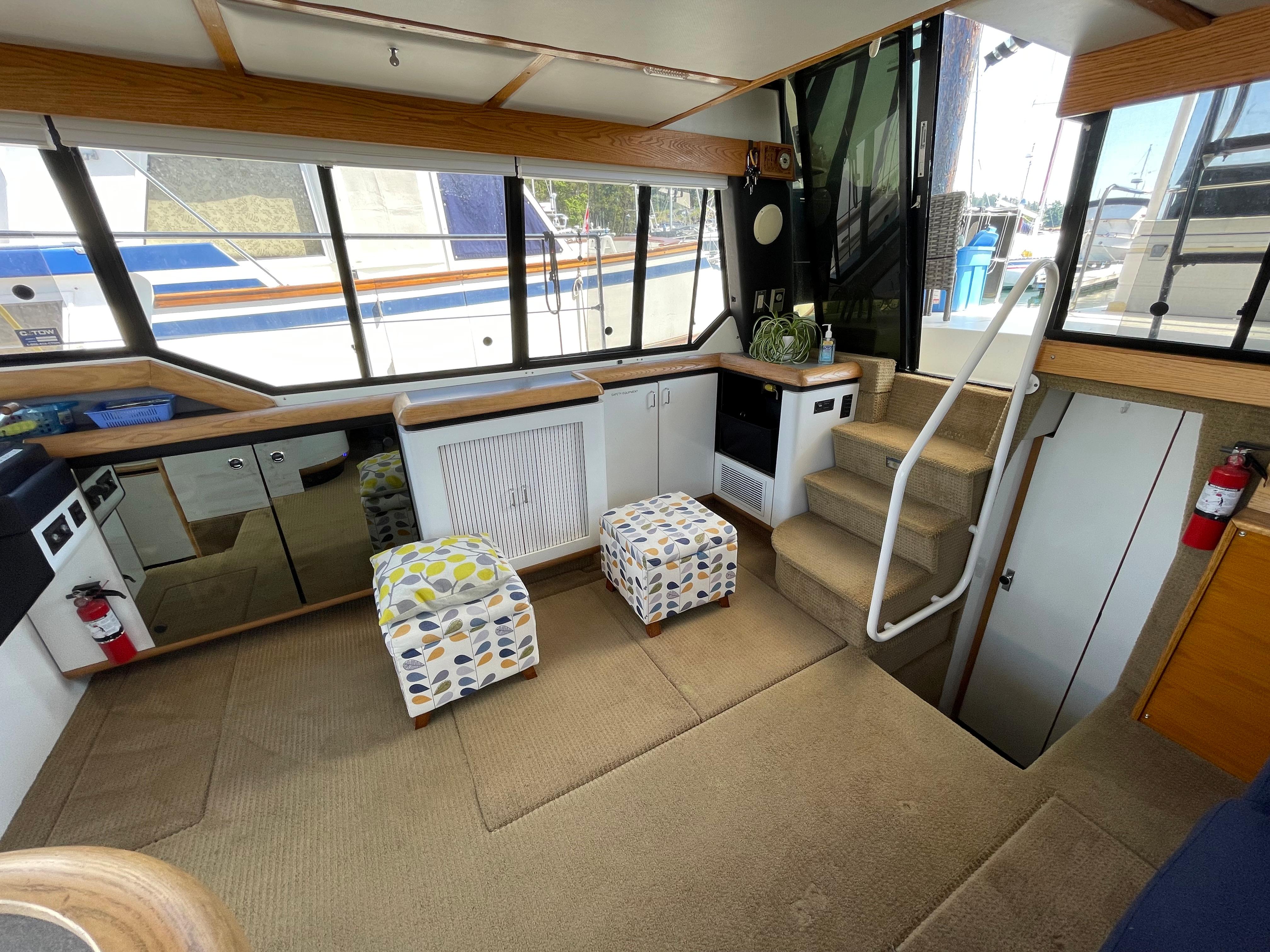

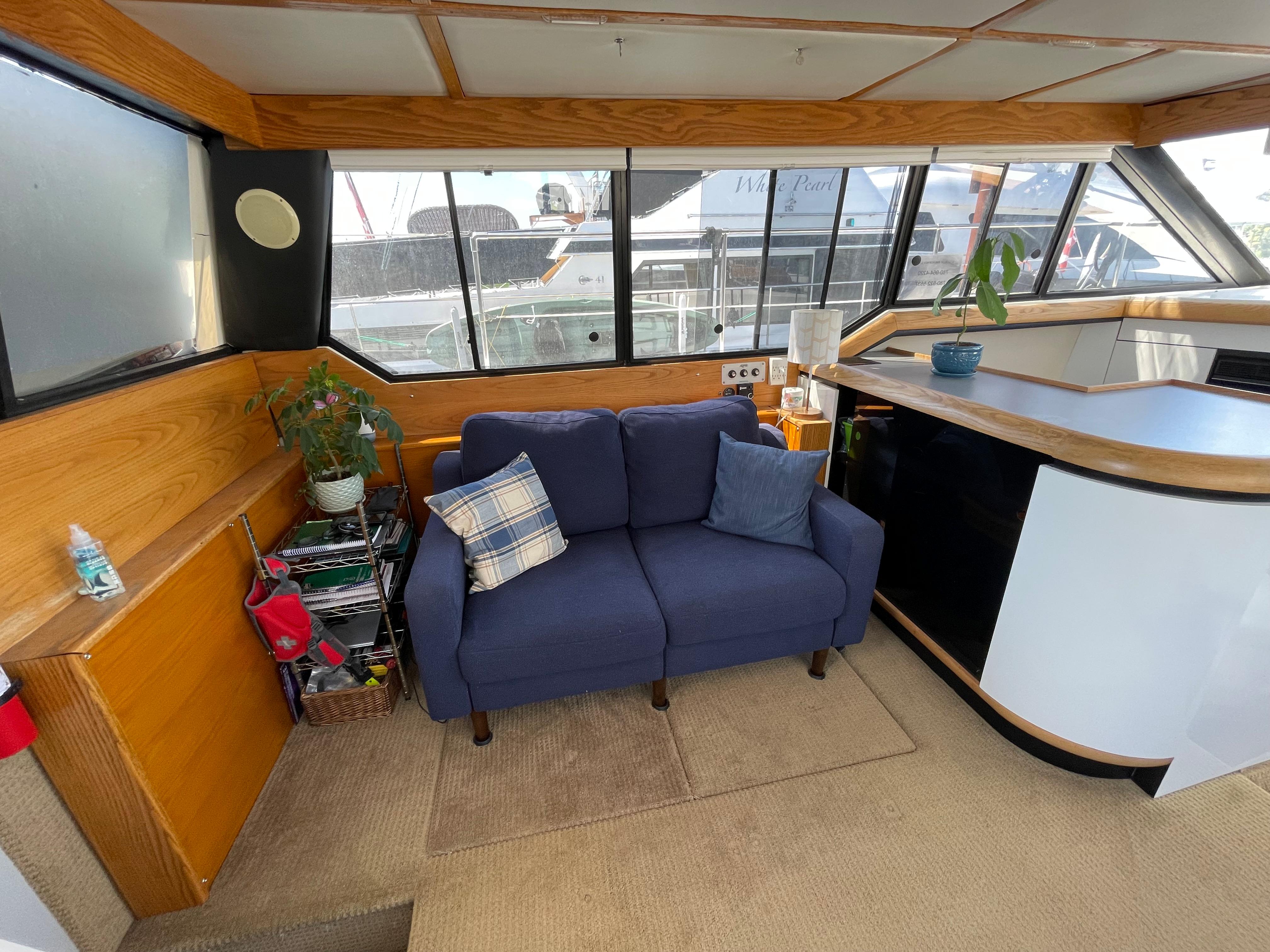

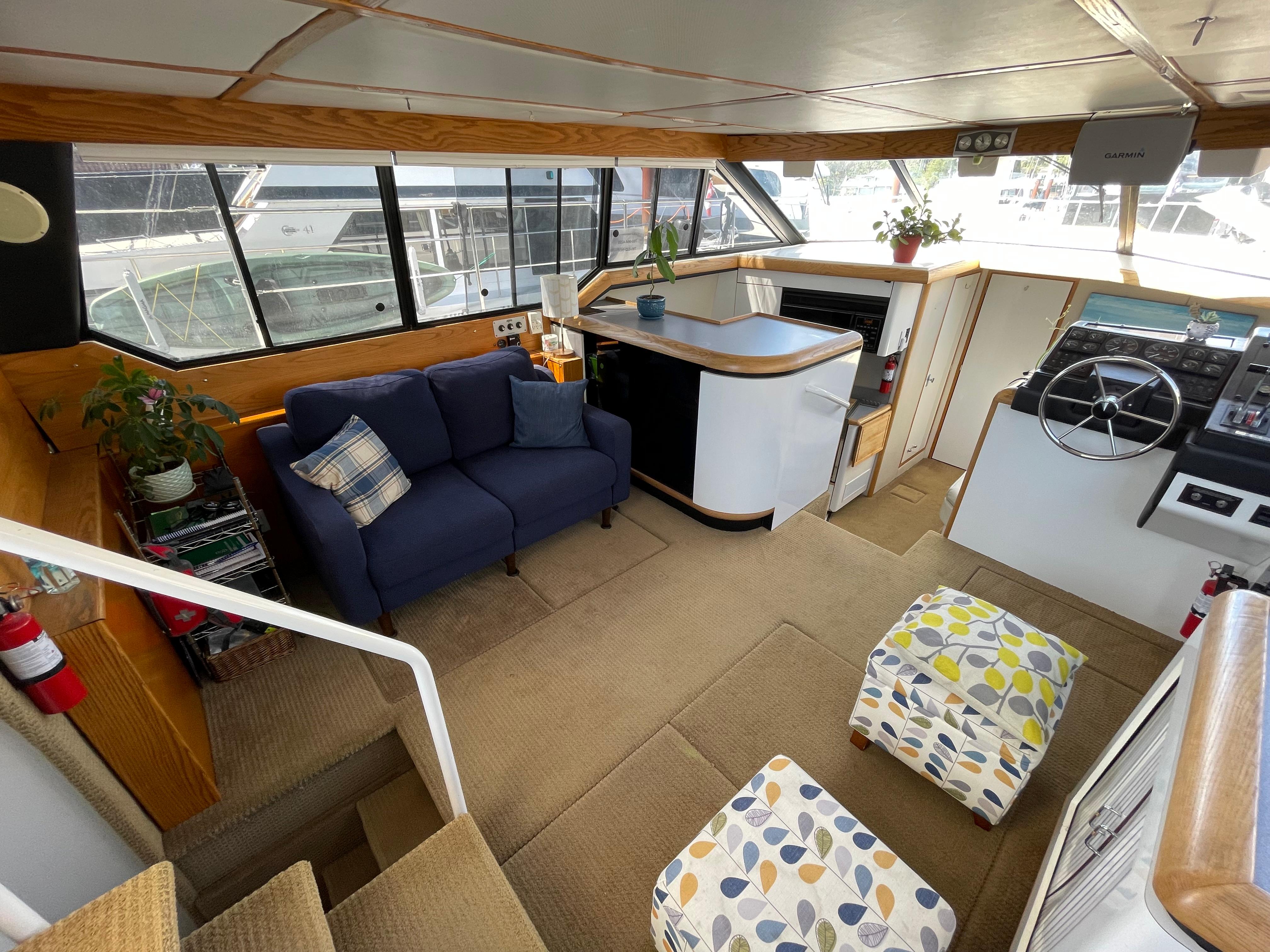

•  Salon: Enter the salon from the raised aft deck, two seat couch to port,   cabinetry to starboard
•  Large opening side windows with blinds

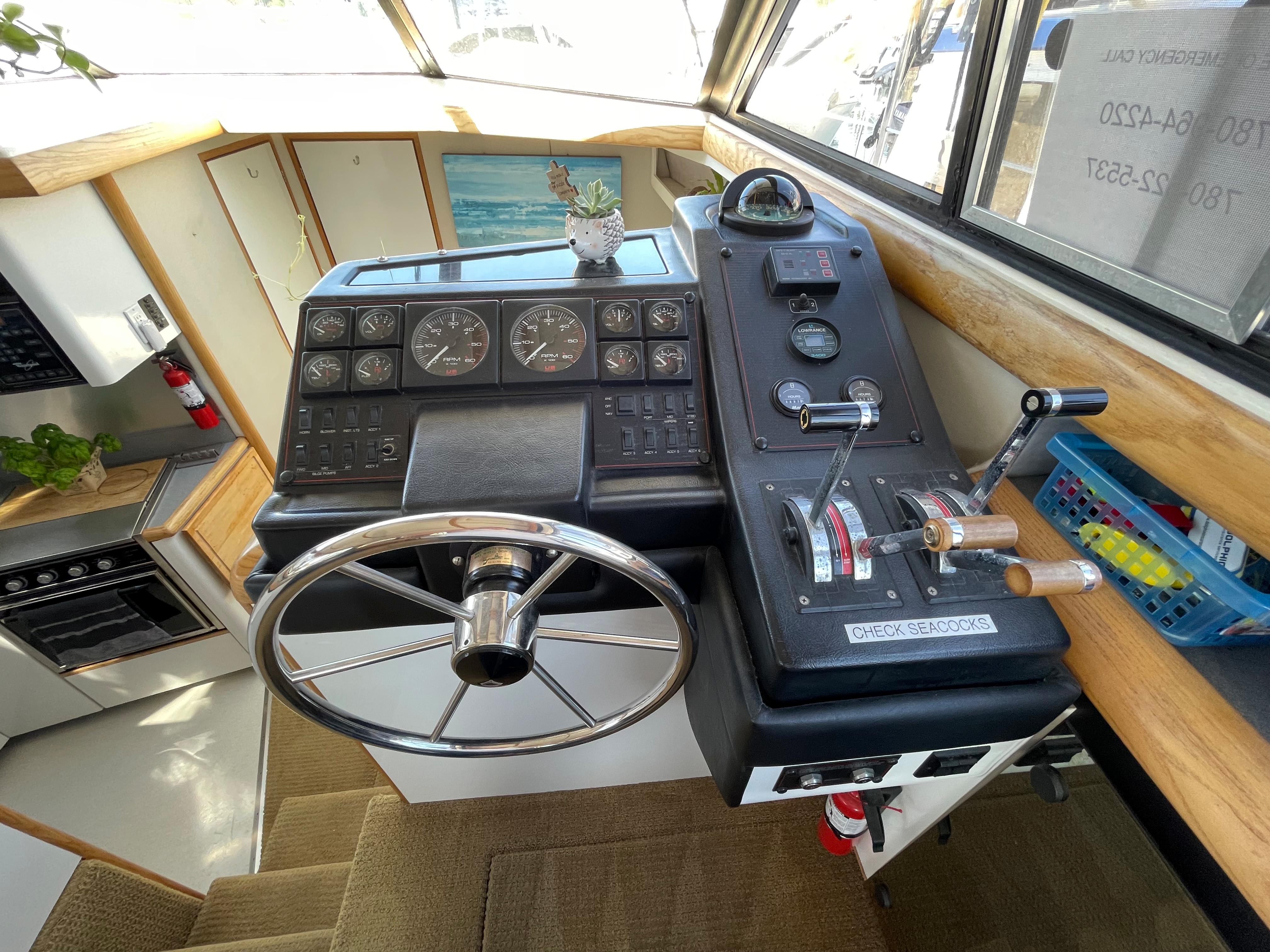

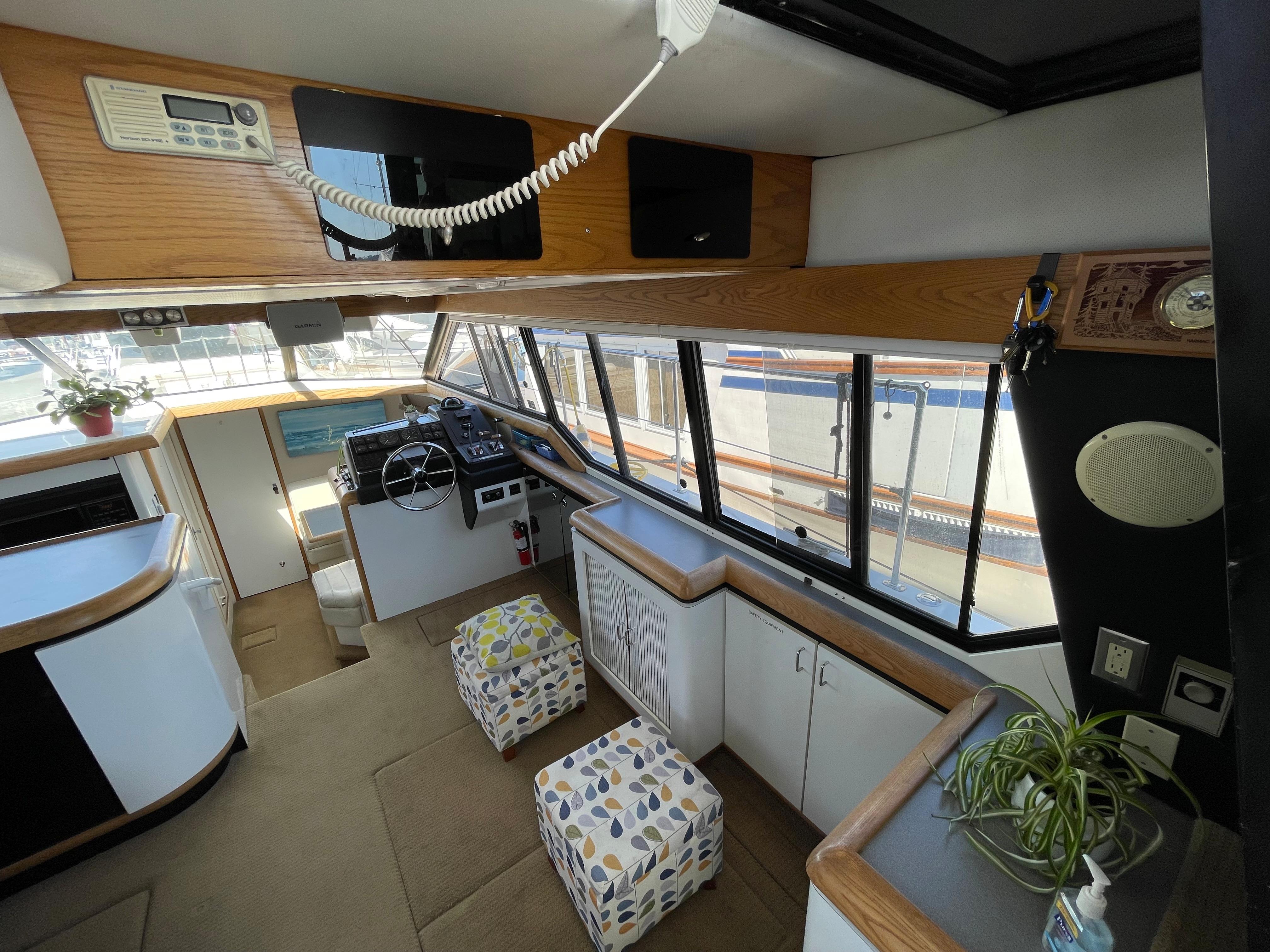

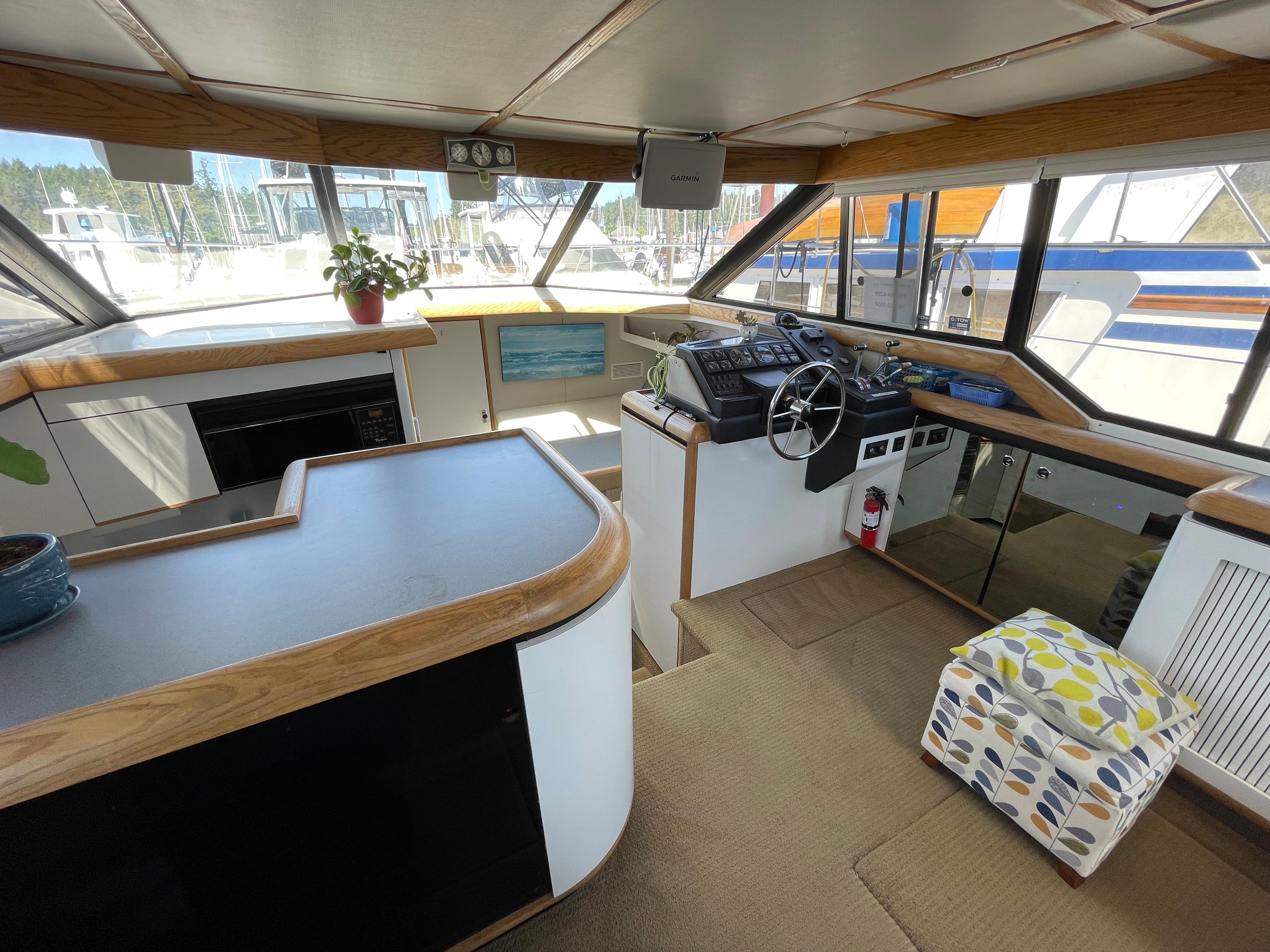

•  Lower helm station with full electronics and controls

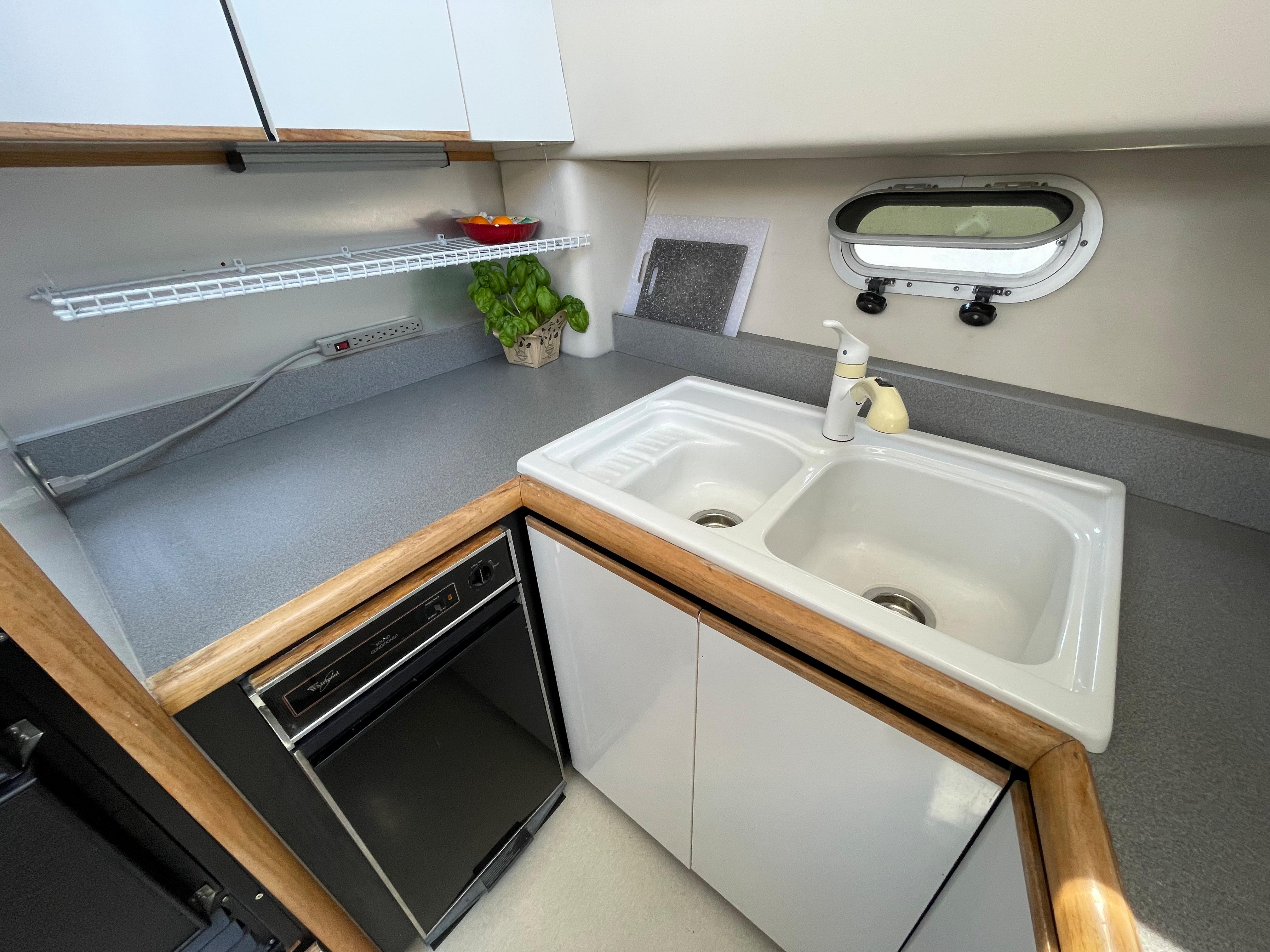

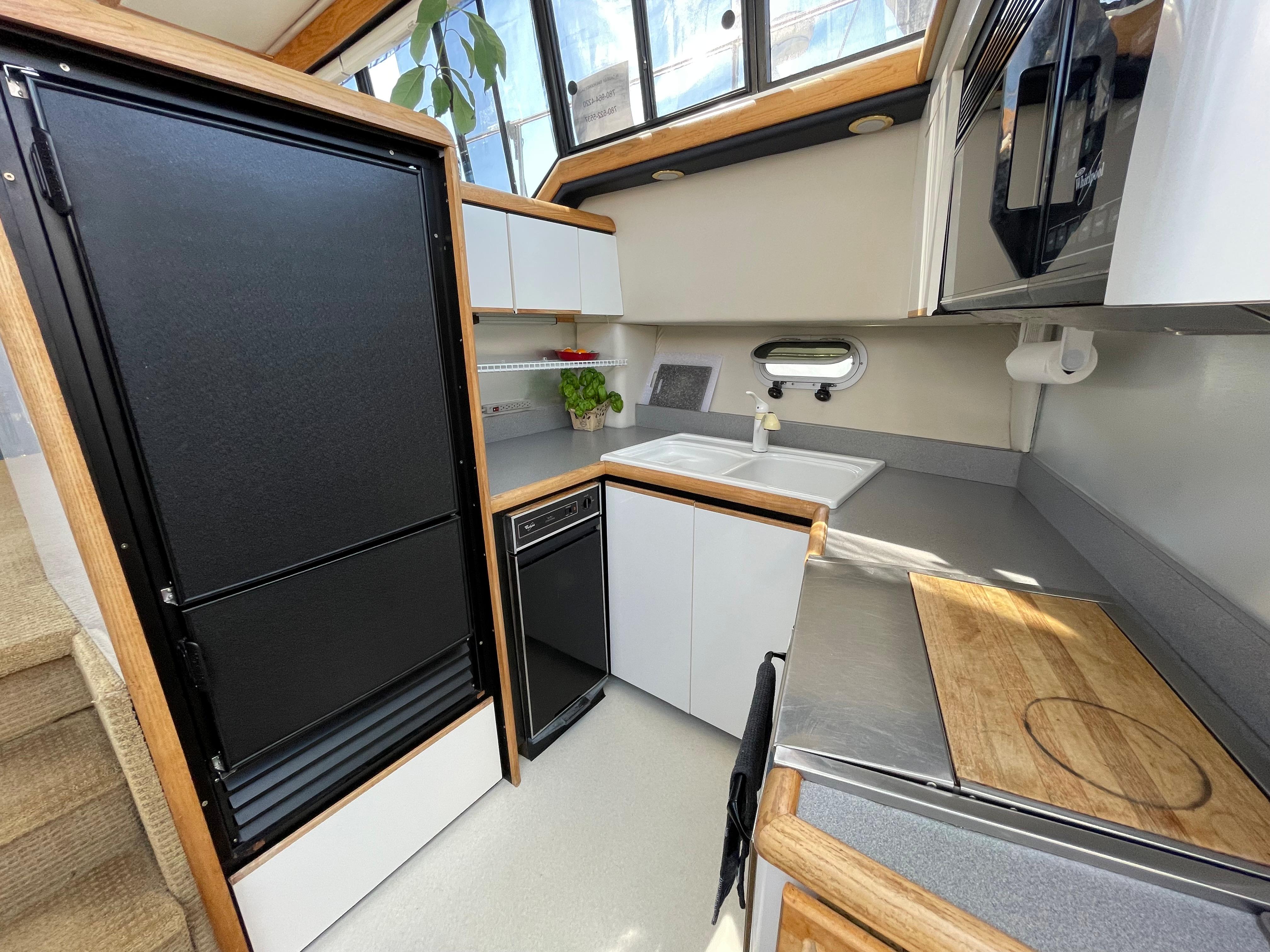

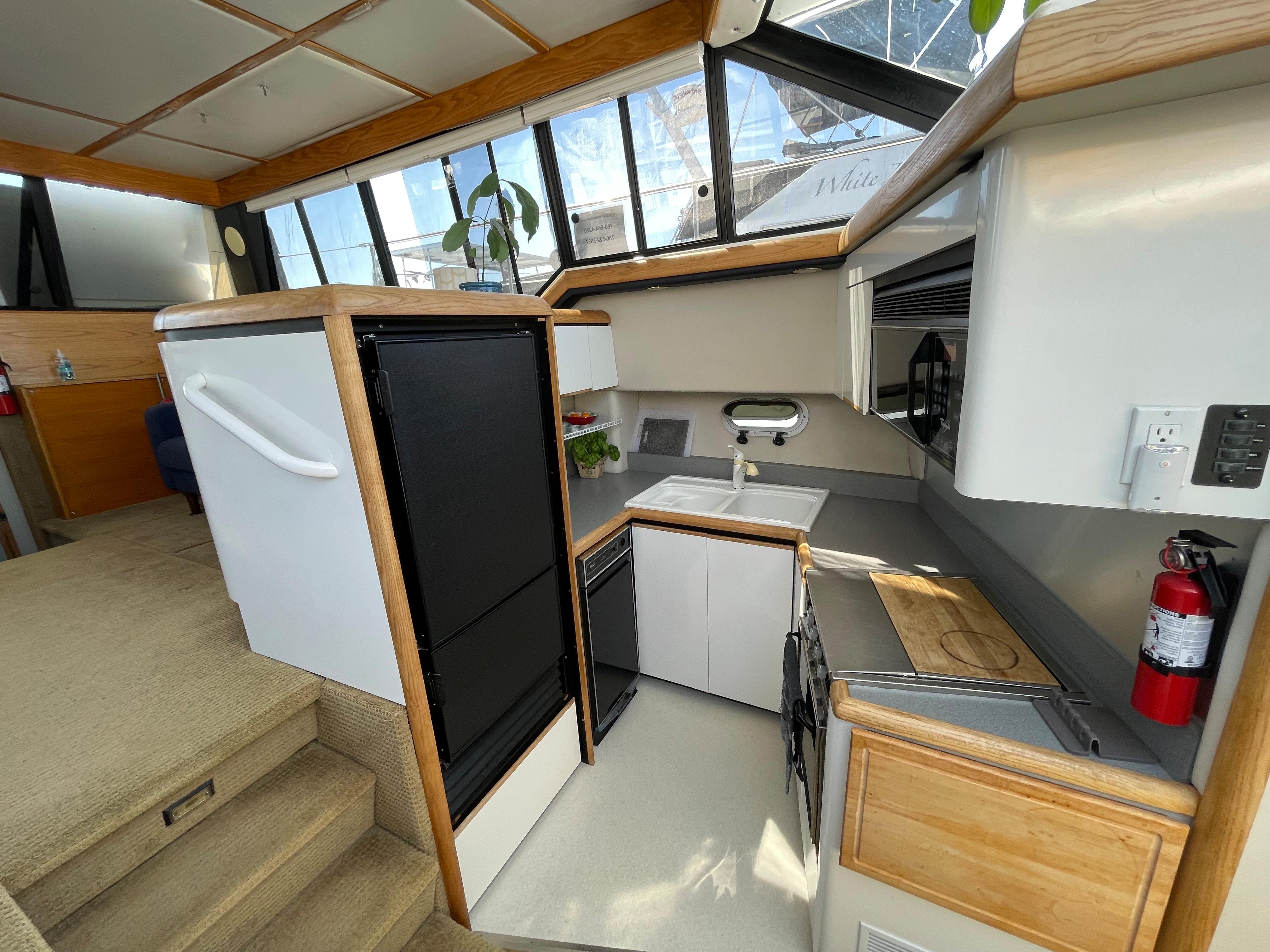

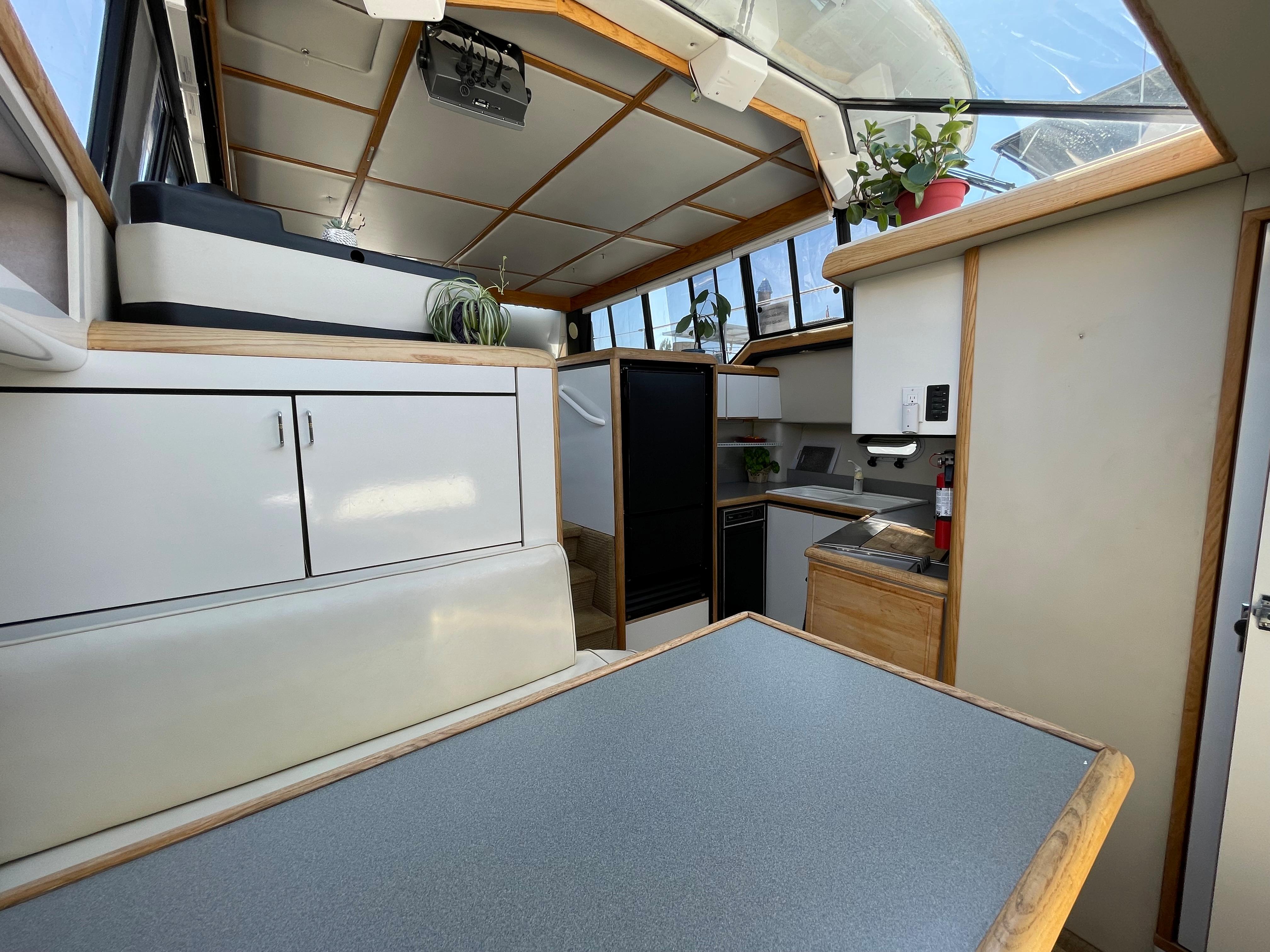

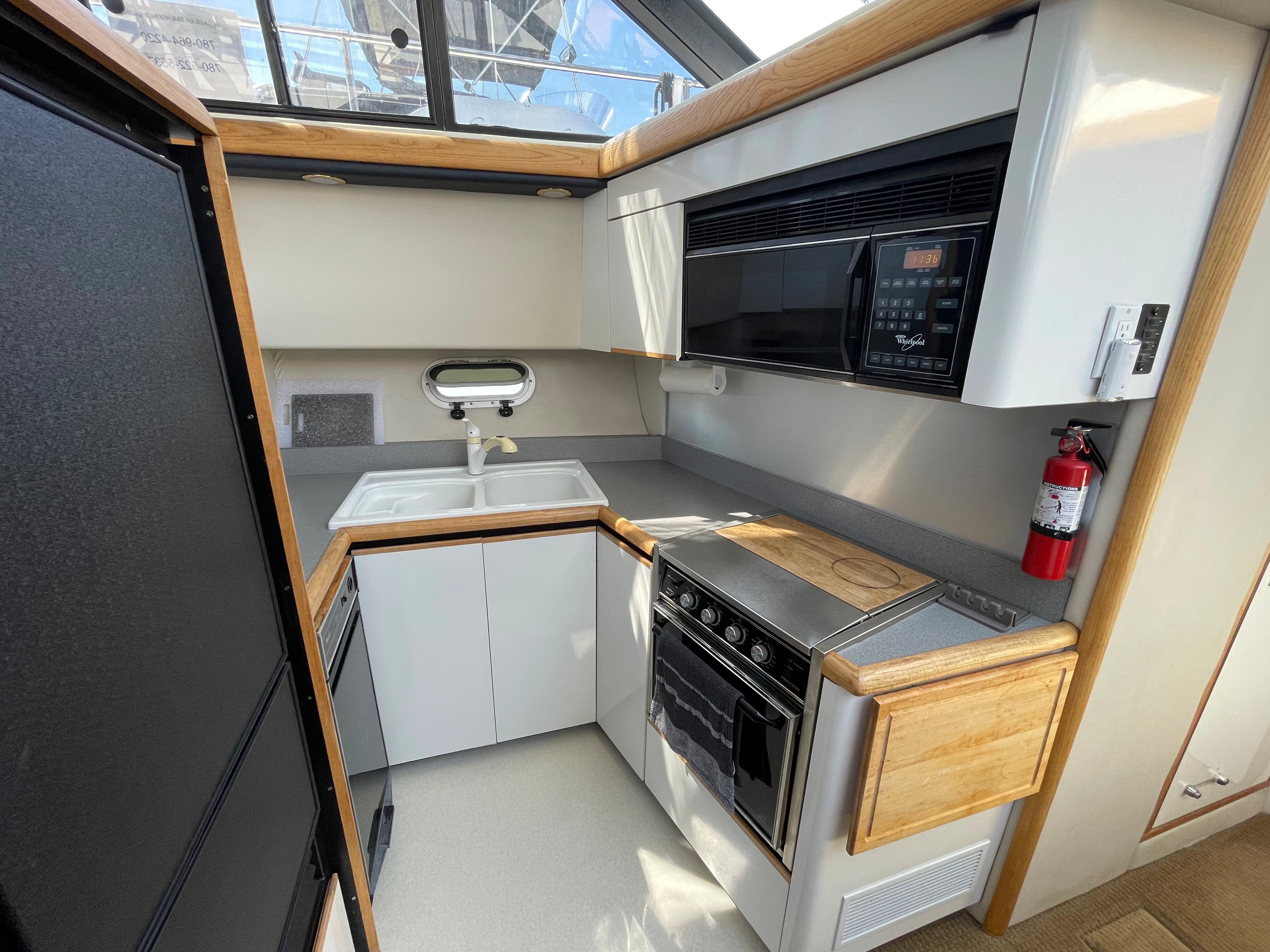

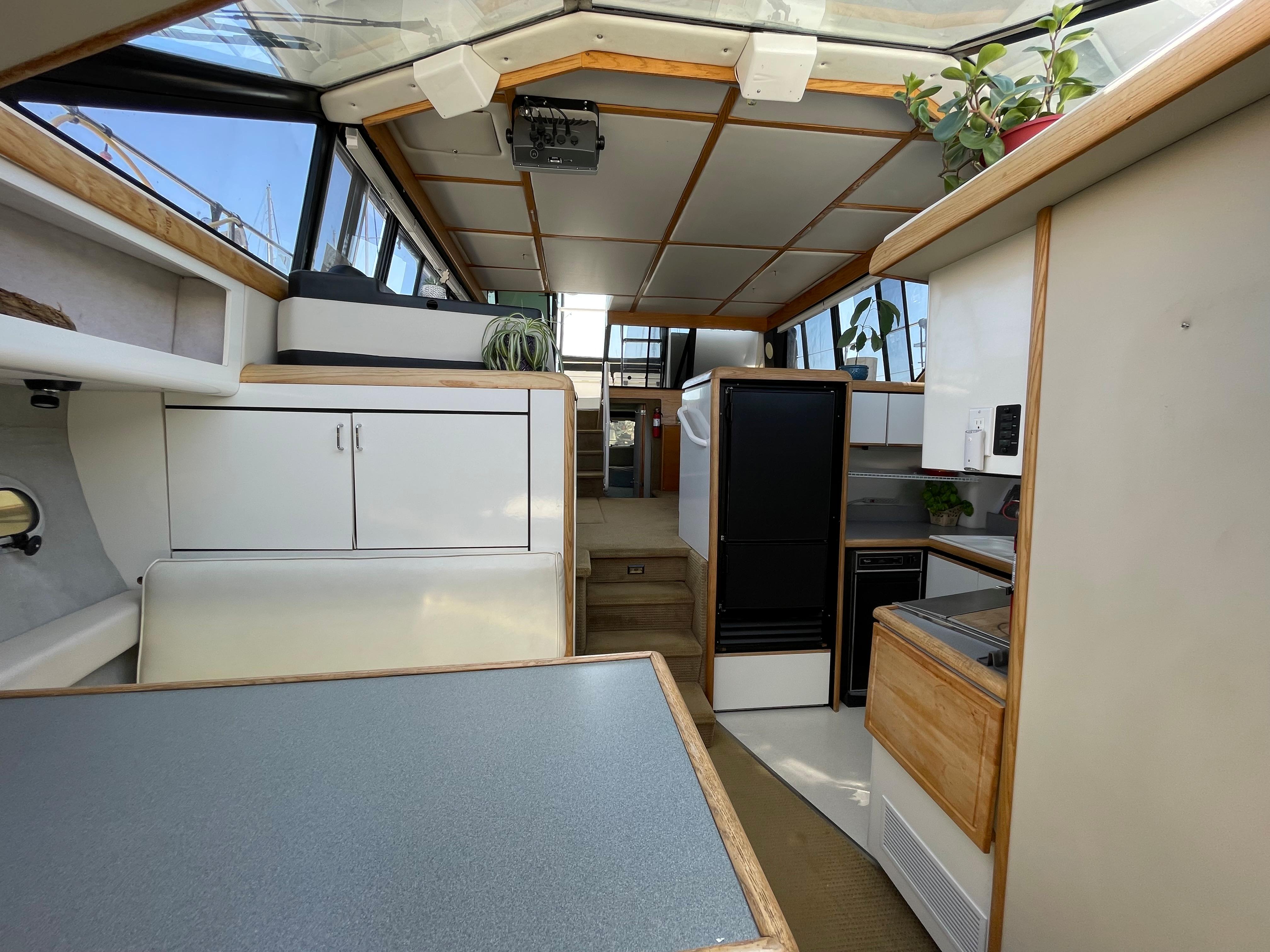

•  Galley: U-shaped to port, down a few stairs from salon
•  Refrigeration: Full size stand up Nova Kool, separate fridge door above of   freezer door
•  Stove: Princess 120V 3 burner with oven
•  Microwave: Whirlpool
•  Twin sinks: white ceramic, hot/cold mixer faucet
•  Storage cabinets above and below counters plus a full size double door panty

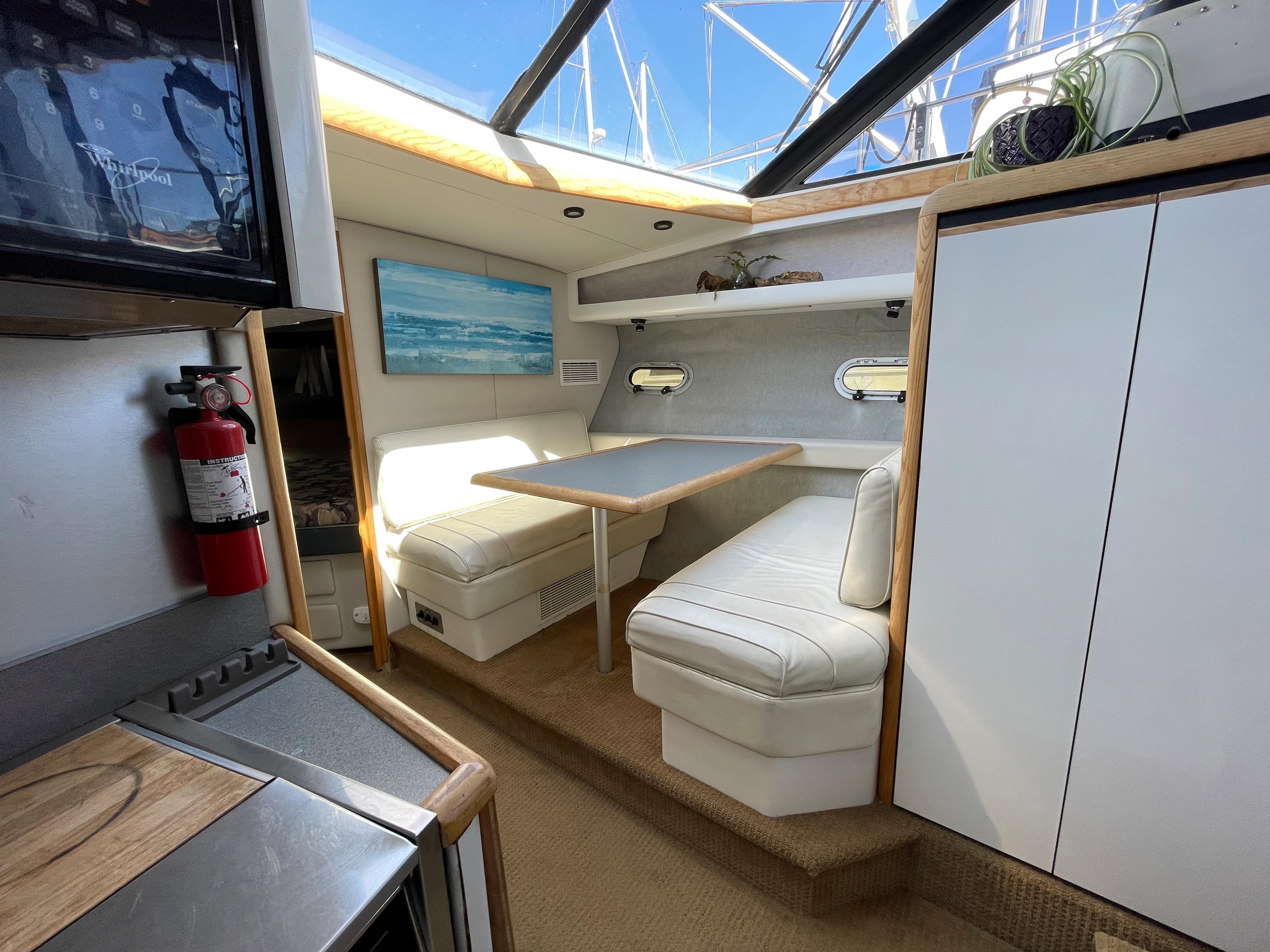

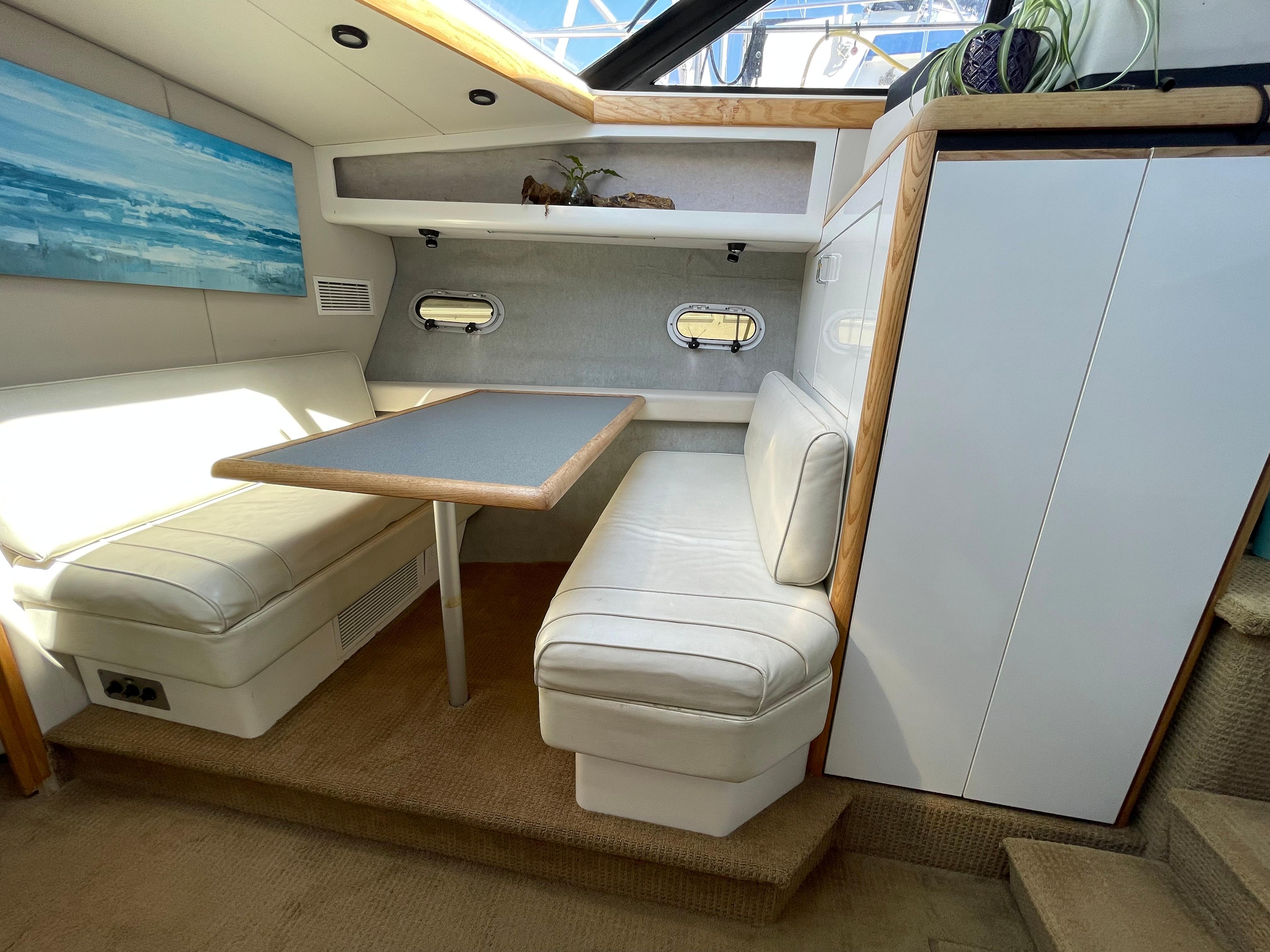

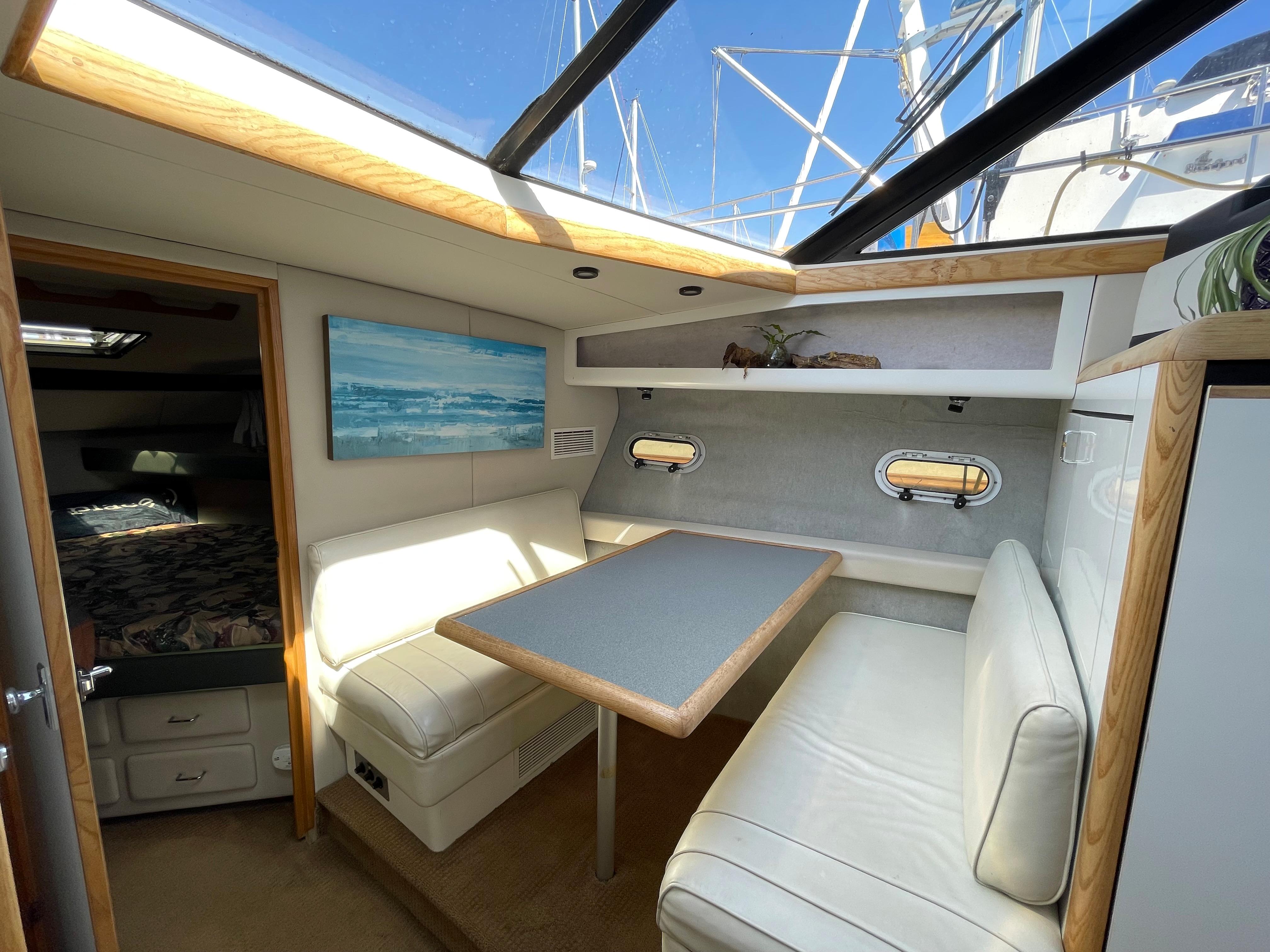

•  Dinette: opposite the galley is a dinette with two bench seats, exceptionally   bright in both galley and dinette because of the sloping windshield above.

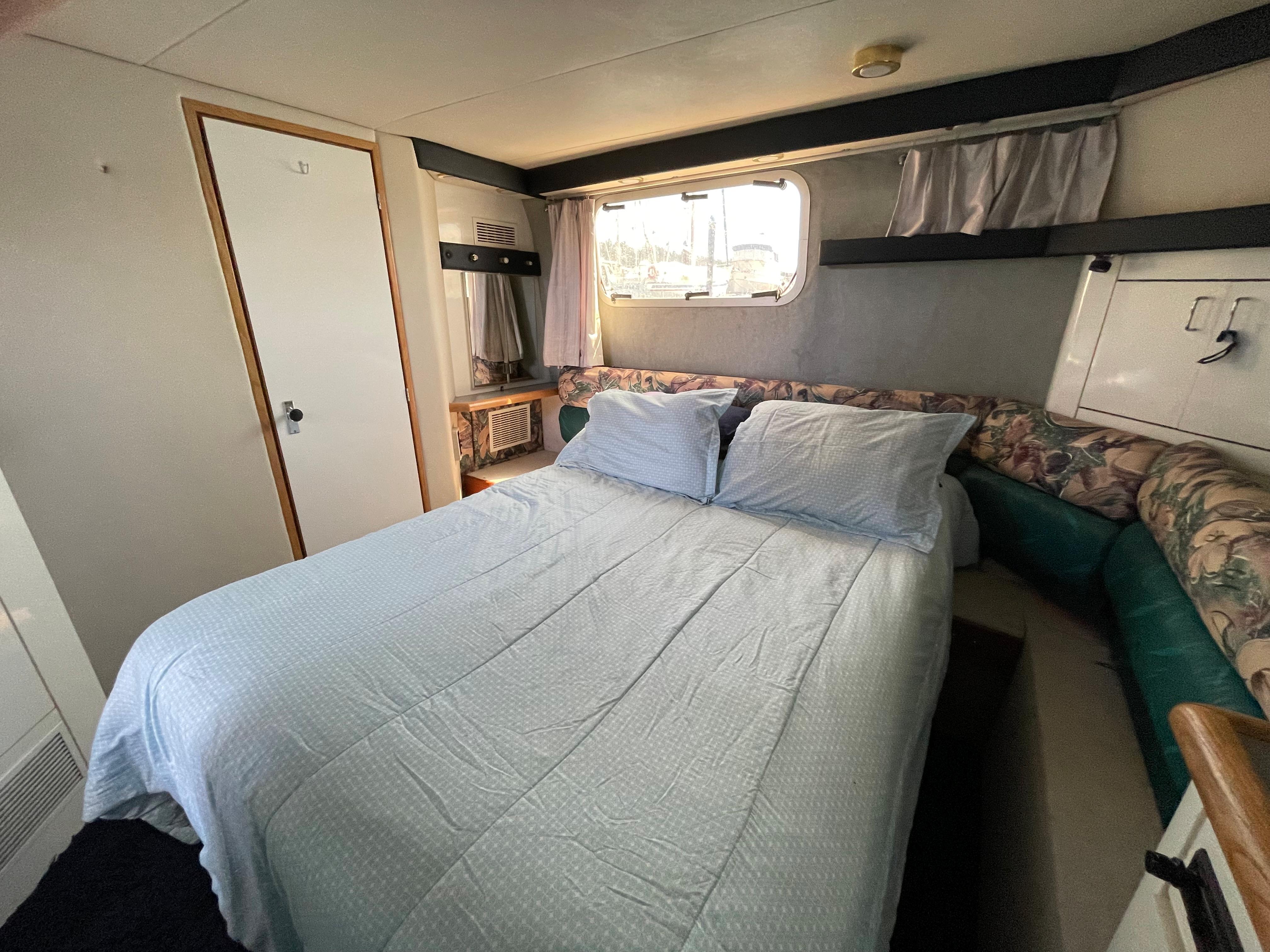

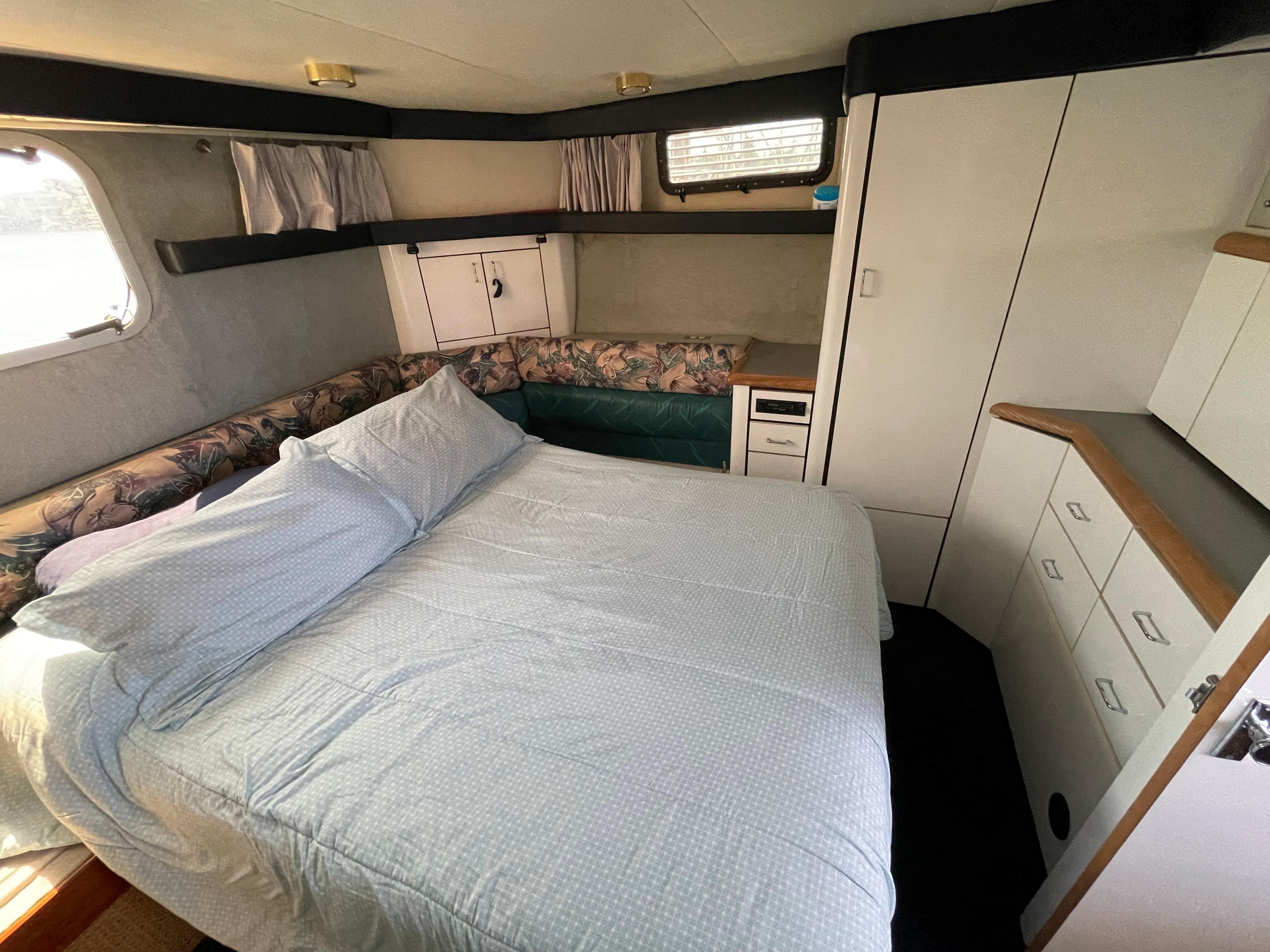

•  Owners cabin: Aft of the salon down two stairs, enter a full beam owners   cabin,  queen walk around bed, hanging lockers, chest of drawers, large   opening port light in the stern at the head of the bed, side opening ports

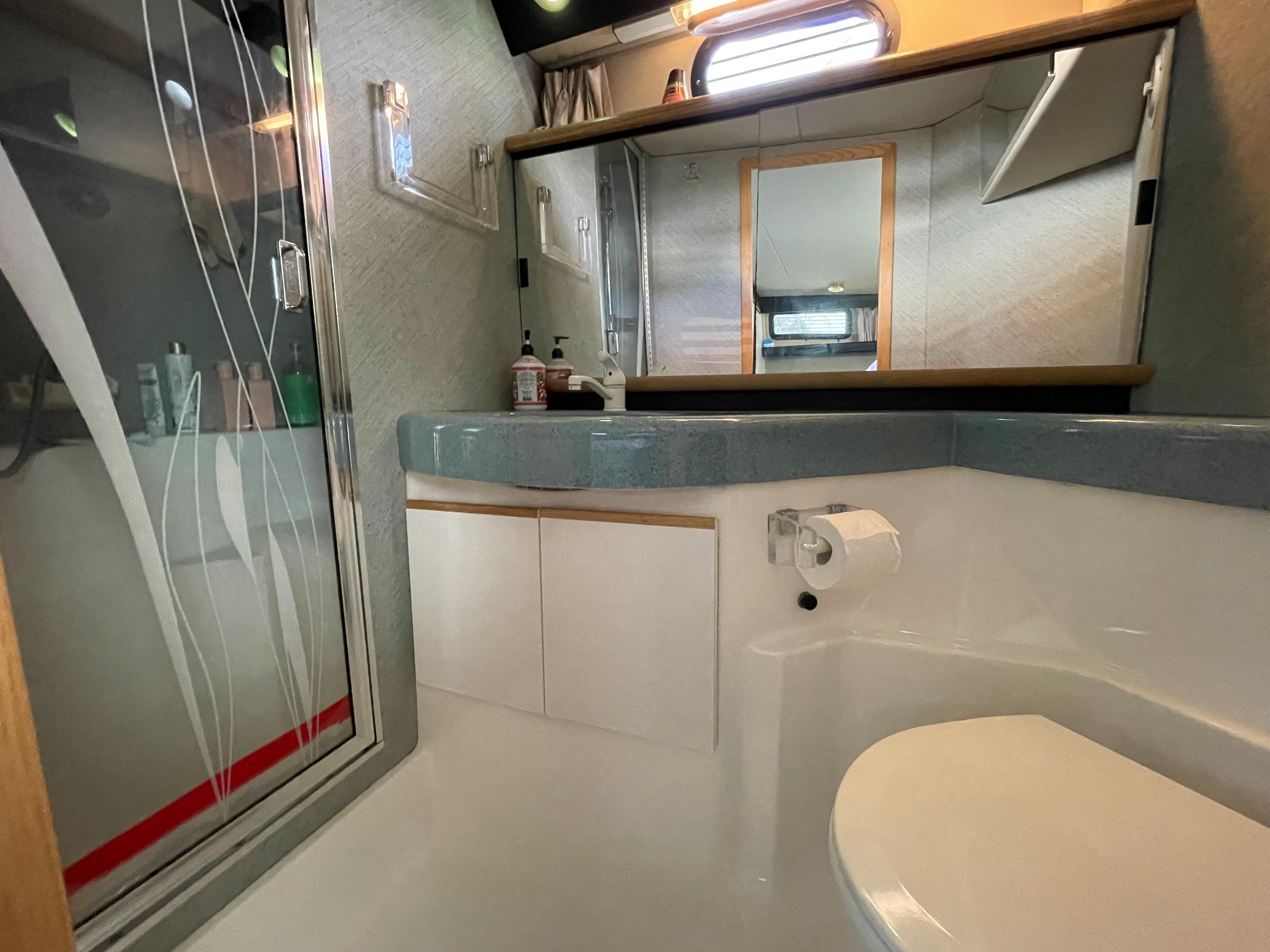

•  En-suite head: large compartment with a separate shower stall, large curved   vanity with sink, storage and mirrors, toilet is an electric flush

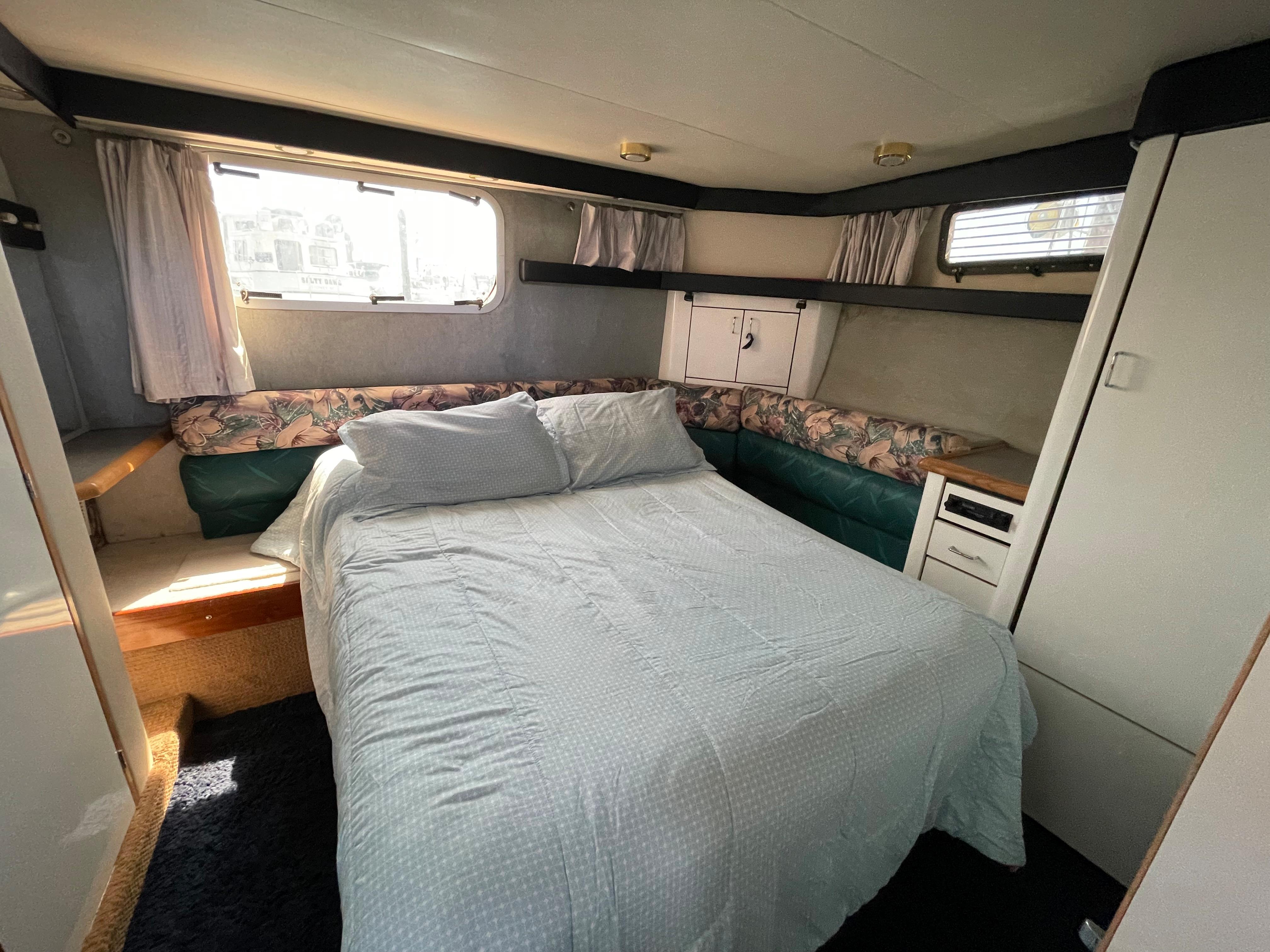

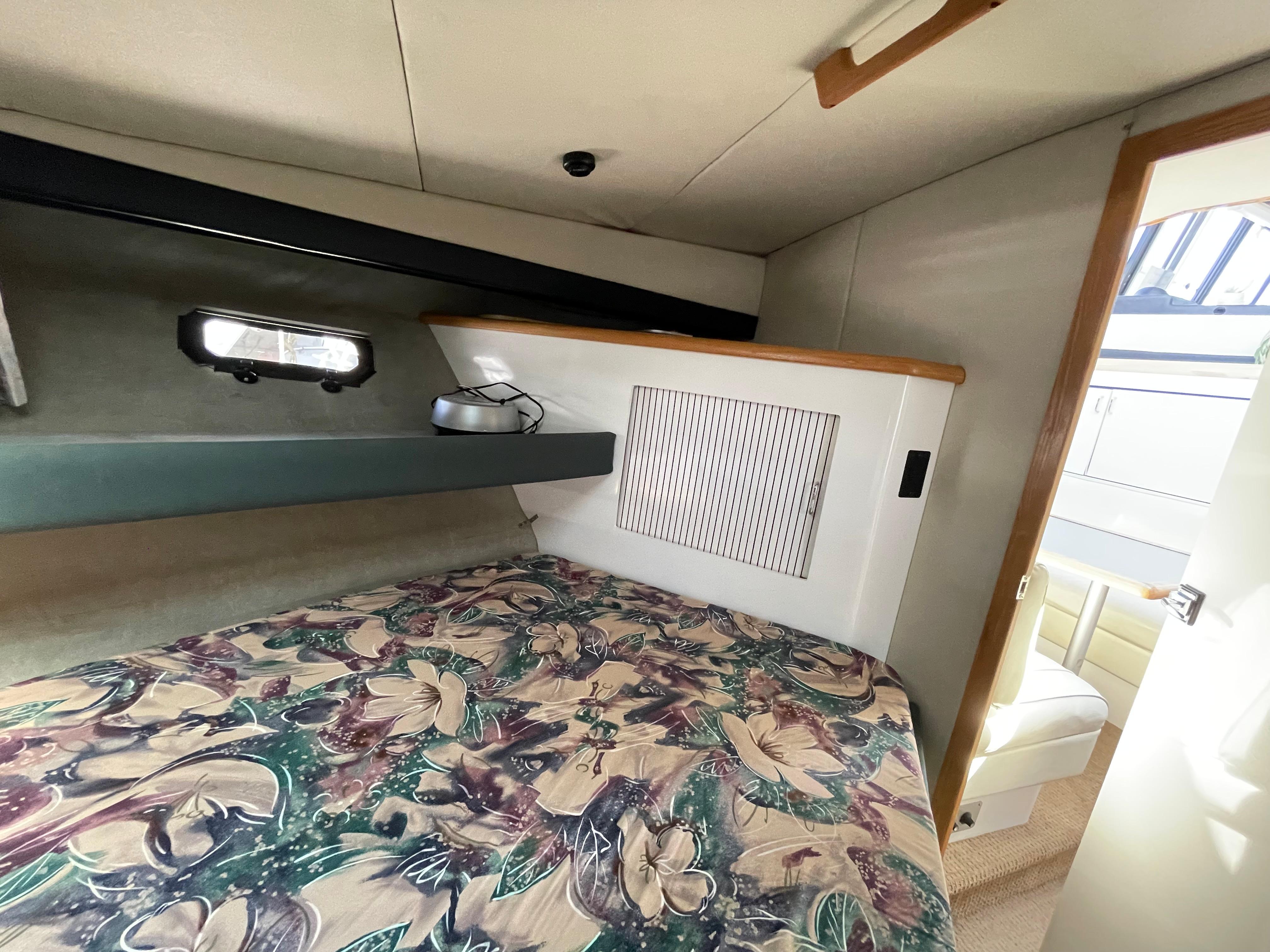

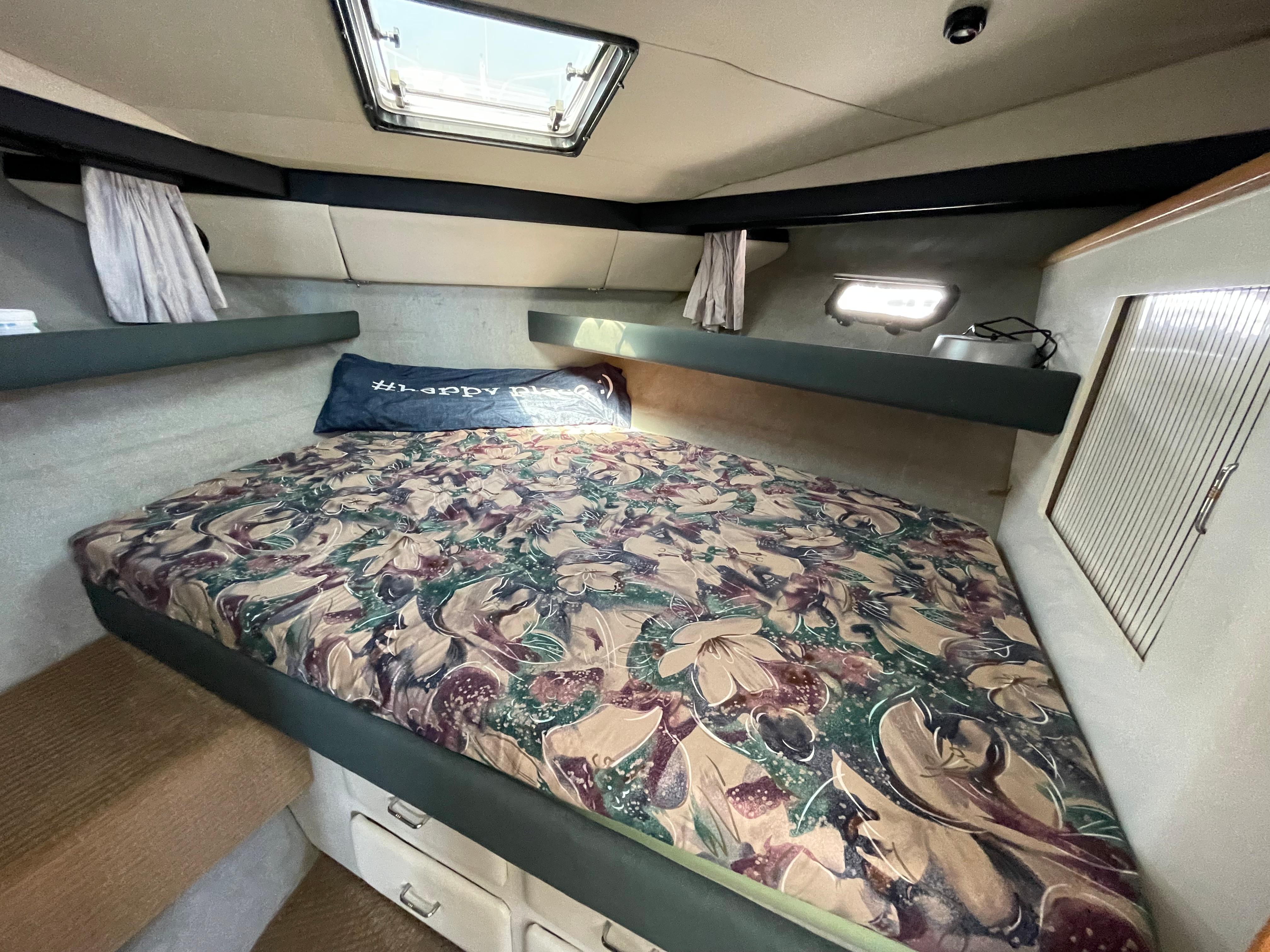

•  Guest Cabin: forward features a queen size bed offset to starboard, opening   side ports, overhead opening hatch, shelving, hanging locker, drawers under   the  bed

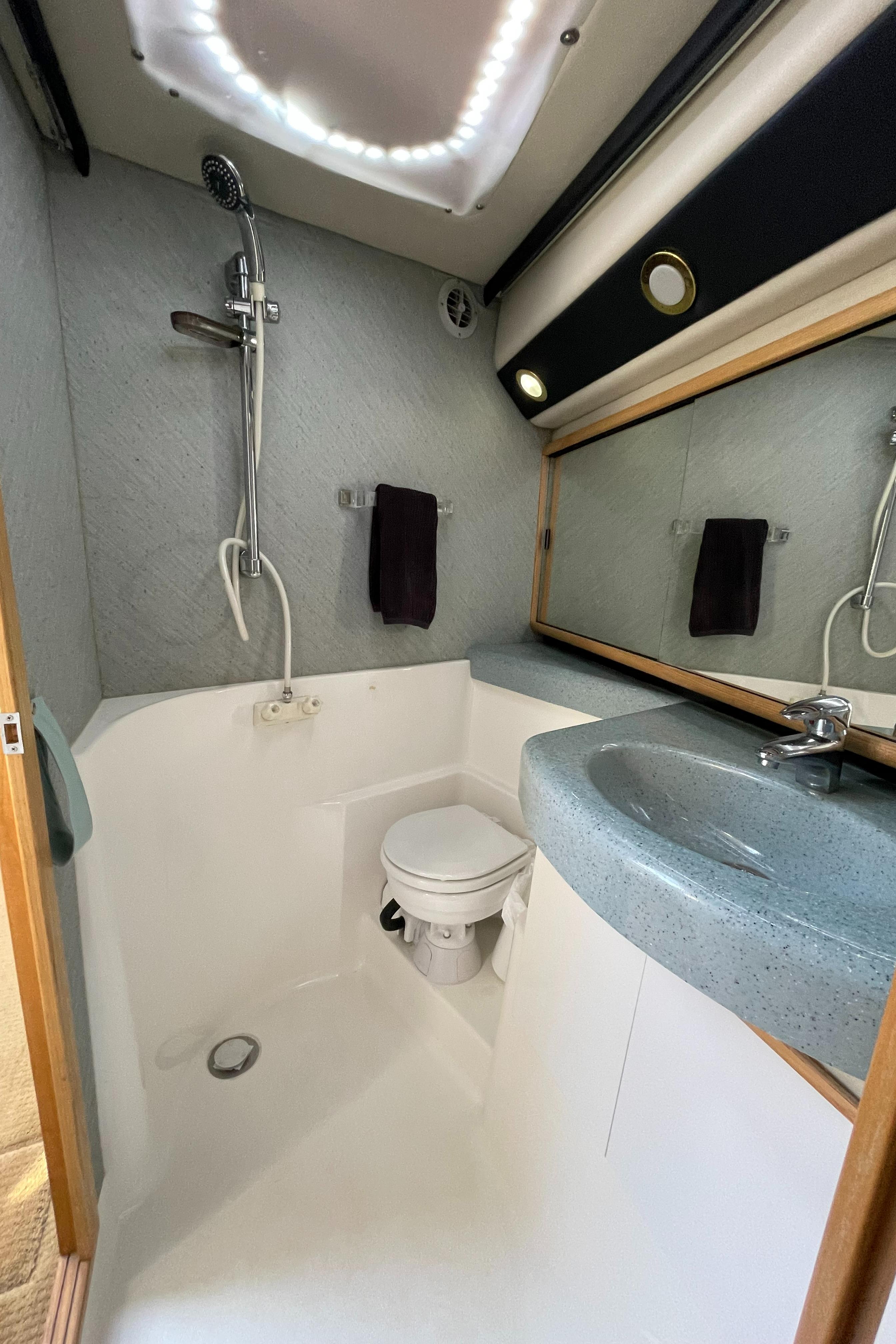

•  Guest head: Integrated shower compartment, toilet, vanity with sink, storage,   mirrors

 MECHANICAL

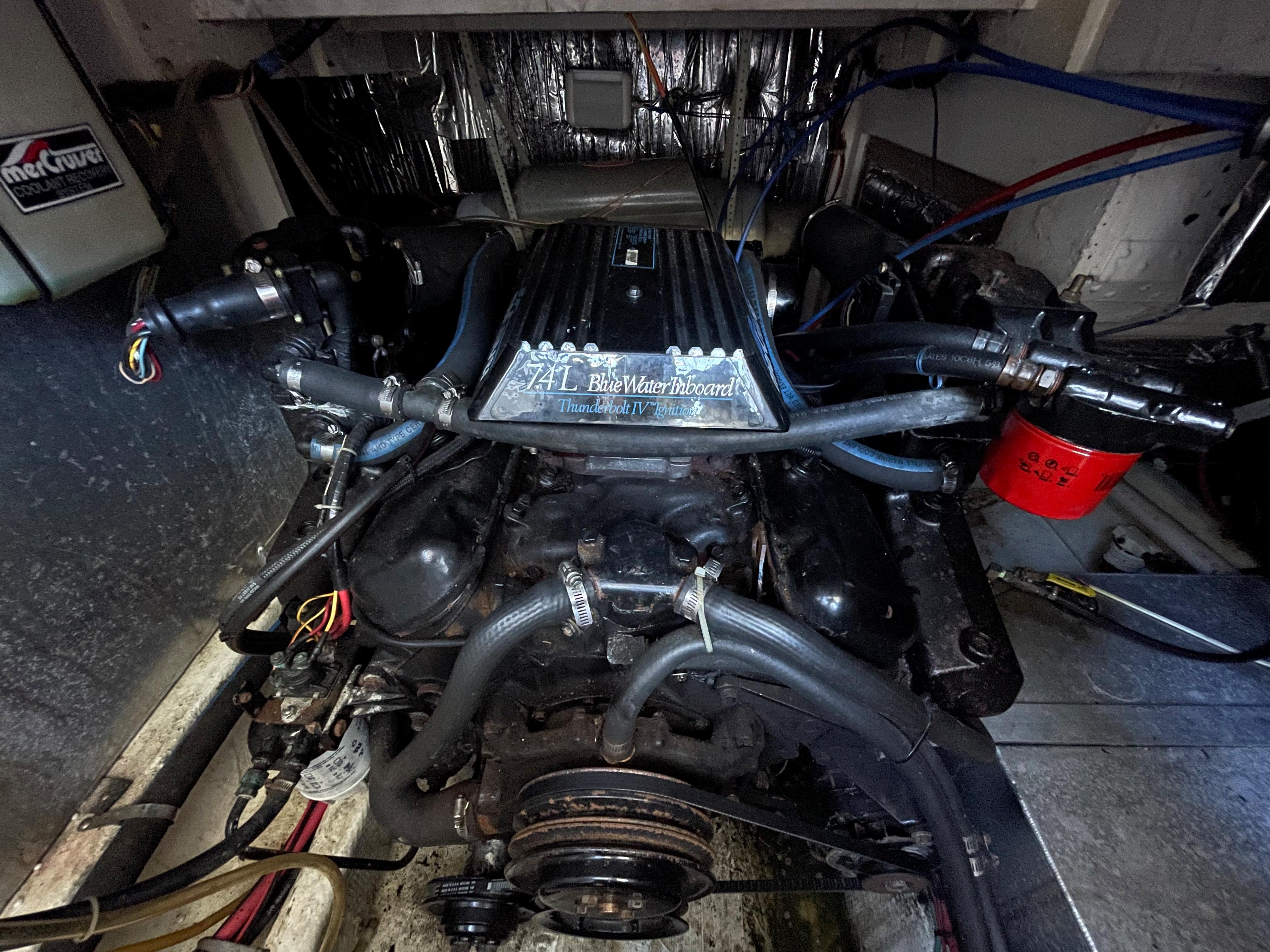

•  2 x Mercruiser 7.4L, 330hp,

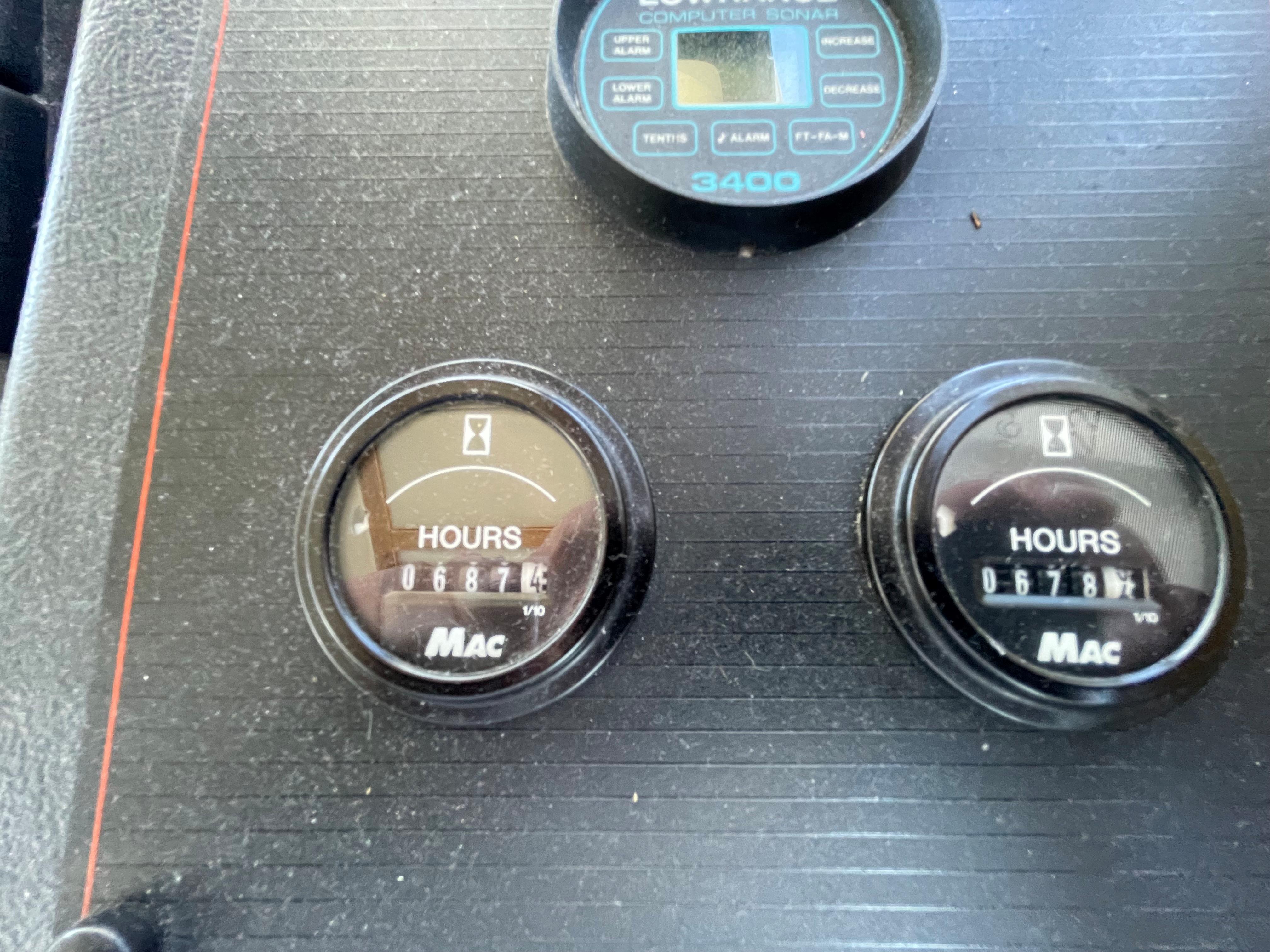

•  Hours: Port – 687, Starboard – 678
•  Direct drives, shafts 1 ½” S/S
•  Bow and Stern Thrusters: Side Shift, 12V
•  Trim tabs: Bennett
•  Propellers: 4 Blade 22” x 22” Bronze

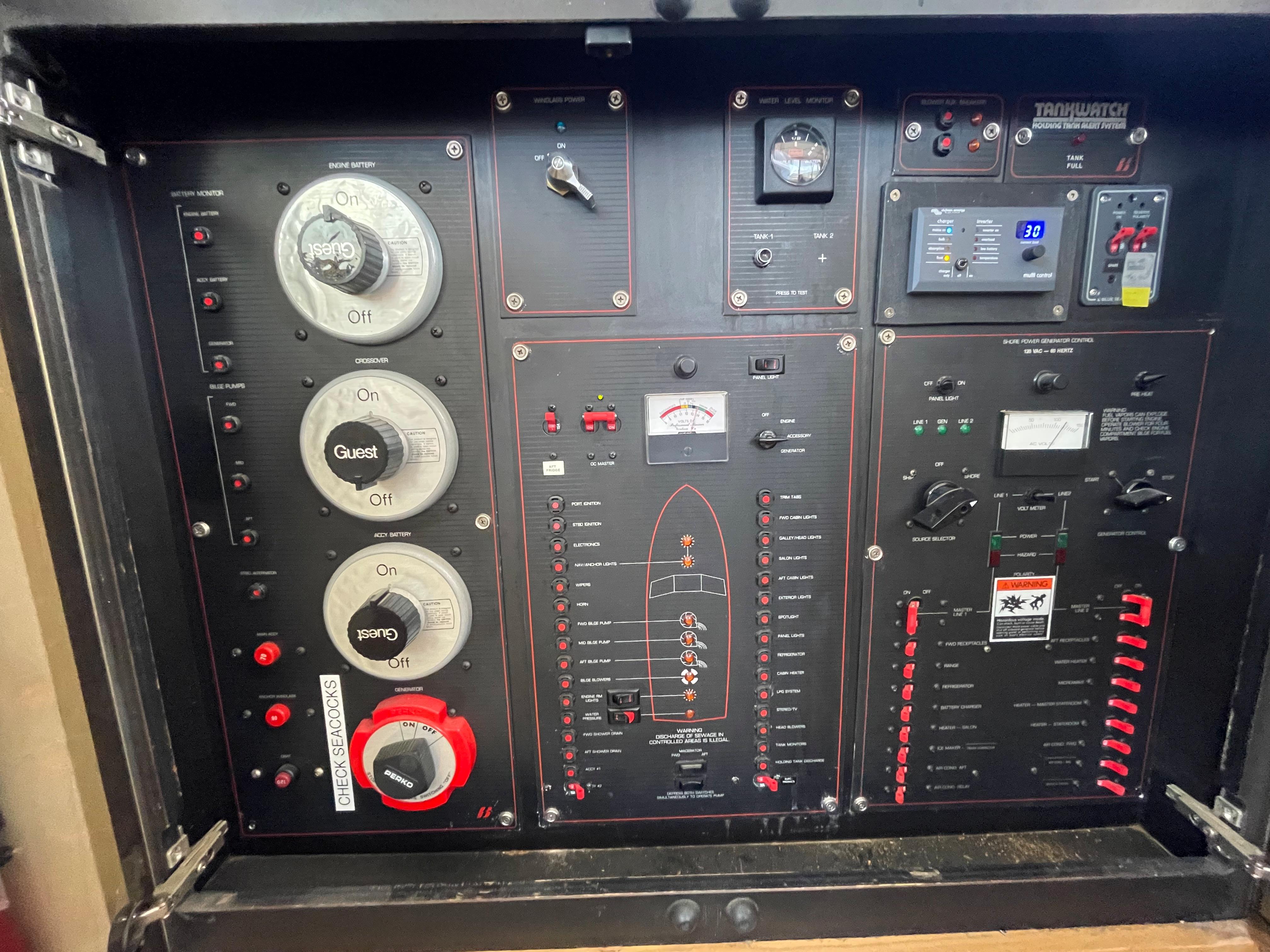

 ELECTRICAL

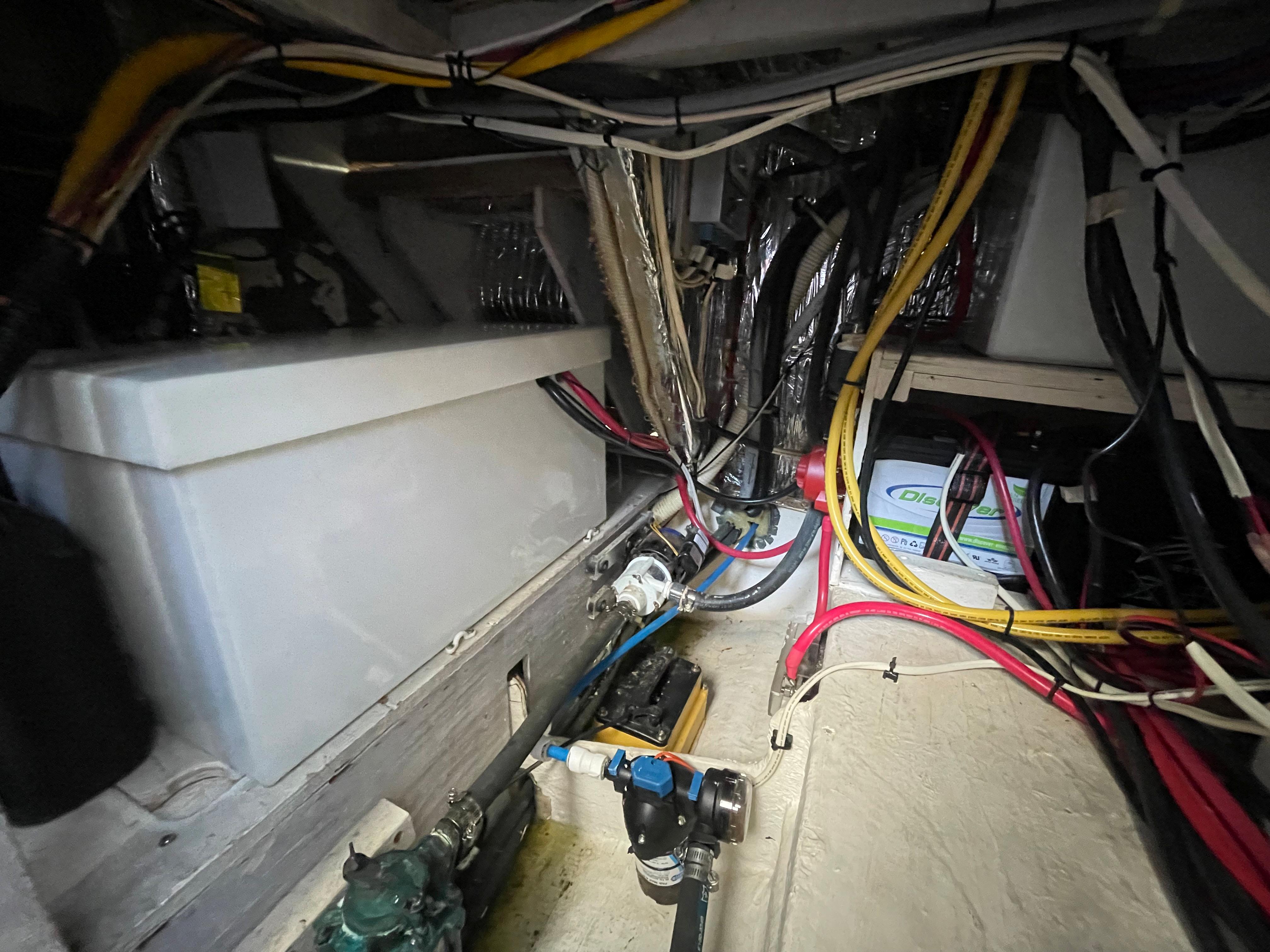

•  12V DC and 120V AC systems
•  2 x 30amp shorepower connections

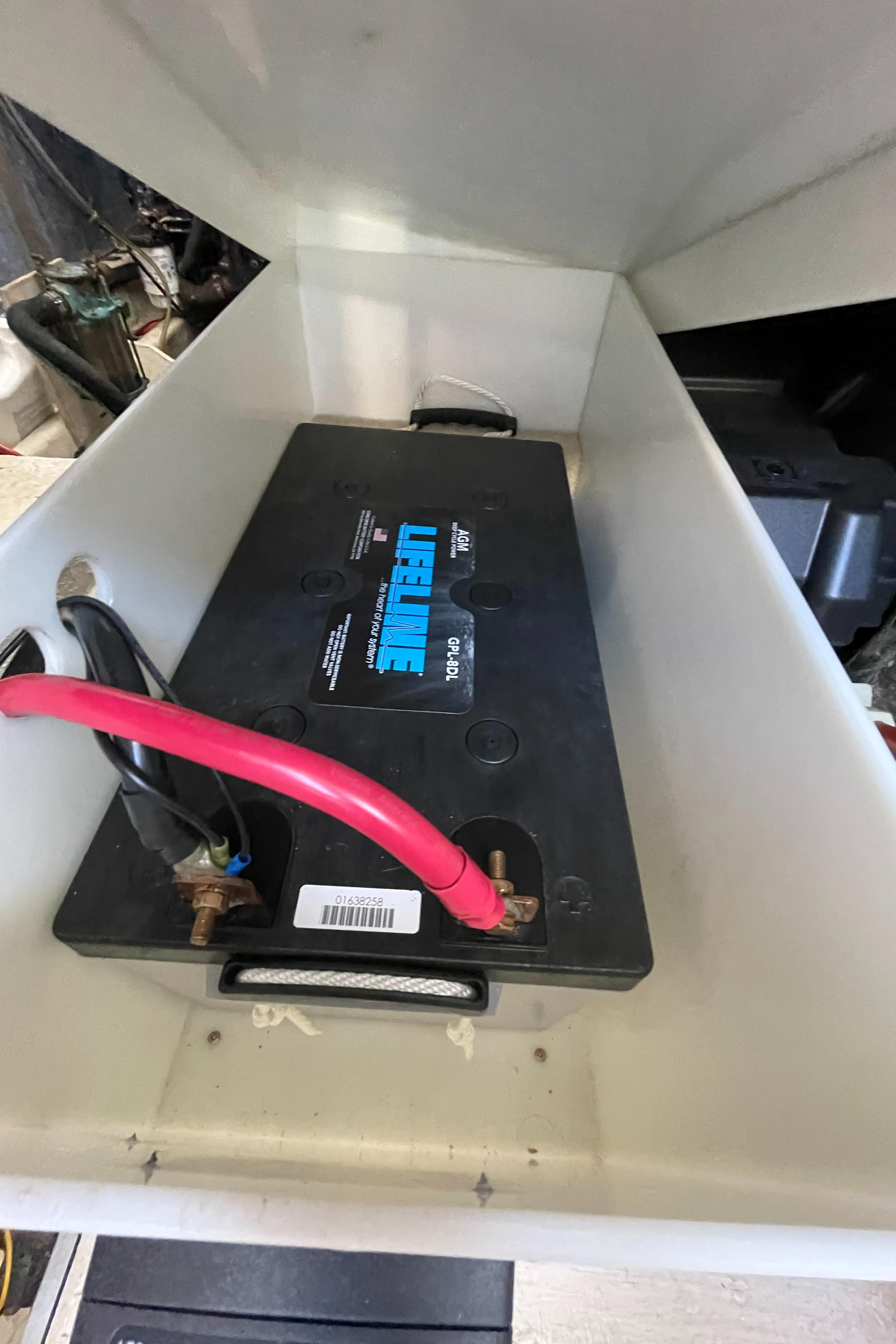

•  House Batteries: 2 x Lifeline 8D AGM 12V
•  Start Batteries: 2 x Group 31
•  Generator Battery: 1 x Group 24
•  1 x Ritar RA 12-200 sealed Lead acid

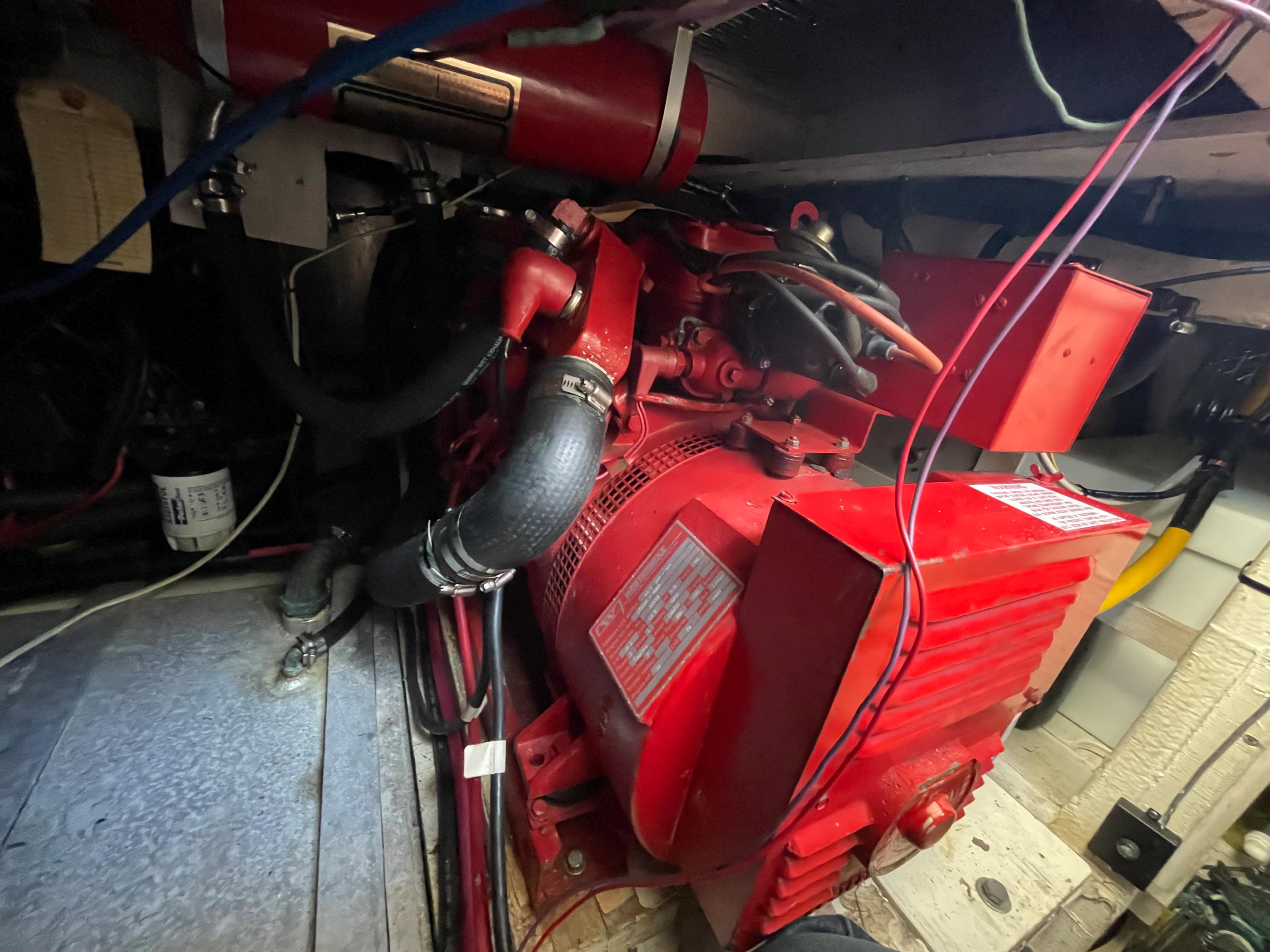

•  Generator: Westerbeke 12.5 BTG614, Gasoline 1200hrs

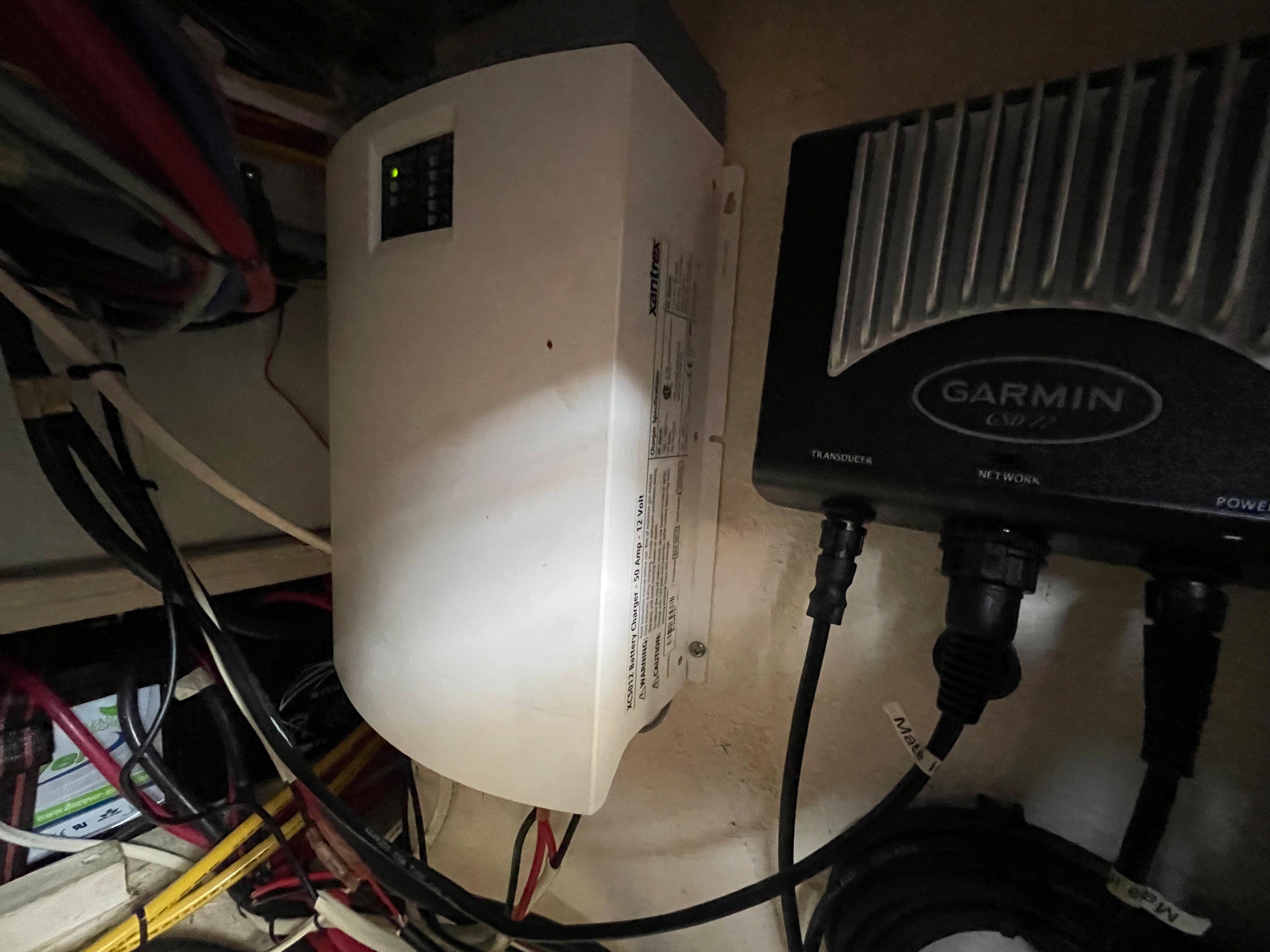

•  Battery Charger: Blue Seas SI -ACR, 120amp, 12/24VDC

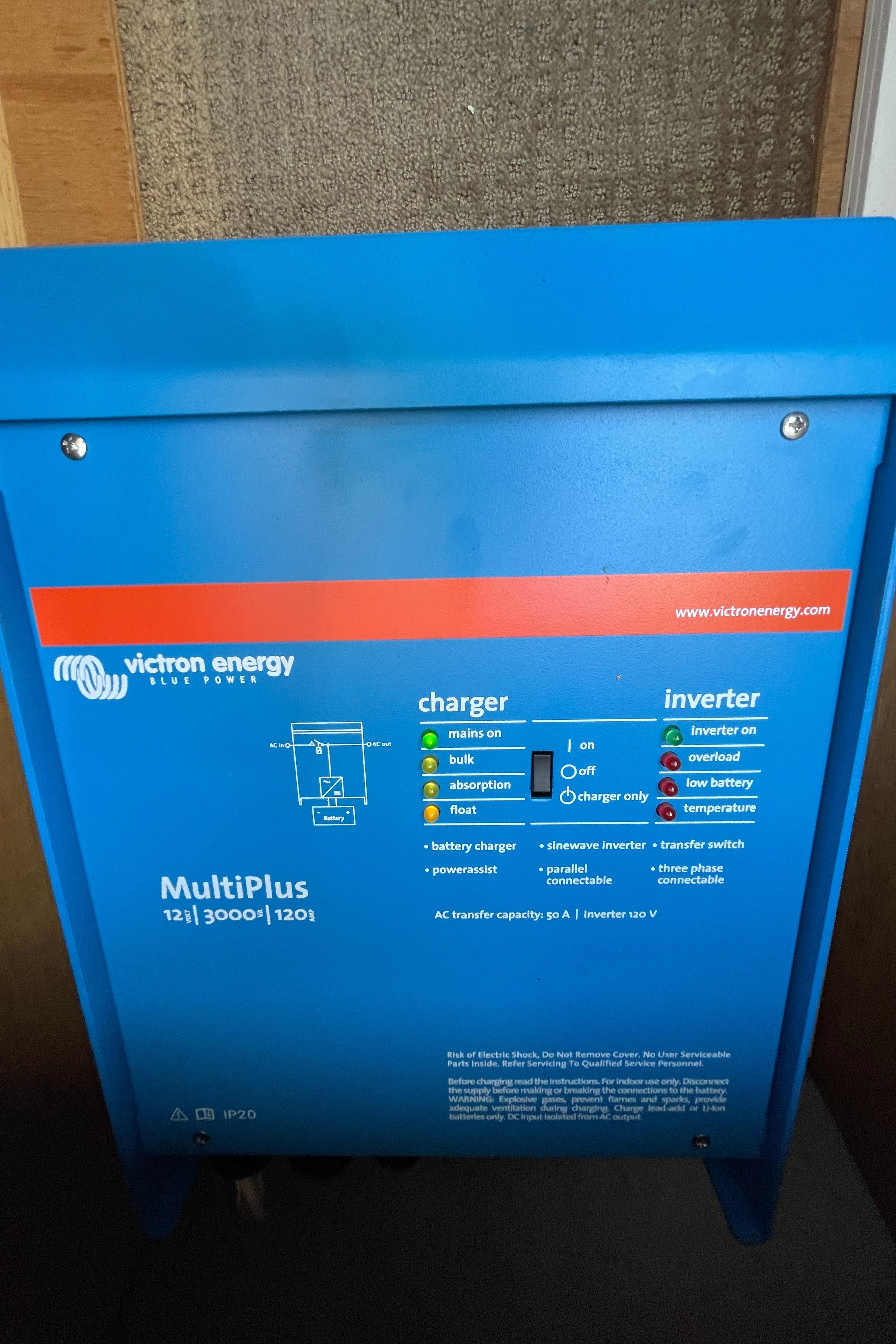

•  Inverter: Victron 3000w

PLUMBING

•  Water Tanks: Plastic, 100gal
•  Water pressure system: 12V demand pump, surge tank
•  Hot water tank: Kuuma 11gal, 120V
•  Waste: Plastic 60gal
•  Toilets: 2 x Jabsco electric, Y-valve to discharge directly overboard or to holding tank, deck discharge
•  Bilge pumps: Rule 2000gph, 2 x Rule 500gph, 2 x Attwood 1100gph
•  Shower sump pump on both fwd and aft showers
•  Through hulls: Bronze ball valves
•  Separate diesel tank for Espar forced air heating

 INSTRUMENTS

•  Lower helm:

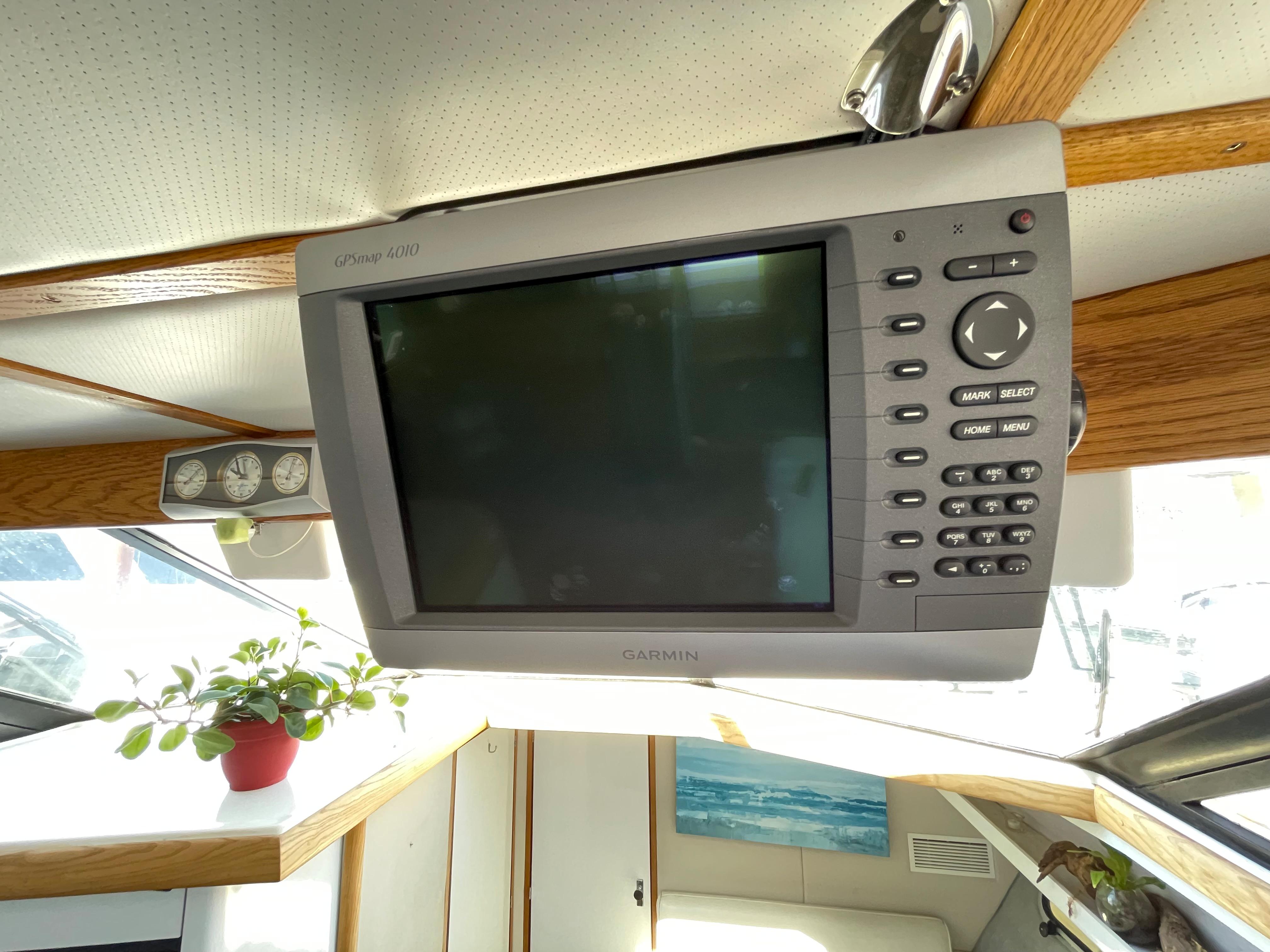

•  Chartplotter: Garmin 4010MFD, AIS
•  Radar: Garmin HD overlay on Chartplotter
•  Depth: Lowrence digital depth
•  VHF: Standard Horizon Eclipse
•  Upper helm:
•  Chartplotter: Garmin 5212 MFD, AIS
•  Radar: Garmin HD overlay on Chartplotter
•  VHF: Standard Horizon Matrix

 FLYBRIDGE AND DECK EQUIPMENT

•  Windlass: Muir Cougar 12V, up/down foot switches
•  Anchor: Manson 60lbs, 150’ 5/16th chain, 100’ ¾” rode
•  Fender holders on the bow railing
•  Fresh and salt-water wash downs on the foredeck
•  Safe walk around side decks with hand railing
•  Access the aft deck via side decks or swim platform

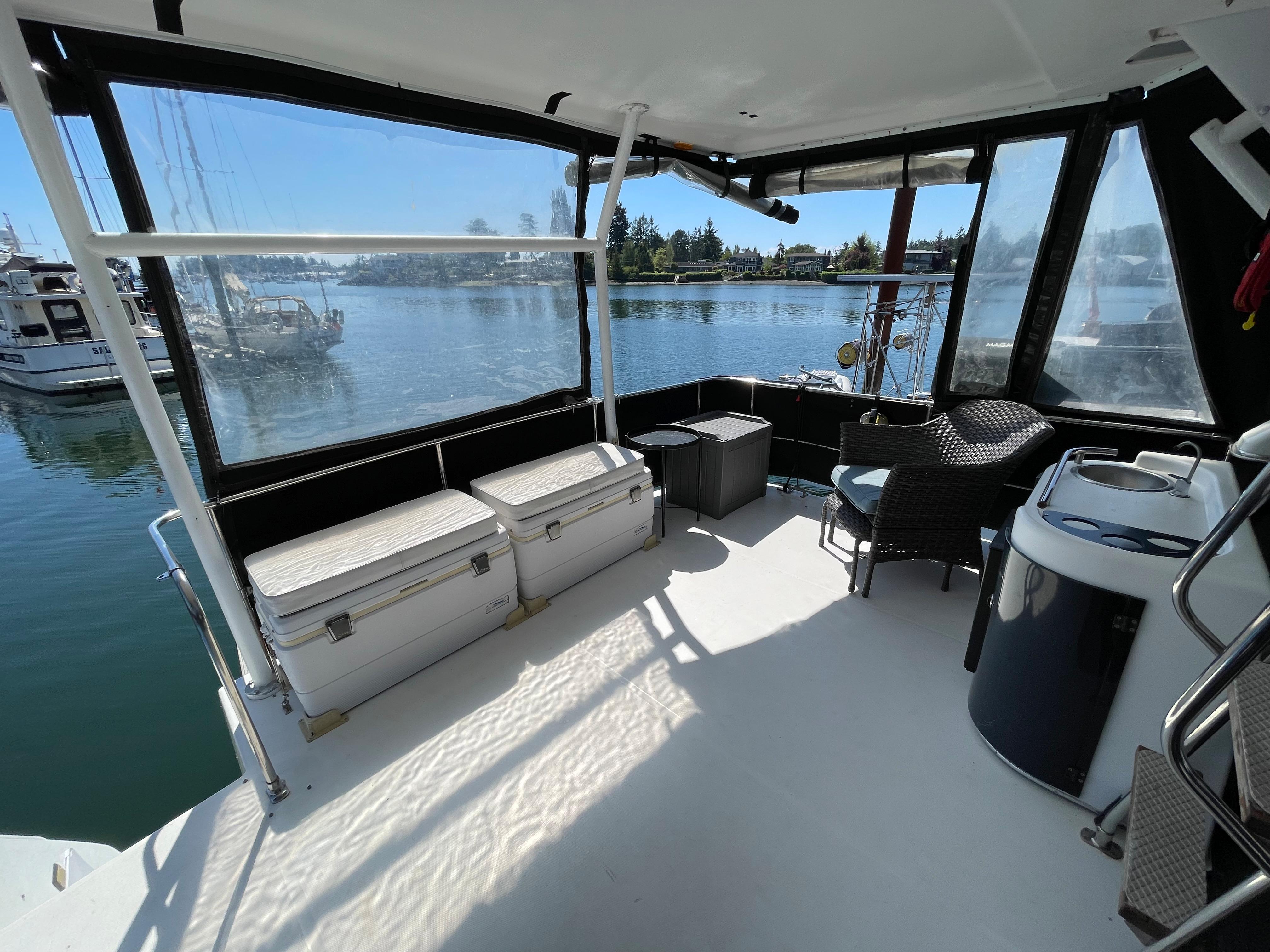

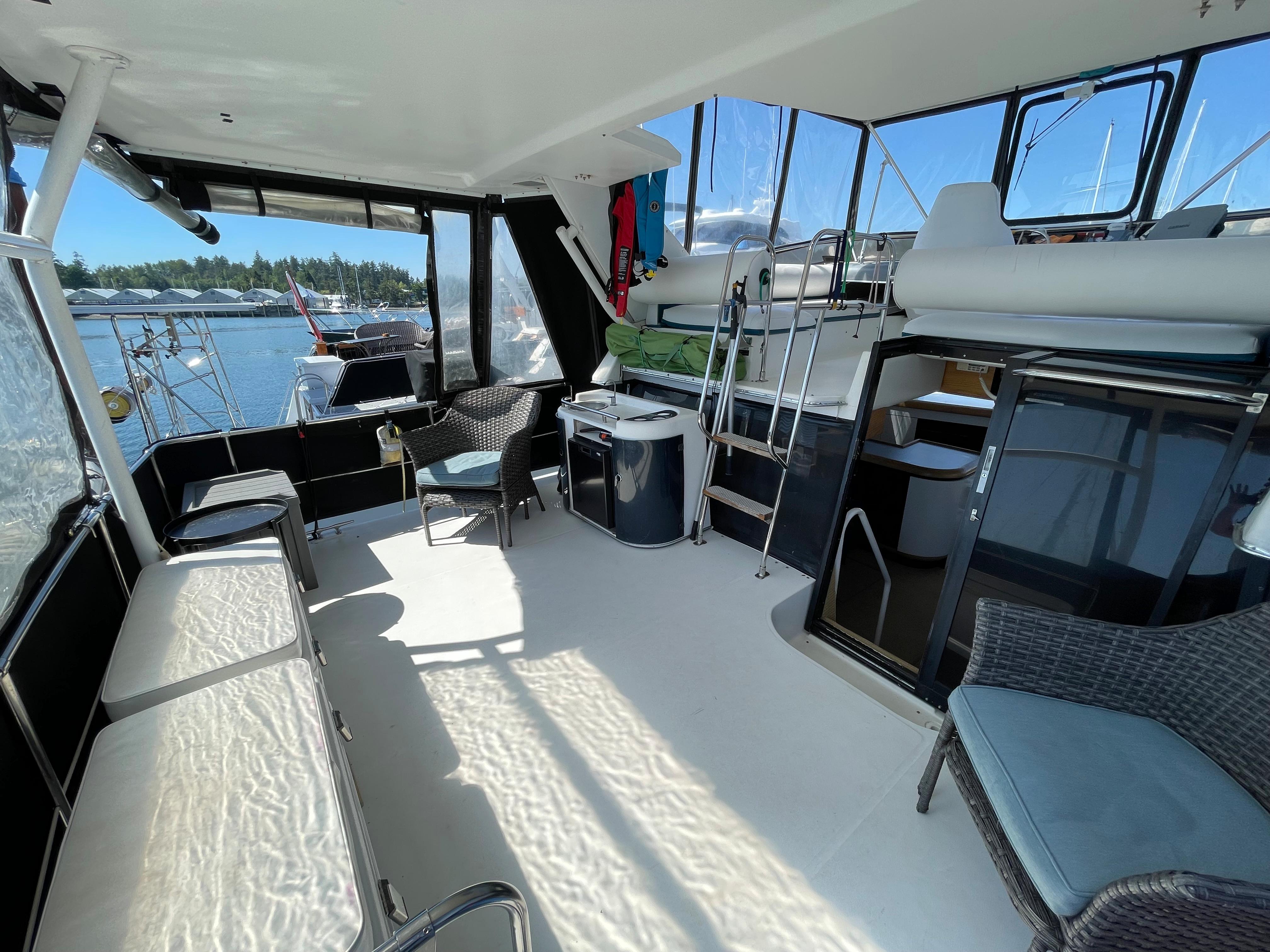

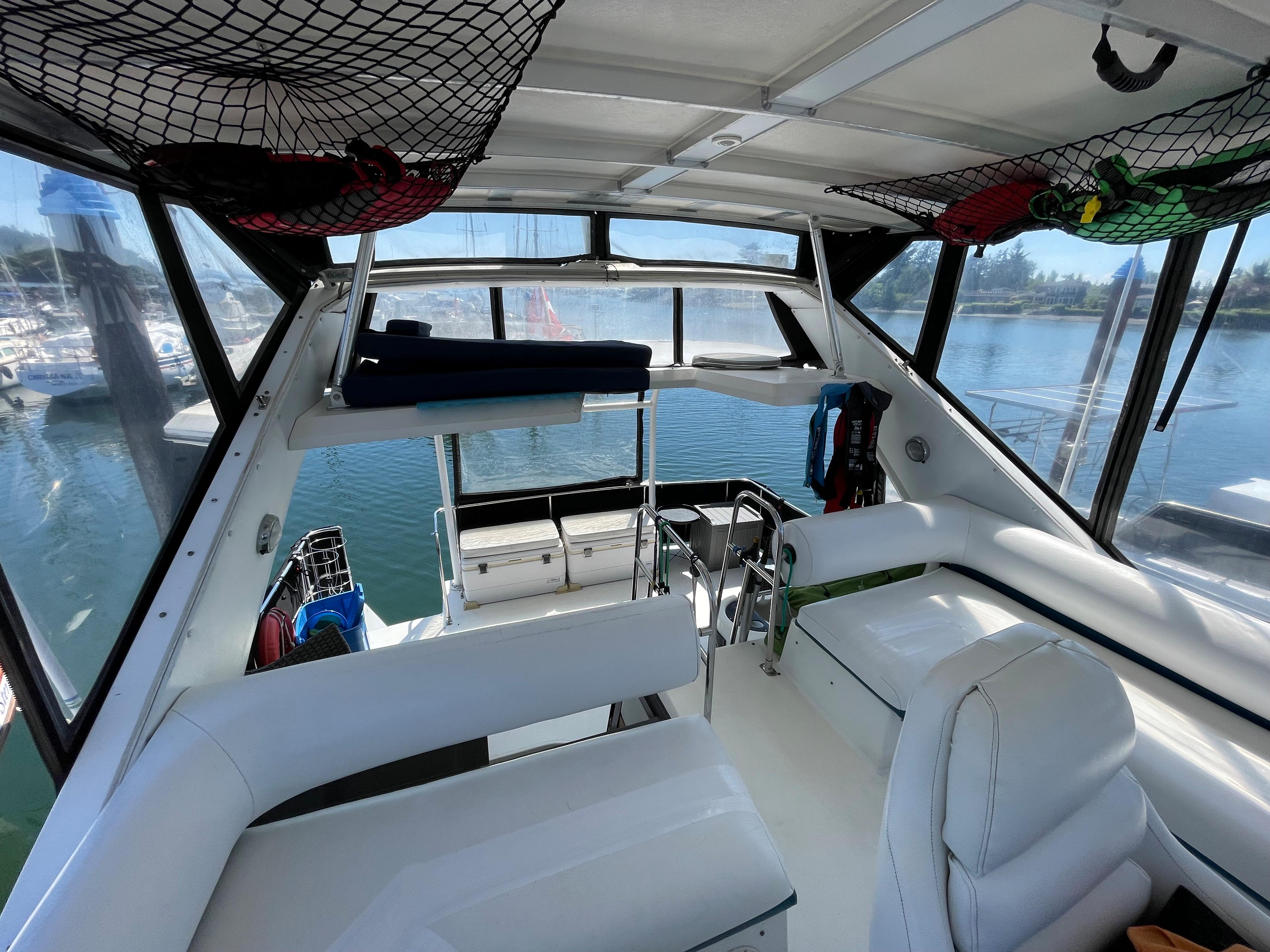

•  Both aft deck and flybridge enclosed with FRP hard tops and canvas role up window enclosure.
•  Windshield wiper on center pane of windshield

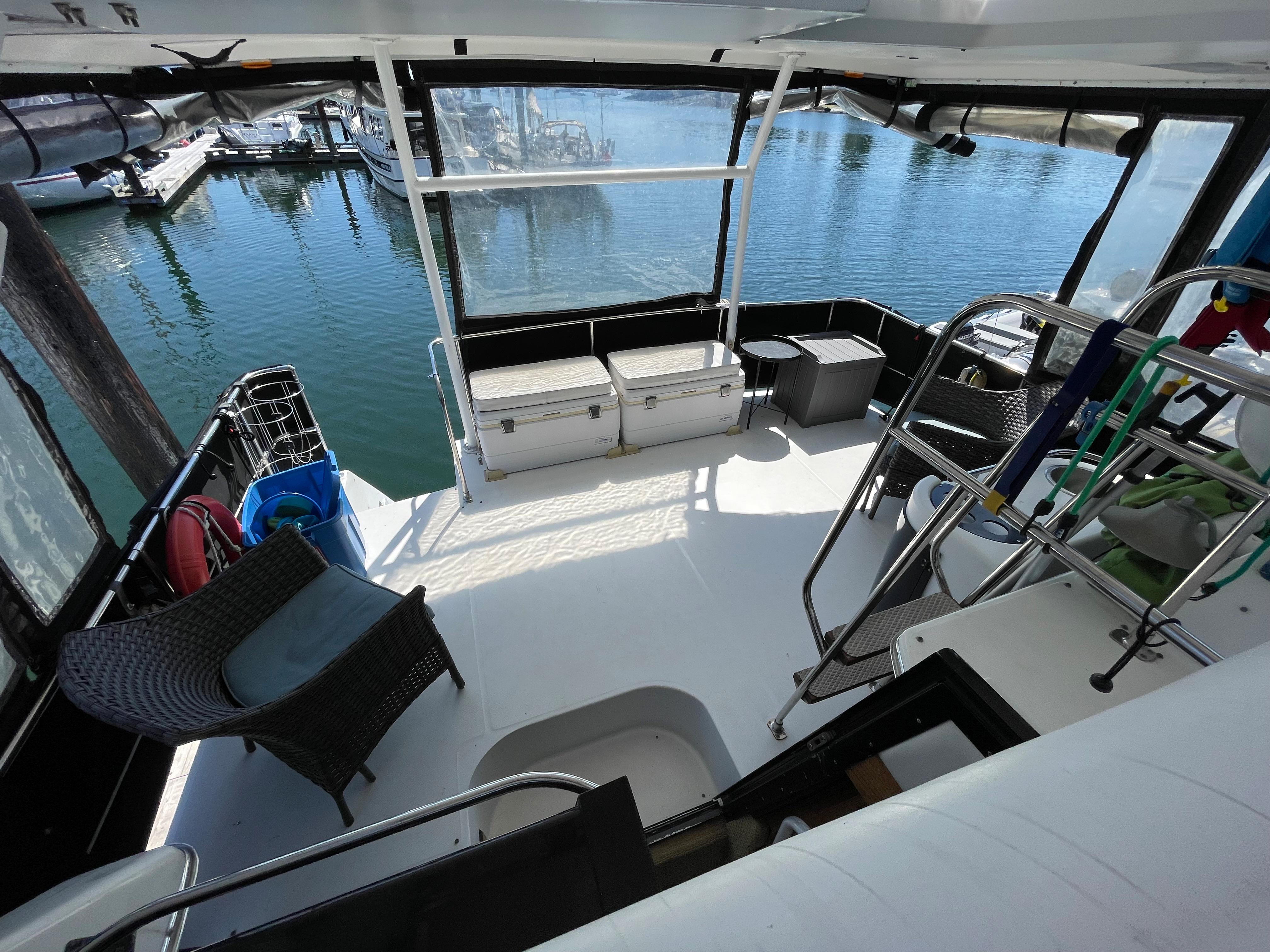

•  2 x large cooler boxes with cushion seating

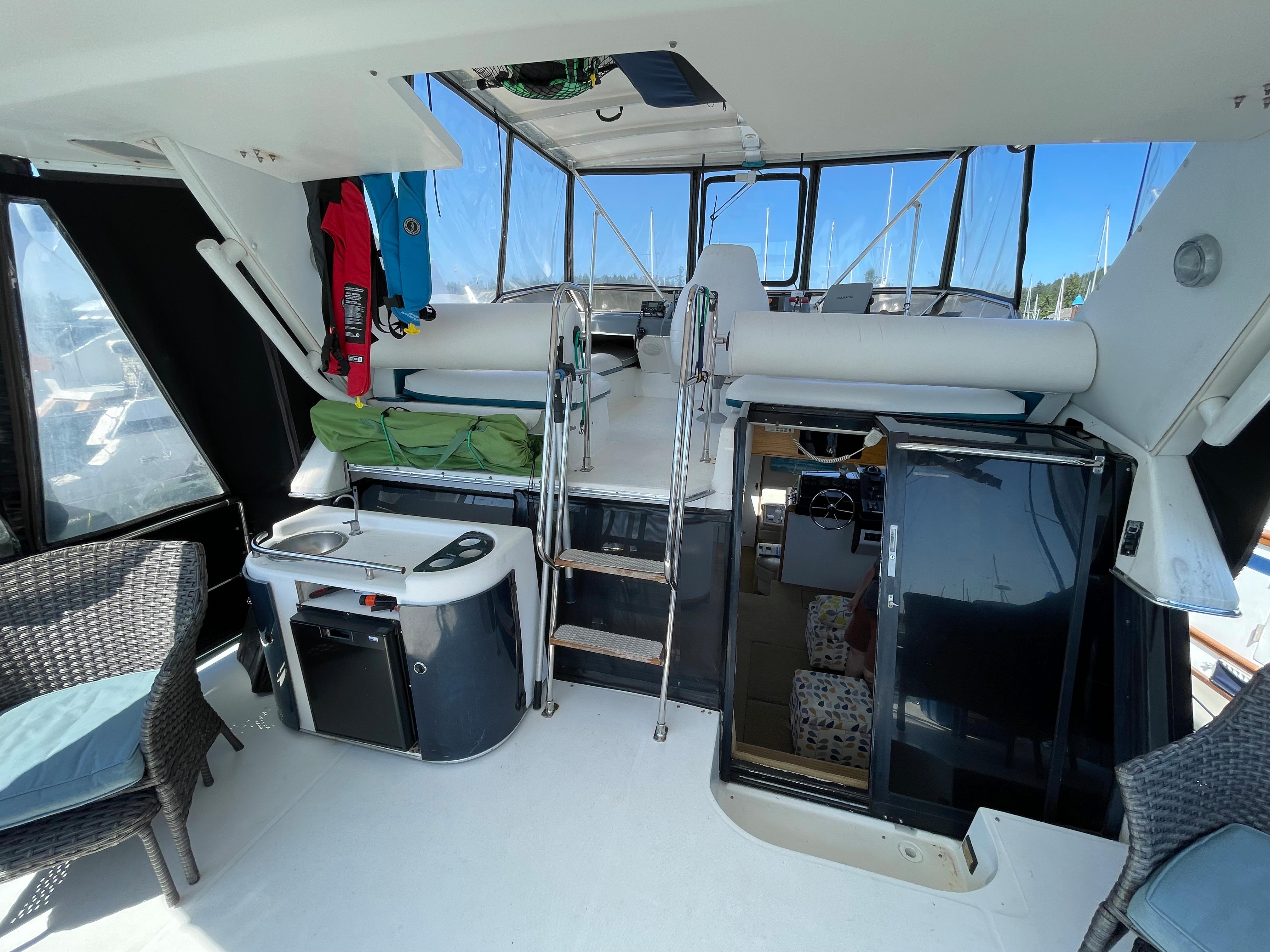

•  Wet bar includes sink and bar cooler
•  Molded FRP stairs to swim platform
•  Access the flybridge from raised aft deck S/S stairs

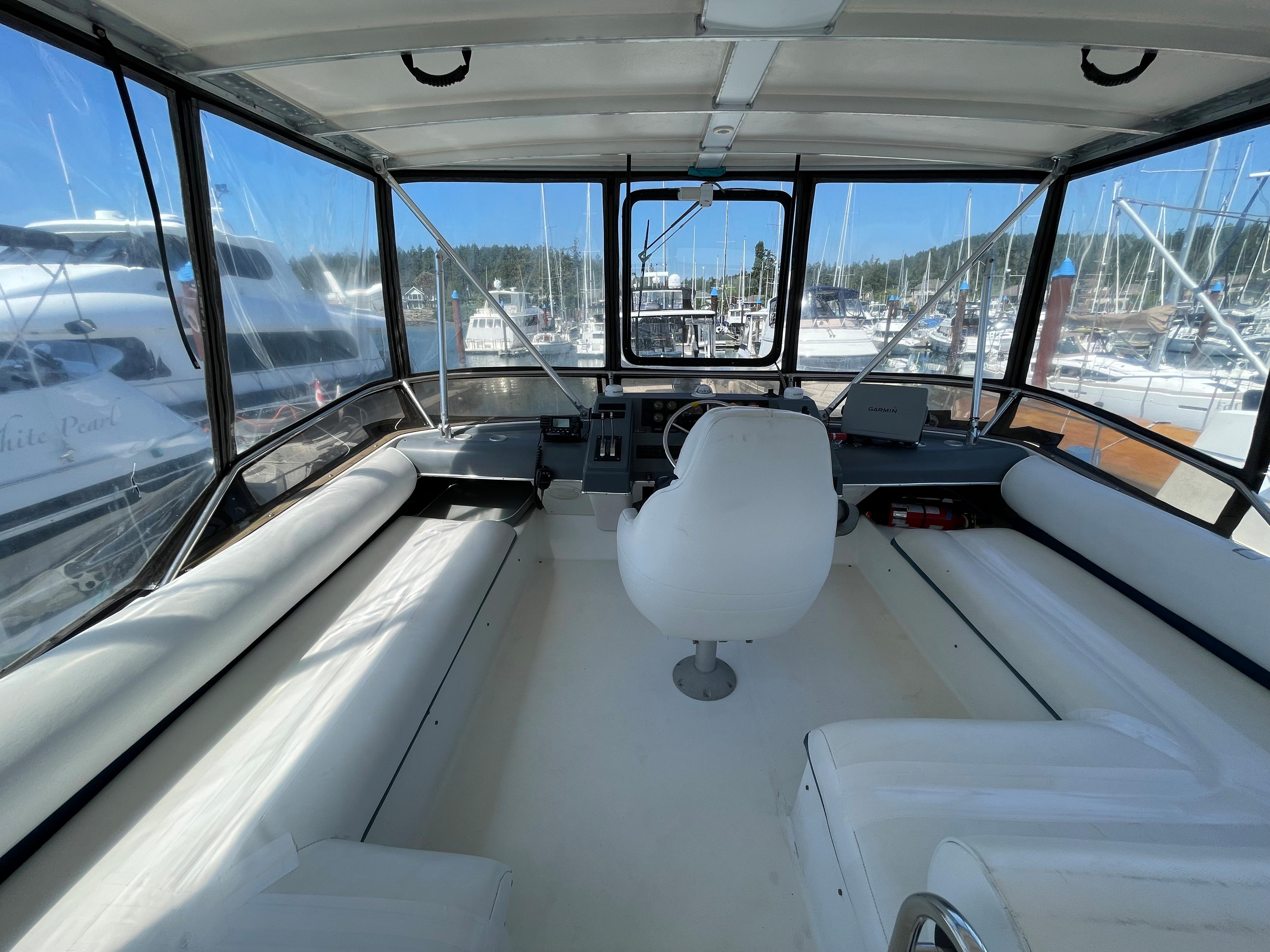

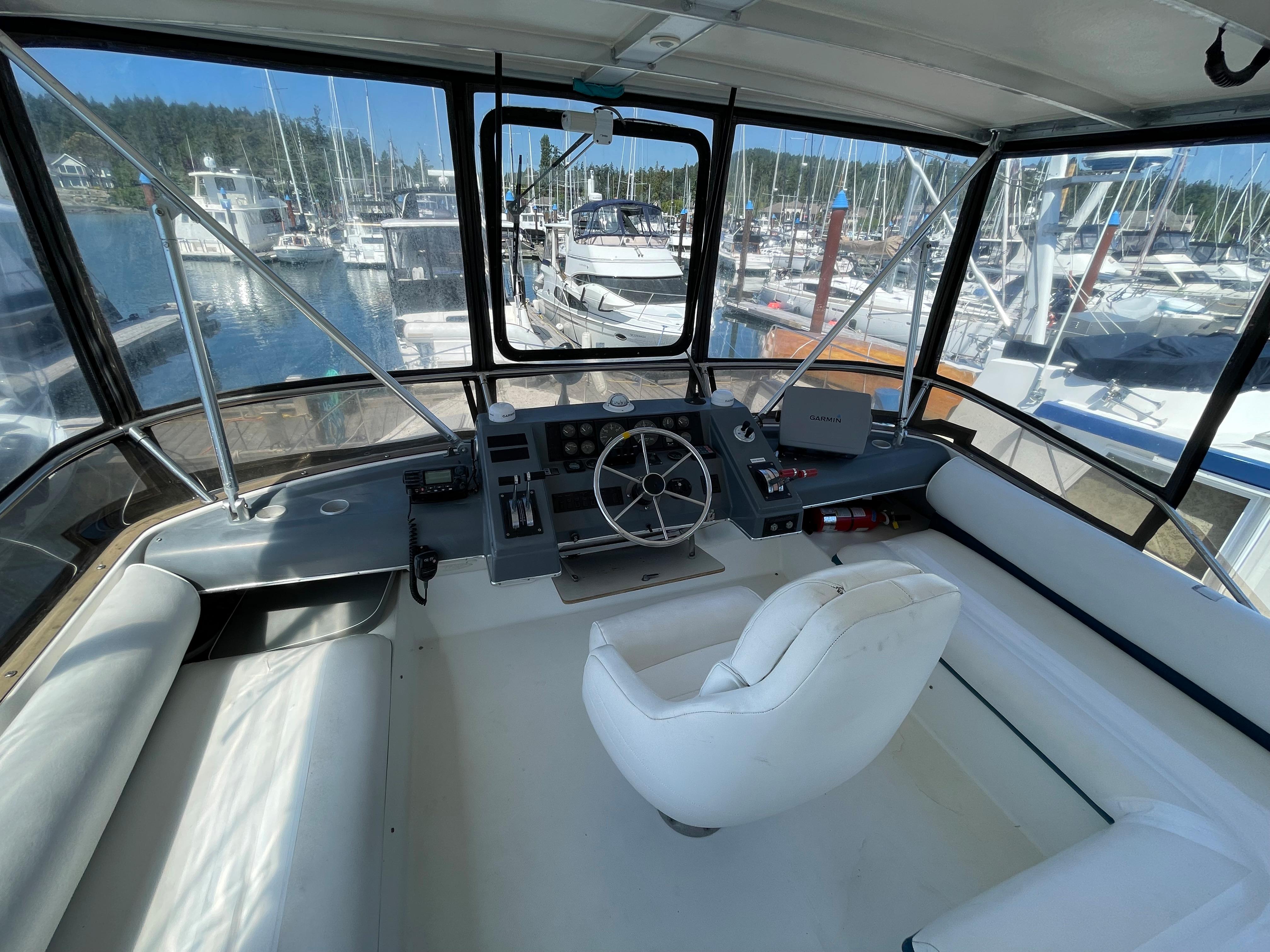

•  Flybridge seating includes an L-shaped seat and long bench seat
•  Single swivel helm seat

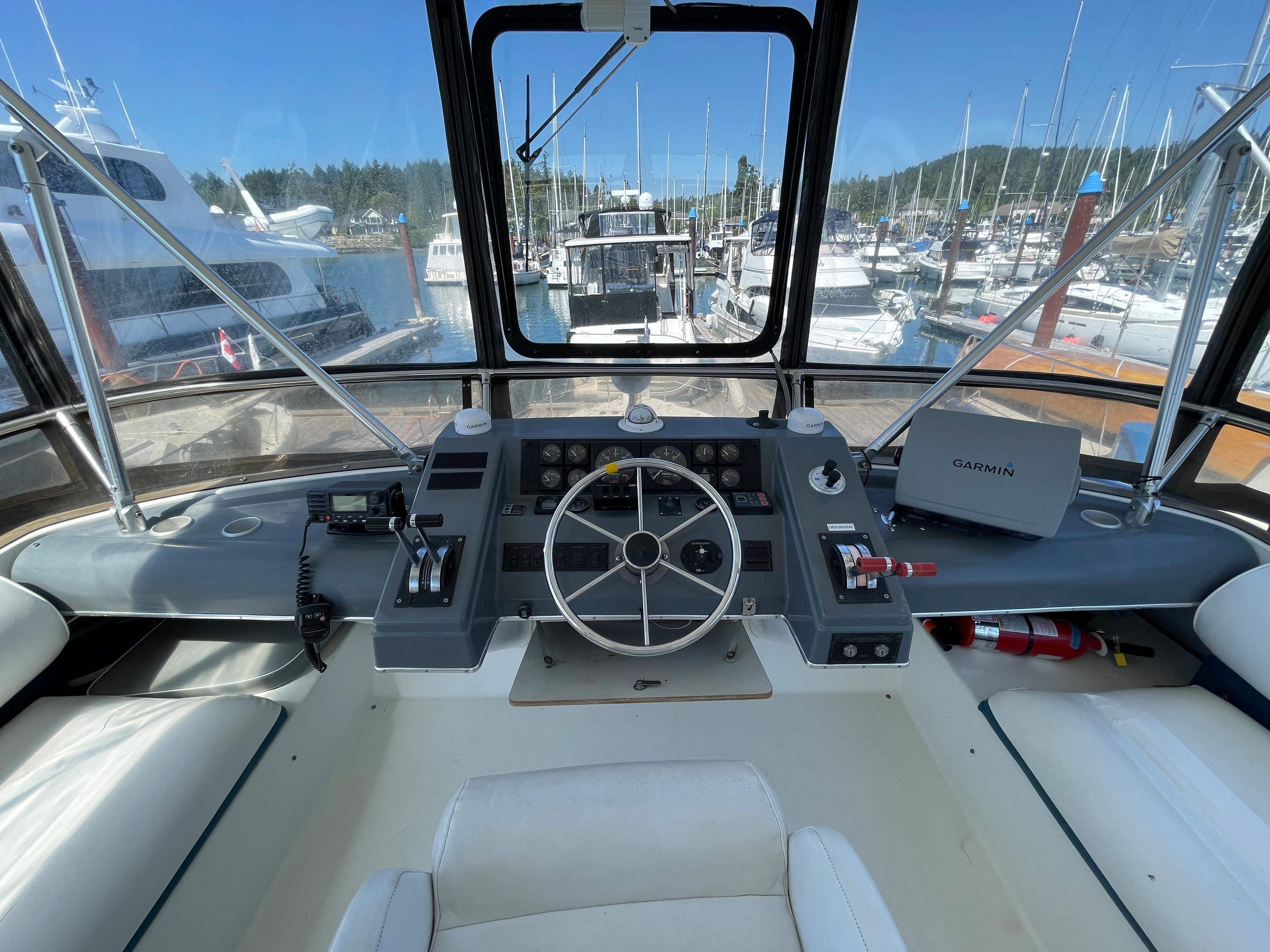

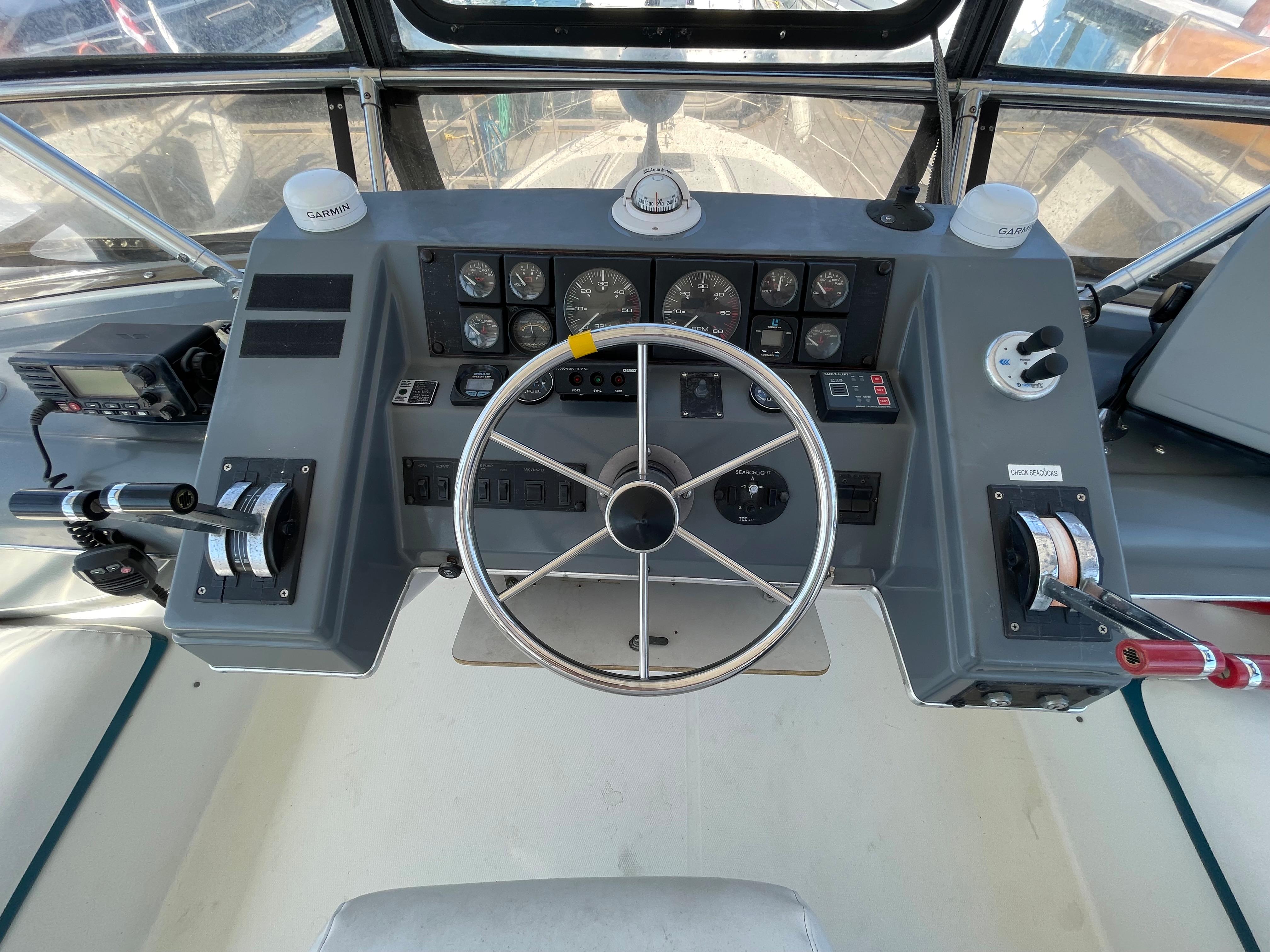

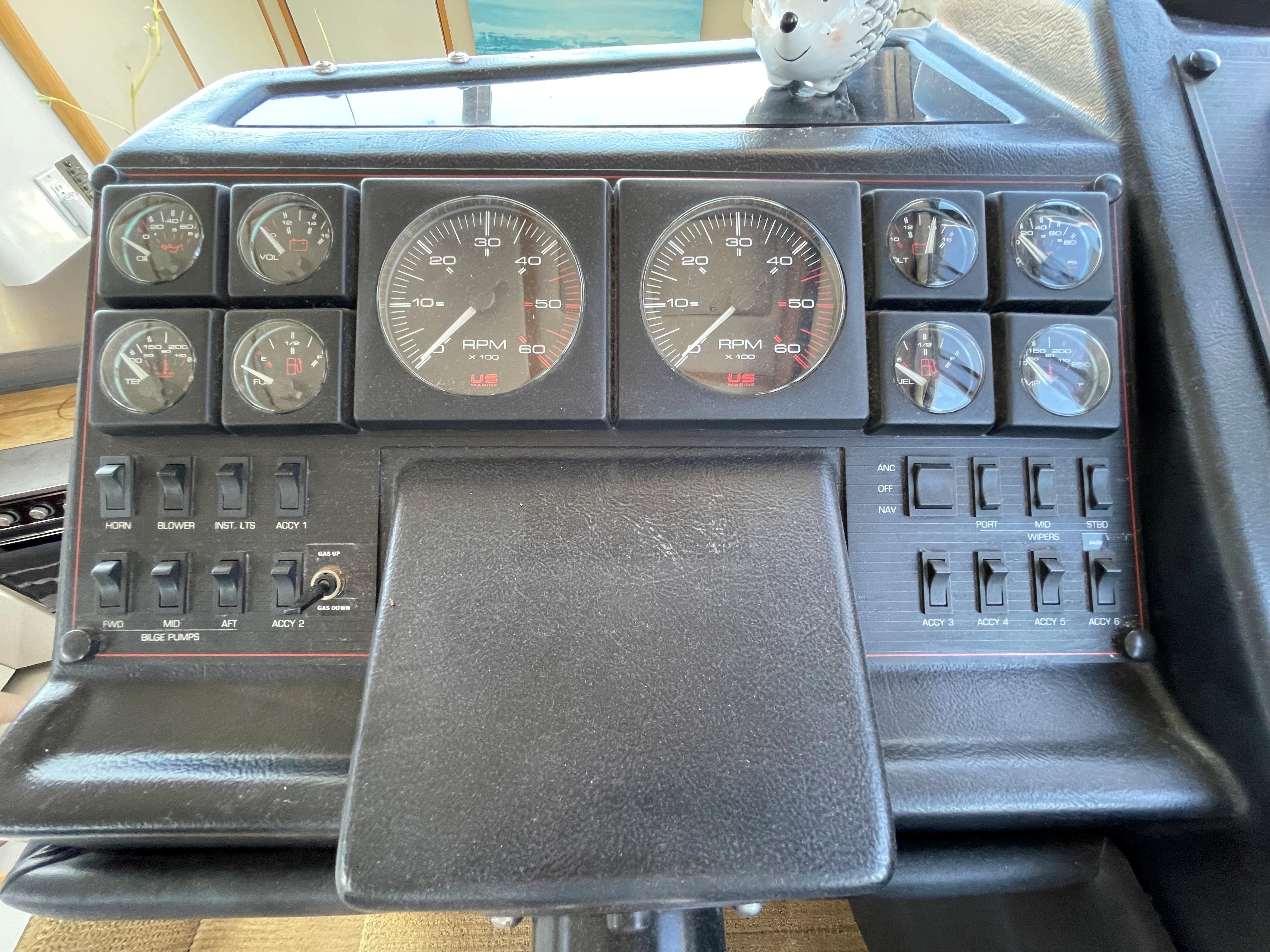

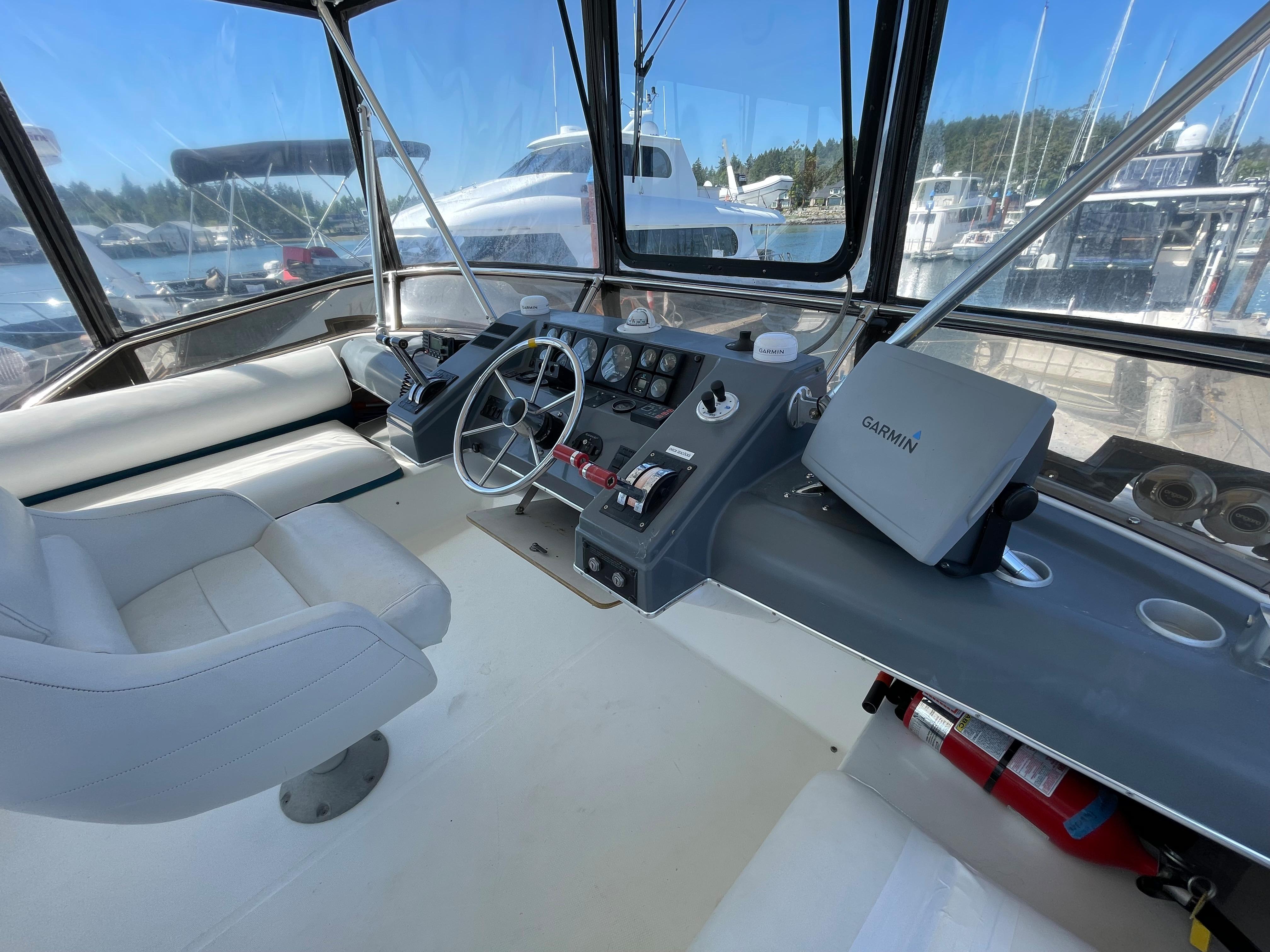

•  Flybridge helm includes analogue engine gauges, thruster controls, trim tabs, spotlight and windlass control, chartplotter, VHF

 ADDITIONAL EQUIPMENT

•  Dinghy: Gala aluminum 10’ 7” (2021)
•  Outboard: Suzuki 4 stroke (2021)
•  Sea Wise manual davit system (2021)
•  Magma BBQ
•  Stern line mounted on the aft deck

 MAINTENANCE

•  Last haul-out: Apr 2022
•  Last anti-fouling: 2021
•  Last zinc(s) change: Apr 2022
•  Last engine oil change:  Jan 2023
