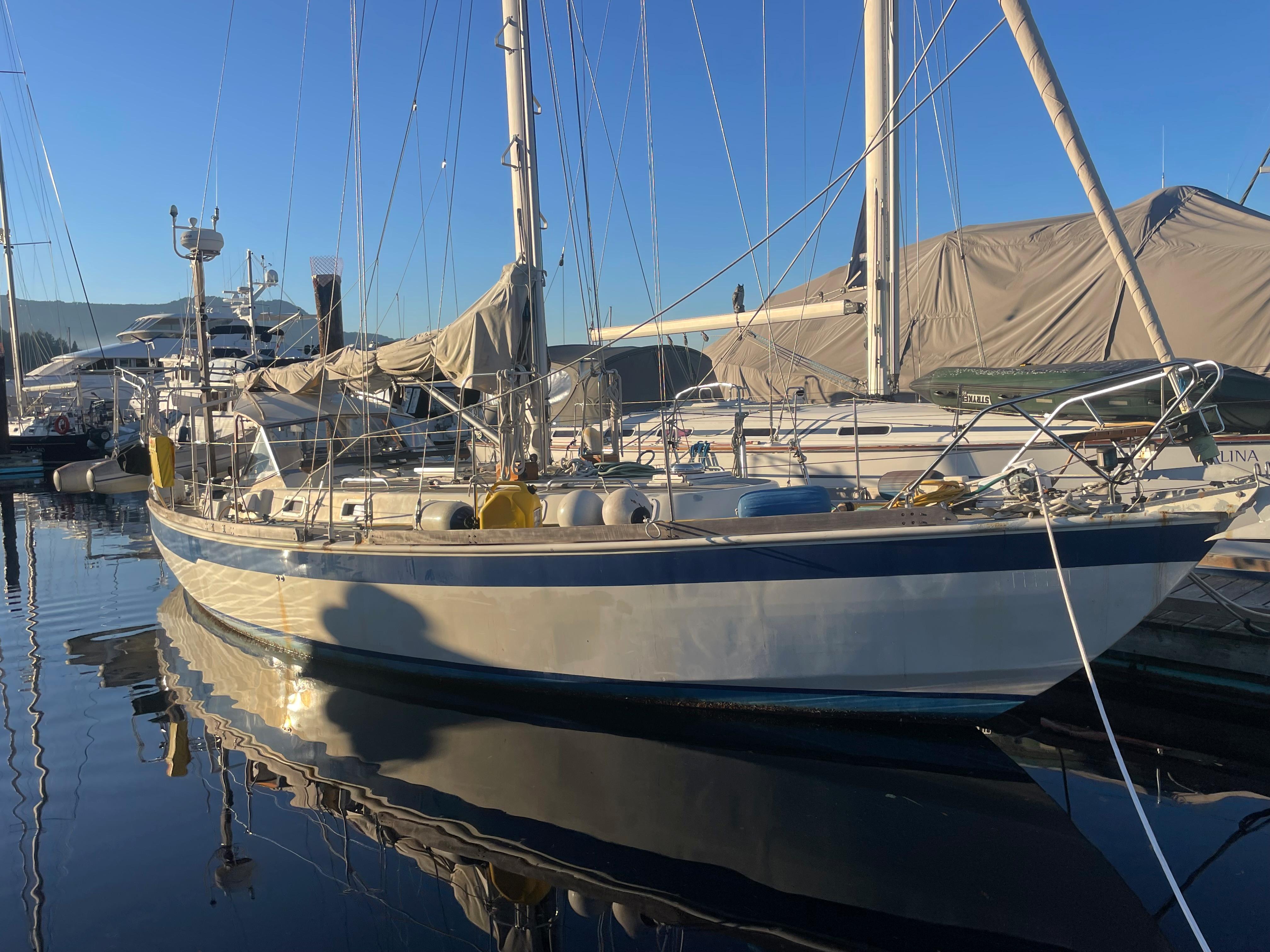

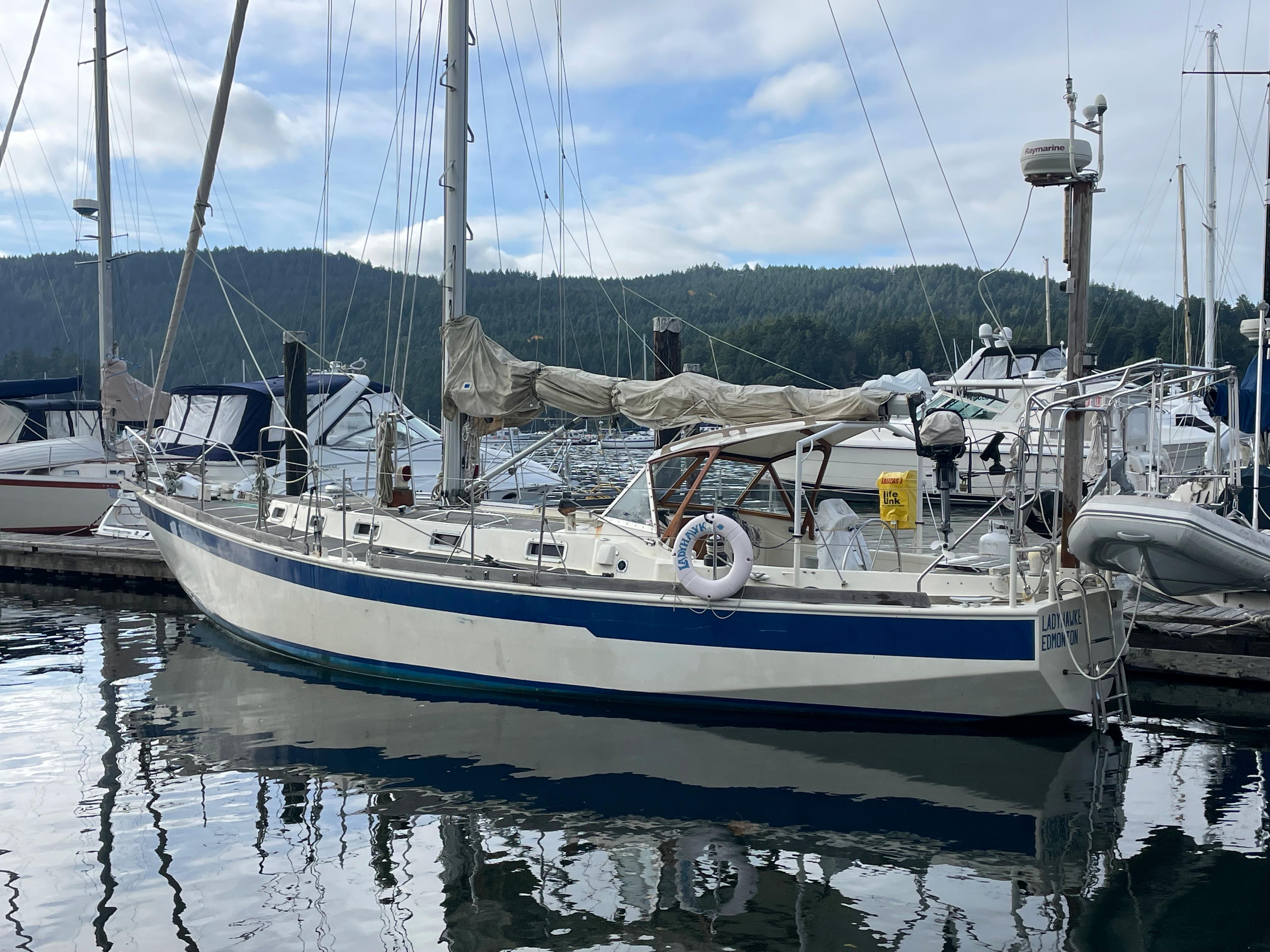

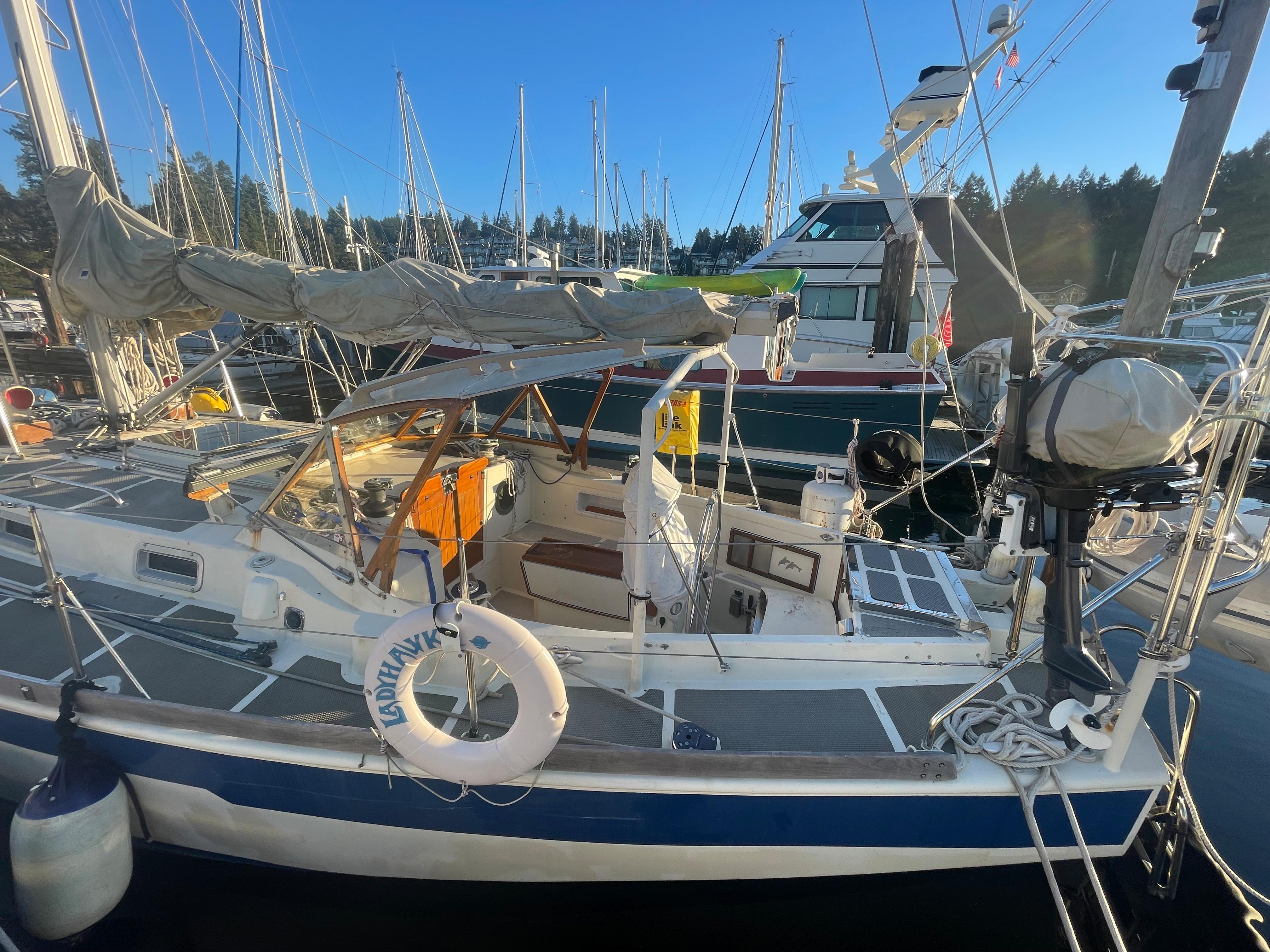

1993 Roberts 38

1993 Roberts 38   Specifications

Name......................................................... Ladyhawke I

Year...................................................................... 1993

Builder.............................................................. Custom

Designer.................................................. Bruce Roberts

LOA......................................................................... 37’

Beam.................................................................... 11’4”

Draft........................................................................... 5’

Displacement................................................. 28,000lbs

Ballast.................................................................. 6,700

Hull.......................................................................Steel

Deck..................................................................... Steel

Steering............................................................... Wheel

Keel................................................. Encapsulated Lead

Rudder.................................................................. Skeg

Fuel...................................................................... 32gal

Water................................................................... 32gal

Hot Water.............................................................. none

Holding Tank......................................................... 22gal

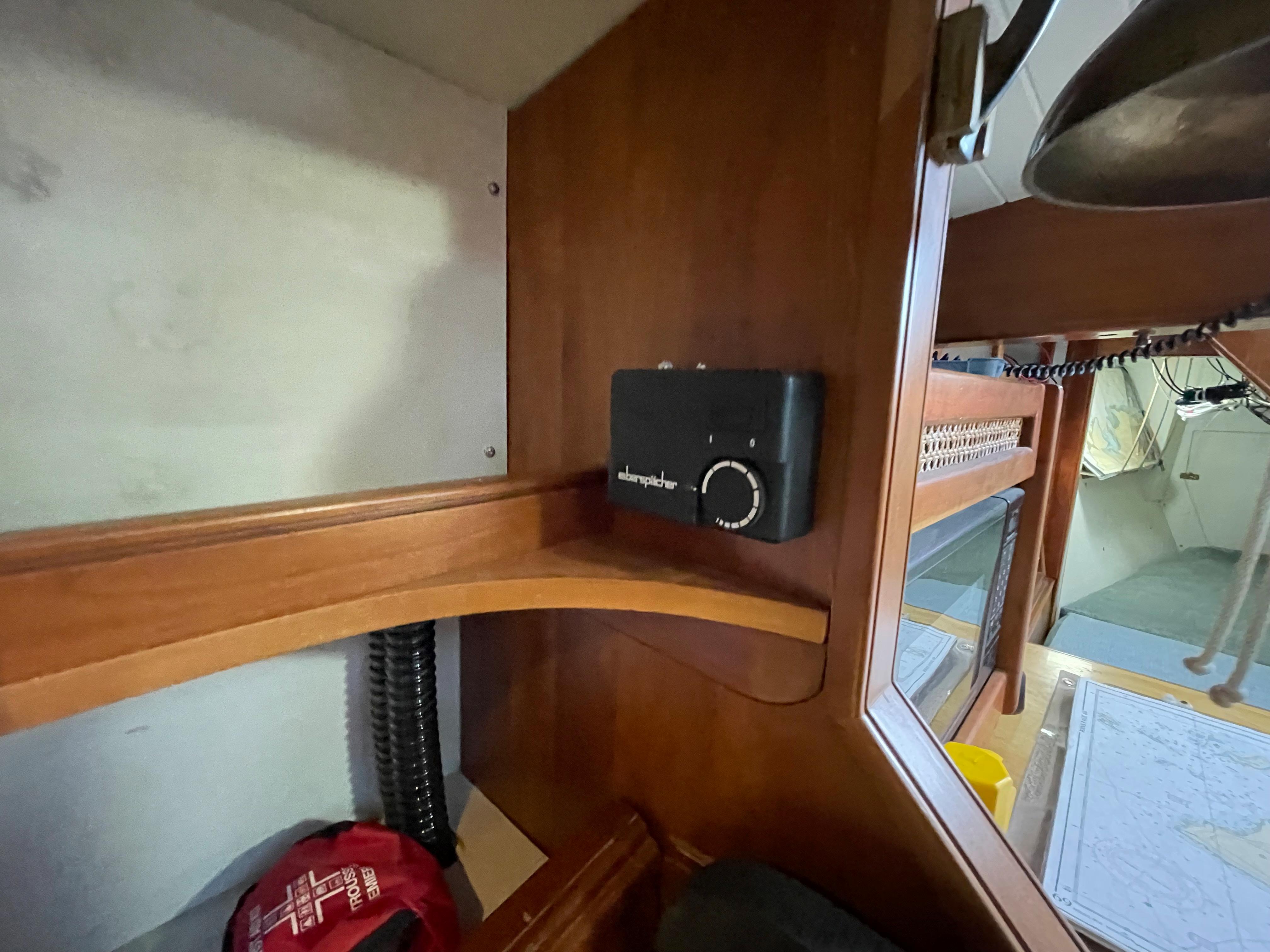

Heat........................................................... Espar diesel

 CONSTRUCTION

•  Custom built, welded mild steel plating
•  Hull is multi-chined displacement type, with a low aspect fin type keel and a full   skeg hung rudder
•  The sides, foredeck and cabin top are of welded steel
•  Cockpit built of GRP sheathed plywood

 INTERIOR

•  1 cabin, 1 head layout plus a quarter berth
•  Interior woodwork is Cherry veneered bulkheads and doors, solid wood moldings, trim and hand hold fittings
•  Cabin sole is solid Oak with cherry borders
•  Headliner is painted plywood with faux staving appearance

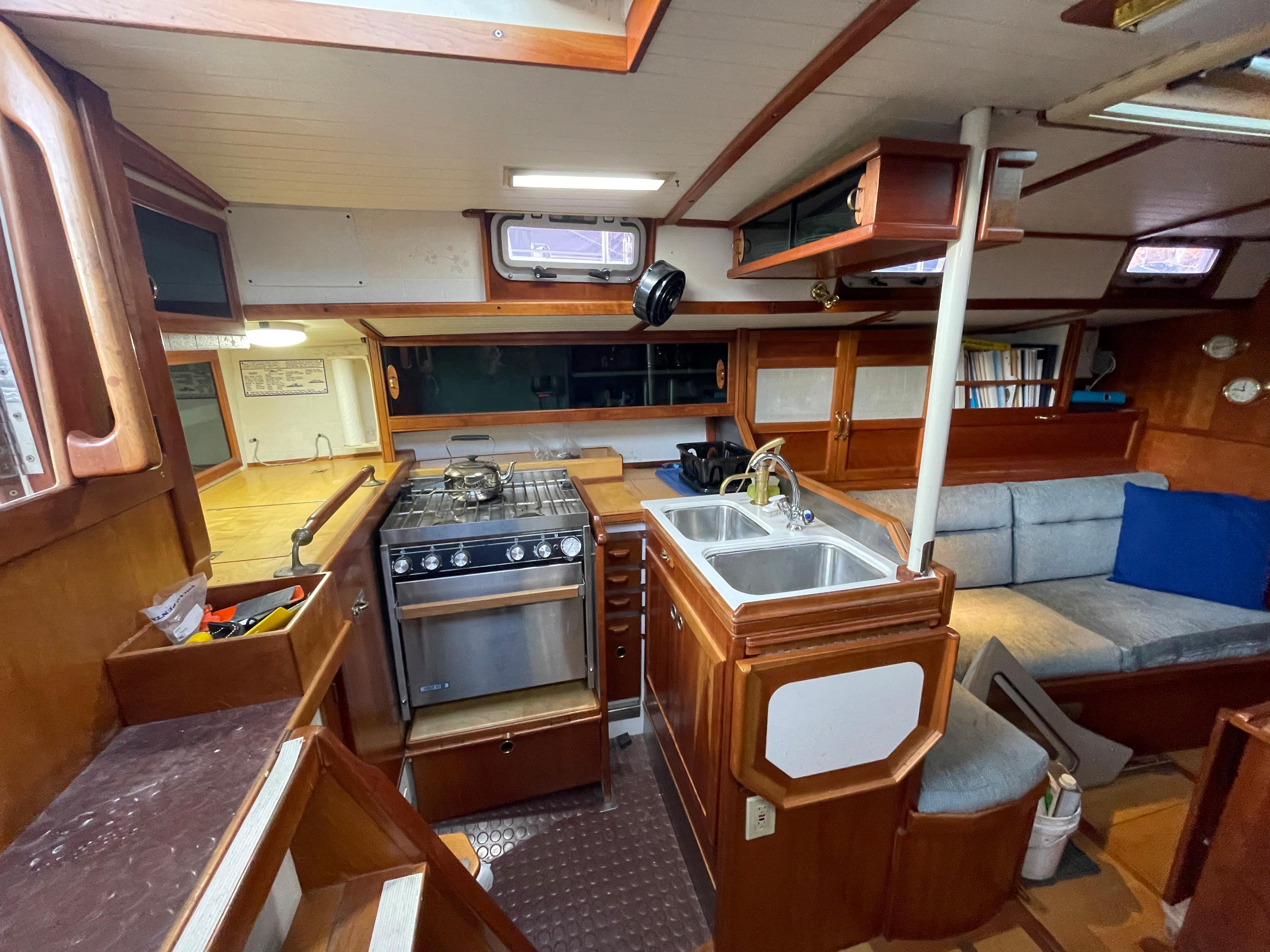

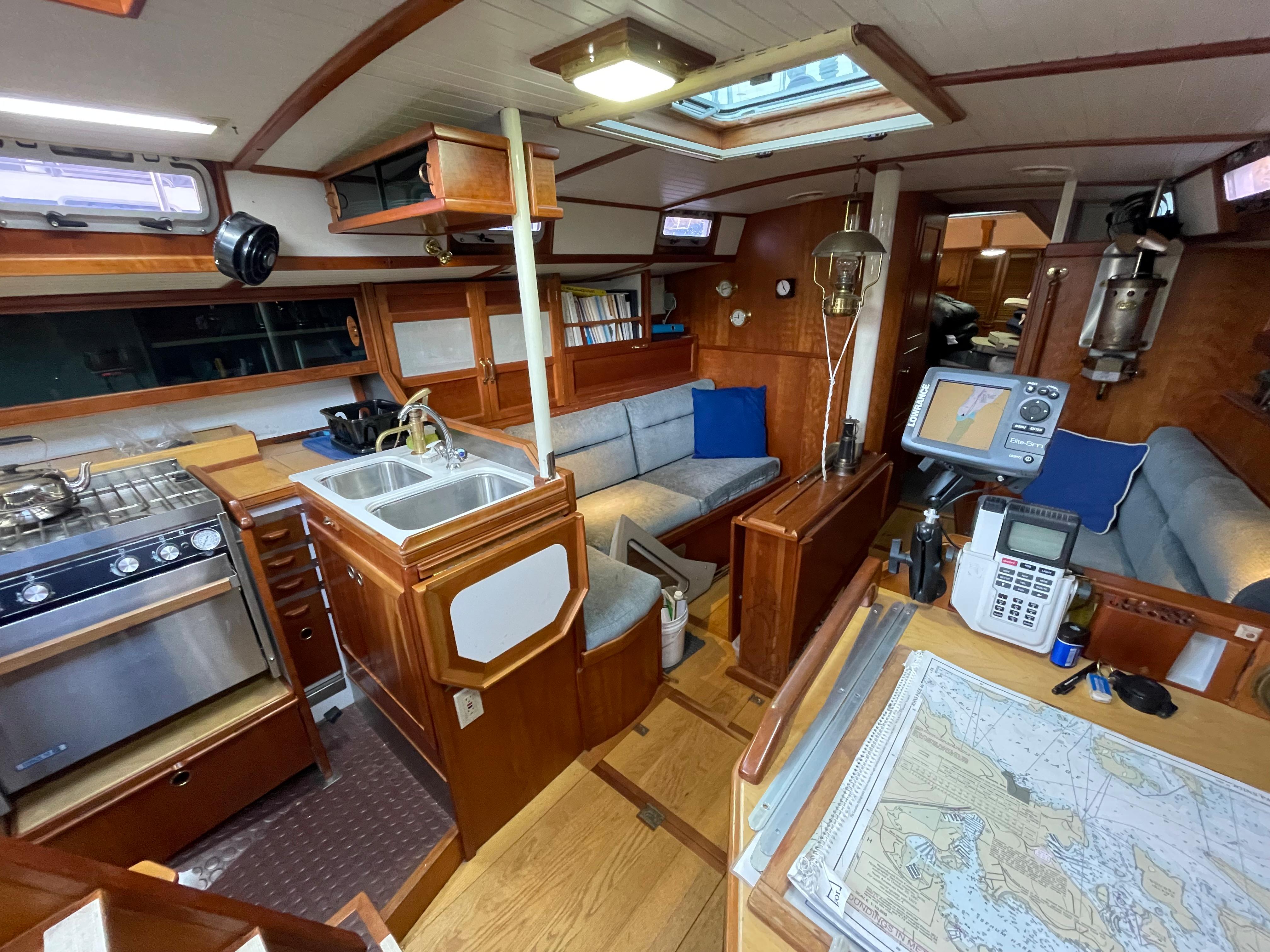

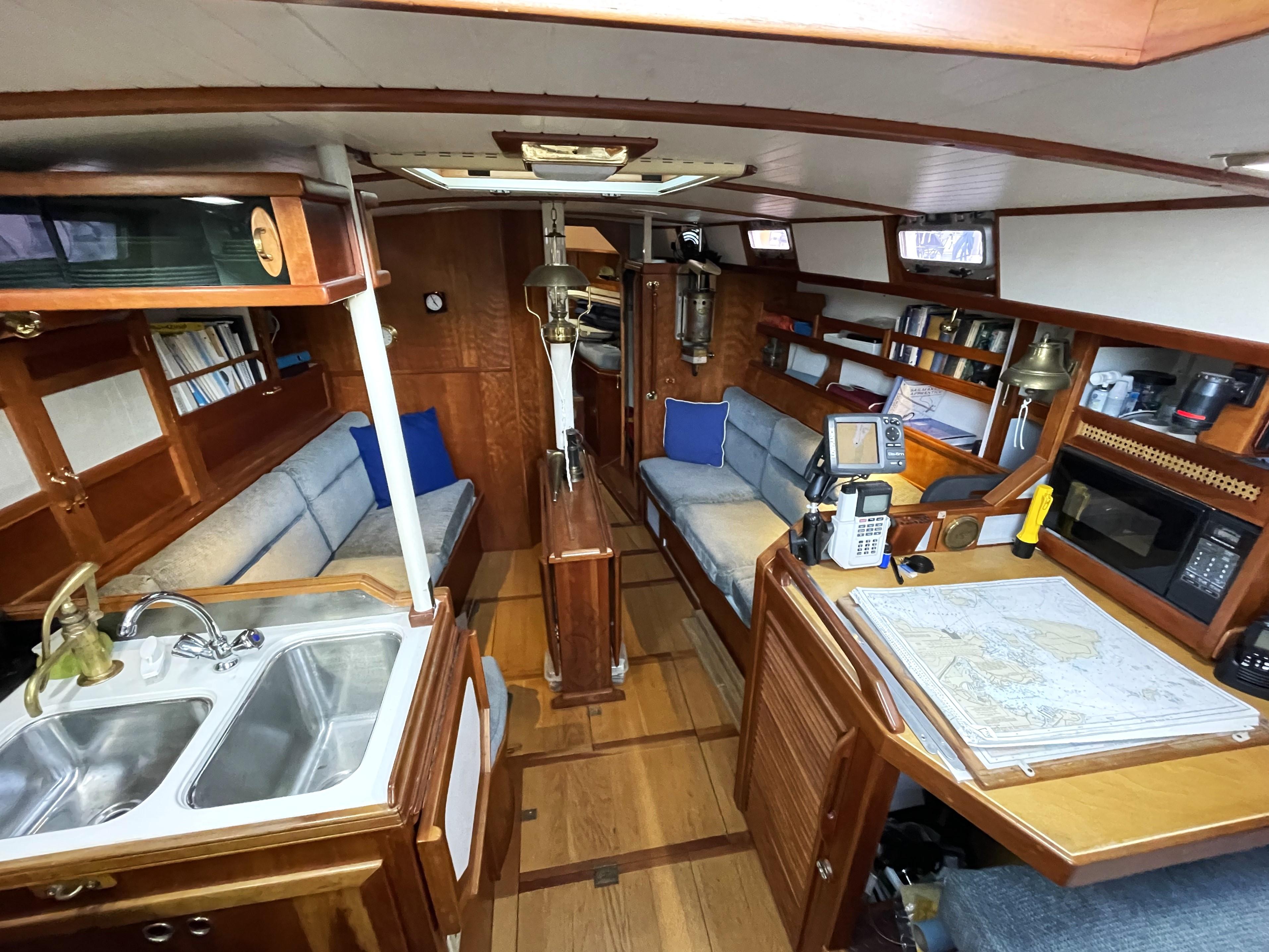

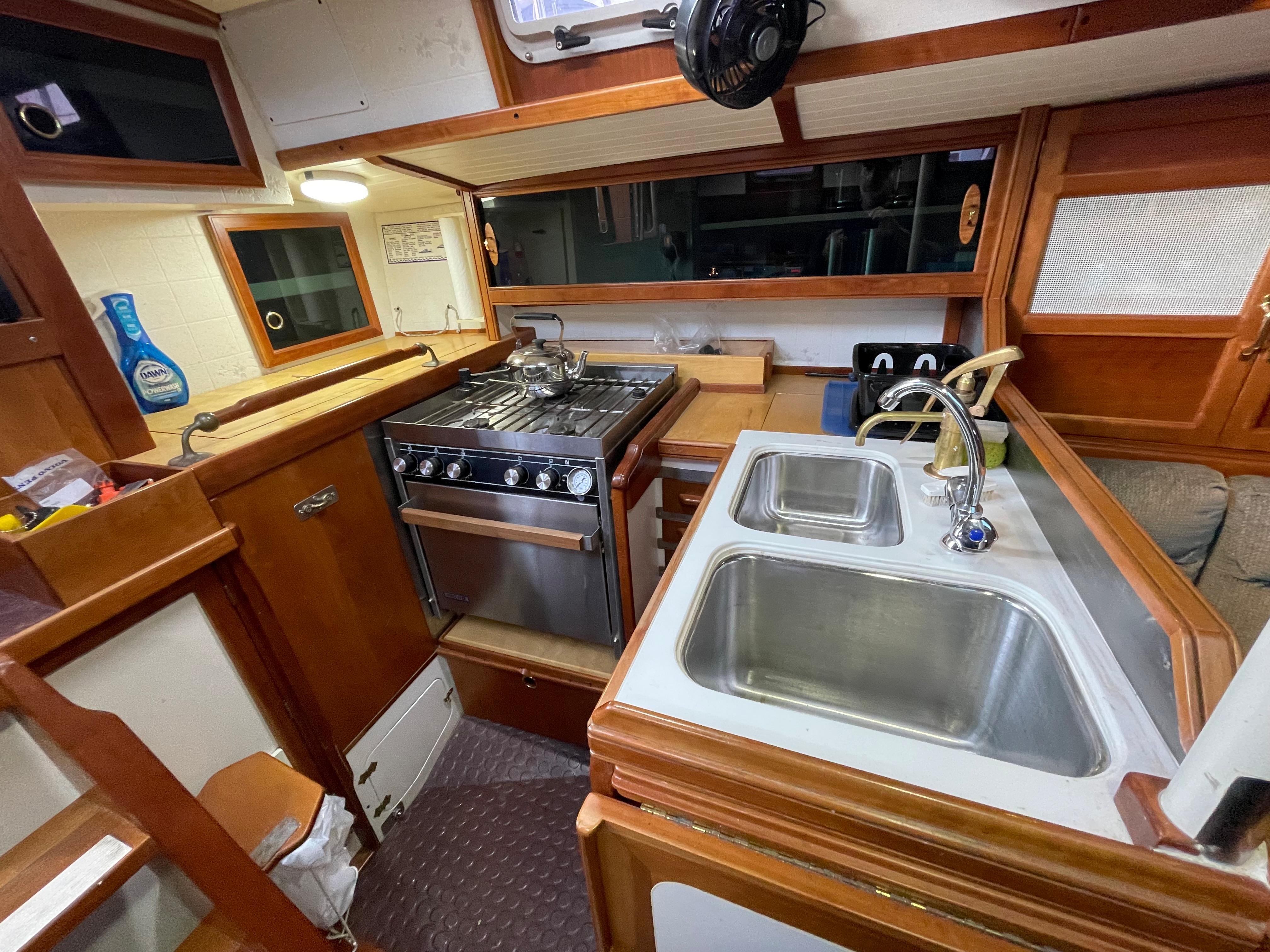

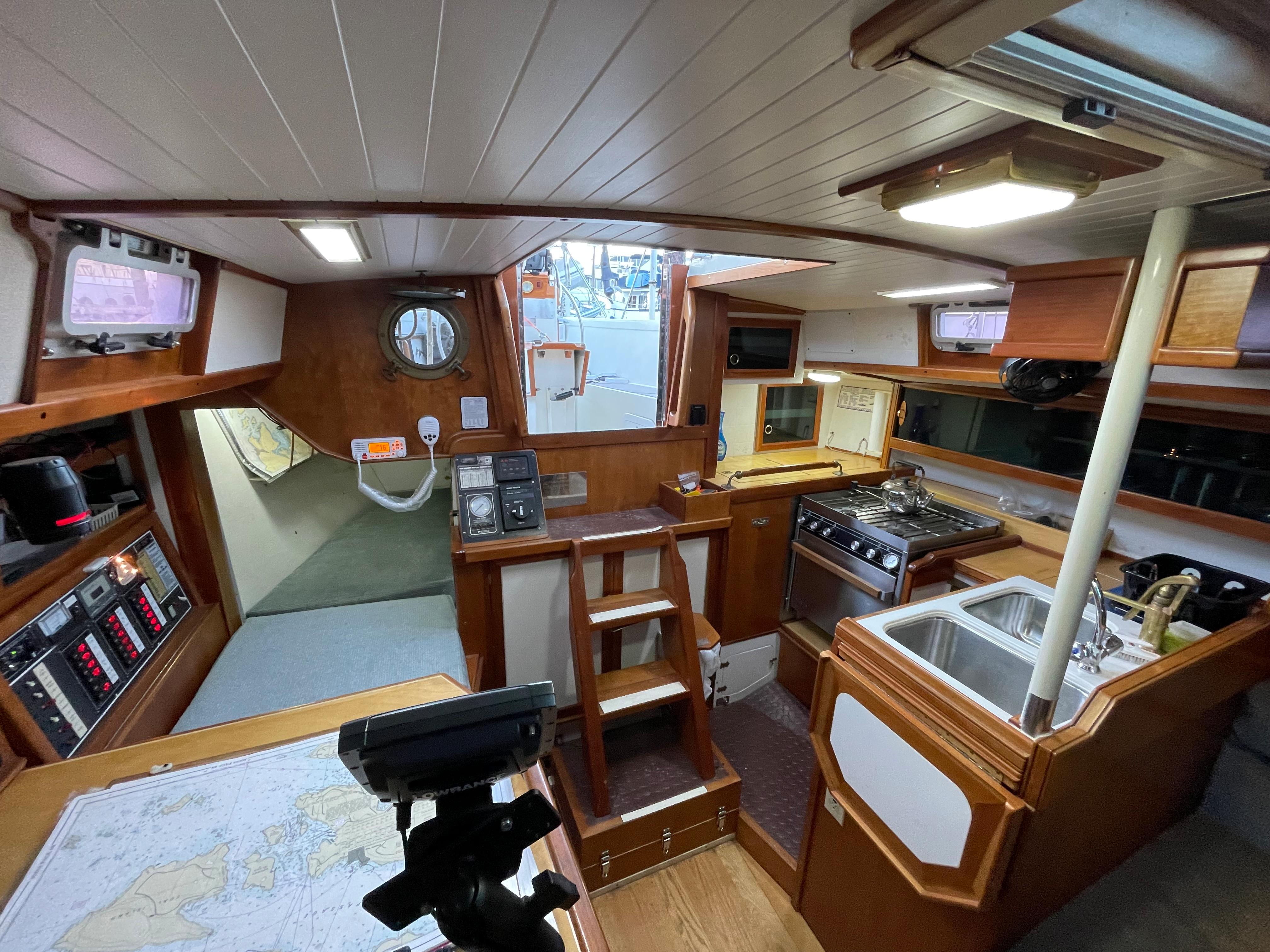

•  Galley: U- shaped to port

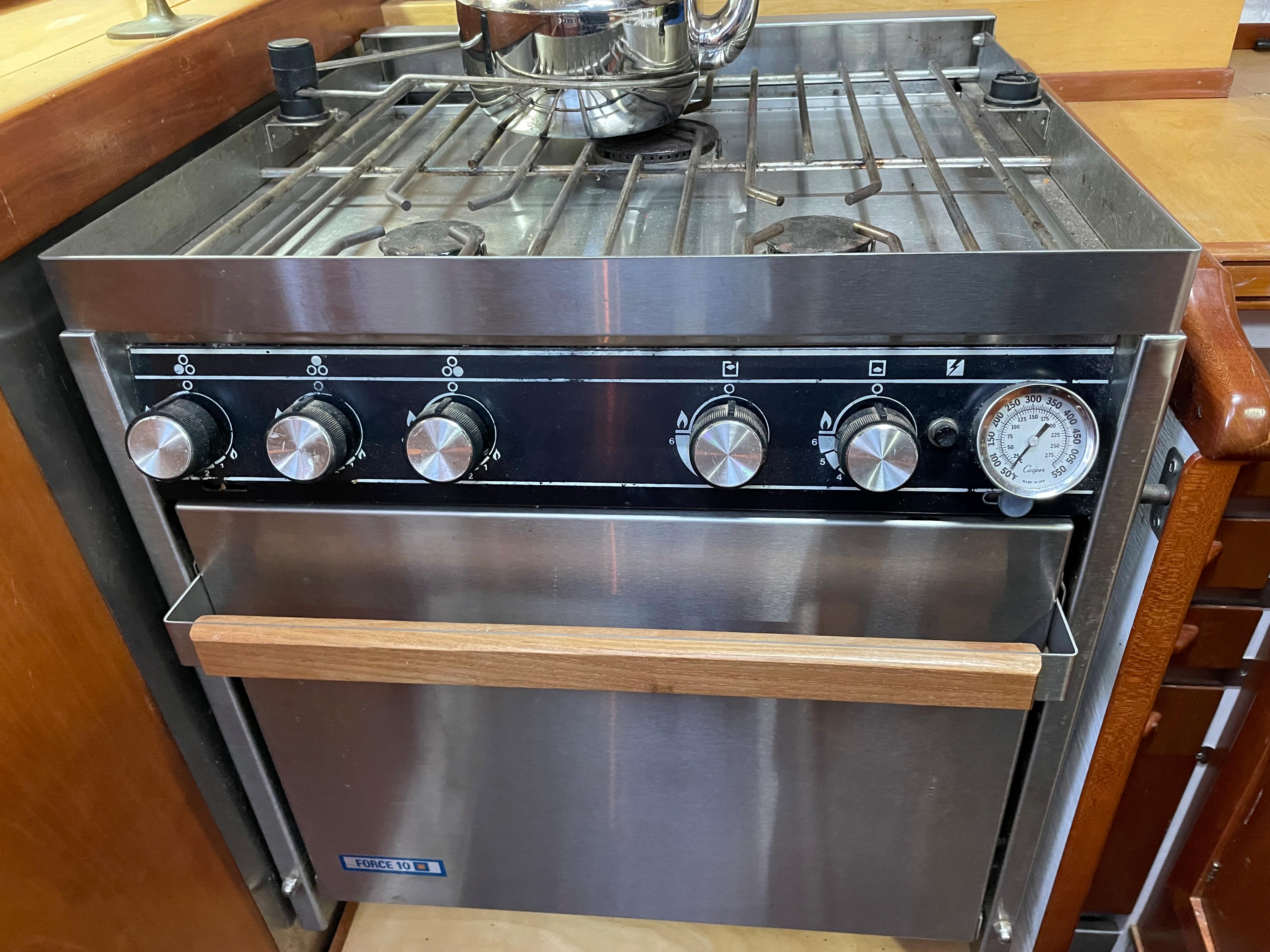

•  Stove: Force 10, gimbaled 3 burner stove/oven

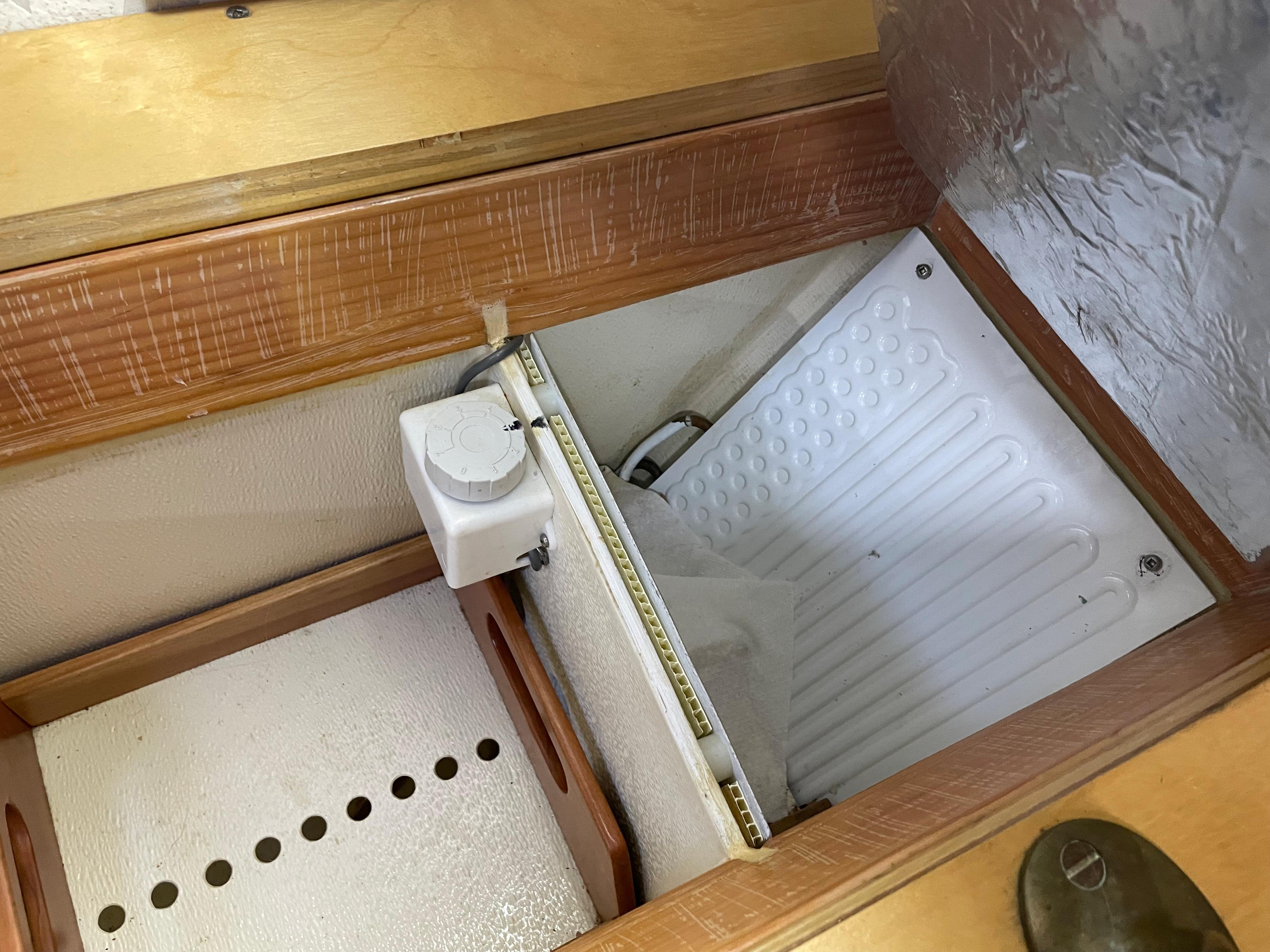

•  Top loading fridge/freezer, 12V
•  Double sink with fixing Hot/cold faucet, (note no hot water tank, illegal LPG demand hot water was removed)
•  Salt water manual pump faucet
•  Microwave (mounted by chart table)

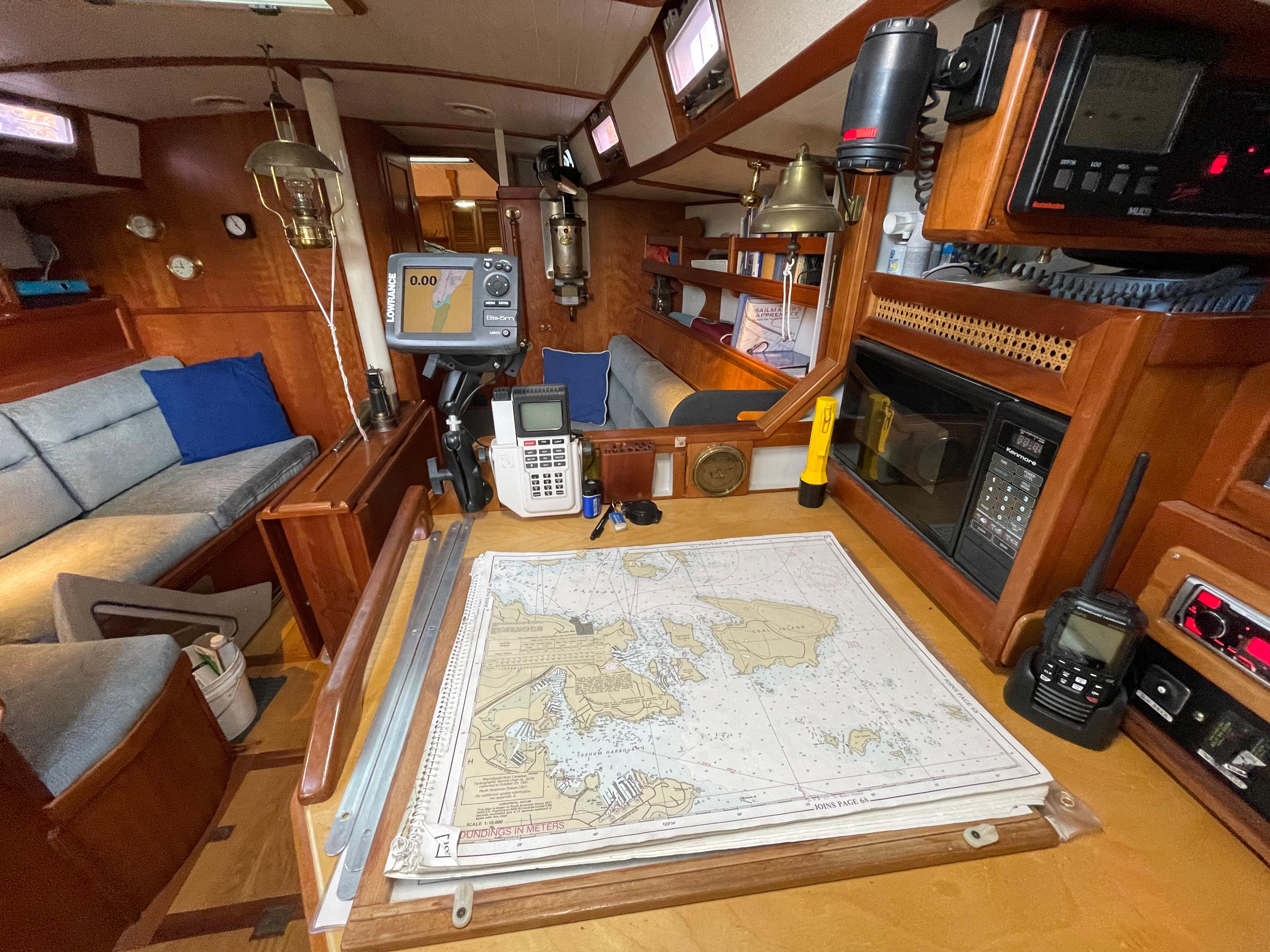

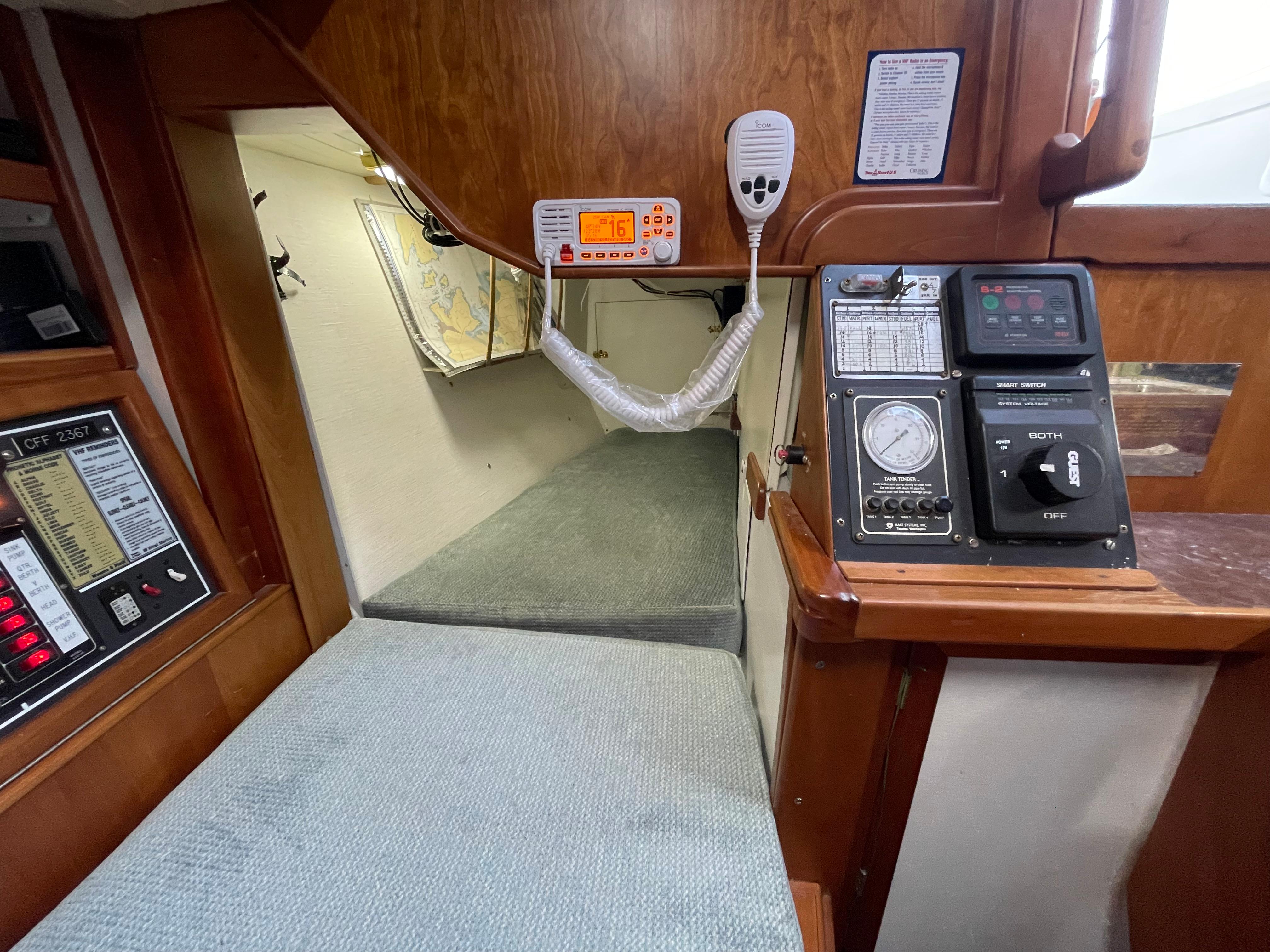

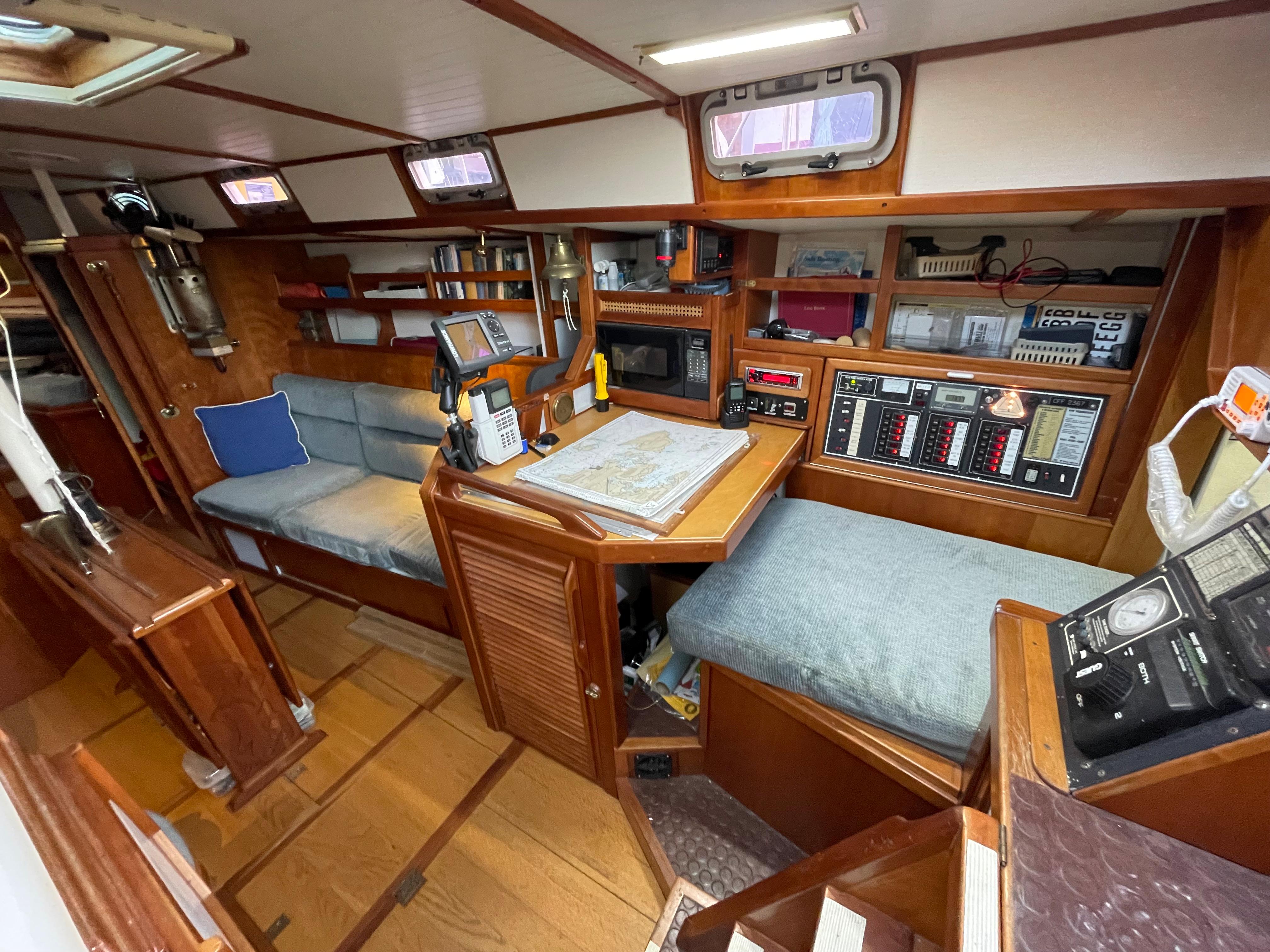

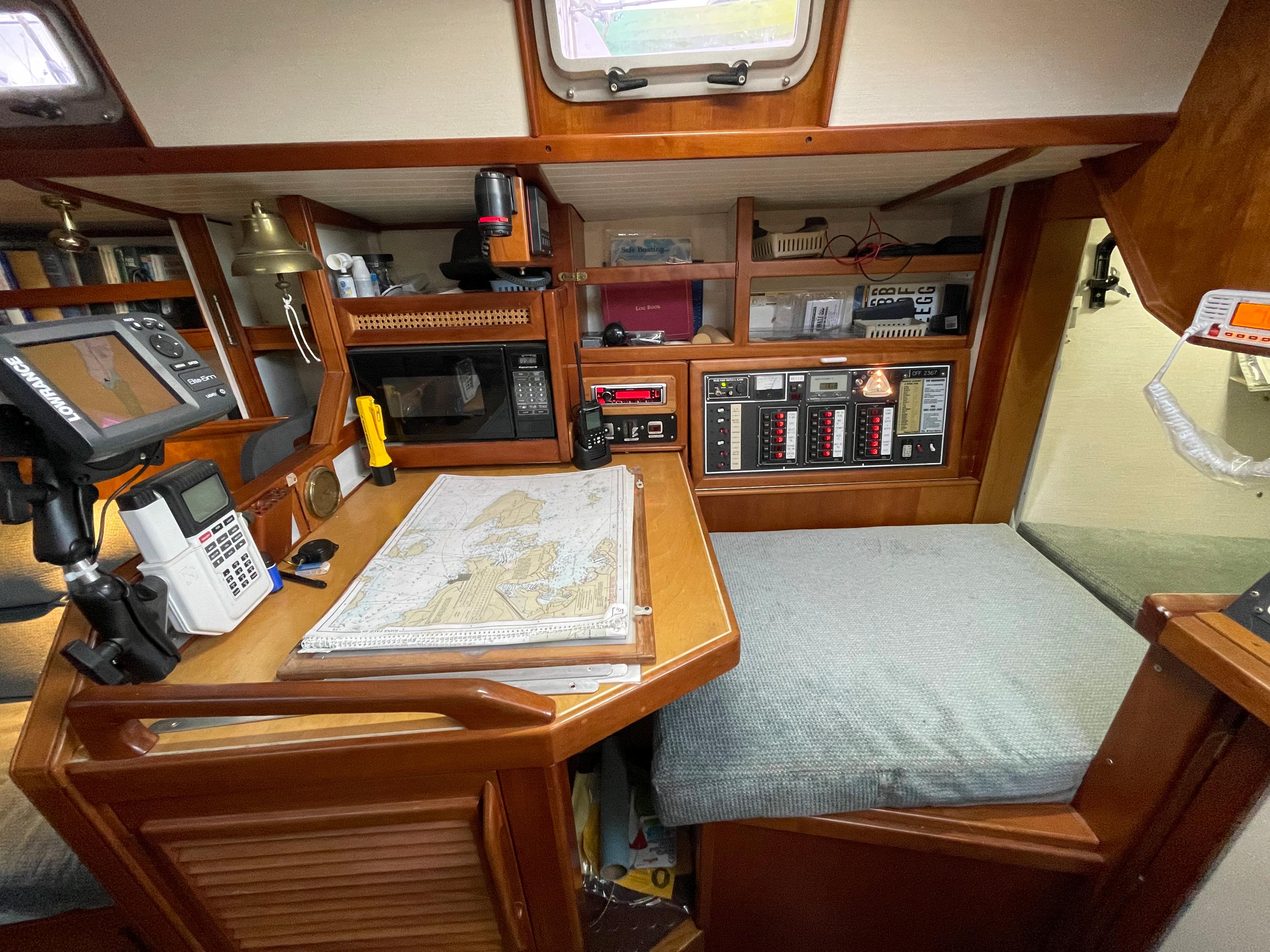

•  Chart table and quarter berth to starboard

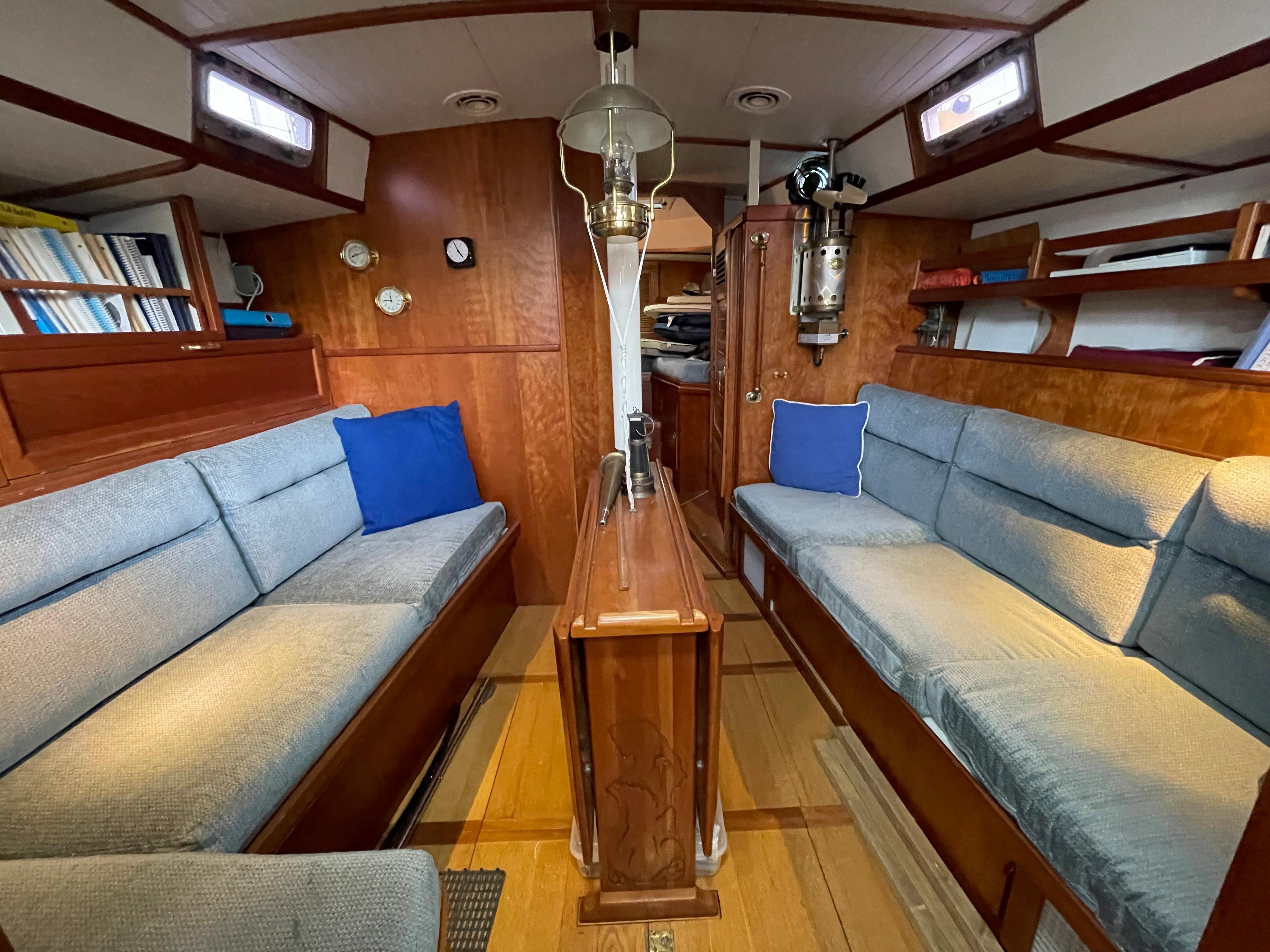

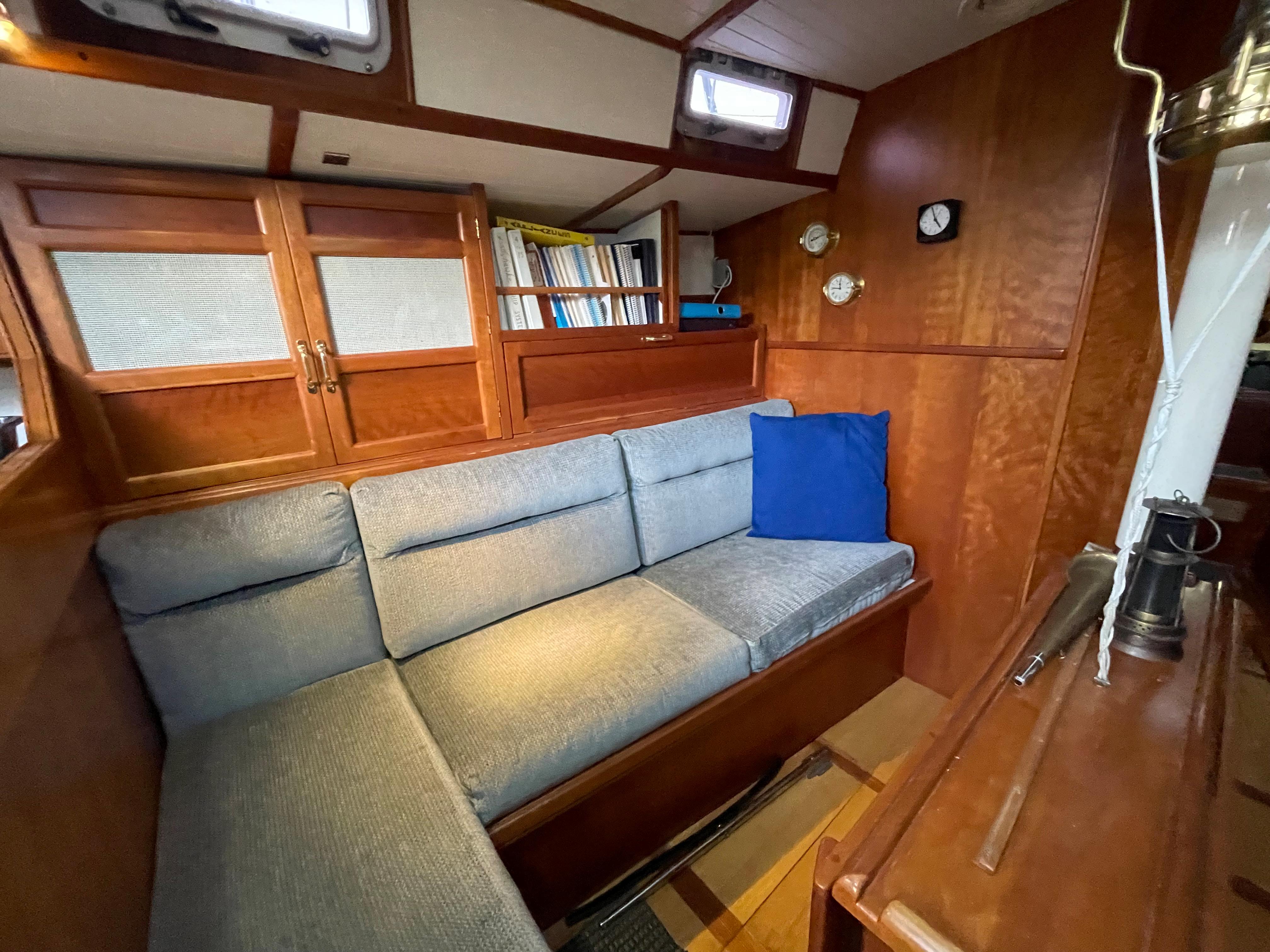

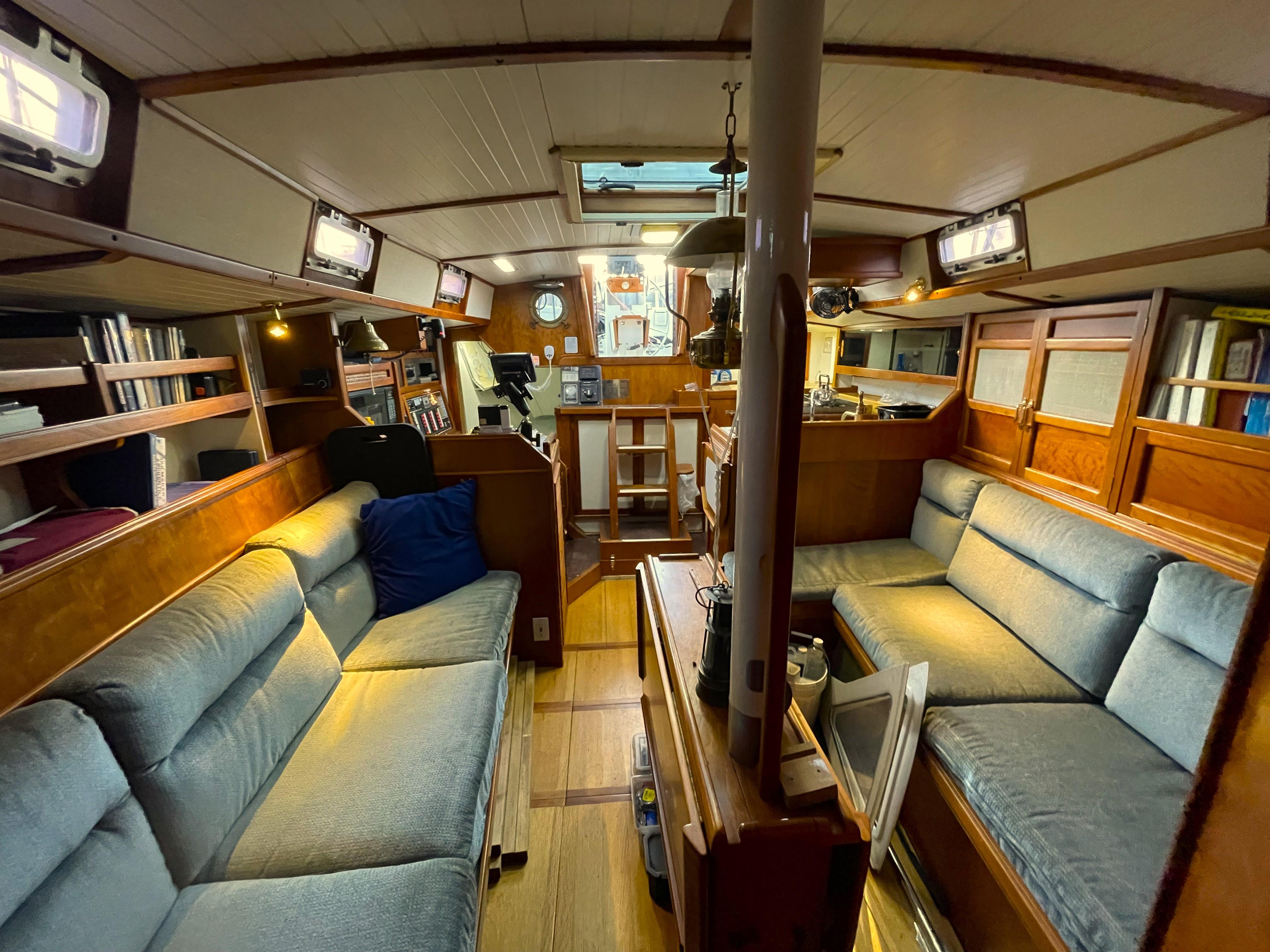

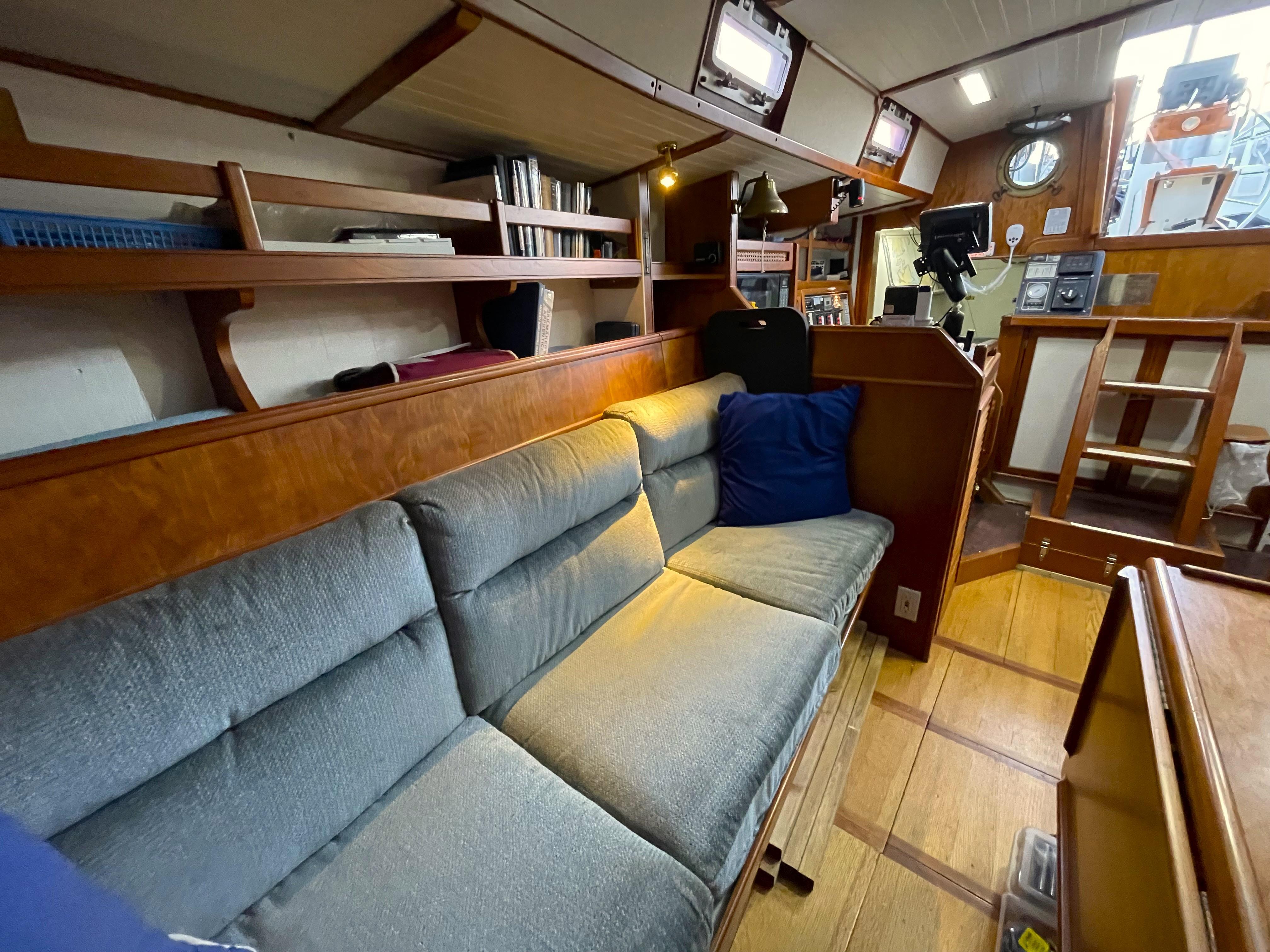

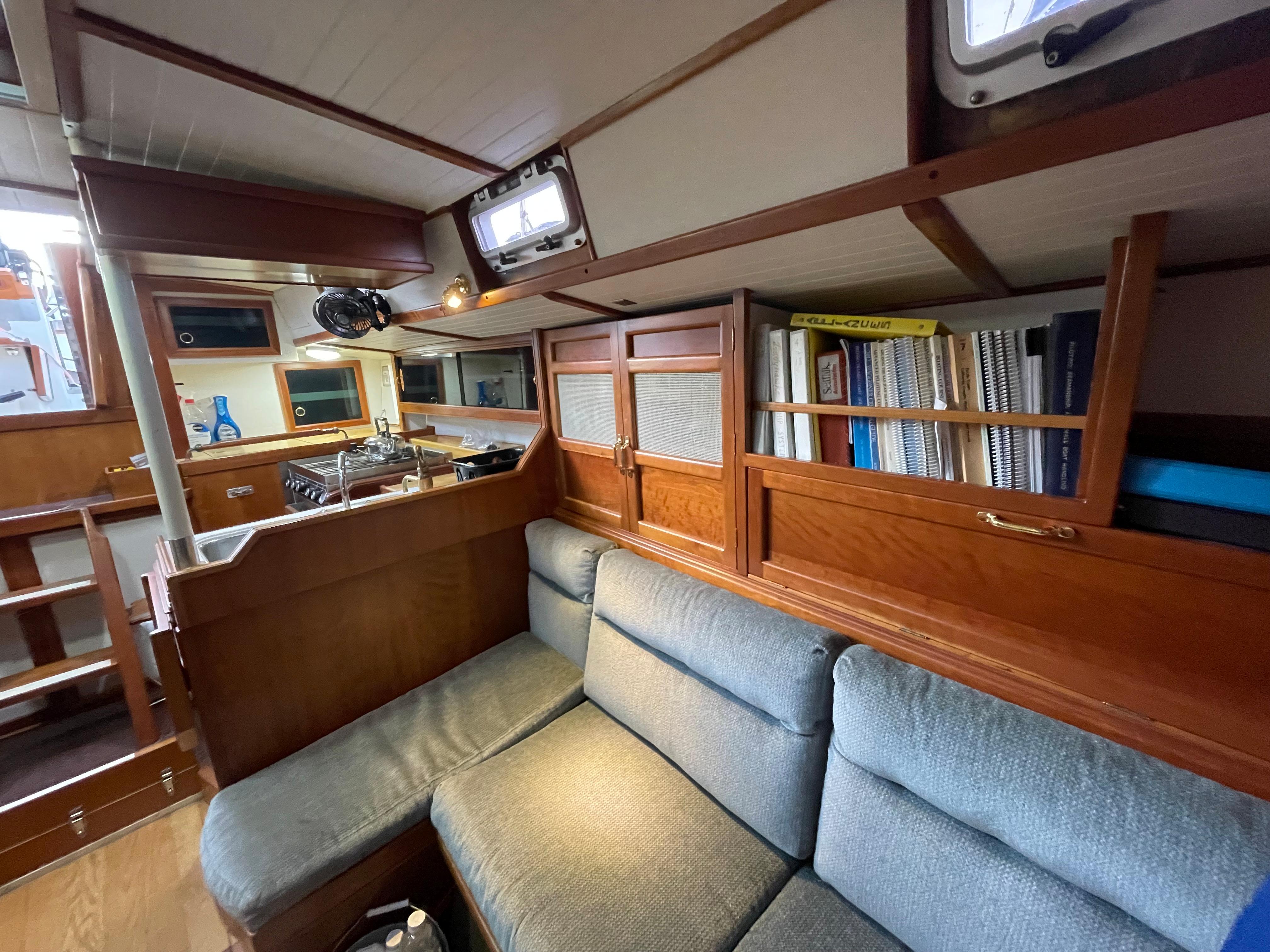

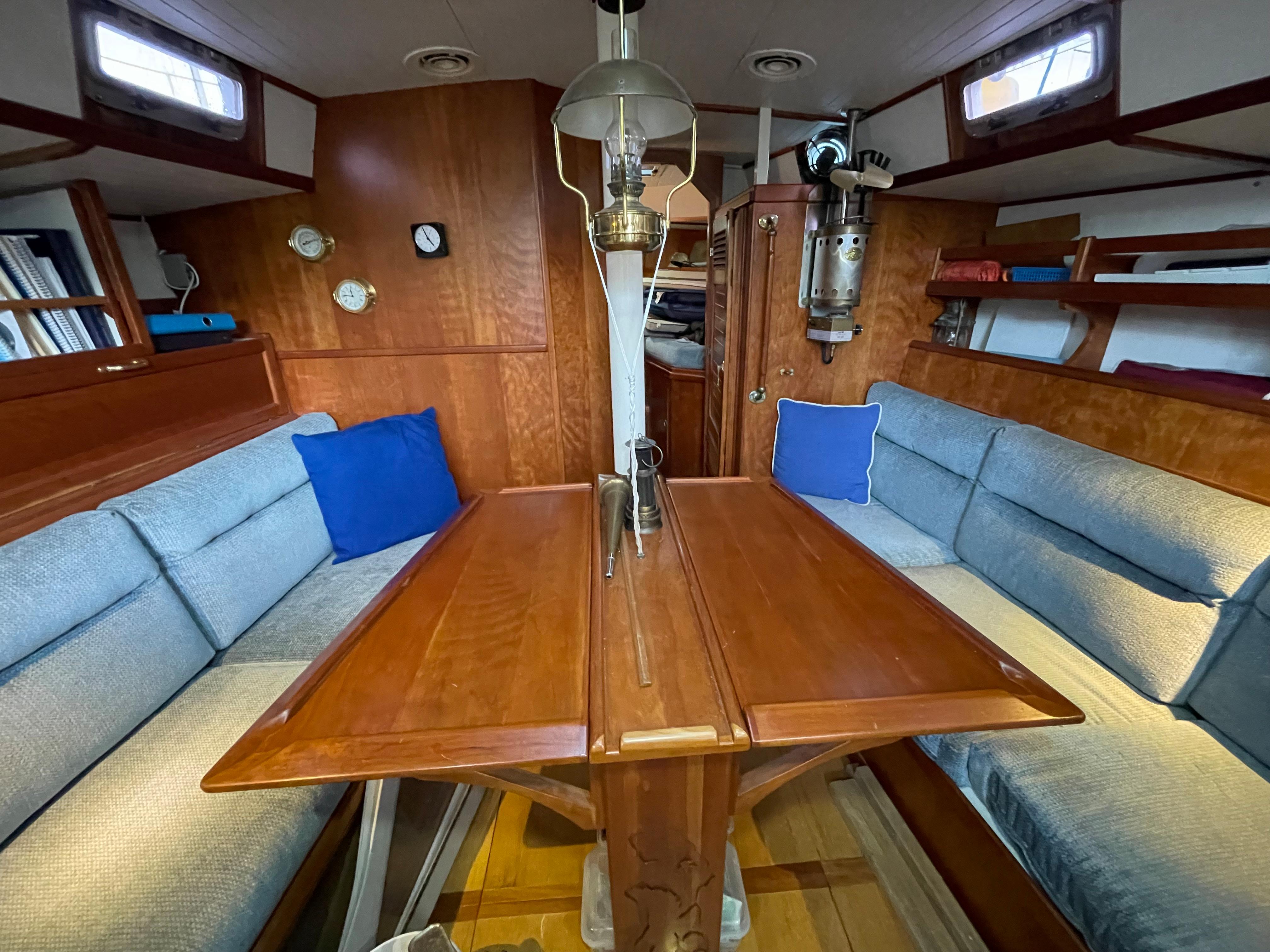

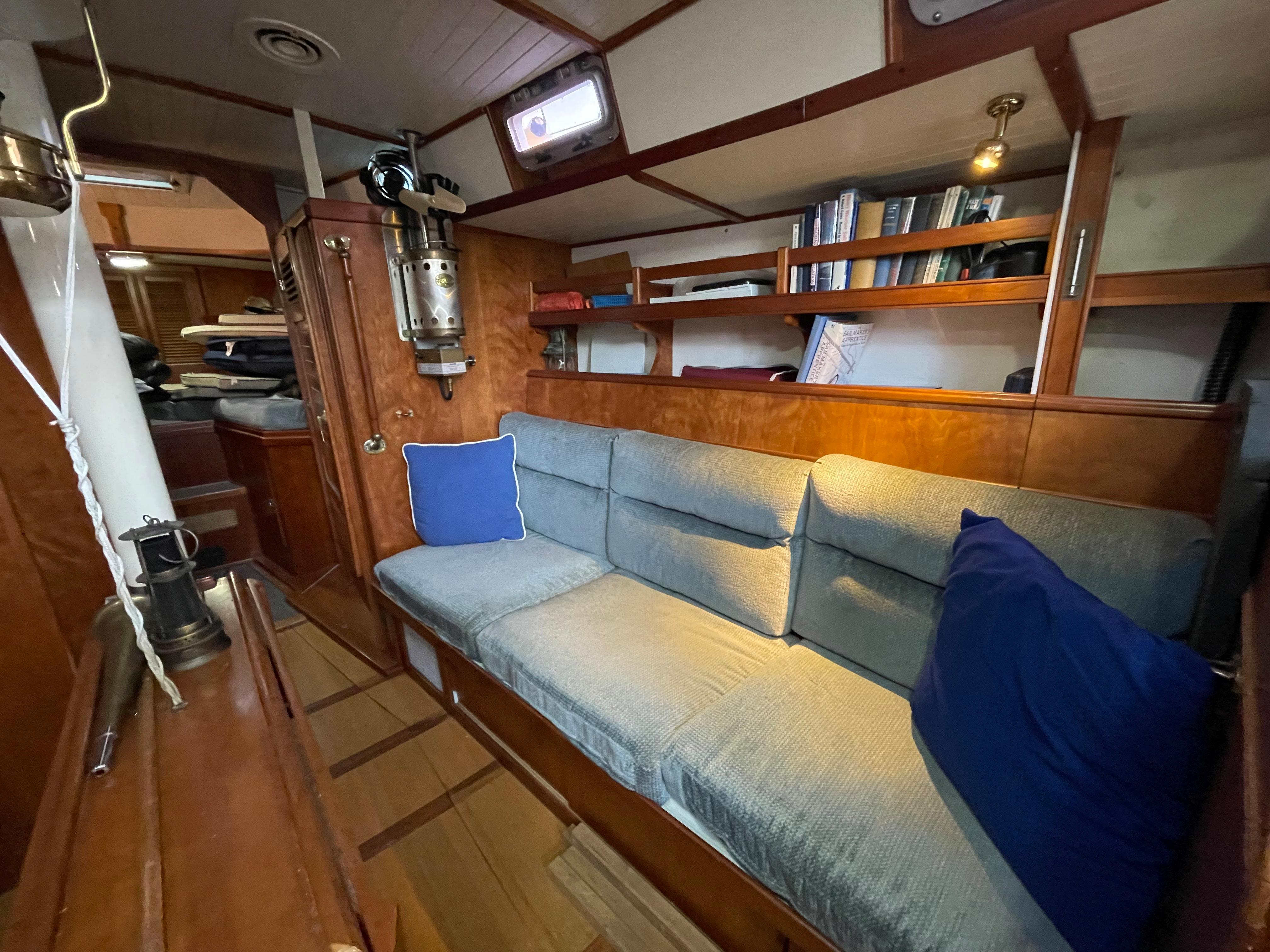

•  Salon: features two 6ft settees and a centerline leafed table
•  Storage lockers, shelves behind seats
•  Force 10 LPG bulkhead heater (not in service)

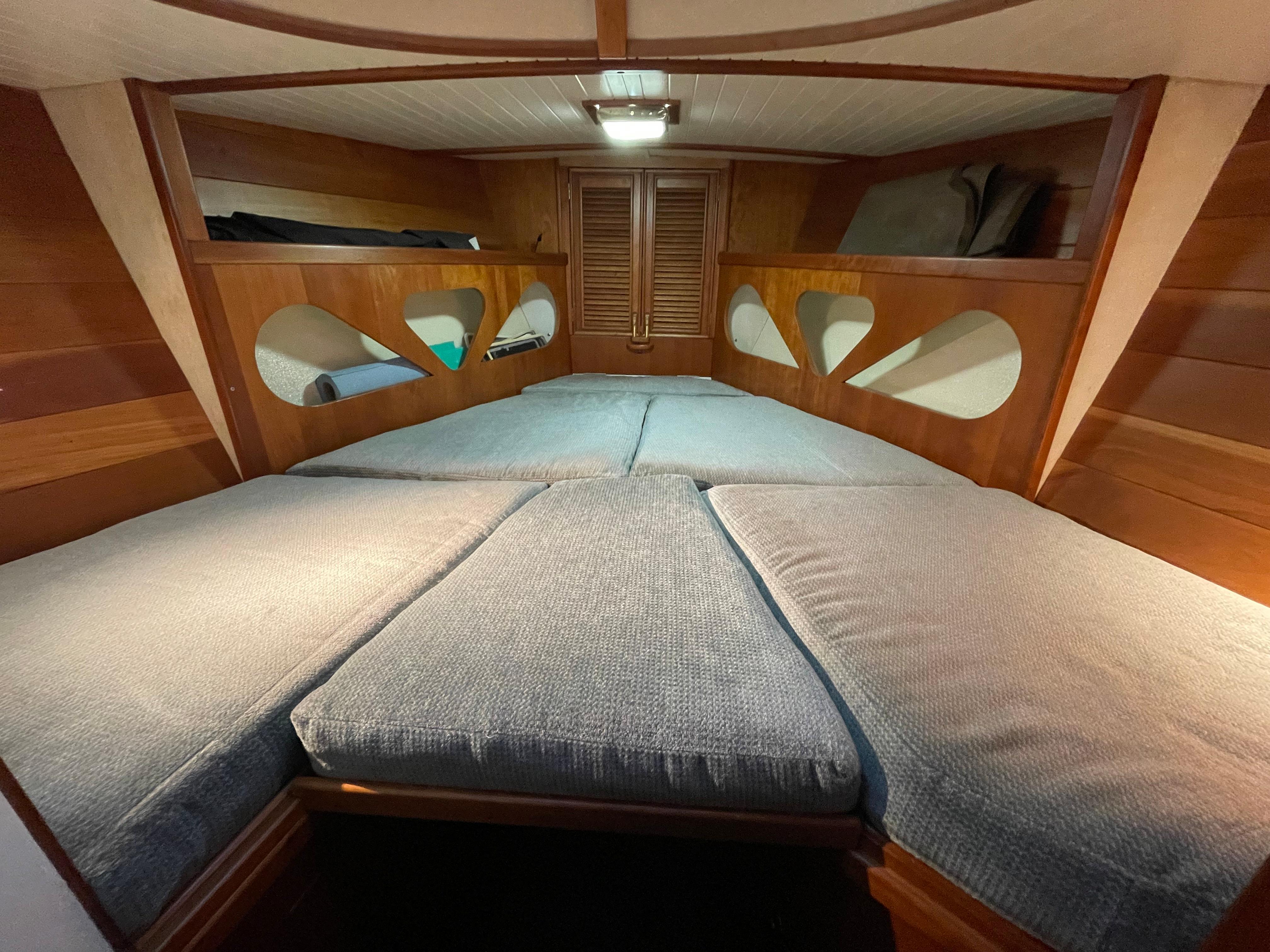

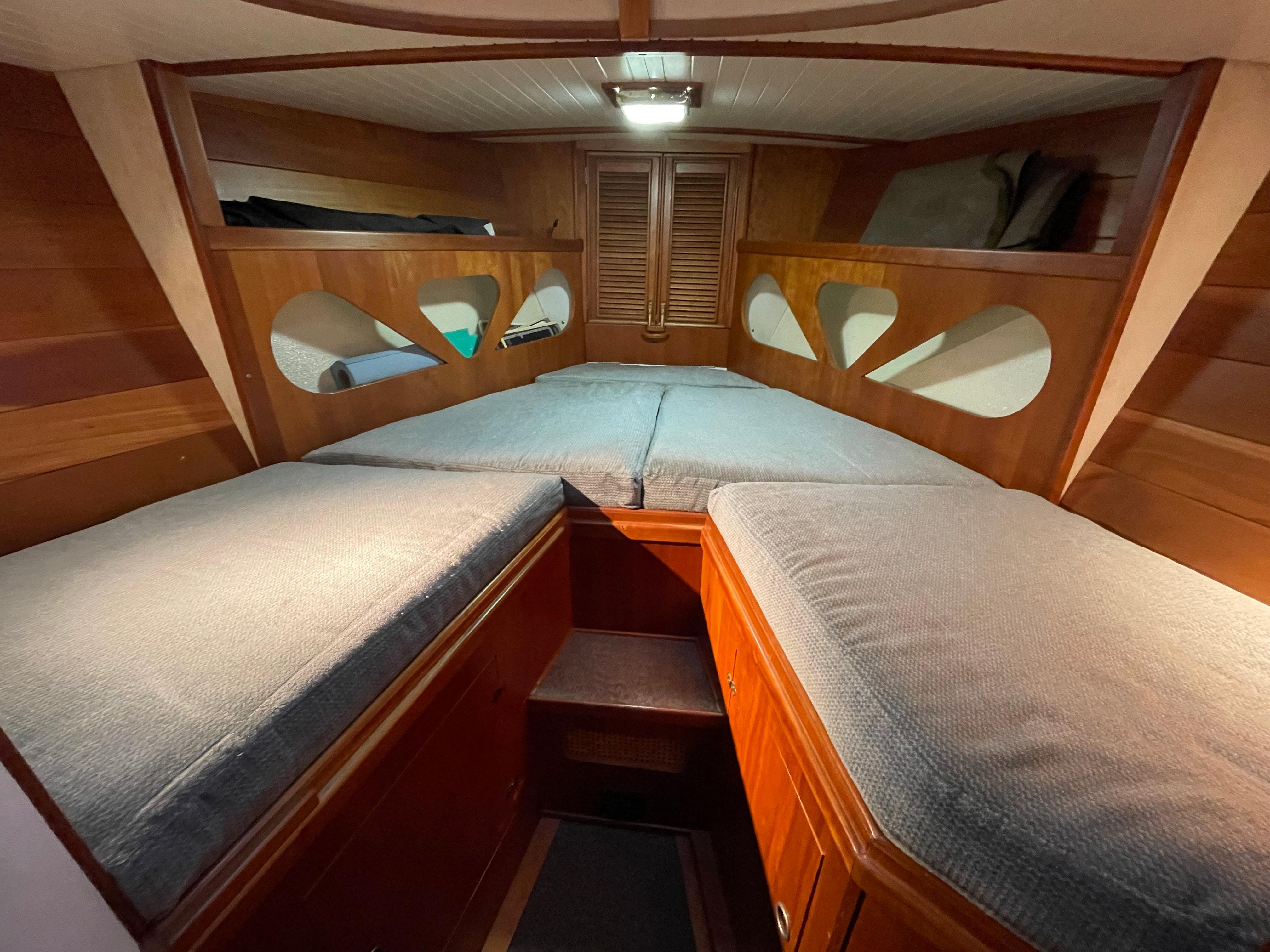

•  V-Berth: Traditional V-berth with a filler cushion
•  Upholstery and cushions in excellent condition
•  Hanging locker, shelves, storage drawers under the bed

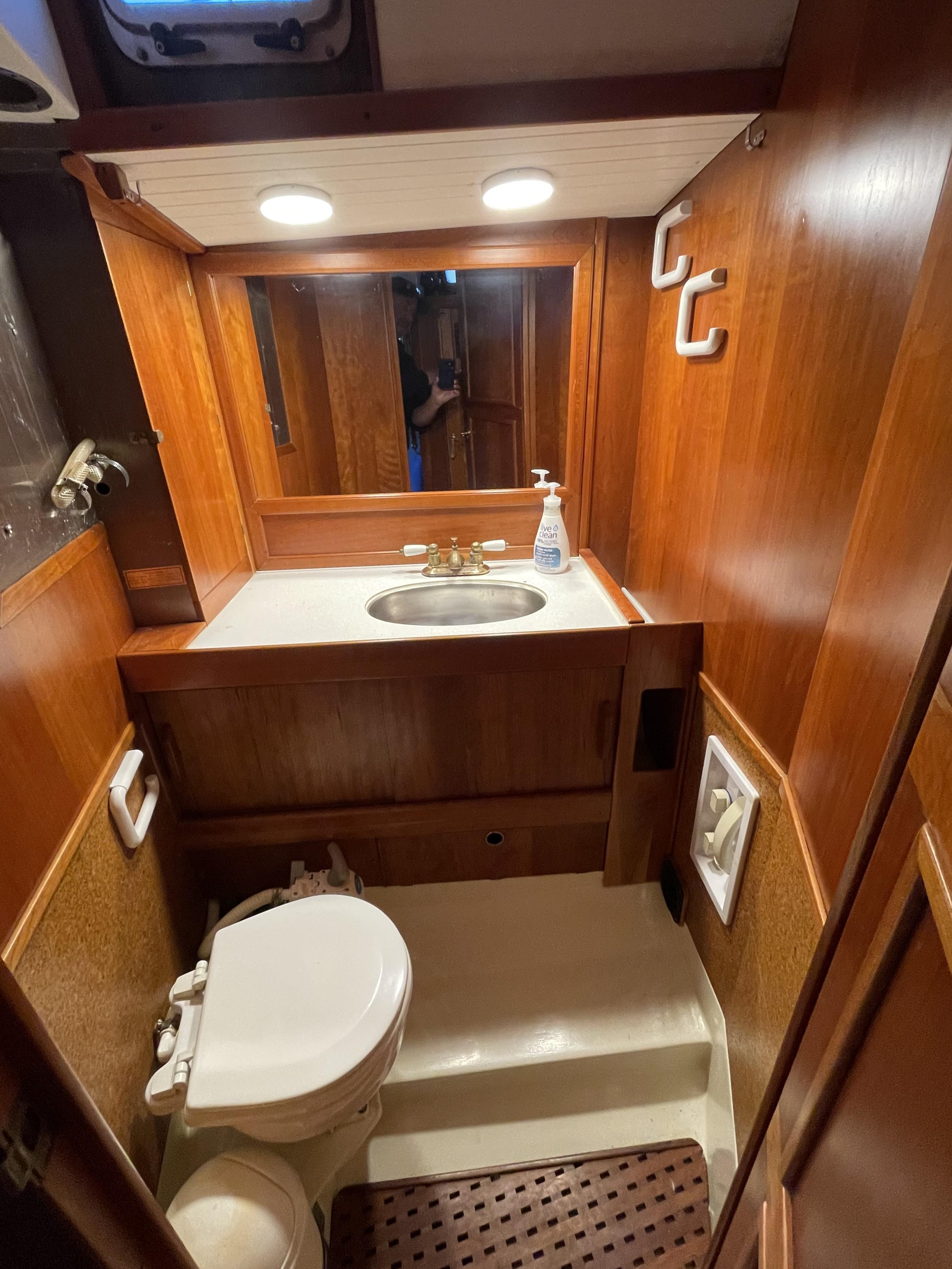

•  Head: closed compartment to port, vanity and sink with storage below, large mirror, wooden shower grate, manual Jabsco toilet, holding tank, hot and cold shower capable ( no hot water tank)

 MECHANICAL

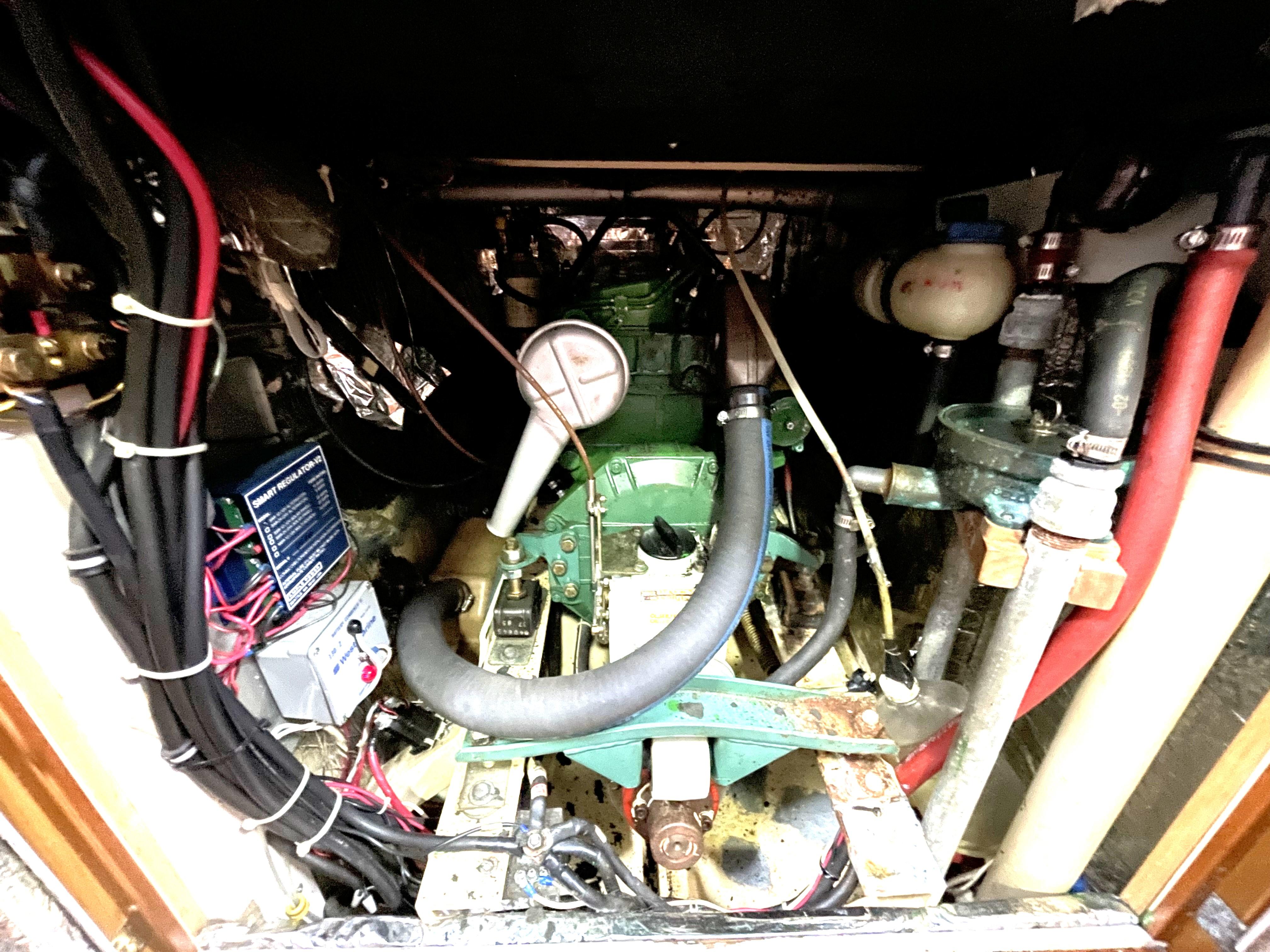

•  Volvo Penta MD2030, 28hp, fresh water cooled
•  Model year: 2003
•  Engine hours: unknown
•  V-drive transmission, Volvo Penta
•  Shaft: 1 3/8” SS, dripless shaft seal
•  Propeller: 3-blade 18” Max prop
•  2 x fuel tanks, Racor R26S filter

ELECTRICAL + PLUMBING

•  30amp shorepower

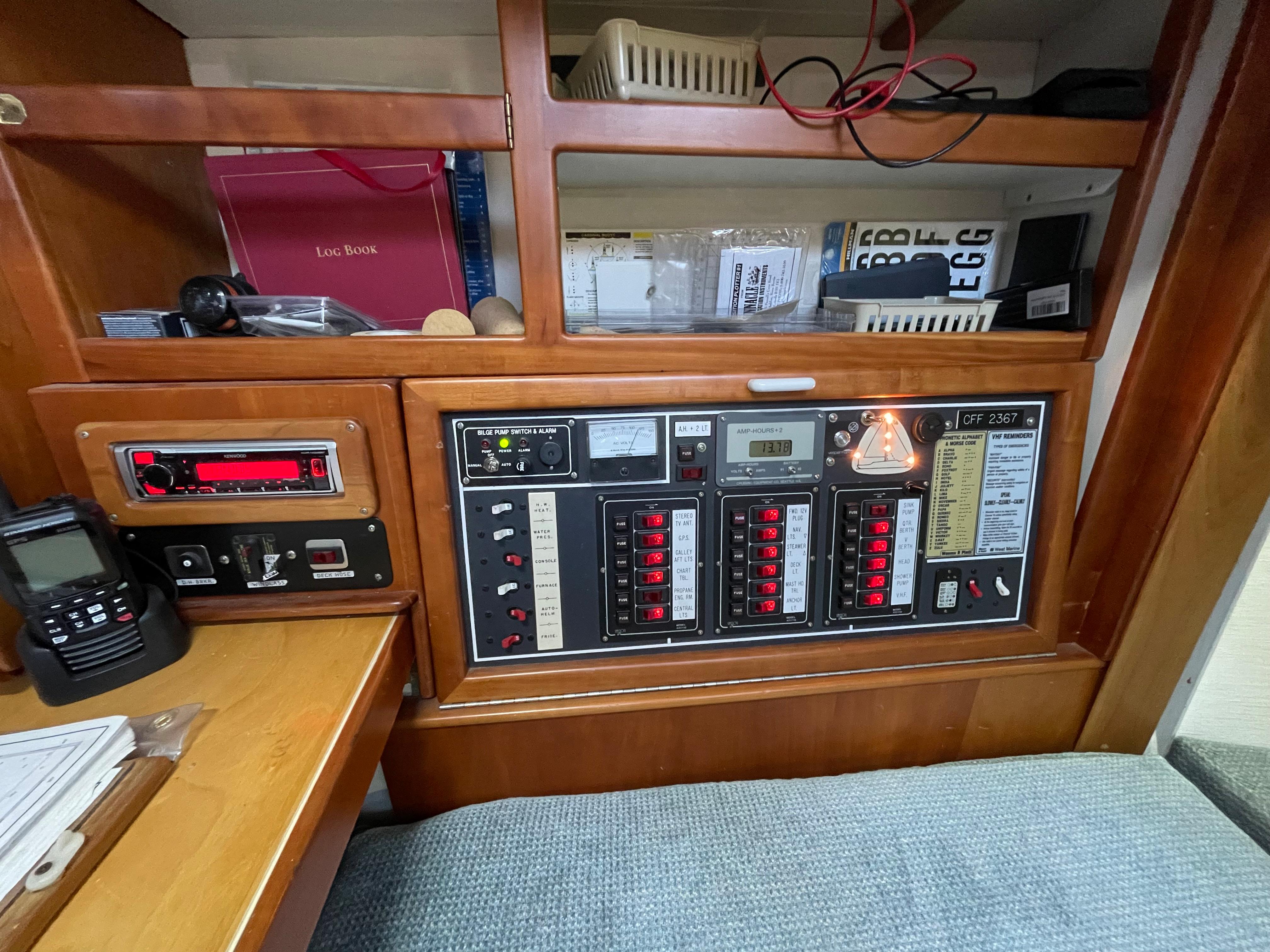

•  AC and DC distribution panels and breakers

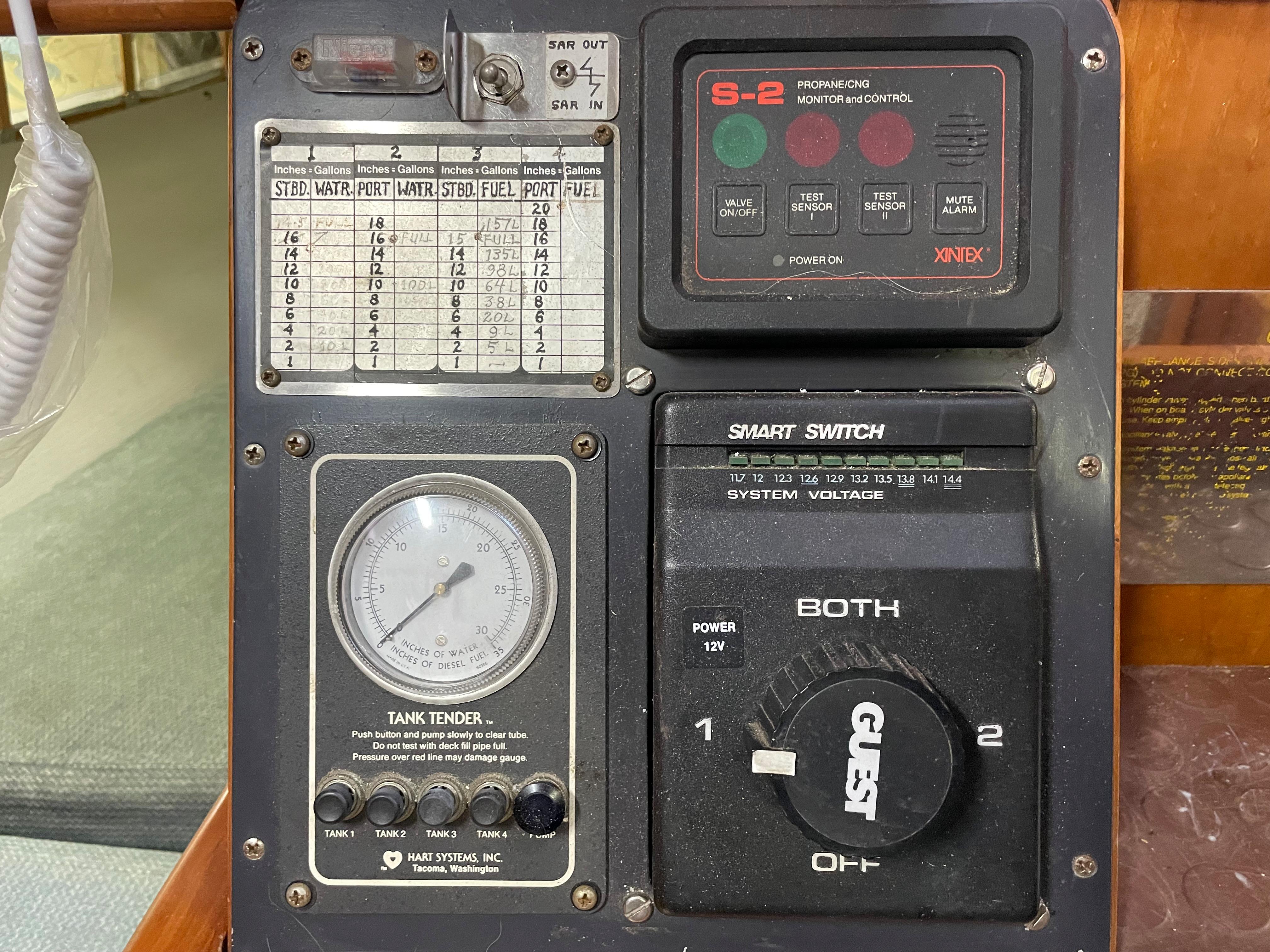

•  Battery selector switch
•  House Batteries: 3 x 12V AGM
•  Start Battery: 1x 12V group 24 AGM

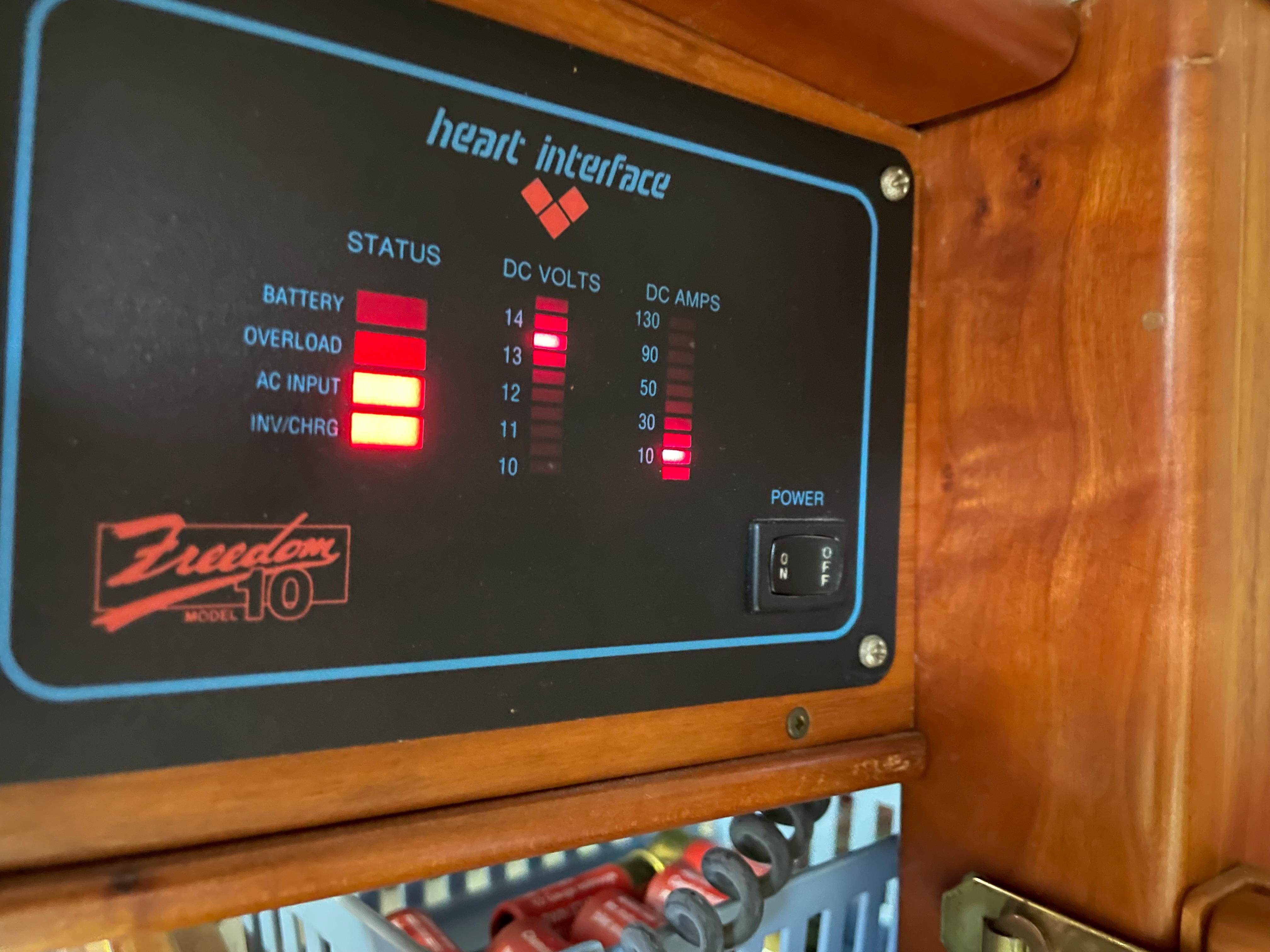

•  Inverter: Freedom 10, 1000 watt with remote
•  4 x 110V outlets, GFCI protected
•  2 x water tanks, 32 gal total
•  Shower drain fitted with sump pump, Rule 500GPH
•  Manual Jabsco toilet, Y-valves to tank, deck or overboard
•  Holding tank is a polyethylene under settee

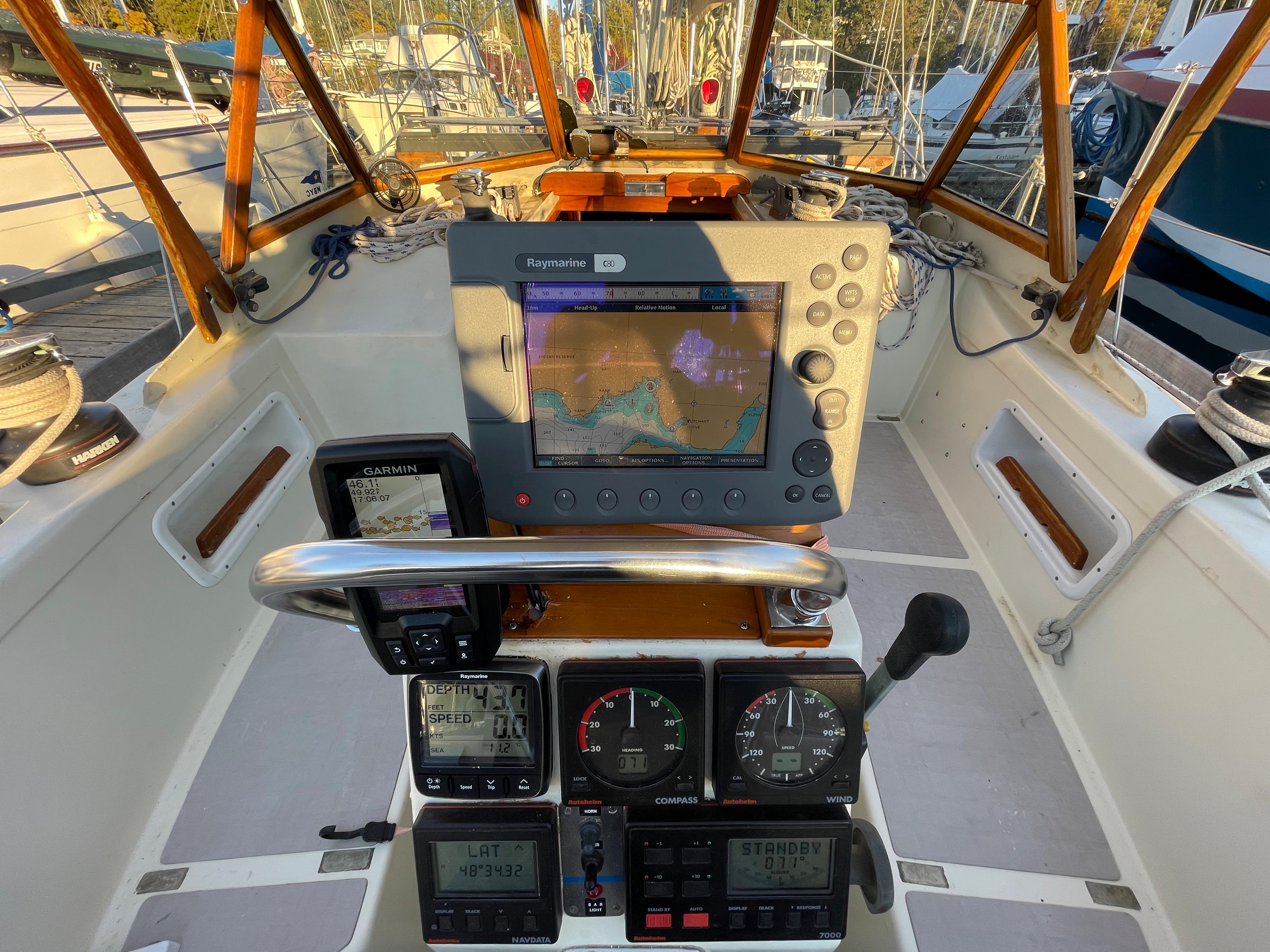

 INSTRUMENTS

•  GPS/Chartplotter: Raymarine C-80 (at helm)
•  Chartplotter: Lowrence Elite 5M at chart table
•  Radar: Raymarine
•  Autopilot: Autohelm 7000, corded remote
•  Wind/speed/direction: Autohelm
•  Tridata: Raymarine
•  Garmin fishfinder, depth

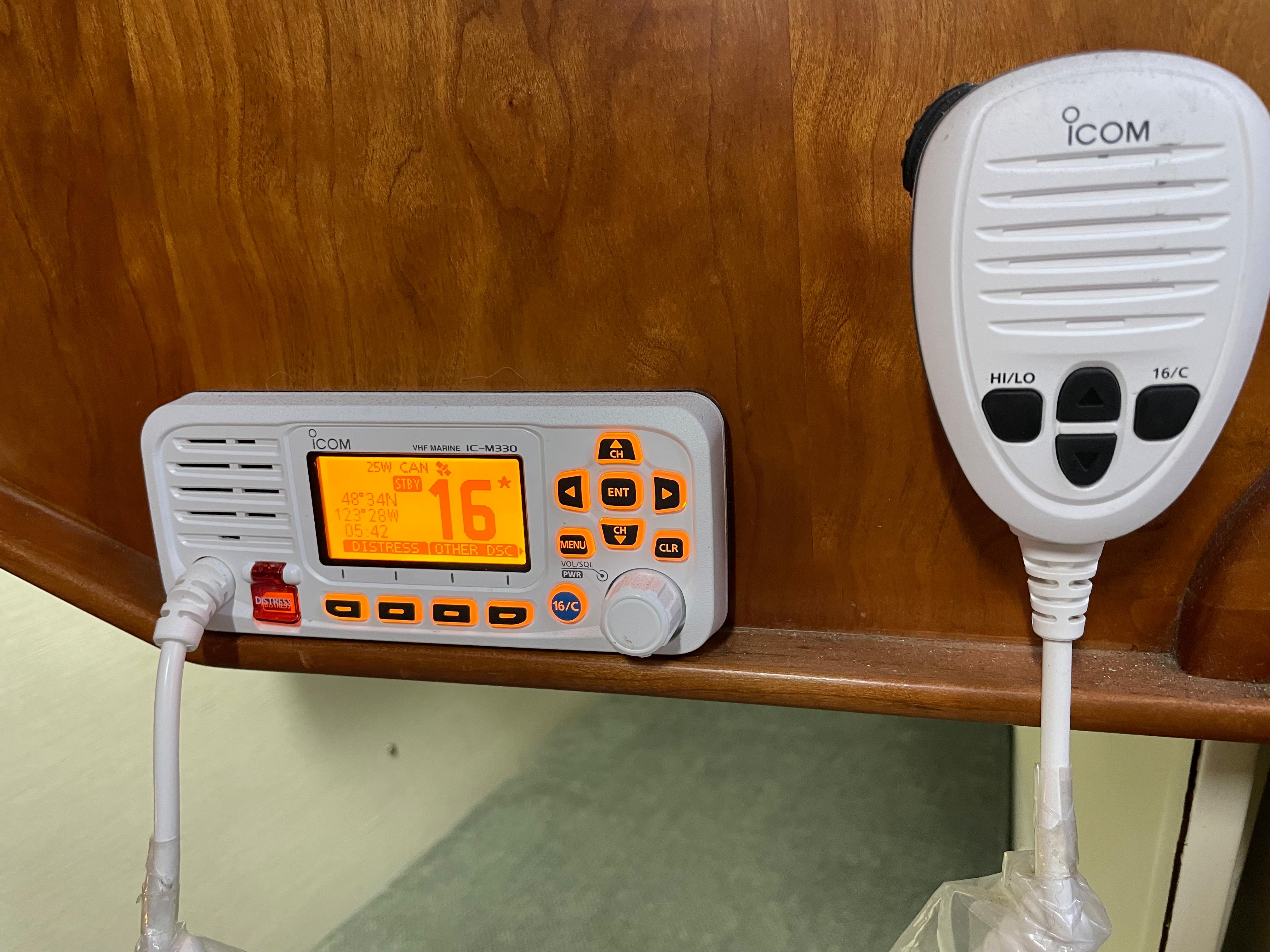

•  VHF: Icom ICM330 (new 2022)
•  VHF: hand held
•  Horn: electrical horn at helm

 SAILS & RIGGING

•  Standard battened mainsail with lazy jacks
•  Furling genoa on a Furlex furler
•  Staysail

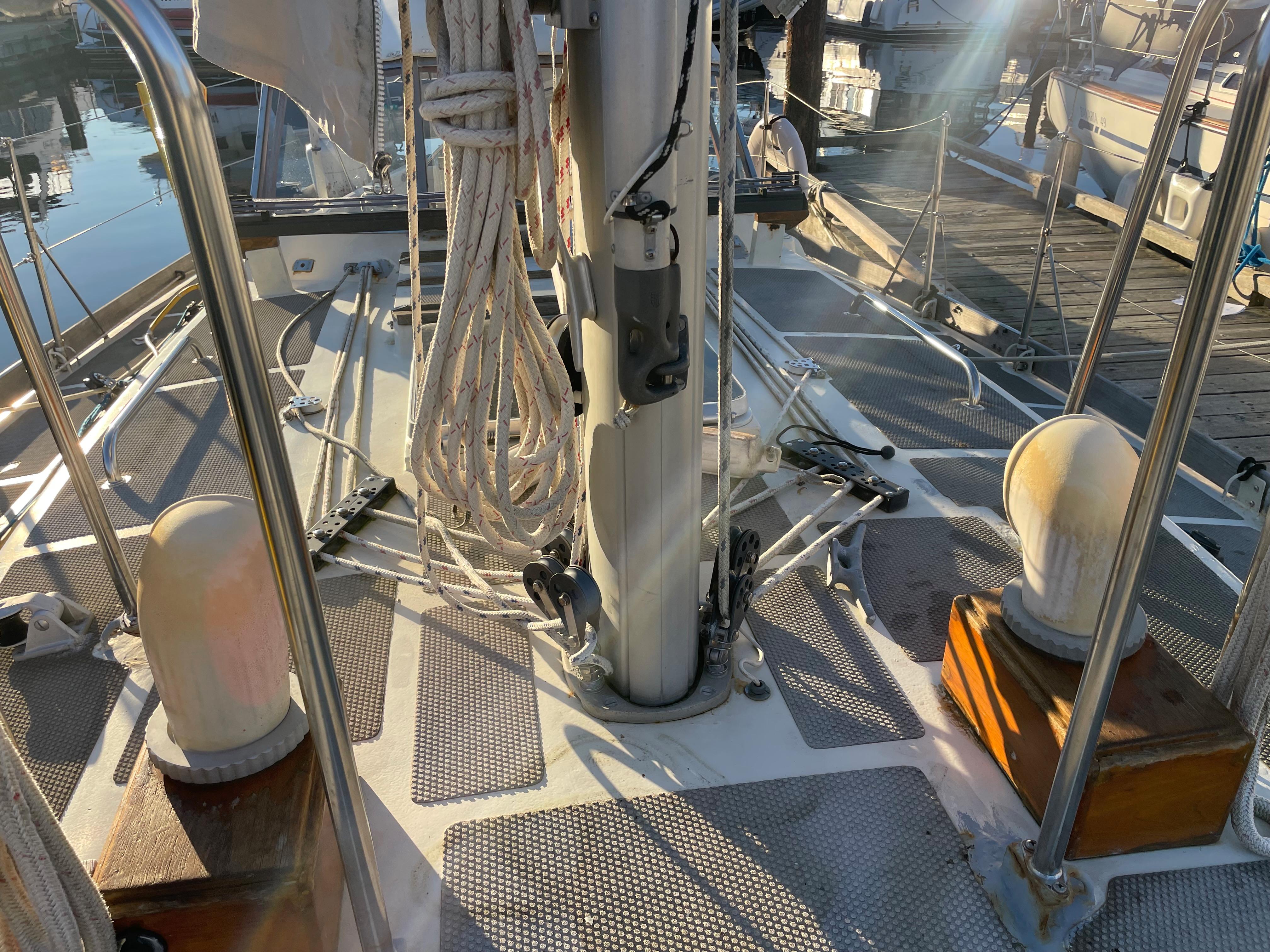

•  Mast: Isomat anodized aluminum, deck stepped
•  Mast head rig, double spreaders
•  Standing rigging: 1 x 19SS wire
•  Rigid boomvang with multi purchase rope controls
•  Traveller: Harken Cabin top with lines
•  Jib sheet tracks: 7’6” tracks, adjustable by lines
•  Cabin top blocks for staysail sheeting
•  Primary winches: Harken self-tailing #44.2
•  Cabin top: Harken  self-tailing #40.2
•  6 x cabin top clutches for running rigging leading aft
•  Whisker pole mounted on the mast

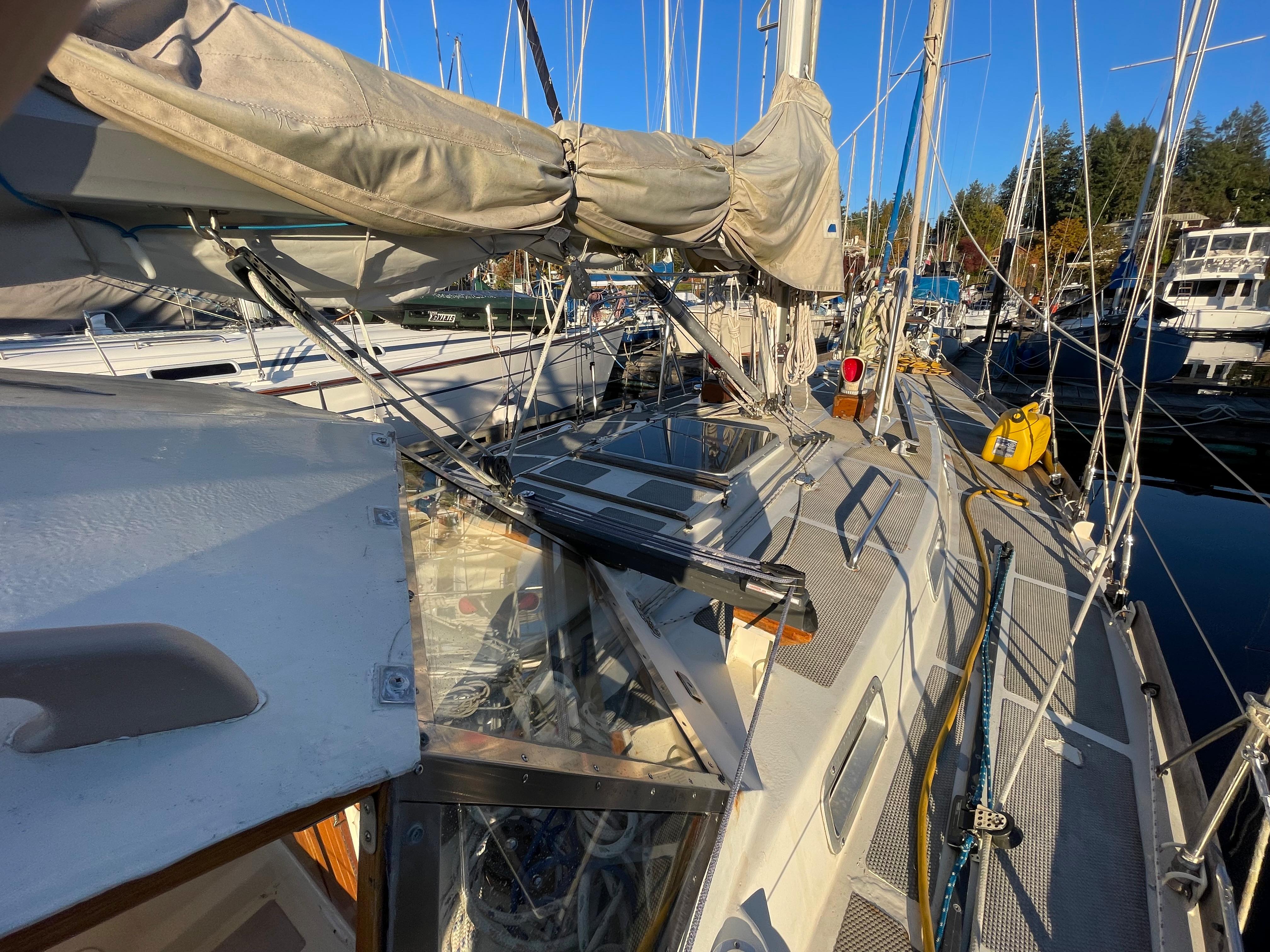

 DECK AND COCKPIT GEAR

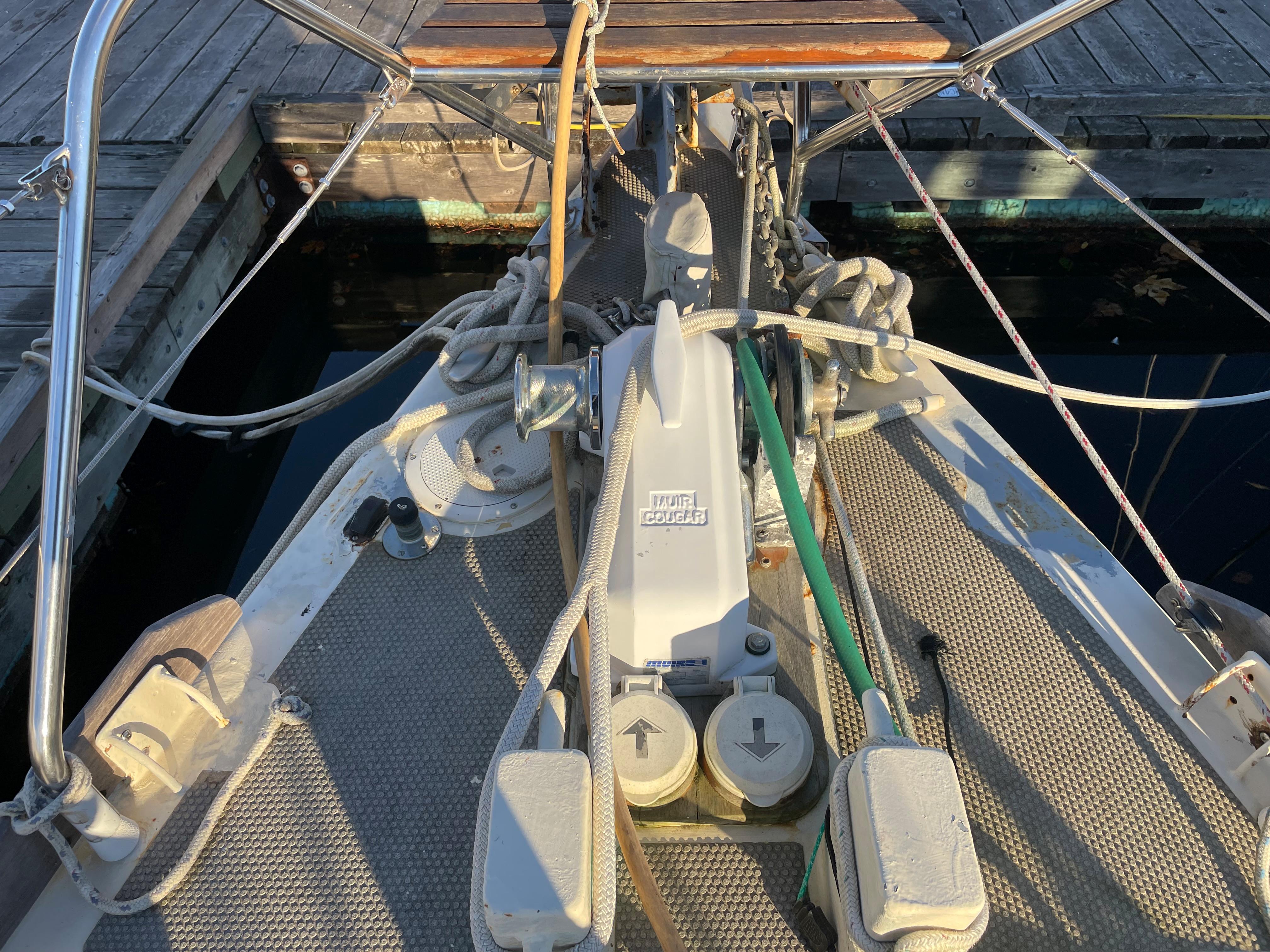

•  Windlass: Muir Cougar electrical with foot switches

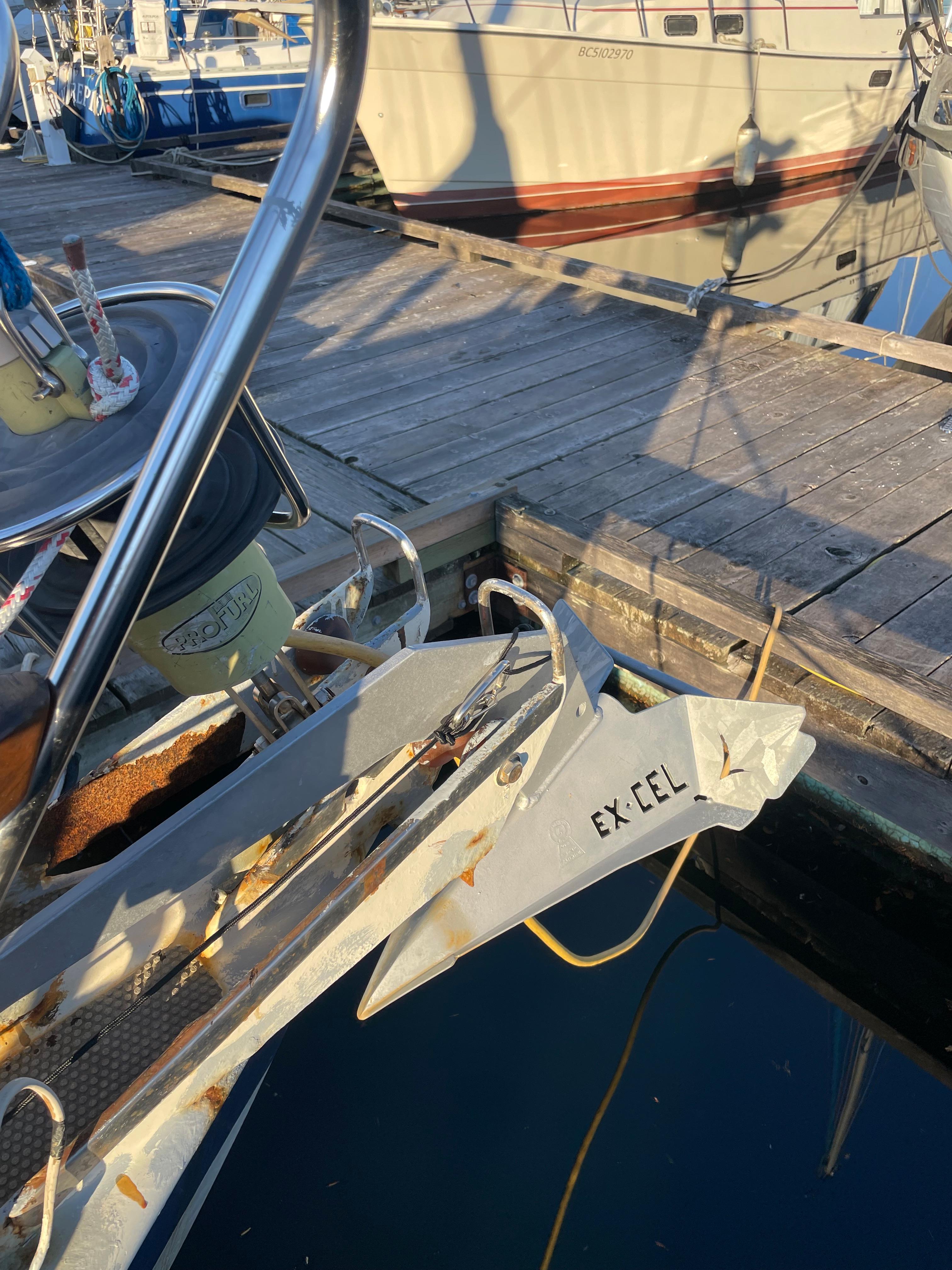

•  Anchor: 37Lb Excel
•  Chain and rode: 200ft, 5/16” chain, plus a second 3/8” chain stored in the anchor locker
•  Second anchor: Delta style mounted on the pushpit
•  Double bow roller

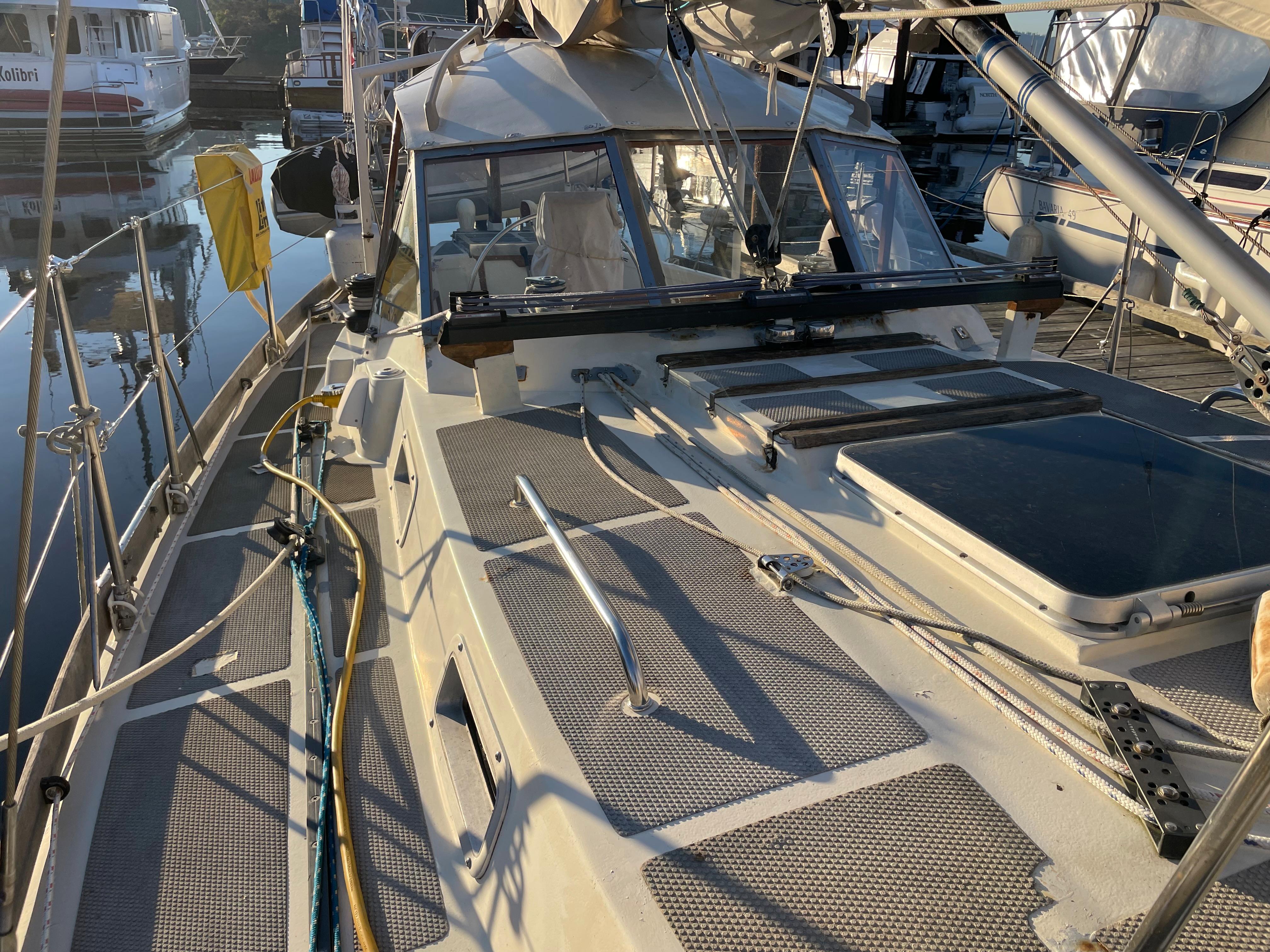

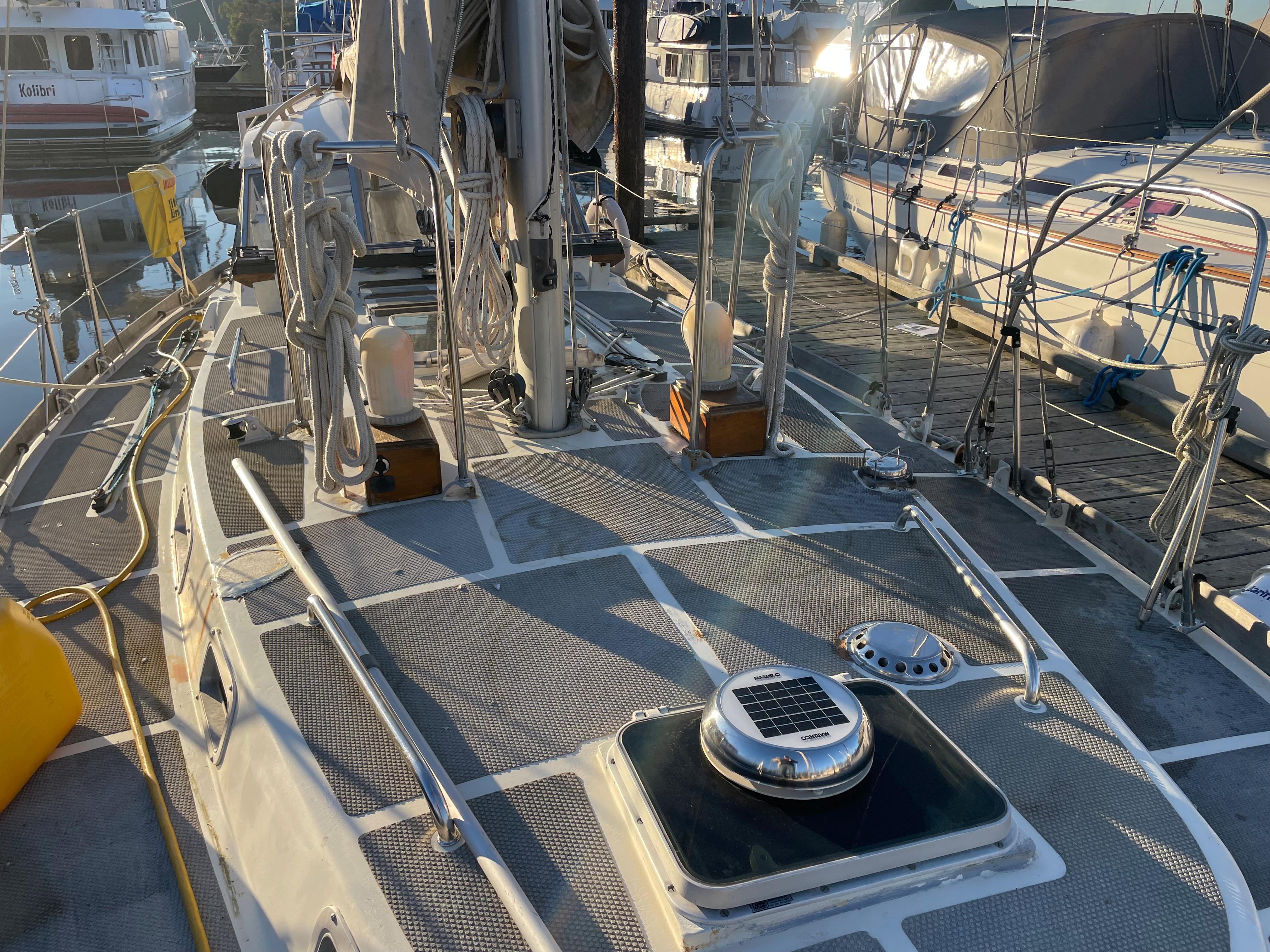

•  Deck is fitted with non-skid matting
•  S/S stanchions and wire lifelines, side gates

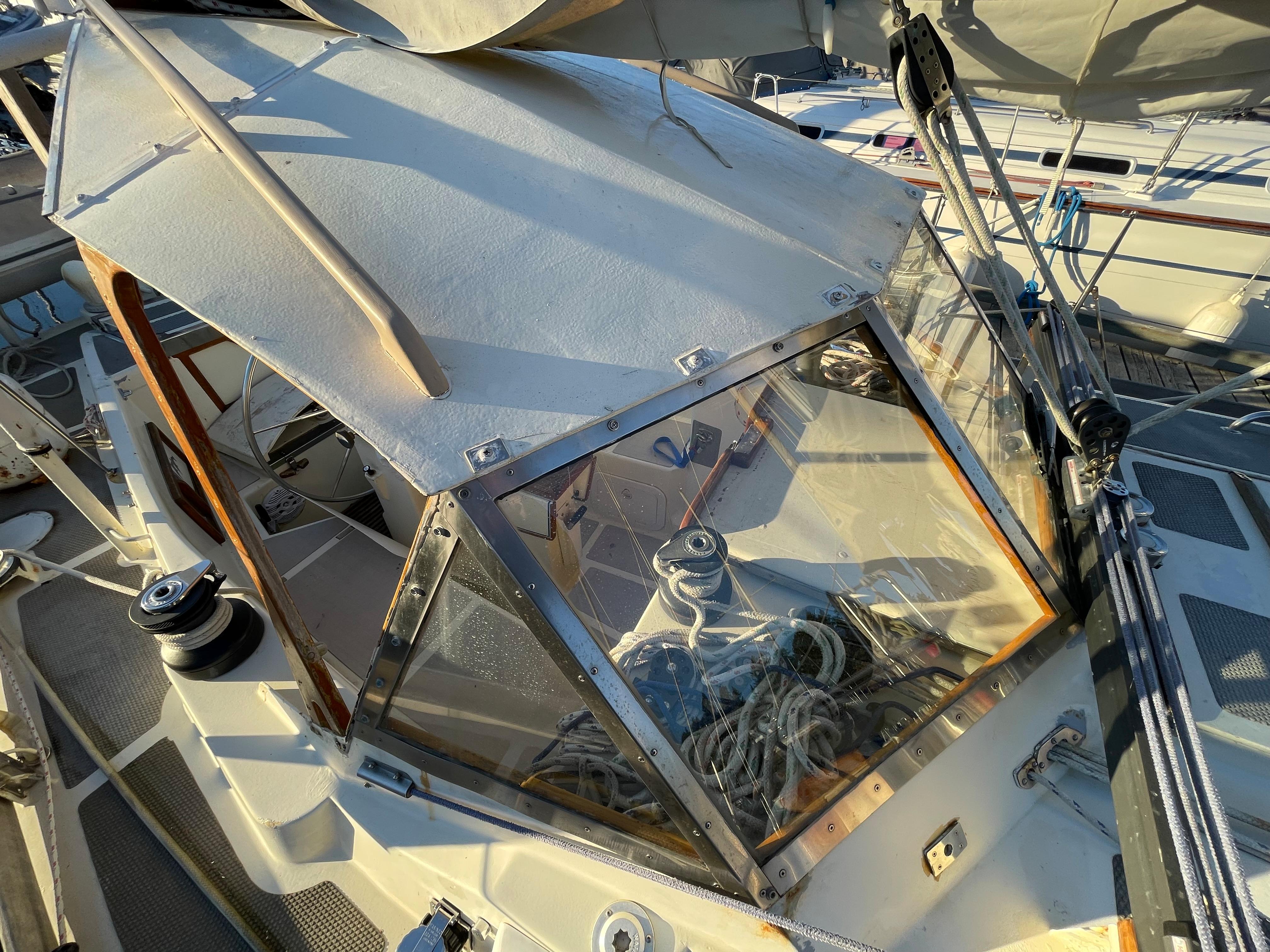

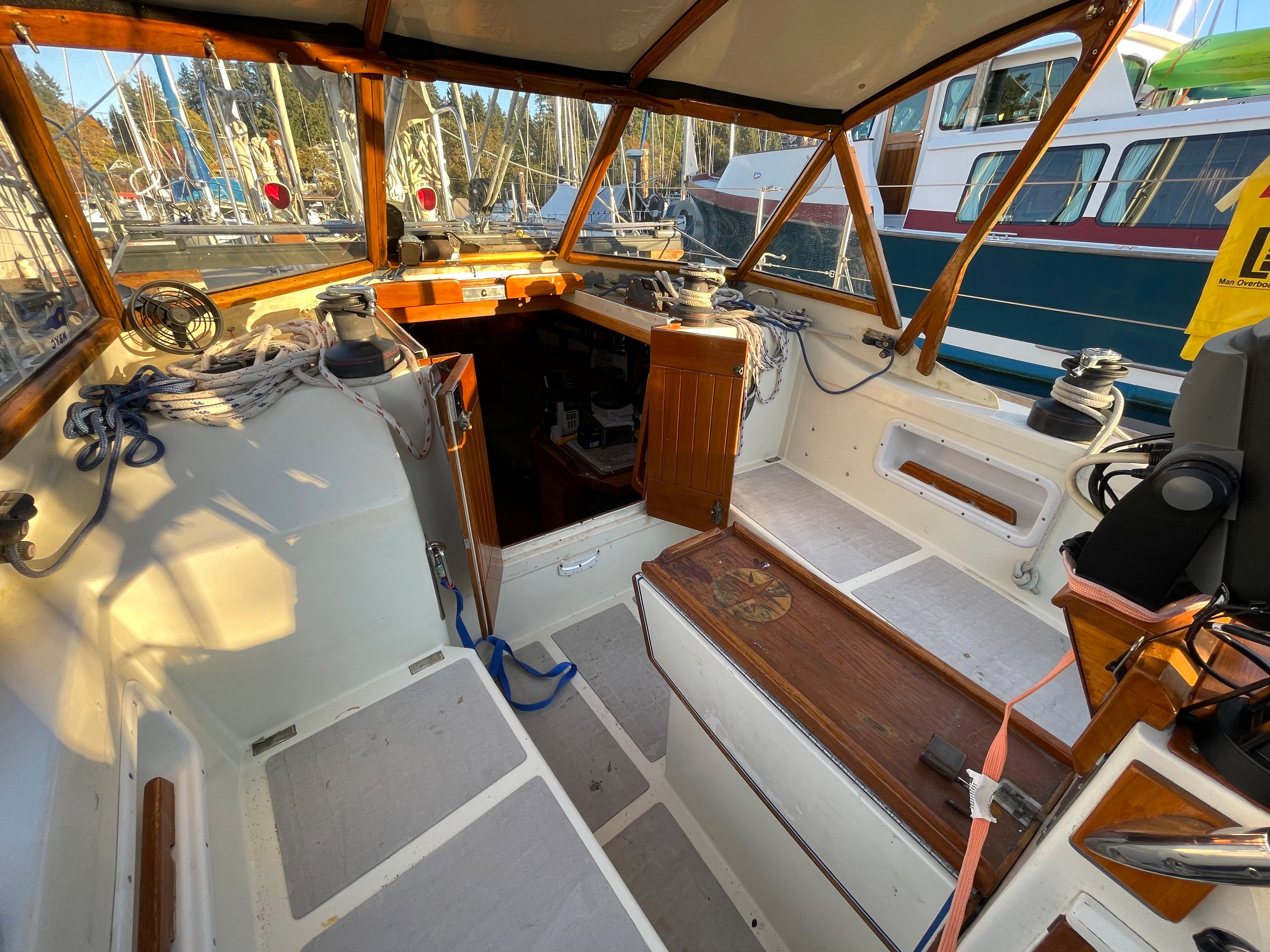

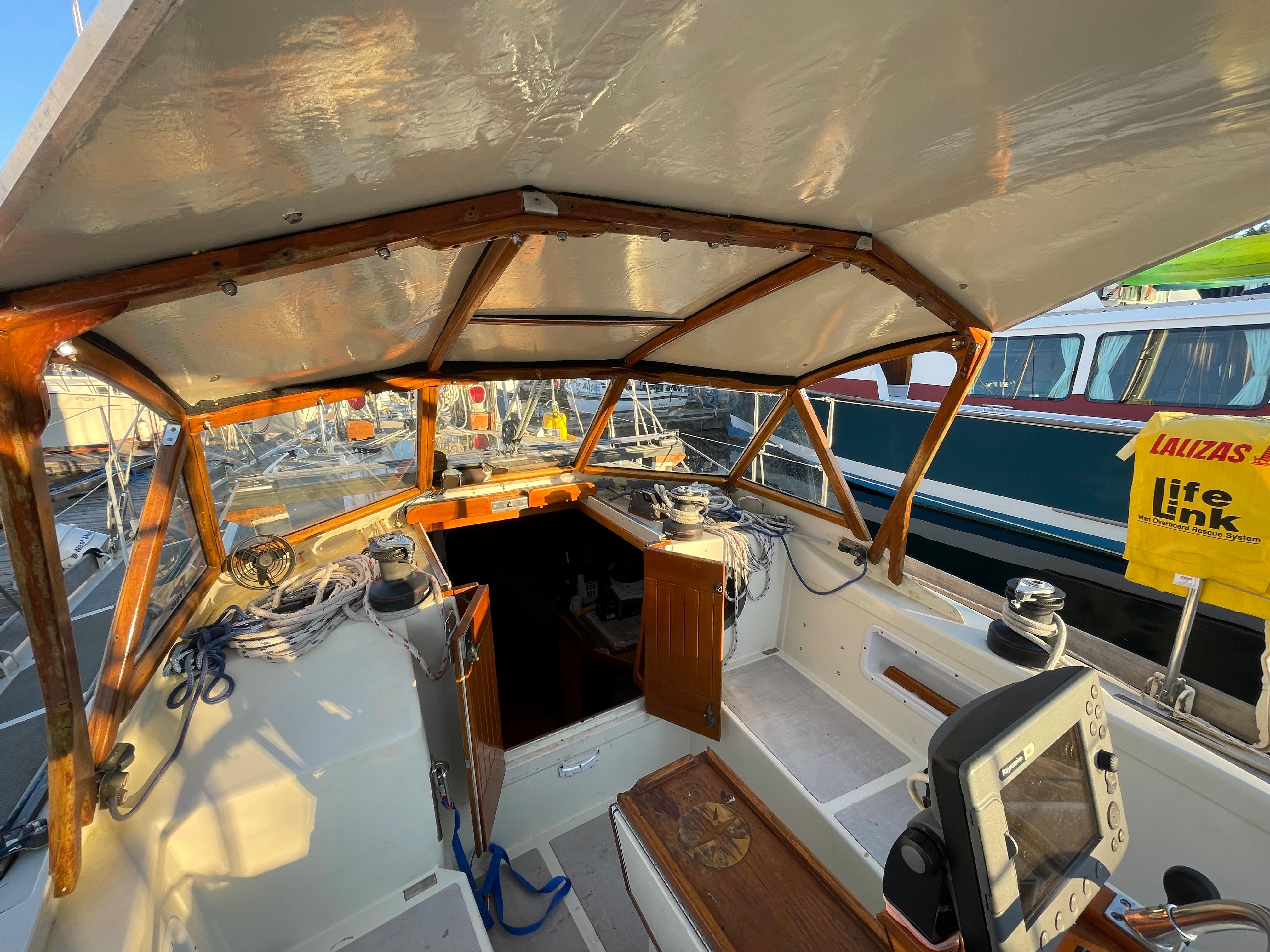

•  Fiberglass dodger which extends over cockpit seating
•  3 pane glass windshield, single wiper in the center
•  Binnacle with single wheel, electronics mounted
•  Cockpit table with fold up leaves

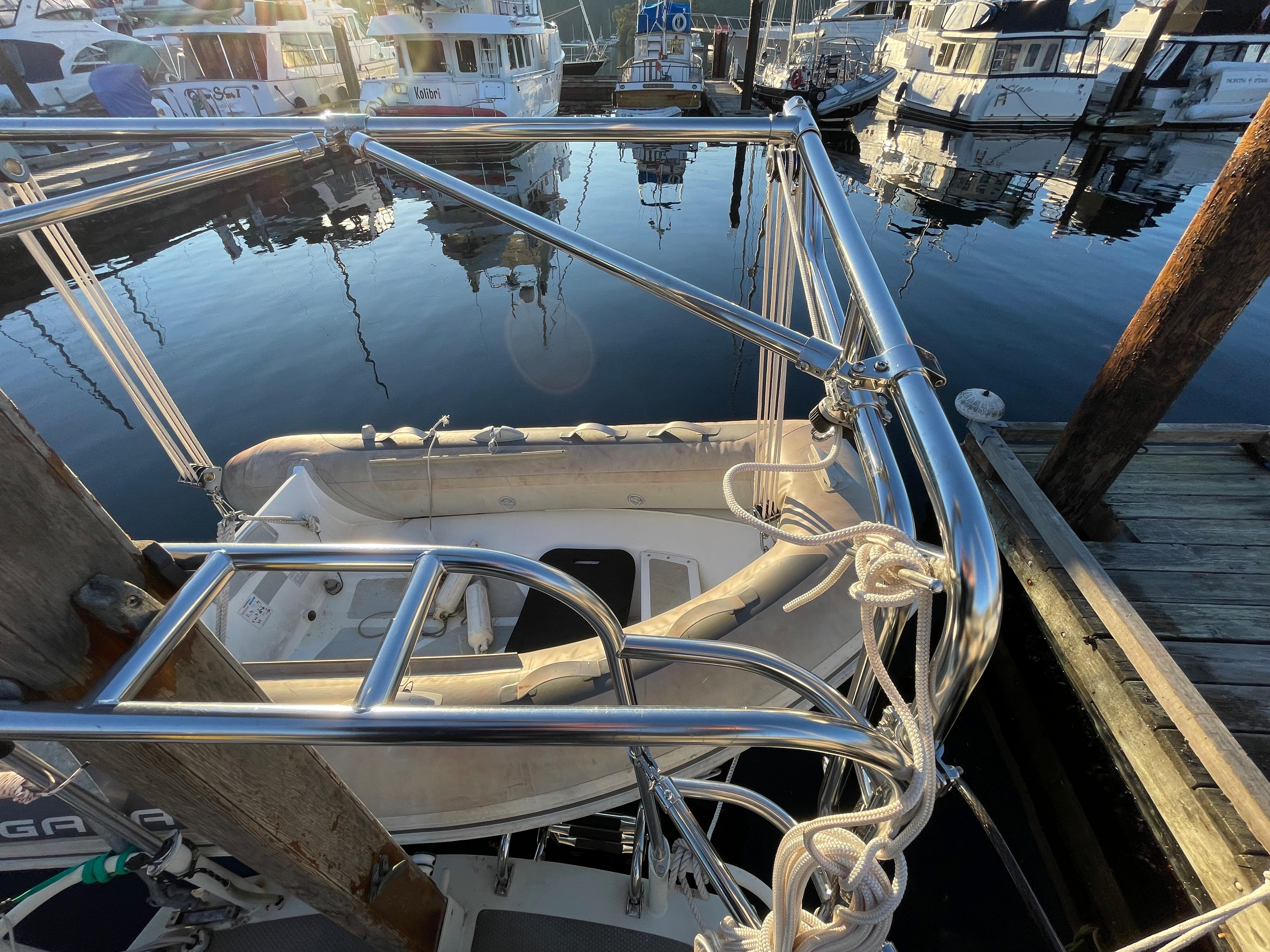

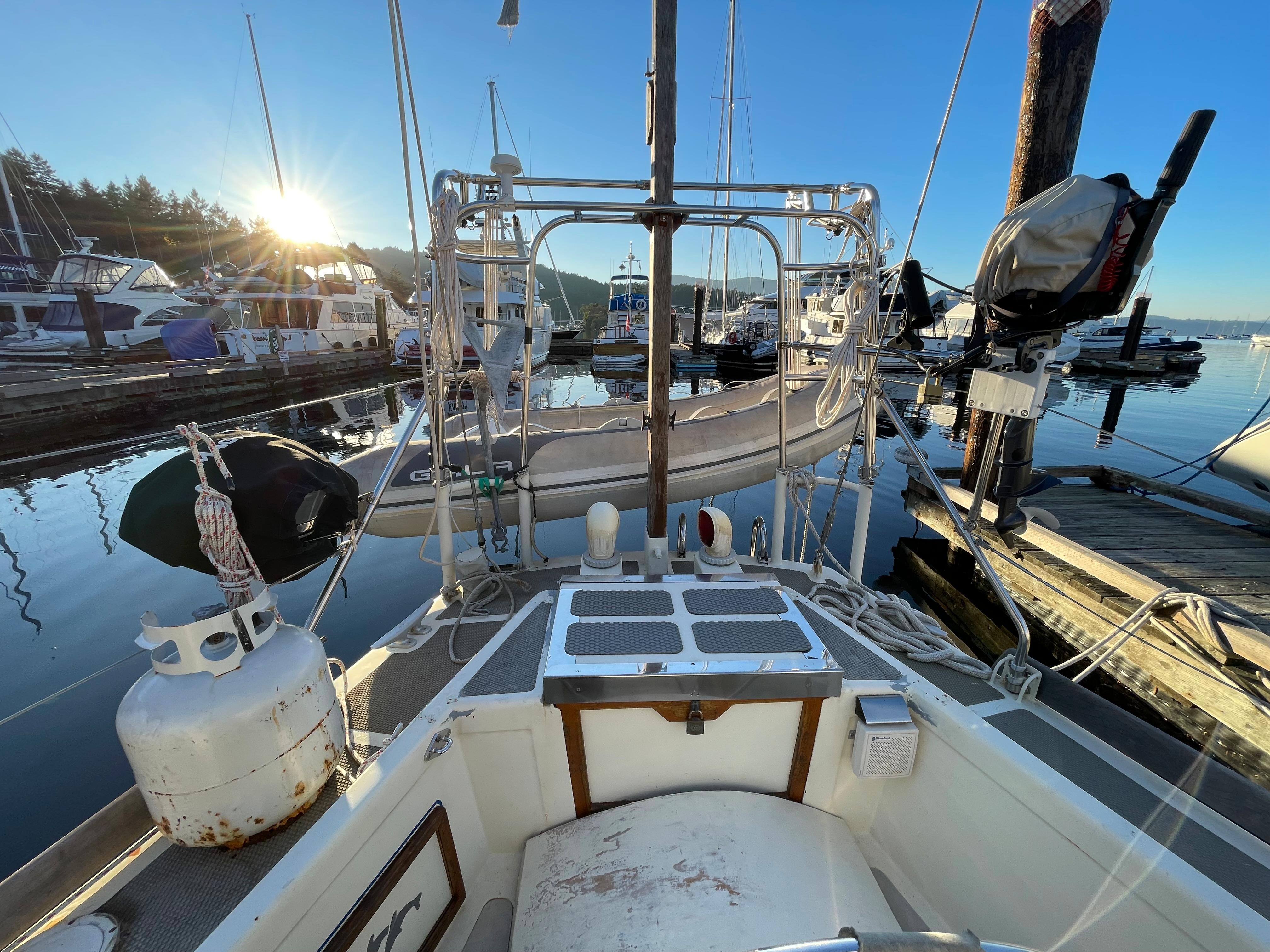

•  Dinghy Davits (new 2022)
•  Dinghy: Gala A240 rib

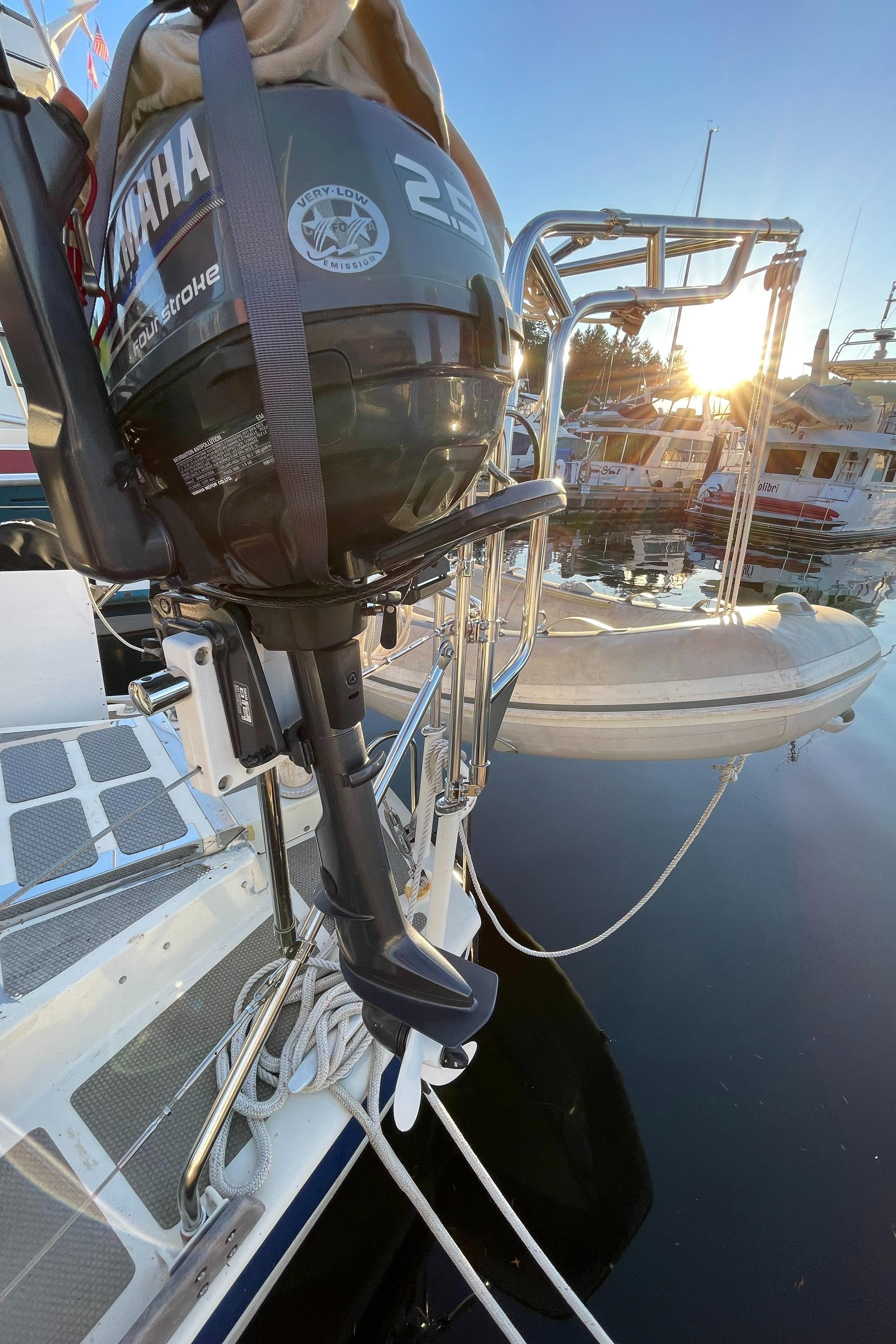

•  Outboard: Yamaha 2.5hp 4 stroke

 MAINTENANCE

•  Last haul-out and anti-fouling: 2022
•  Last zinc(s) change: 2022
•  Last engine oil change: 2022
