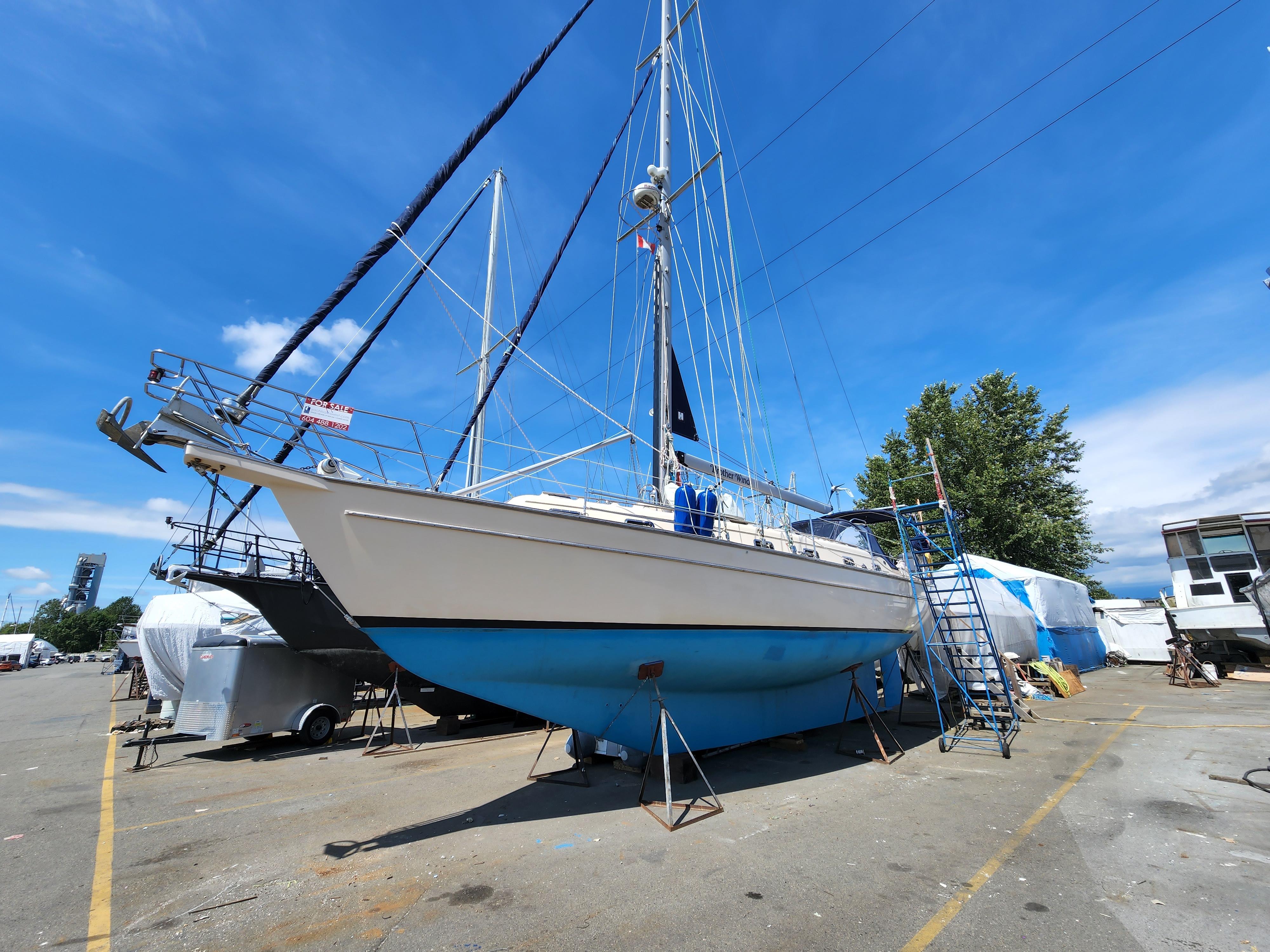

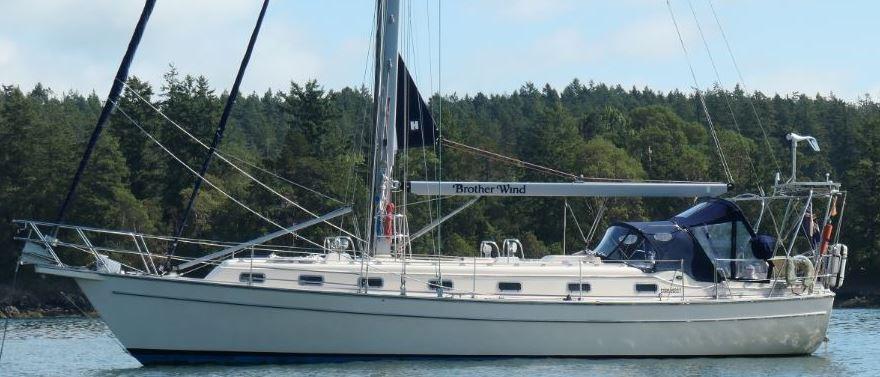

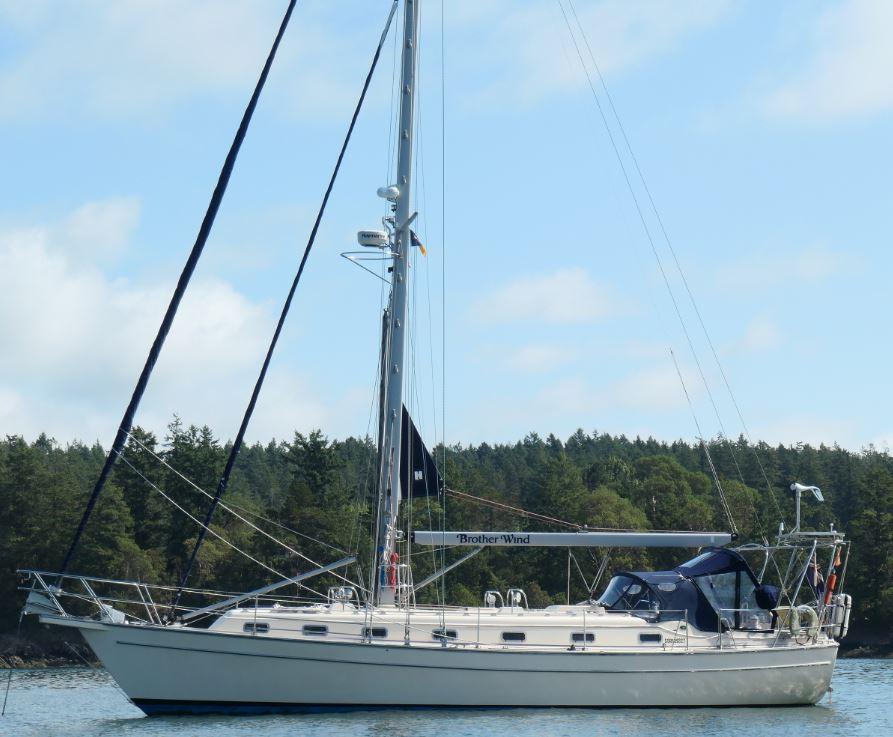

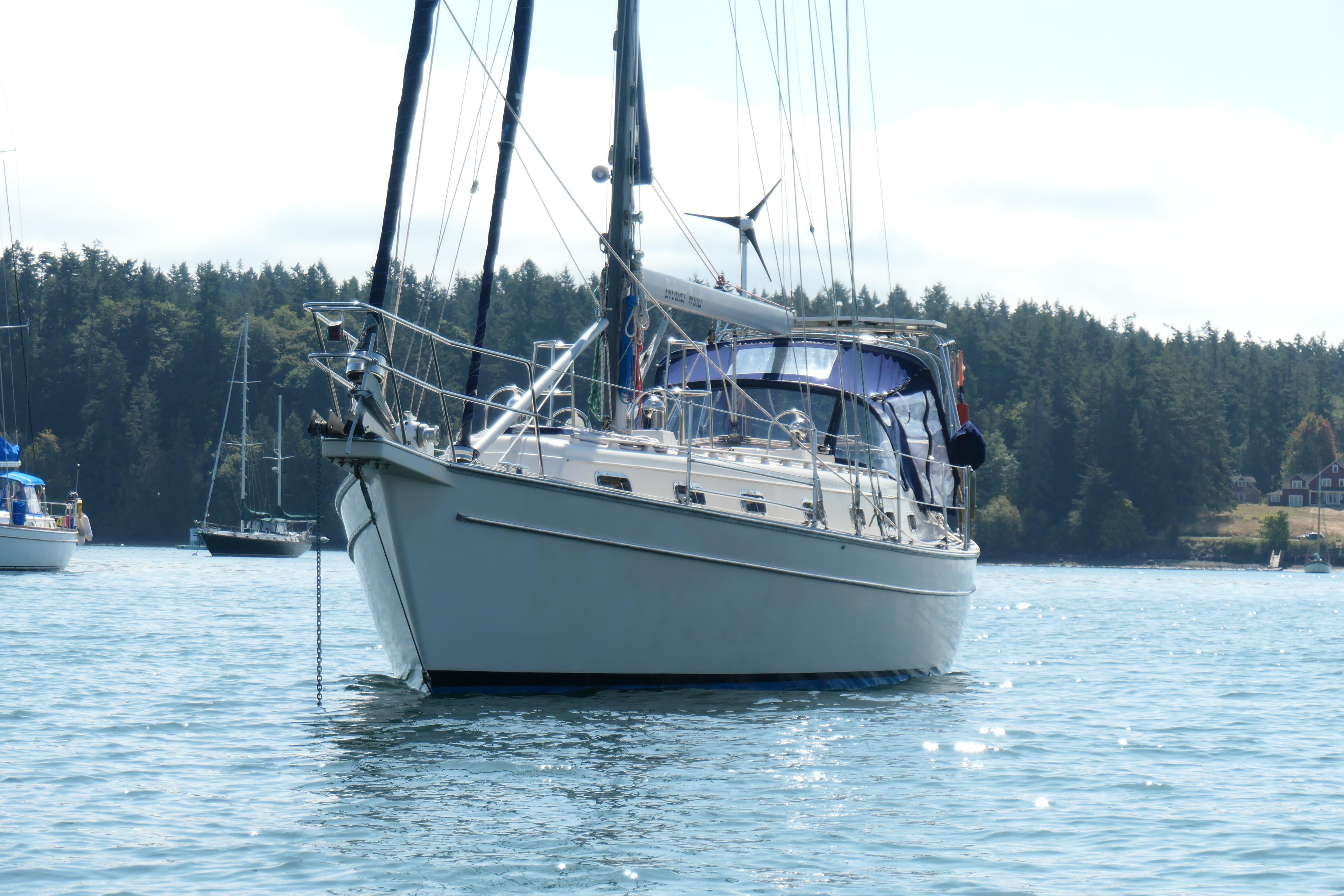

1996 Island Packet 45

1996 Island Packet 45   Specifications

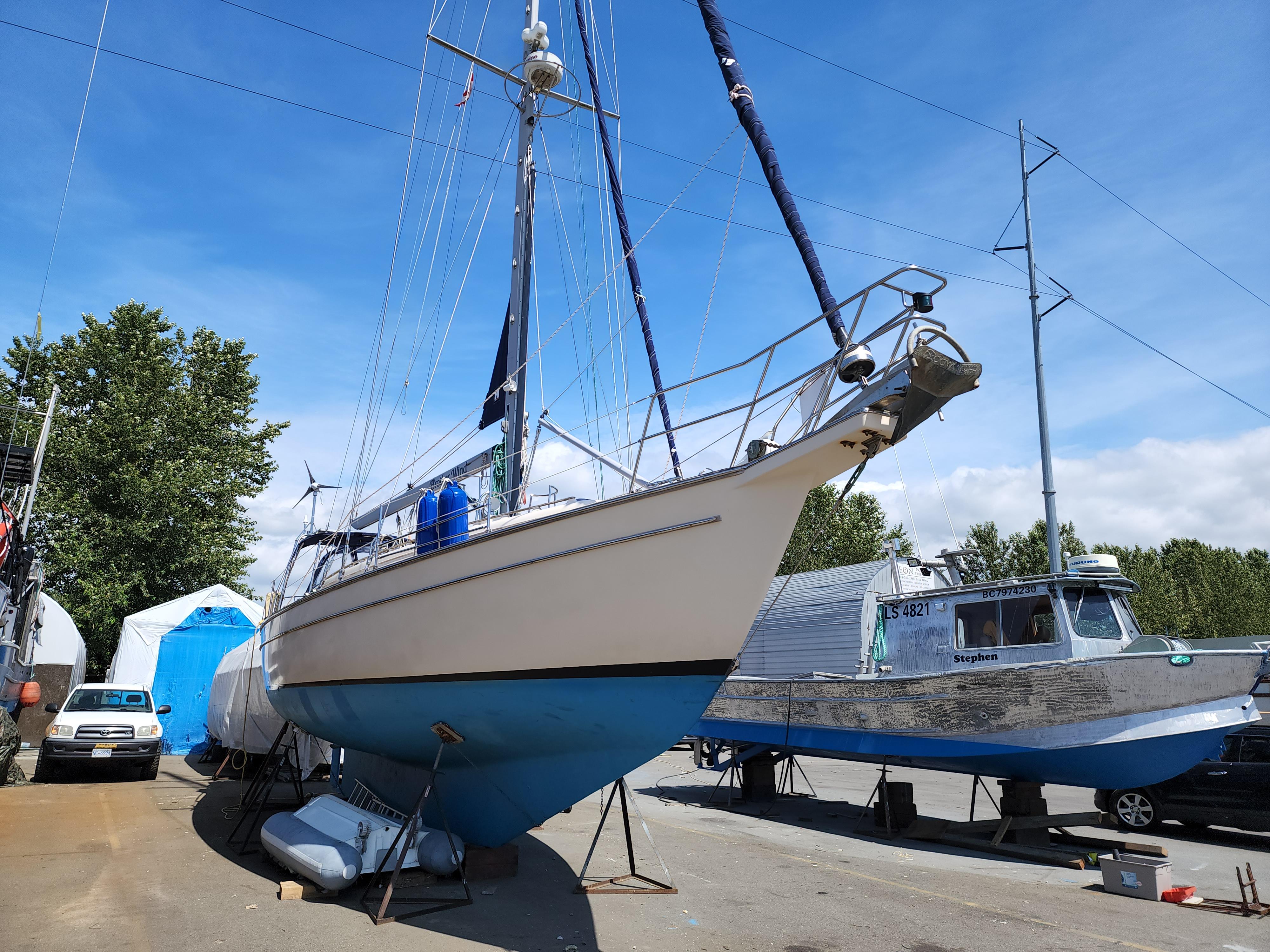

CONSTRUCTION

• Solid overbuilt hand laid triaxial knitted 1 piece Fiberglass hull
• NPG type gelcoat with vinylester resin in outer layers

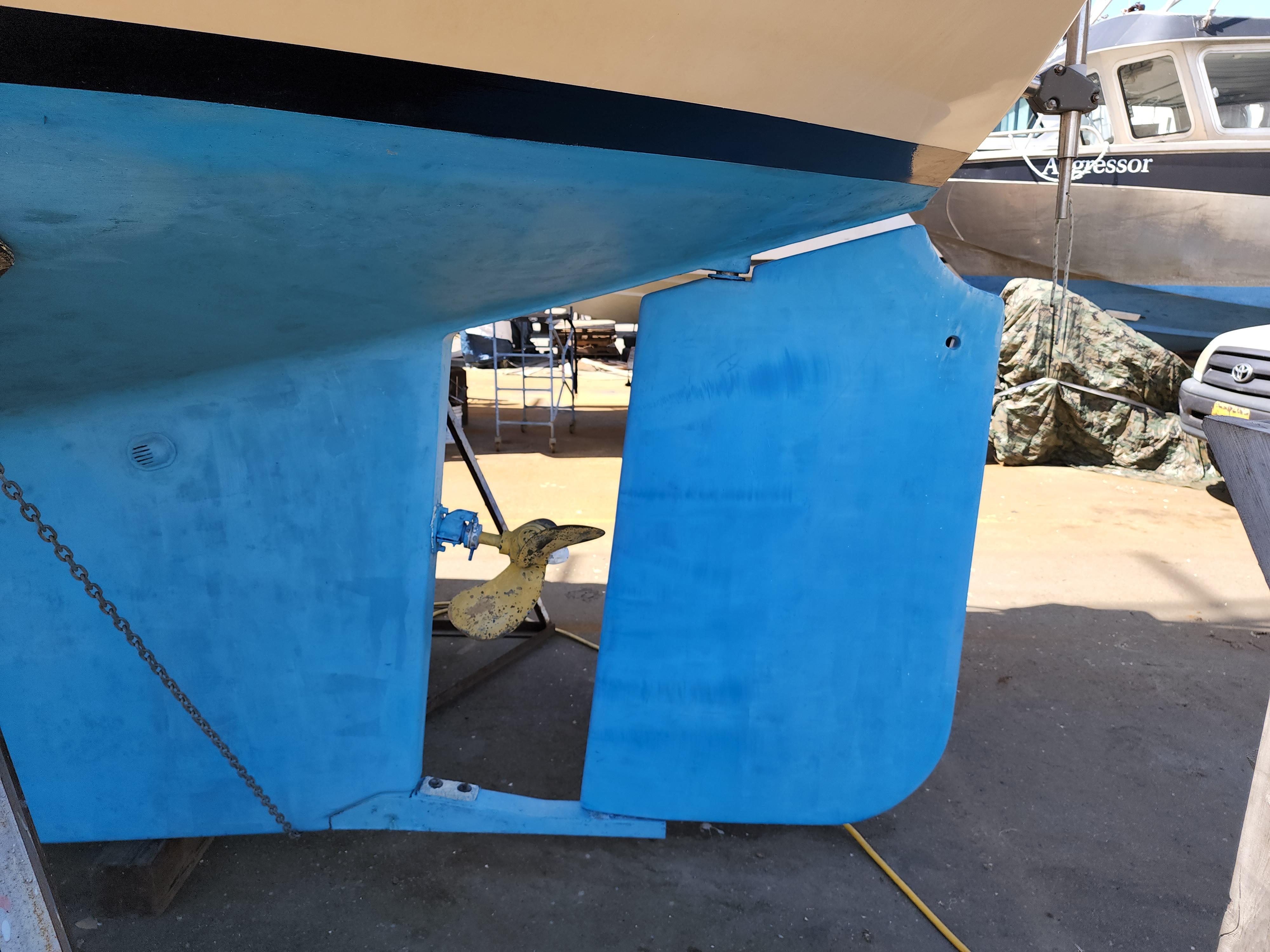

• Keel hung rudder
• Glassed in bulkheads
• Hull to deck joint is inward turning 2 .5” flange through bolted with ¼” bolts on 6” centers
• 6061 Aluminum backing plate on hull deck joint with 3M 5200 bedding compound between hull deck
• Solid teak cap rail over hull deck joint
• Fibreglass deck is cored with PolyCore
• Bronze thru hulls
• Keel stepped mast
• Overbuilt bow sprit with teak plate on top
• Keel is part of hull mold so no bolts
• Iron and cement ballast glassed into hull
• Extra layers of fiberglass at bottom of keel
• Rudder stock is 2” stainless steel attached to stainless steel shoe
• Rudder has steel plate, with high density- urethane foam covered in fiberglass
• Lifelines are 26” high for added offshore safety
• Backing plates for all deck hardware
• 2” scuppers in cockpit floor for better draining
• Edson custom rack and pinion steering
• 2 stainless steel fuel tanks (2017)

INTERIOR

The Island Packet has an open inviting below decks.

• Teak interior with solid teak trim
• 2 large staterooms with accompanying heads
• 16 opening stainless steel ports with screens
• 7 deck hatches with screens
• 4 Stainless steel dorades for all weather venting
• Satin finished teak and holly floor in cabins and salon
• Nonskid fiberglass floor at base of stairs nav station, galley and heads
• Bug screens for all hatches and ports

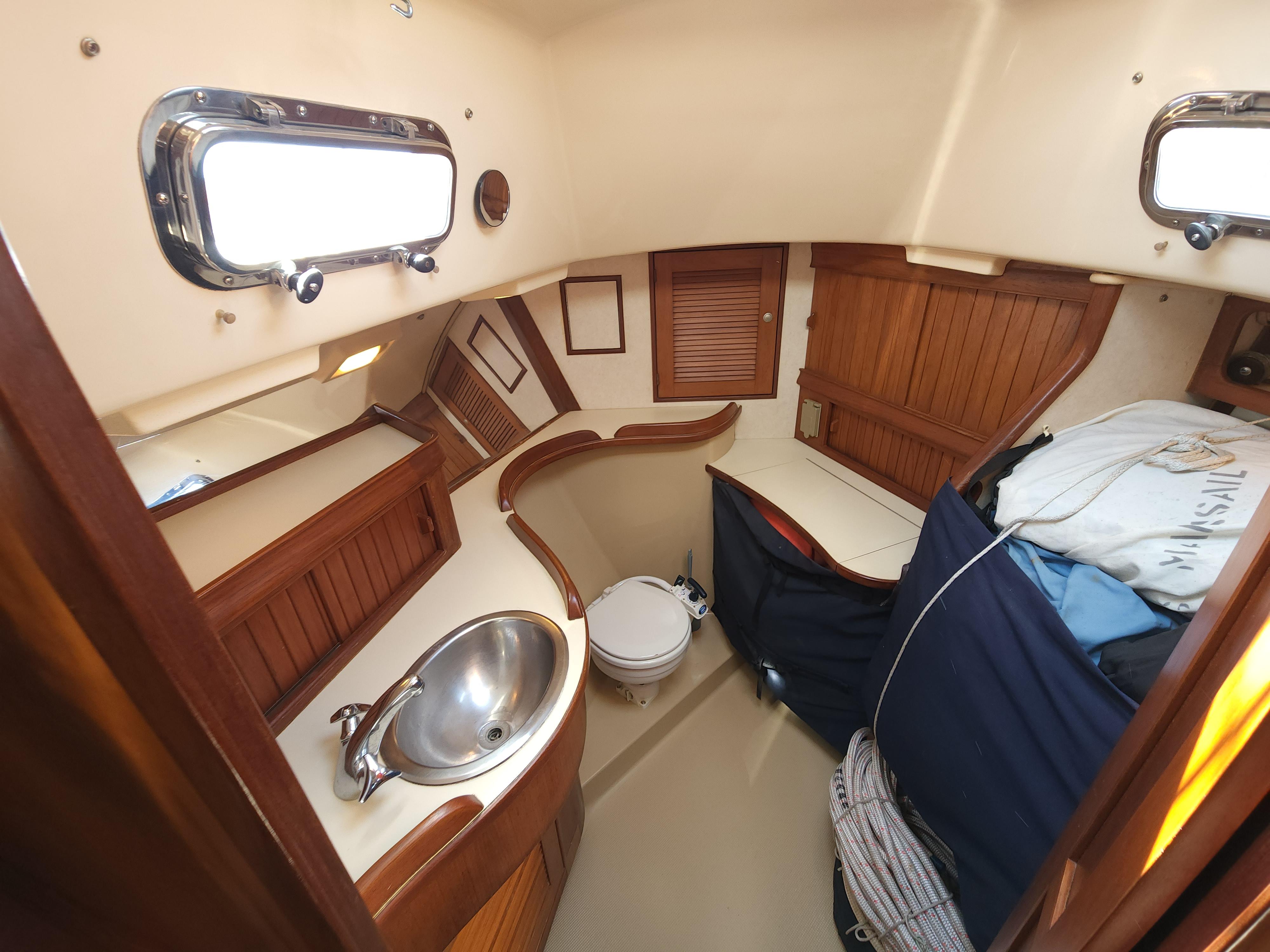

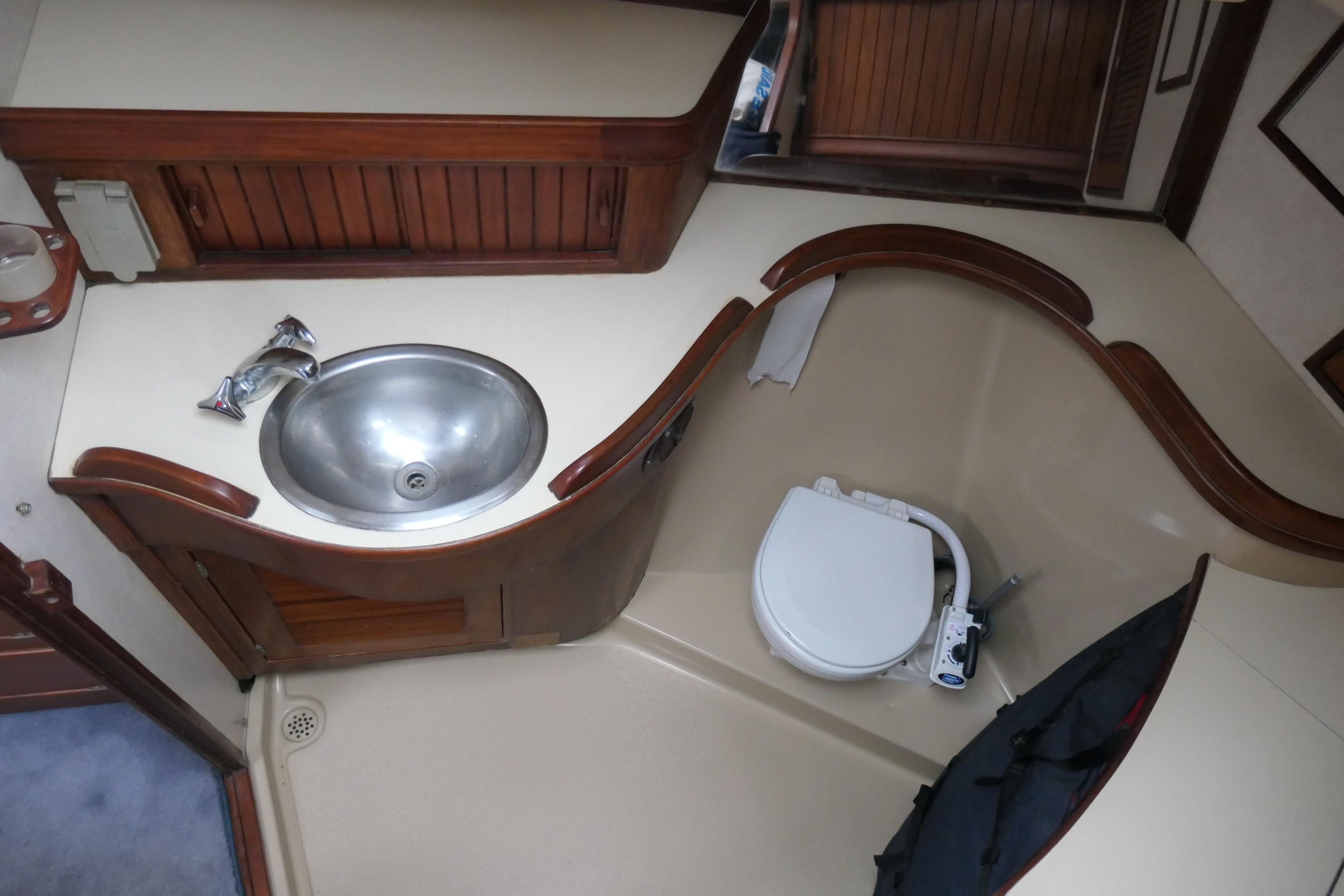

Owners Head forward

• The head is in the forepeak with Jabsco marine toilet, vanity sink inset into curved countertop so no sharp corners
• Hot and cold shower on bulkhead that can be handheld
• Sump pump
• Shower stall currently used as sail storage with Sunbrella retainer
• Covered 110v outlet
• Floor in head is nonskid gelcoat
• Half bulkhead to starboard has excellent handhold for rough weather
• Excellent lighting from 2 overhead light fixtures and 2 large opening ports plus hatch
• Mirrors to port plus teak cabinets port and starboard
• Bulkhead has white finish to protect from showering
• Door to access anchor locker is in forward bulkhead
• Heat vent near floor
• Closing door between head compartment and berth area

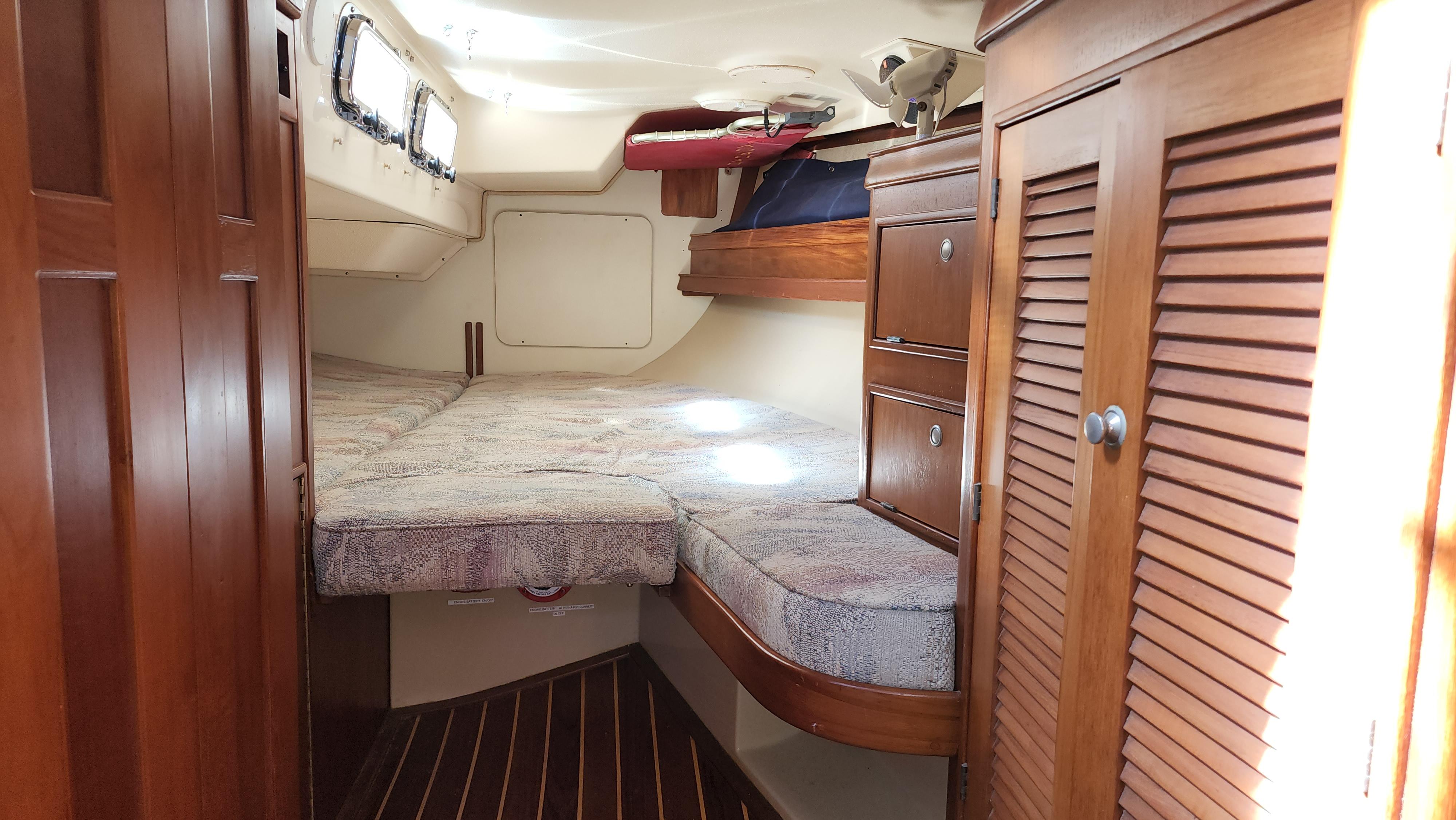

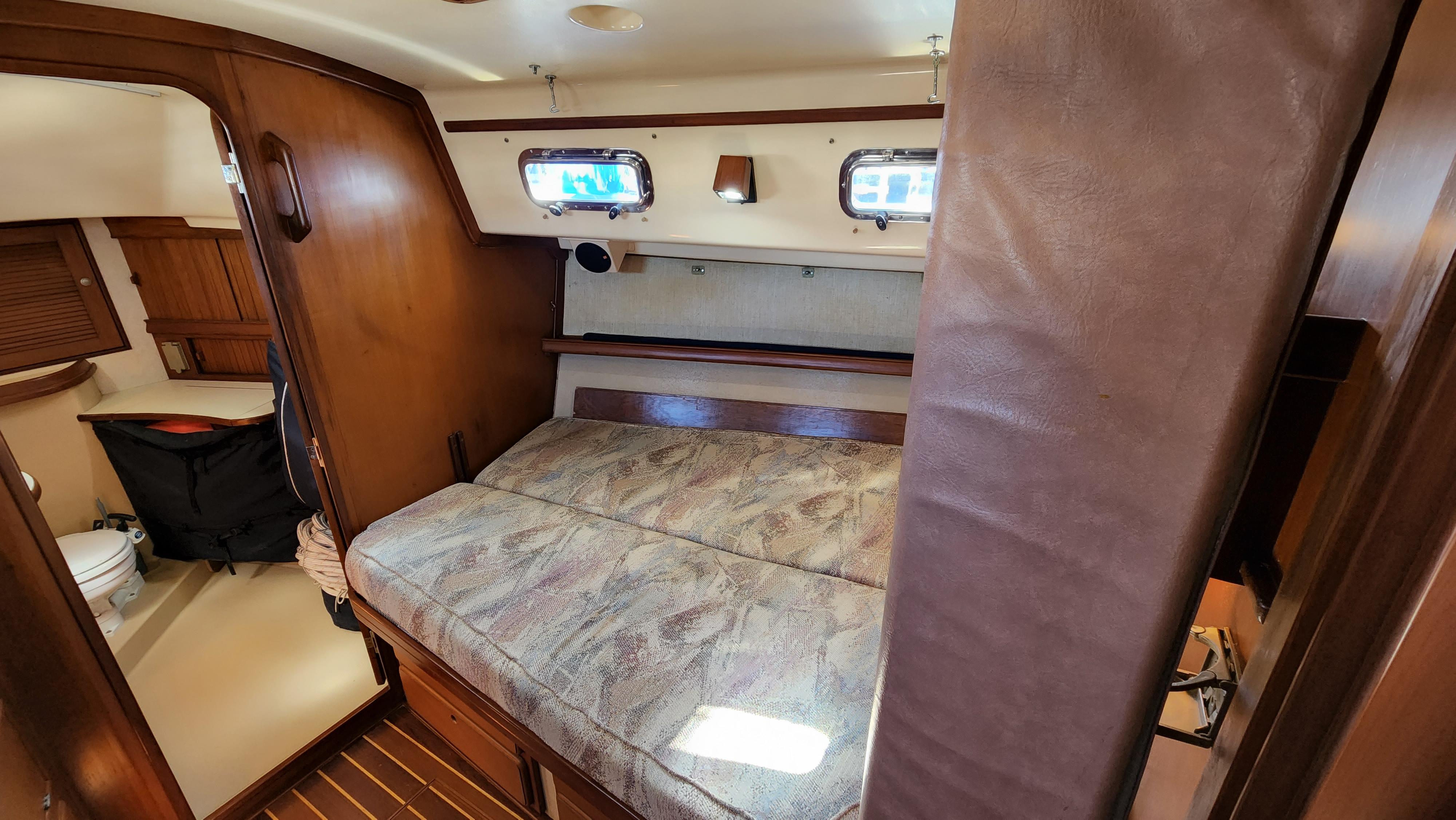

Owners Stateroom

• Teak and holly flooring beside berth
• Pullman berth to starboard with overhead hatch and opening ports
• Extensive storage under berth
• 4 Drawers below, Sliding Door Cabinet with reading lights under
• Excellent storage to port with hanging lockers and 3 front opening drawers
• Built in speaker under port deck over cabinets
• Aircon vent on counter to port and heat vent near floor
• 110v outlet
• Door between stateroom and salon

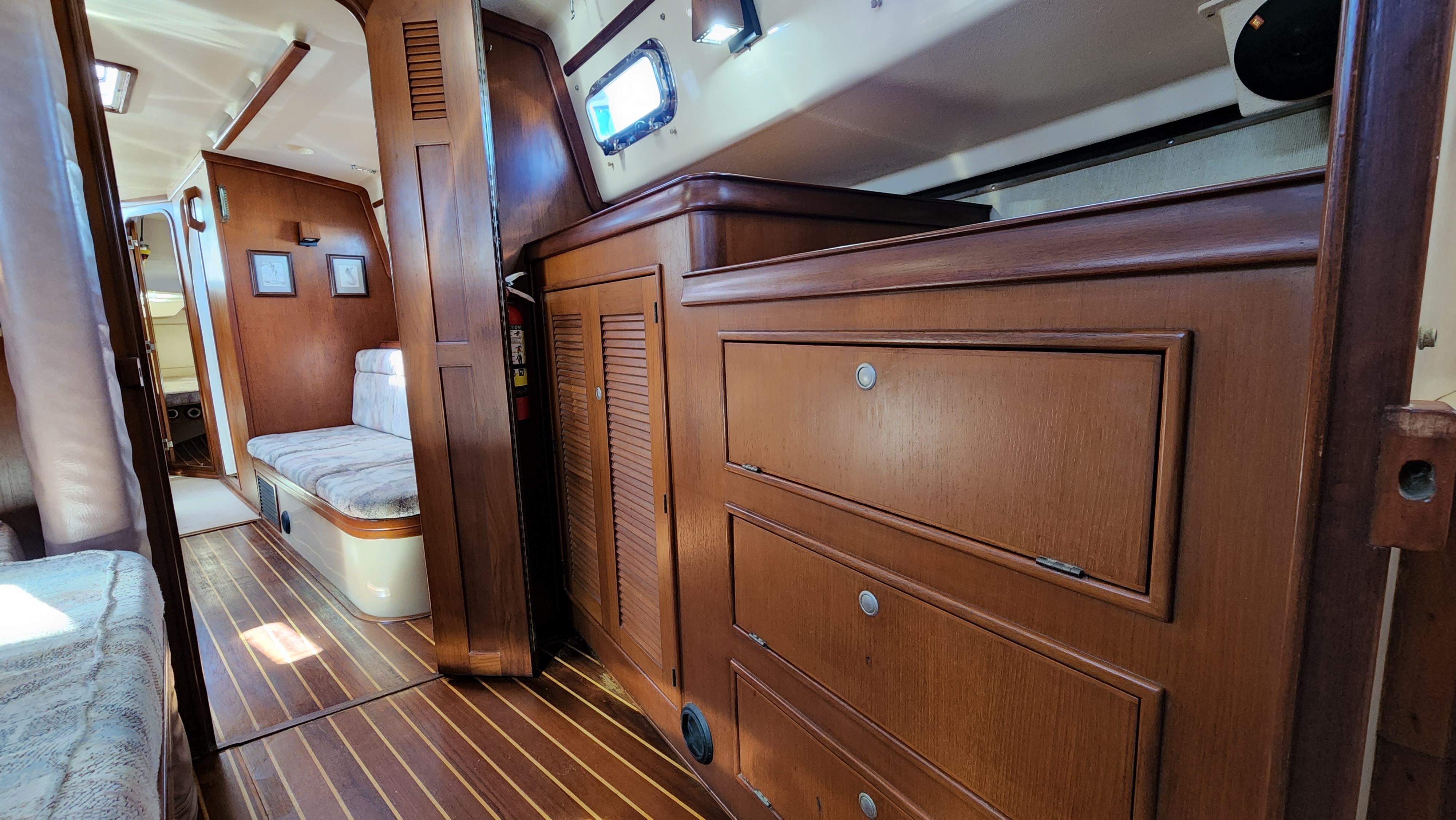

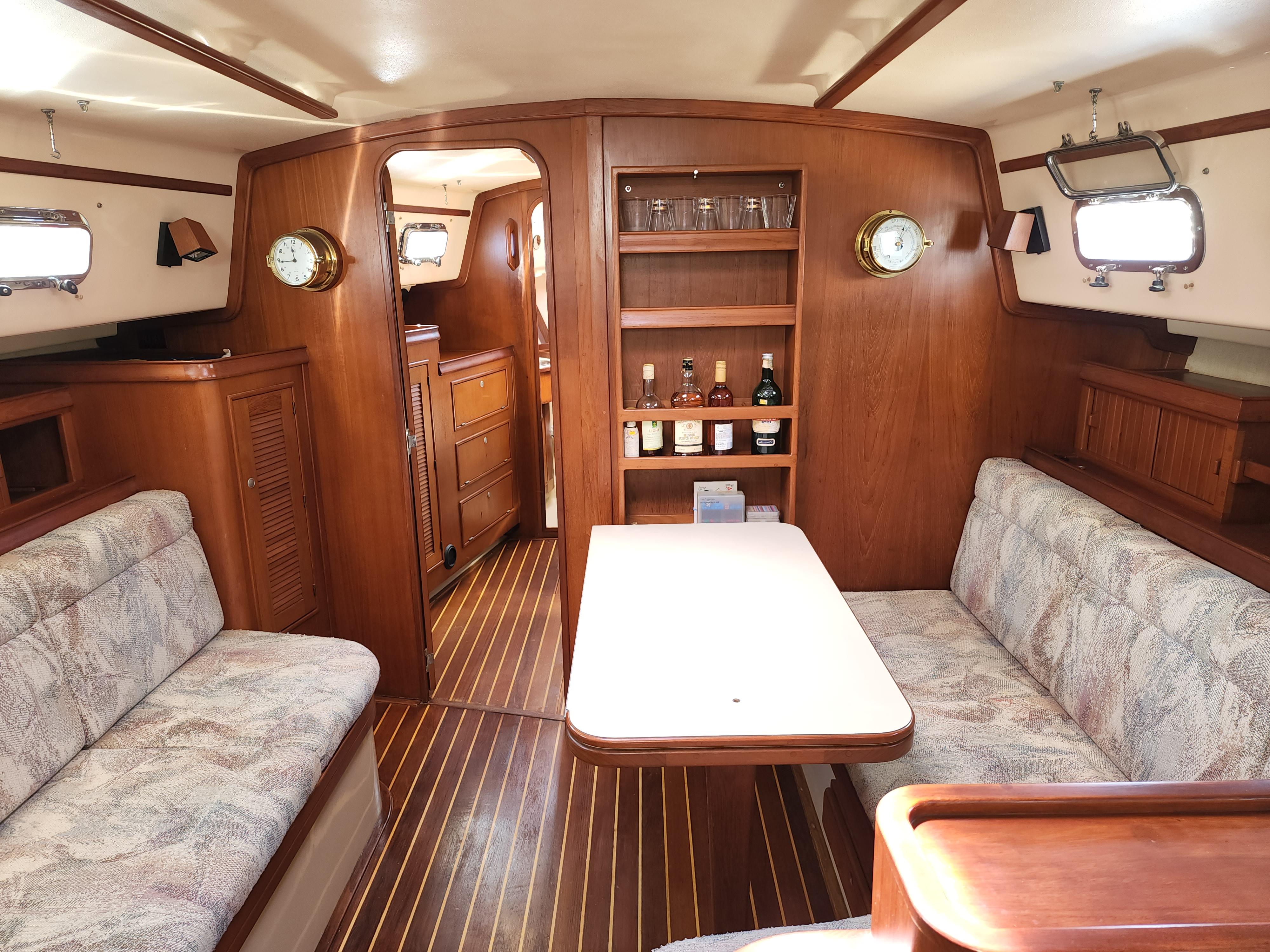

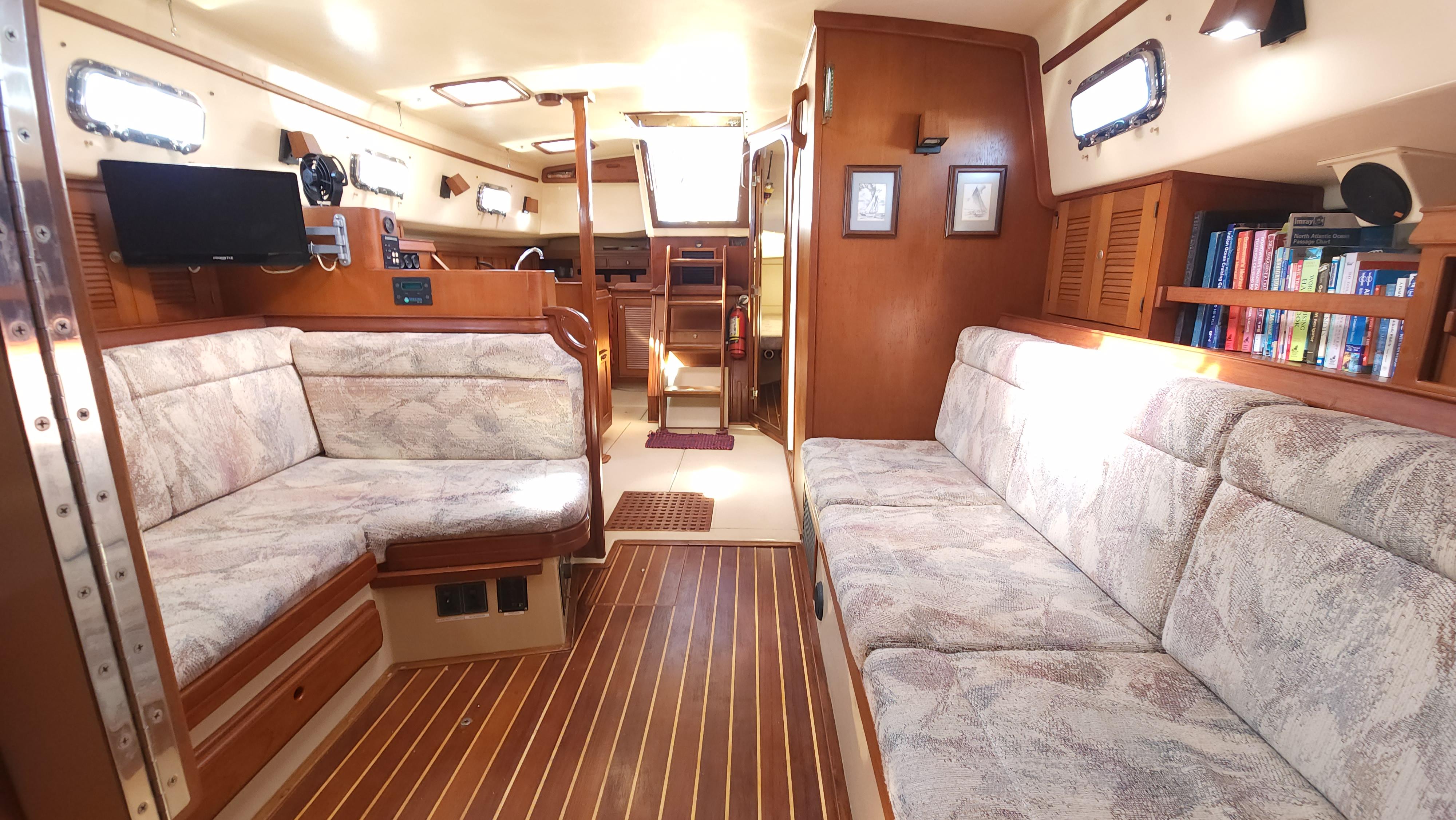

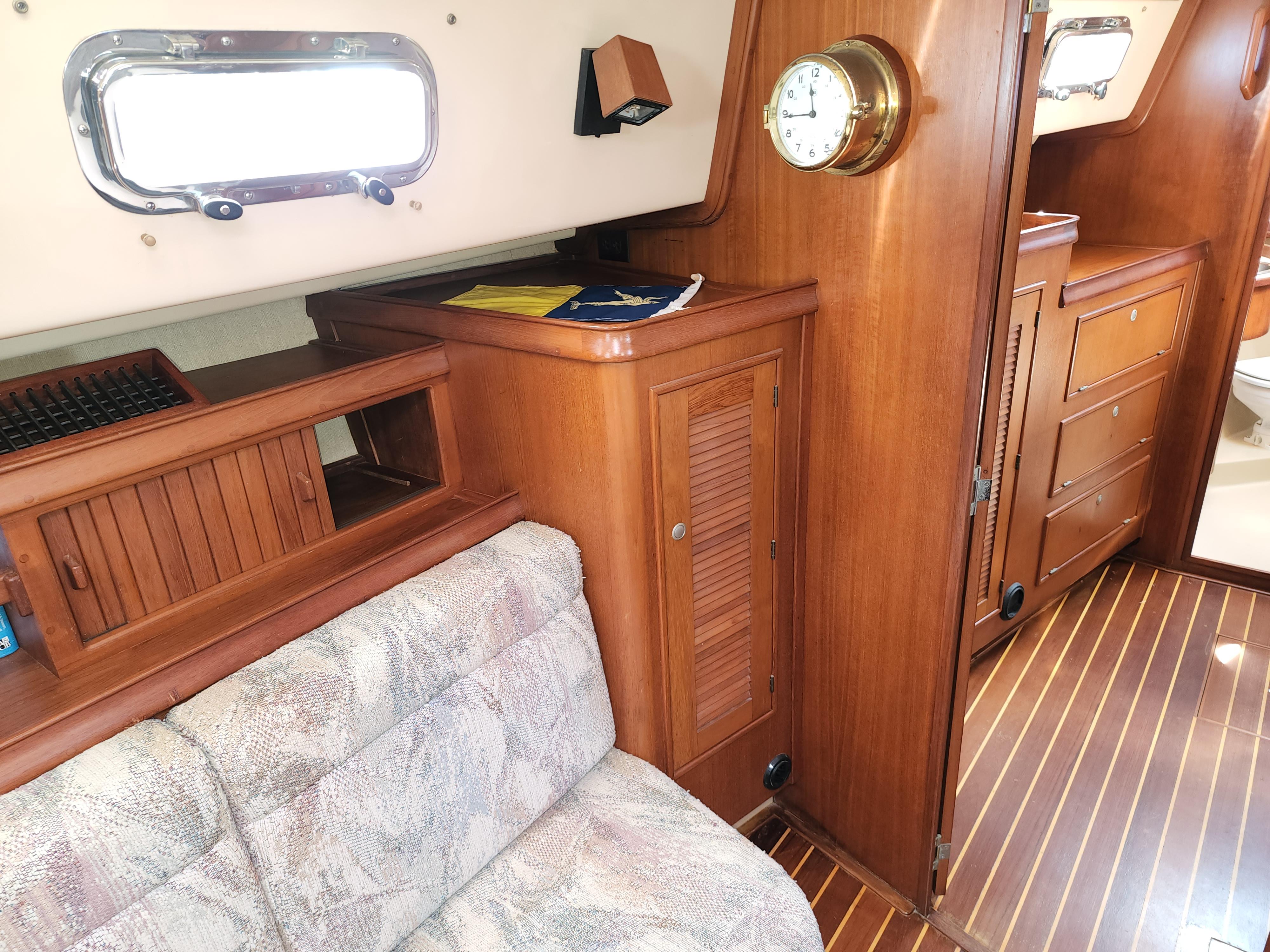

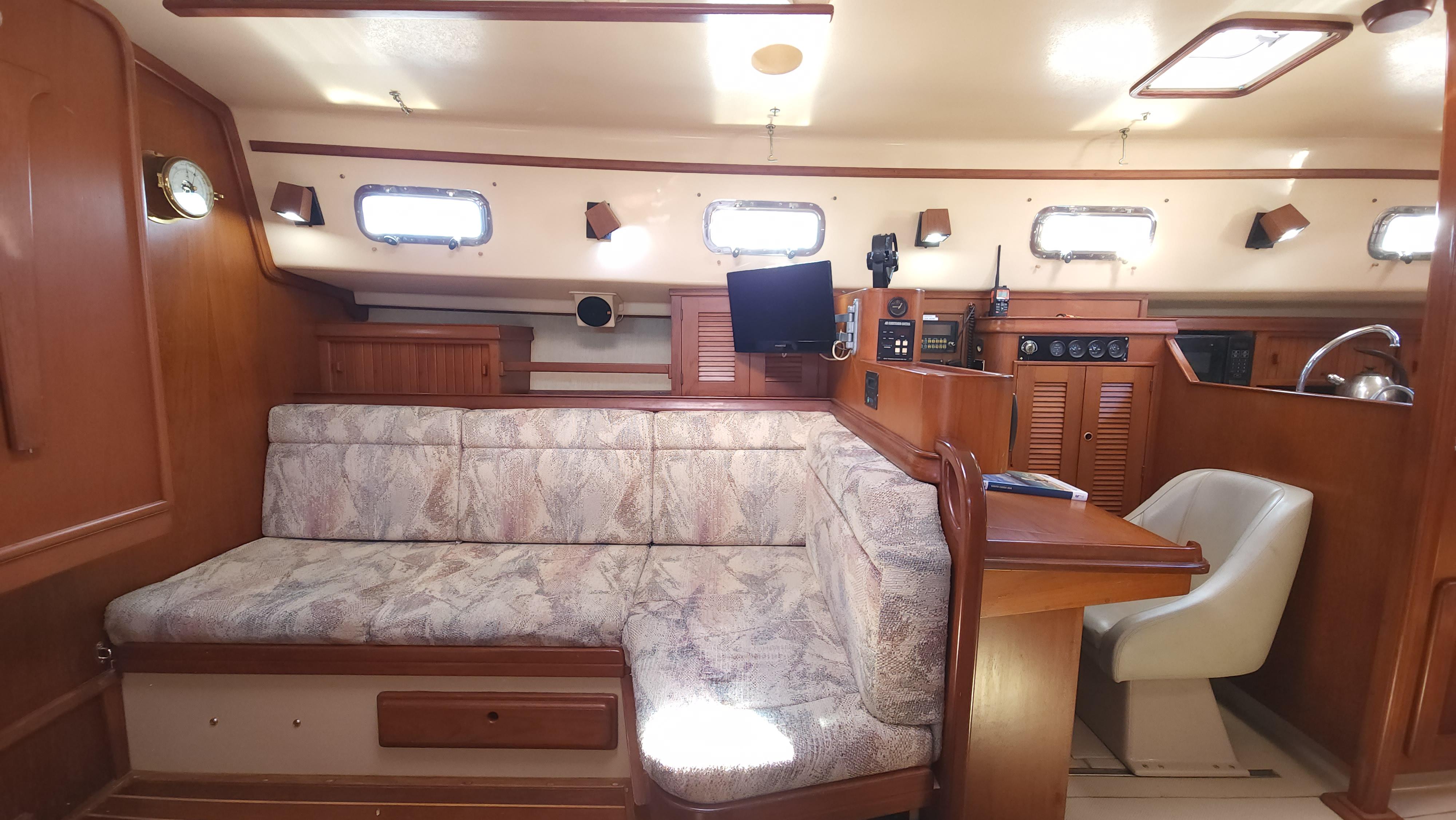

Salon

• Nice and open main salon especially when table is stored against main bulkhead
• Main bulkhead is angled midship to provide more room in salon for the hanging locker forward on port side
• Drop table from main bulkhead midship with large leaf to make full width dining table
• Liquor and glass cabinet on bulkhead where table stows
• Deep comfy settees to port and starboard
• Starboard settee is L shaped with chart drawer under
• L shaped settee converts to double berth
• Inboard end of starboard settee has built in hand hold
• Forward to port is a hanging locker with louvered door
• 4 opening stainless steel ports in salon
• Outboard cabinet storage and bookcases above settees port and starboard
• Extensive storage behind and under all back and seat cushions
• Aircon outlet in salon and 2 heater vents
• Starboard aft of L settee is an excellent nav station
• Starboard side is galley with opening stainless steel port
• Companionway teak steps with non-slipstrips removes for excellent engine space access

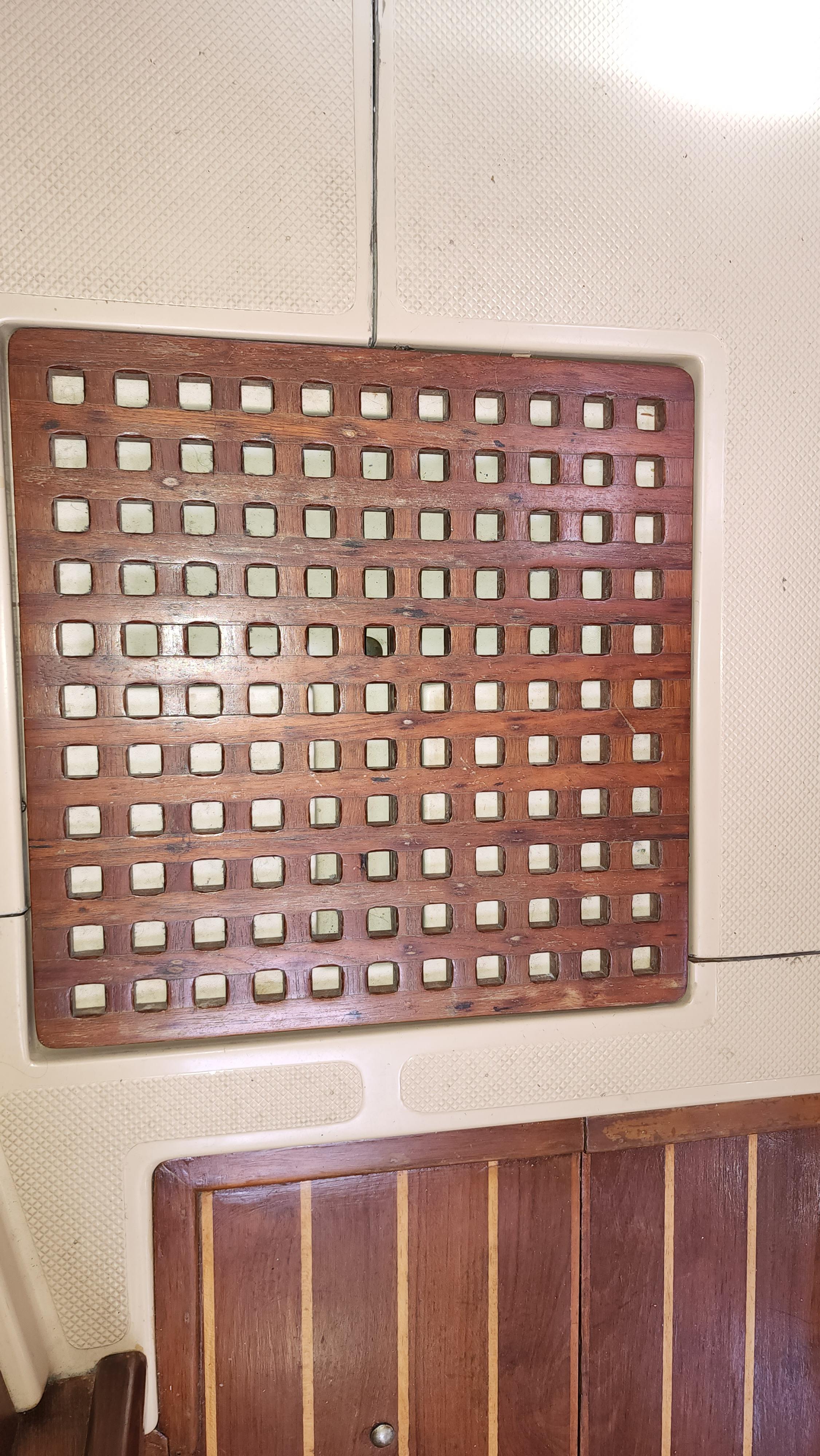

• Teak floor grate between salon and nav station
• 110v outlets port and starboard, 2 12v outlets starboard

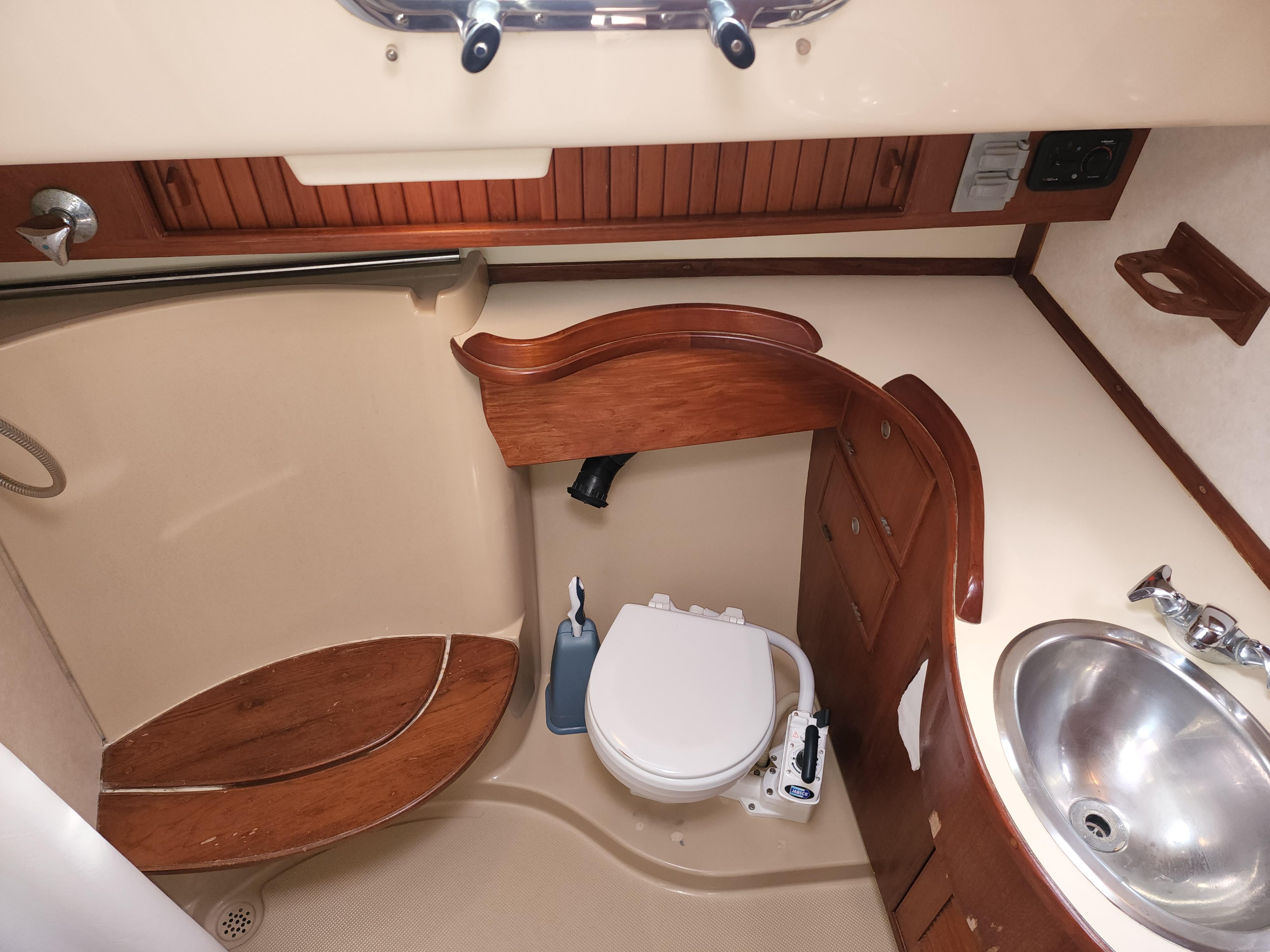

Aft head

• Aft head is to port
• Large shower stall with curtain
• Doors to both salon and aft cabin

• White bulkheads for easy cleaning and brightness
• Teak seat for showering
• Jabsco Marine head and vanity with sink
• Opening stainless steel port and hatch
• Hot and cold shower on bulkhead that can be hand held with sump pump
• Mirror on bulkhead
• Cupboards and drawers above and below vanity
• Outboard sliding door cupboard
• Covered 110v outlet
• Heat vent for heater
• Webasto controller
• Stainless steel removable bar for wet oilskin hanging

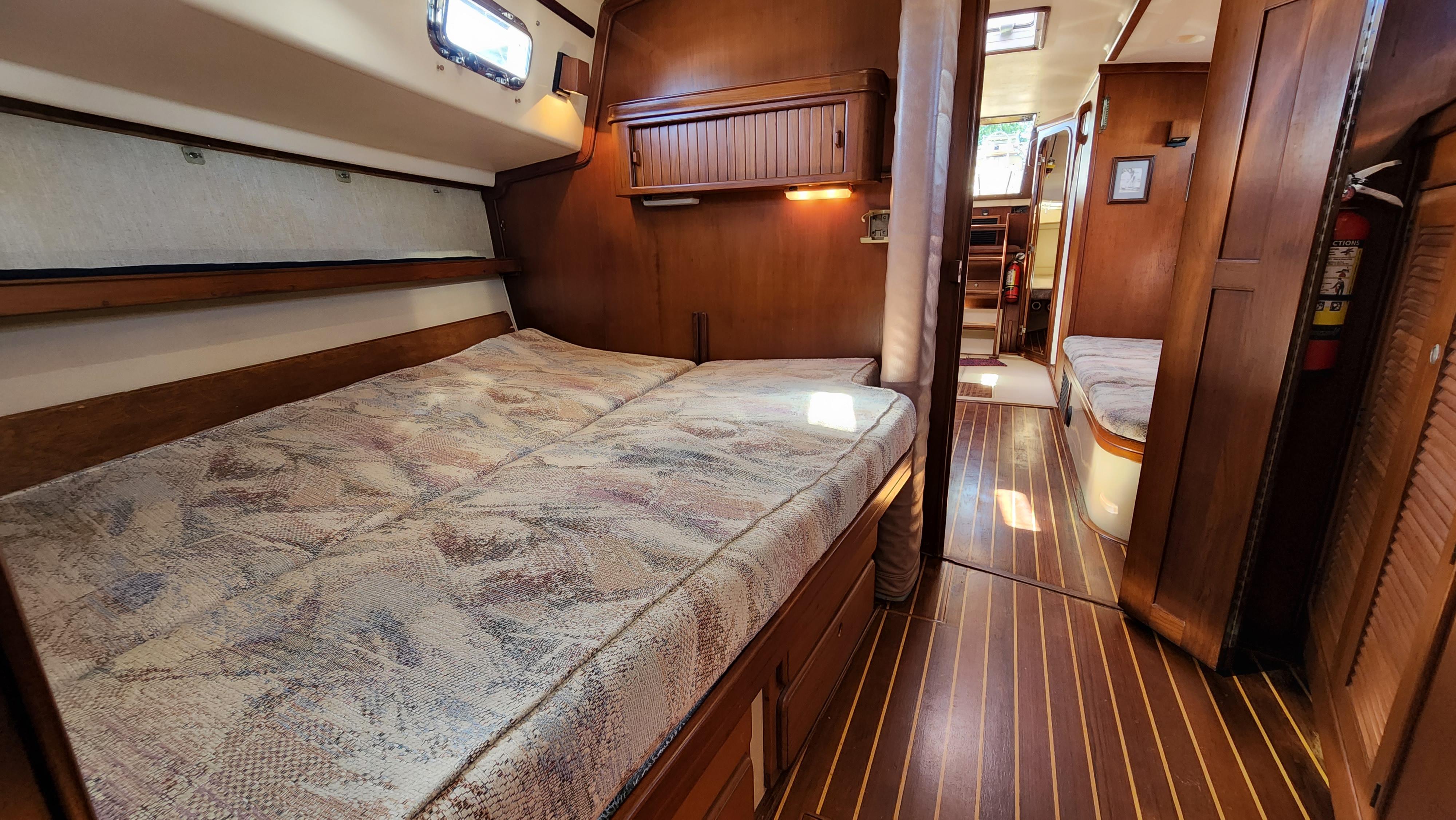

Aft Cabin

• Closing bi fold door into aft cabin with ample floor space
• 3 opening stainless steel ports
• Overhead opening hatch
• Double hanging lockers
• 2 opening drawers
• Teak and holly floor
• Seat ahead of berth
• Large berth with lockers under
• Aft access hatch to stern
• Teak shelf above berth outboard
• 2 AC vents 1 12volt outlet
• 1 heater vent
• Large access panel to engine

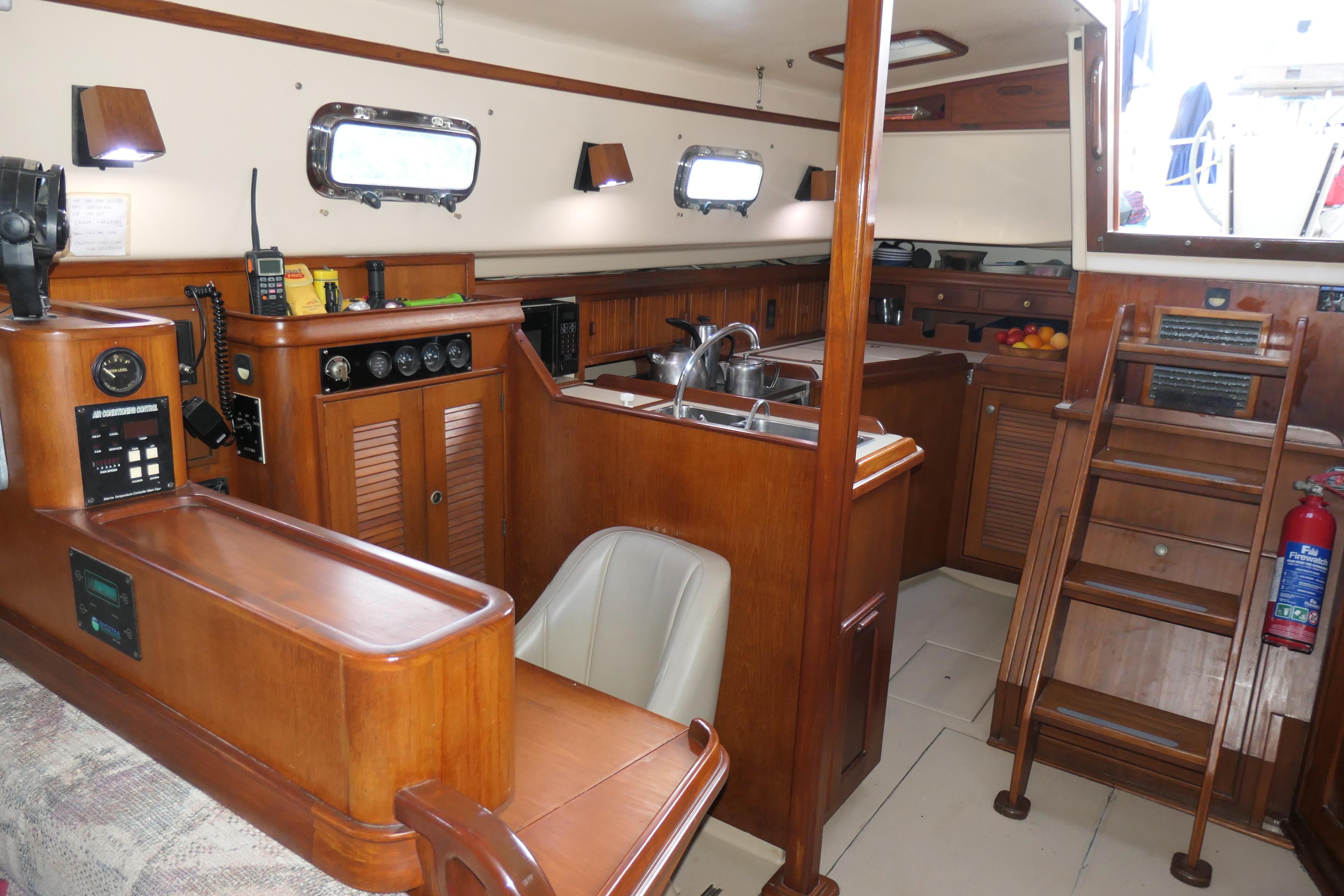

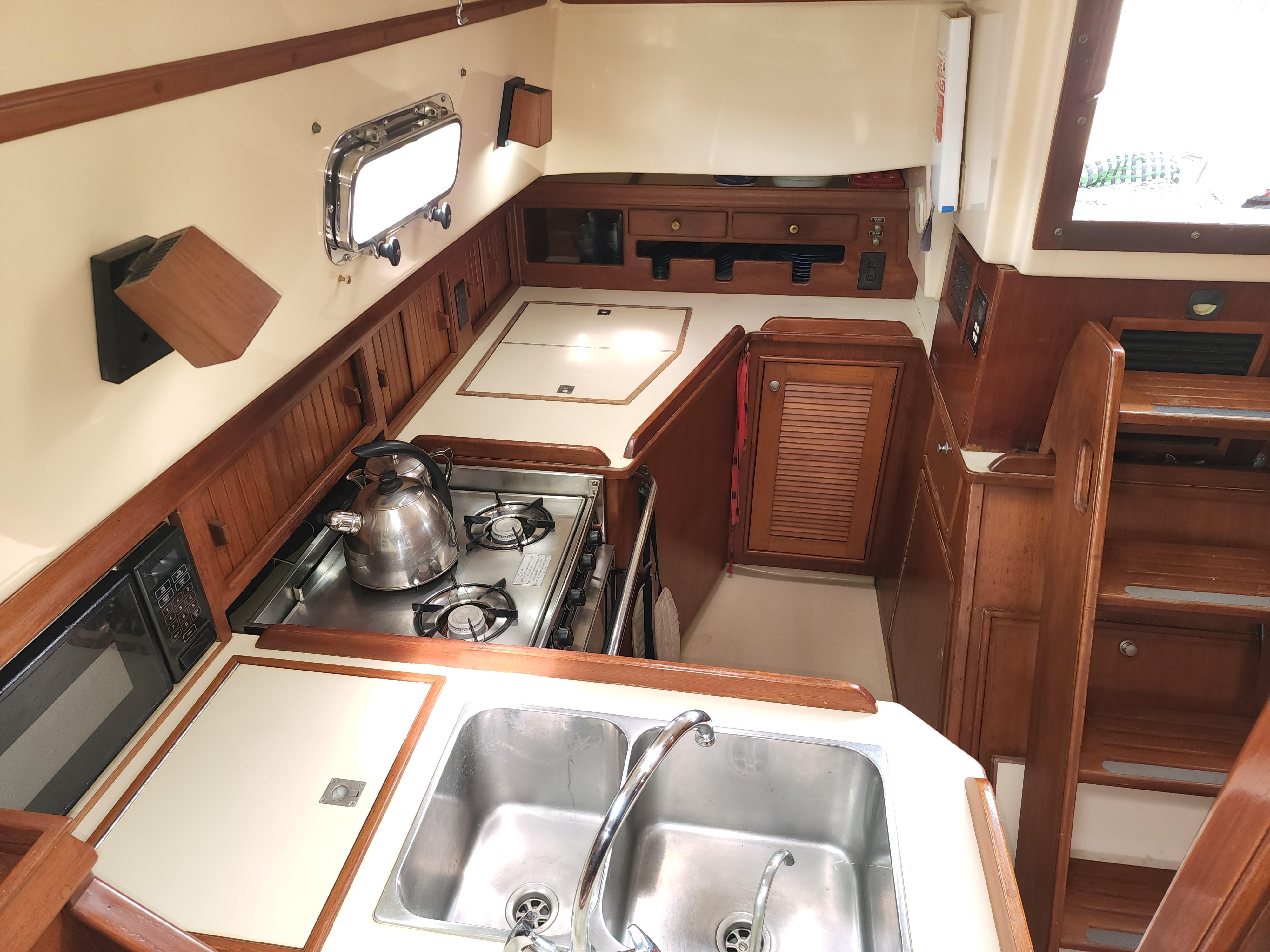

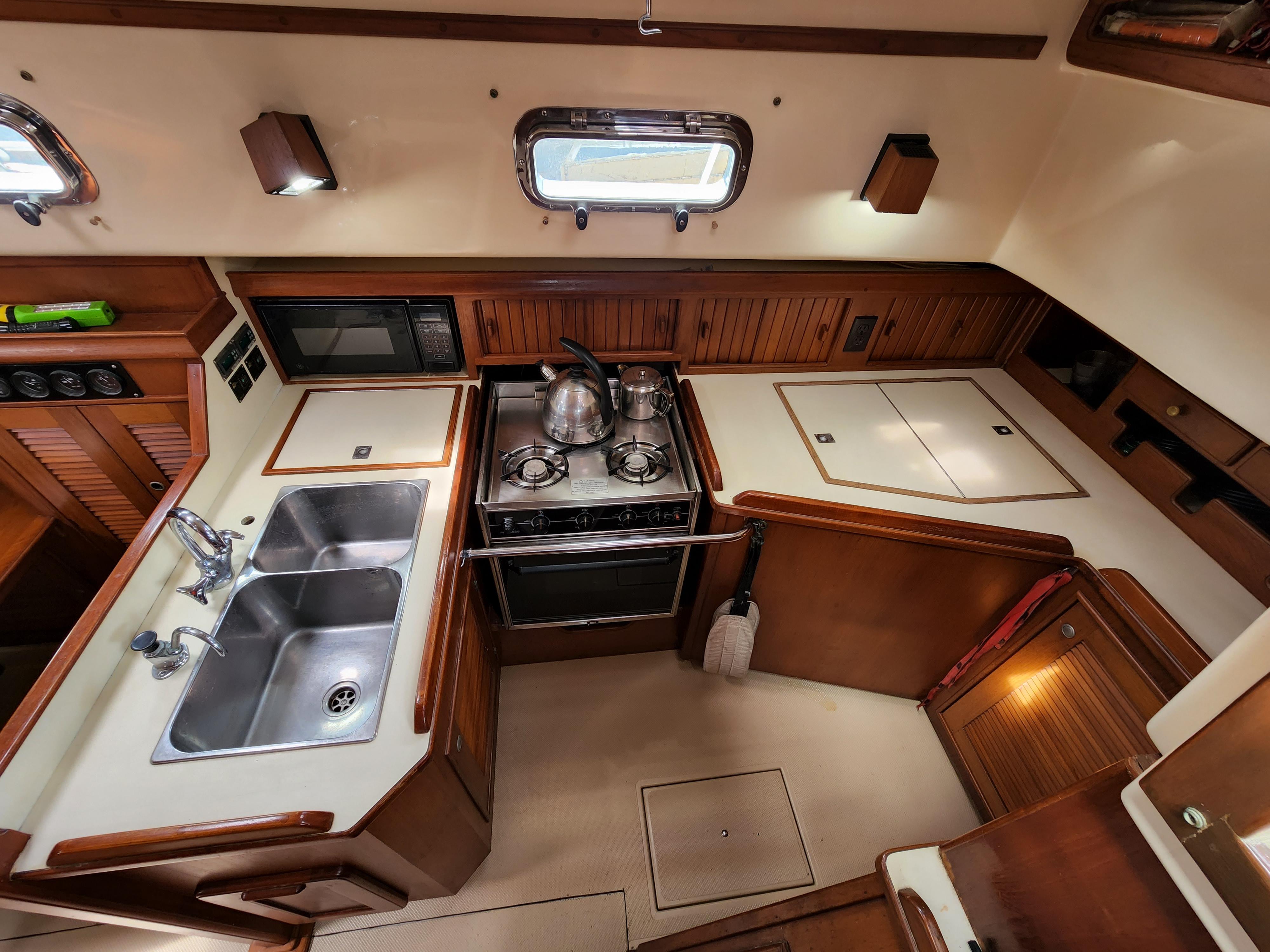

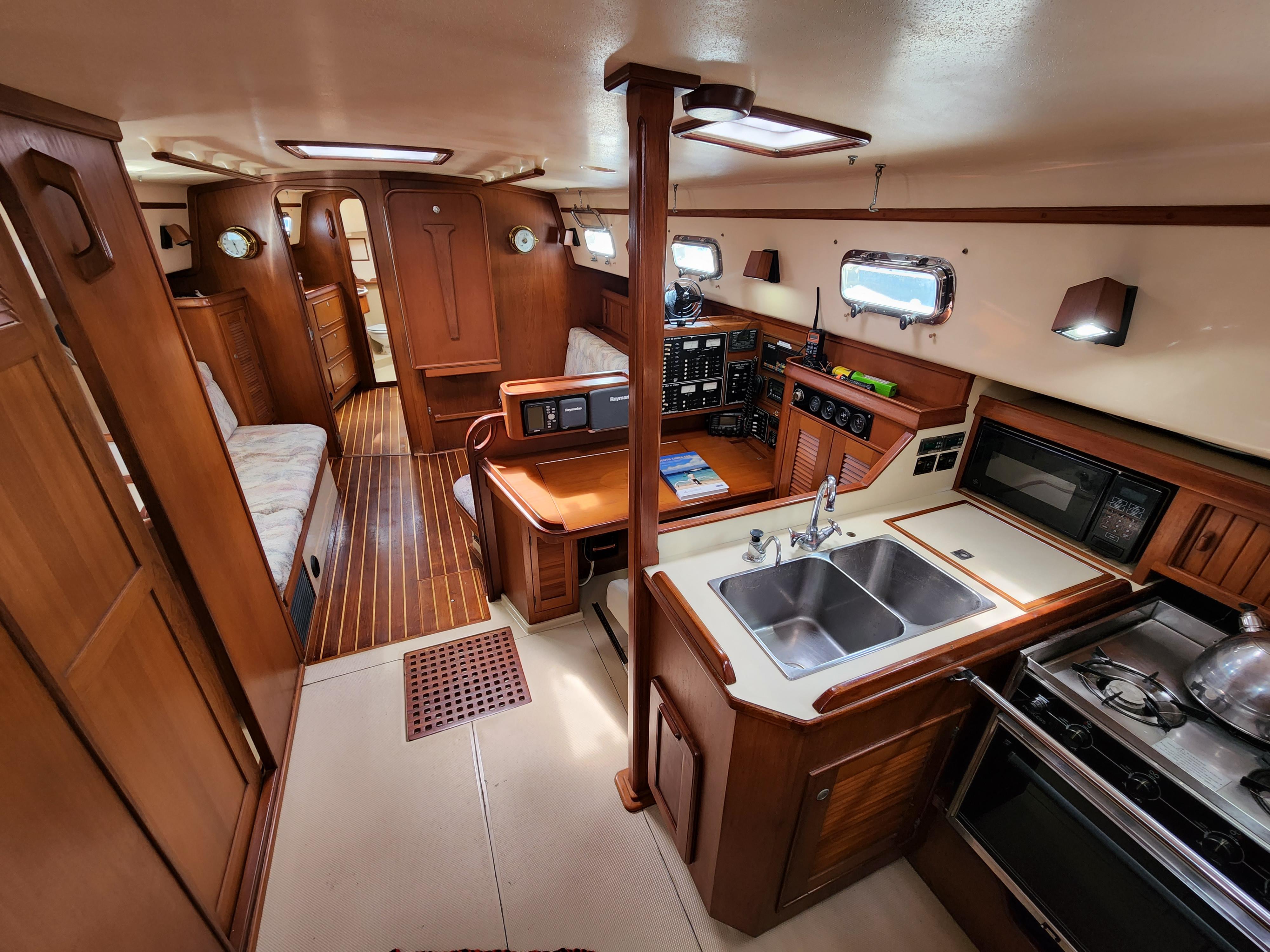

Galley

• Galley is in the starboard aft corner of the salon with nice counter space
• Outboard storage with sliding teak doors
• Under counter large dry locker
• Aft end of galley has dish storage area along with cutlery drawers
• Under counter aft is cupboard
• 2 deep stainless steel sinks facing forward with cupboard and bin storage
• Built in microwave

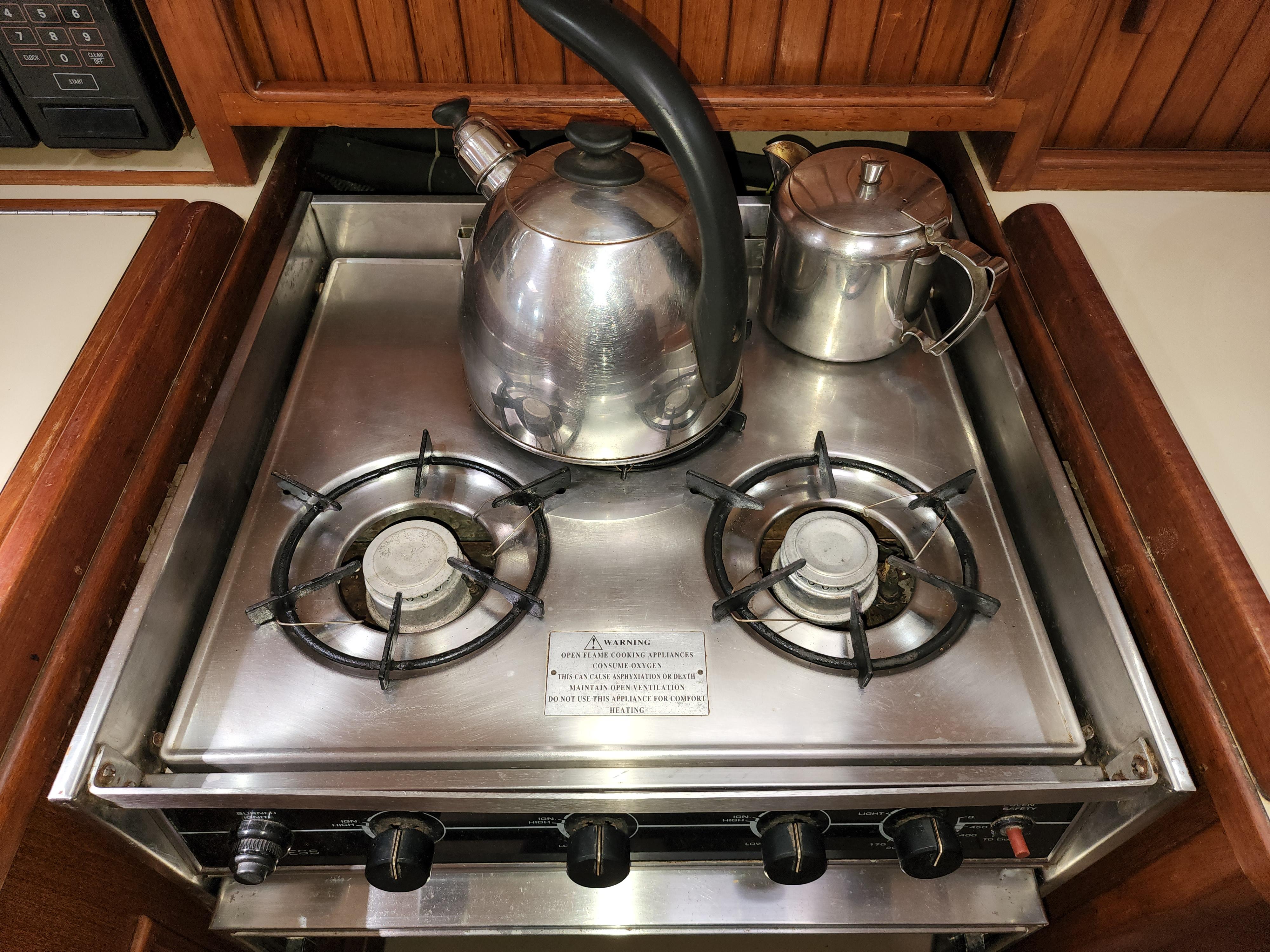

• 3 burner Seaward 3172 propane stove and oven on gimbal with storage under
• Stainless steel guard rail in front of stove
• 2 x 110v outlets
• 2 overhead lights
• FRIGOBOAT 12v coldplate in well insulated ice box for fridge with keel cooler (new plates 2019)
• FRIGOBOAT 12v coldplate in well insulated ice box for freezer with keel cooler (new plates 2019)
• Large utensil drawer
• Side access panel to engine

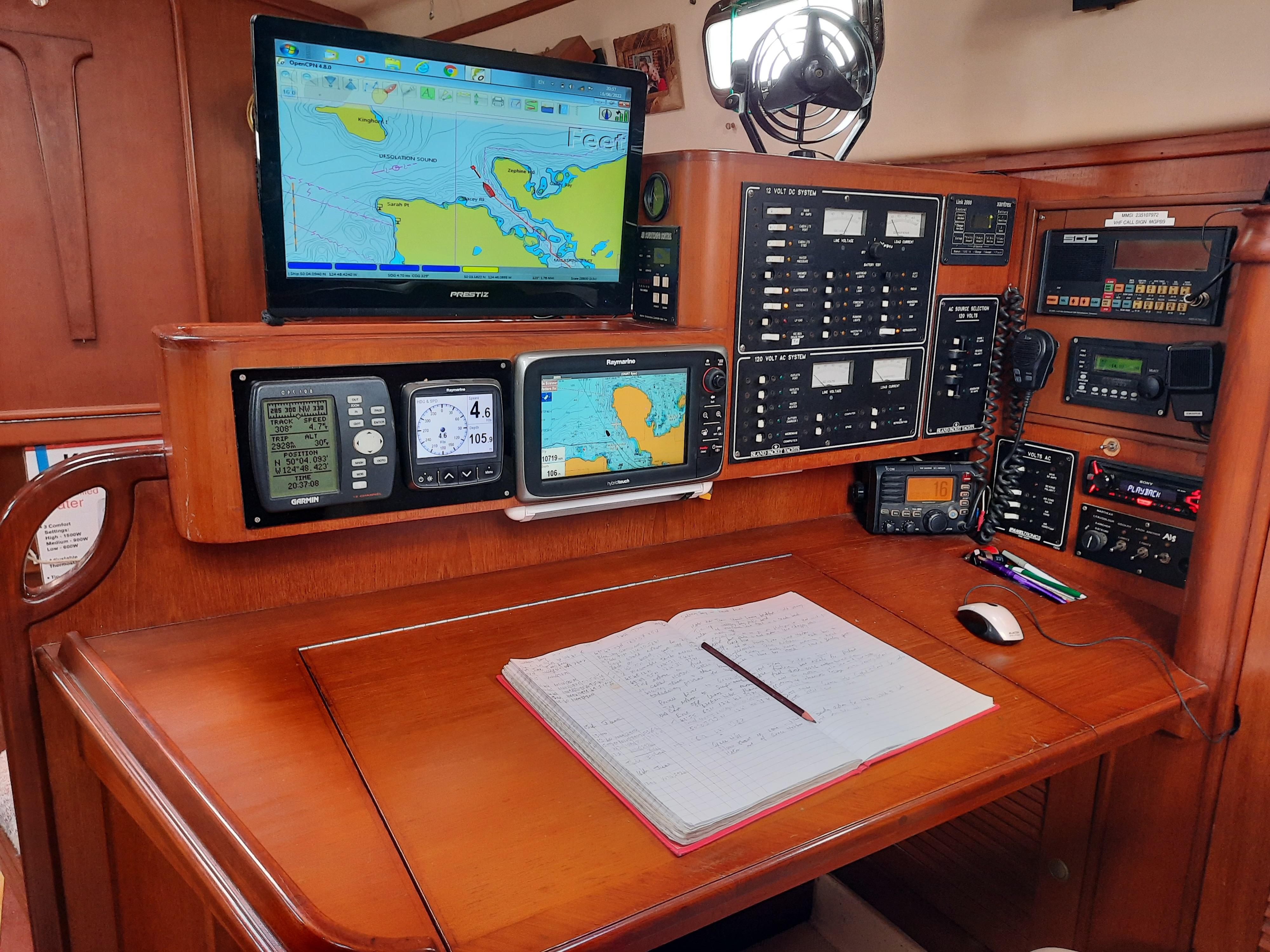

     Nav station

• Sit down chart table facing forward across from aft head and forward of galley
• Swivel bucket seat in vinyl for all weather use
• Bucket seat is on dual tracks so you can position yourself at table depending on size of person navigating
• Opening lid on nav station table, storage under
• Lockers under nav table with louvered doors
• Nonskid gelcoat floor
• Outboard locker with louvered teak door and drain, currently shelved with printer/scanner
• Overhead lighting plus night lighting
• Controller for aircon
• Panel at front of chart table is deep enough for counter with fiddle above
• Spectra water maker panel on front side of this panel
• Water tank level indicator above AC panel
• Swing out flat screen monitor for salon and nav station
• Fan for nav station and galley
• Front panel also has electronics….see Instruments next section
• Overhead opening hatch above chart table
• Instruments expertly spaced for ease of use and viewing
• Vertical grab post between galley and nav station
• Opening stainless steel port above

MECHANICAL

• Engine: Yanmar 4JHTE 62HP FWC (1996)
• Kansaki marine gear
• Panel with voltage, temperature
• Racor 500 MA fuel filter
• Single fuel tank has been replaced with 2 in stainless steel,separately valved connected with common fill vent and balance pipes
• Propeller: 3 blade Auto prop
• Original fixed blade propeller on board as spare
• Ambassador rope cutter
• 2 Lunaire Marine air con LPSC06HL HP 6

ELECTRICAL + PLUMBING

• House bank 6 6v deep cycle 2017
• House bank 4 6v deep cycle 2017
• Separate Engine battery
• Island Packet panel with 18 12v breakers with voltage indicators
• Island Packet panel with 9 110v breakers with voltage indicators
• Island packet AC 110v panel
• Magnum remote at nav station
• Magnum ME2012-20B sine wave 2000w inverter

• Assorted shore power adapters 15/30, 20/30
• 240v charger hard wired for south pacific
• Air X 400 watt wind generator not working

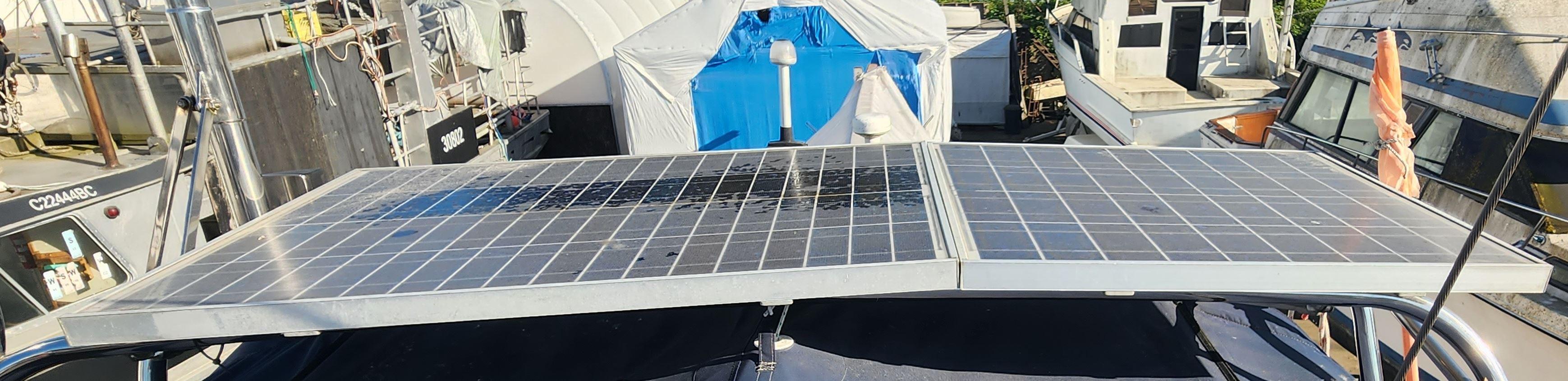

• Kyocera solar panel 80w
• Kyocera solar panel 60w
• Johnson L2200 2060 GPH pump with USS pump
• Hot and cold shower in heads
• Jabsco Par-Max 3 3GPM water system pump
• Both heads go to same holding tank
• Forward head is either overboard or to holding tank via Y valve
• Whale manual pump in cockpit locker
• Spectra Newport 400 MkII water maker

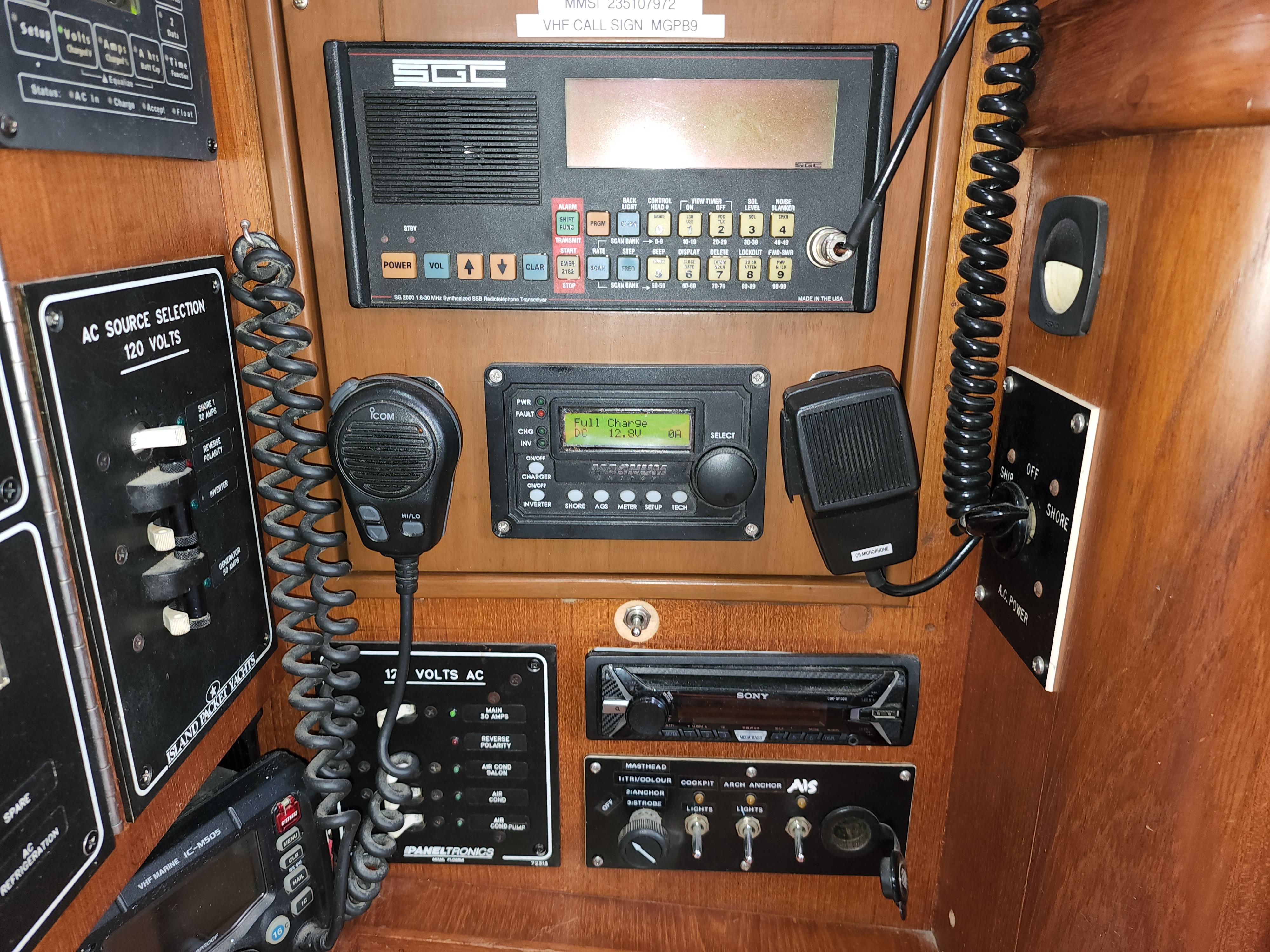

INSTRUMENTS

     Nav station

• Garmin GPS 128 12 channel
• Raymarine e series hybrid touch e95 GPS Chart plotter 2014
• Charts for Alaska and North America
• Raymarine i70 multi-function display 2014
• Raymarine AIS splitter
• Icom IC-M505
• Standard Horizon HX-210 Hand held VHF
• SGC SG200 SSB
• SGC SG230 Auto tuner
• PC navigation connections to Monitor, GPS and AIS
• Sony radio with CD
• Mailasail “Red Box” multi comm unit
• Iridium Satellite phone aerial installation
• Control unit for speakers

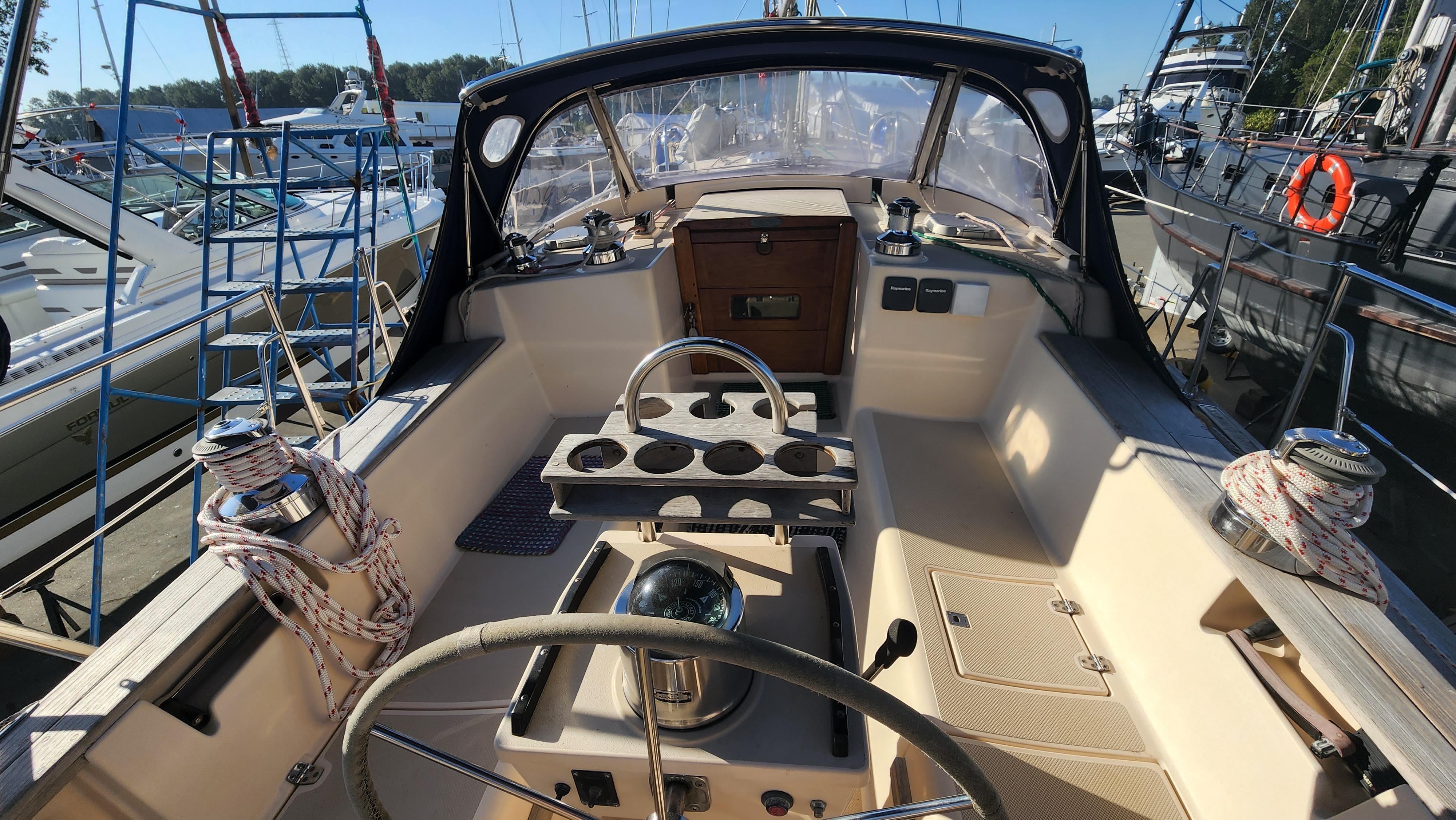

• Cockpit
• Pedestal steering
• Raymarine i70 multi-function display 2014
• Raymarine i60 wind direction and speed 2014
• Furuno Navpilot 700 2013
• Simrad HLD2000 HLD Hydraulic Linear Drive Unit
• Icom HM-162e Command Mike
• Ritchie compass

SAILS & CANVAS

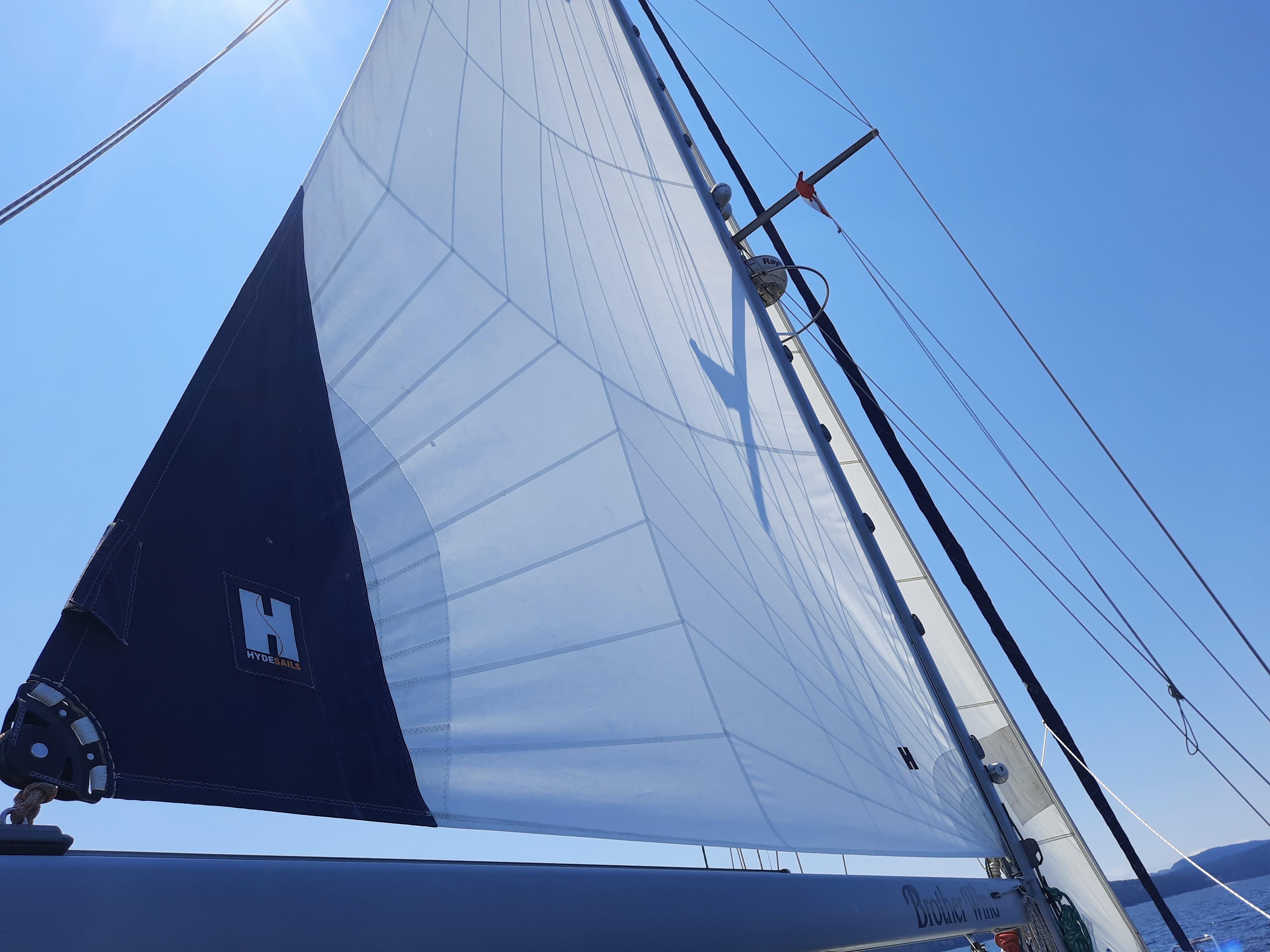

• Hyde tri cut furling main 2018
• Crusader genoa 2005
• Genoa UV replaced 2017
• North Staysail
• Staysail UV repaired 2017
• Cruising Asymmetric spinnaker in sock
• Crusader storm jib 2005
• Crusader storm trysail 2005
• Spare mainsail

• Spare genoa used for wing on wing

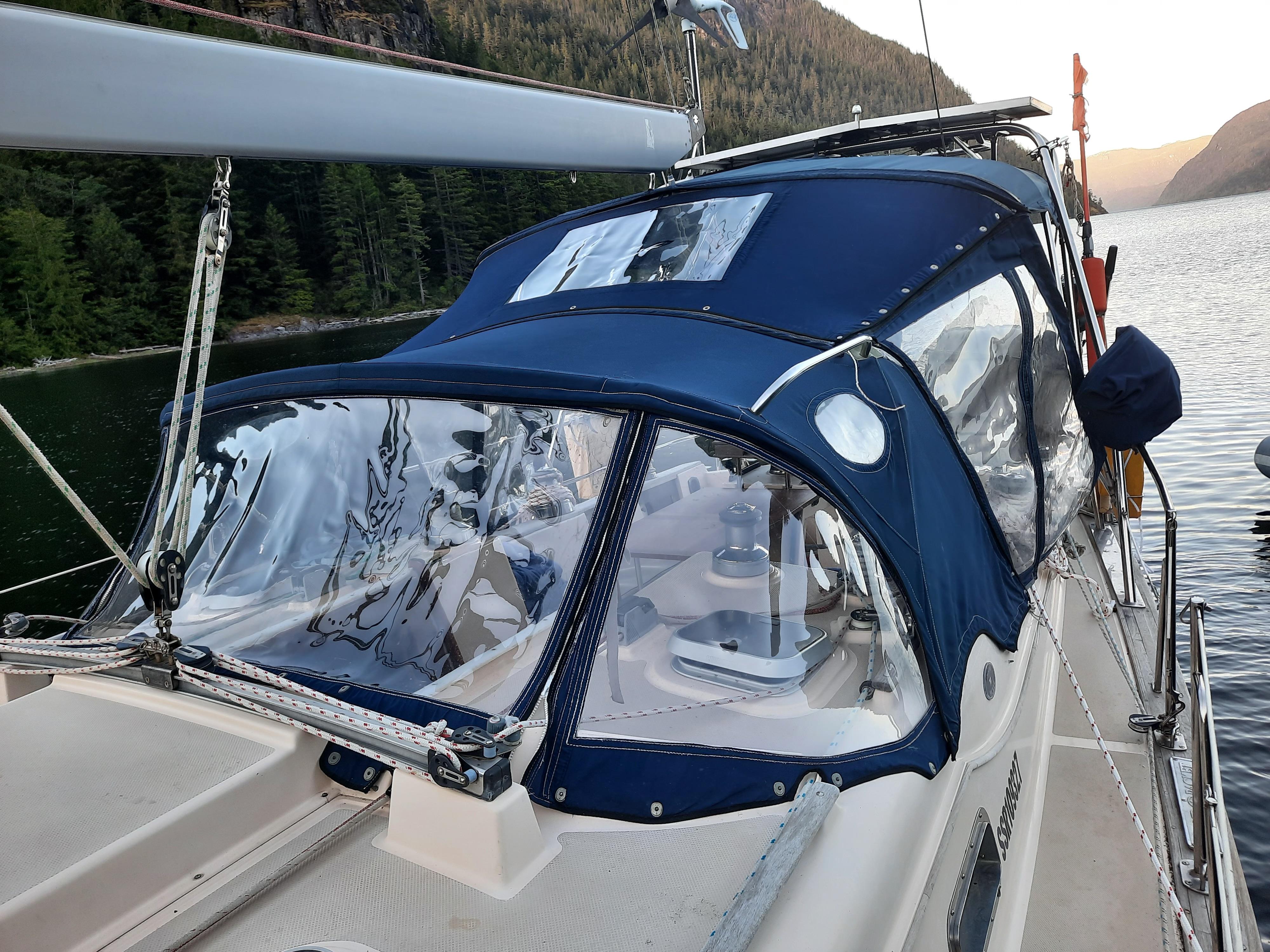

• Stainless steel framed dodger
• Bimini stainless steel frame
• Bimini dodger connector panel
• Sun Bimini with side and stern panels
• Full Deck Sun Awnings, fore and aft

RIGGING

• Aluminum double spreader masthead cutter rig
• Mast pulled 2005 for inspection
• Uppers and backstay replaced 2007
• 2 main halyards in place
• 2 genoa halyards in place
• Staysail halyard
• Spinnaker/cruising chute halyard

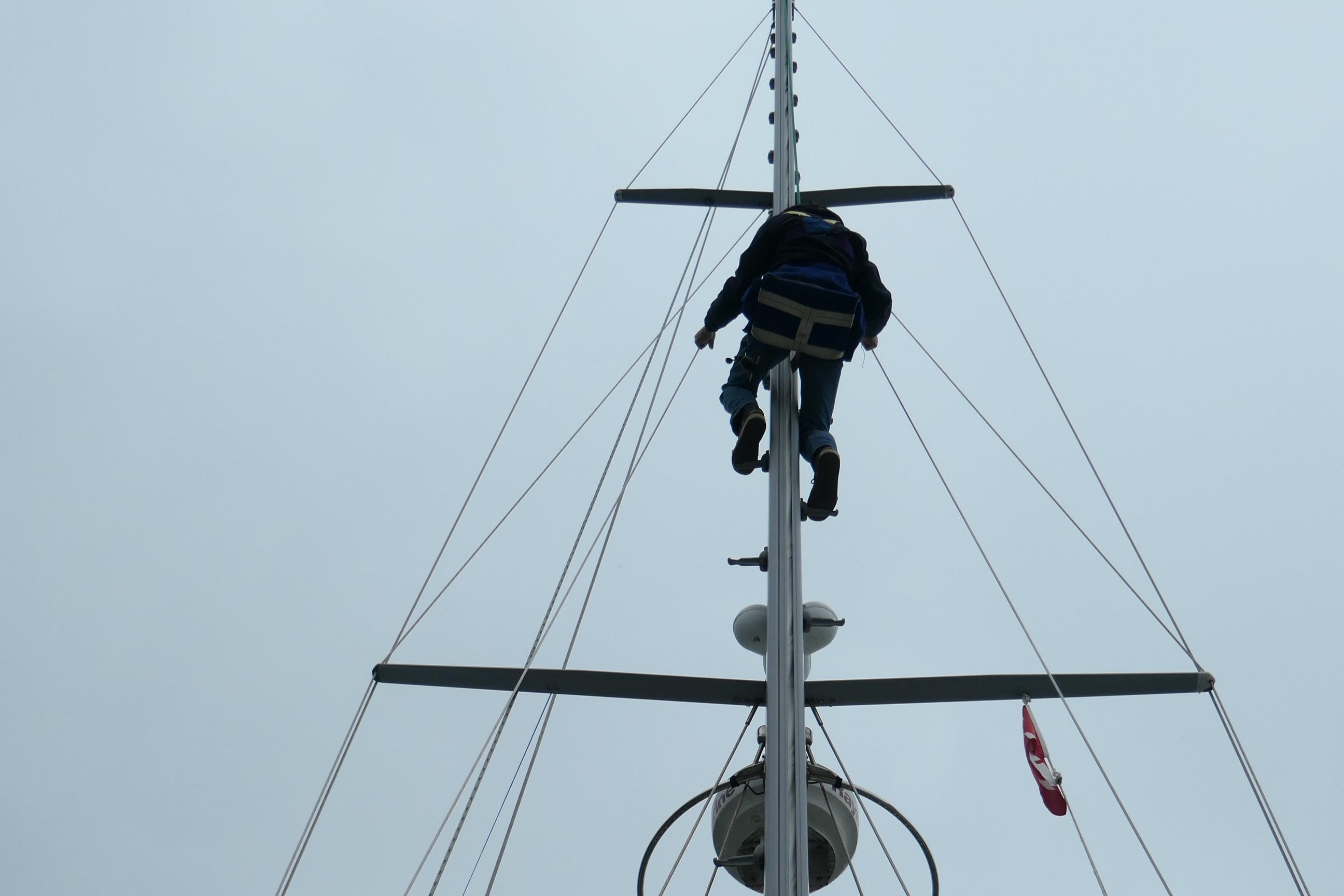

• Folding mast steps
• Aluminum boom

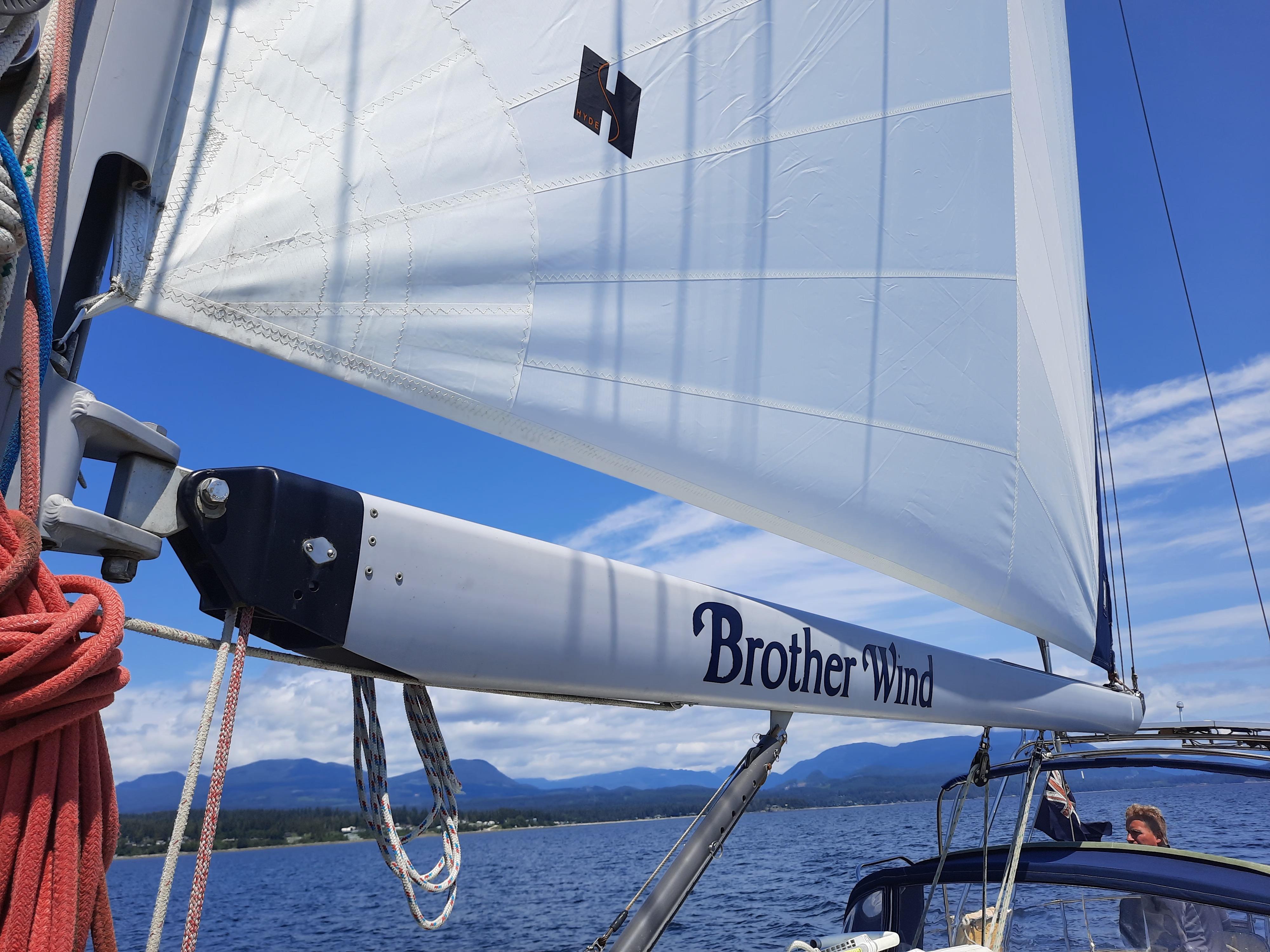

• Staysail boom

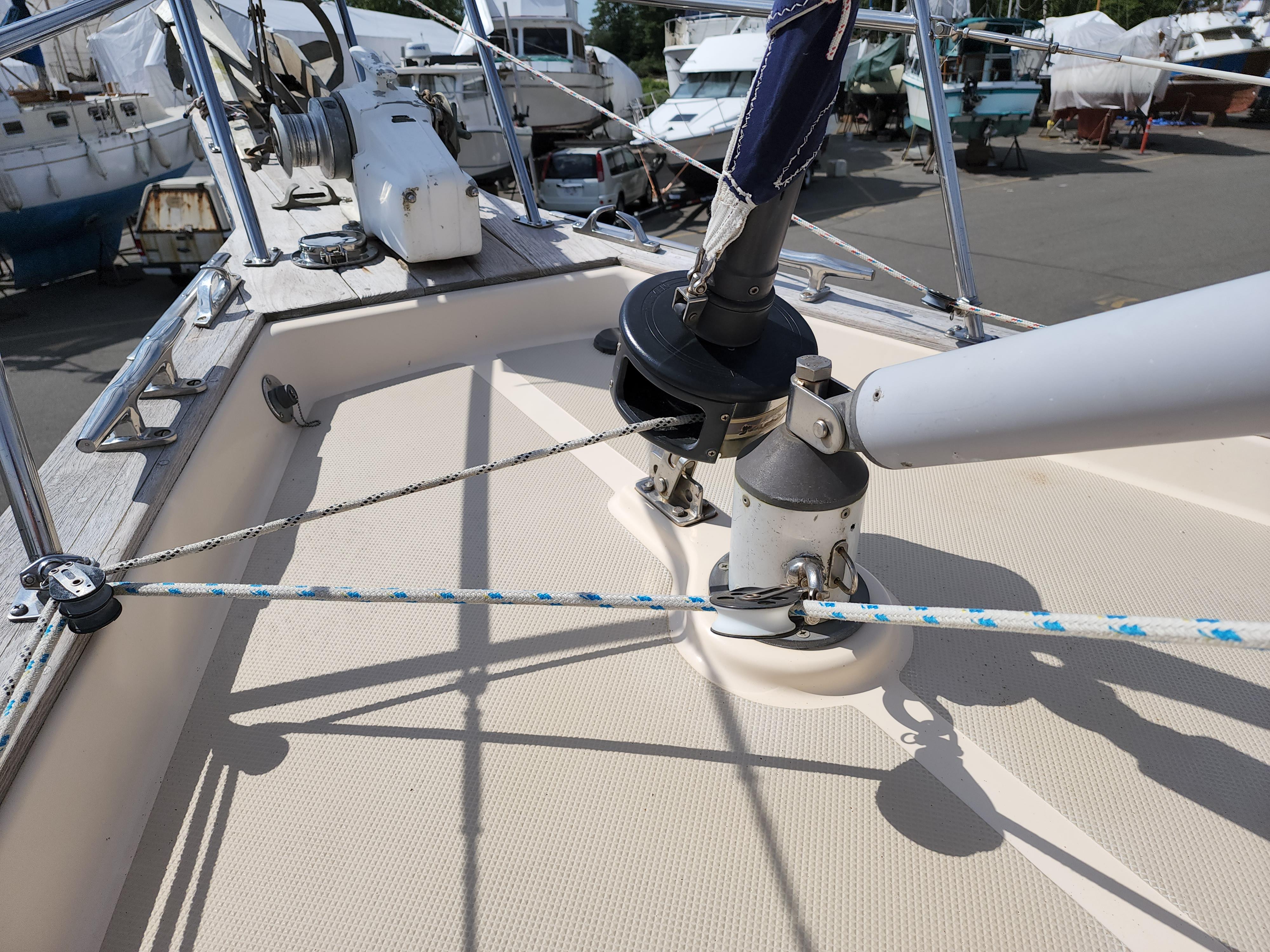

• Harken headsail furling gear
• Harken staysail furling gear
• Split backstay
• Mainsail traveler system
• Solid boom vang with gas strut and block and tackle
• Seldon Carbon fibre whisker pole 2005
• Spinnaker track on front of mast for whisker pole storage
• Topping lift and downhaul for whisker pole
• 2 Lewmar 54ST 2 speed genoa winches
• 2 Lewmar 44ST 2 speed halyard winches
• Lewmar 16ST single speed staysail outhaul winch
• Lewmar 8 single speed mast winch
• Lewmar 24 2 speed mast winch
• 2 Lewmar 16ST single speed winches for furlers
• Granny rail port and starboard of mast

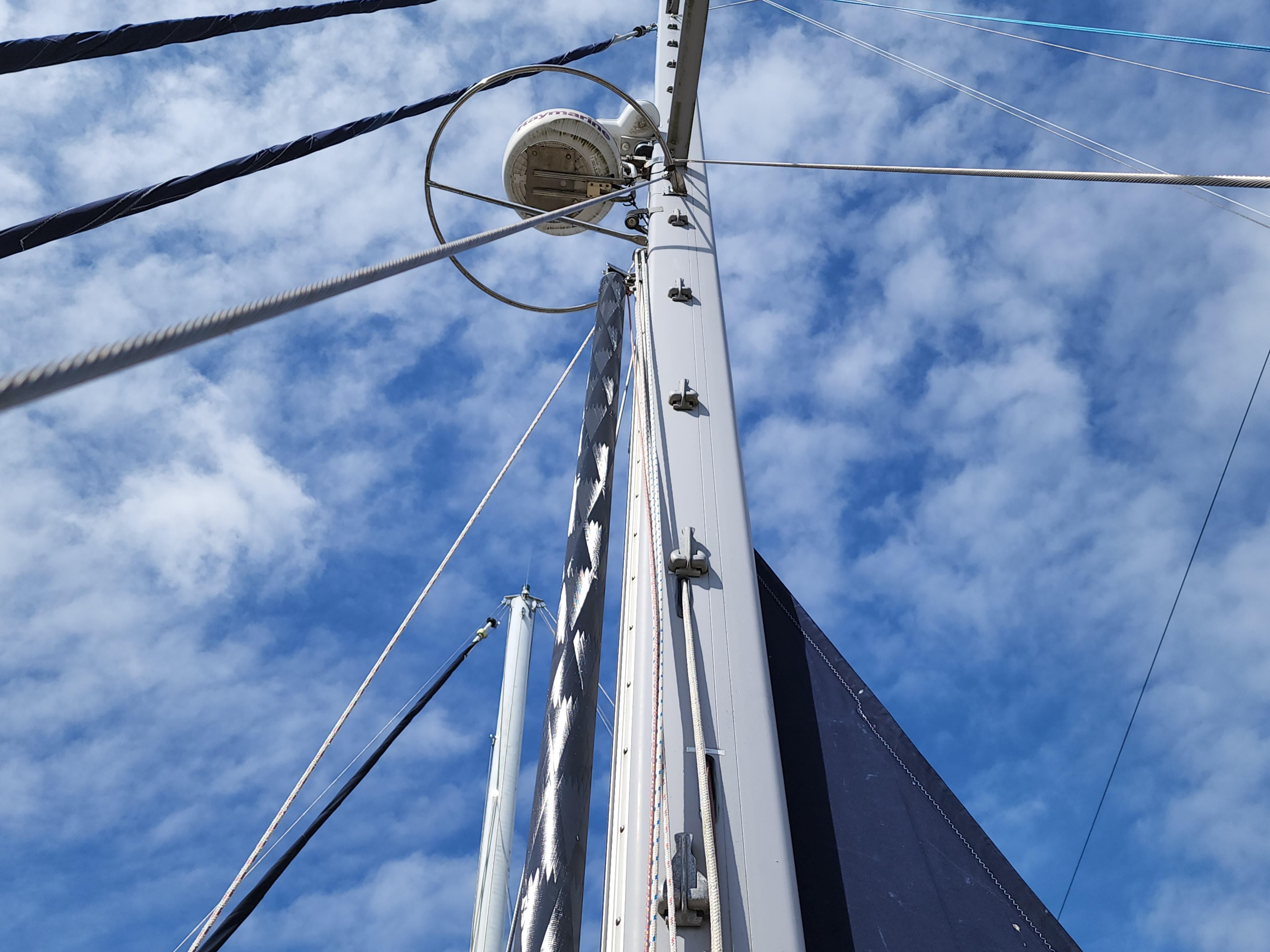

• Radar hoop on mast mounted radome
• Tri Lens radar reflector
• Lopolight LED Tricolour/Anchor masthead light
• Standard Horizon Loud speaker/Fog horn at mast

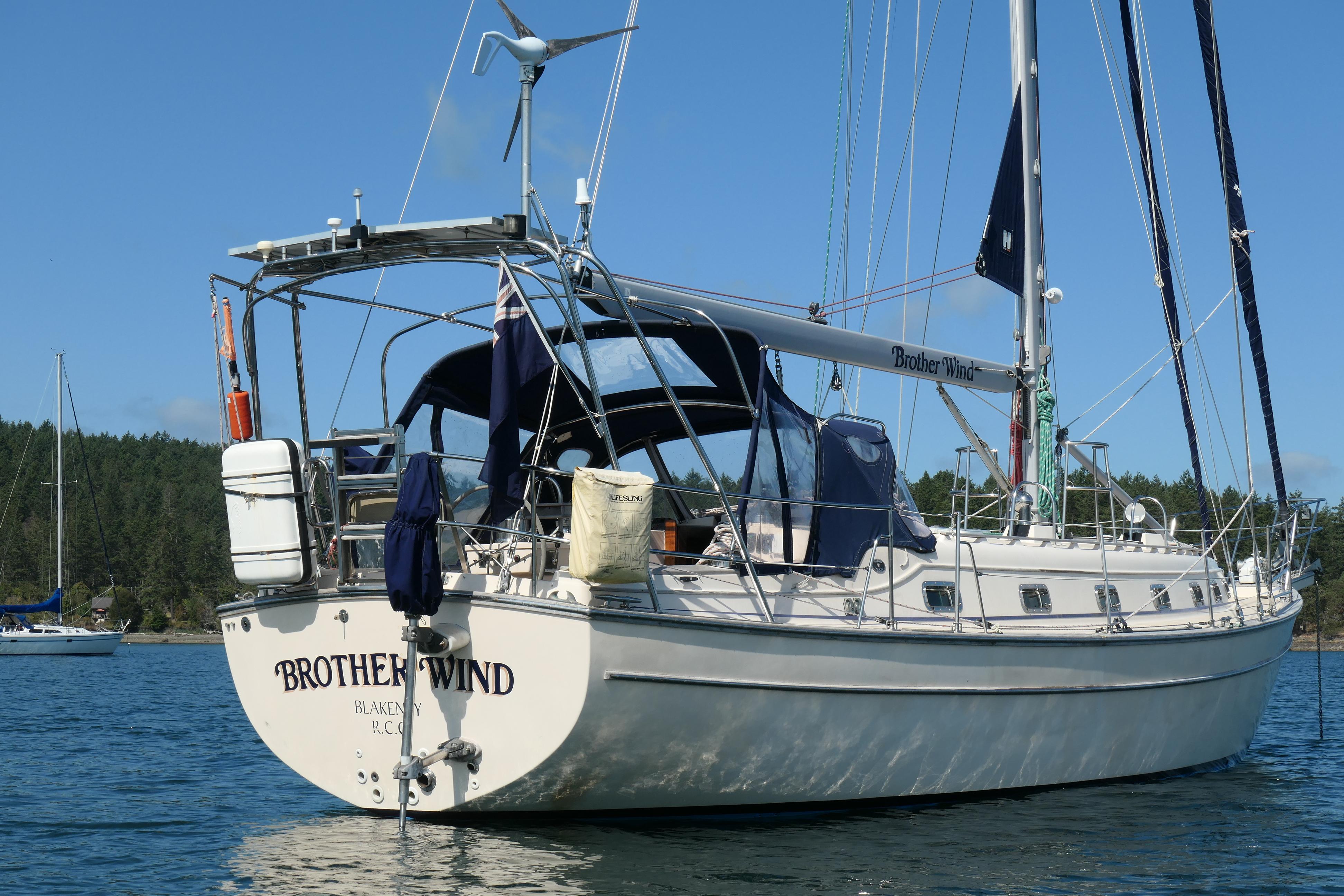

• Stainless steel arch with solar panels, Sat Phone aerial, GPS aerial, anchor light, post for windgen and outboard motor hoist on block and tackle 12V outlet and 2 switched supplies for bimini lighting

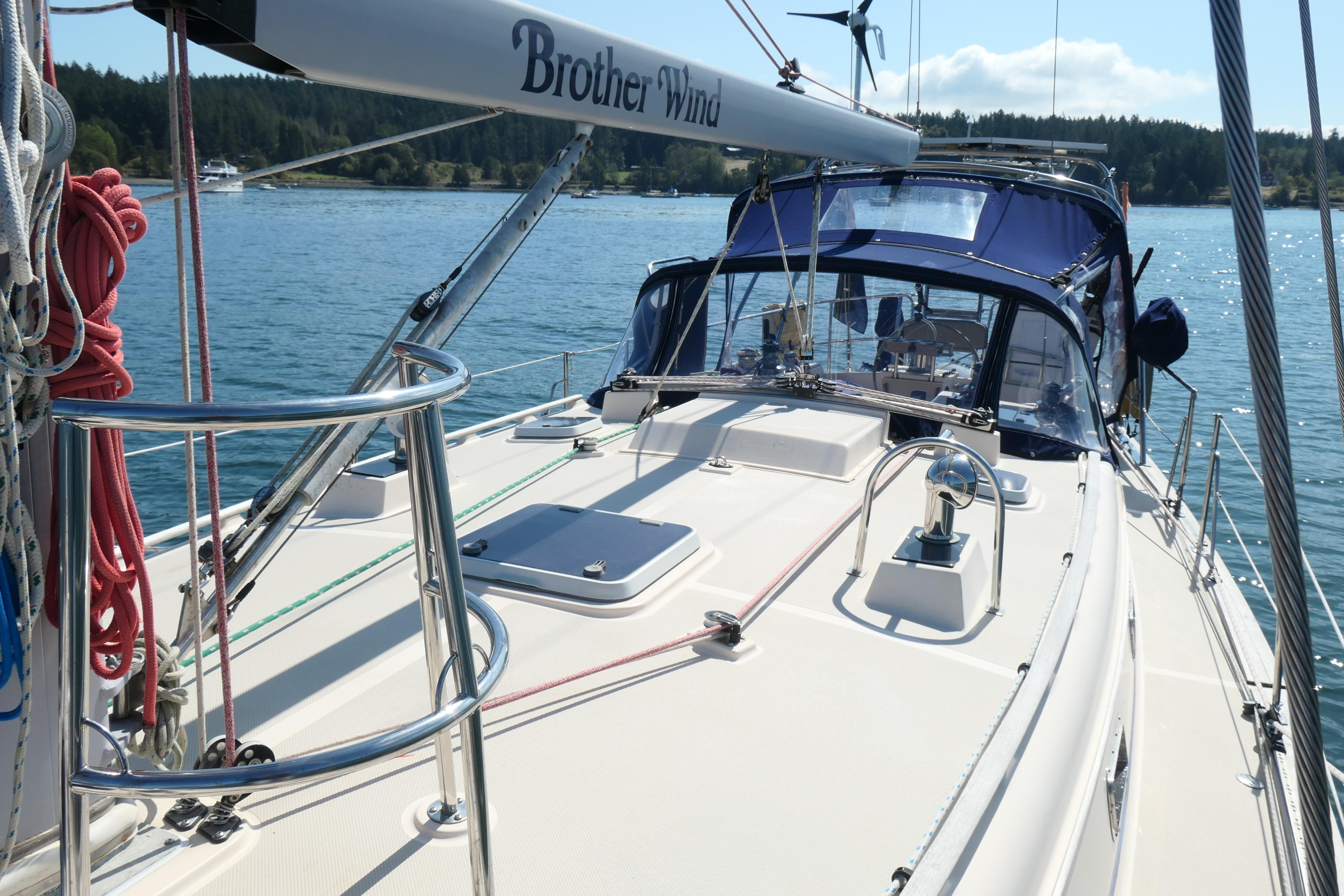

DECK EQUIPMENT

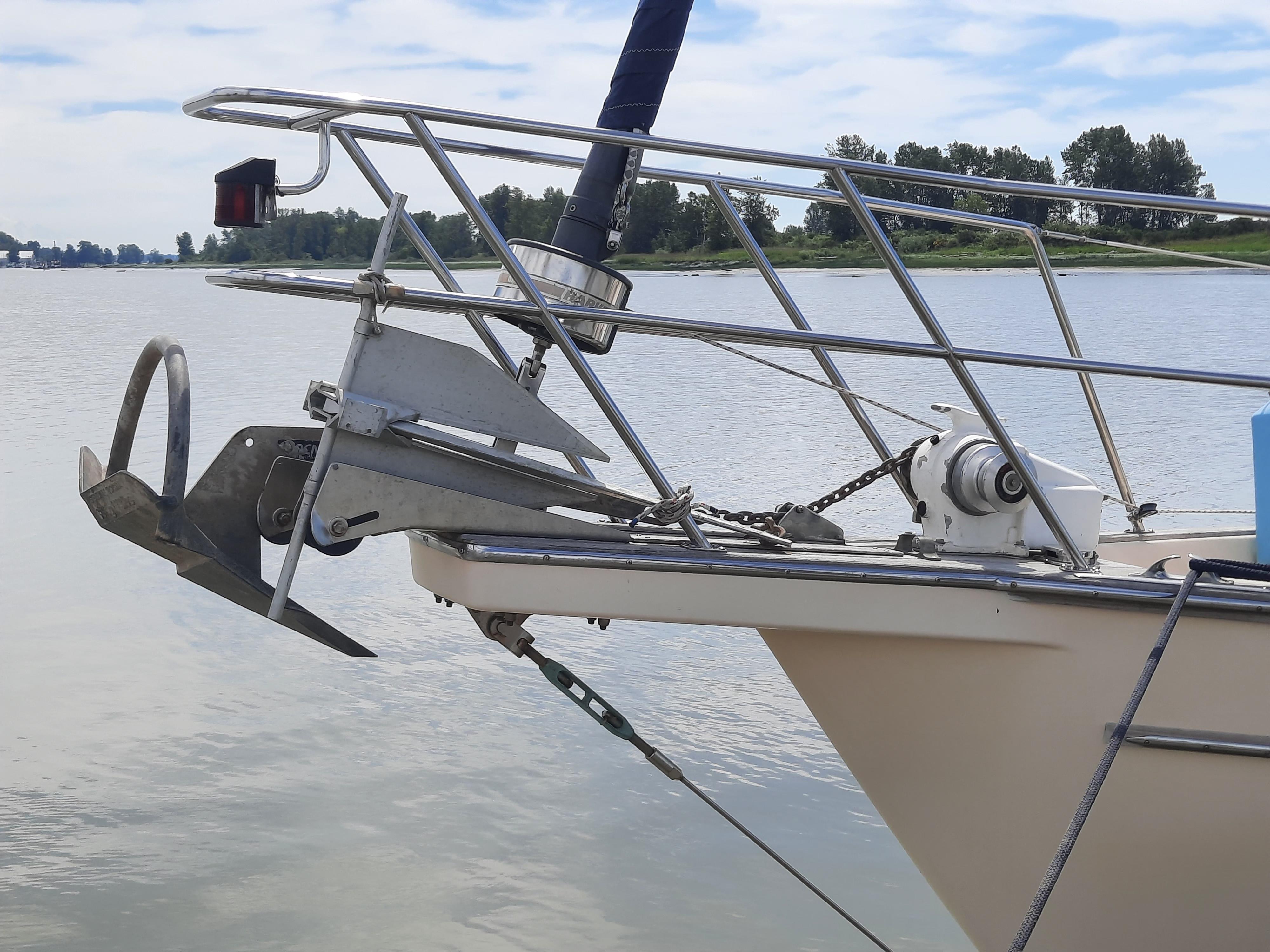

• Primary Anchor: 33kg Rocna
• Rode: 55m chain
• Spare Fortress Danforth style anchor
• Spare CQRwith chain and rode
• Dedicated line for deep anchoring
• Windlass: Lofrans Tigres electric windlass
• Stainless steel chain lock
• Lifelines are solid from stern to gates port and starboard
• Stainless steel pulpit and pushpit

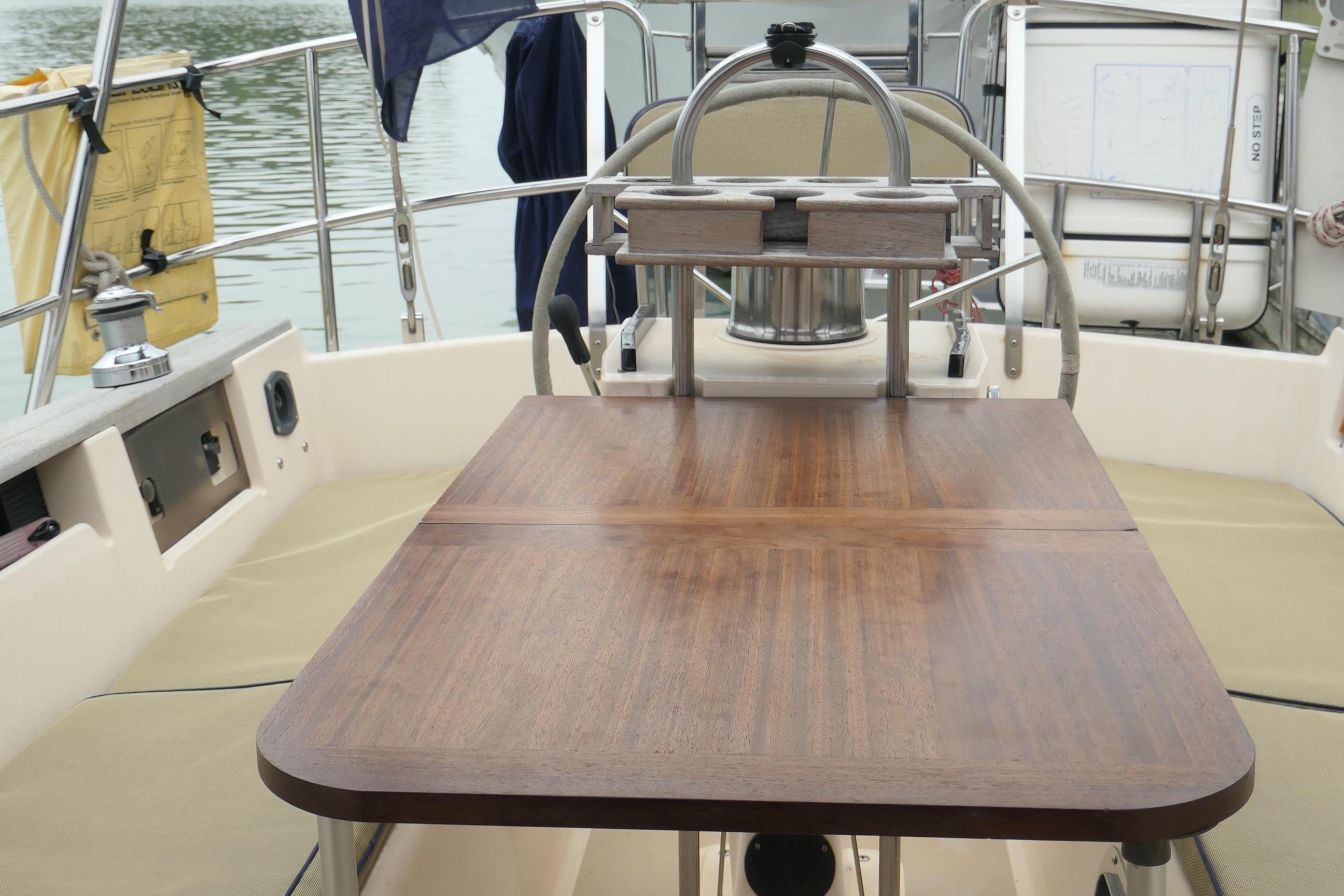

• Closed cell foam cockpit cushions including helm seat
• Built in helmsman seat with backrest
• Teak coaming around cockpit
• Pedastal with steering wheel
• Stainless steel dorade guards
• Large cockpit locker
• Mooring line locker
• Insulated beer locker with drain
• Port and Starboard sheet tail lockers under coamings
• Bug screens for all hatches and ports
• Clock and Barometer

ADDITIONAL EQUIPMENT

• 2 10 lb Aluminum propane tanks in vented locker
• Webasto Air Top Evo 55 17,000 BTU for cabin heating
• Magma A10-025 stainless steel BBQ
• Safety gear for offshore
• Ocean Safety 6 man life raft ( needs re cert) with stern rail mount and fiberglass container
• DANBUOY 33 man over board pole
• Miscellaneous life jackets and life lines- need servicing
• Emergency boarding ladder
• Horseshoe life belt with drogue
• Life sling and bosun’s chair
• 4 strong points in cockpit for safety lines
• Port and Starboard full deck webbing jacklines

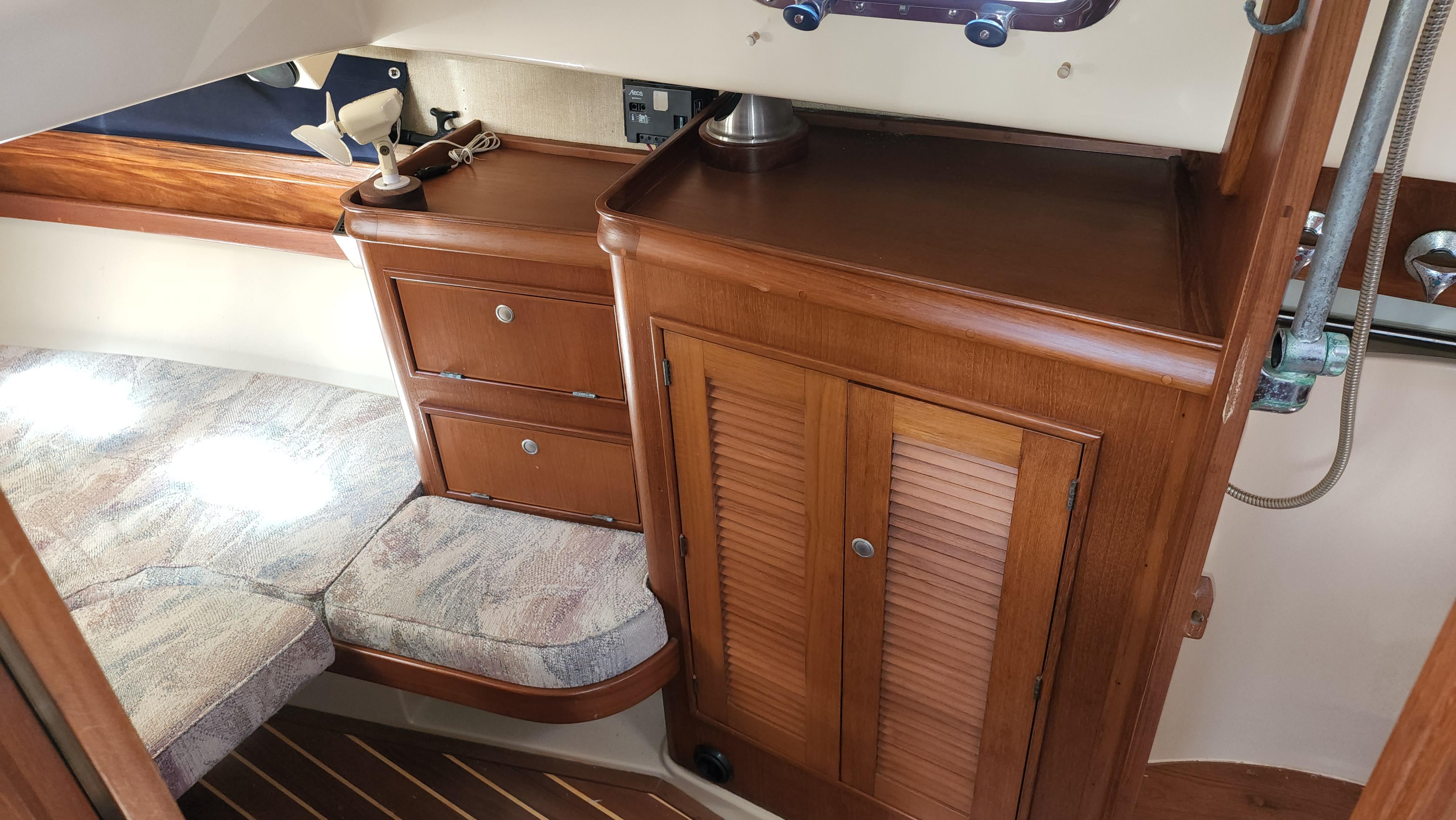

• Lee clothes for settees
• Aft and forward berths have Lee boards
• Galley safety line for cook
• All under cushion lockers Velcro secured
• Screw in caps for stainless steel dorades

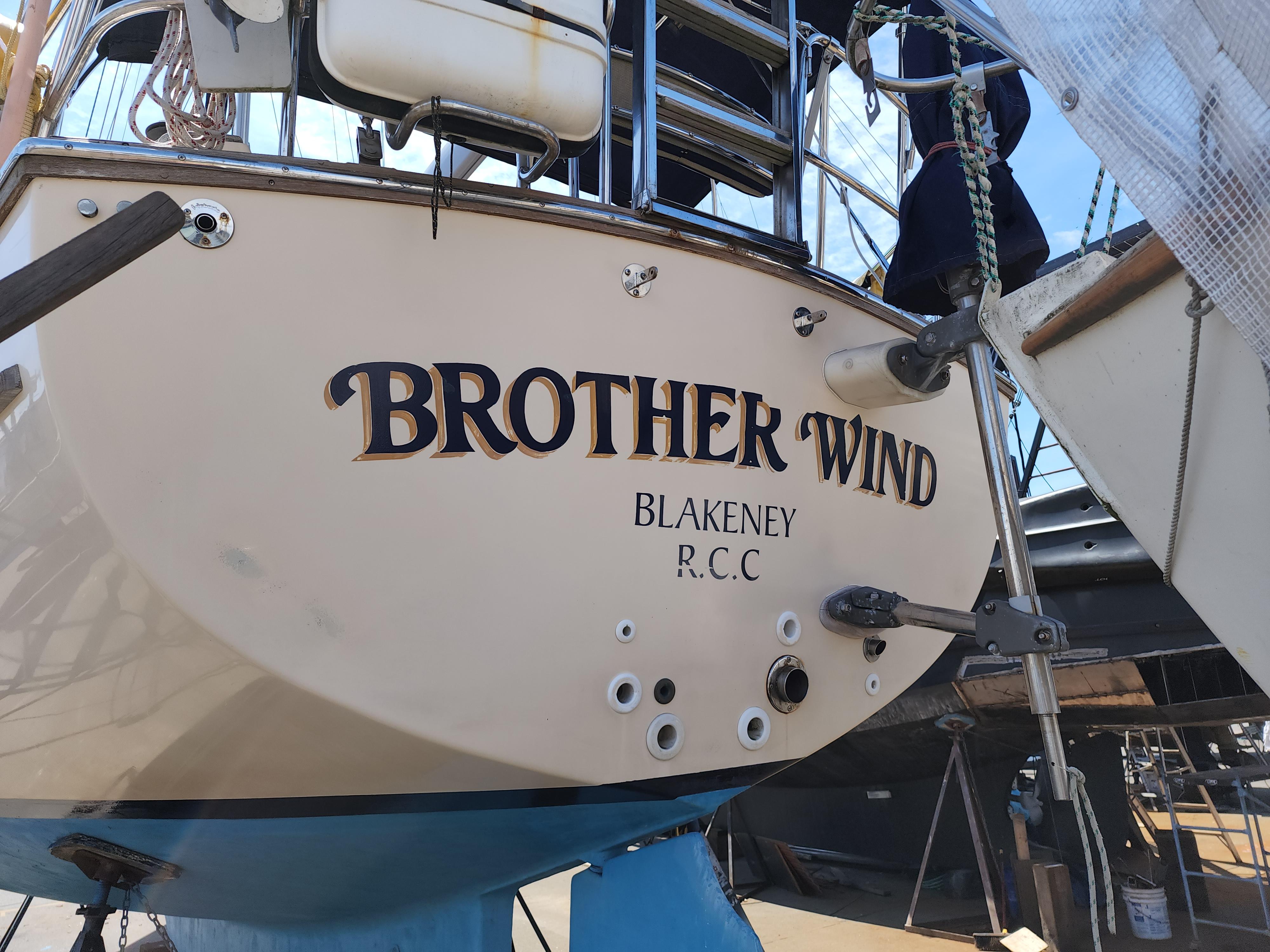

• Stern ladder in stainless steel with teak rungs
• Fire extinguishers 2022
• Drogue with line and bridle
• Long rode for additional deep anchoring
• Bottom painted 2022
