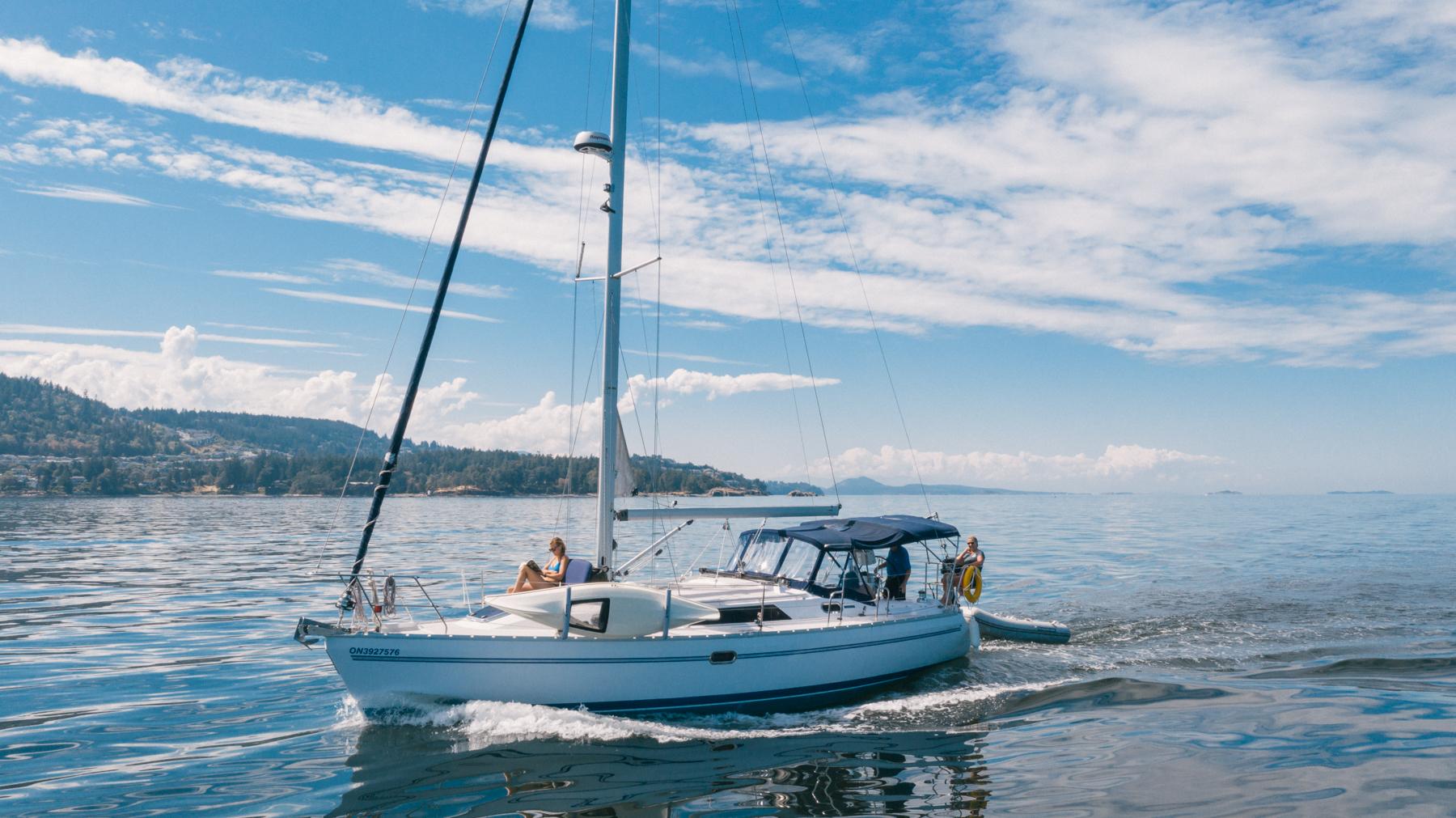

2013 Catalina 355

2013 Catalina 355   Specifications

Catalina 355

Name................................................... Natural Mystic

Year...................................................................... 2013

Hull    ...................................................................FRP

Builder...................................... Catalina Yachts (USA)

Designer................................................. Jerry Douglas

LOA..................................................................... 35’5”

LWL....................................................................... 30’2"

Beam.................................................................... 12’0”

Draft....................................................................... 4’6”

Masthead to waterline........................................ 54’9”

Displacement............................................... 14,800 lbs

Ballast............................................................ 6,200 lbs

SA/Disp.................................................................... 16

Bal/Disp................................................................. 41%

Sail Area | 100% fore triangle....................... 572 sq. ft

Steering....................... leather wrapped folding wheel

Keel......................................... lead, “wing” shoal draft

Rudder............................................................... spade

Fuel.................................................................... 30 gal

Water.................................................. 3x tanks: 90 gal

Hot water........................................................... 11 gal

Holding Tank...................................................... 27 gal

Propane (LPG)...................................... 2x  10 lb tanks

CONSTRUCTION

•  Fiberglass hull with a full structural grid and

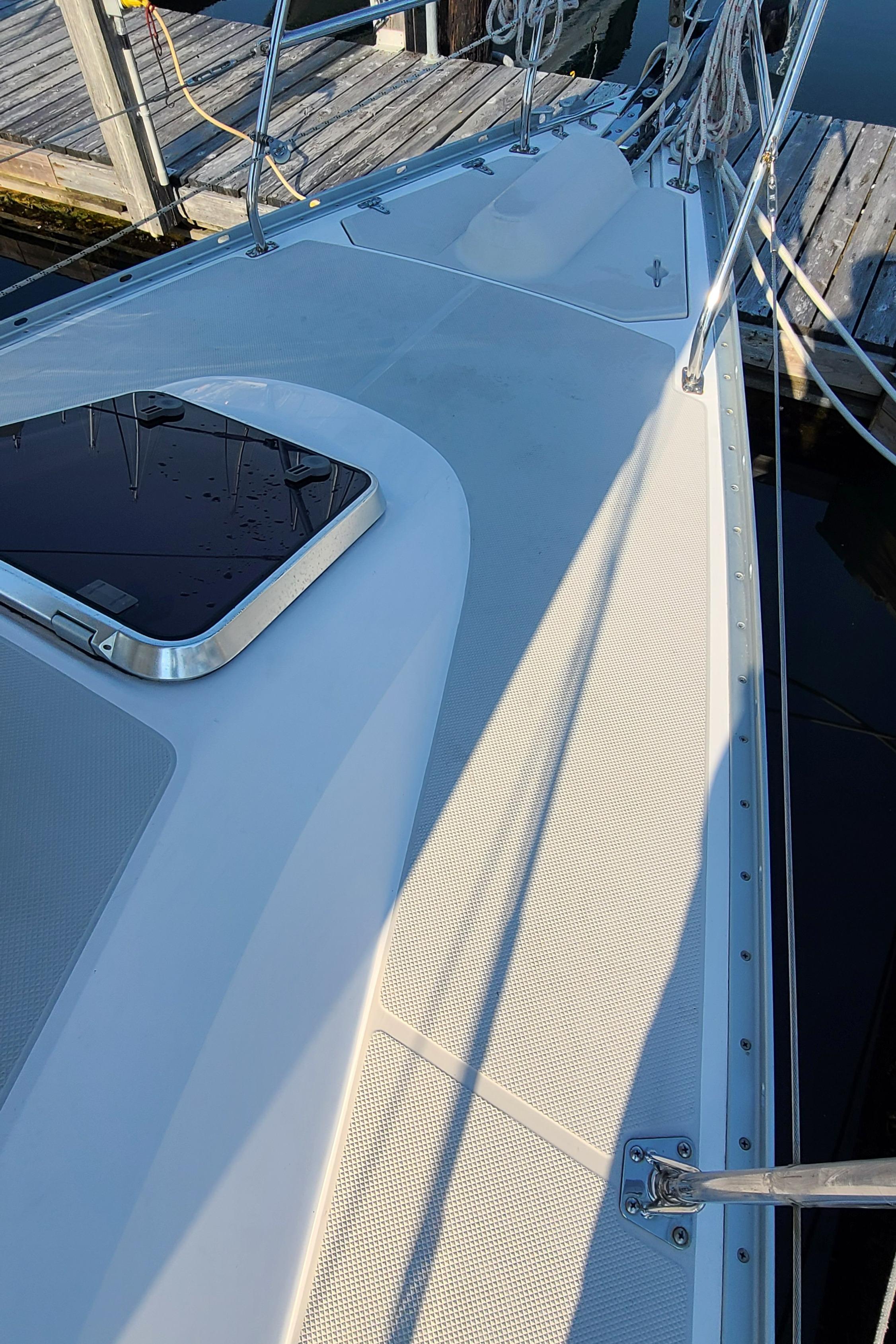

•  Fiberglass deck with end grain balsa core.  Bonded full fiberglass headliner.
•  Hand laminated rudder with 316 stainless steel core and rib structure
•  Watertight StrikezoneTM collision bulkhead molded aft of the anchor locker
•  Extruded aluminum toe rail with integral chocks

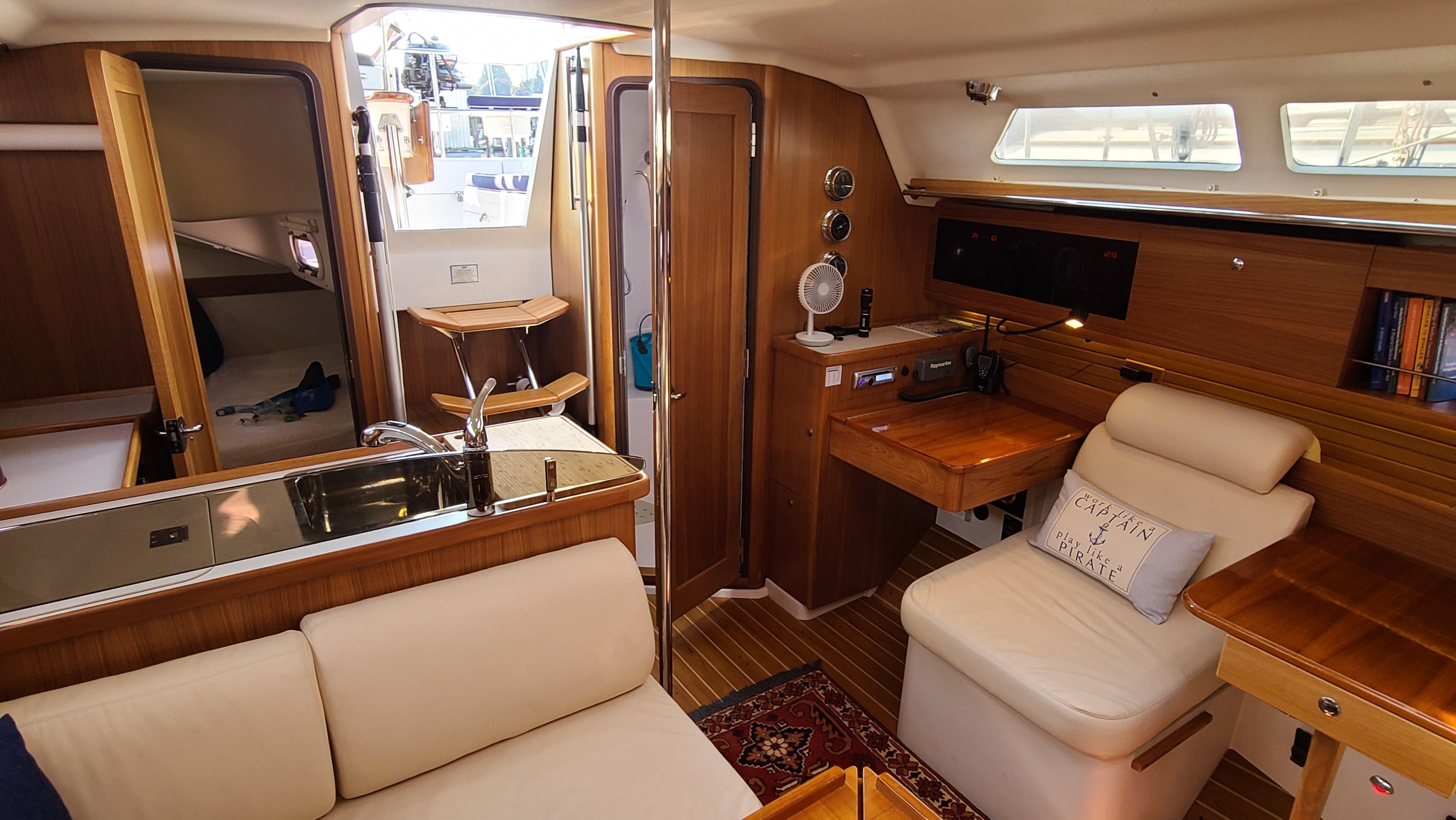

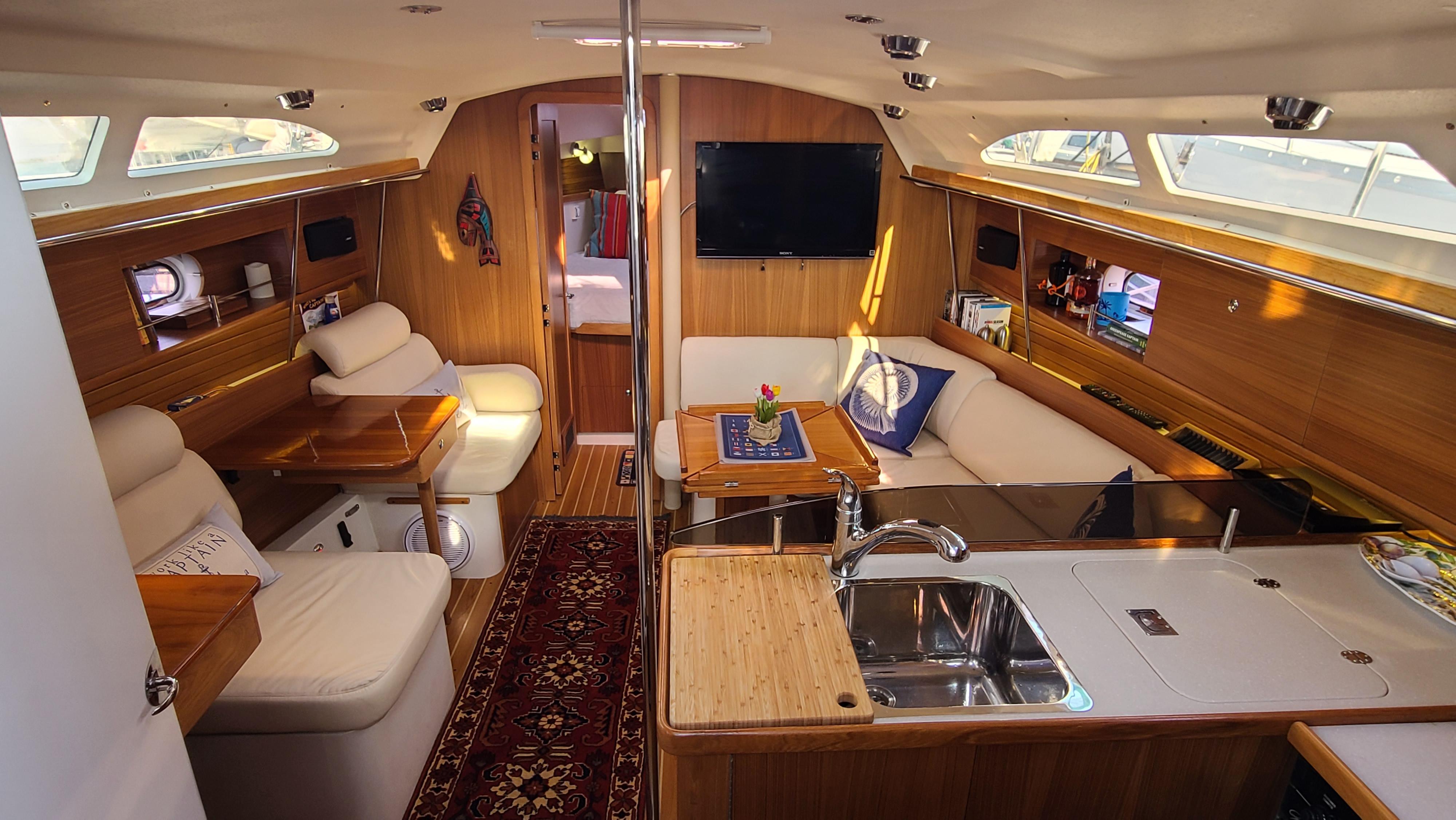

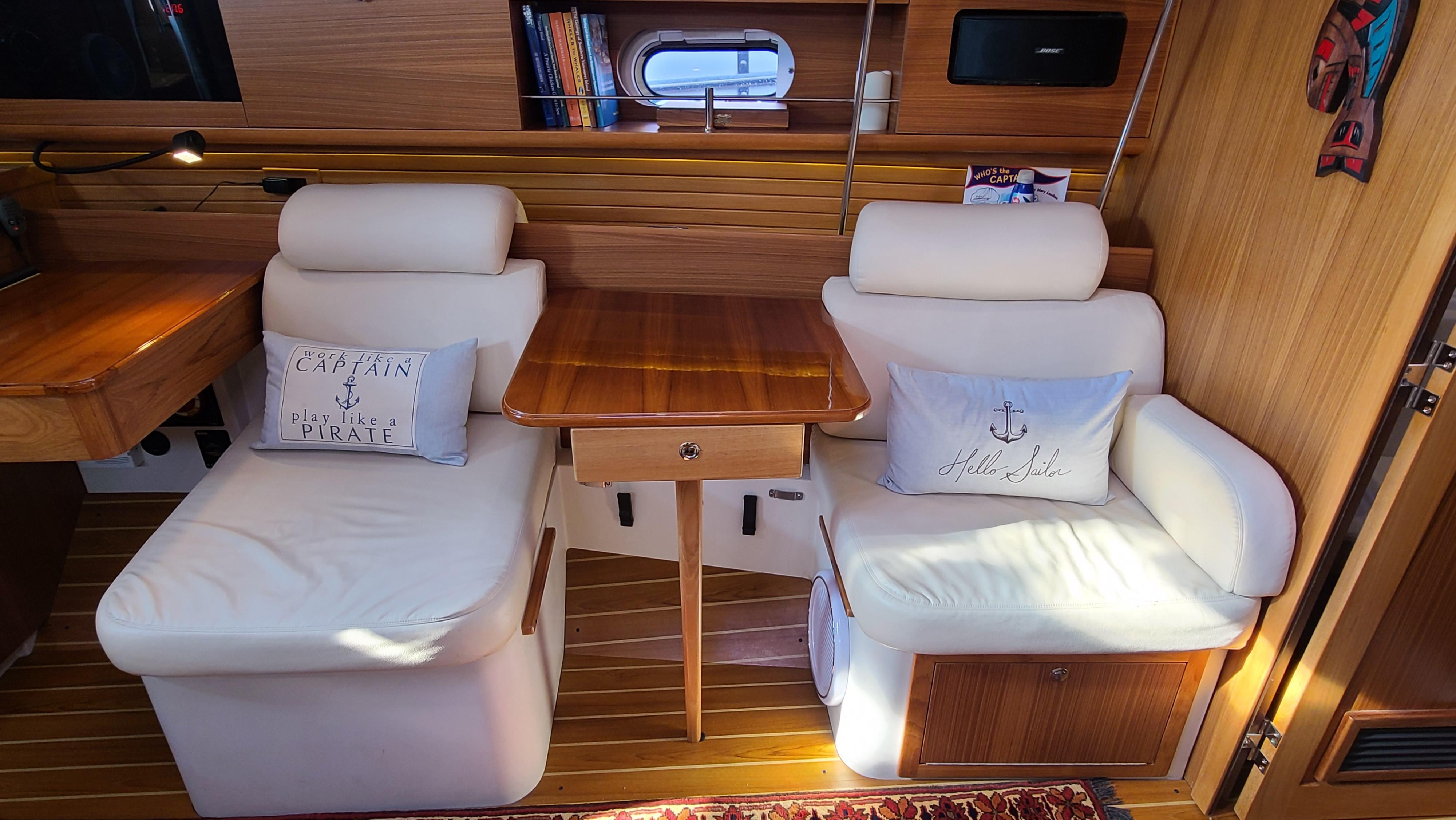

 INTERIOR

•  2-cabin, 1-head layout (sleeps: 7)
•  Headroom: max 6’5”
•  Inner spring mattresses in cabins

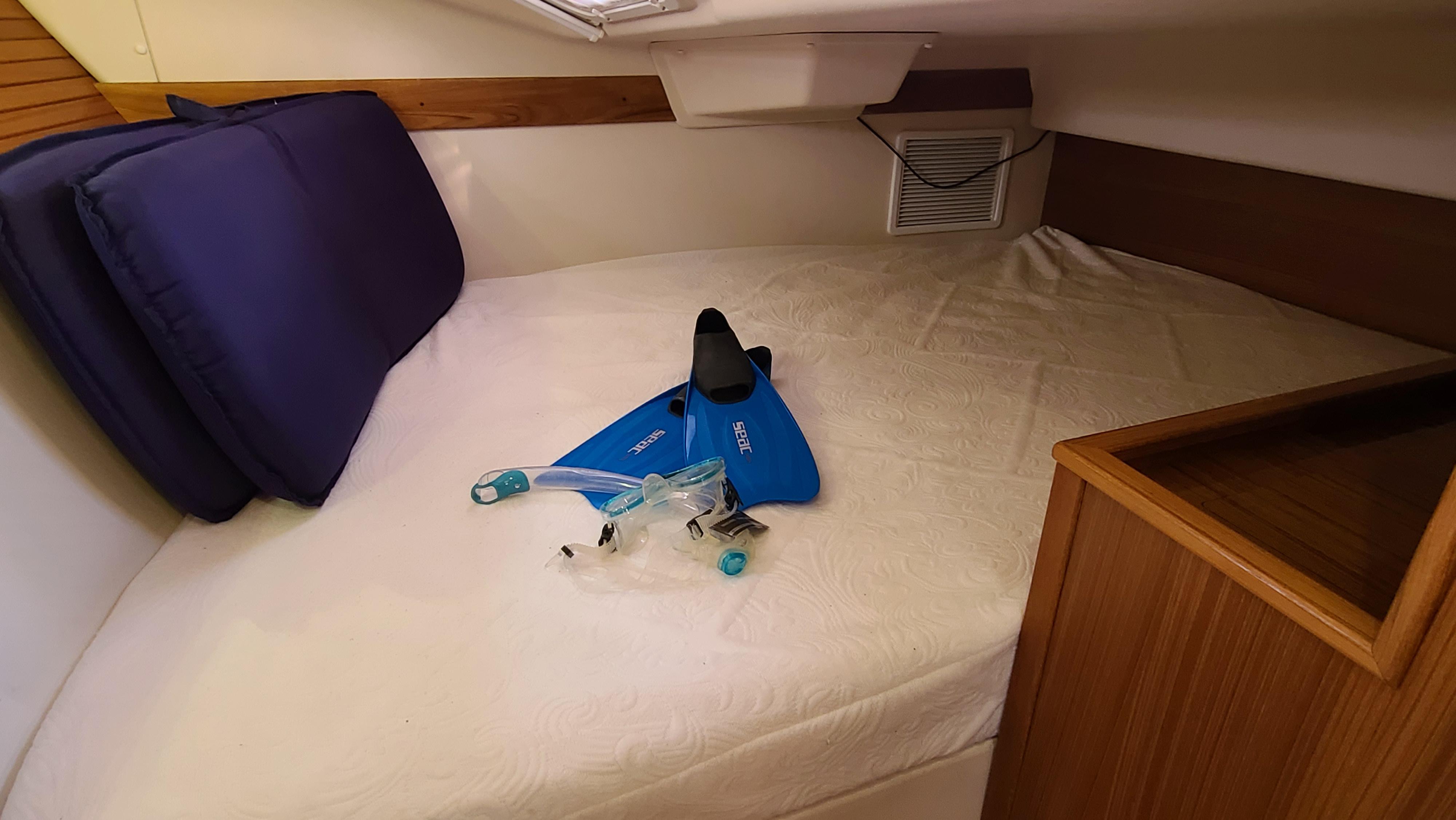

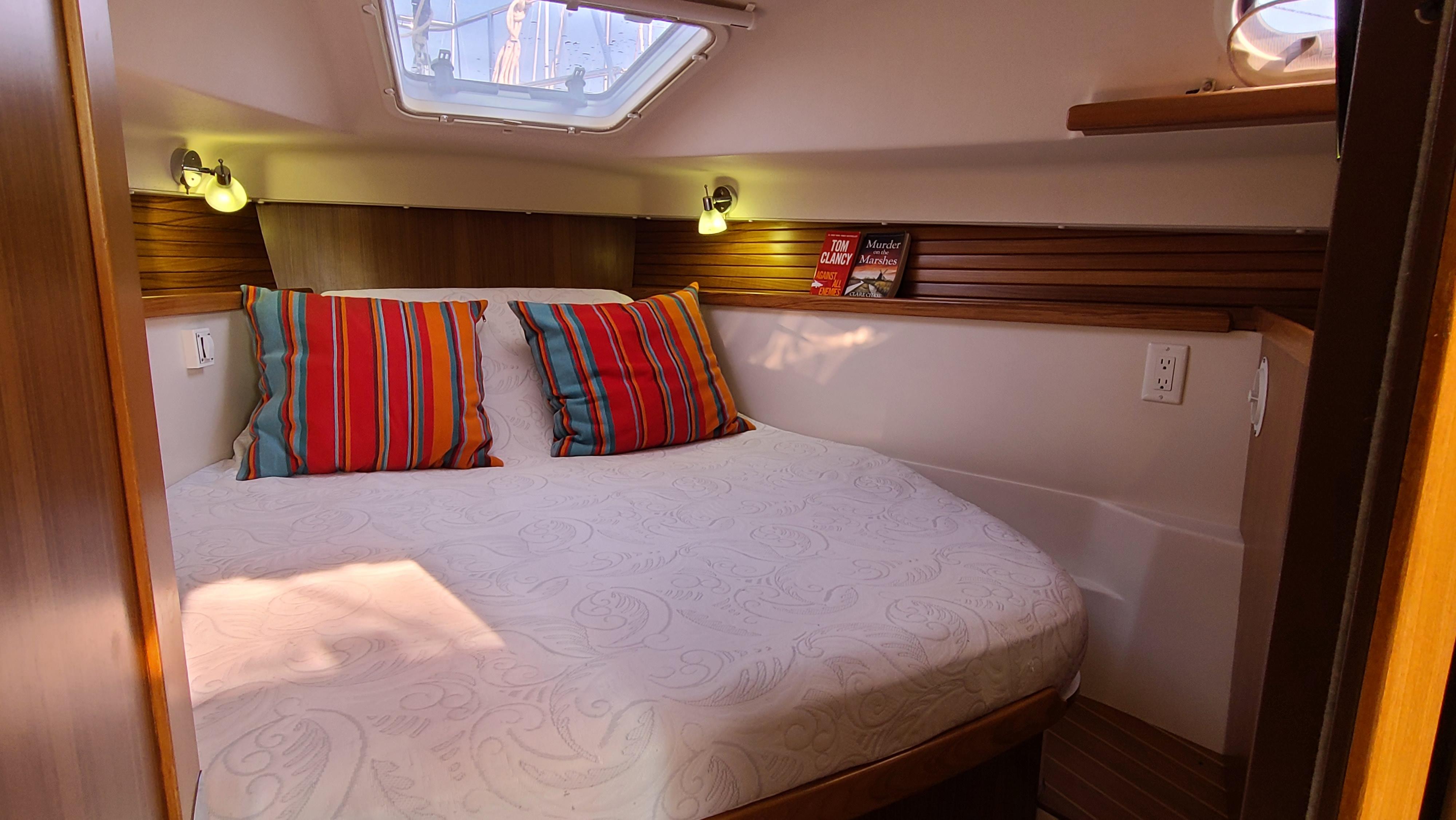

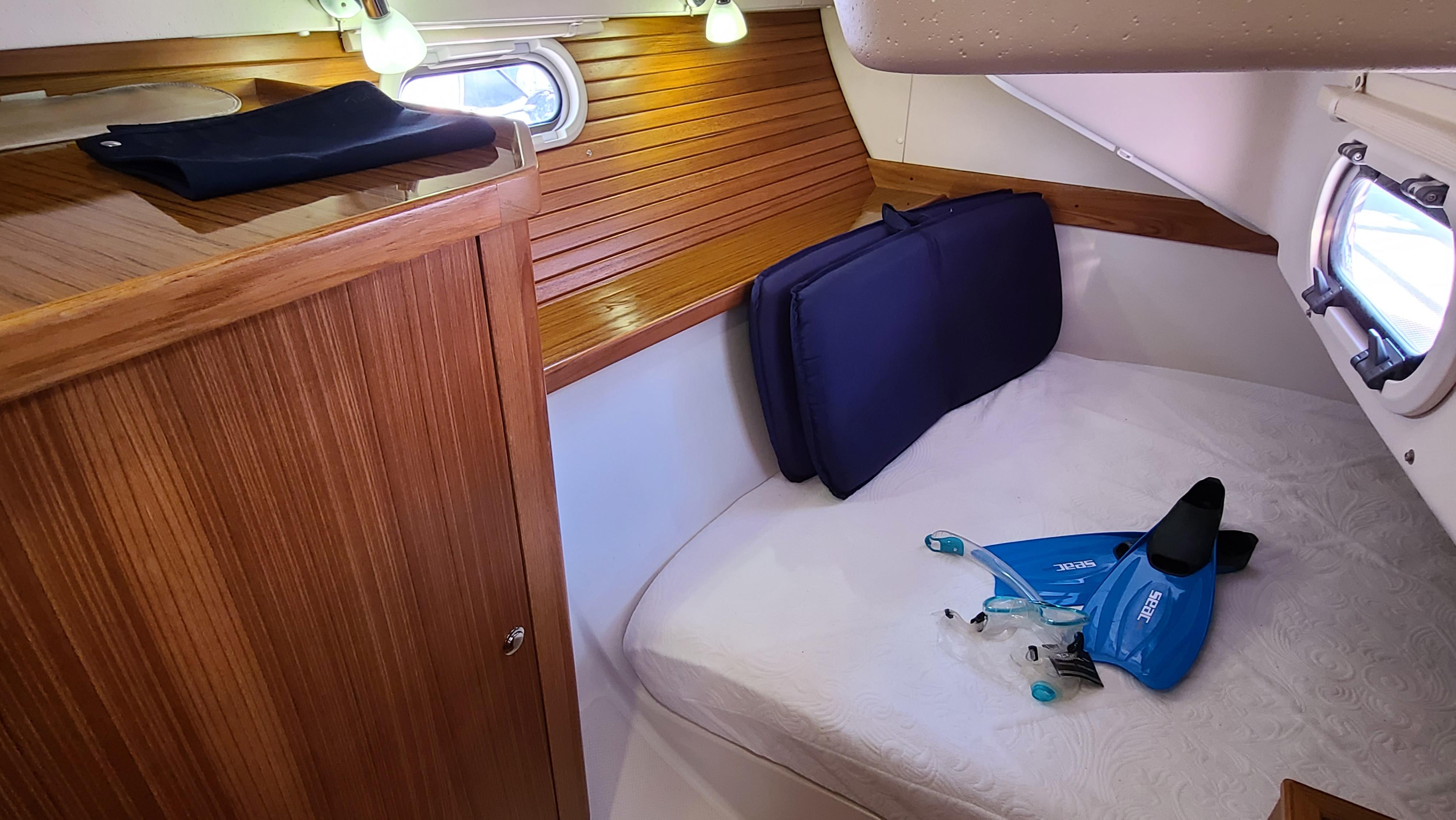

•  Forward berth: 5’5”W x 6’4”L with motorized adjustable headrest

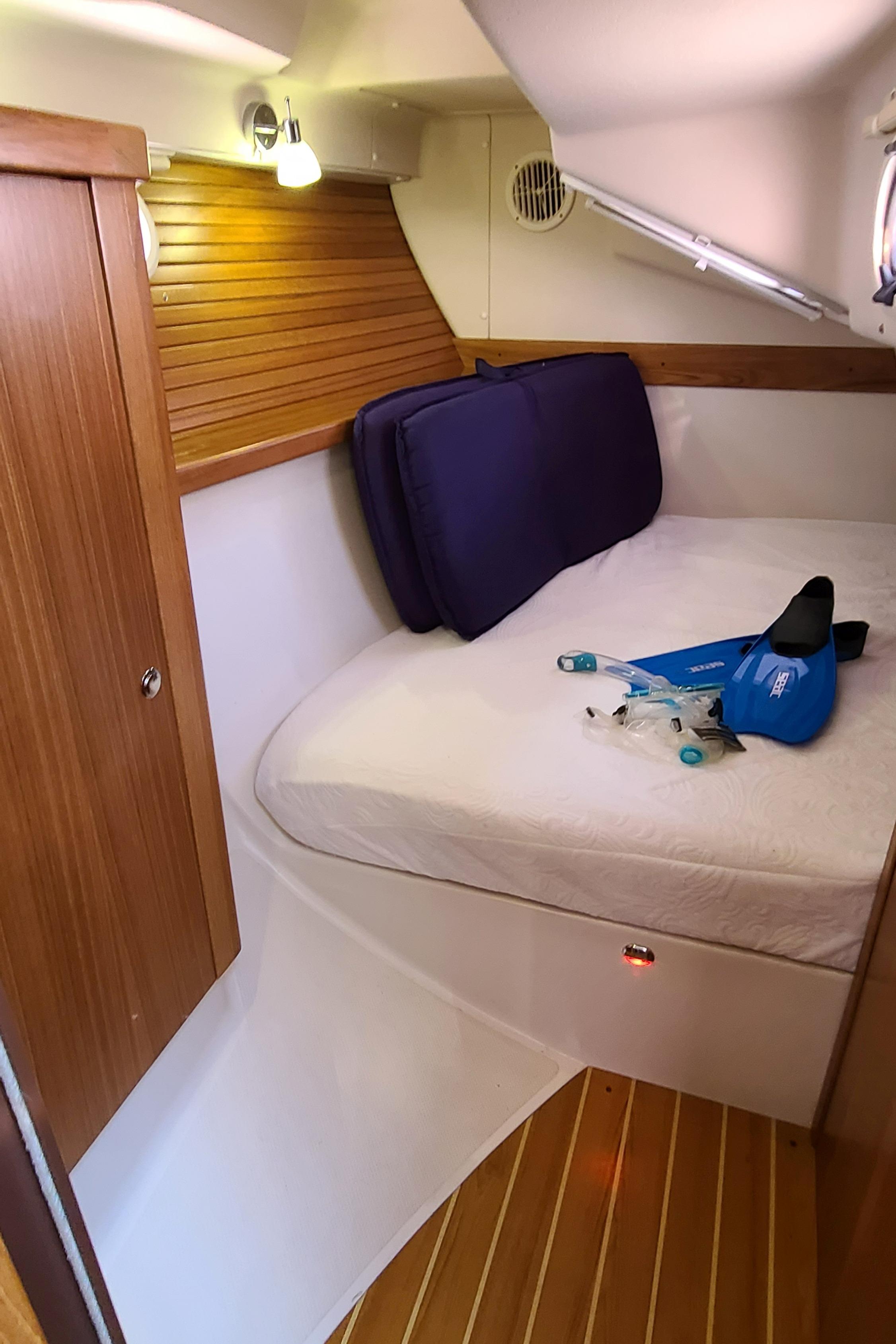

•  Aft berth: 4’9” x 7’6”
•  Ultra leather covered interior cushions
•  LED lighting throughout

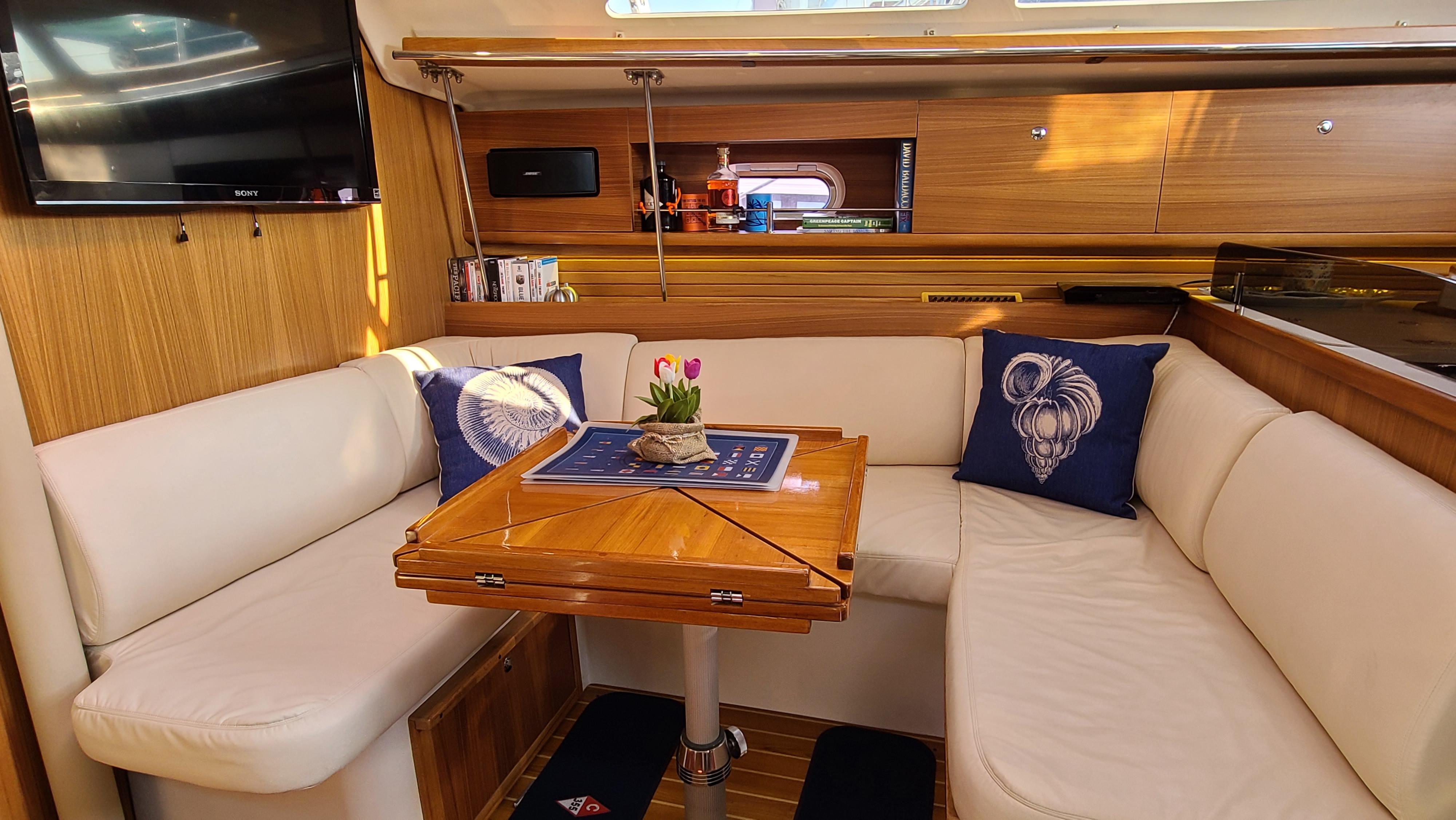

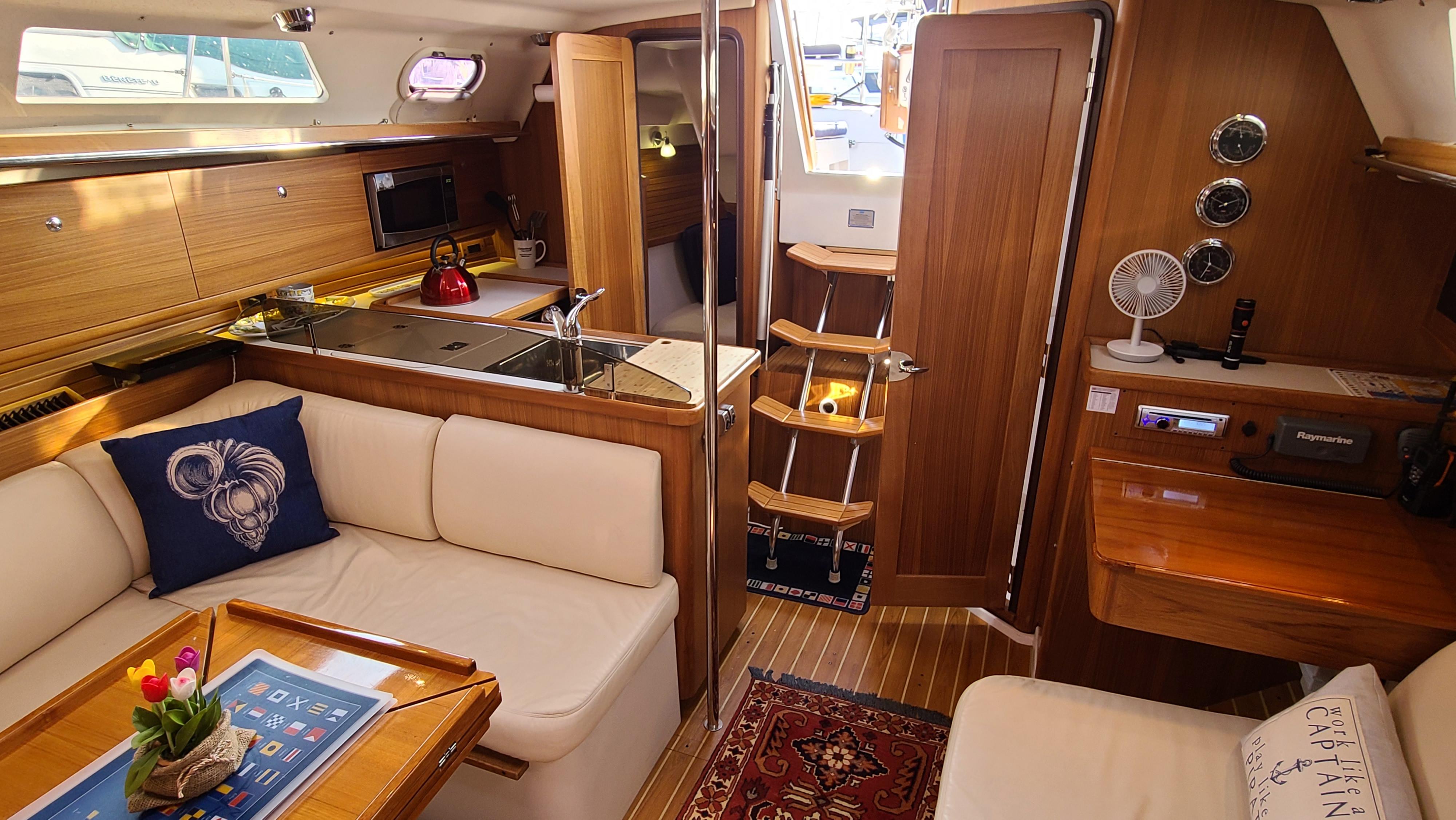

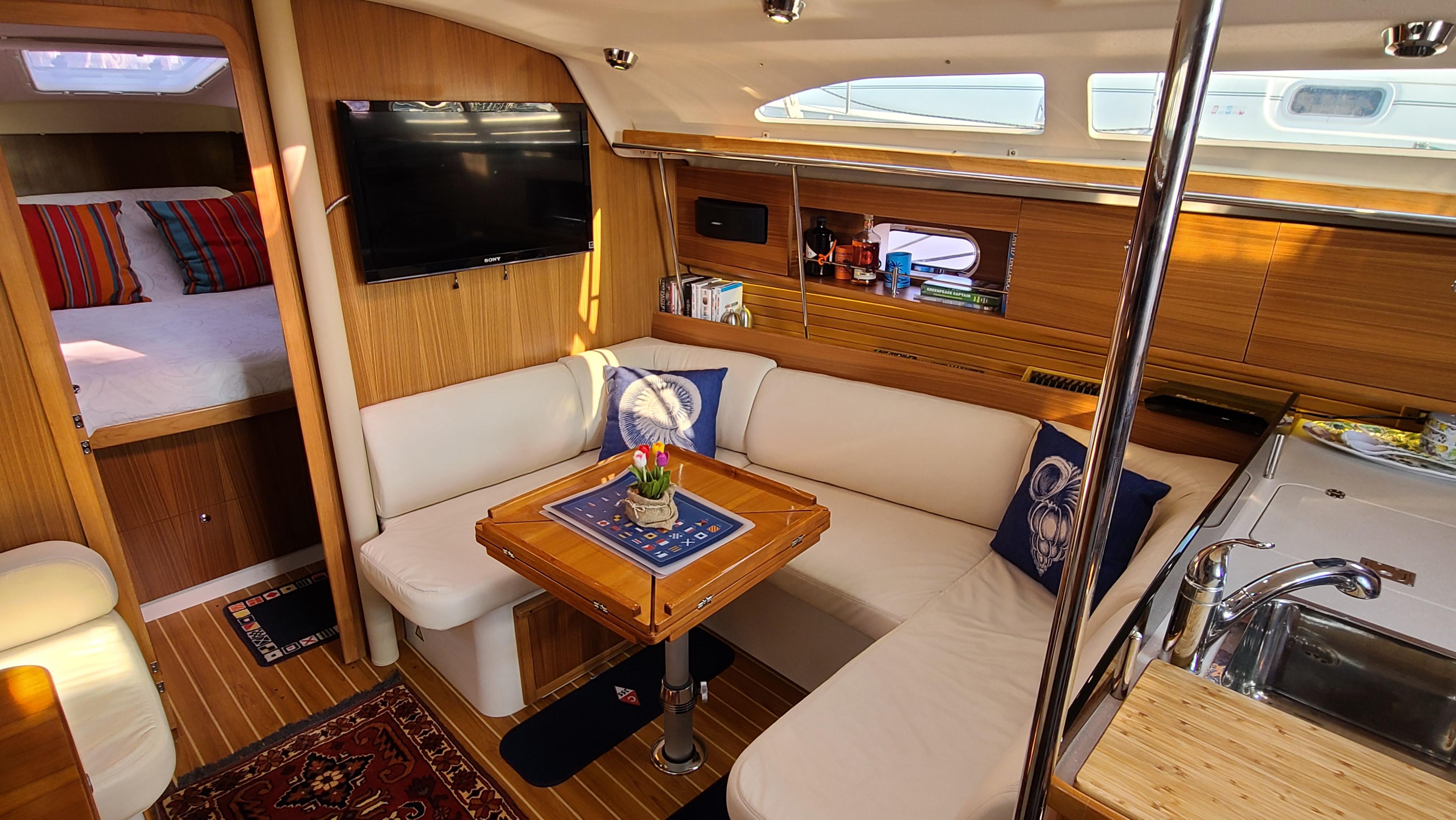

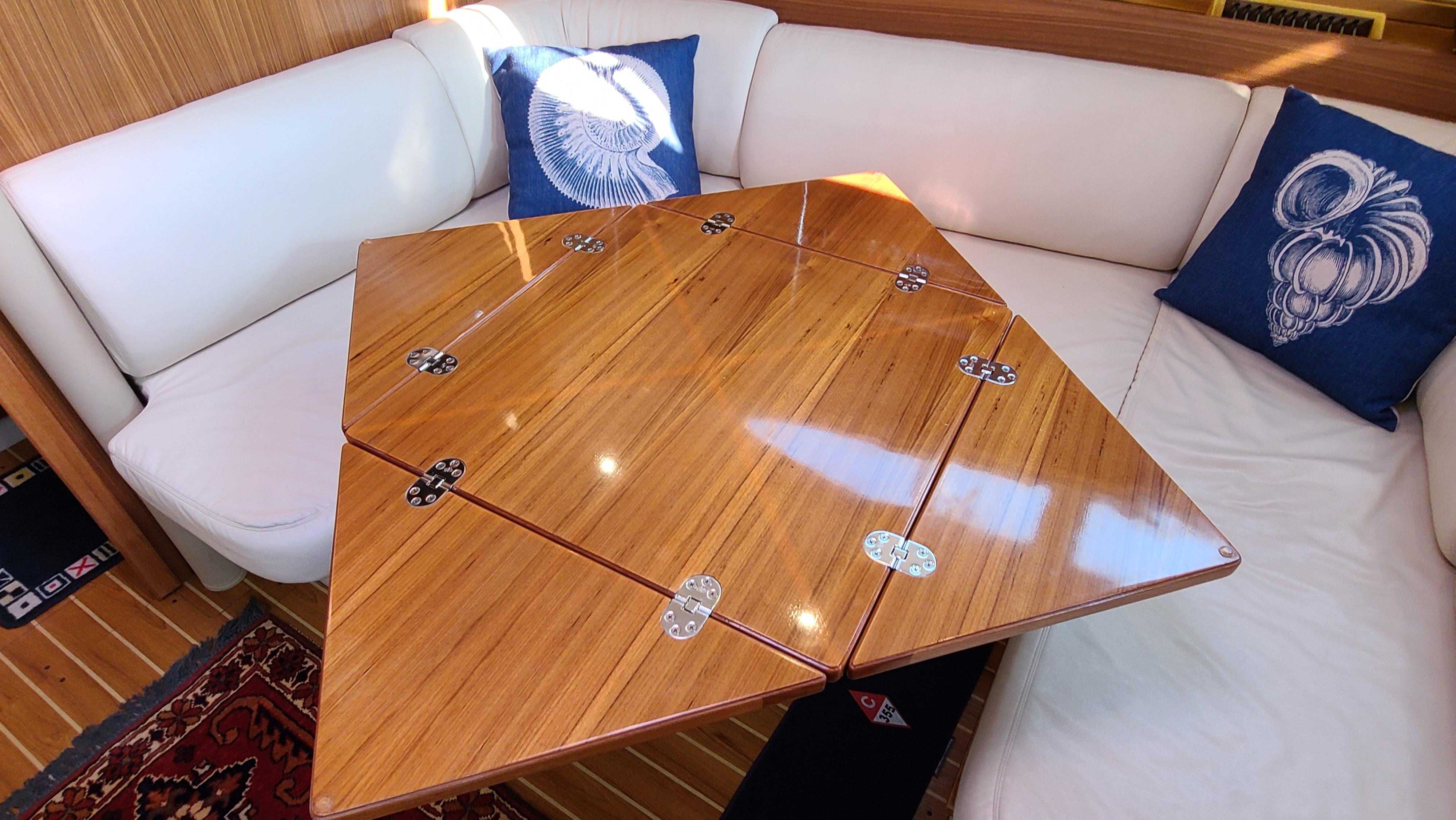

•  Four-leaf folding saloon table converts to berth or full-size dining table
•  Cabin window shades
•  Cedar lined hanging lockers

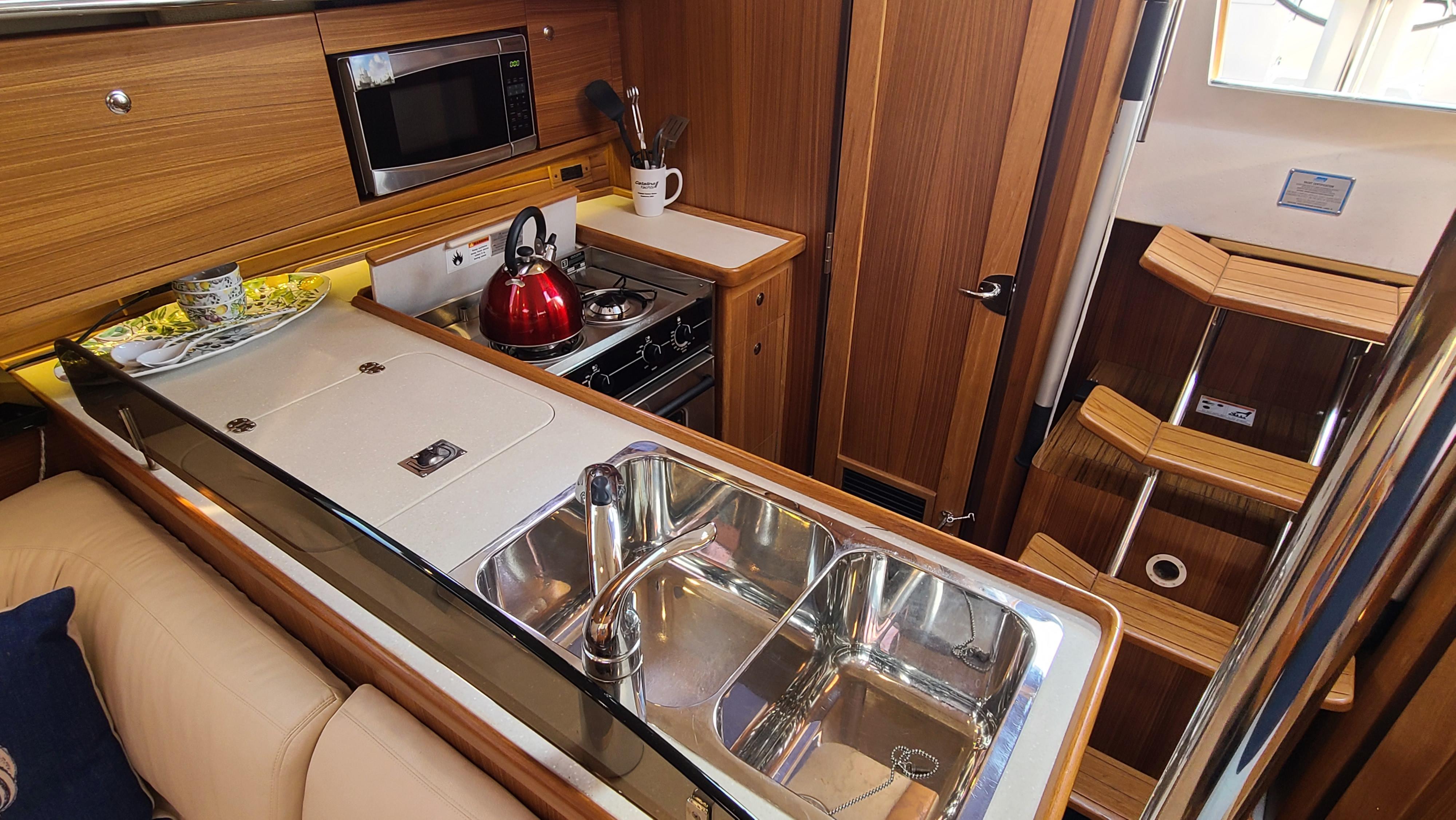

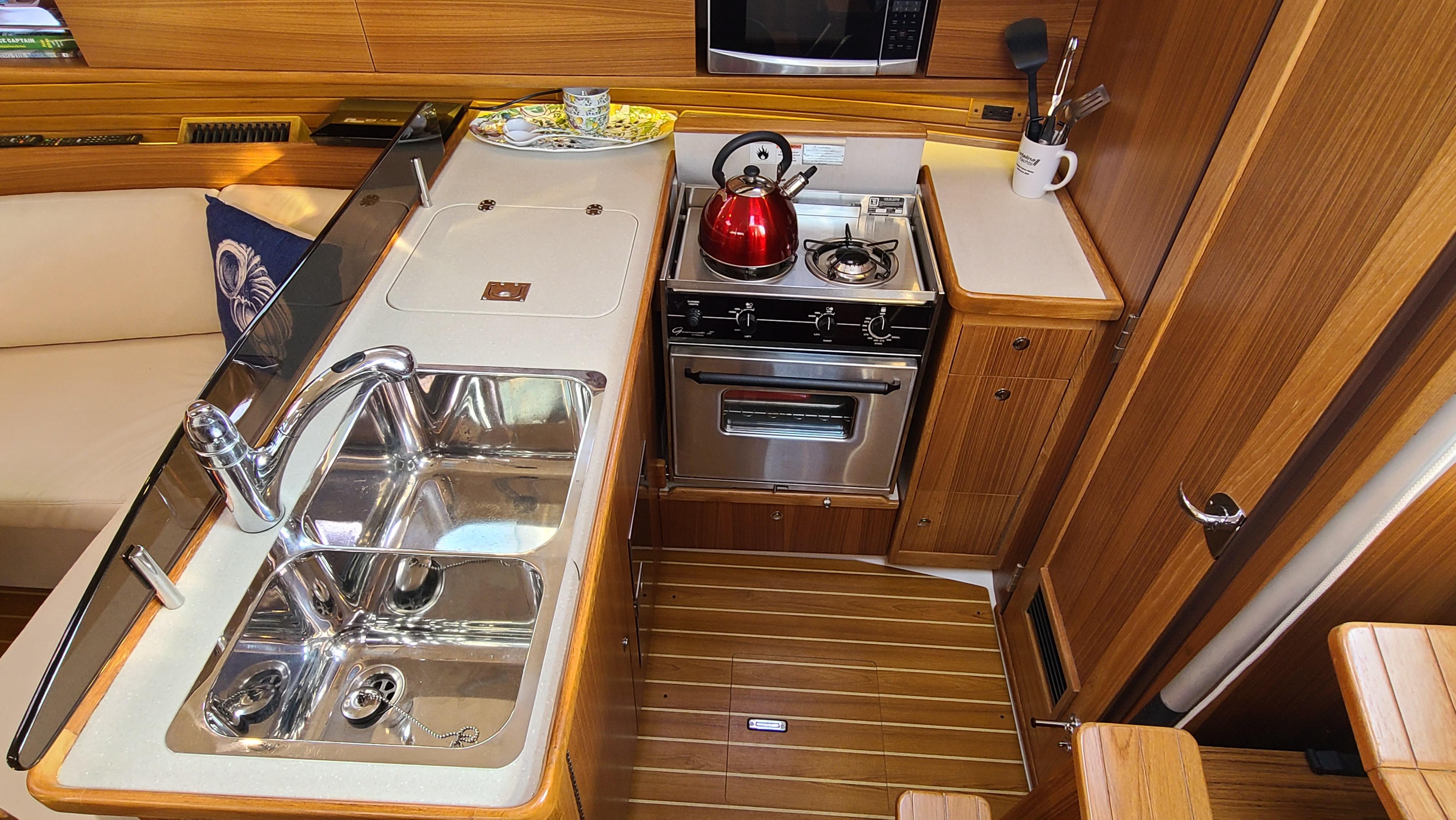

 GALLEY

•  Corian countertops
•  Microwave oven

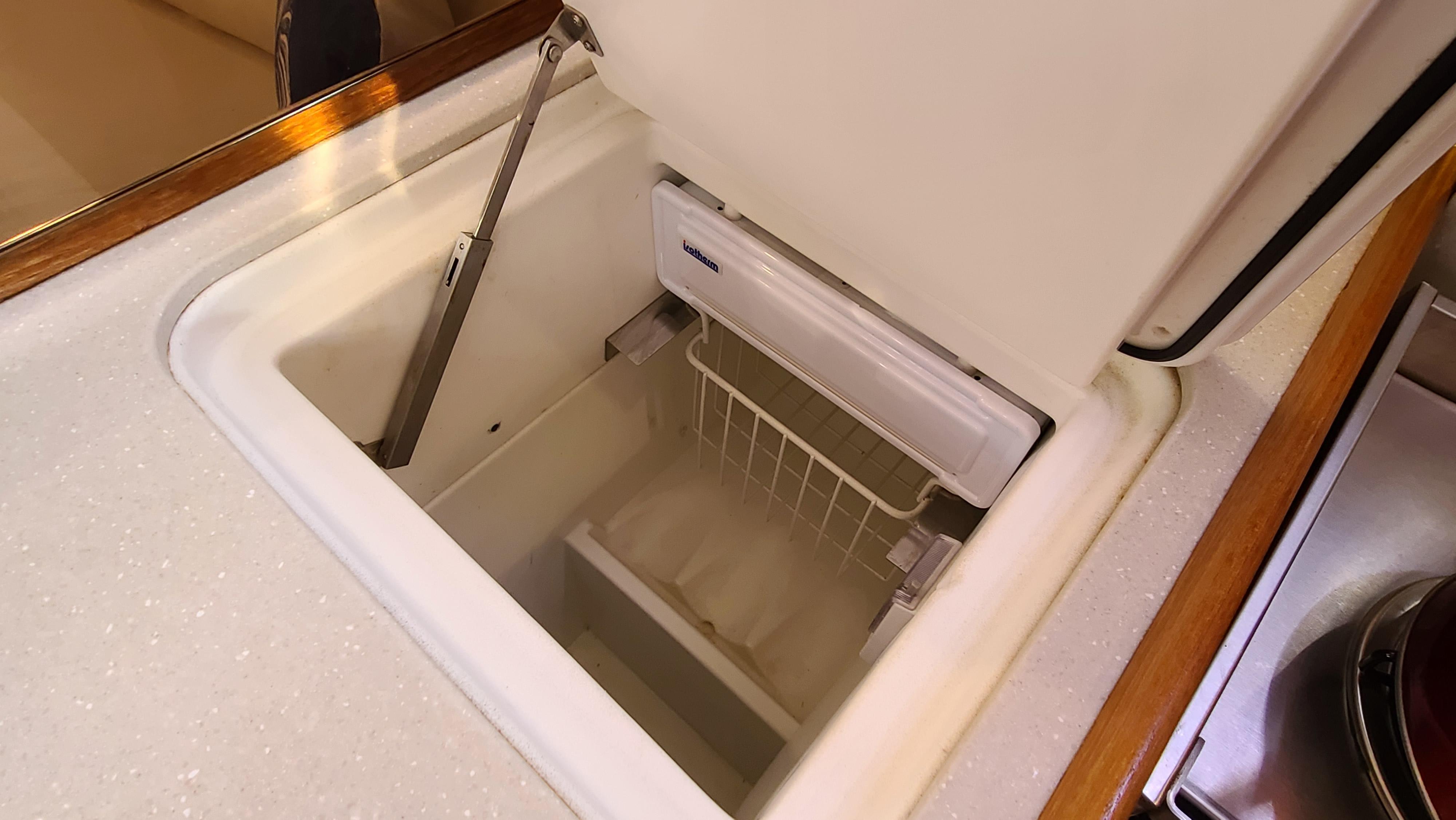

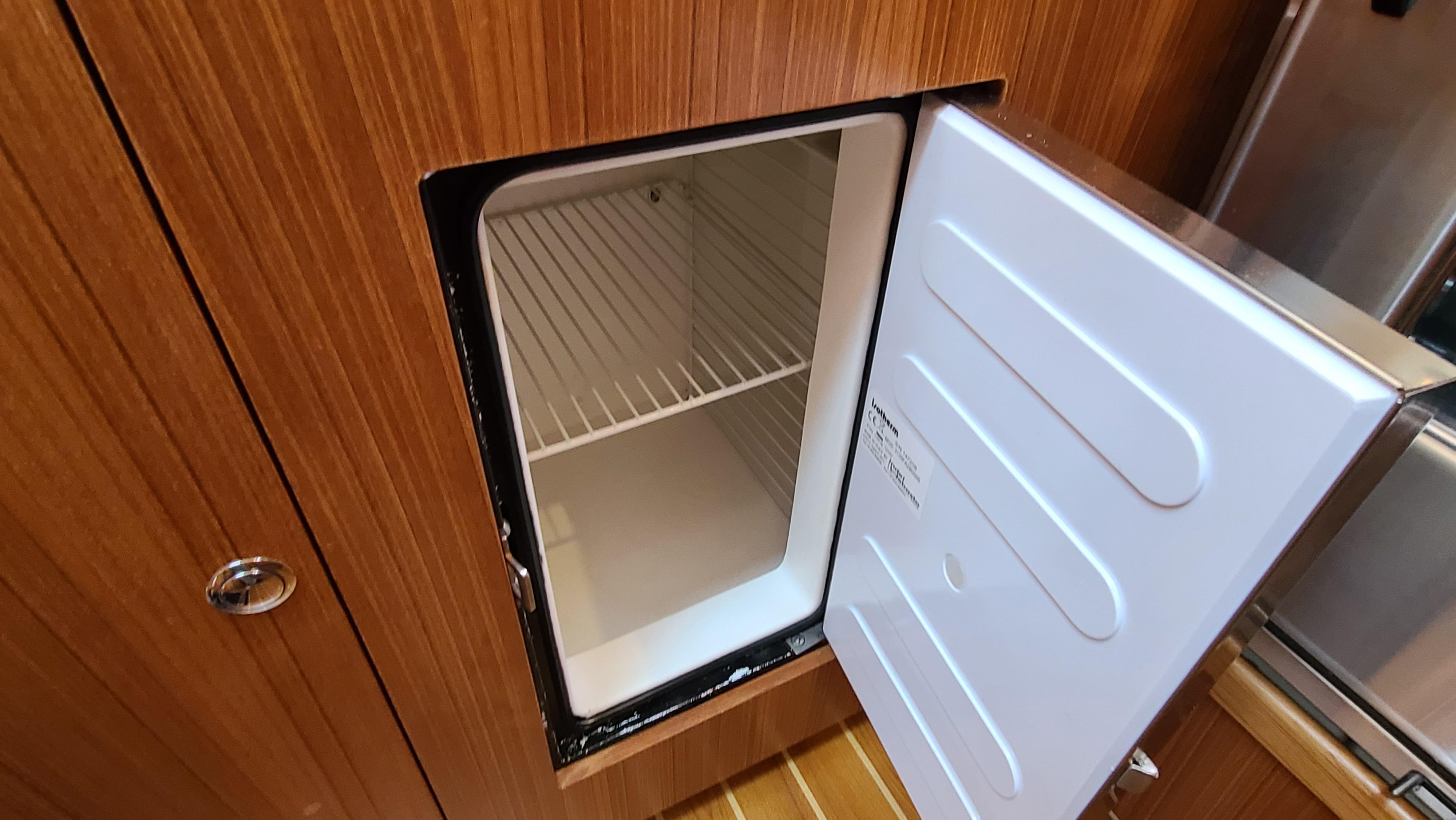

•  Fridge/freezer with front and top access

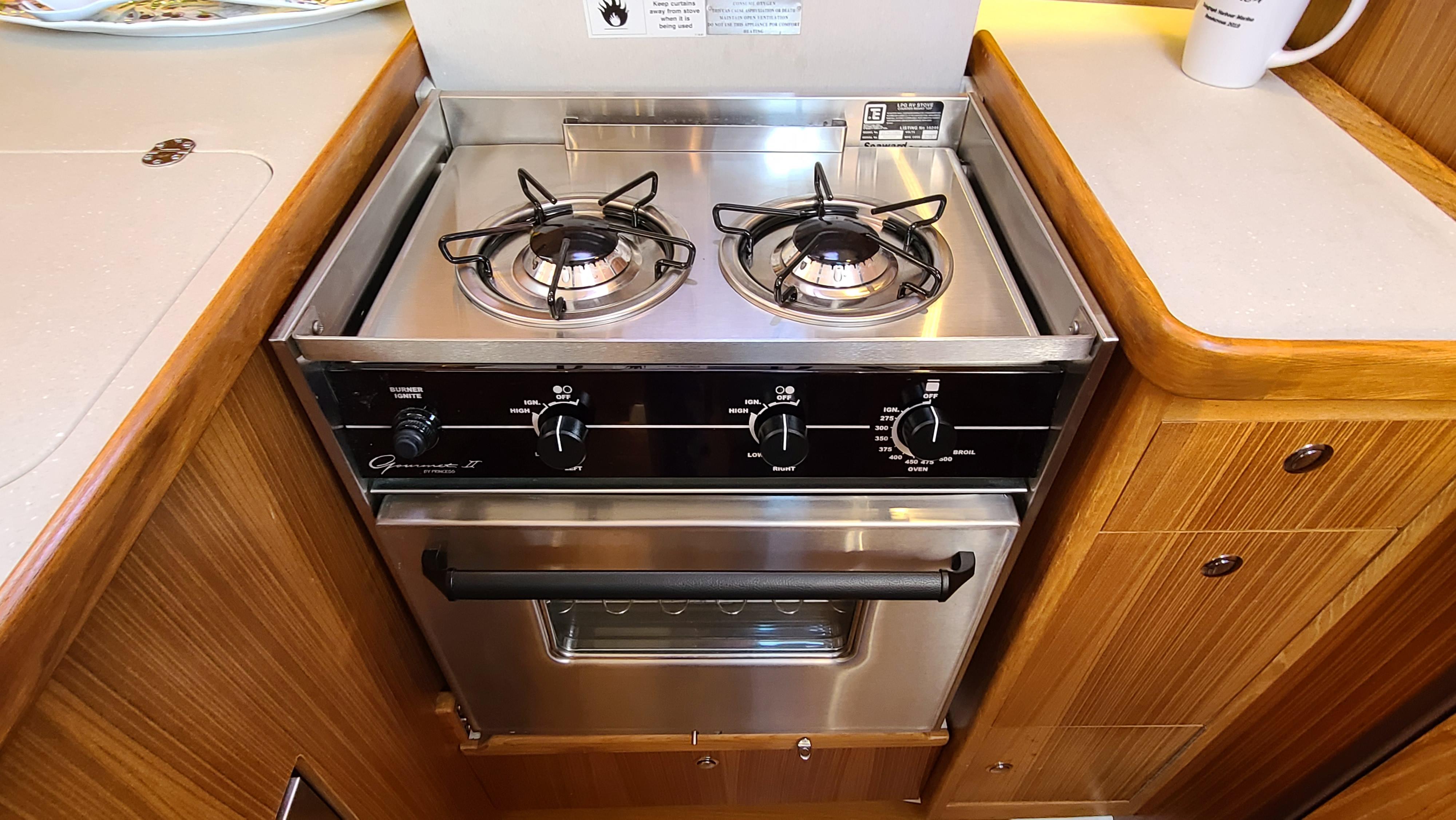

•  Two-burner LPG stove and oven, stainless steel

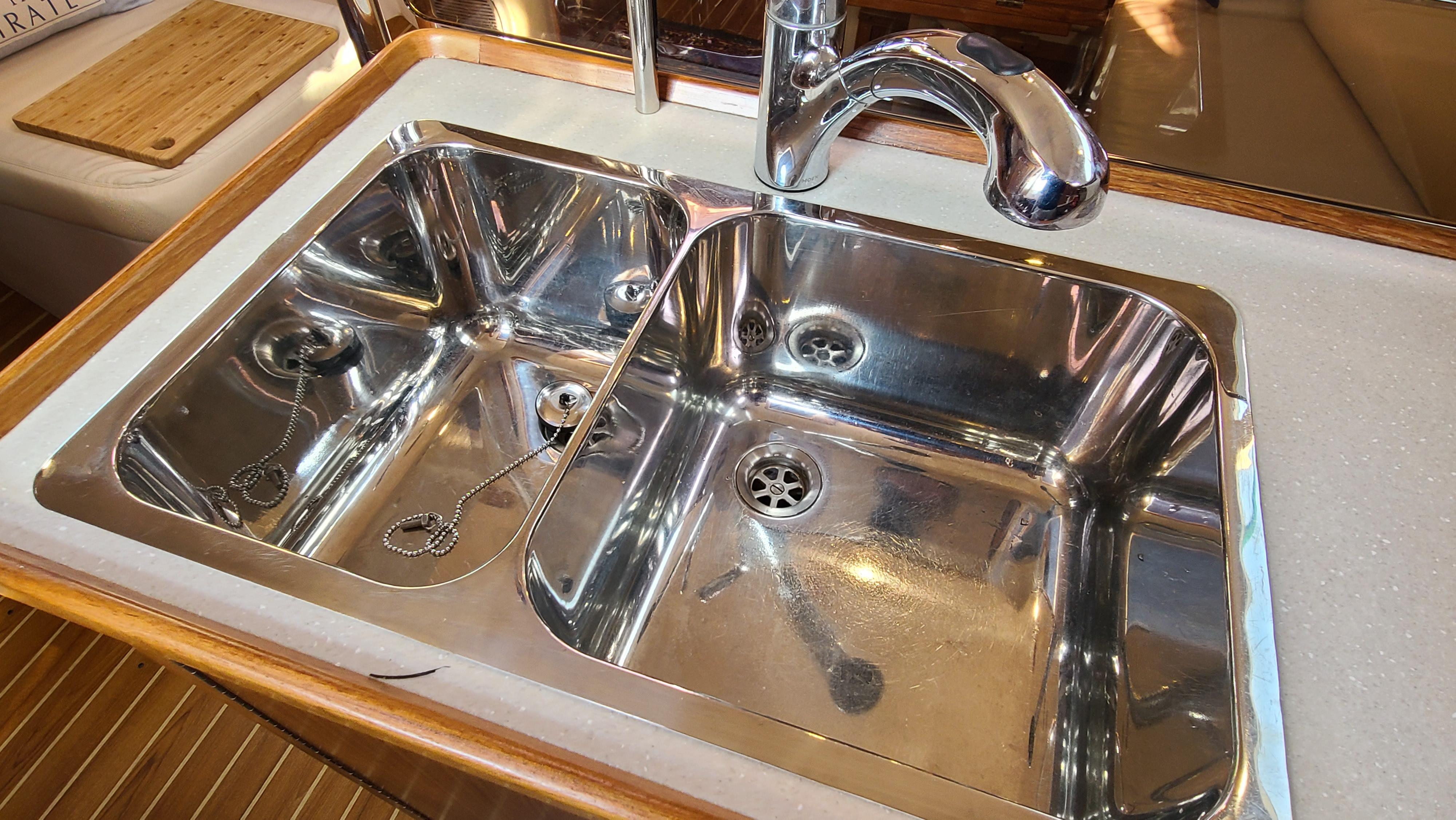

•  Stainless steel double sink, polished
•  Single lever faucet with pull-out sprayer

  MECHANICAL, ELECTRICAL + PLUMBING

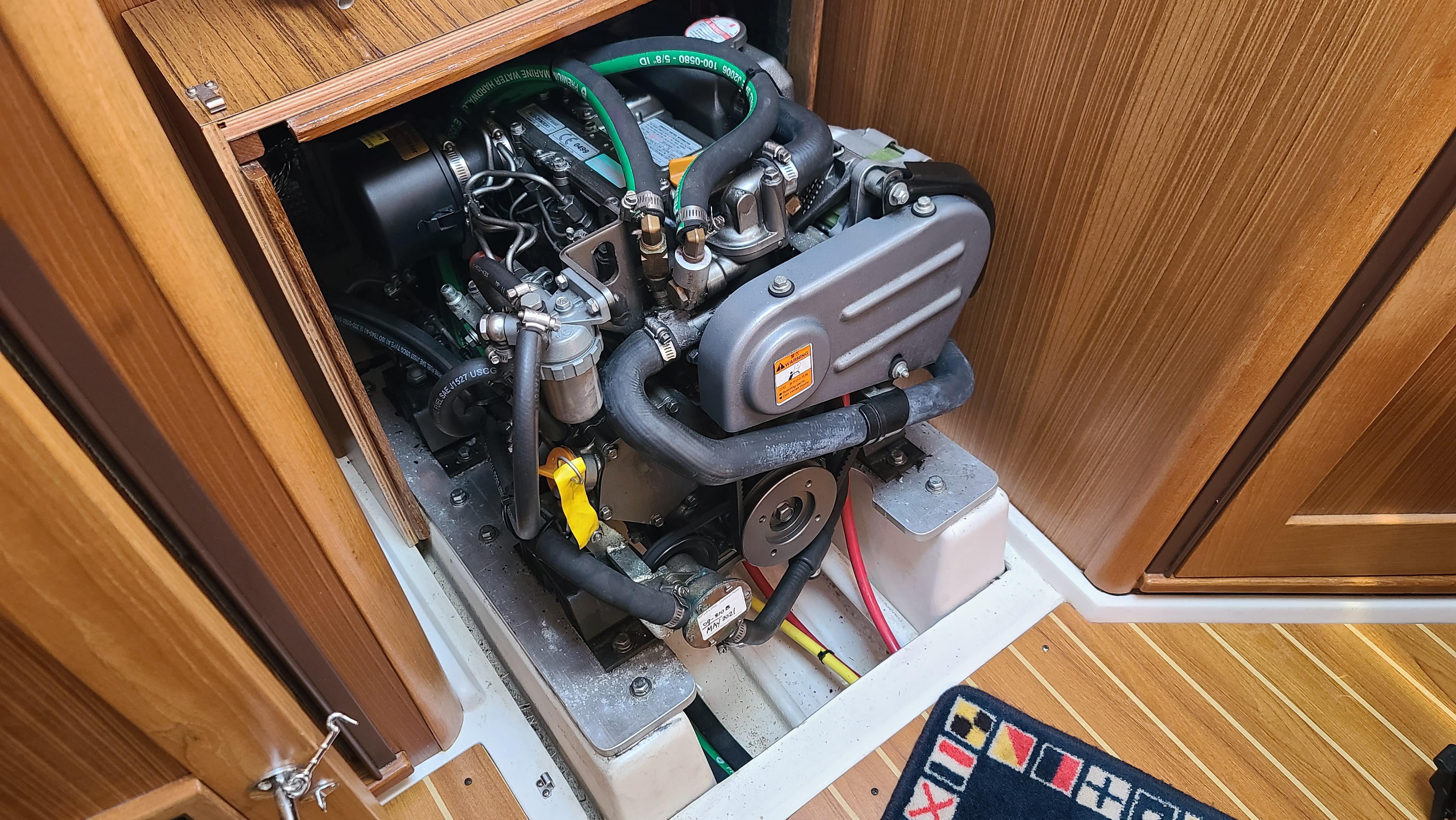

•  Yanmar 29hp diesel engine
•  Engine hours: 507 +/-
•  Bilge blower

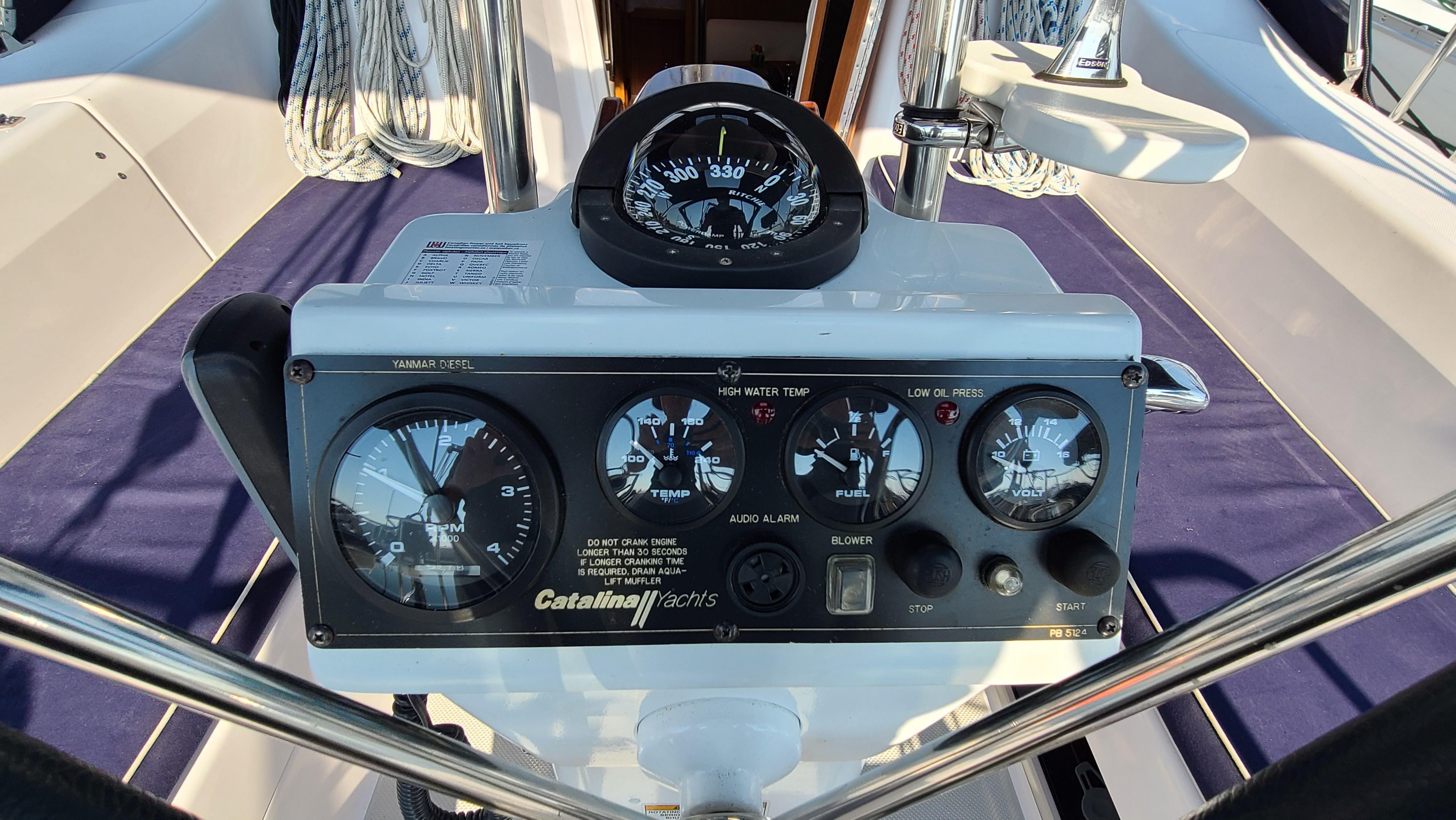

•  Single lever engine control
•  Bronze 3-blade propeller
•  2x 12V house batteries (2021)
•  1x 12V starter battery (2021)

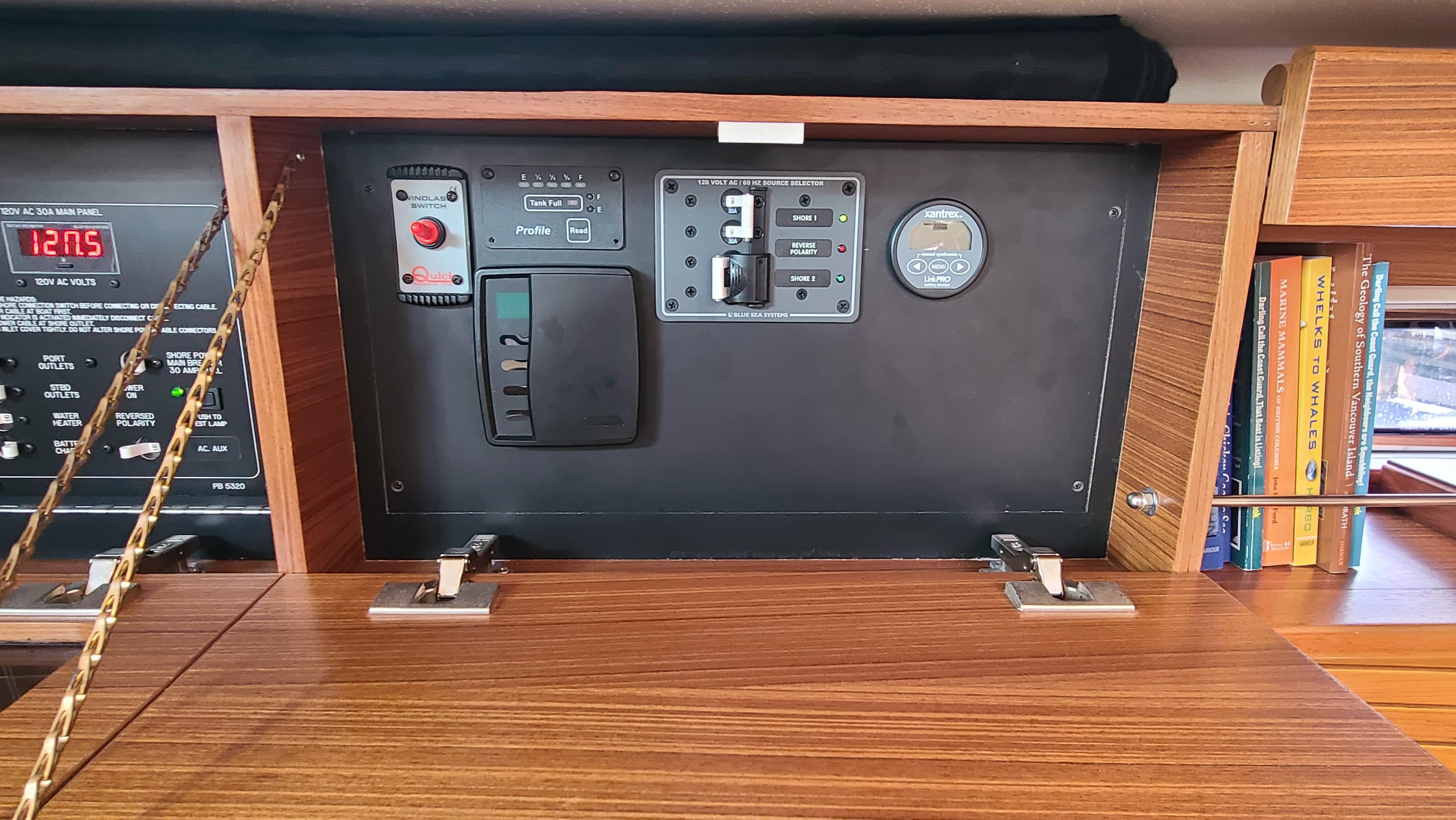

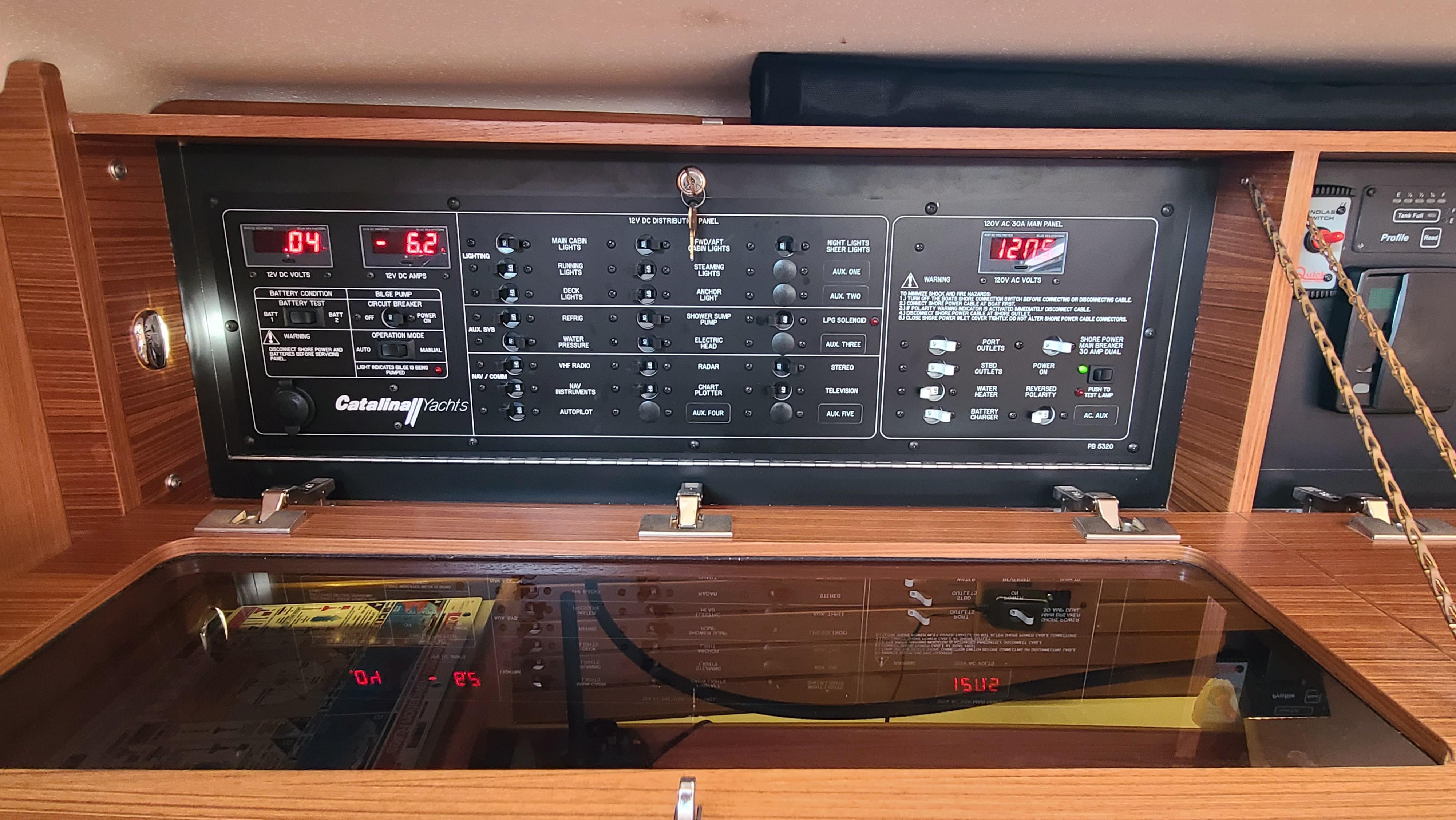

•  Battery condition meter
•  Battery charger
•  AC outlets throughout
•  LED navigation and exterior lights
•  Galvanic isolator
•  Hot/cold pressure water
•  HEATING: 16,000 BTU reverse cycle heat/AC.  110V requires shore power connection.

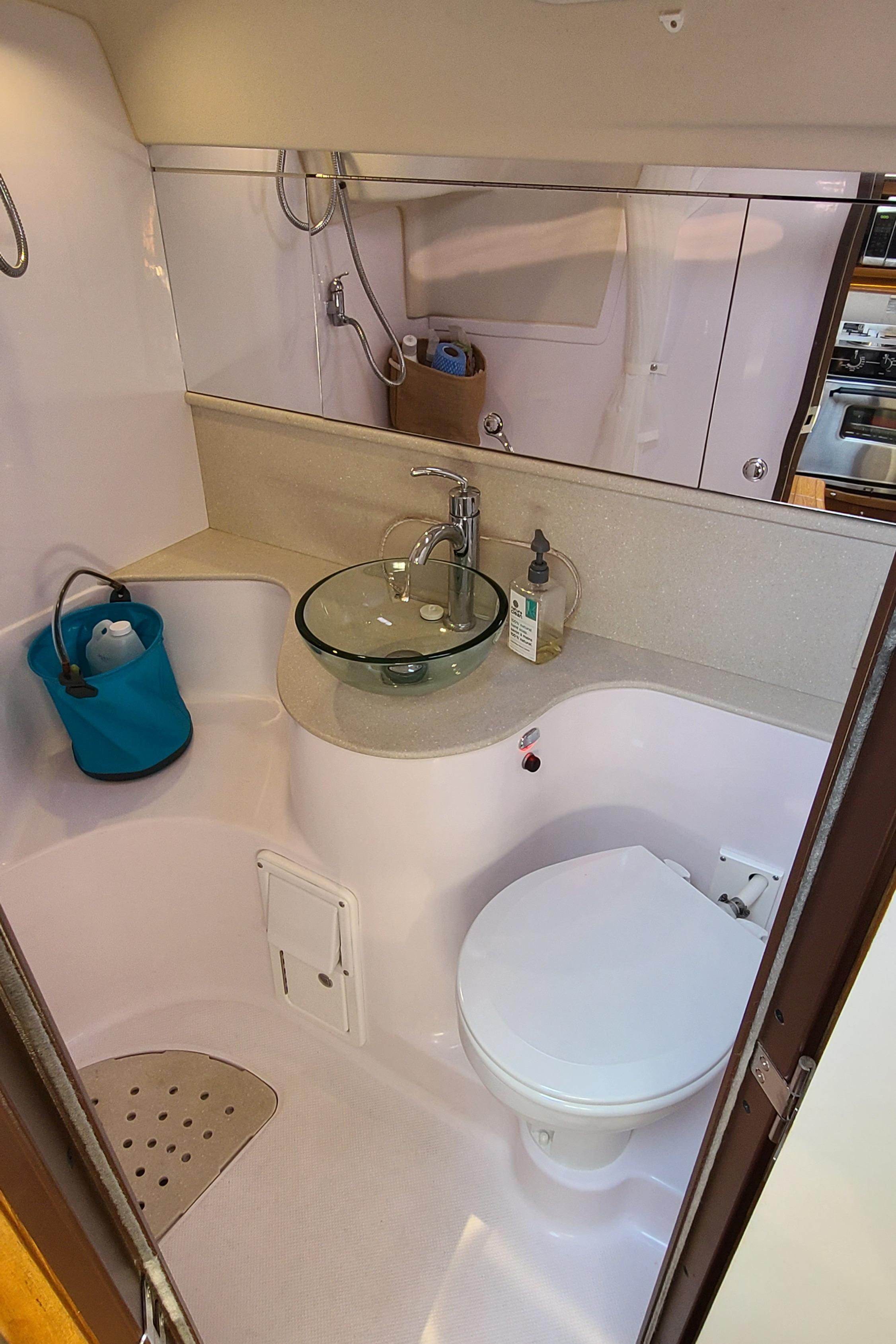

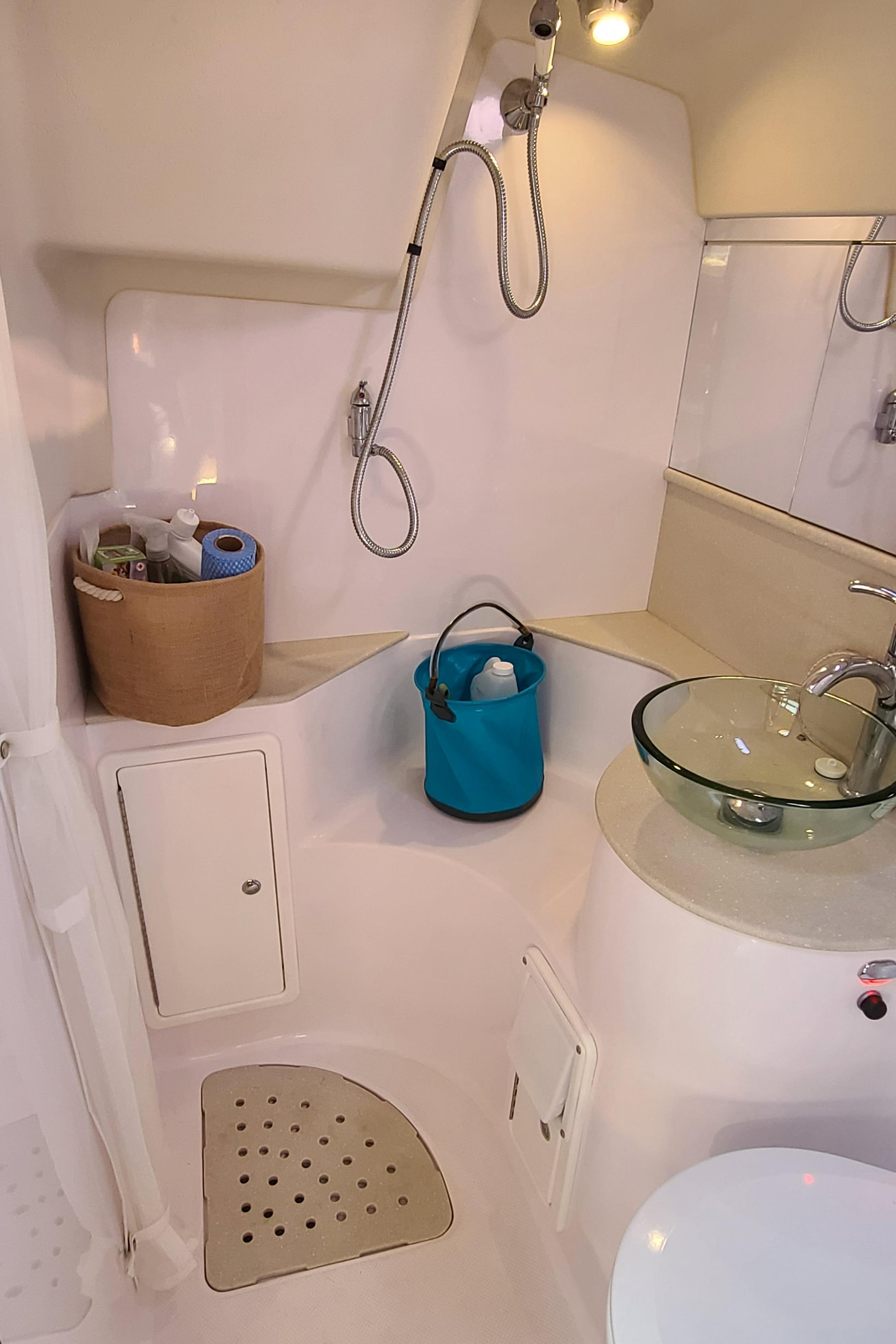

•  Electric flush/macerating head with fresh water
•  Modified freshwater tank management allows user to by-pass domestic pump if needed to drain tanks.
•  Holding tank discharge: overboard or deck
•  Electric auto bilge pump
•  Manual bilge pump
•  Cockpit shower h/c

 INSTRUMENTS + NAV

•  Raymarine Radar, mast mounted (2016)

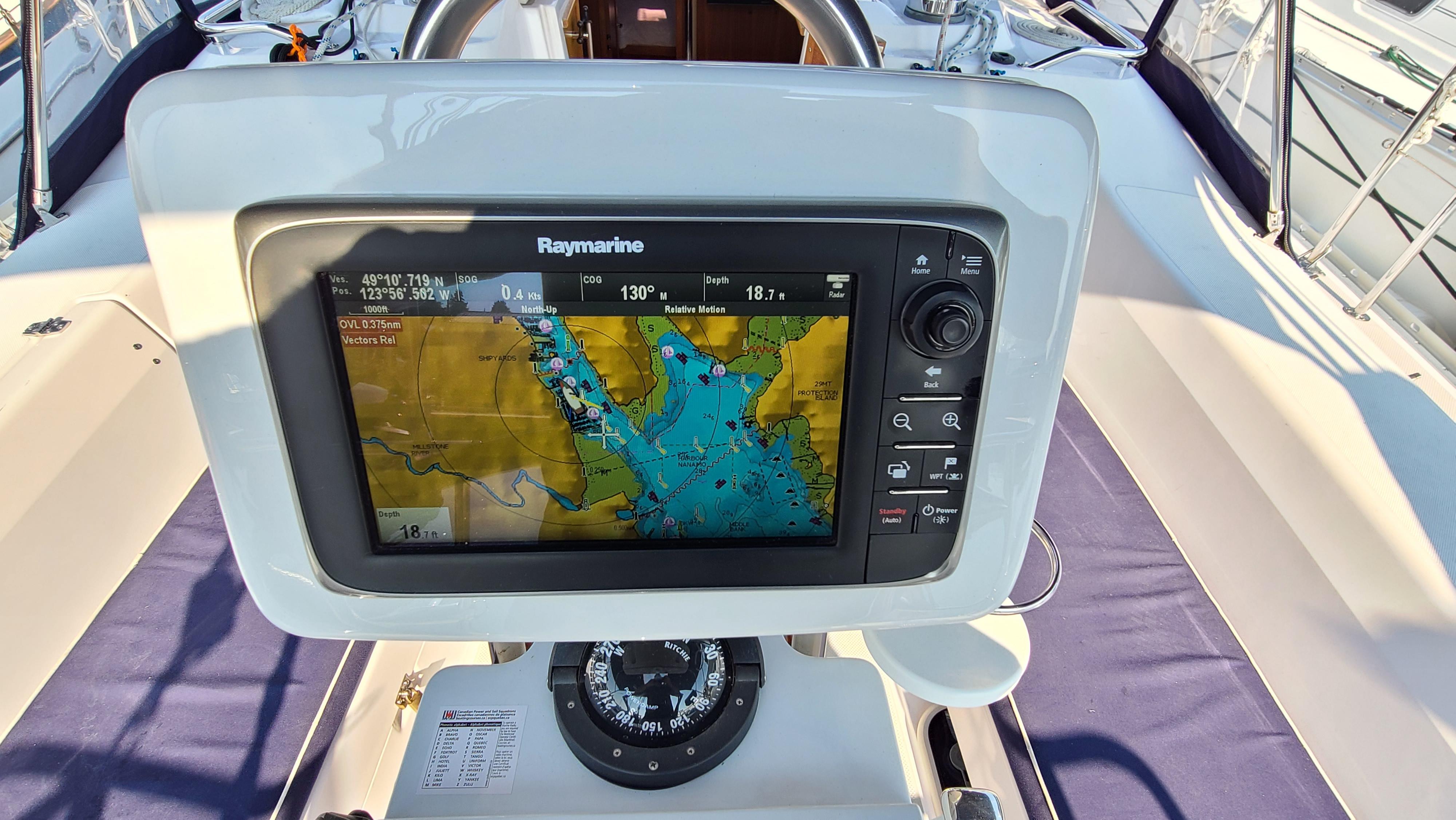

•  Raymarine C95 GPS/plotter
•  Raymarine P70 SmartPilot with linear drive and display/control at helm
•  Raymarine i70 Instrument pack with depth/speed/temp/wind and (3) three displays/controls at helm

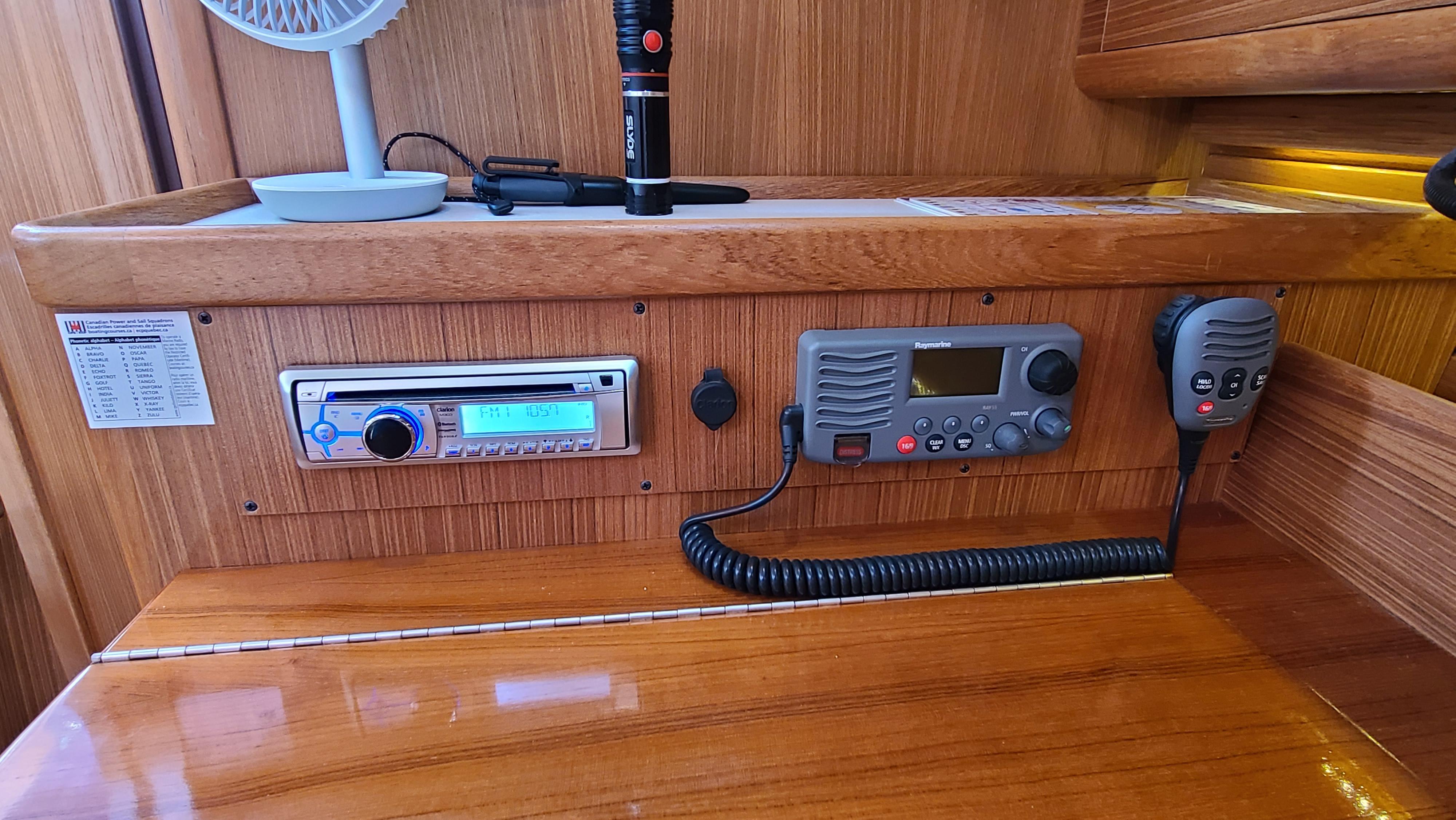

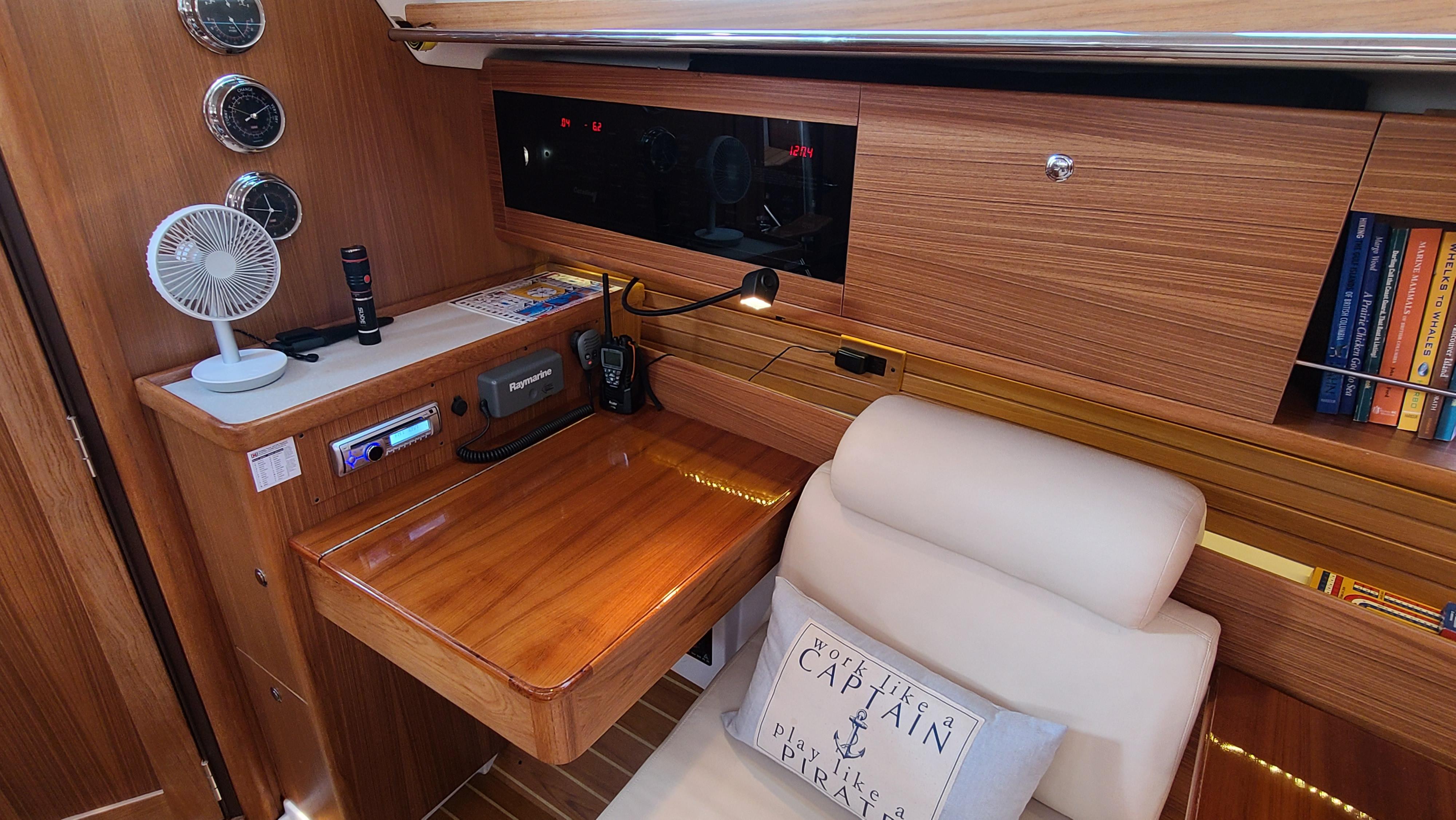

•  Raymarine VHF radio at nav station with RAM mic at helm
•  Windex
•  Ships compass at helm
•  Clarion CD/AM/FM stereo with amp, subwoofer and Bose interior/exterior speakers with remote in cockpit

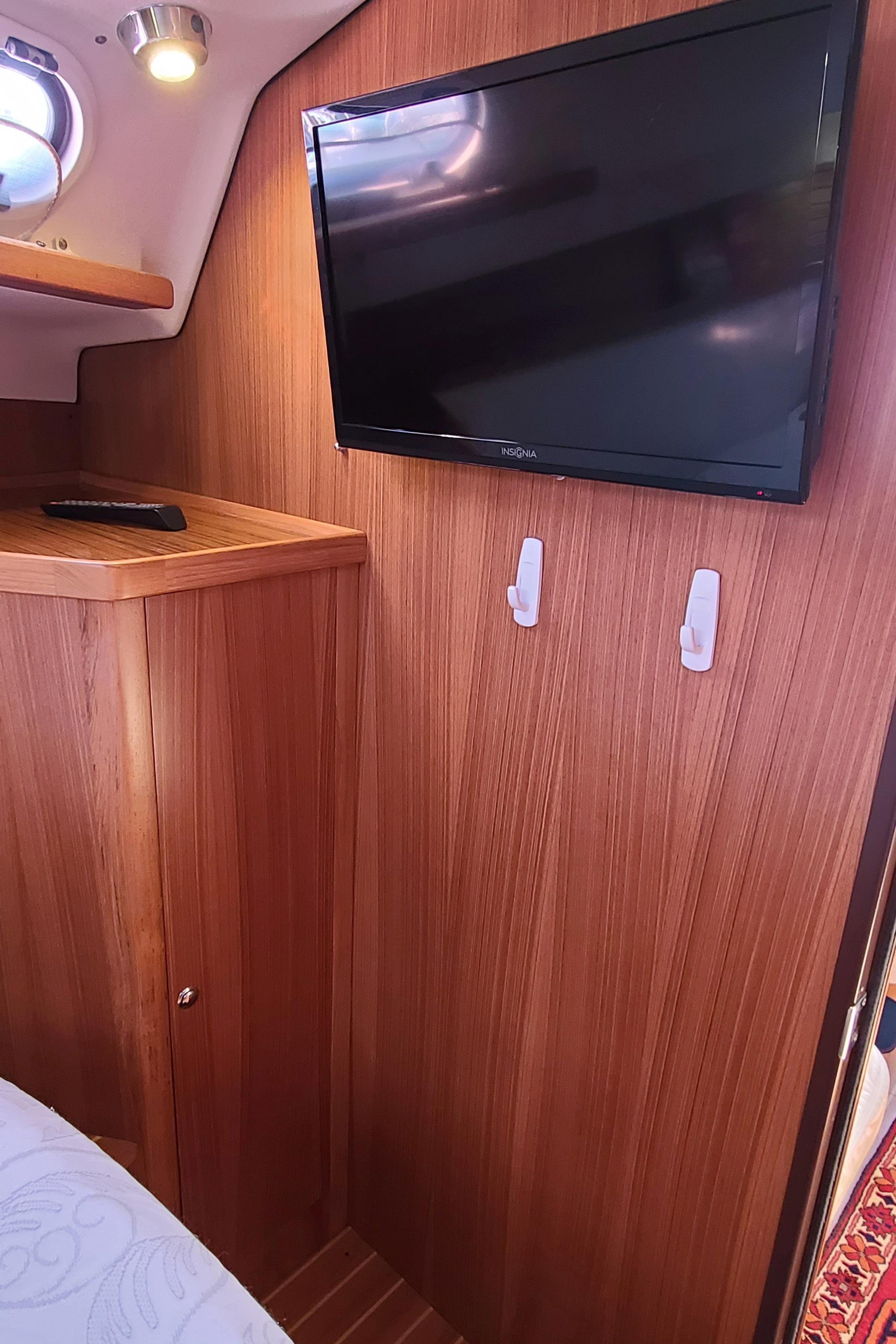

•  26” flatscreen with DVD player, fwd cabin
•  32” flatscreen, main bulkhead
•  DVD player

 SAILS

•  Doyle furling mainsail with vertical battens
•  Doyle 135% furling genoa with UV protection
•  Doyle asymmetrical cruising

 RIGGING & DECK GEAR

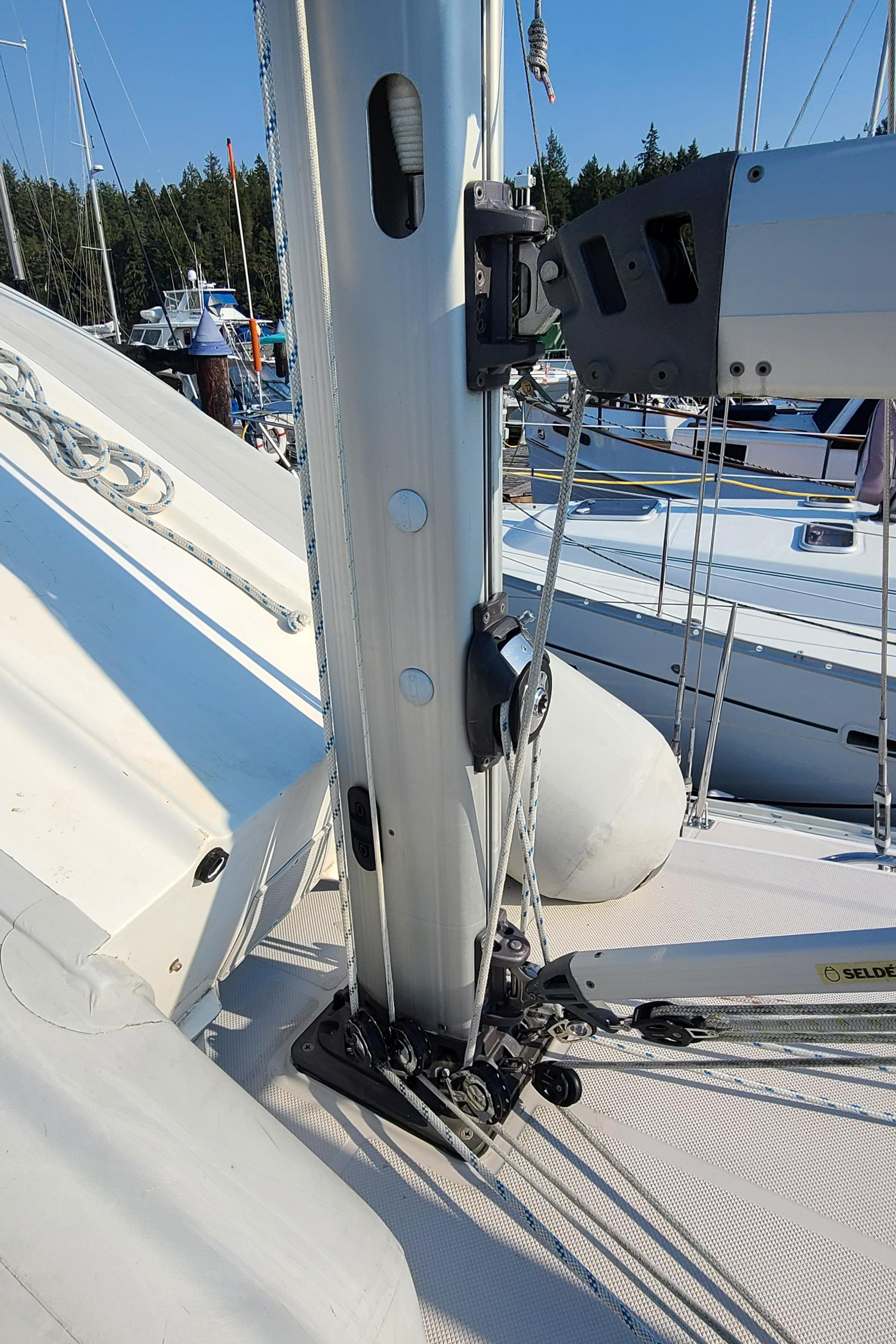

•  Selden deck-stepped mast and boom anodized double-spreader rig
•  in-mast furling
•  Selden Furlex headsail furler
•  Selden gennaker bow sprit with adjustable tack line
•  Gennaker furling gear
•  Rigid adjustable boom vang
•  PVC wiring conduit with messenger in mast

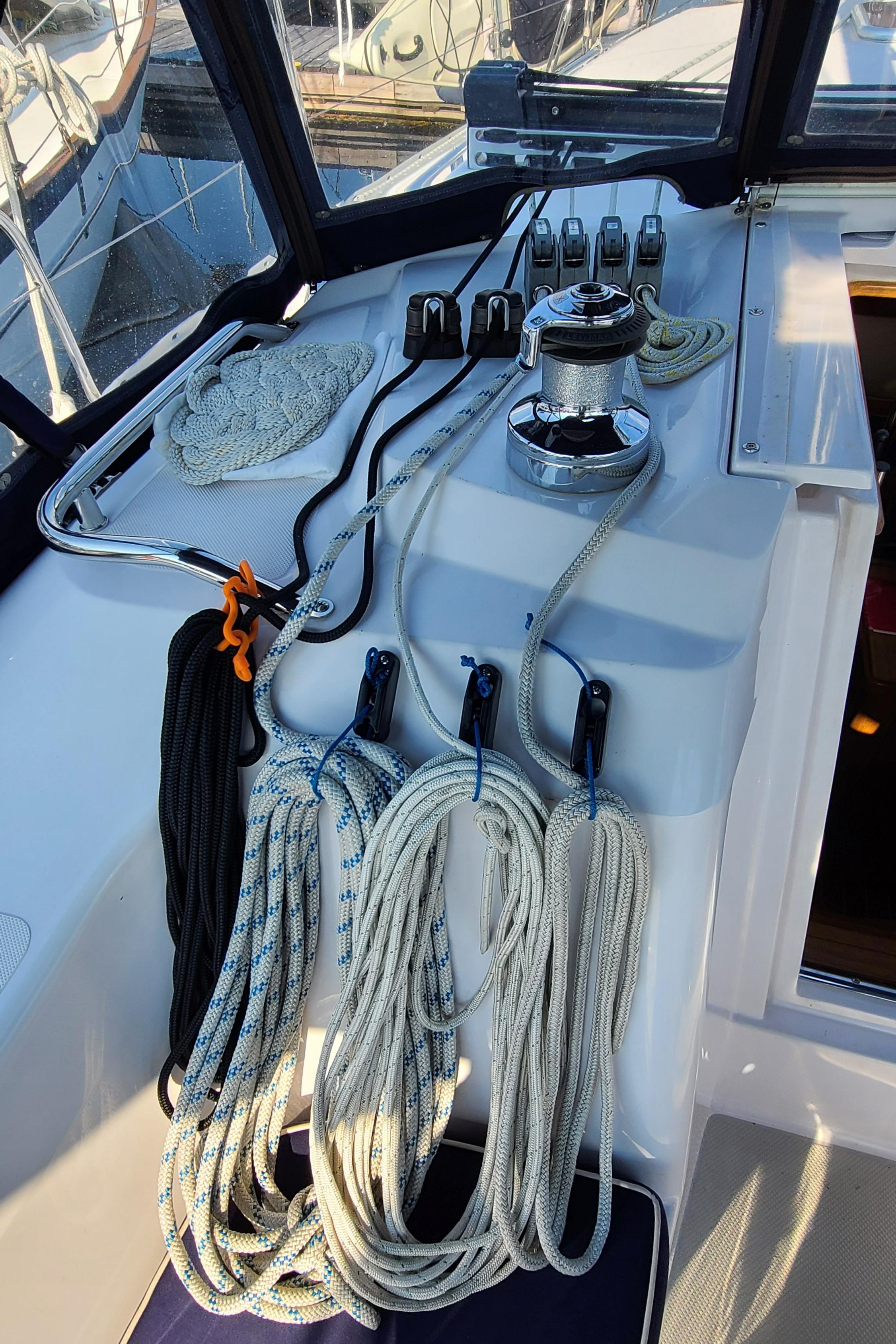

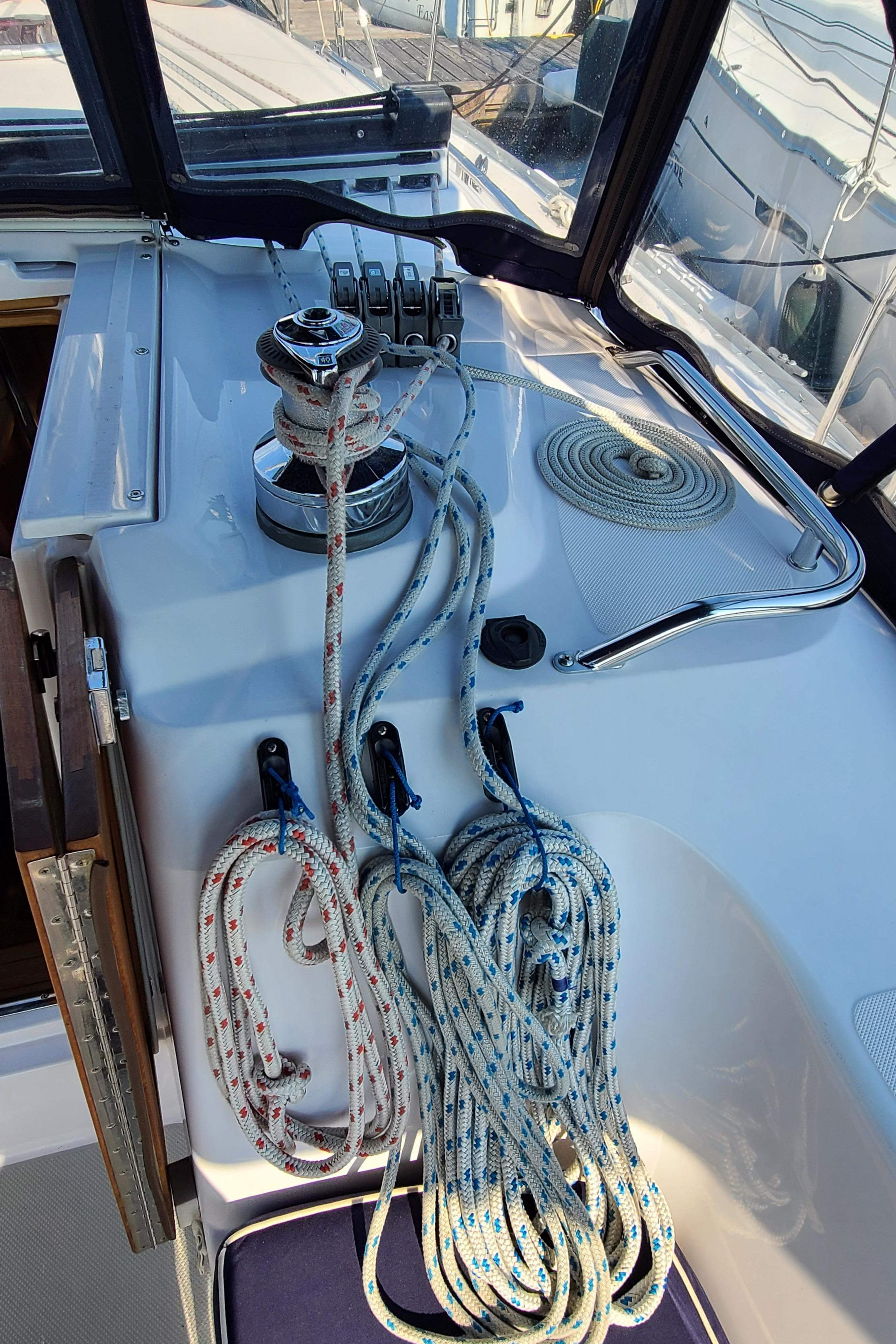

•  2x Lewmar 2-speed self-tailing primary winches
•  2x Lewmar 2-speed self-tailing coachroof winches, starboard winch is ELECTRIC
•  Mainsheet traveler control lines both run to port side clutches for easier adjustment
•  2x Ball bearing genoa blocks
•  2x jib halyards led aft

  ADDITIONAL EQUIPMENT

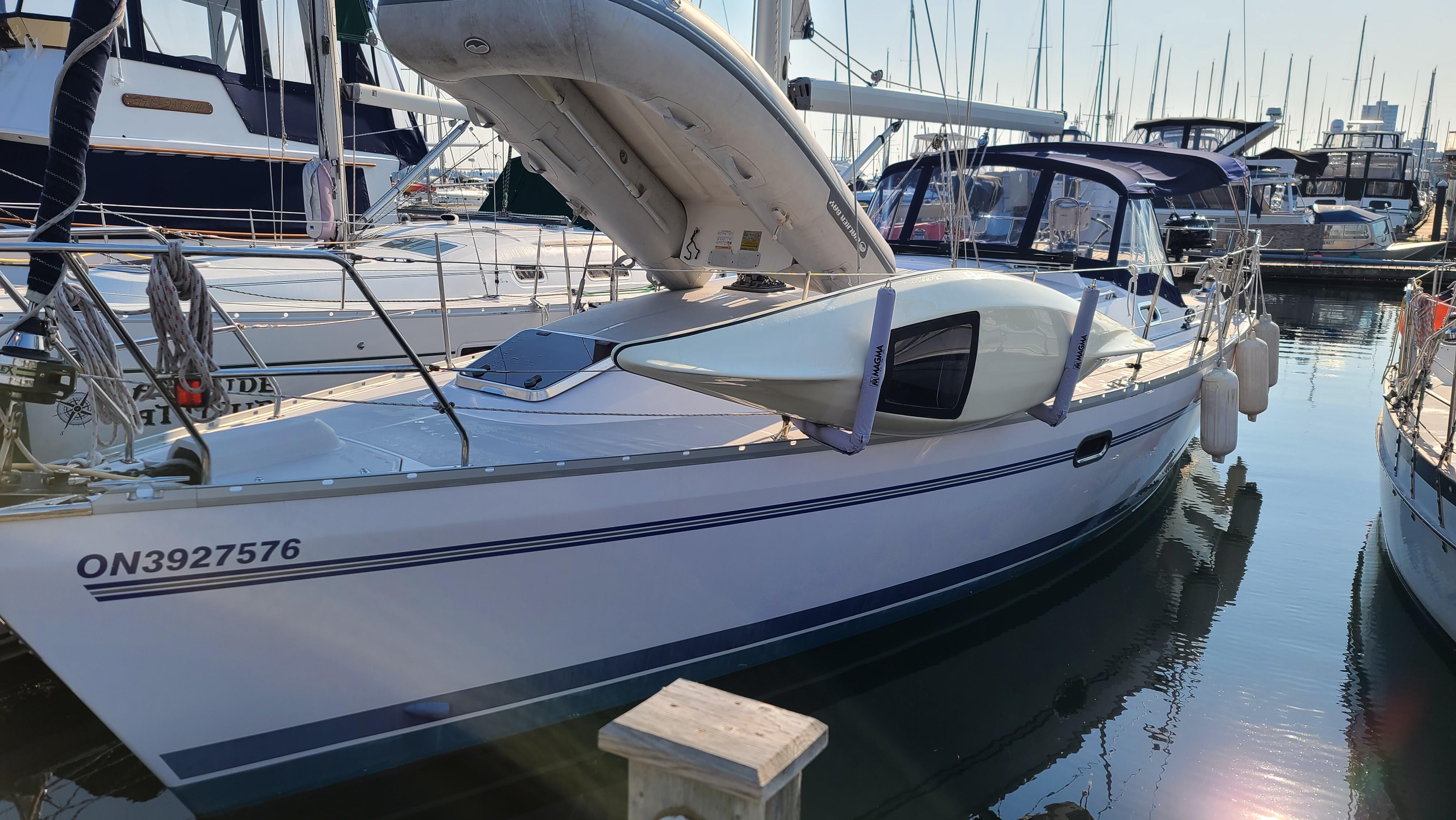

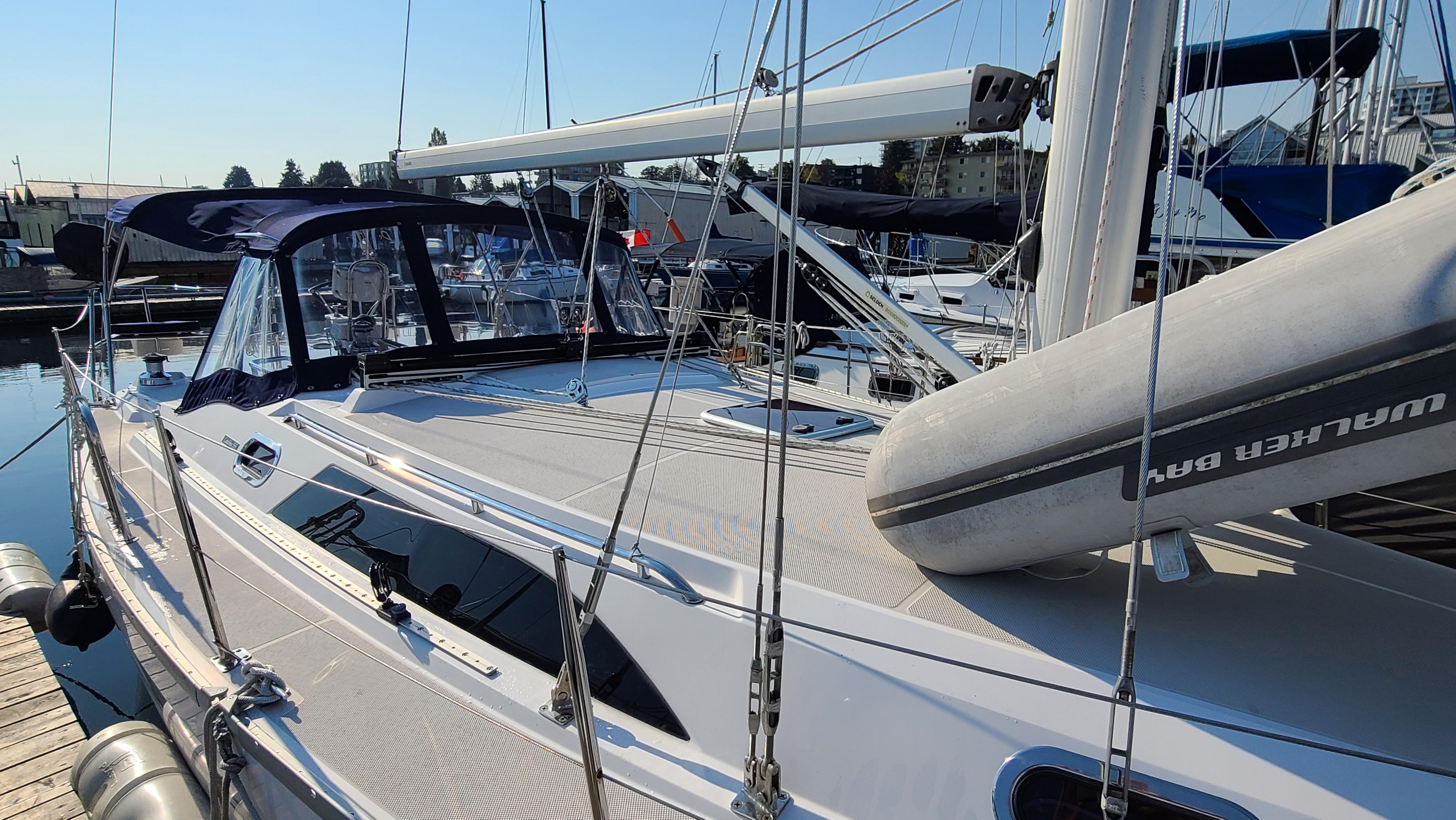

•  9’ Walker Bay RIB dinghy (2014)

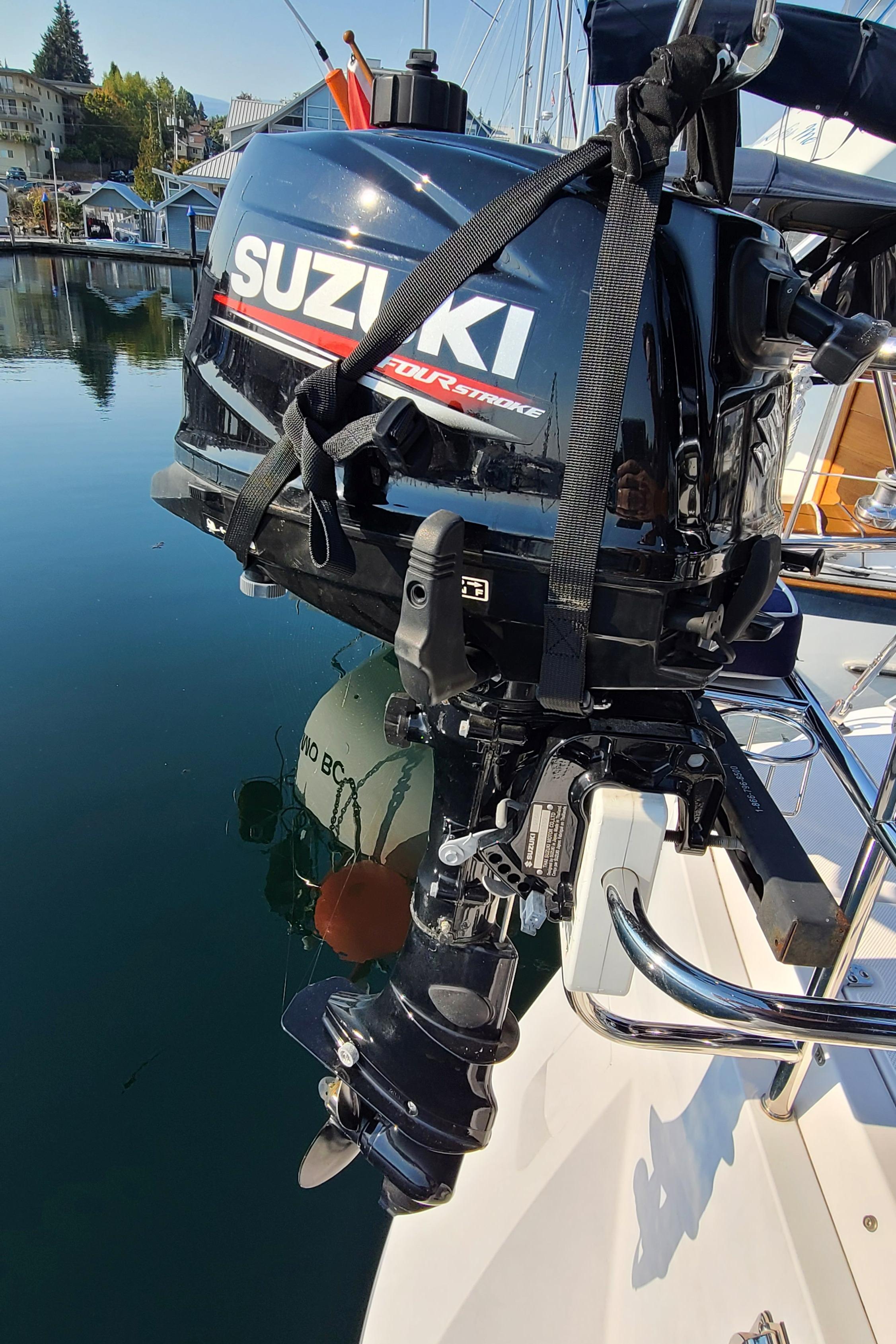

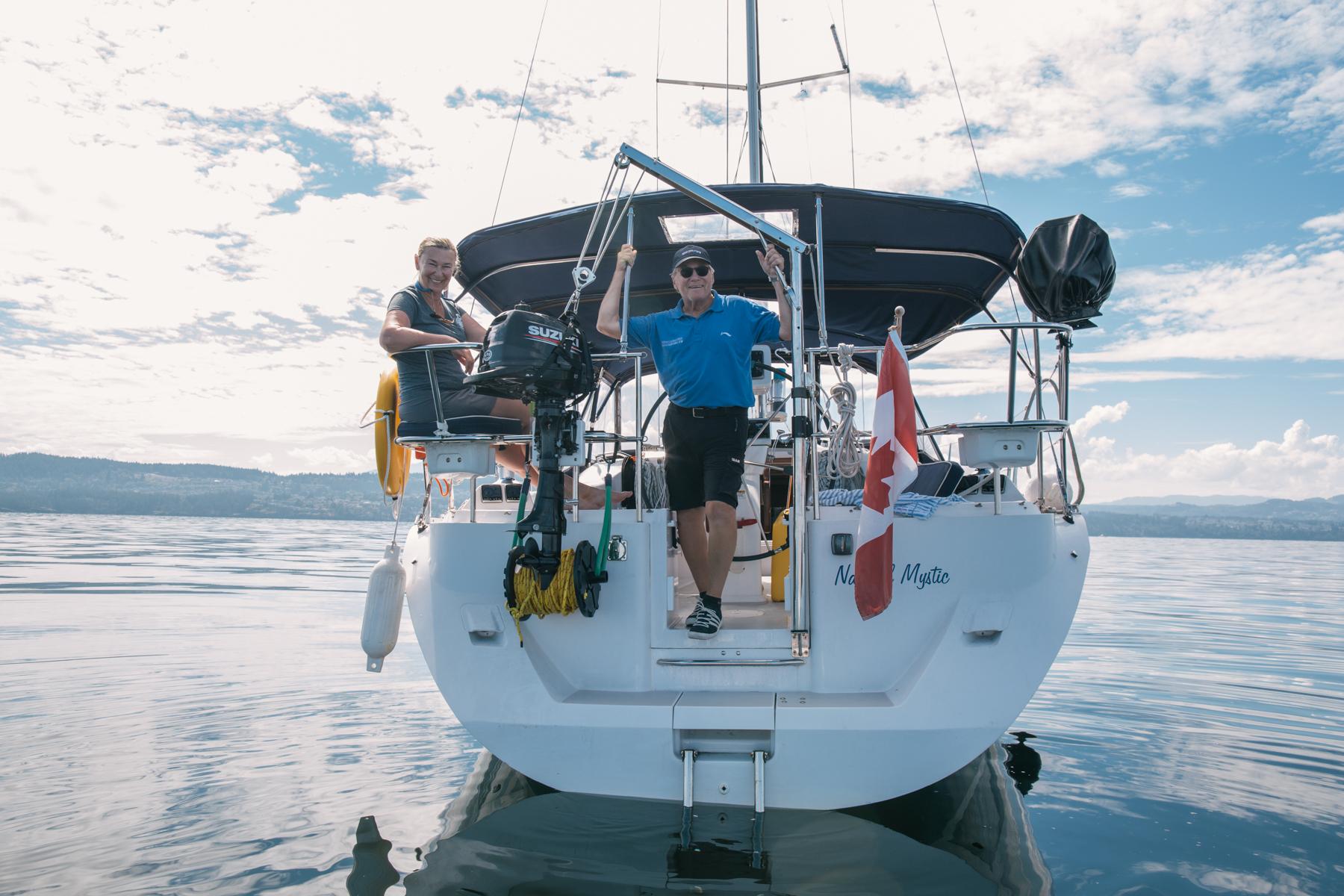

•  Suzuki 6hp 4-stroke outboard (2019)
•  Stainless steel o/b lifting crane at transom

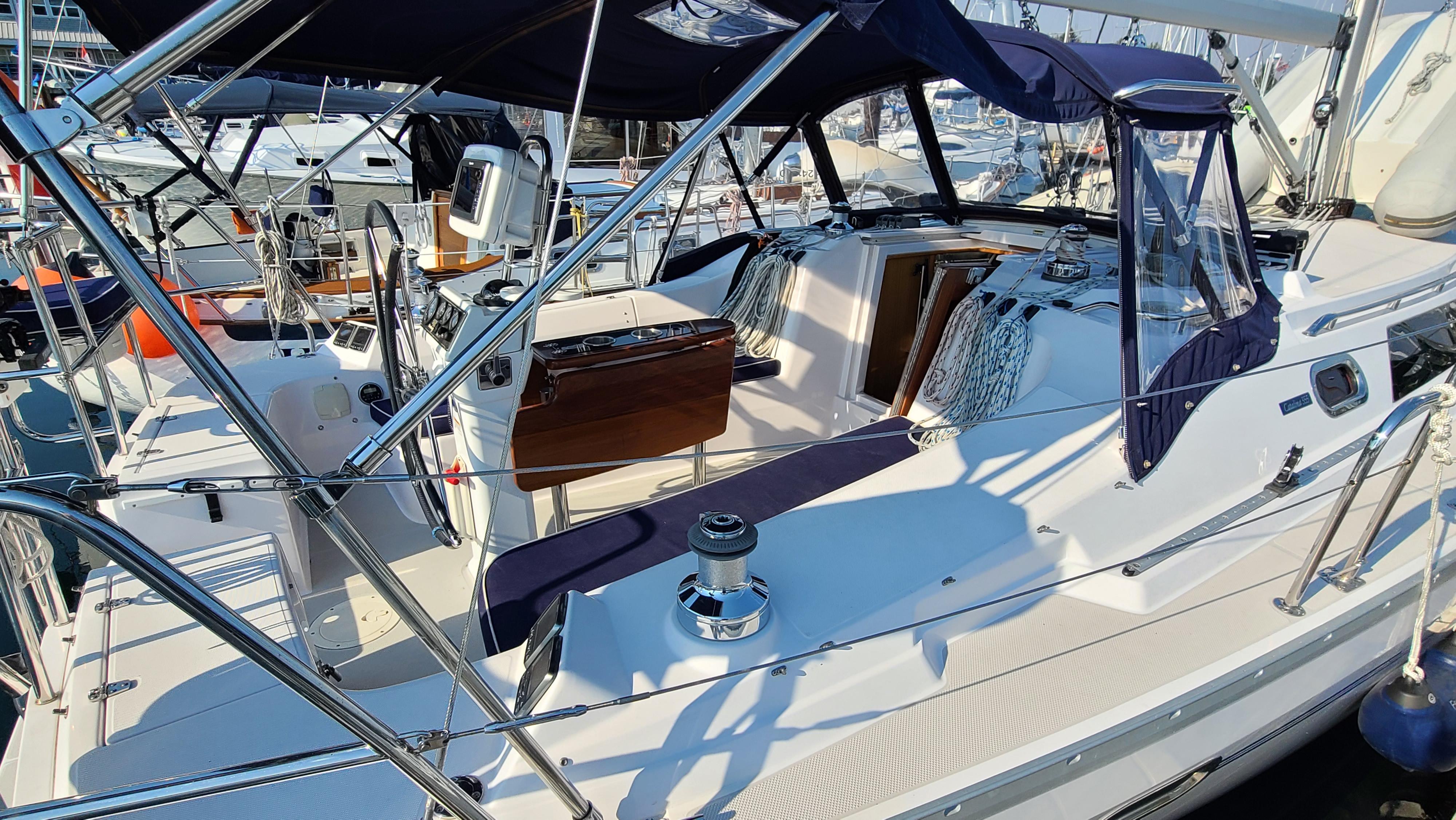

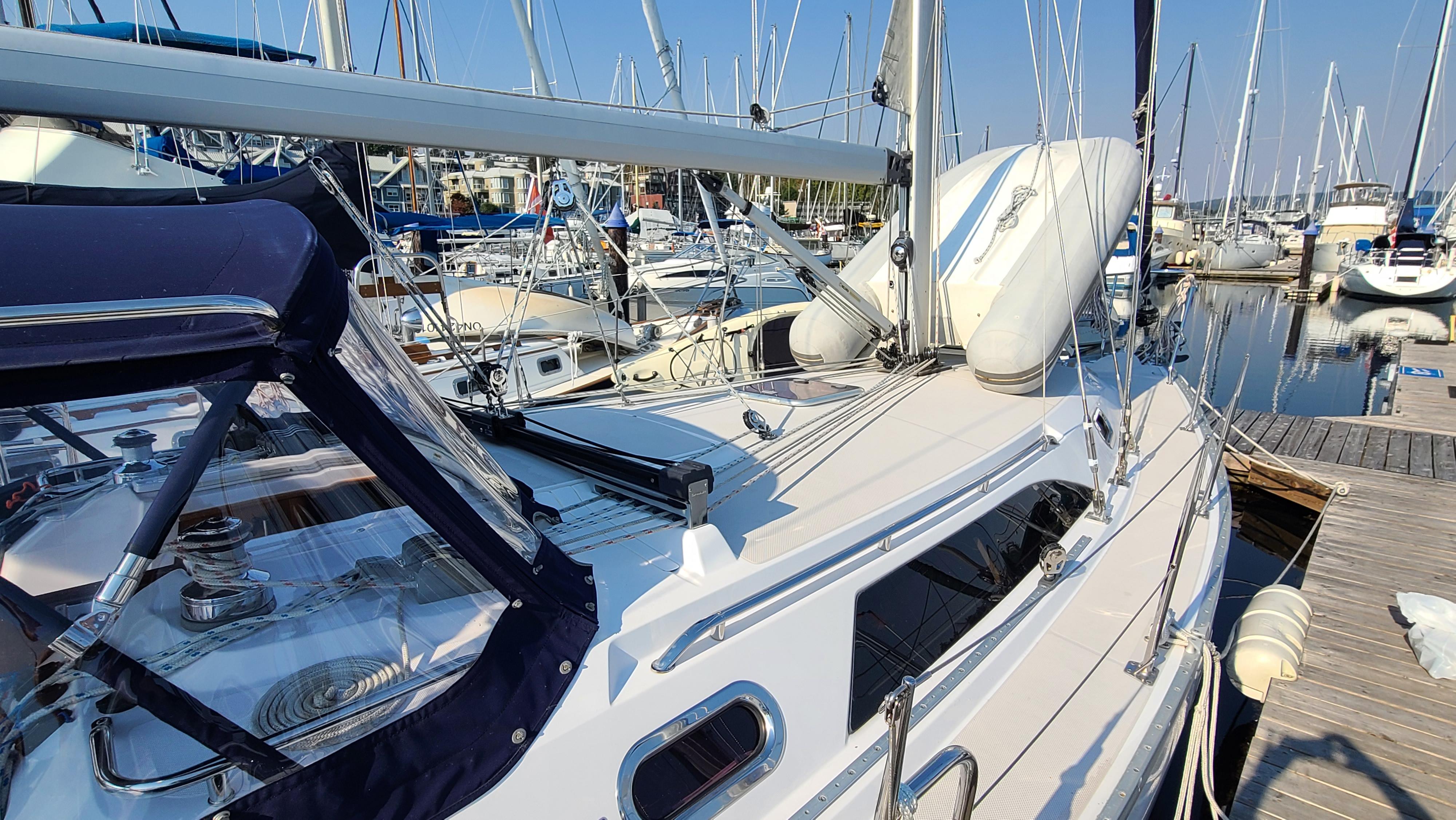

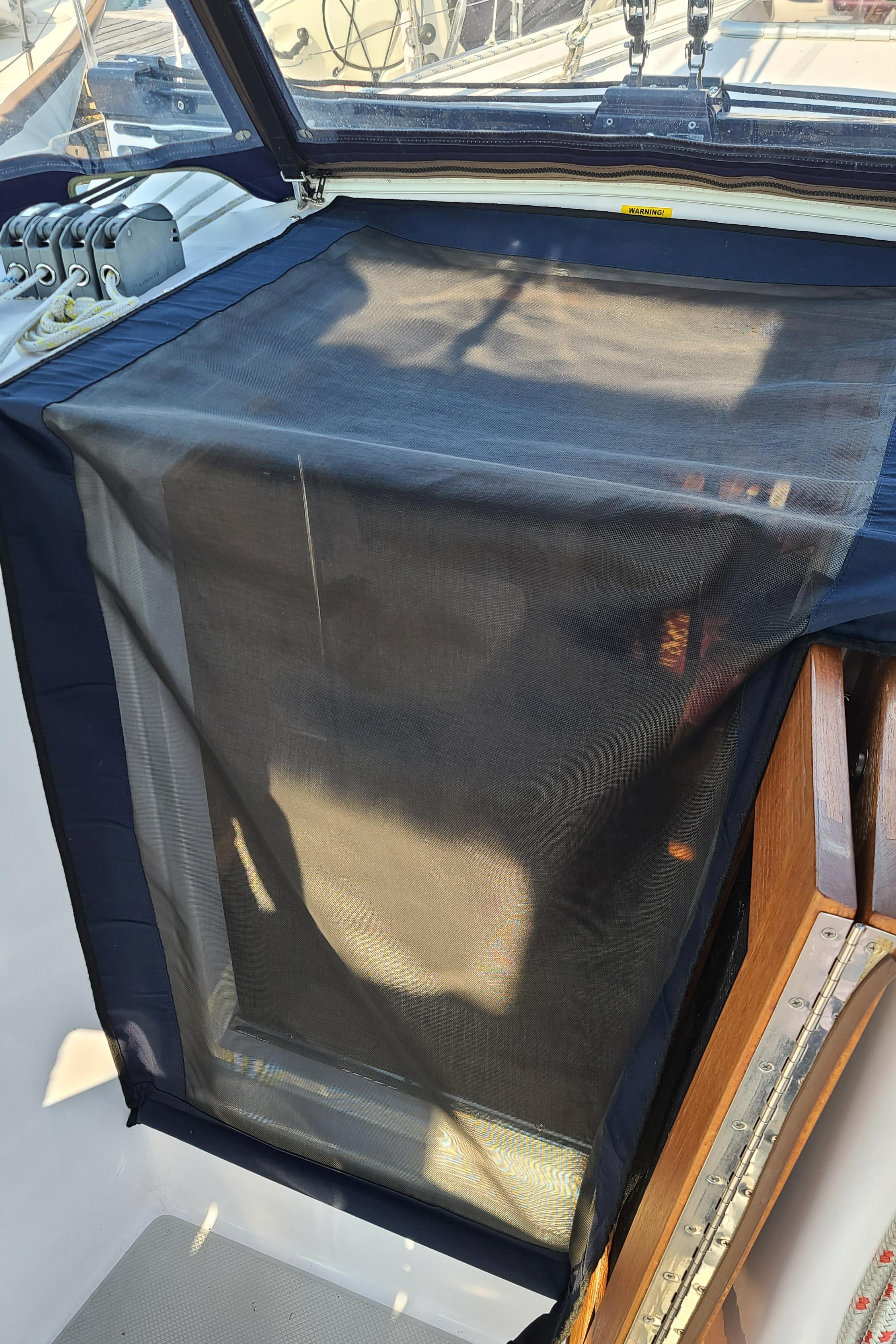

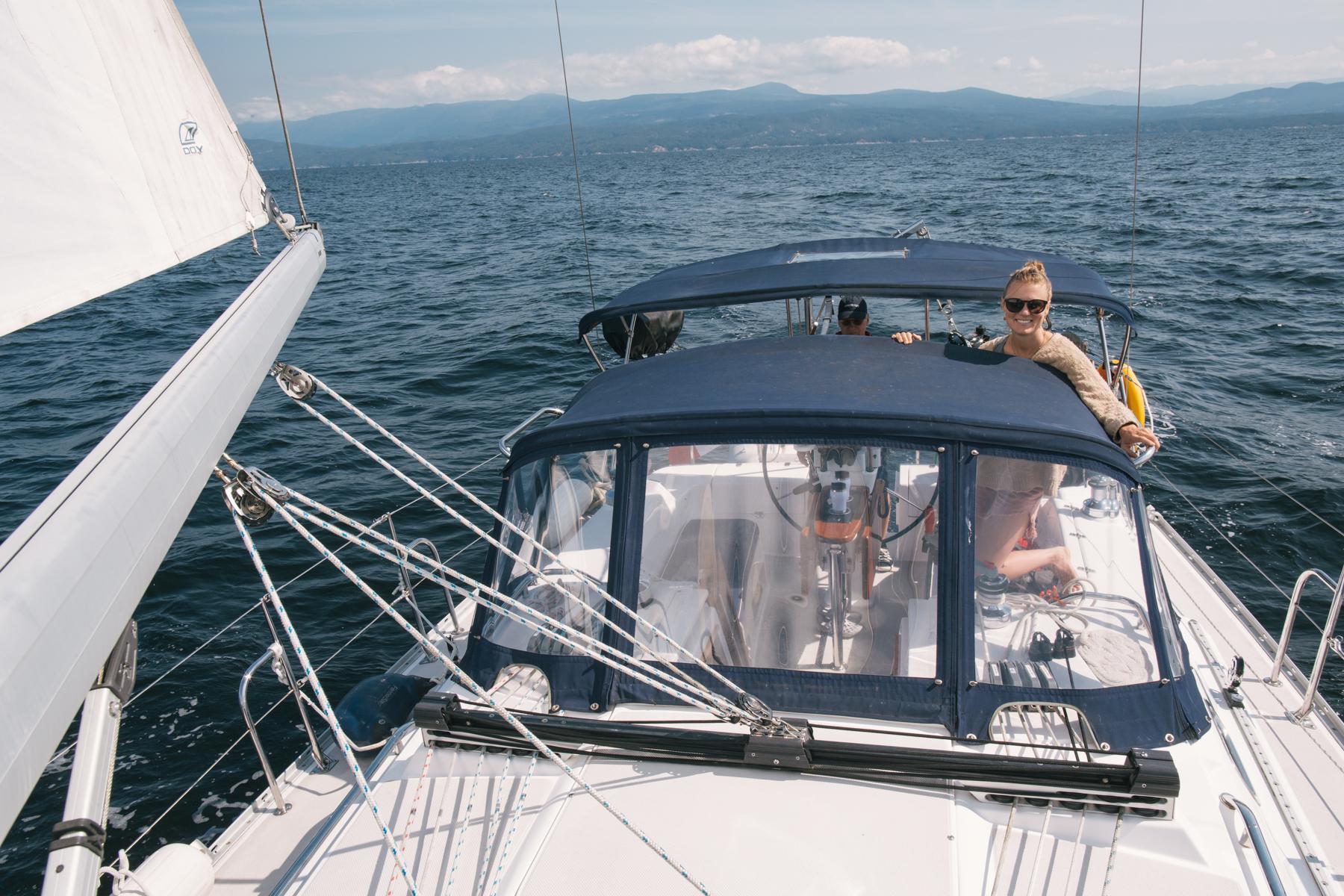

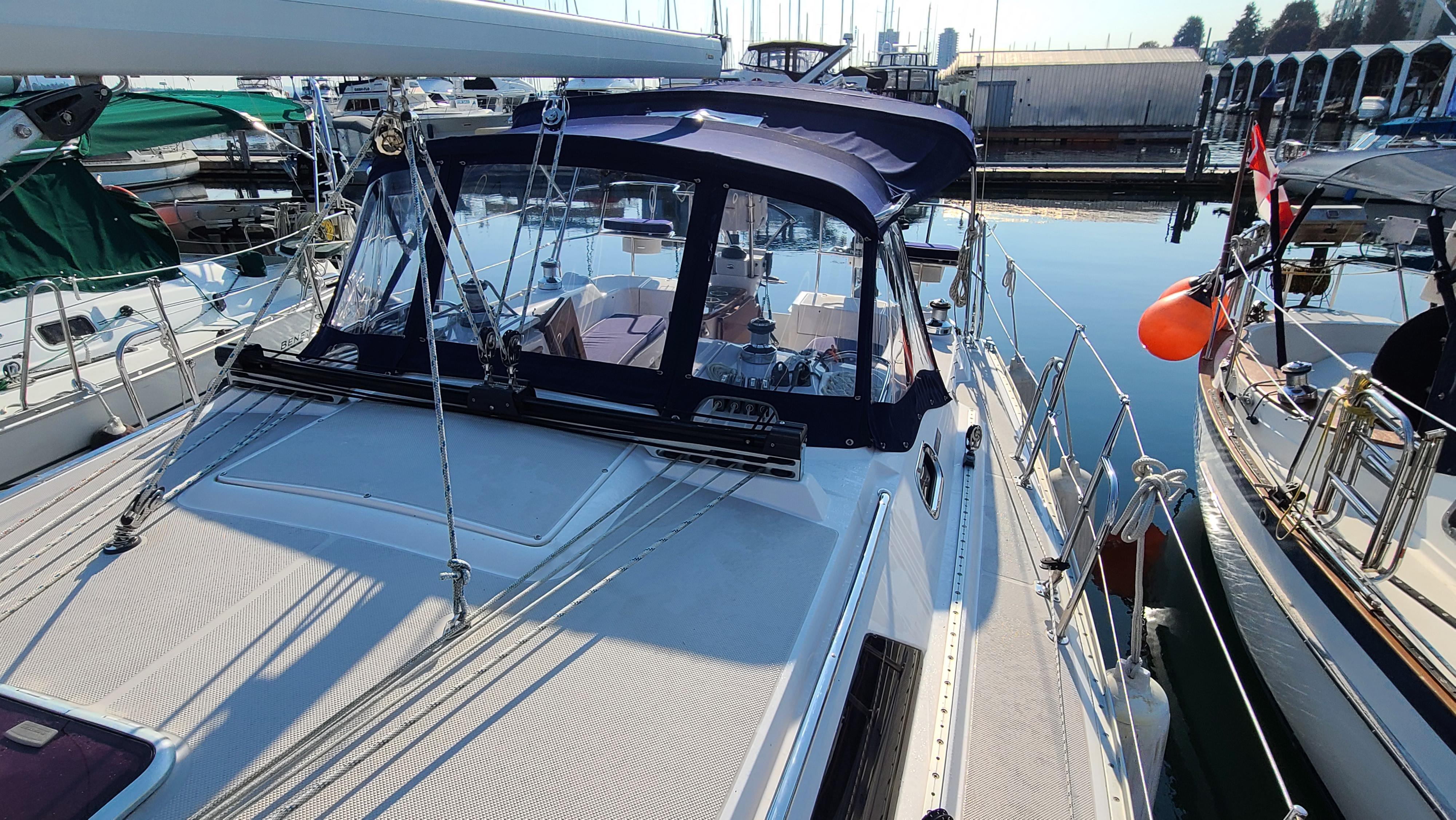

•  Custom dodger/bimini/full-enclosure with side handles, bugscreen, skyview windows and stainless steel frame
•  New Strataglass in dodger and overhead windows of bimini (2021)
•  Large double anchor roller
•  Bruce anchor with swivel, 200’ 5/16” chain, plus 200’ braided line

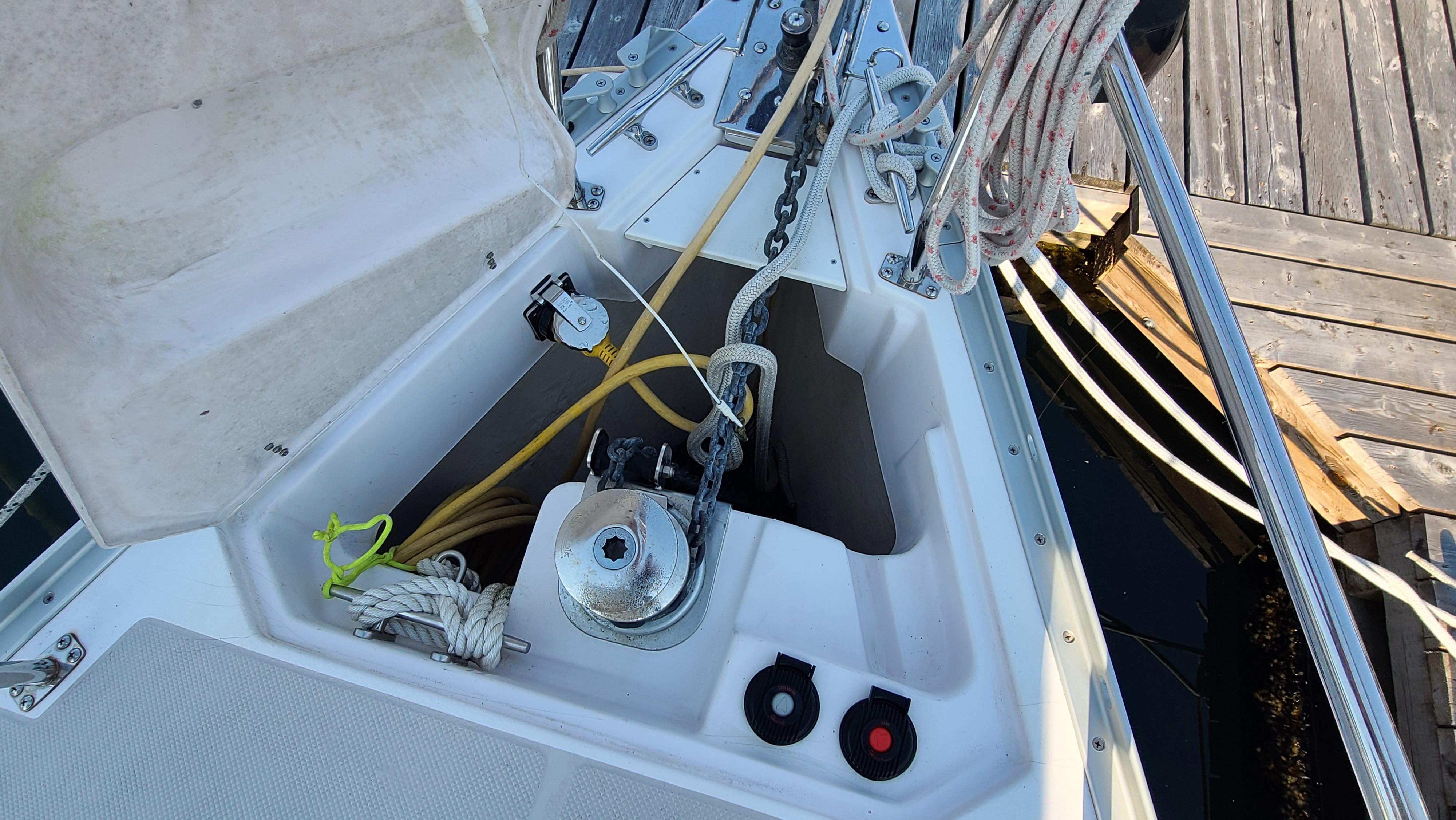

•  Electric windlass with foot switches

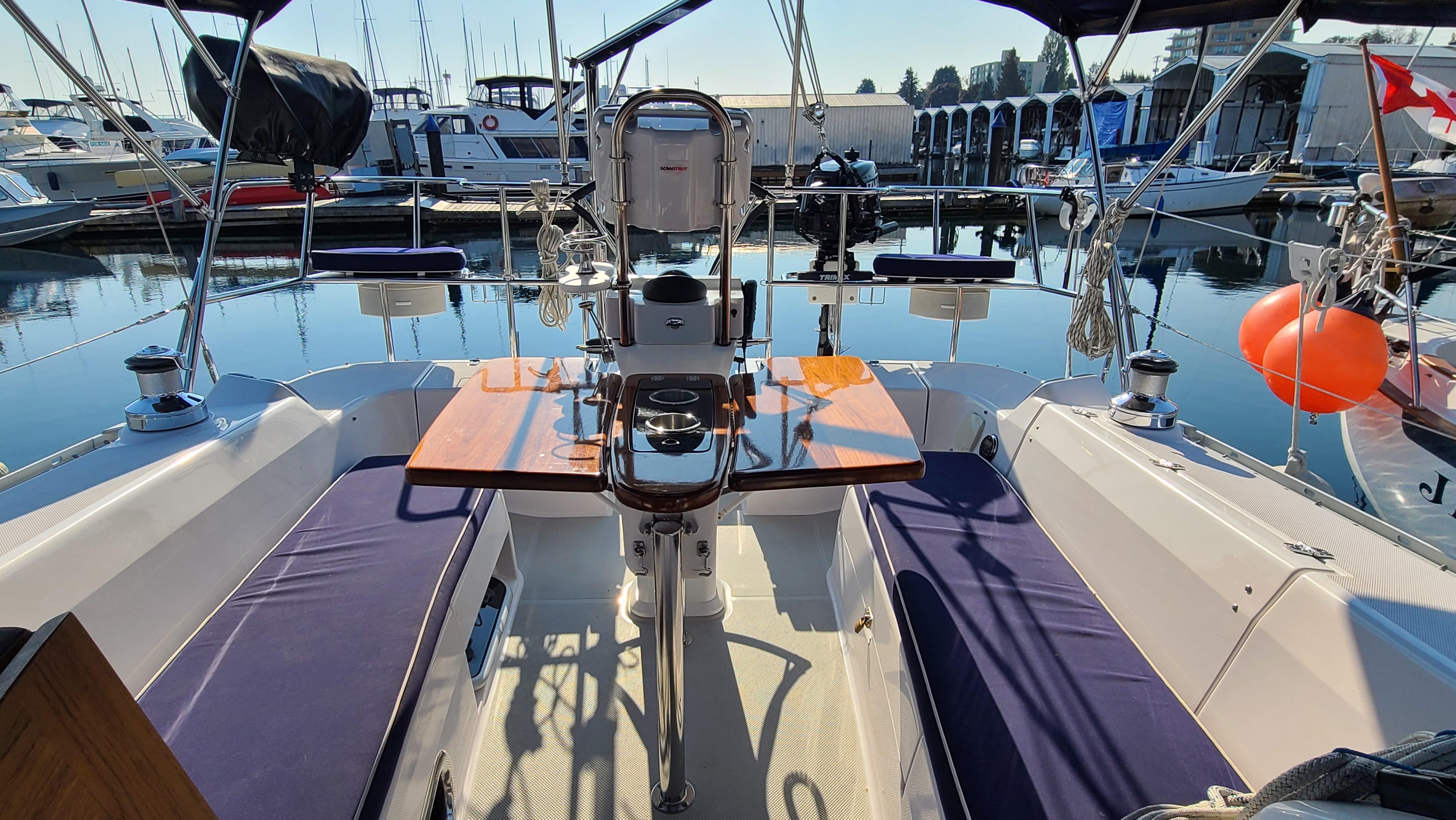

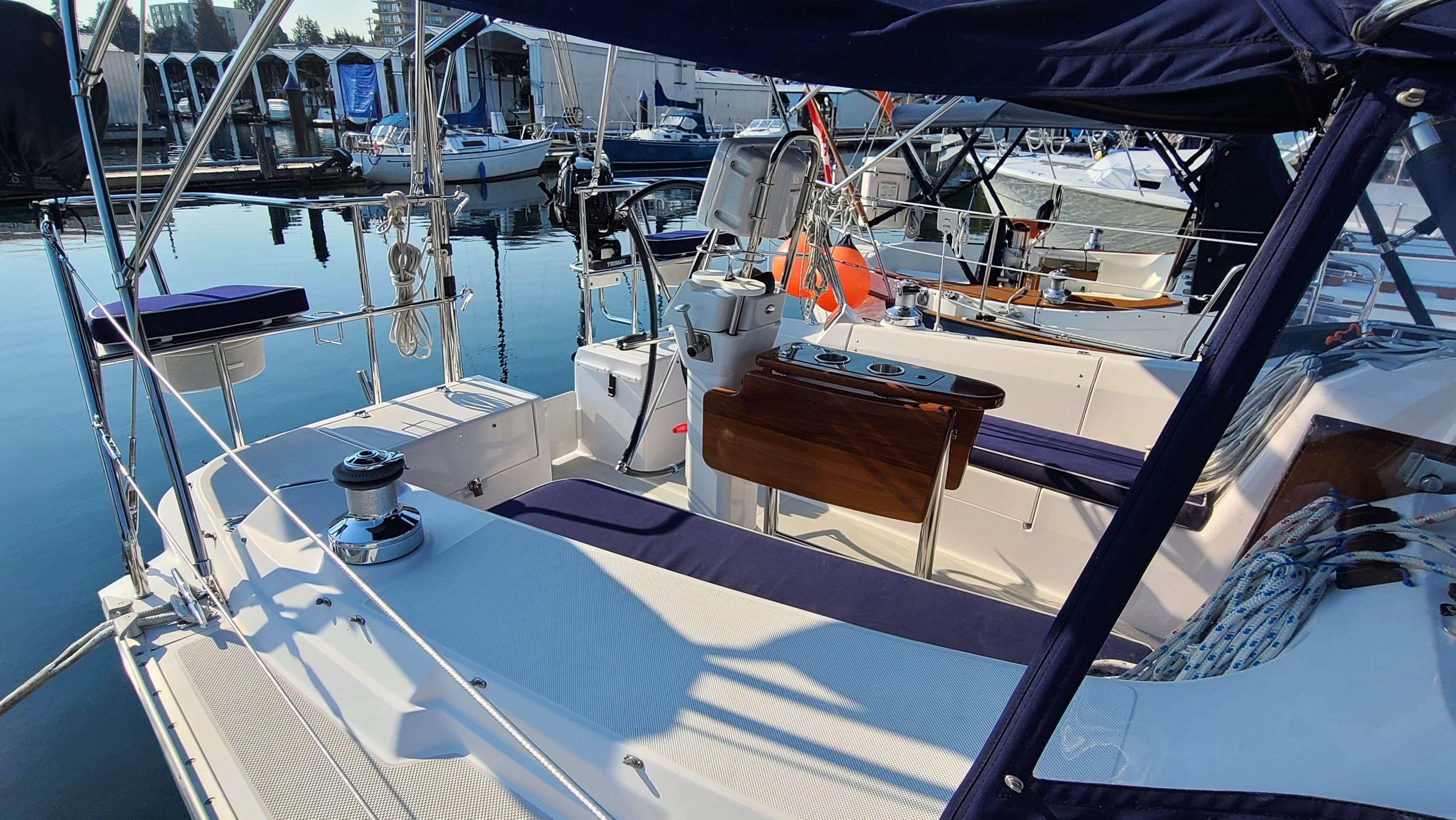

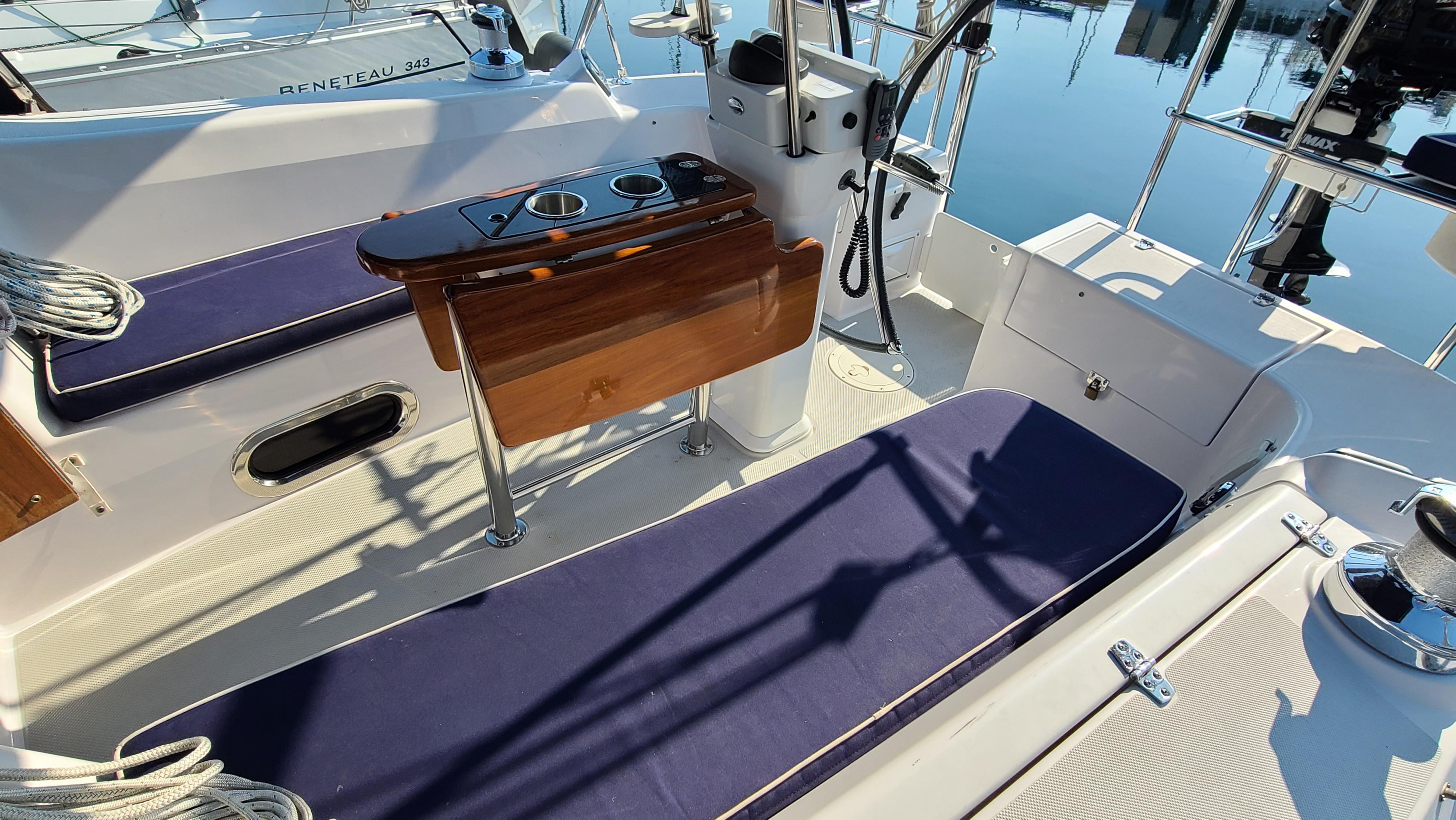

•  Solid teak drop-leaf cockpit table with centre storage
•  Additional shore power inlet in anchor locker
•  Catalina cockpit cushions (navy w/ white)
•  Hot/cold shower at swim platform
•  Stainless steel BBQ at stern rail
•  Fenders & docking lines
•  Winch handle pockets
•  Shore power cord with fittings at bow & stern

  MAINTENANCE NOTES

•  Epoxy barrier coat below waterline
•  Last haul out and bottom paint: April 2021 (Dived annually)
•  Last zincs change: Mar 2023
•  Last engine oil change: Spring 2022
•  No groundings or collisions
•  One previous owner.  No charter work.
