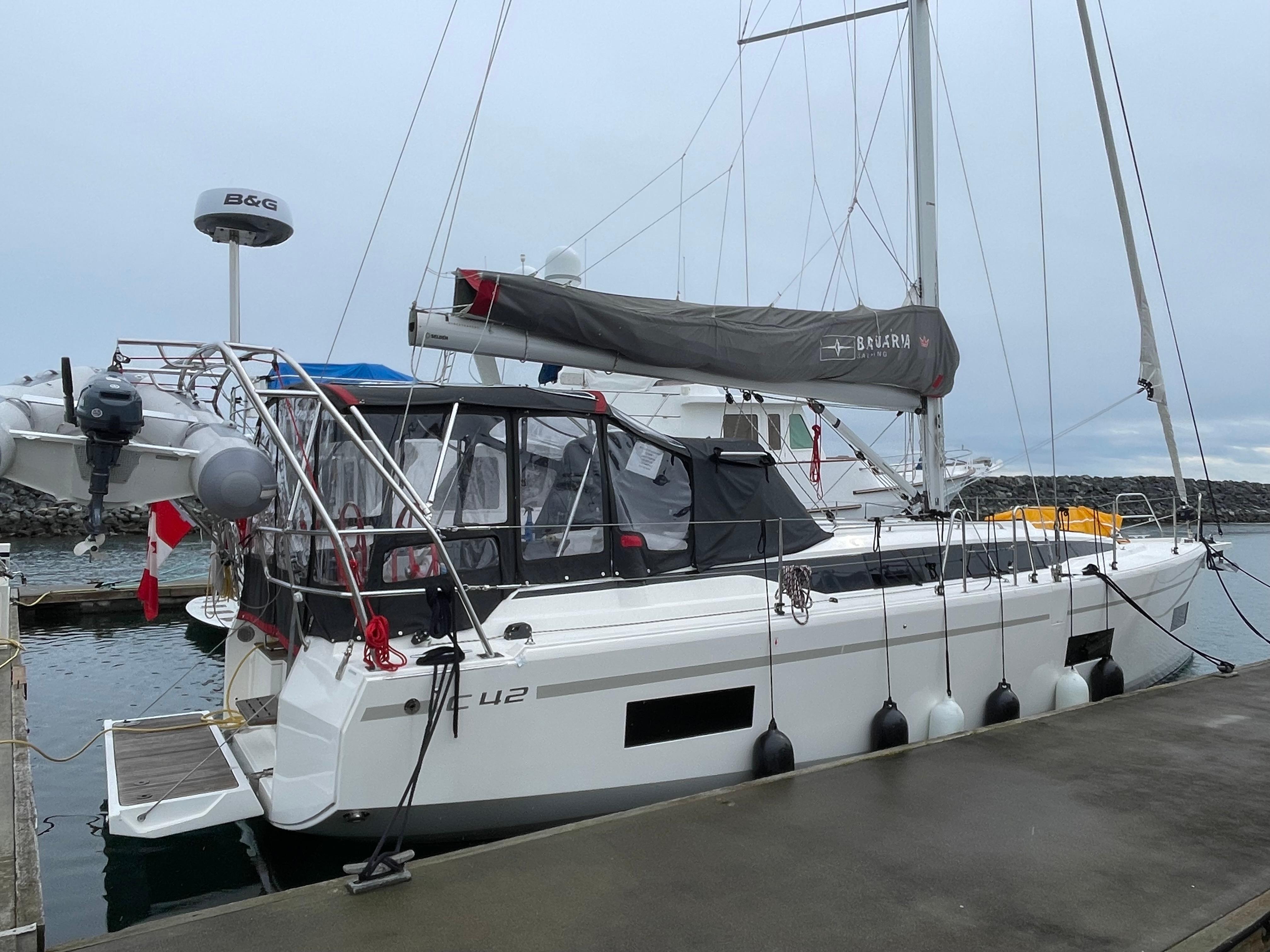

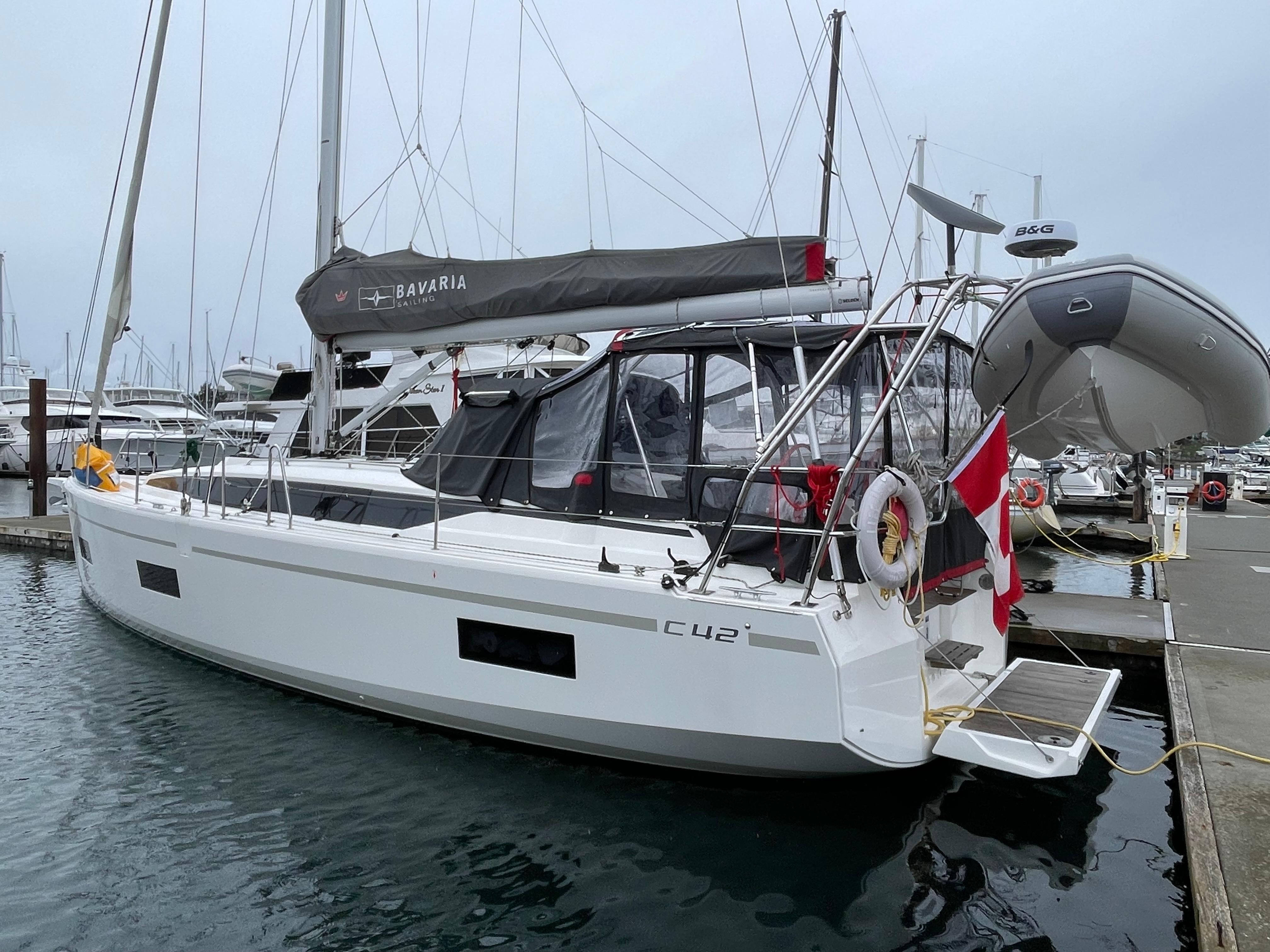

2021 Bavaria C42

2021 Bavaria C42   Specifications

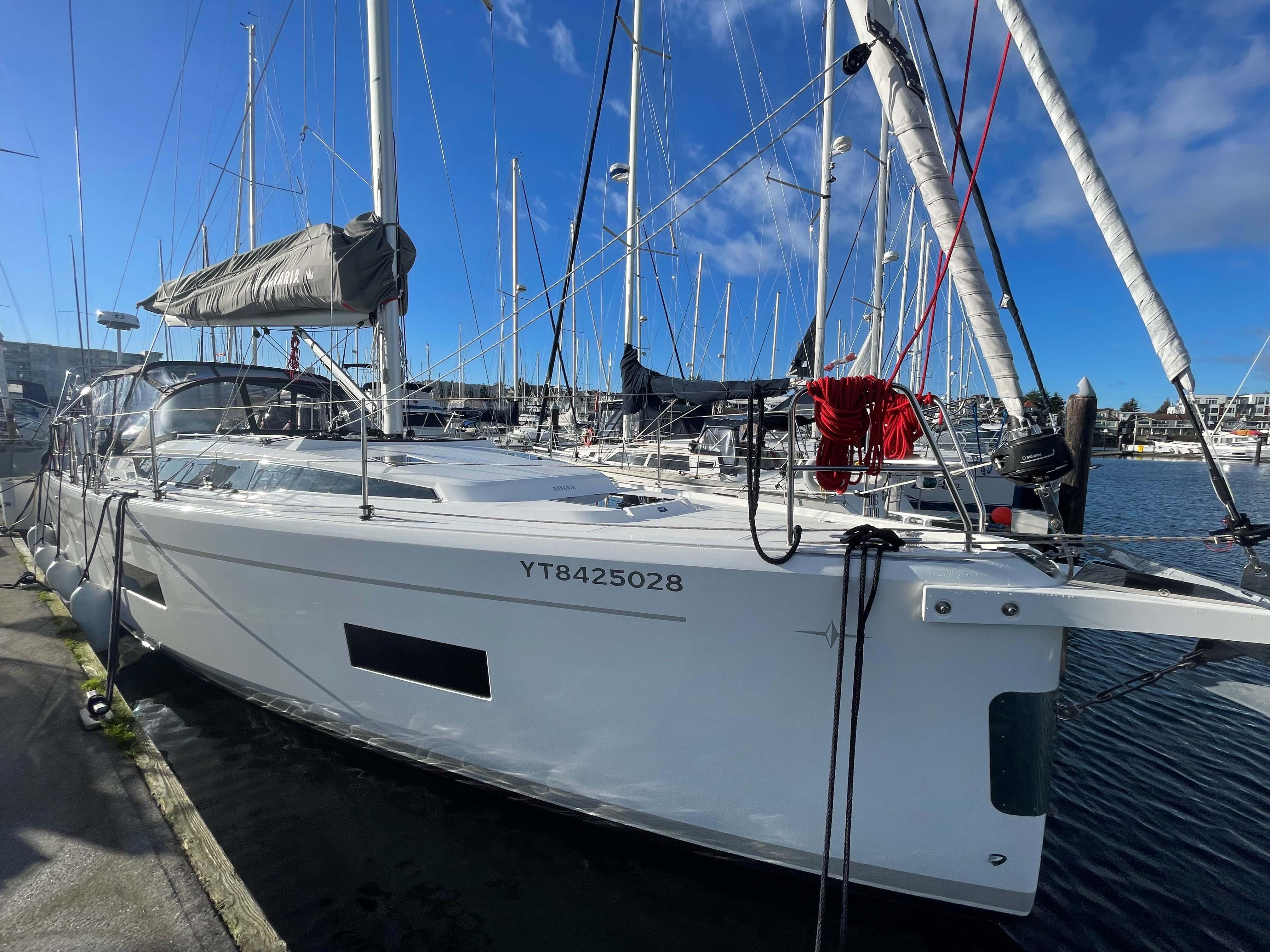

Bavaria C42

Name......................................... Life Full of Possibilities

Year...................................................................... 2022

Builder................................................... Bavaria Yachts

Designer...................................... Cossutti Yacht Design

LOA...................................................................... 40’7”

LWL...................................................................... 37’7”

Beam.................................................................... 14’1”

Draft........................................................................ 6’9”

Displacement.................................................. 22,200lbs

Ballast............................................................... 6541lbs

Sail Area ........................................................... 974sqft

Hull ...............................................................Fiberglass

Deck............................................................. Fiberglass

Steering............................................. Twin Jeffa wheels

Keel......................................................................... Fin

Rudder................................................................ Spade

Fuel...................................................................... 55gal

Water................................................................. 121gal

Hot Water......................................................... 20L/6gal

Holding Tank............................................... 70L/18.5gal

Heat..................................................... Diesel forced air

Headroom............................................................... 6’6”

CONSTRUCTION

• Hull: hand lay-up in E-glass with polyester resin and PVC foam core above waterline
• Reinforcement around shroud chainplates and in forward and aft compartments
• Stainless steel chainplates mounted on hull side with GRP cover for easy access
• Hull inner layer (grid) in hand lay-up in E-glass with polyester resin
• Deck: GRP deck with integrated footrail and non-skid surfaces, GRP deck inner liner with antireflex structure
• New V-Bow creating more volume forward, better trim
• Chines creating more volume and new look

INTERIOR

• Beautifully finished in “Walnut Elegant” cabinetry with “opus sand” leatherette upholstery and “Elm” wood sole
• 2 Cabin 1 head layout with pantry and utility room aft
• The innovative hull design opens up the interior creating incredible volume in the salon, galley and cabins
• Plenty of daylight shines in through large side windows and opening ports, hull windows and hatches
• Curtains for coachroof and hull windows, blinds and mosquito nets for hatches
• Upgraded to “Style Package: Fabric covered ceiling panels, headboard for berth, small mirror at boaw and full height mirror in owners cabin, ambient lights in ceiling panel and below upper cupboards in salon
• 3 additional portlights for coachroof windows in salon
• Heat: Webasto diesel forced air, salon, cabins and head

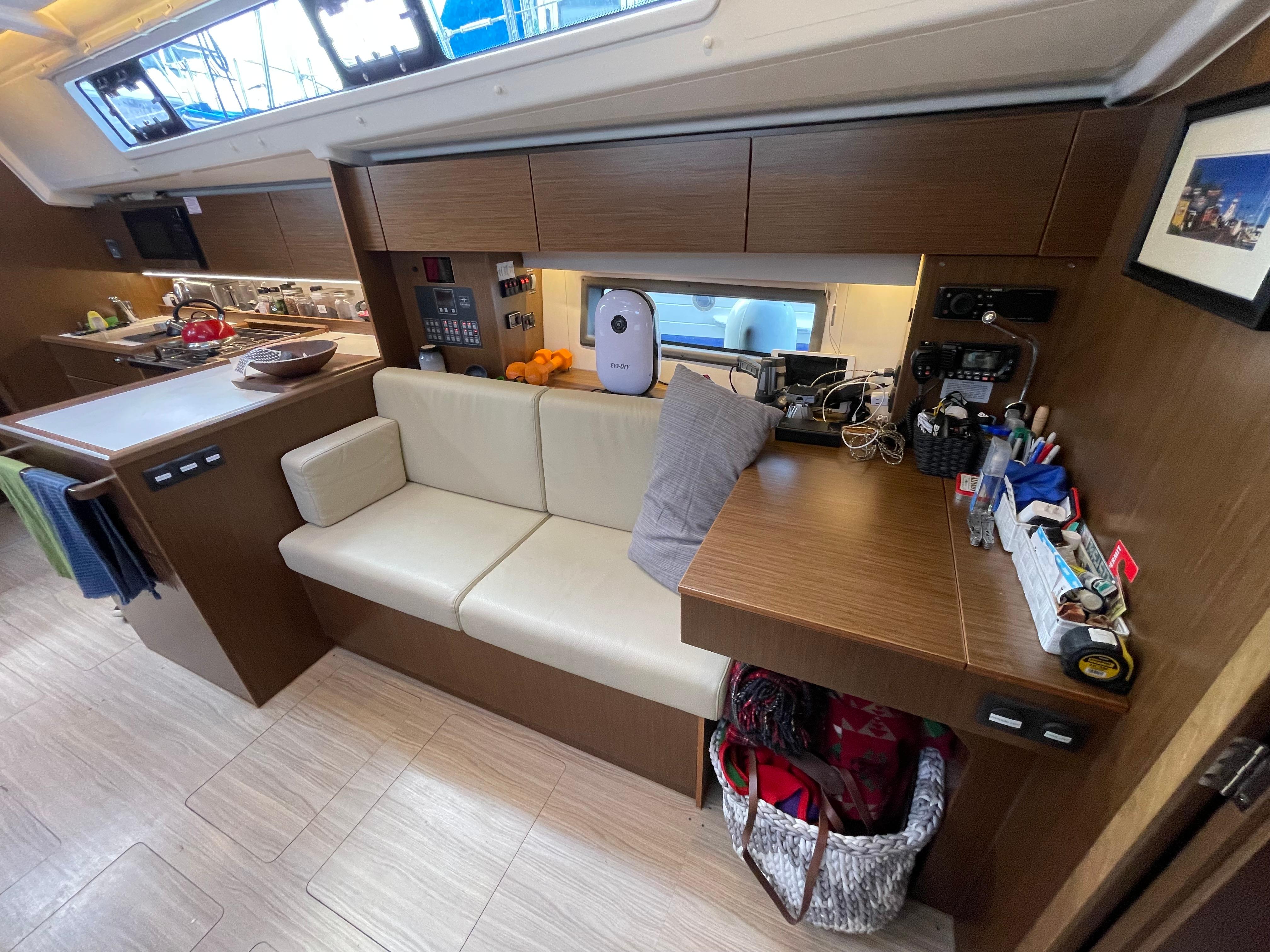

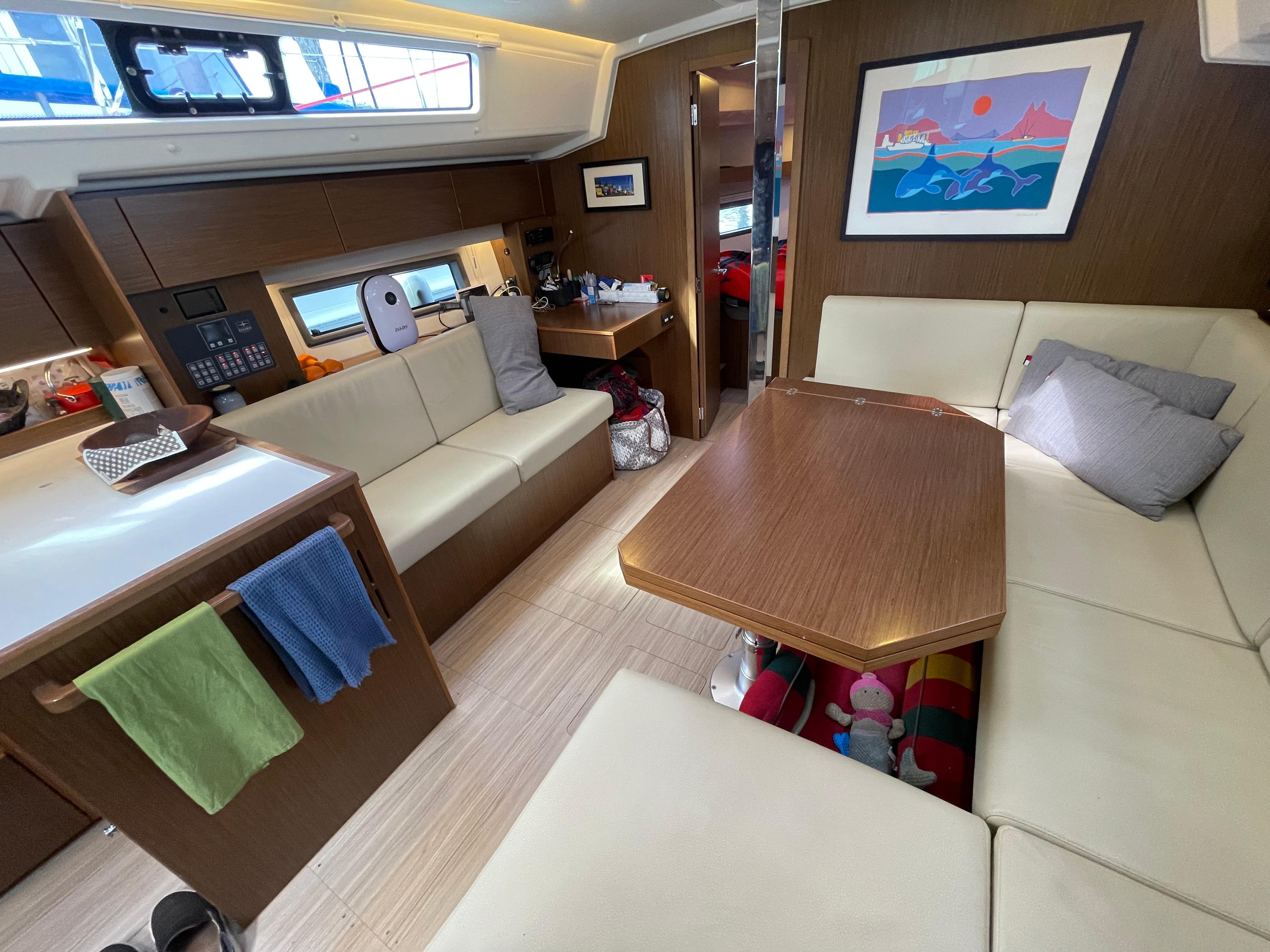

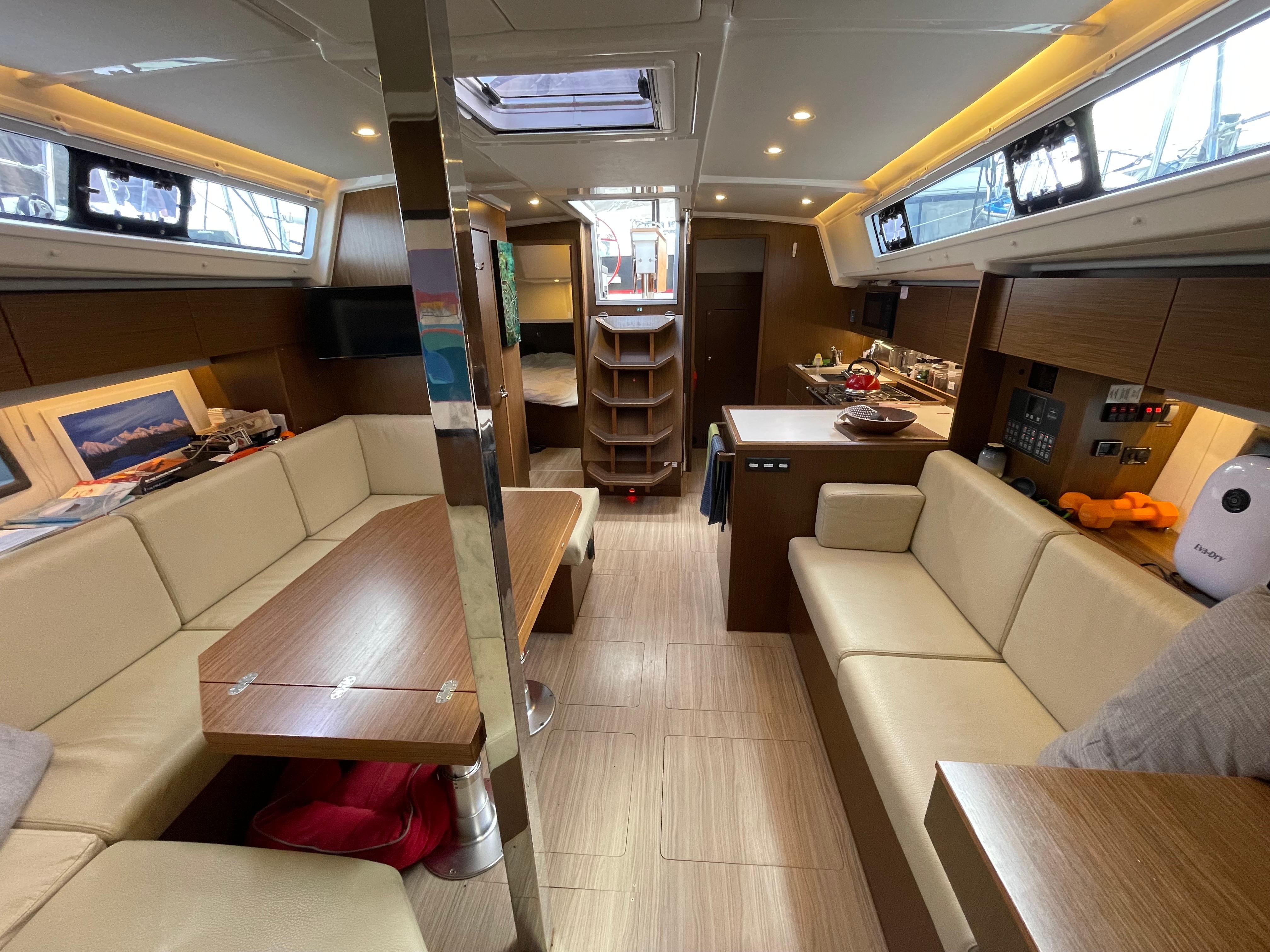

• Salon: forward of the galley features a sofa to port with the chart table forward of it.

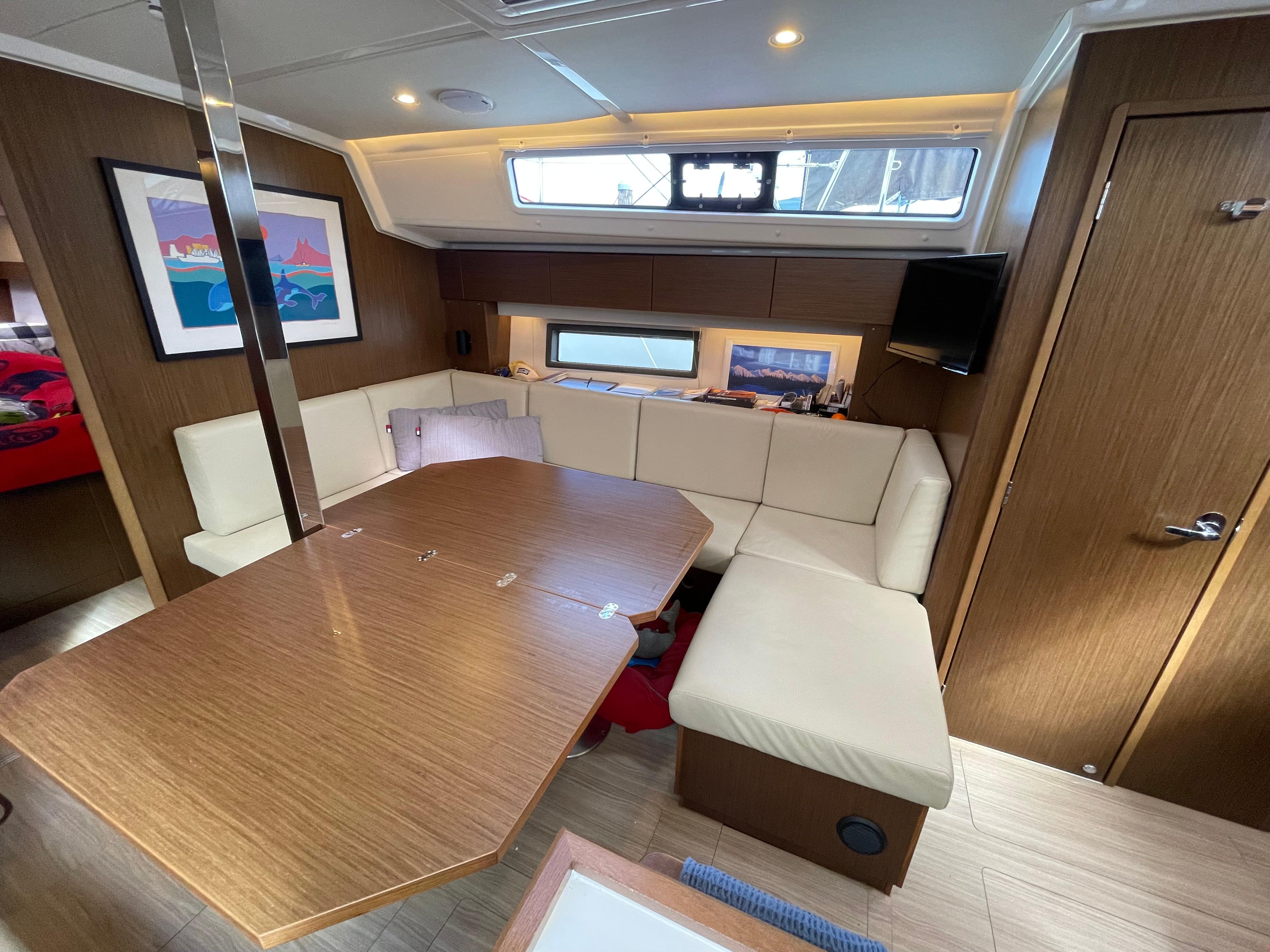

• U-shaped dinette to starboard with a large table that folds open to the bench seat allowing eight people to enjoy a meal together.
• Table lowers with filler cushion creating a double berth
• Hanging lockers outboard of settees and storage under settees

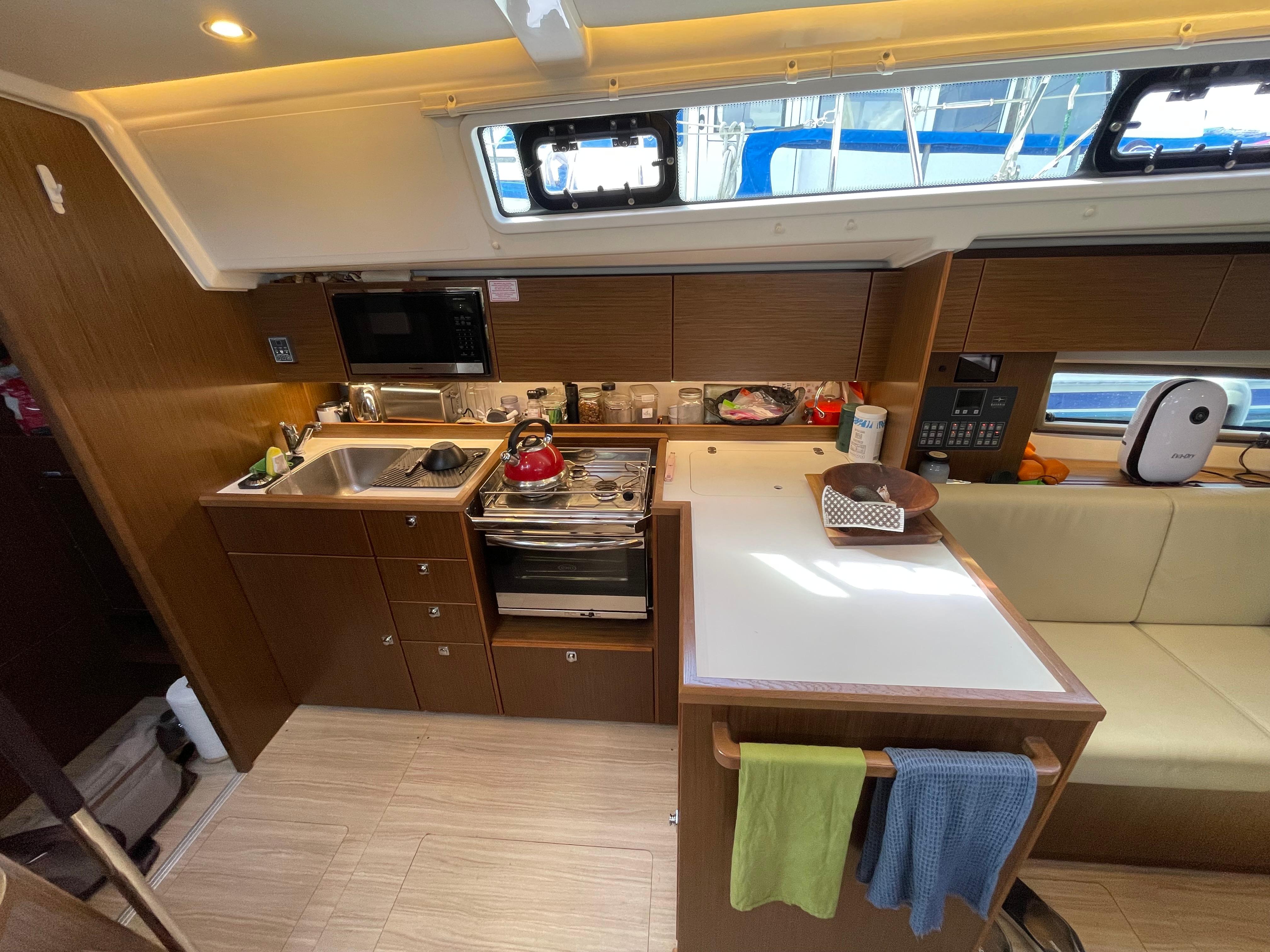

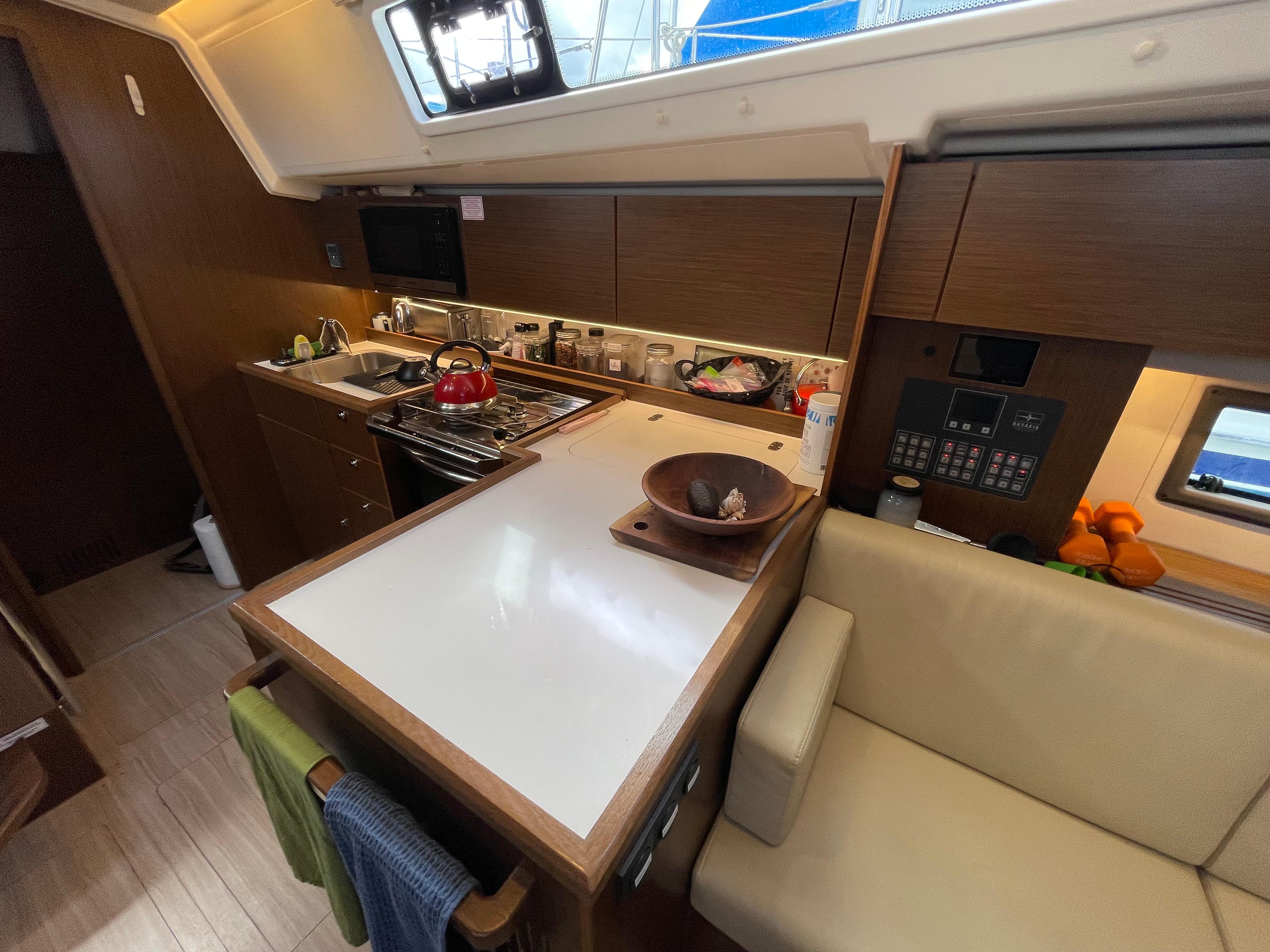

• Galley: L-shaped to port with large countertop in white, large deep top loading storage, sink with mixing faucet
• Undercounter front loading fridge, 110L
• Additional draw freezer 35L, in pantry
• 2 burner with oven propane stove
• Microwave
• Cupboards and 4 drawers below counter, upper cupboard

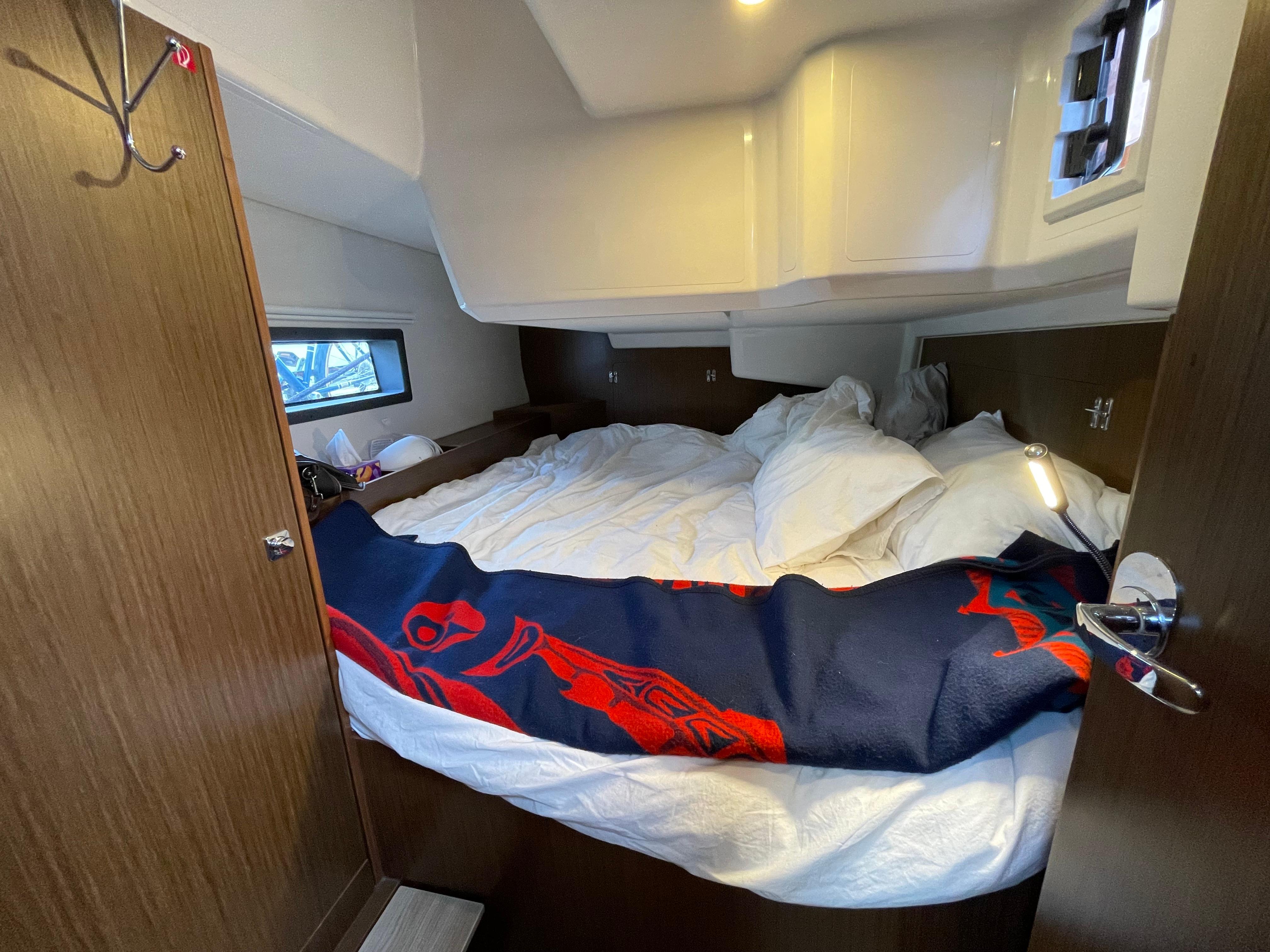

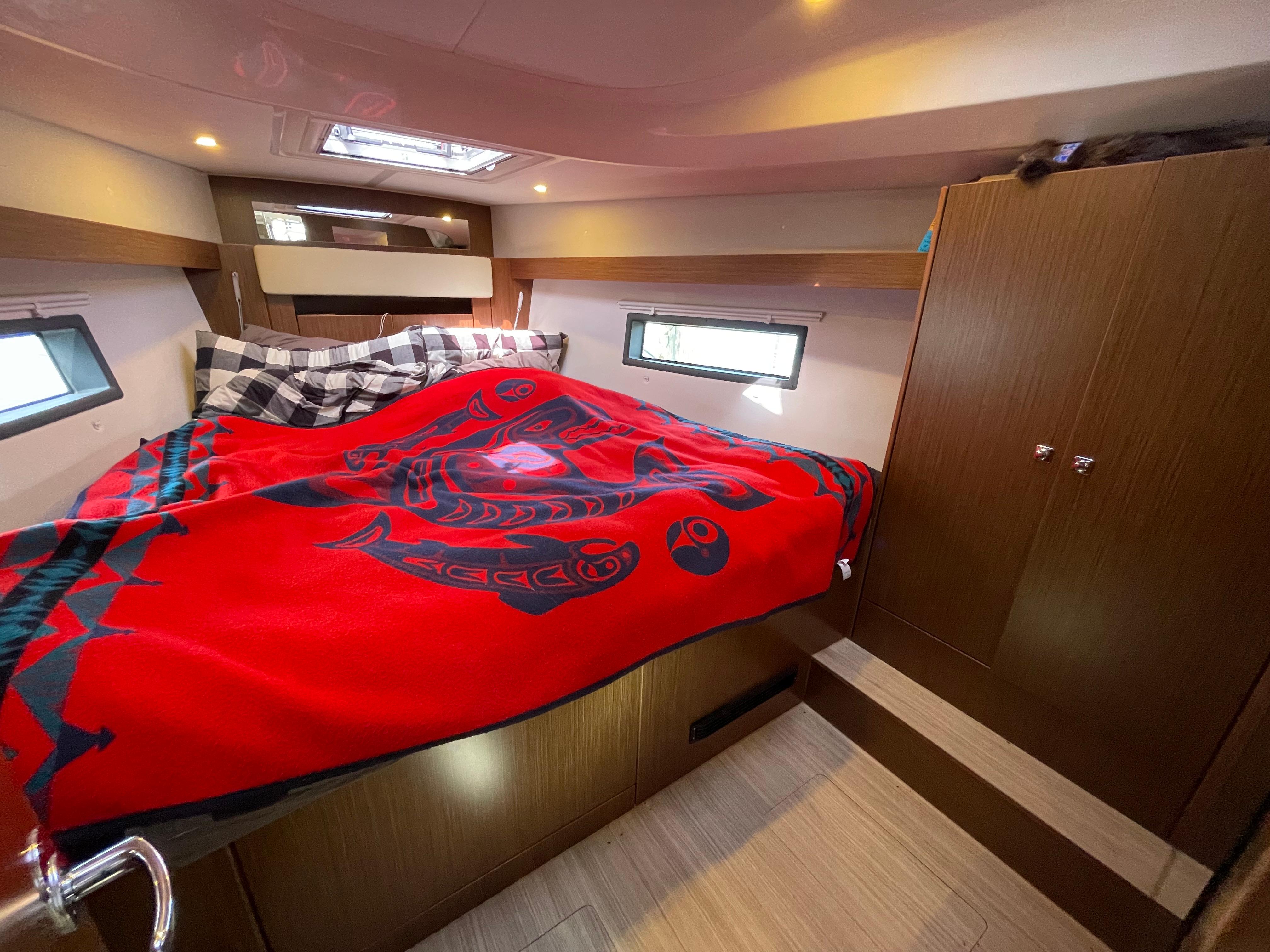

• Master Cabin: forward features a bed almost king size, allowing to sleep with your head forward
• Luxury cold foam mattress with memory top
• Huge twin door cupboards on both sides with hanging space and shelves, additional storage fwd of the bed
• Shelves on either side of the bed
• Hull windows with blinds
• Hatch above the bed and two smaller hatches for side ventilation
• Reading lights with USB ports, LED spotlights
• Aft Cabin: Double berth to starboard
• Large cupboard with hanging space and shelves
• Shelves above bed side
• Reading lights with USB port and LED spotlights, 110V socket next to bed
• Hull side window, opening hatch for ventilation

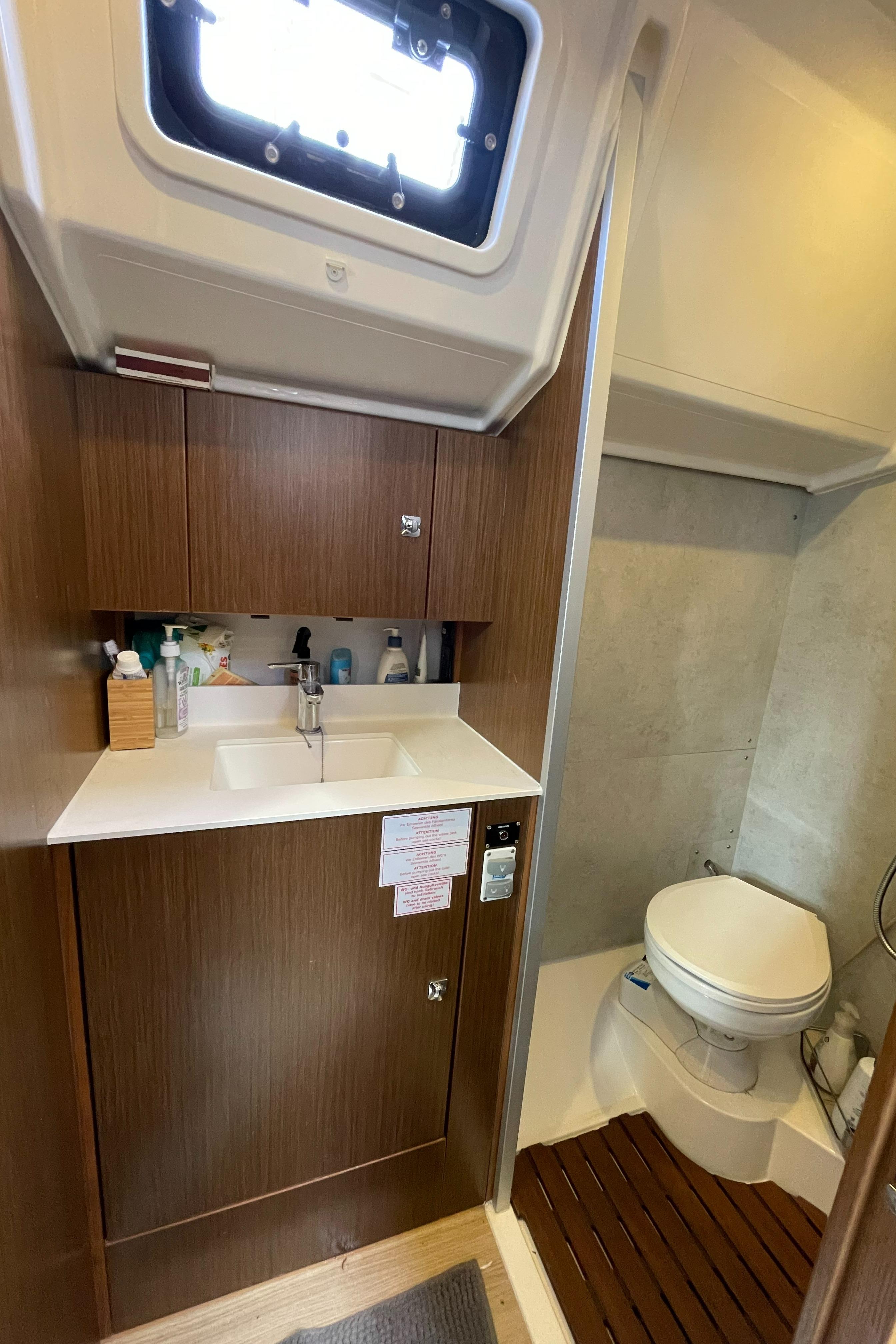

• Head: large compartment to starboard featuring a separate shower stall with toilet allowing you to use the toilet as seat while showering, glass shower door
• Vanity with sink, storage overhead with mirror and storage below vanity, opening port
• Electric toilet with freshwater flush, gravity fed holding tank

MECHANICAL

• Yanmar 4JH57, upgraded 57hp, 1018 hours
• Saildrive with Volvo
• 3 Blade Volvo folding prop
• Tunnel Bow Thruster: Sidepower
• Racor fuel filter plus two standard filters

ELECTRICAL + PLUMBING

• 30 amp shore power
• 110VAC/12VDC with distribution panels
• House Batteries: 2 x AGM, 180ah
• Start Battery: 1 x AGM
• Anchor windlass battery: AGM 95Ah
• Bow Thruster Battery: AGM 95Ah
• Anchor windlass battery, 12V 95Ah AGM
• Inverter: Victron 2000w 80A charger

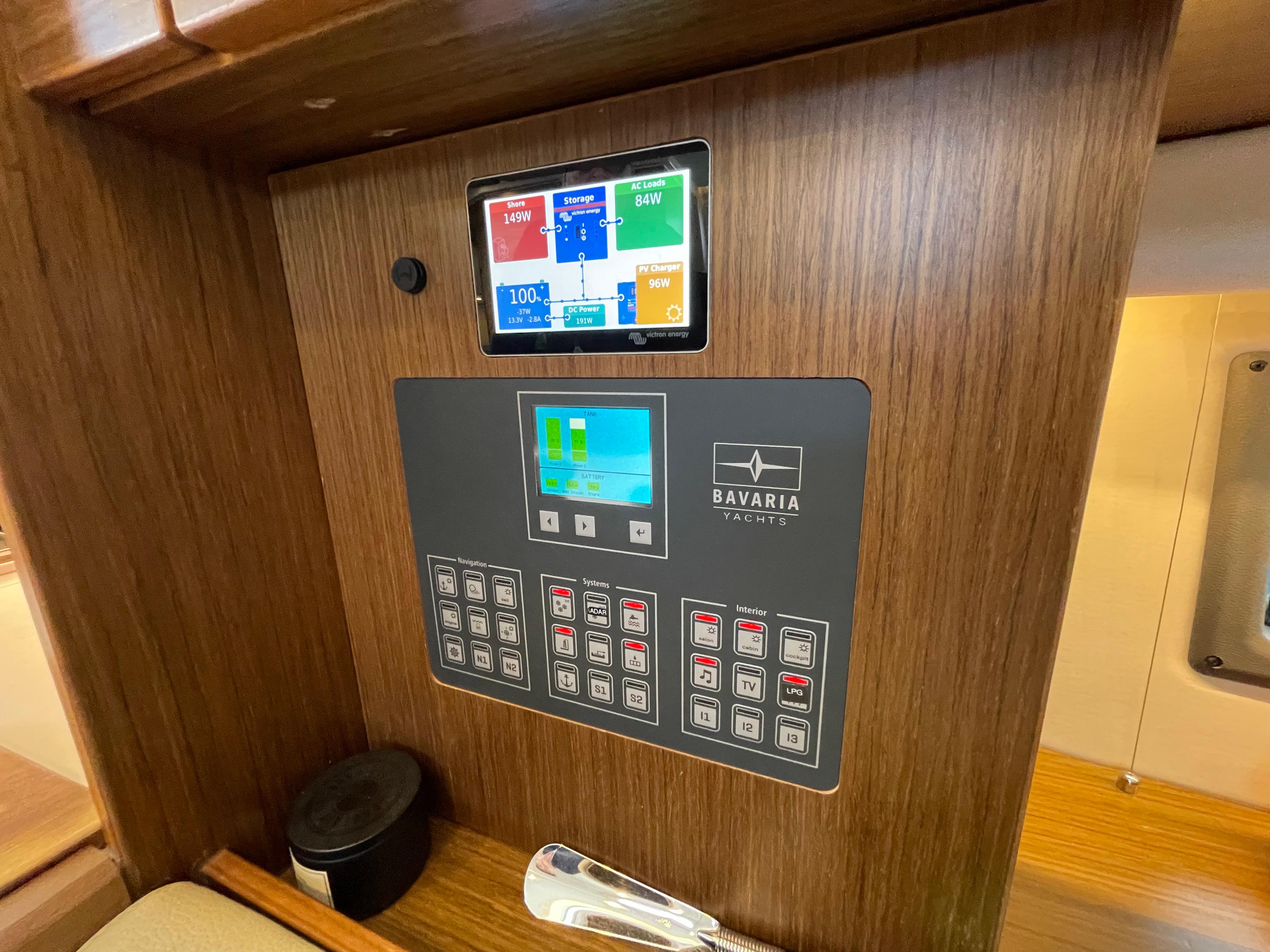

• Victron GX Touch 50 controller

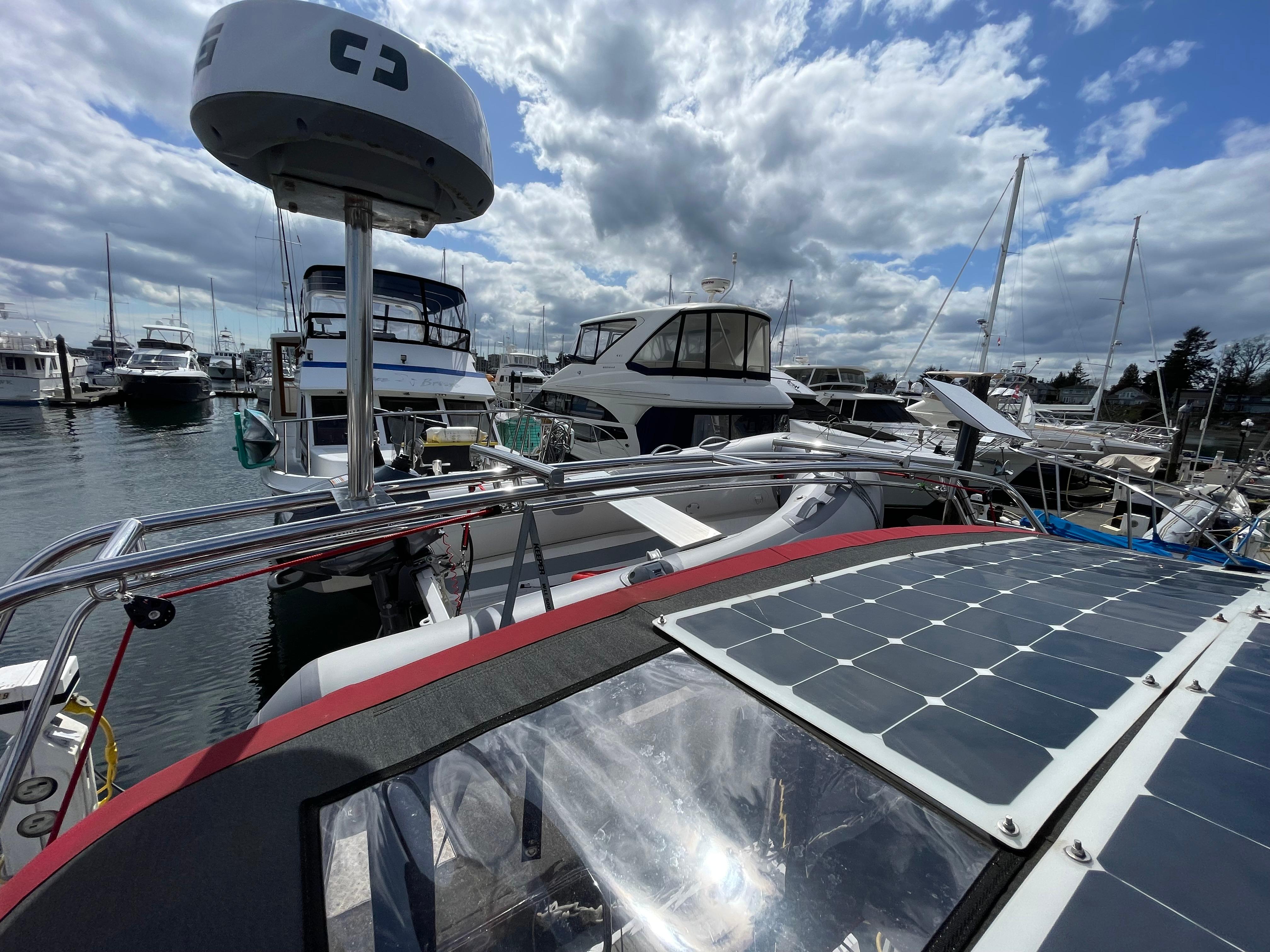

• Solar Panels: 6 x 110W flexible
• Victron MPPT solar controllers
• LED Navigation lights
• Upgrade 2 x water tanks, 250L forward 208L aft
• Electric toilet with fresh water flush
• LED indicator when holding tank is 80% full
• Hot water tank heated by engine or 110V
• Electric and manual bilge pumps
• 70L holding tank, discharge via deck or gravity fed overboard, toilet can discharge directly overboard

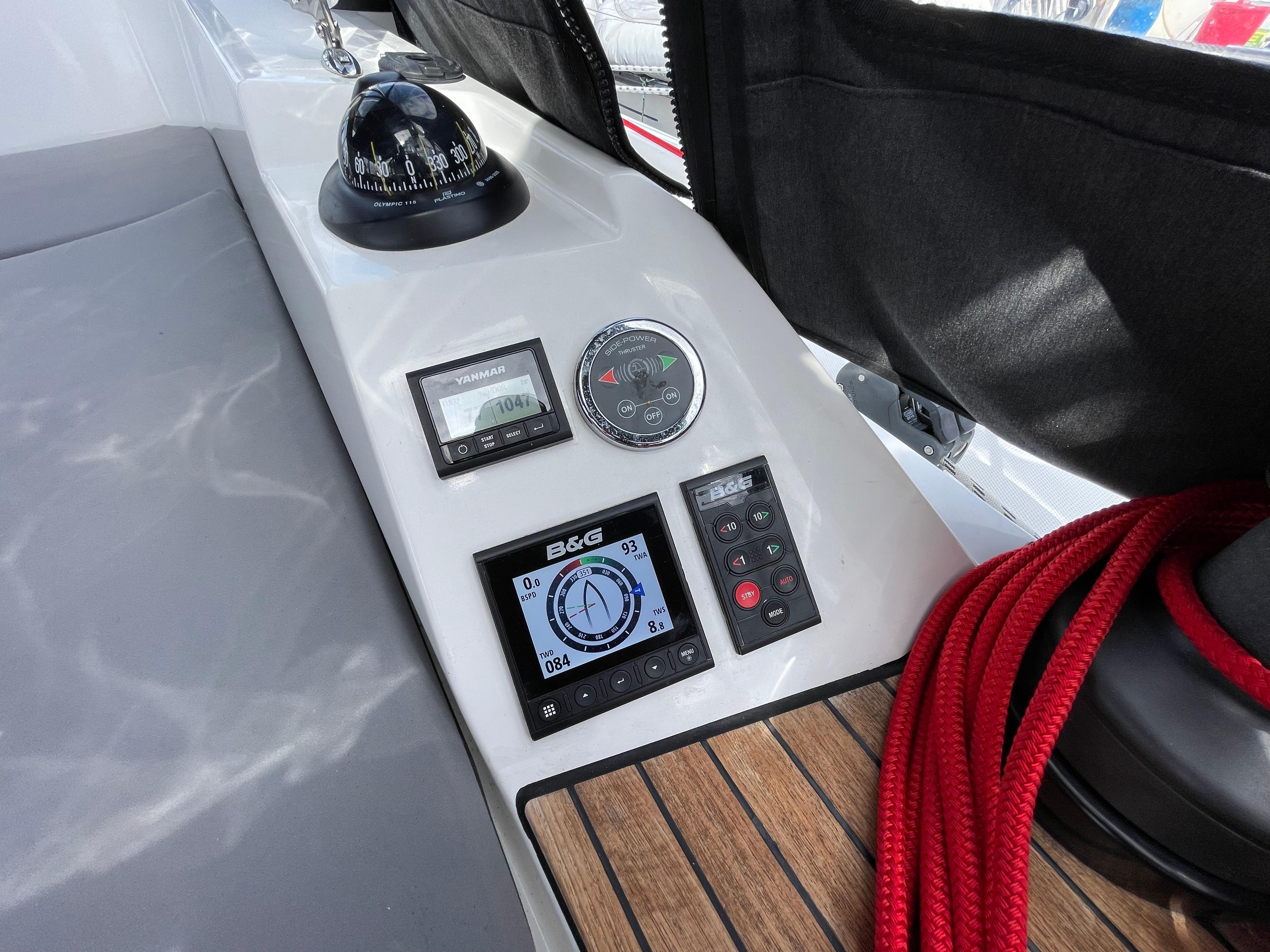

INSTRUMENTS

• Upgraded to Advanced navigation package:

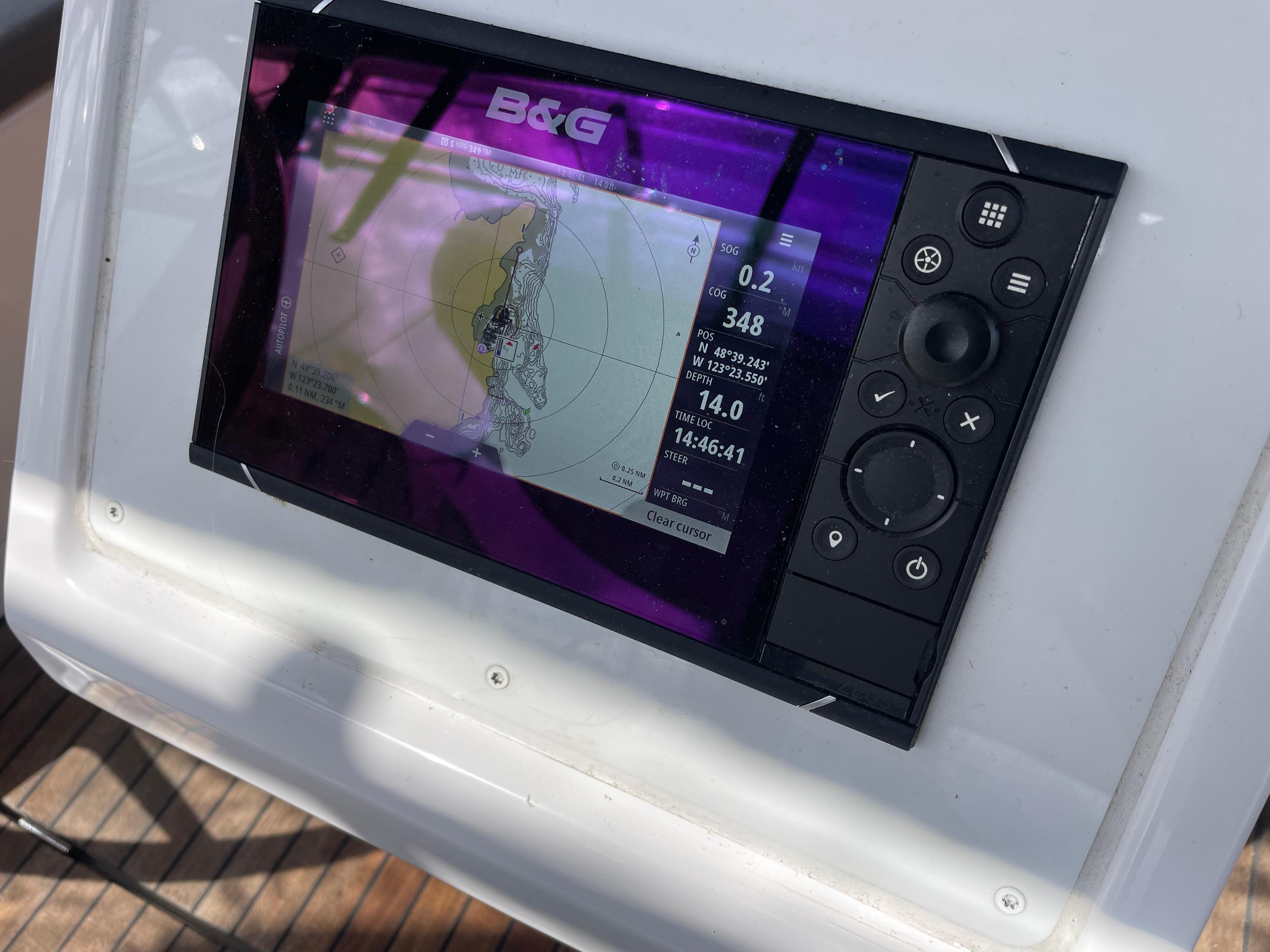

• Chartplotter:  B&G Zeus3 7” with integrated GoFree Wi-Fi
• 2 x B&G Triton2 digital diplays for wind, speed, depth
• Radar: B&G Halo 20 24NM mast mounted
• Autopilot: B&G incl heading compass & WR10 wireless remote control
• AIS: NAIS 500 Transponder B&G Class B
• TV mounted on bulkhead in salon
• Upgraded Fusion entertainment system at chart table with remote control in the cockpit

SAILS & CANVAS

• Upgraded Elvstrom Mainsail. Duratech Dacron, full battened with 2 reefs & MDS sliders
• Lazy bag with lazy jacks for mainsail
• Self tacking jib, Elvsrom
• Code Zero: UK Sails on furler

STANDING AND RUNNING RIGGING

• Selden Sportmast, Aluminum deck stepped
• 2 Aft swept spreaders, mechanical backstay
• Rod kicker with gas spring support, Selden

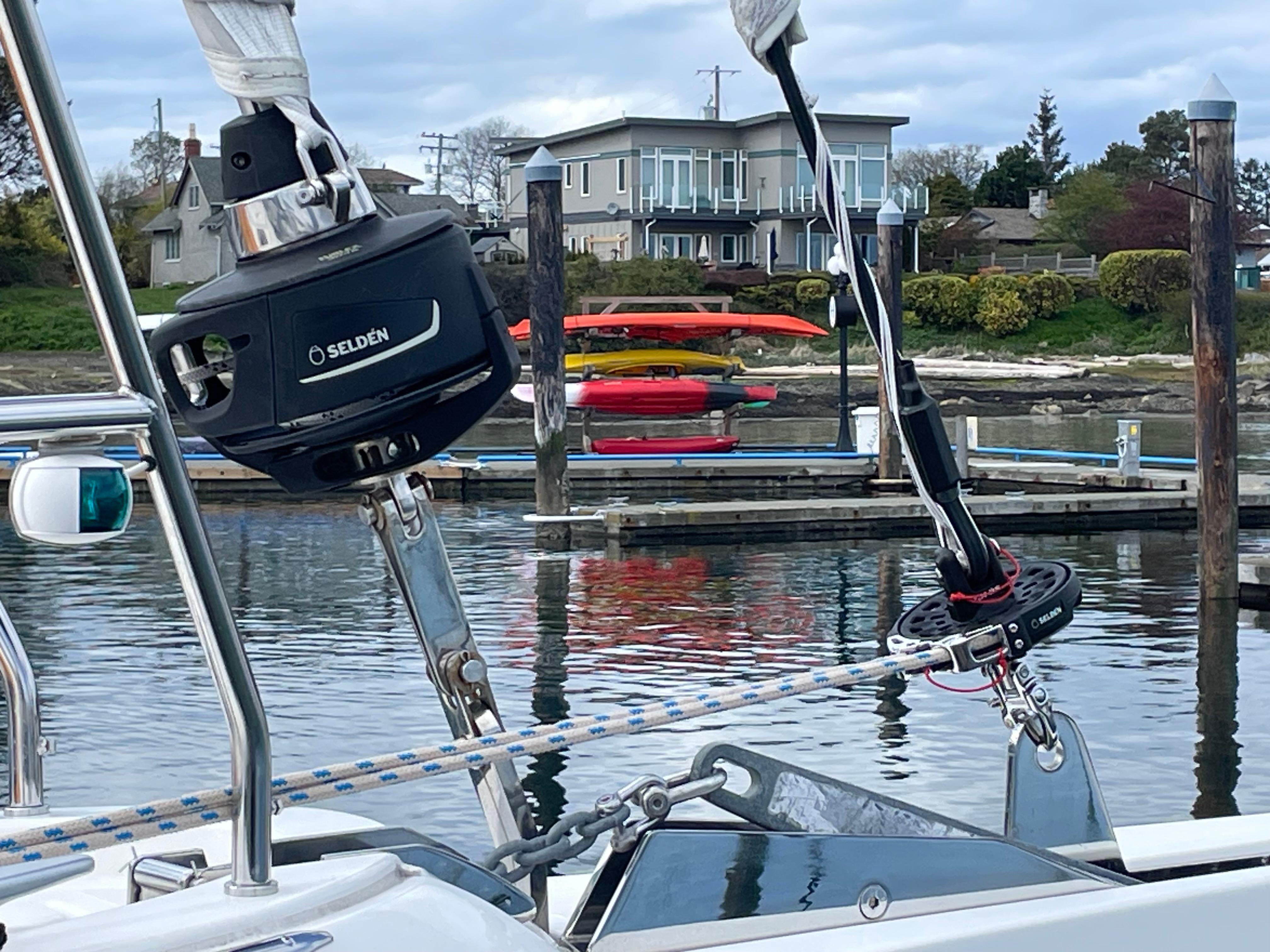

• Genoa roller furling: Selden furler
• GRP Bowsprit incorporating anchor roller
• Genoa tracks with pinstop cars
• Winches: Electric genoa/code zero, Lewmar #45
• Winches: Manual mainsheet winches at each helm, Lewmar #45
• Coachroof winches
• All Running rigging lines lead aft to cockpit through clutches to coach roof winches
• Dyneema halyards
• German Mainsheet system

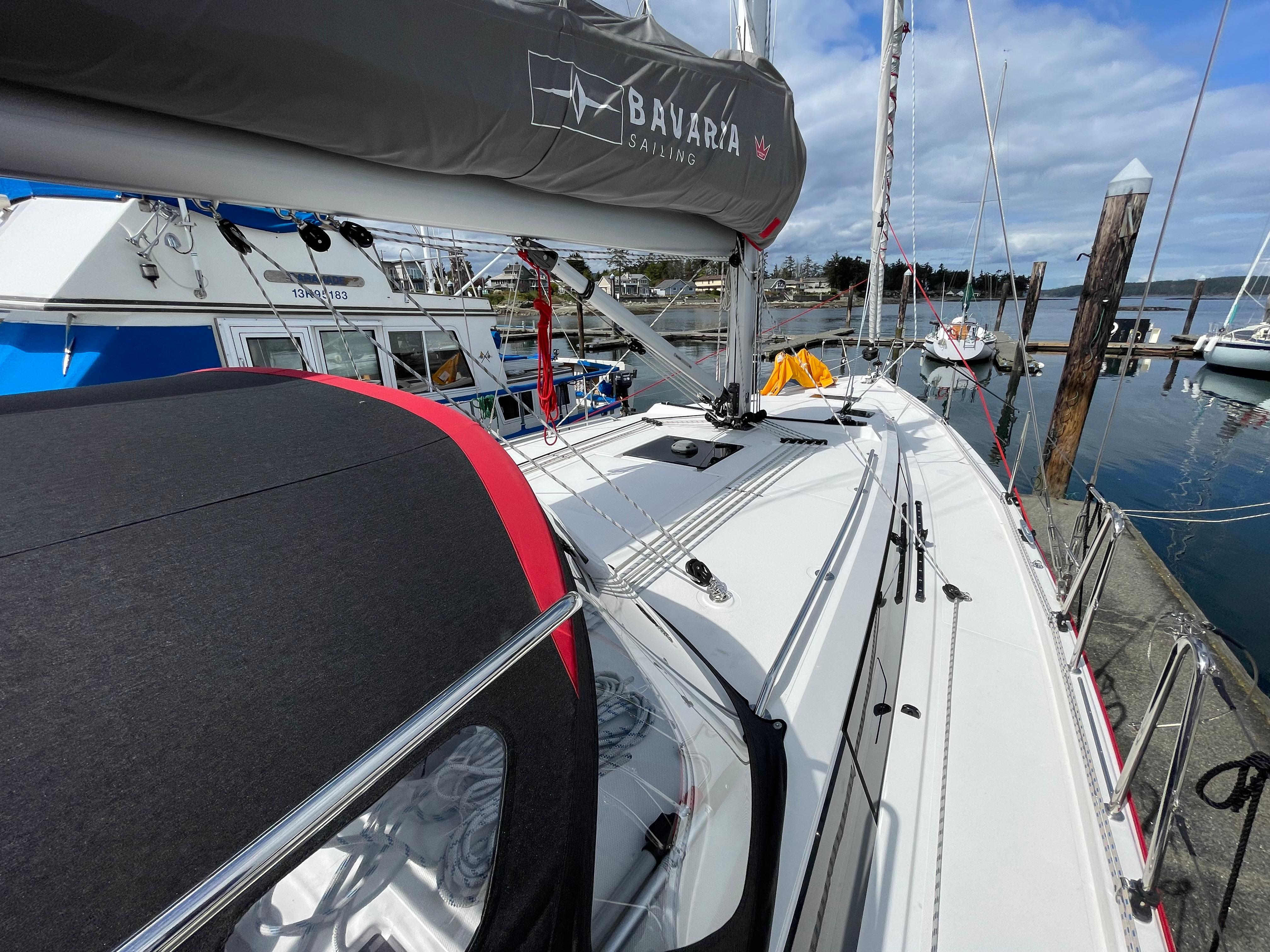

 DECK GEAR

• Windlass: Lewmar electric with wired remote
• Anchor: Delta 16kg, 75m 8mm chain
• Stainless steel pulpit and pushpit, double lifelines, midship boarding gates
• 6 mooring cleats
• S/S bow protection
• S/S handrails on the coachroof

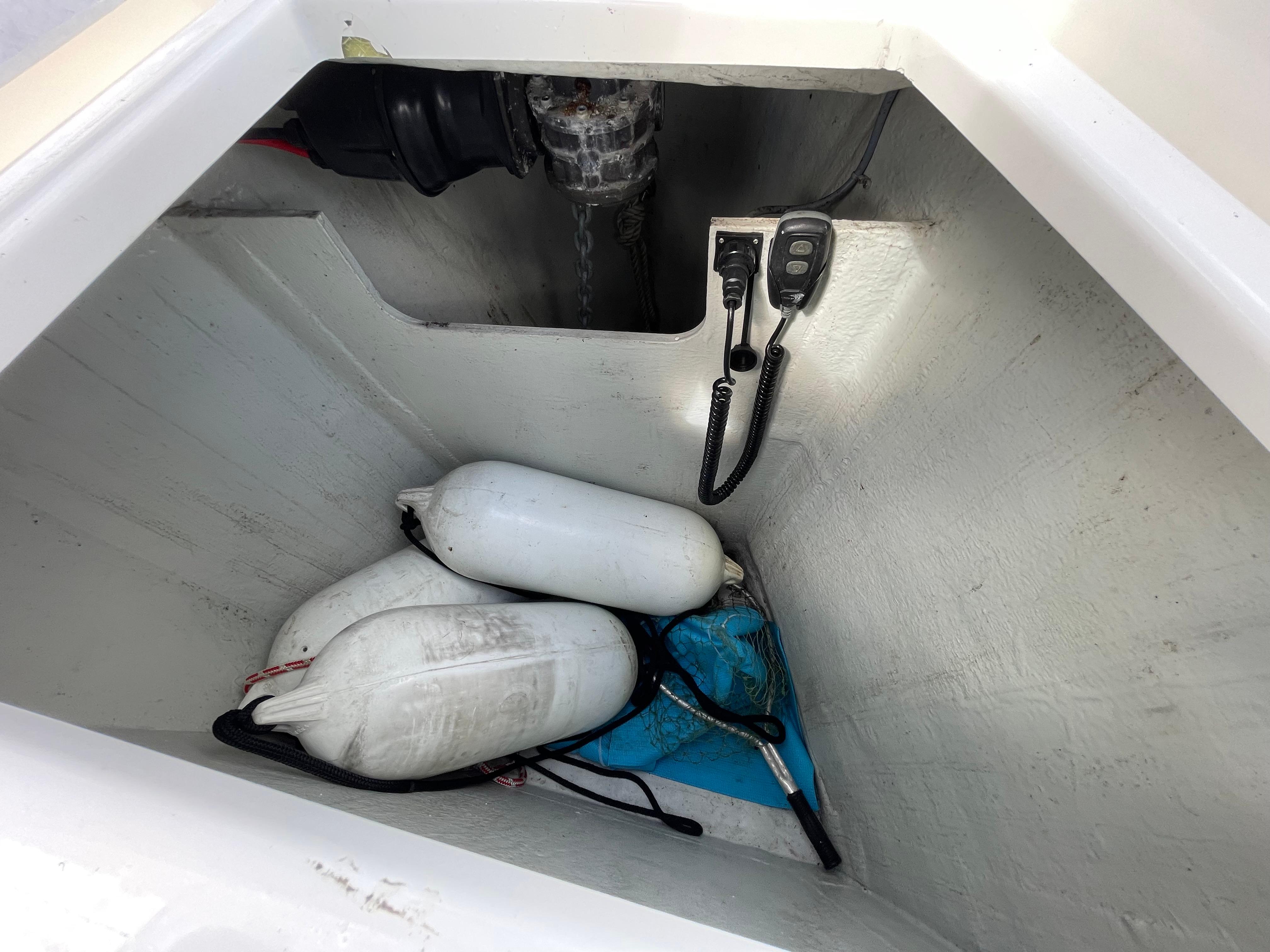

• Sail locker forward with access to the chain locker

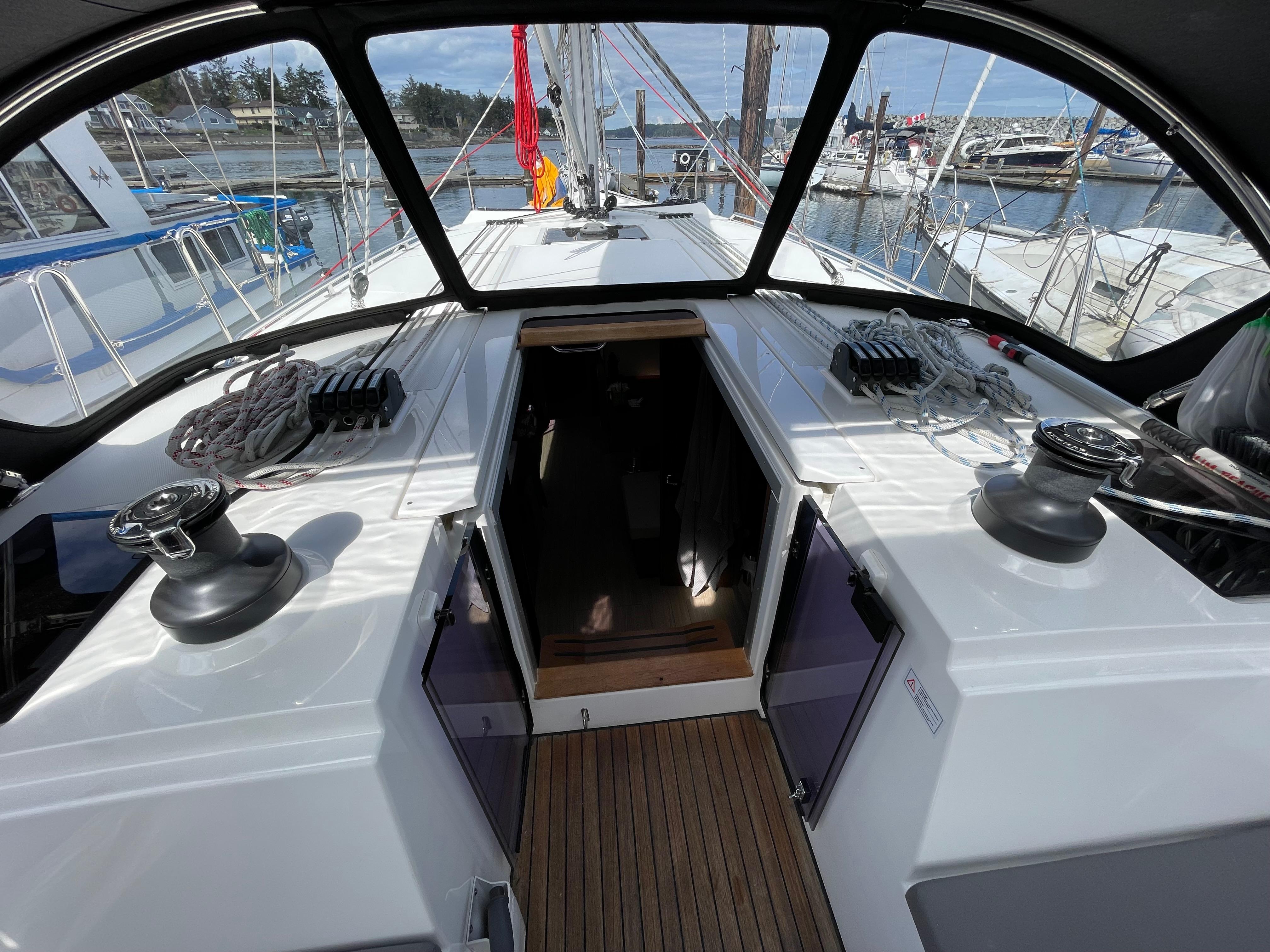

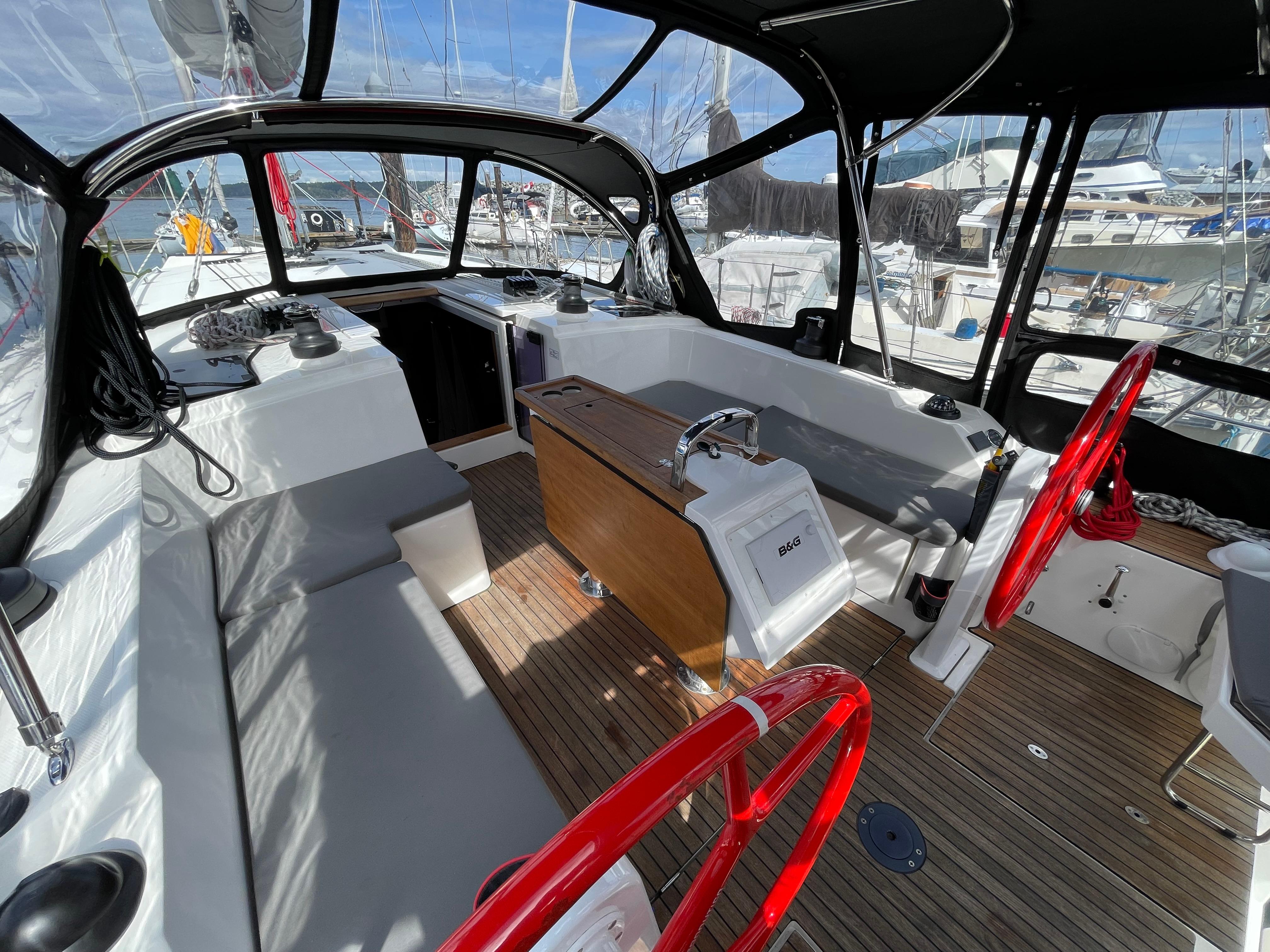

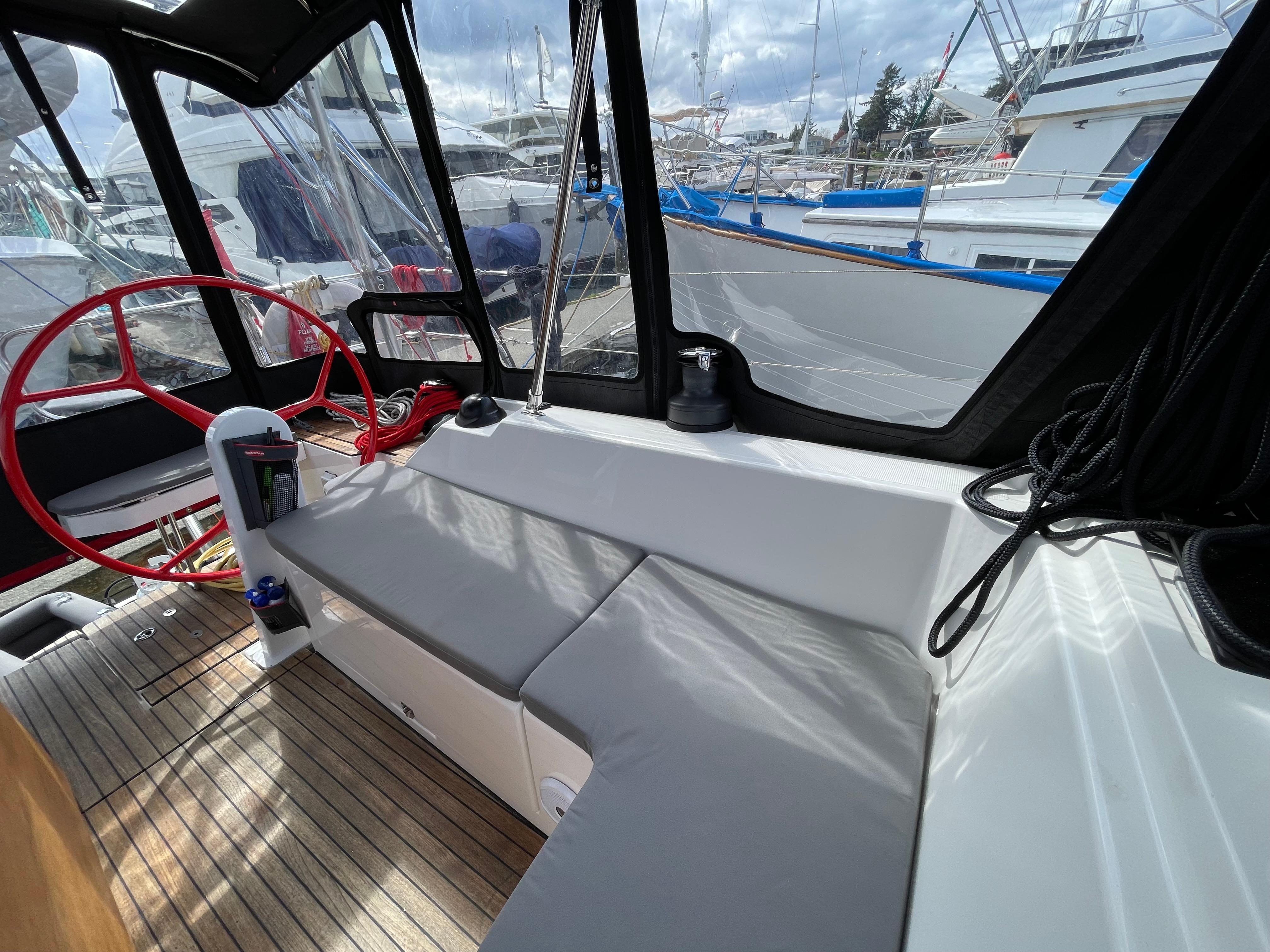

COCKPIT

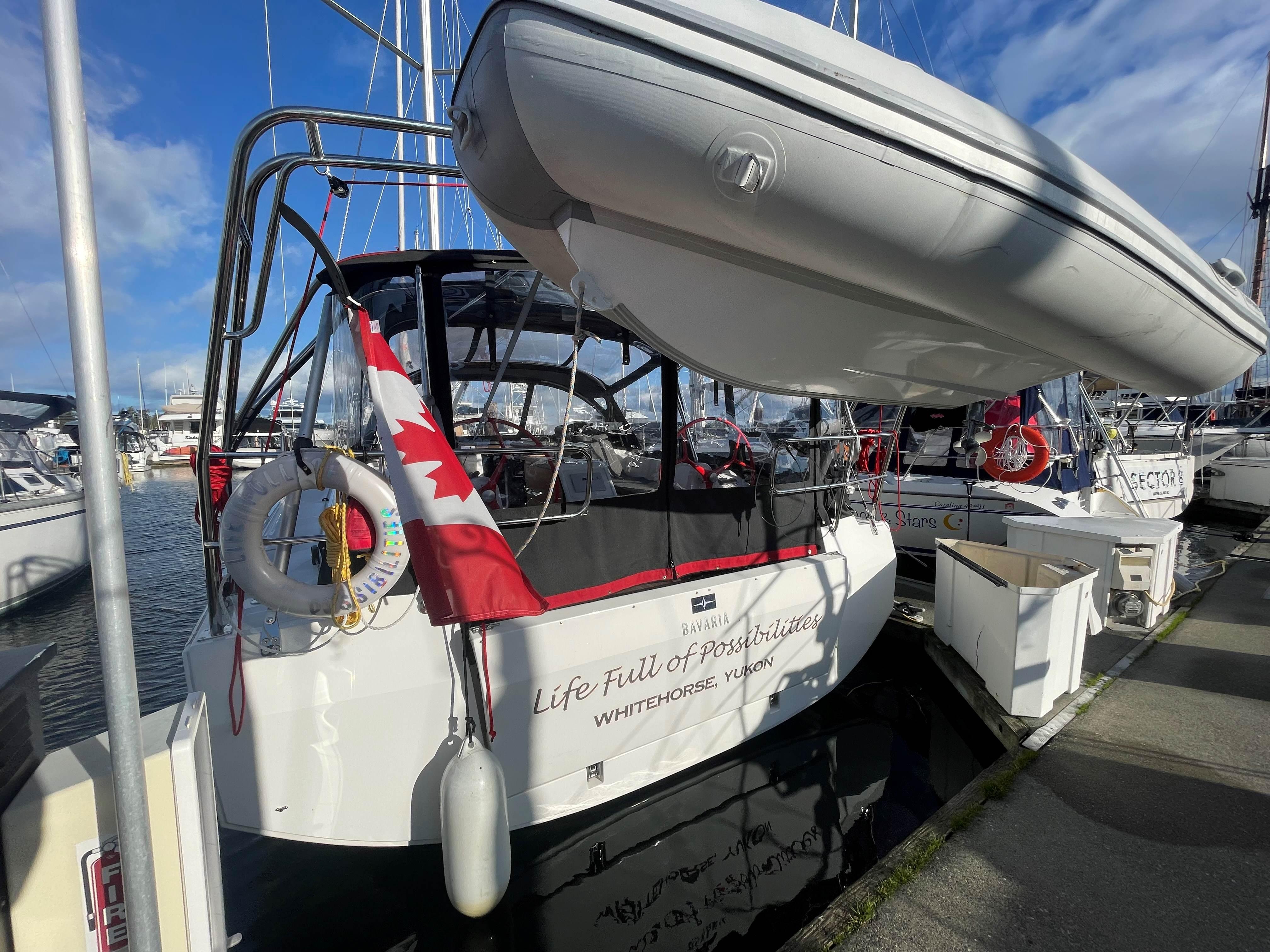

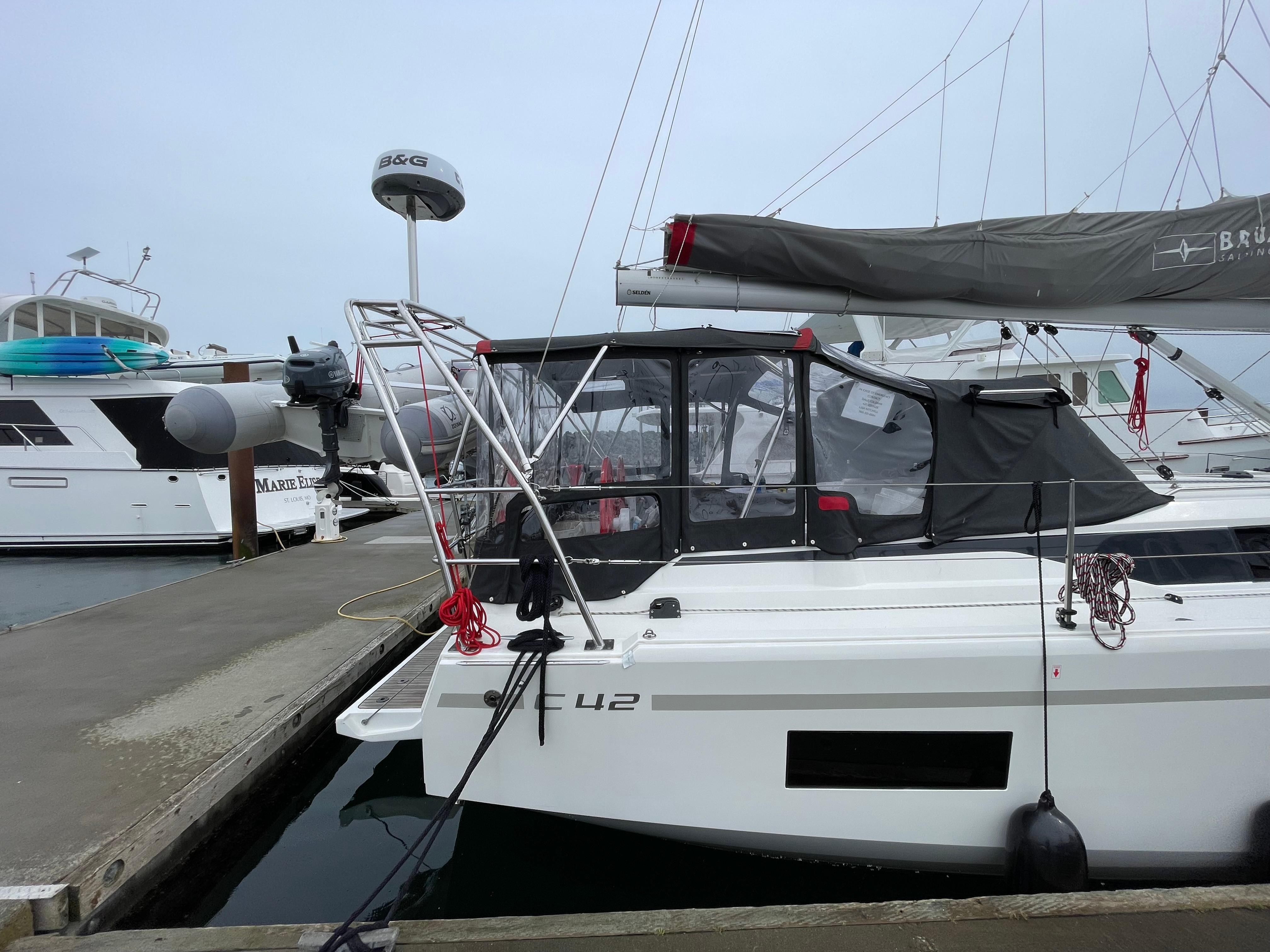

• Custom arch manufactured, incorporating dinghy davit

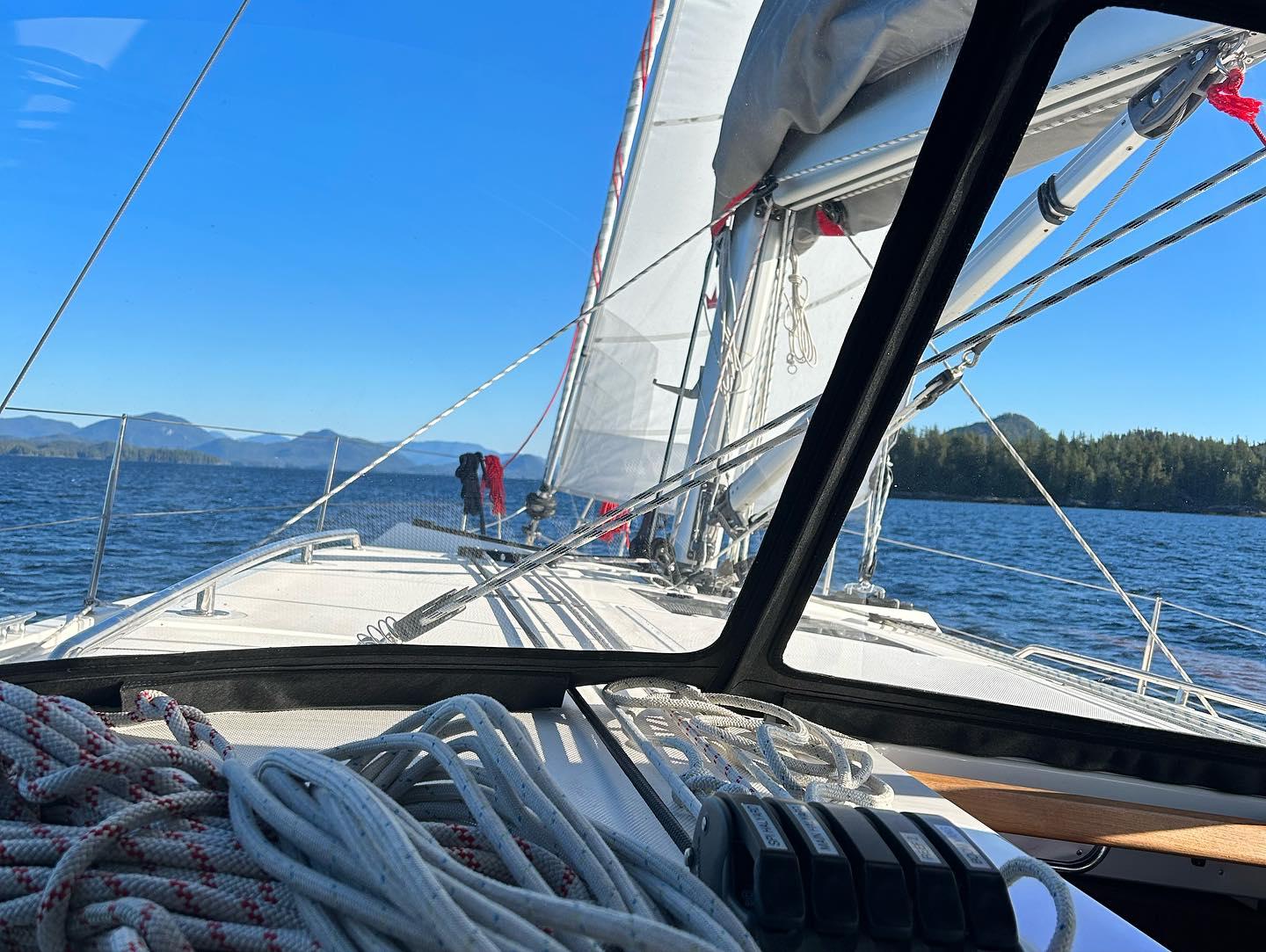

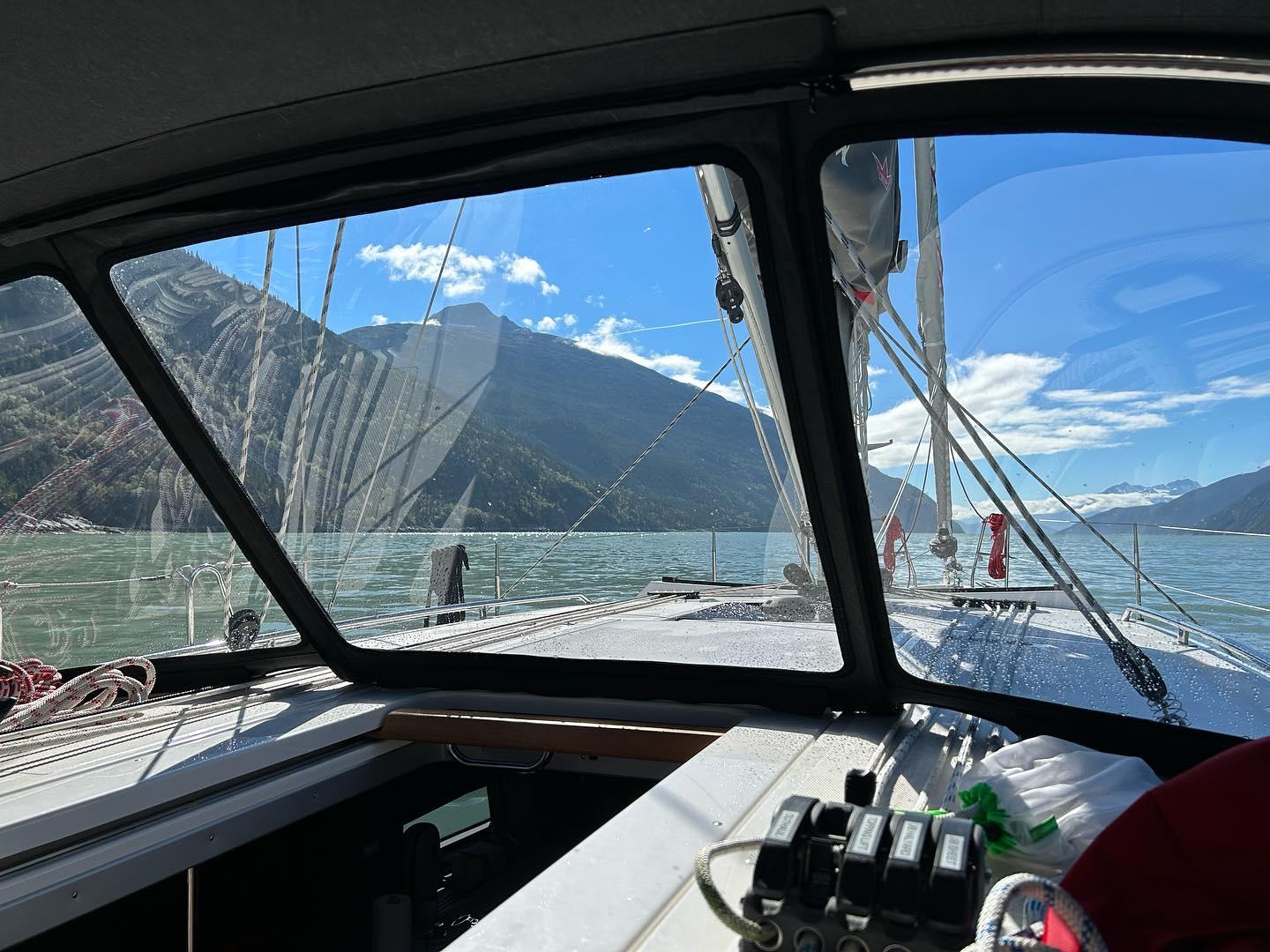

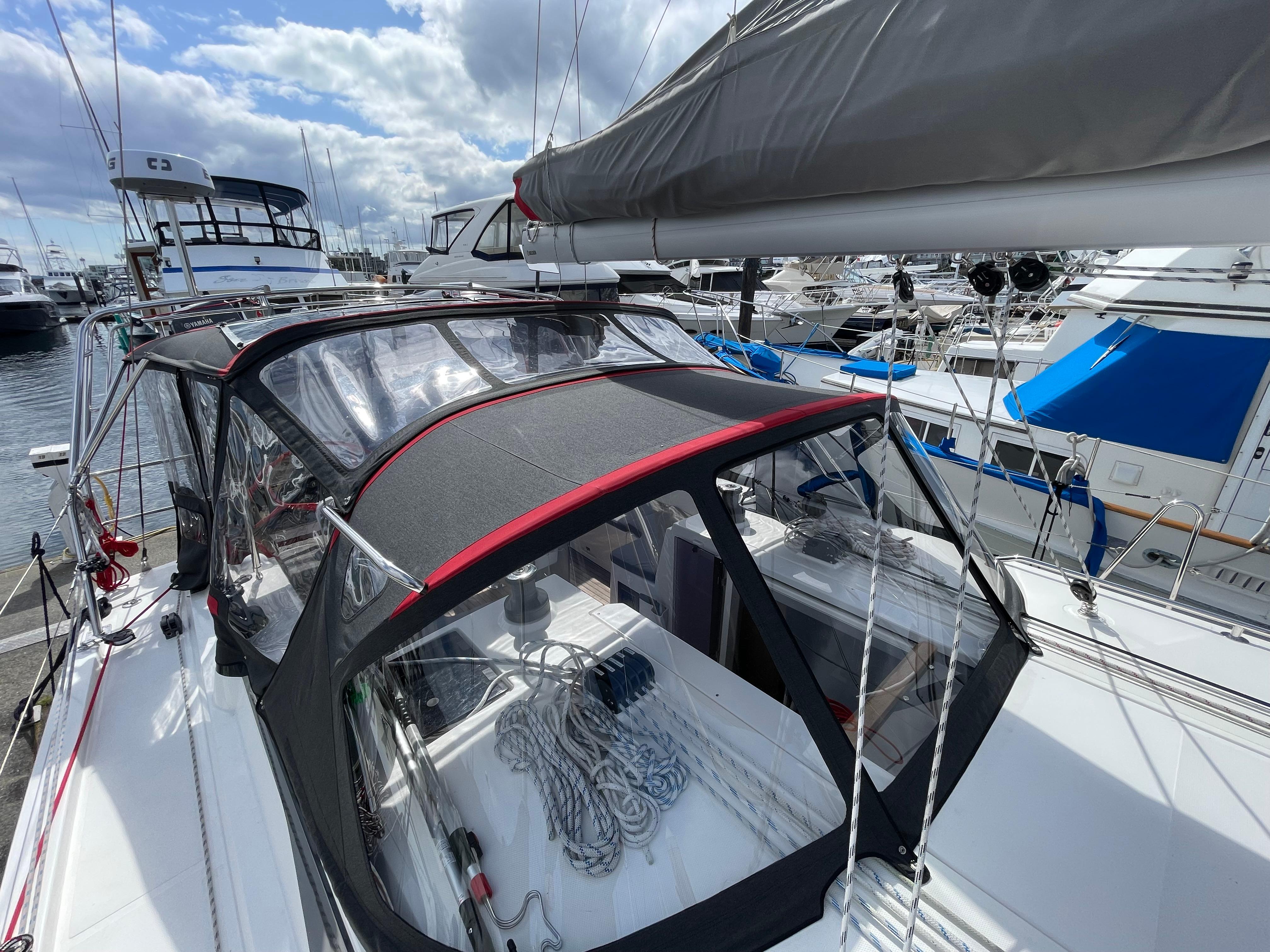

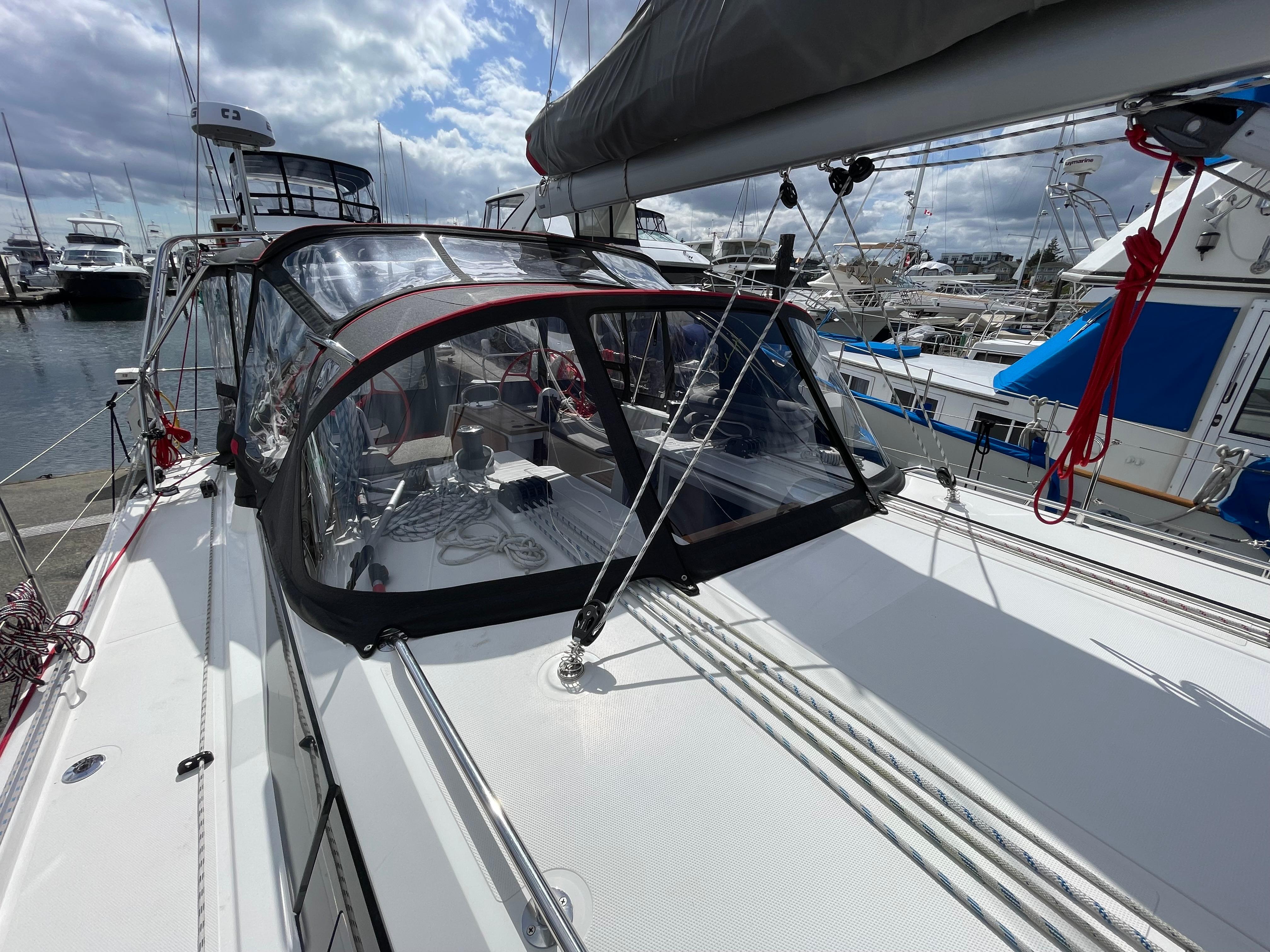

• Full La Fabrica cockpit enclosure with removable side windows and connector, red accented trim

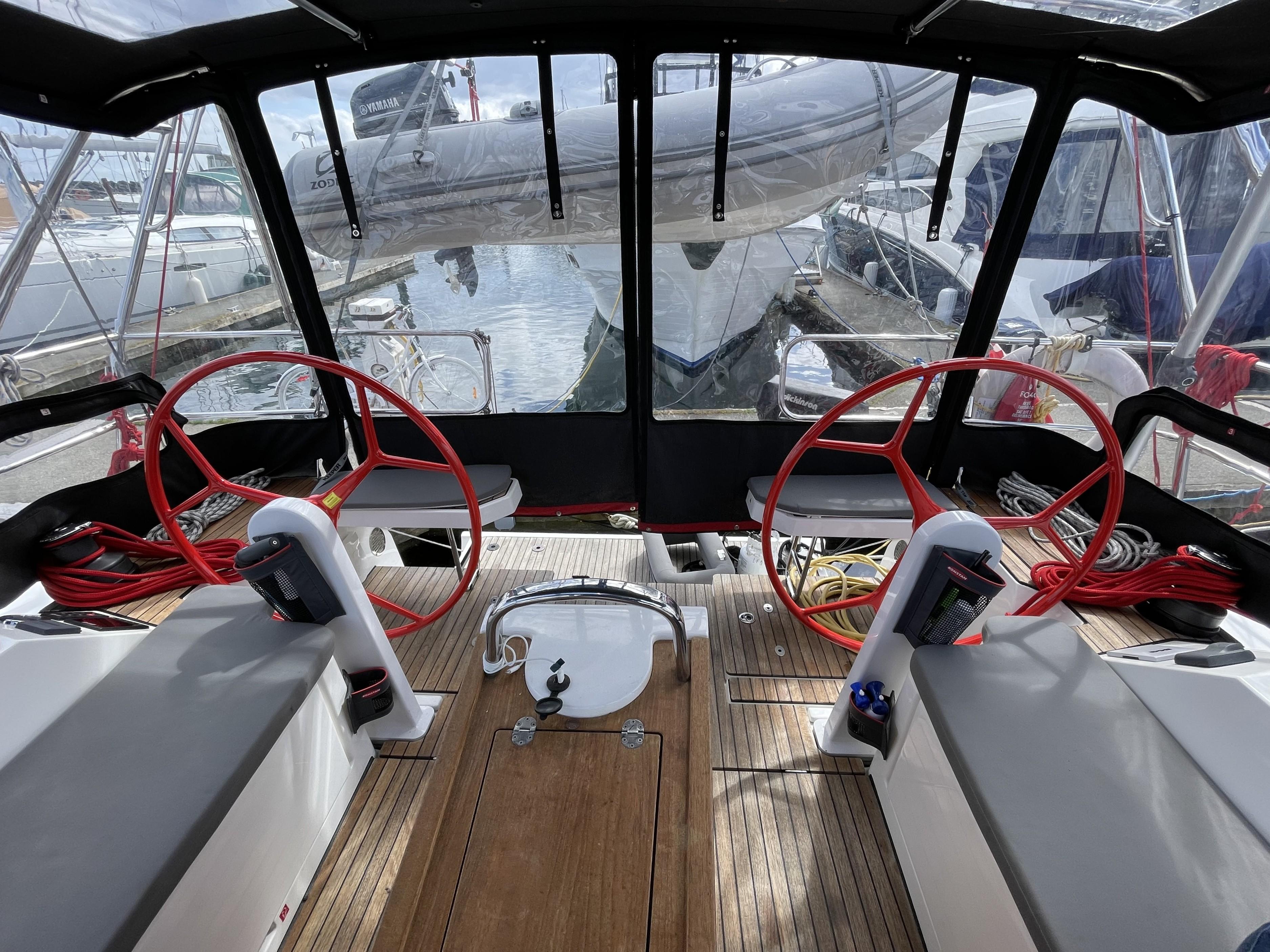

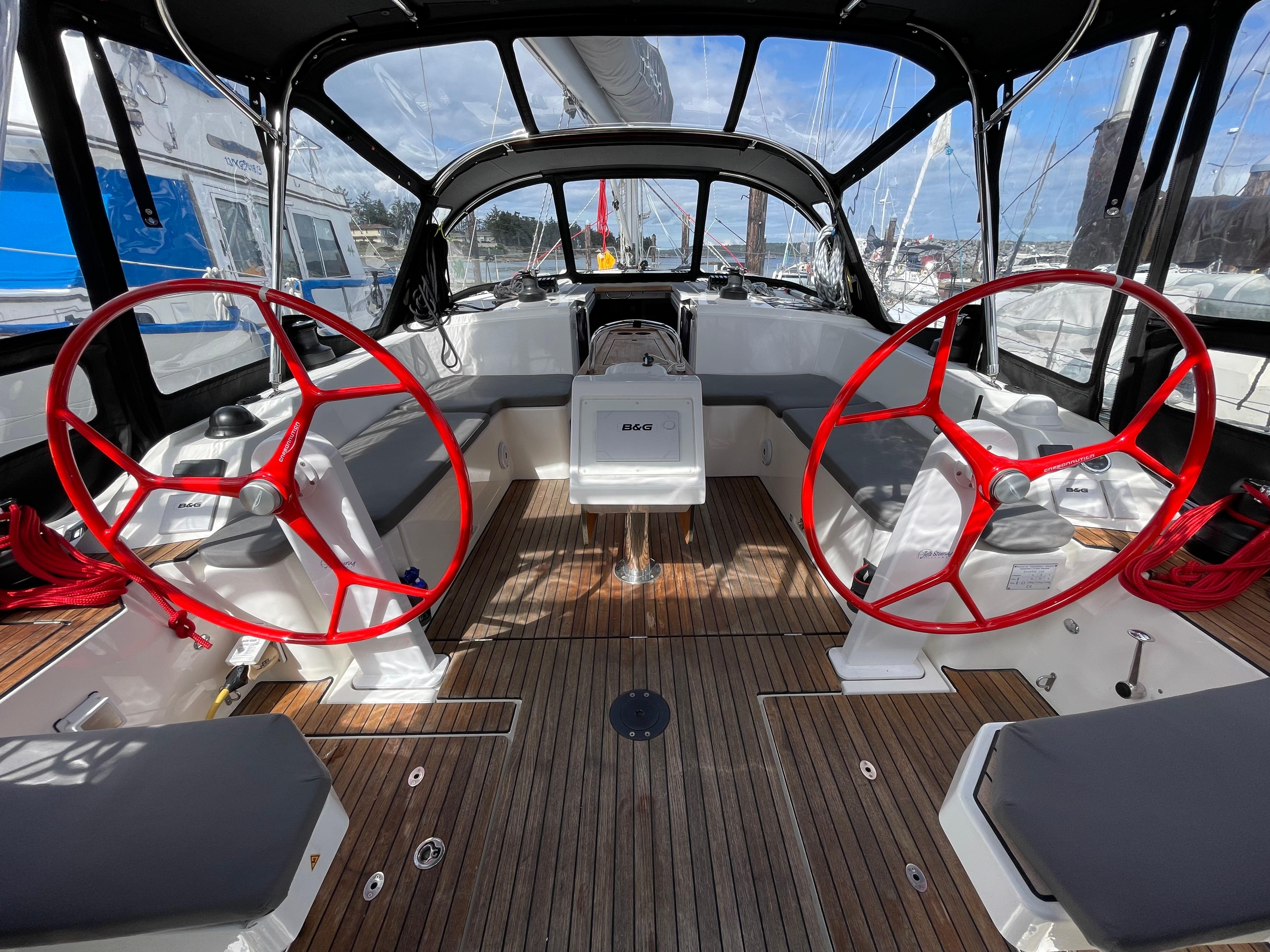

• Red GRP twin wheels
• Fold up helm seats
• Teak on cockpit floor, seats and swim platform
• GRP cockpit table with storage and fold up leaves
• Cockpit lockers, port and starboard
• Easy manual drop down swim platform
• Swim ladder, foldable with teak steps
• Cockpit shower with hot/cold
• Two Plexi, hinged companion way doors
• Emergency boarding ladder

ADDITIONAL EQUIPMENT

• Dinghy: Zodiac C300, 10ft
• Outboard: Yamaha 8hp
• Cockpit cushions
• Cockpit table cover
• Dickenson BBQ mounted on custom pedestal on the swim platform
• Starlink mounted on the arch
• Dodger window cover

MAINTENANCE

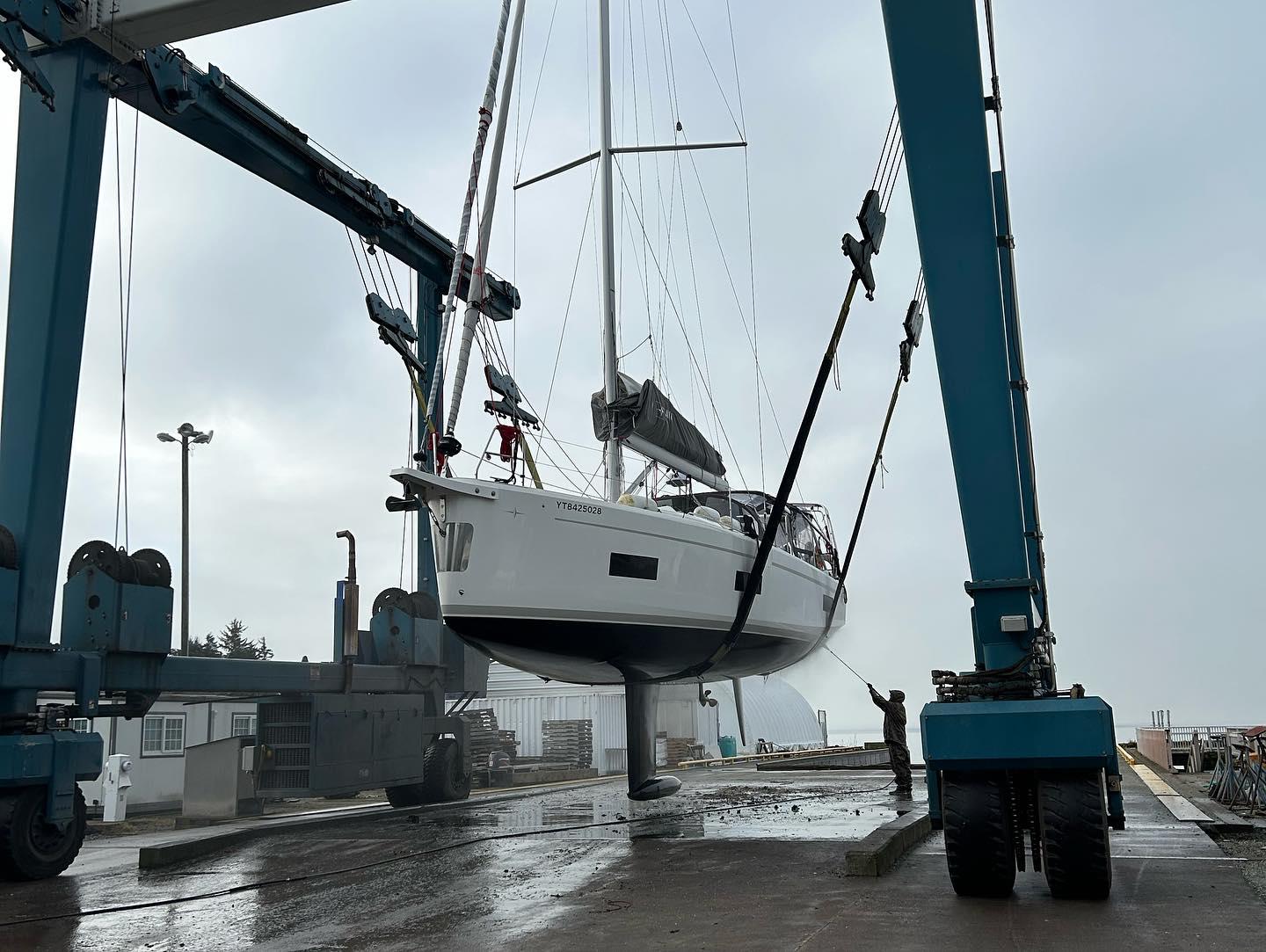

• Last haul-out and anti-fouling: Oct 2024
• Last zinc(s) change: Oct 2024
• Last engine oil change: 2025
