2021 Dufour 360

2021 Dufour 360   Specifications

Dufour 360

Year....................................................................... 2021

Builder..................................................... Dufour Yachts

Designer........................................... Felci Yacht Design

LOA........................................................................ 35.2

LWL...................................................................... 39.65

Beam.................................................................... 11.58

Draft....................................................................... 6.23

Displacement....................................................... 12,731

Ballast................................................................... 3,417

Sail Area ................................................................. 580

Hull                                                                 Fibreglass

Deck............................................................ cored deck

Steering........................................................ Dual Wheel

Keel........................................................... Fin with bulb

Rudder....................................................... Single blade

Fuel.......................................................... 42.25 Gallons

Water............................................................. 58Gallons

Hot Water........................................................ 5 Gallons

Holding Tank....................................................... Gravity

CONSTRUCTION

• Solid hand laid polyester fiberglass
• NPG type gelcoat with vinylester resin in outer layers
• Molded structural framing laminated to hull
• Fibreglass deck is cored with Saerfoam
• Keel bolts with stainless steel backing plates
• Deck stepped mast
• Rudder is semi elliptical with closed cell epoxy foam
• Rudder has stainless steel stock
• Solid wood toe rail
• Custom stainless steel rails aft port and starboard
• 6 mooring cleats

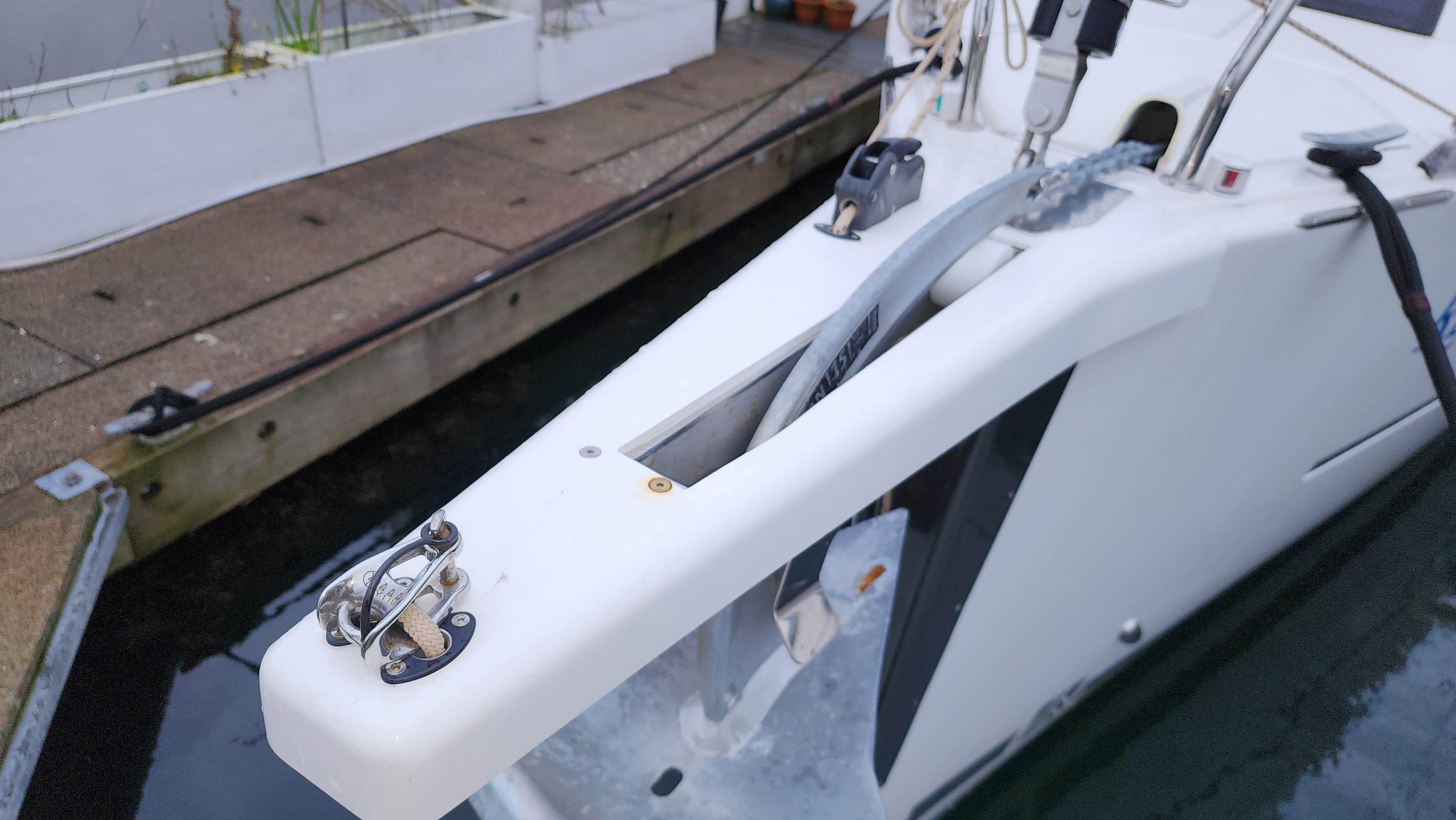

• Stainless steel bow plate to protect from anchor

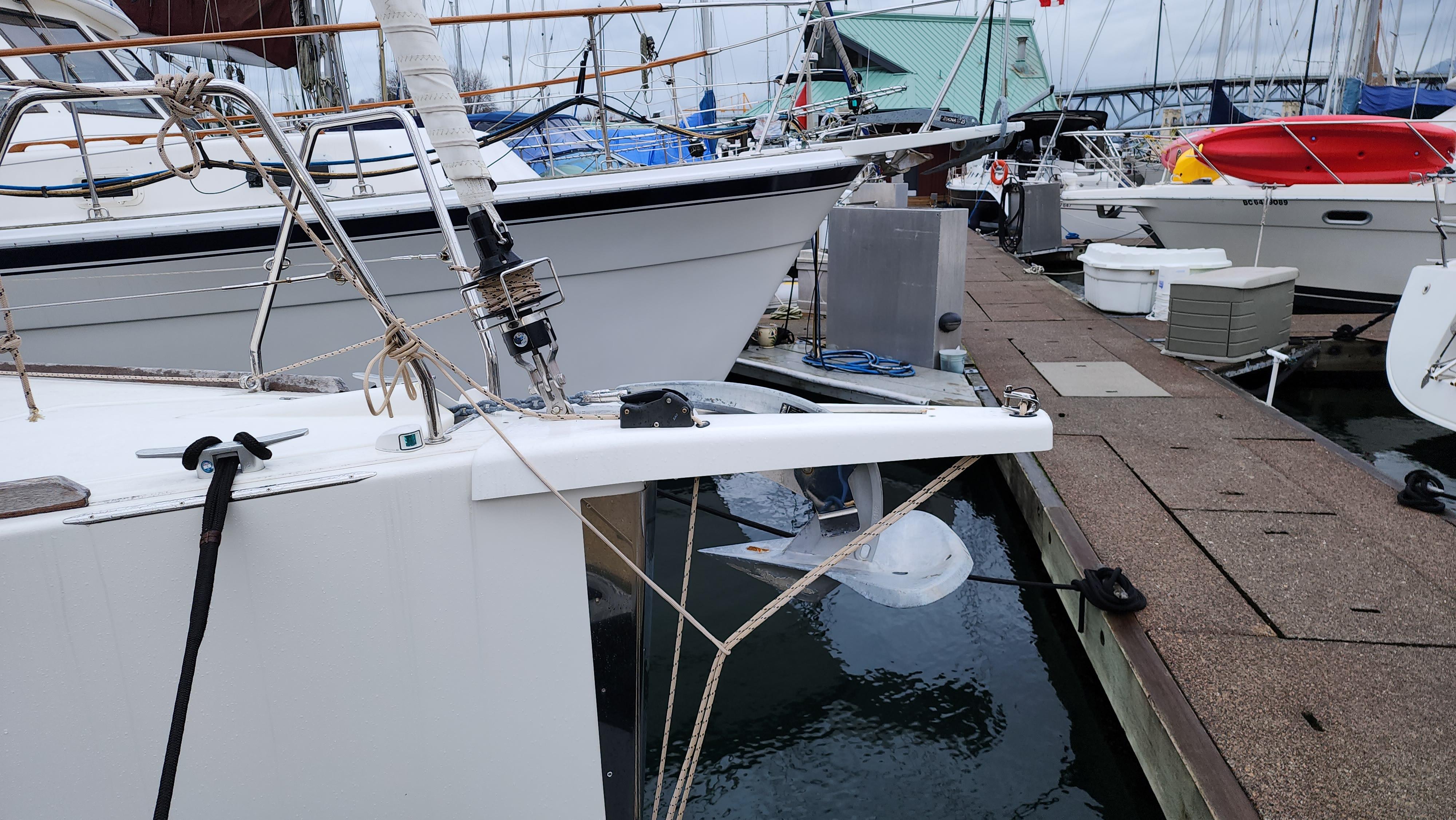

• Drop down swim platform with block and tackle control( no electrics to fail)
• Epoxied bottom
• Ablative bottom paint

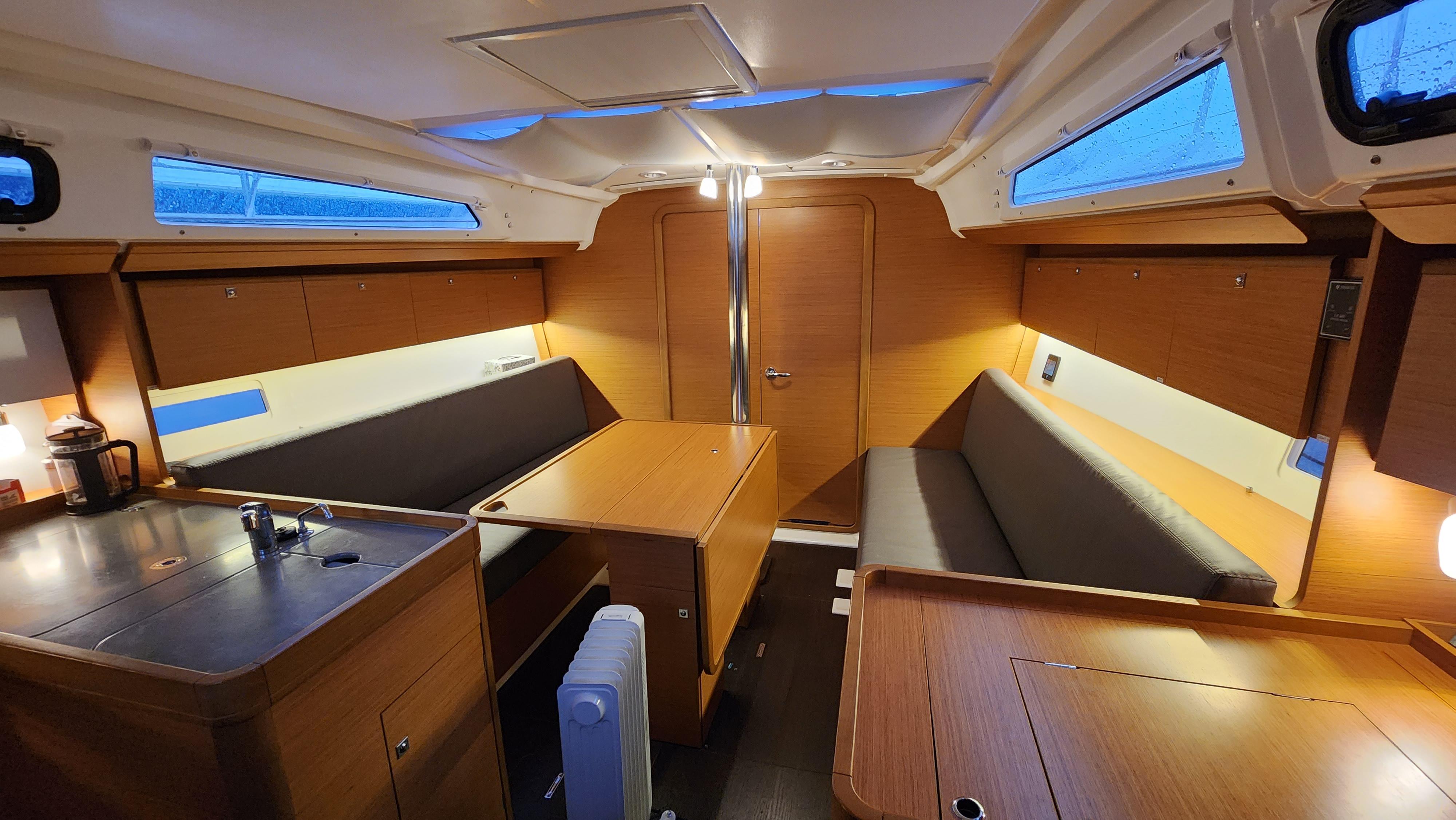

INTERIOR

• 2 cabin layout
• Boston Ambiance Teak interior
• Modern Wenge flooring
• Long cabin side windows with pleated micro blinds
• Large overhead Athwartships window at main bulkhead providing amazing natural light below decks
• Opening Lewmar hatch over salon table

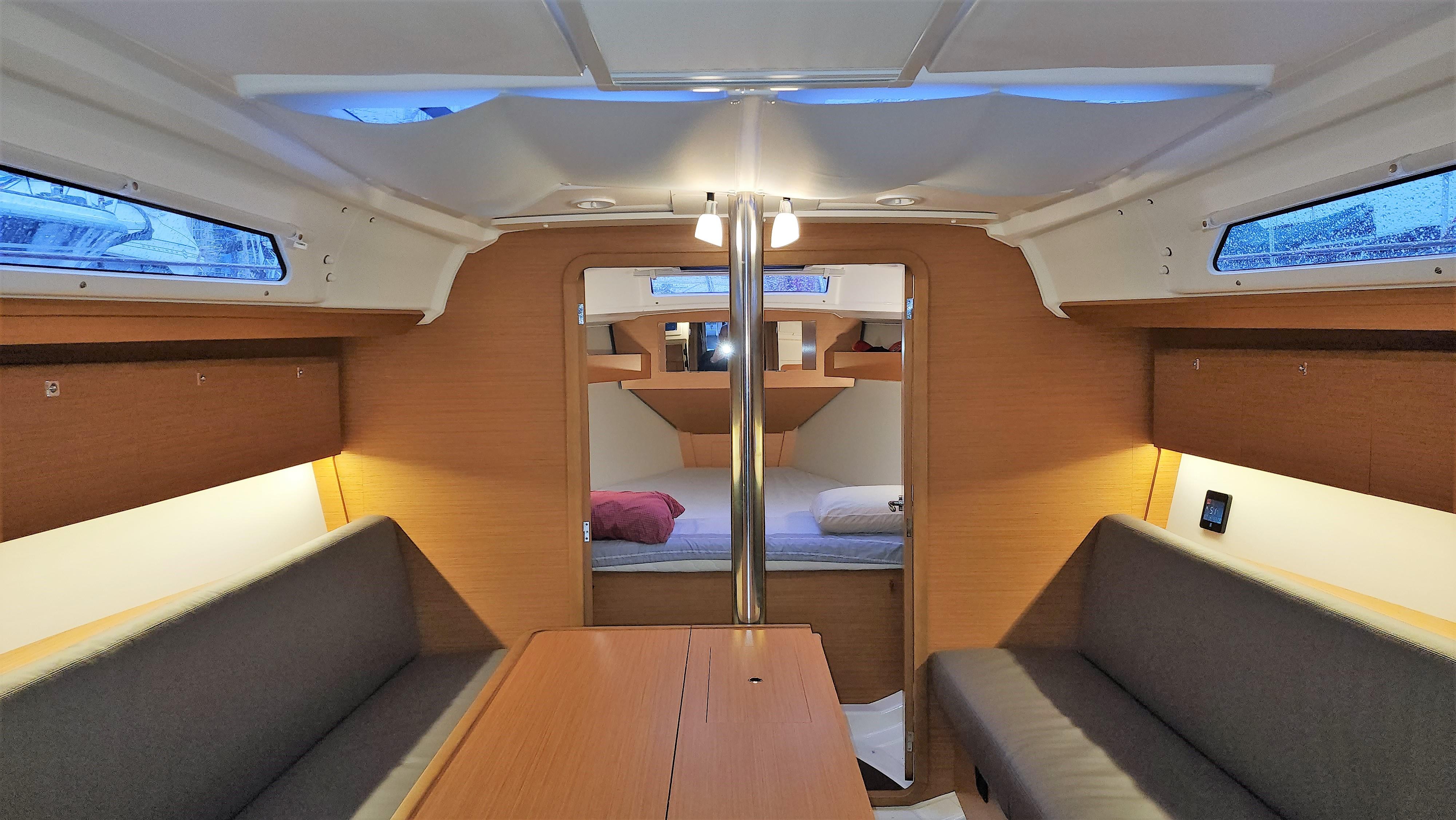

• Dual opening doors in forward bulkhead make the interior feel larger

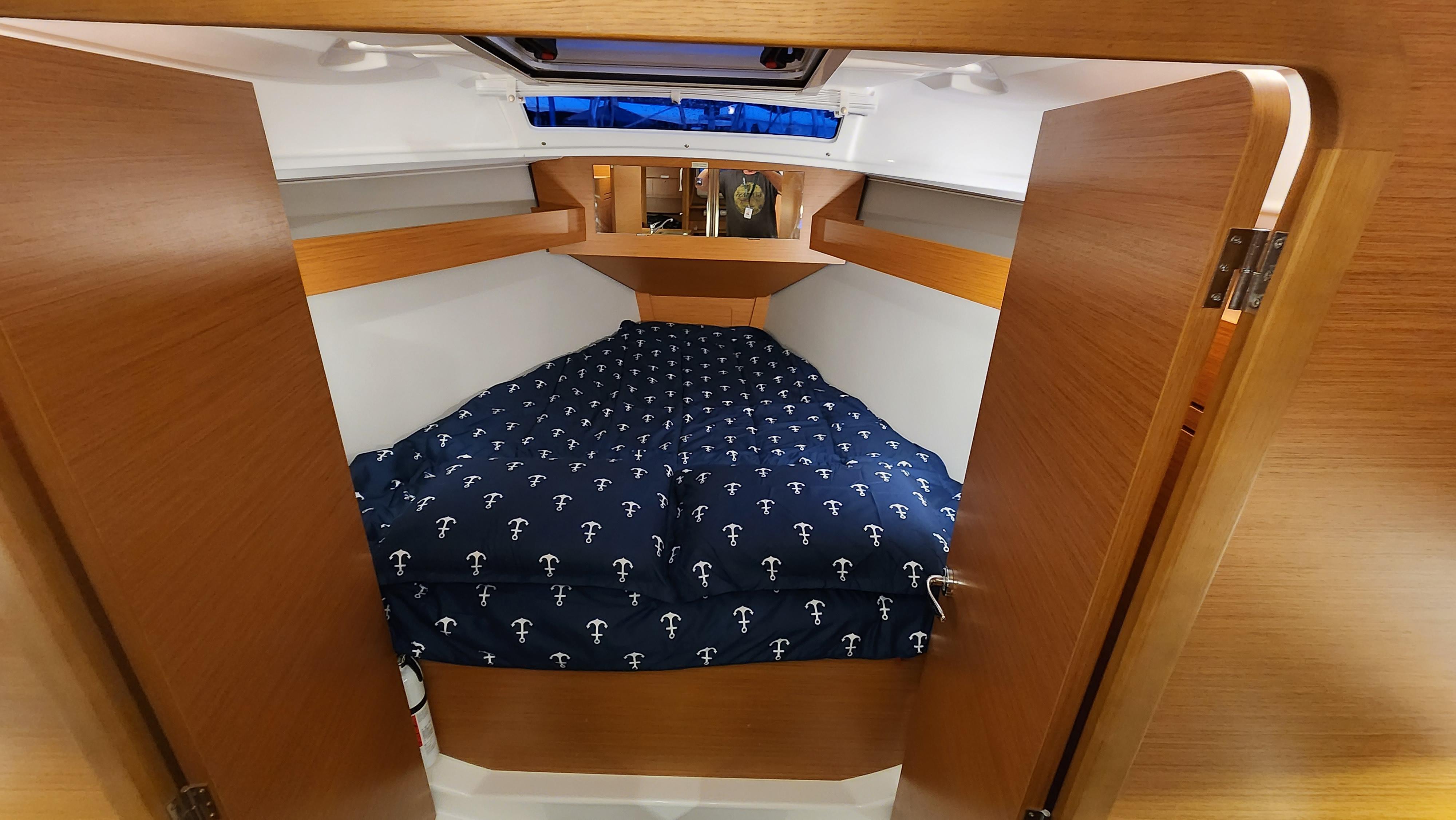

• V berth feels very open with doors open
• Aft cabin has very large double berth due to beam of boat

• Aft corner galley to port with Corian counter top

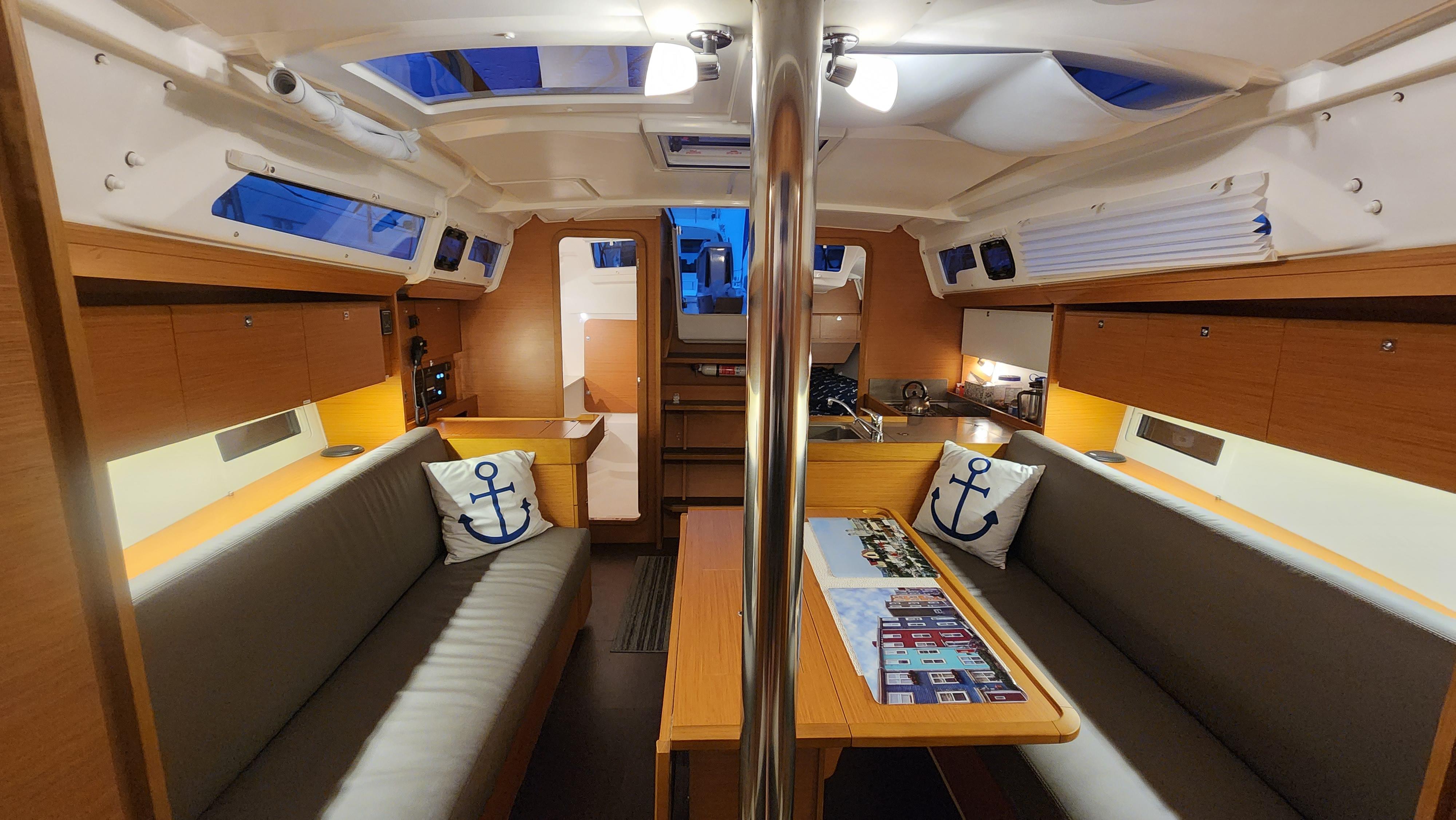

• Midship table with drop leaf to starboard

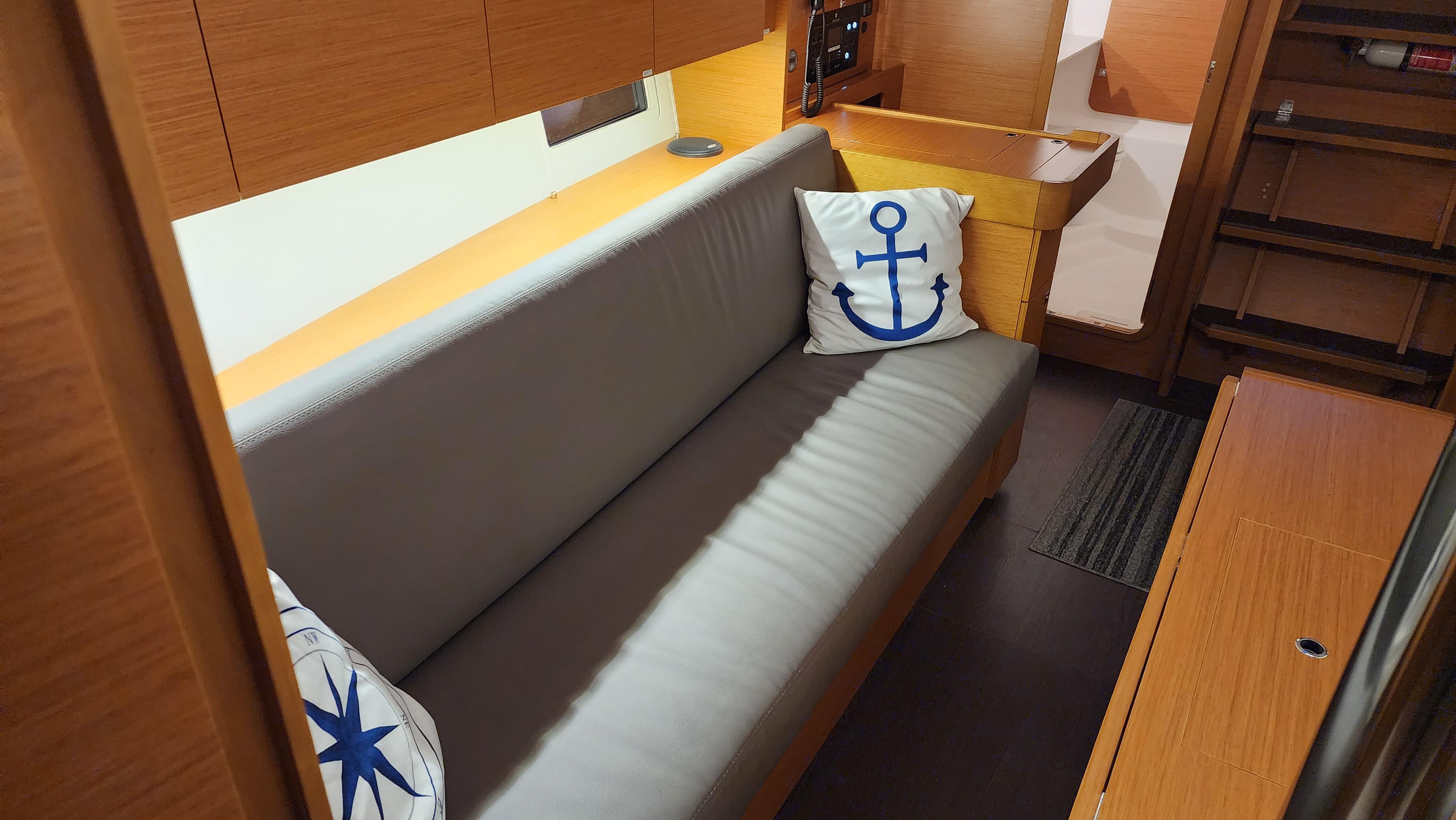

• Settees port and starboard
• Opening cabinets above settees port and starboad
• Upgraded table has port side drop down to make double berth
• Upgraded Bonanza saloon cushions
• Bug screens for all hatches and ports
• Wine locker under floor

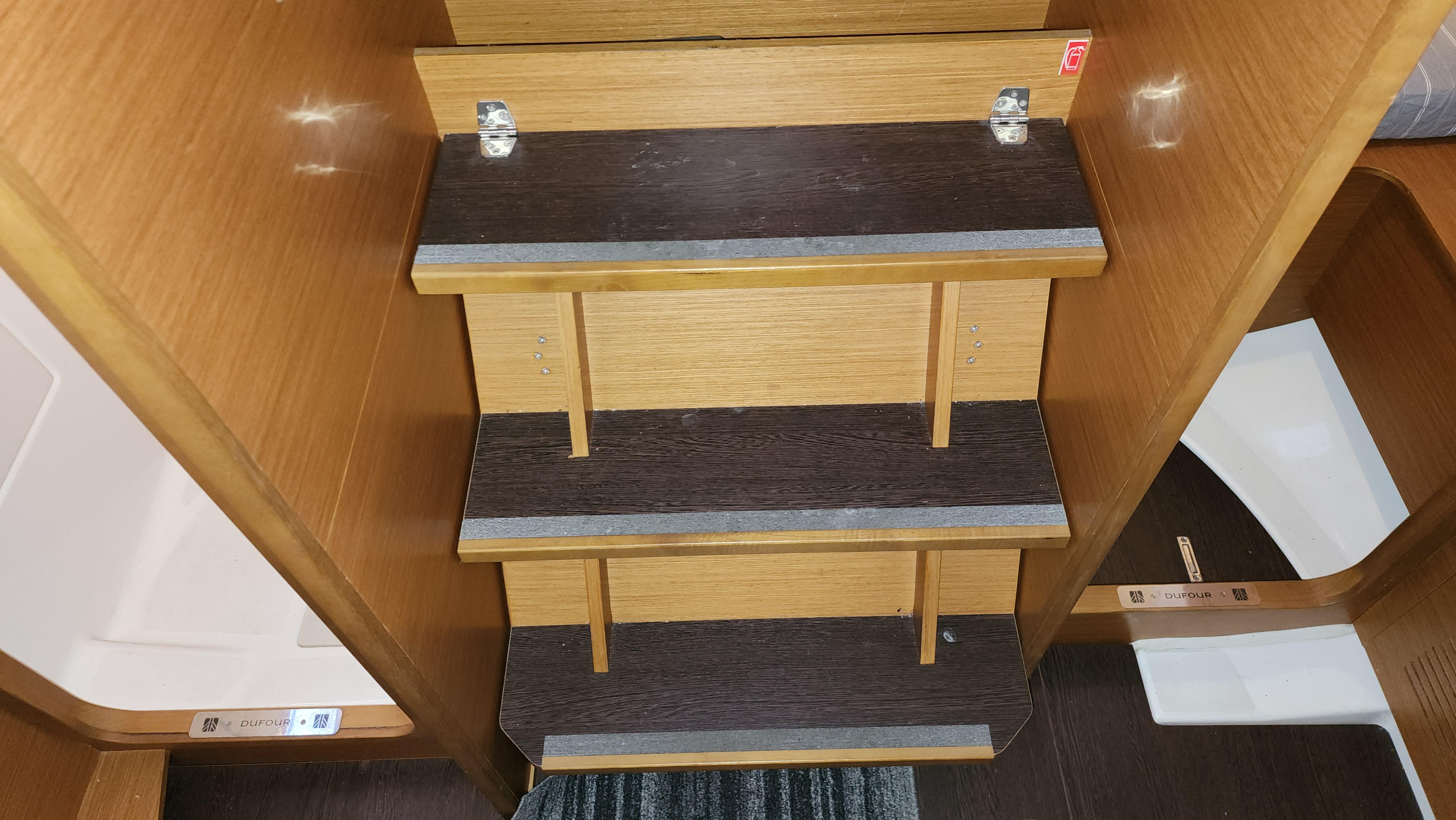

• Companionway steps lift on gas struts for excellent engine space access
• Companionway teak steps have non slip covering
• Heater vents in cabins and salon

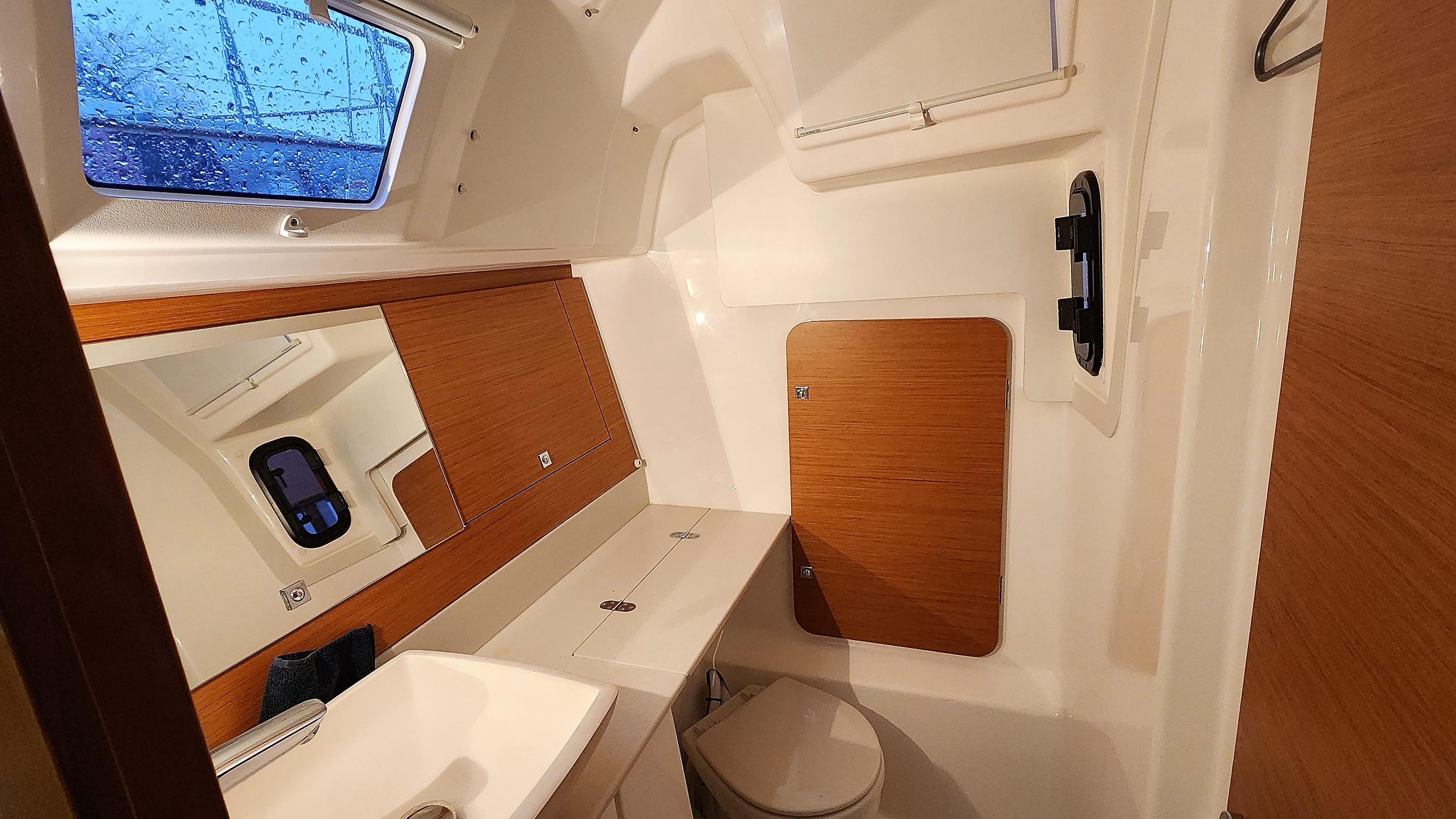

Head

• Head is in starboard aft corner
• Hot and cold shower with sump pump
• Vanity with sink and mirror
• Opening port and overhead hatch
• Access to cockpit locker
• Gravity holding tank
• Molded liner for easy cleaning and brightness
• Upgraded Jabsco electric marine head and vanity with sink
• Opening Lewmar port
• Fixed window at eye level
• Hot and cold shower on bulkhead that can be hand held with sump pump
• Mirror on bulkhead
• Cupboards and drawers above and below vanity
• Covered 110v outlet
• Heat vent for heater

Aft Cabin

• Upgraded opening Lewmar port
• Overhead opening hatch
• Fixed window to cockpit at eye level
• Double hanging lockers
• Seat ahead of berth
• Large berth
• Aft access to stern
• Teak shelf above berth outboard
• 1 heater vent
• Large access panel to engine

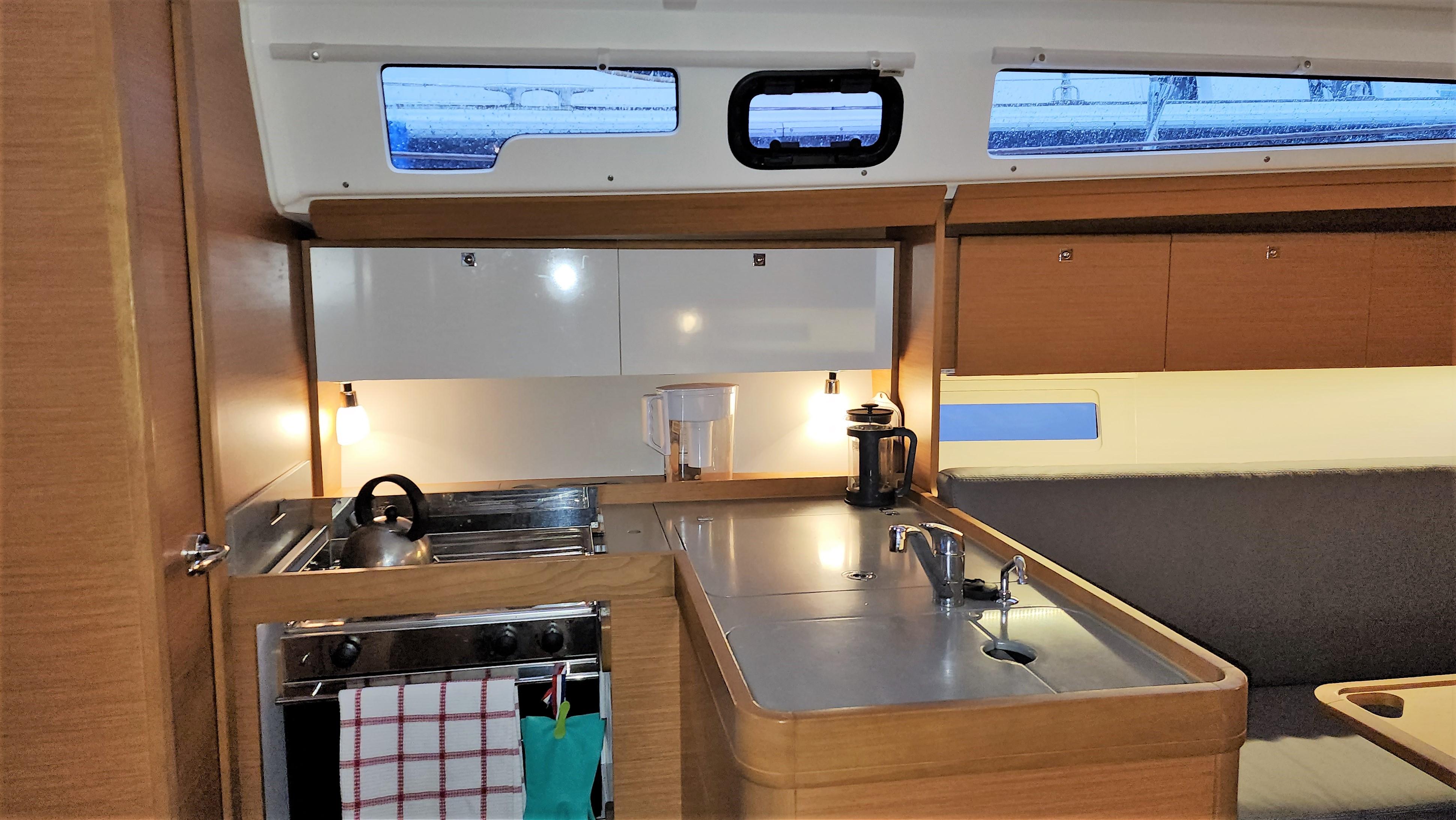

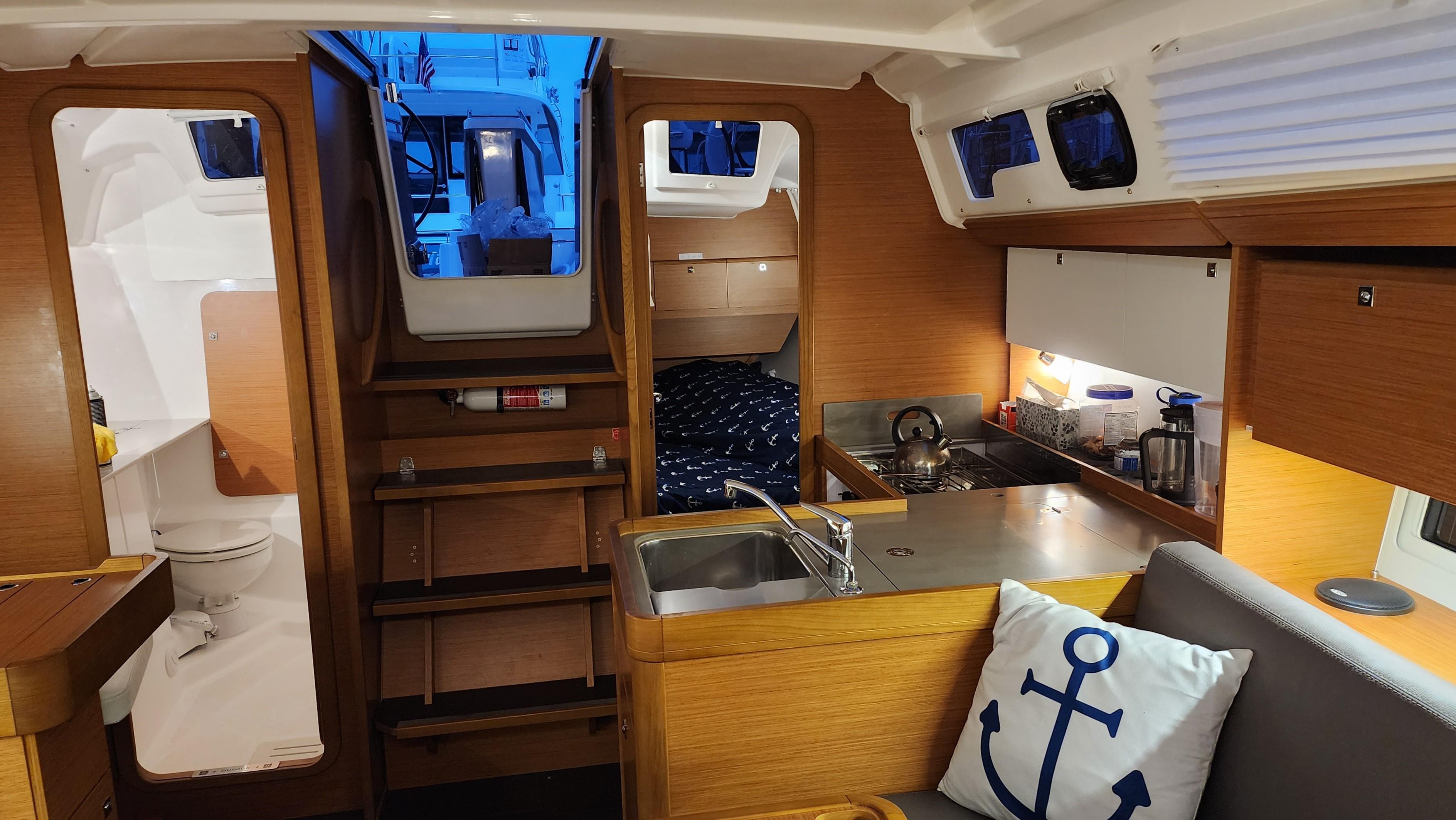

Galley

• Galley is in the starboard aft corner of the salon with nice counter space
• Top loading ice box with 12V refrigeration and movable containers for better use of ice box space
• 1 and a half deep stainless steel sinks facing forward with cupboard and bin storage
• 2 burner propane stove and oven on gimbal with storage under
• Opening port outboard in galley
• Stainless steel guard rail in front of stove
• 2 overhead lights

MECHANICAL

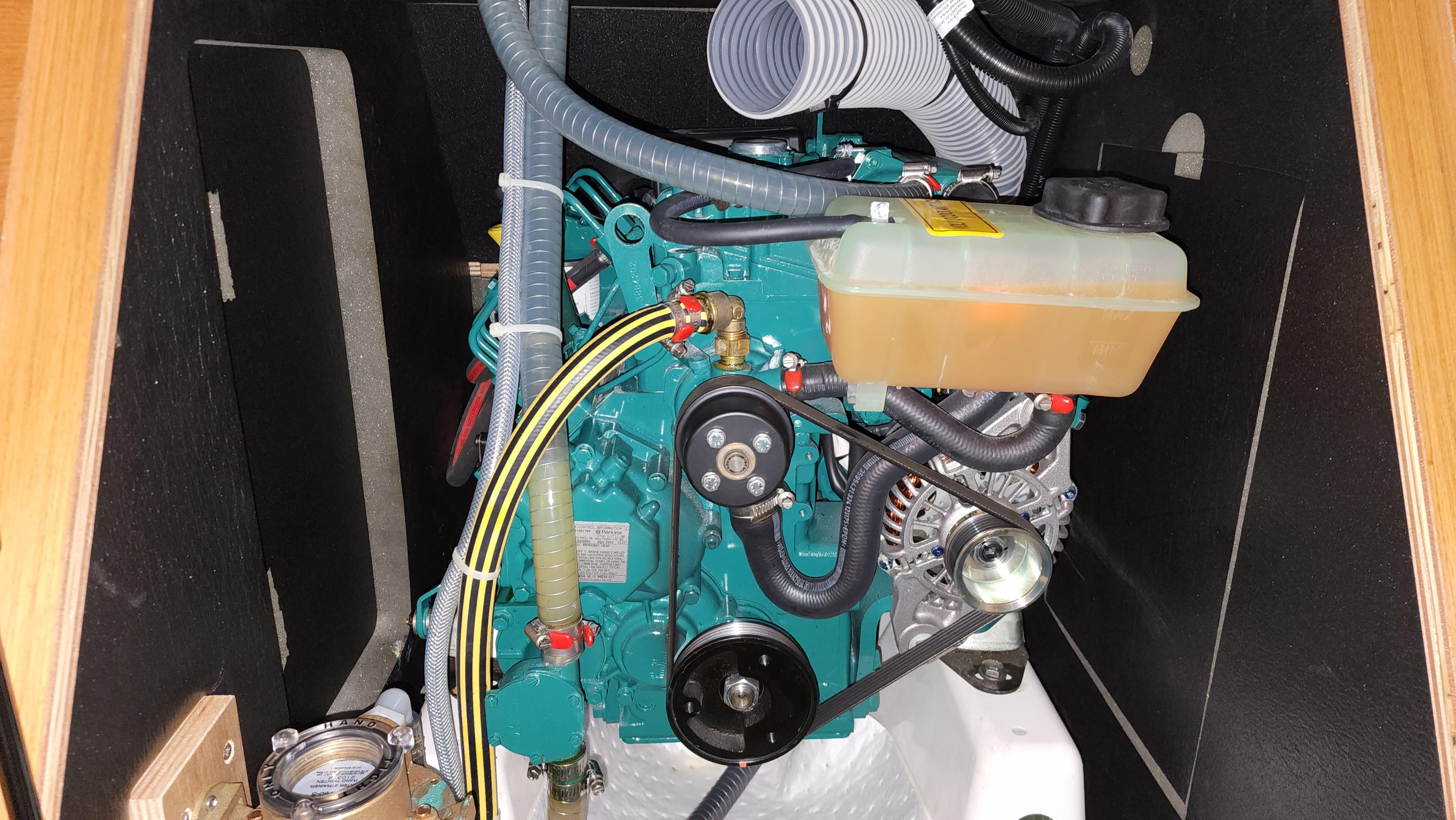

• Engine: Upgraded Volvo D1-30 freshwater cooled 29 HP
• Volvo 130S-D saildrive
• EDC Panel with voltage, temperature
• Saltwater strainer
• Propeller: 2 blade
• Sidepower retractable bow thruster

ELECTRICAL + PLUMBING

• 2 12V house batteries
• Separate starting battery

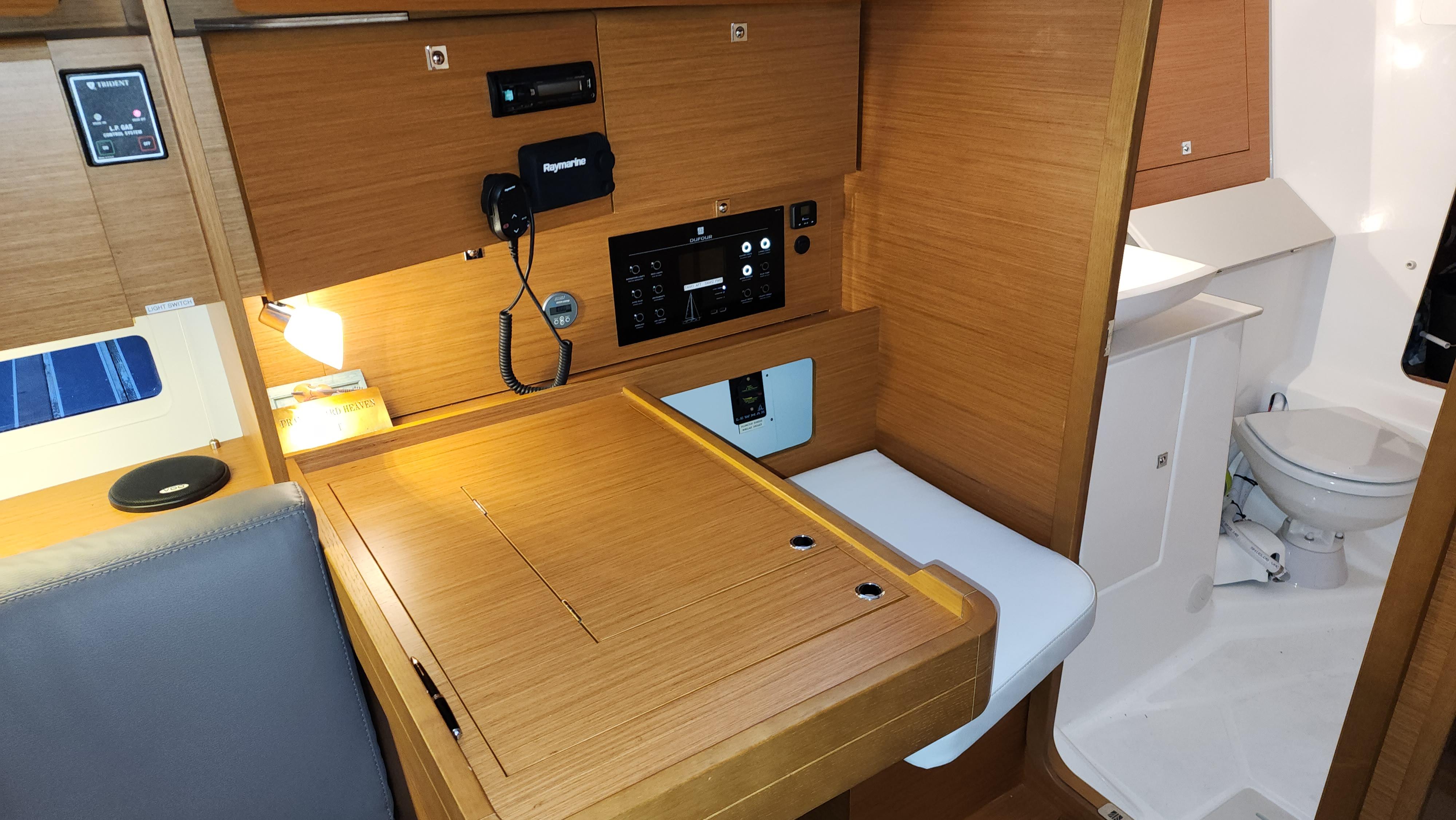

• Dufour panel with display for fuel, water and voltage indicators,
• AC 110v panel with breakers
• 25 amp battery charger
• Victron battery monitor
• Hot and cold shower in heads
• Aft deck hot and cold shower
• 20L hotwater tank off engine and shore power
• 12V water system pump
• Upgraded water tank forward
• Manual bilge pump
• Electric bilge pump
• LED running lights
• LED interior lights


Cockpit and Instruments

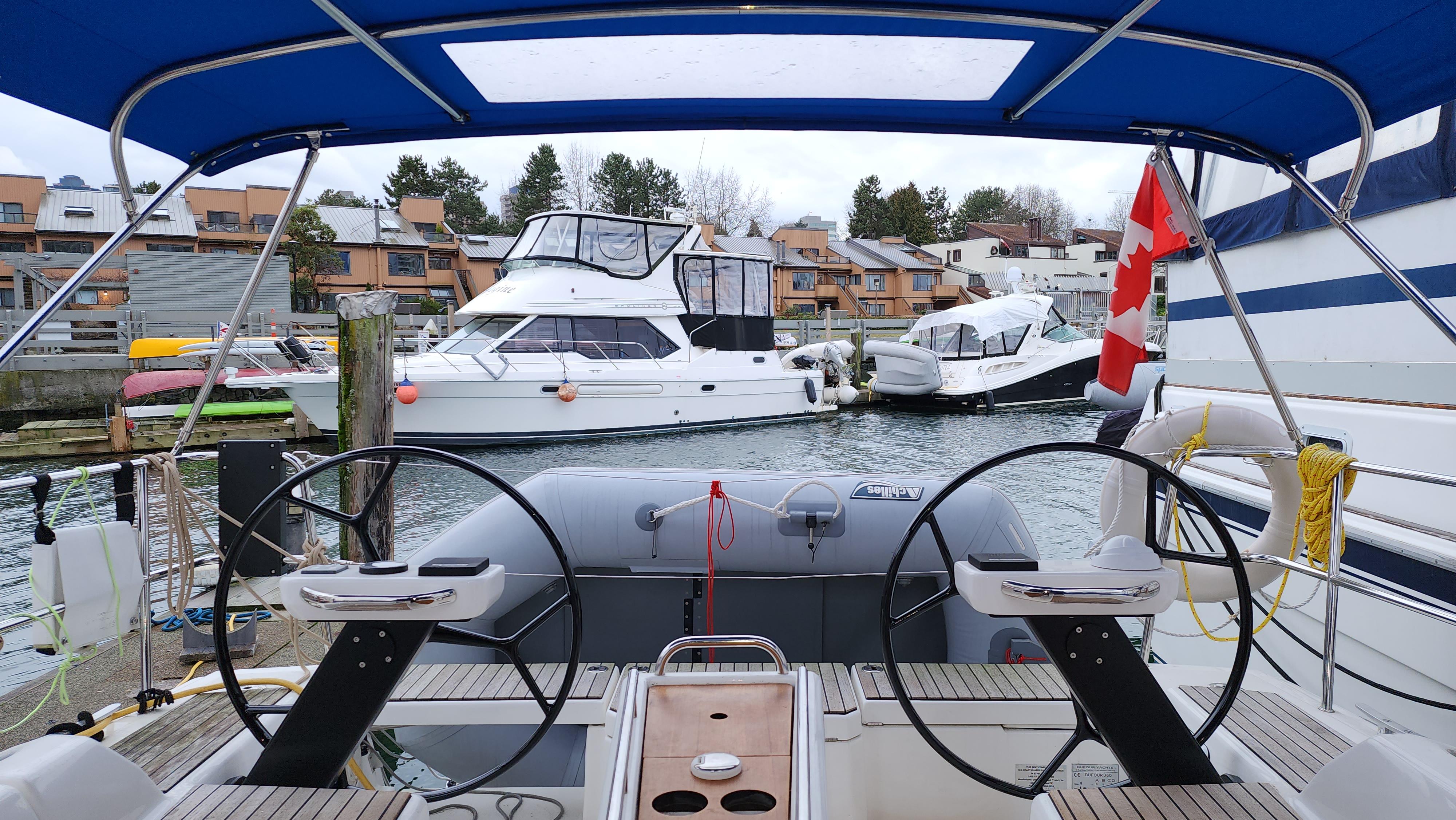

• Twin Pedestal steering
• Raymarine i70 multi-function display on port side
• Upgraded Raymarine Axiom 9” display in cockpit table
• Lewmar Rotative drive linked to Raymarine Evolution autopilot with P70 display

• Raymarine Ray53 VHF with DSC
• VHF speaker in cockpit
• AIS transceiver
• Plastimo compass
• Alpine stereo with speakers


SAILS & CANVAS

• Mainsail with full battens
• 2 reef points with single line reefing back to cockpit
• Upgraded Stack Pack mainsail cover with built in lazy jacks
• Self tacking jib with UV cover
• North A sail on top down furler 2022

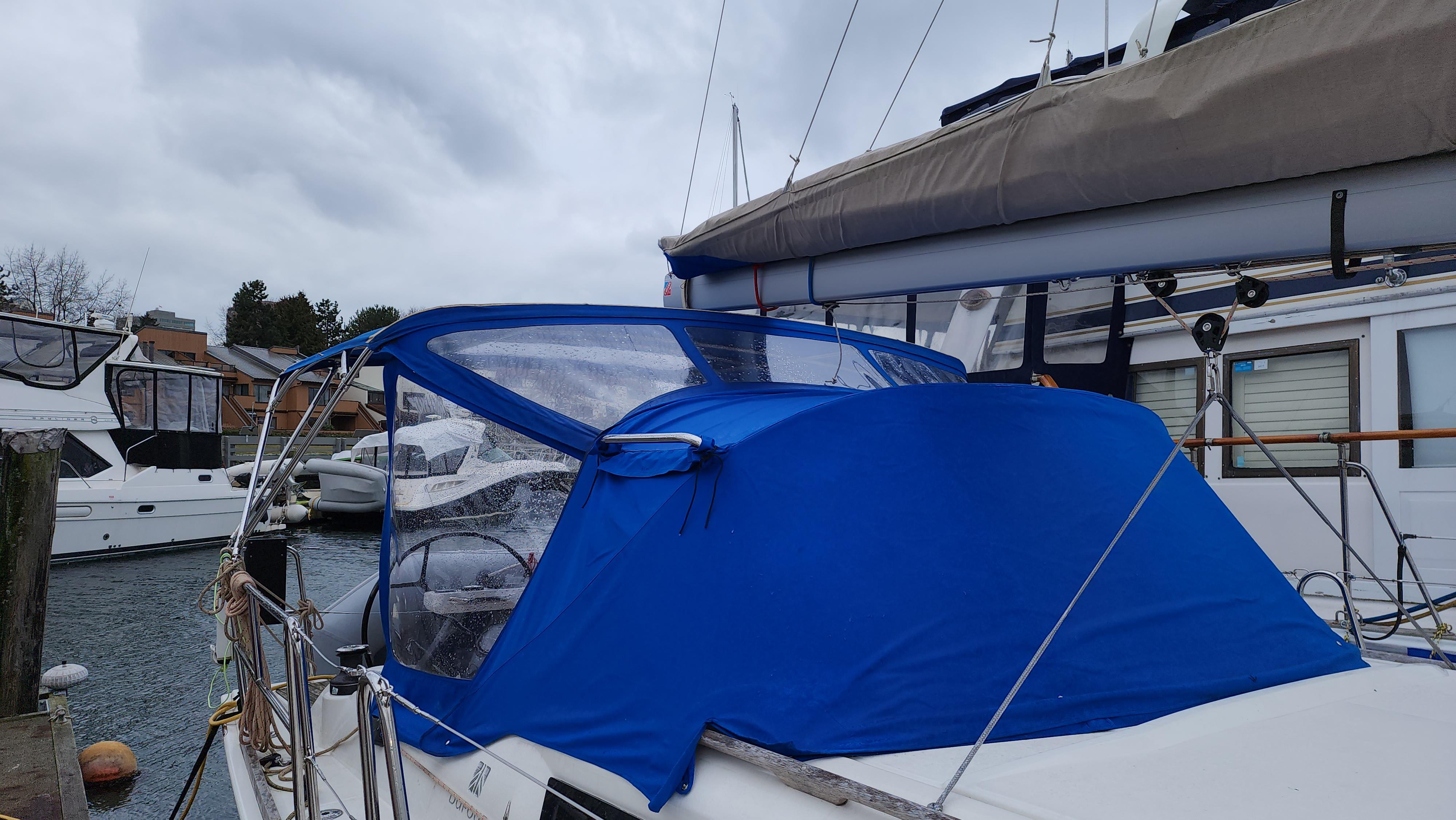

• Stainless steel framed dodger
• Bimini stainless steel frame
• Bimini dodger connector panel with window
• Cover for dodger
• Side panels port and starboard
• Marlon windows in dodger

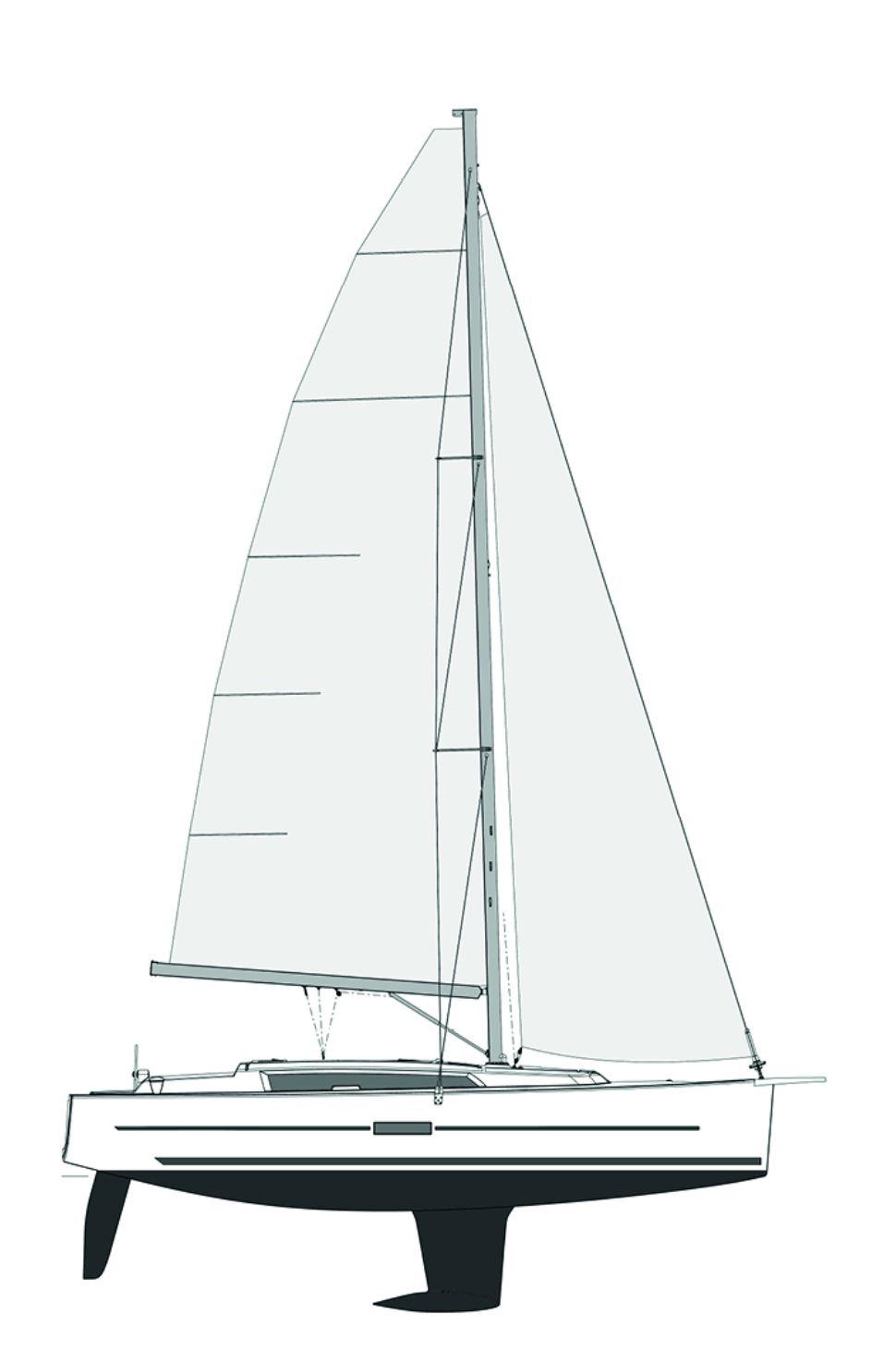

RIGGING

• Aluminum double spreader 9/10th rig
• Upgraded Strong Track for easy main drop
• Main halyard
• Jib halyard
• Upgraded Top down furling halyard
• All lines for using spinnaker
• Aluminum boom
• Solid boom vang with block and tackle
• 2 Lewmar ST 2 speed genoa winches
• 2 Lewmar ST 2 speed halyard winches

DECK EQUIPMENT

• Primary Anchor: Upgraded to a Rocna
• Rode: 55m chain
• Windlass: Lofrans 700w Electric Quick with up and down control in chain lock
• Upgraded lifelines are solid from stern to gates port and starboard
• Upgraded lifeline gates port and starboard
• Stainless steel pulpit and pushpit
• Upgraded Plancha BBQ built in with sink and hot and cold water in aft bench
• Custom folding cockpit cushions with upgraded covers
• Twin pedestals
• Upgraded Carbonautica composite wheels in black
• Cockpit seats covered in natural teak
• Custom Stainless steel grab rail at aft end of cockpit table
• Custom stainless steel rub strakes at lifeline gates port and starboard
• Upgraded dorados with stainless steel protection
• Large cockpit locker
• Bug screens for all hatches and ports

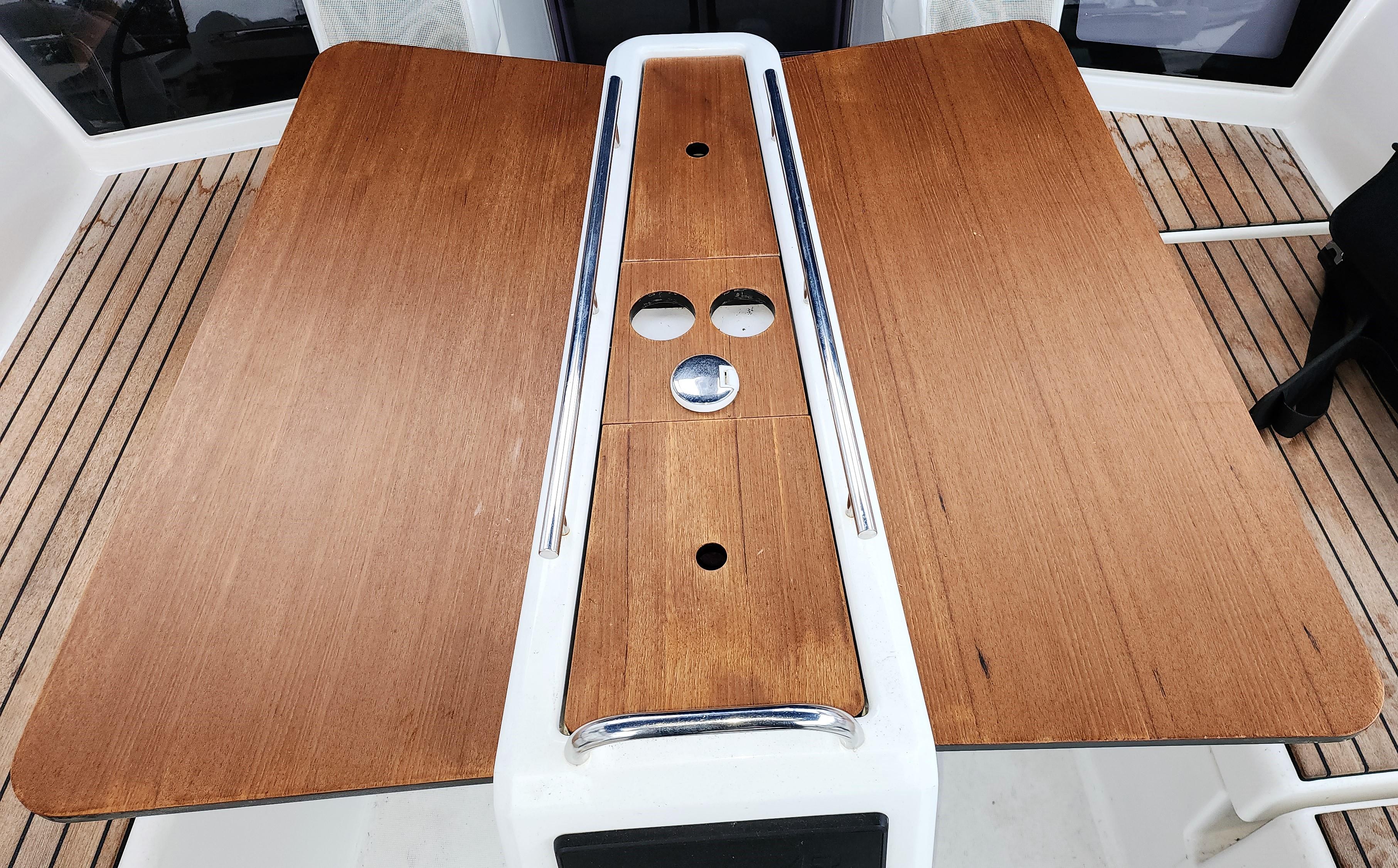

• Fiberglass cockpit table with wood composite dropdown leaves port and starboard
• Upgraded finish to wood on cockpit table
• Lifting foot braces for use when heeled sailing upwind
• Double hinged companionway doors

ADDITIONAL EQUIPMENT

• Bottom painted 2022
• Full Canadian Coast Guard safety equipment
• Docklines and fenders
• Shore power cord
• Outboard bracket on pushpit
• Swim ladder on stern
• Propane locker in stern venting overboard
